12V Addressable LED Strip
LEDSuntech offers high performance 12V addressable LED strips. Three main types of 12V addressable LED strips:
SPI External IC: Includes WS2811 LED Strip, GS8208 LED Strip, WS2818 LED Strip, and UCS1903 LED Strip, etc. These strips use an external SPI (Serial Peripheral Interface) controller. Allows for scalable and customizable configurations. Suitable for complex large installation lighting projects.
SPI Internal IC: Includes WS2815 LED Strip and SK6812 LED Strip, etc. These strips have an integrated SPI controller. This simplifies installation and reduces the need for additional hardware. While still providing high-speed data transmission and precise control. It is suitable for large installation projects with precise color control.
DMX LED Strip: DMX LED Strip is more suitable for professional lighting. Uses DMX512 protocol to achieve synchronized lighting effects. Widely used in stage performances, architectural lighting, and large display lighting.
The main difference between these types is their control mechanism. SPI external IC strips offer greater flexibility and are better suited for larger projects; SPI internal IC strips offer easy-to-use integrated controls that simplify installation; and DMX LED strips are designed to meet professional and synchronized lighting needs.
12V programmable LED strips have some advantages over 5V and 24V addressable LED strips. 12V addressable LED strips strike a balance between voltage drop and power efficiency. 12V pixel LED strips allow for longer run times without significantly reducing brightness or color consistency.
Common 12V addressable LED strip applications include commercial signage, architectural lighting, automotive lighting, outdoor displays, and large decorative installations.
Category
SPI External IC
WS2811 LED Strip
WS2811 DC12V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
We offer this RGB LED strip that controlled by external IC WS2811. There are 60 addressable white LEDs per meter, and 10mm wide PCB for 60LEDs/meter, DC5V input, with a density of 20 ICs per meter, each IC controls 3 LEDs. For white addressable LED strip normally the PCB is white color, we can supply black PCB as well.
WS2811 DC12V 30 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
This WS2811 CCT LED strip operates at a voltage of 12V, and one meter has 30 LEDs on 10mm PCB board, with a density of 10 ICs per meter, each IC controls 3 LEDs. This WS2811 LED strip is with 3 in 1 white LED chips, make it CCT addressable. This one is cost effective CCT addressable LED strip with less pixels and less LEDs per meter. If the budget is limited, this is a good option.
WS2811 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This WS2811 CCT LED strip is with 3 in 1 white LED chips, make it offers the versatility of CCT (Correlated Color Temperature) control. There are 60 addressable WWA LEDs per meter, and 10mm wide PCB for 60LEDs/meter, DC12V input, controlled by external IC WS2811, with a density of 20 ICs per meter, each IC controls 3 LEDs.

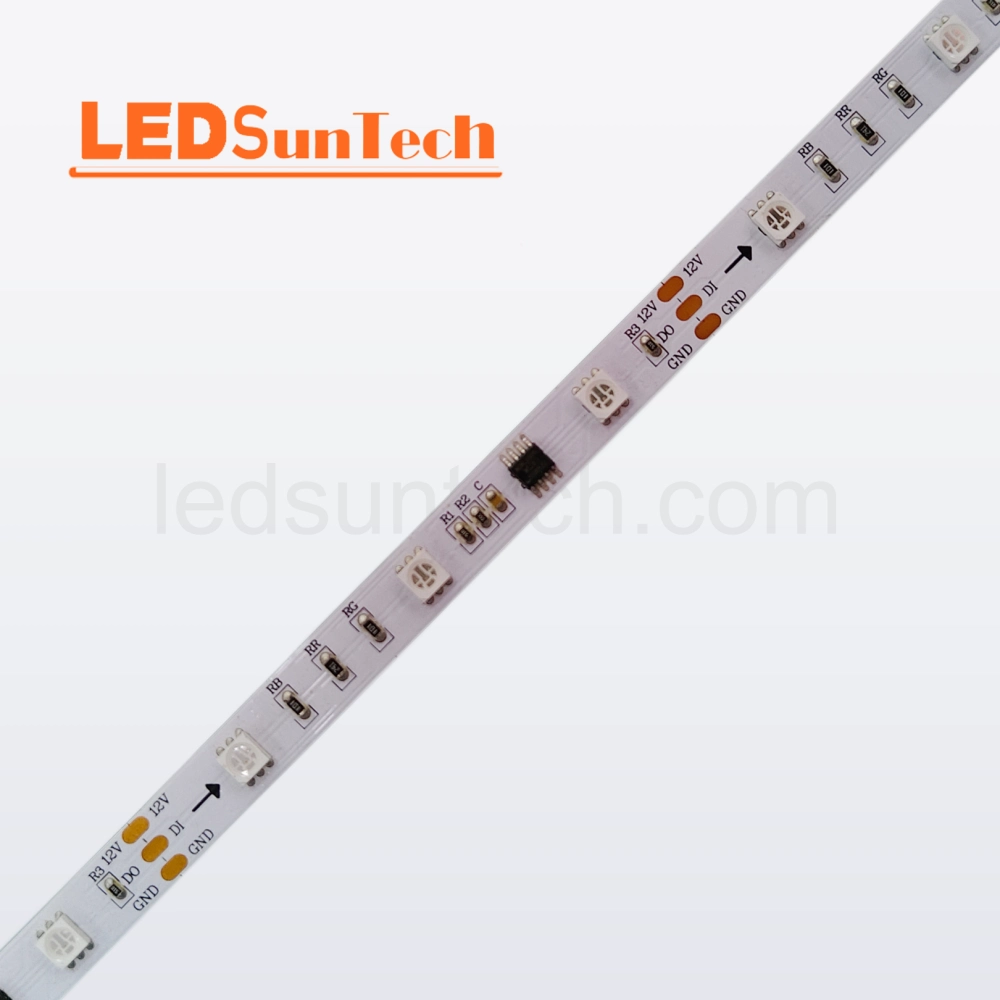

WS2811 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
This LED strip is similar to WS2811 DC12V 30 LEDs/m 10mm CCT LED Strip and is also a more cost effective choice, as it has 30 RGB LEDs per meter. WS2811 DC12V 30 LEDs/m 10mm RGB LED Strip operates at a voltage of 12V, with a density of 10 ICs per meter, each IC controls 3 LEDs, and the PCB width of this LED strip is 10mm.
WS2811 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: UV 365nm/395nm
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10 mm
This WS2811 RGB LED strip operates at a voltage of 12V, 60 RGB LEDs (20 WS2811 pixels) per meter on a 10mm width PCB, 3 LEDs can be cut. The cut length is accurate, and you can easily get the strip length you want to install. This WS2811 lights addressable led strip can display a variety of dynamic light effects through the WS2811 controller (SPI controller).
GS8208 LED Strip
GS8208 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This LED strip use GS8208 external IC, it has a break-continue function. If one LED is damaged, it will not affect the other LEDs working. This IC can control LED individually addressable, each LED can be addressed and show any color you want. And each LED is a 3in1 CCT LED with 3 color temperatures, soft white 3000K light, 4000k natural white and 6000K pure white light in one SMD LED.
GS8208 DC12V 50 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 50
Voltage: DC12V
Cutting Unit: 20 mm
Power: 12 W/m
Pixel Qty: 50 Pixels
Break Continue: Yes
PCB Width: 12mm
We offer this individually addressable RGB LED strip that controlled by external IC WS2811. This GS8208 RGB LED strip operates at a voltage of 12V, and one meter has 50 LEDs on 12mm PCB board, with a density of 50 ICs per meter, and you can control each LED individually. This LED strip has break-continue functionality, if one LED lose work, others still work.
GS8208 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10mm
There are 60 addressable RGB LEDs and 60 ICs per meter, 10mm wide PCB for 60LEDs/meter, DC12V input, and you can control each LED individually by GS8208 external IC, more stable than the built-in IC individually addressable LED strip such WS2815, WS2812. GS8028 IC adopts the chip of international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
WS2818 LED Strip
WS2818 DC12V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
White addressable LED strip with WS2818 IC, there are 60 LEDs per meter, and 10mm wide PCB width, DC 12V input, and every 3 LEDs can be cut! WS2818 can be regarded as the upgraded version of single signal WS2811 and SM16703, similar to FW1935. If one of the LEDs on the strip is damaged, the spare signal wire will continue to work properly, adding security to your addressable lighting project.
WS2818 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
A special DC12V addressable WS2818 CCT led strip with 60LEDs/m, each LED has 3 colors namely 3 in 1 white LED chip combines warm white 2700k, natural white 4000k and cool white 6500k. The DC12V LED strip light is a single IC control 3LEDs, 3LEDs cuttable. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.
WS2818 DC12V 72 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8 mm
A new DC12V addressable WS2818 addressable white led strip type. There are 72LEDs per meter on 8mm wide PCB. Compared to traditional 60 LEDs/m 10mm width white pixel strips, this product features higher LED density and a slimmer design. Can be fitted into narrower aluminum profiles. One WS2818 IC controls 3 LEDs, one IC control area per 42mm. 24 pixels per meter.
WS2818 DC12V 72 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8 mm
Special new 3 in 1 white addressable LED strip with WS2818 IC. There are three color temperatures on each LED, 2700K-3200K warm white, 4000K-4500K neutral white, and 6000K-6500K daylight or cool white. This LED strip has break-continue functionality, if one LED lose work, others still work. 72 LEDs per meter, 3 LEDs form one pixel, making 24 pixels total.
WS2818 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
There are 60 addressable RGB LEDs per meter, and 10mm wide for 60LEDs/meter, DC5V input, and a single WS2818 IC controls 3LEDs, 3LEDs cuttable, 20 pixels per meter in total. This LED strip has break-continue functionality, if one of the LEDs on the strip is damaged, the spare signal wire will continue to work properly, adding security to your addressable lighting project.
WS2818 DC12V 72 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 12mm
8mm PCB width, 72 RGB LEDs per meter, and one WS2818 IC controls three 5050SMD RGB LEDs, each 42mm (three LEDs) can be cut. Higher LED density and thinner PCB width allow it to fit into narrower aluminum profiles. This LED strip has break-continue functionality, only if the circuit of the two consecutive LEDs is damaged will cause the lights behind them not to light up.
UCS1903 LED Strip
UCS1903 DC12V 30 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
The UCS1903 IC is similar to WS811 IC in function, but the former is more stable in performance. 10mm PCB width, 30 white LEDs per meter, and one UCS1903 IC controls three LEDs, each 100mm (three LEDs) can be cut. We have redesigned the UCS1903 LED strip with a new 3oz PCB board design that extends its single-sided power input working distance from 5m to 10m.
UCS1903 DC12V 30 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
There are 30 addressable CCT LEDs per meter, and 10mm wide for 30LEDs/meter, DC5V input, and a single WS2818 IC controls 3LEDs, 3LEDs cuttable, 10 pixels per meter in total. Each LED is a 3in1 CCT LED with 3 color temperatures. Unlike common UCS1903 12v LED strip in market, our new design use 3oz PCB can support up to 10 meters longer distance.
UCS1903 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
This dream color UCS1903 RGB LED strip has a density of 30 LEDs per meter, the external UCS1903 IC are mounted on the PCB, with 10 ICs per meter. One UCS1903 IC controls three SMD5050 LEDs. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.
SPI Built-in IC
WS2815 LED Strip
WS2815 DC12V 84 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 84
Voltage: DC12V
Cutting Unit: 11.9 mm
Power: 12 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10mm
Built-in WS2815 IC 12V SMD5050 addressable white LED strip, each SMD5050 LED can be individually programmed and controlled, one meter has 60 LEDs on 10mm wide PCB board. The WS2815 IC can be regarded as the upgraded version of single signal WS2812. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.
WS2815 DC12V 96 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 96
Voltage: DC12V
Cutting Unit: 10.41 mm
Power: 13.8 W/m
Pixel Qty: 96 Pixels
Break Continue: Yes
PCB Width: 10mm
10mm PCB width, 96 white LEDs per meter, and one WS2815 IC controls one 5050SMD white LED, one LED one cut. This WS2815 RGB LED strip operates at a voltage of 12V, for the 5M WS2815 LED strip, there is no voltage drop even if all LEDs are turned on to full white light. You don’t need to inject power as frequently as the 5V WS2812 LED strip.
WS2815 DC12V 120 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 10mm
There are 120 addressable white LEDs per meter, and 10mm wide PCB for 120LEDs/meter, DC5V input, and you can control each LED individually by WS2815 built-in IC. 120 LEDs per meter high-density design makes this pixel white led strip have a very uniform light performance. The PCB is designed with one data wire and one backup data wire if one LED lose work, others still work.
WS2815 DC12V 60 LEDs/m 8mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 8 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 8 mm
This DC12V individually addressable S-type LED strip is controlled by WS2815 IC to display RGB color chasing led light color, 60 LEDs per meter, 10mm PCB width. This S type LED strip is designed for sign makers to make vivid colorful channel letters, with bendable PCB it is easy to install inside the signage to make RGB visual impact.
WS2815 DC12V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 8.6 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 8 mm
We offer this individually addressable RGB LED strip that controlled by build-in IC WS2815 (Upgraded WS2812B). This WS2815 RGB LED strip operates at a voltage of 12V, and one meter has 60 LEDs on 8mm wide PCB. Compared to the common WS2815 60 LEDs/m 10mm LED strip, the 8mm PCB width allows it to fit into narrower aluminum profiles.
WS2815 DC12V 84 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 84
Voltage: DC12V
Cutting Unit: 35.7 mm
Power: 18 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10 mm
A new DC12V addressable WS2815 addressable RGB led strip type. It has a different LED density compared to the regular WS2815: 84 LEDs/m, and same width 10mm. If need uniform lighting, this is a good option. This LED strip has break-continue functionality, only if the circuit of the two consecutive LEDs is damaged will cause the lights behind them not to light up.
WS2815 DC12V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5 mm
Upgrade your lighting experience with 12V WS2815 RGB LED strip, This WS2815 addressable LED strip light adopts an ultra-narrow 3.5*3.5mm LED chip with the driver IC integrated inside the SMD3535, easy to fit into many places where space is limited, achieving an ultra thin PCB width of 5mm and high LED density of 120LEDs/m. Higher brightness and more even light, perfect to be installed at narrow places and easy to be hidden.

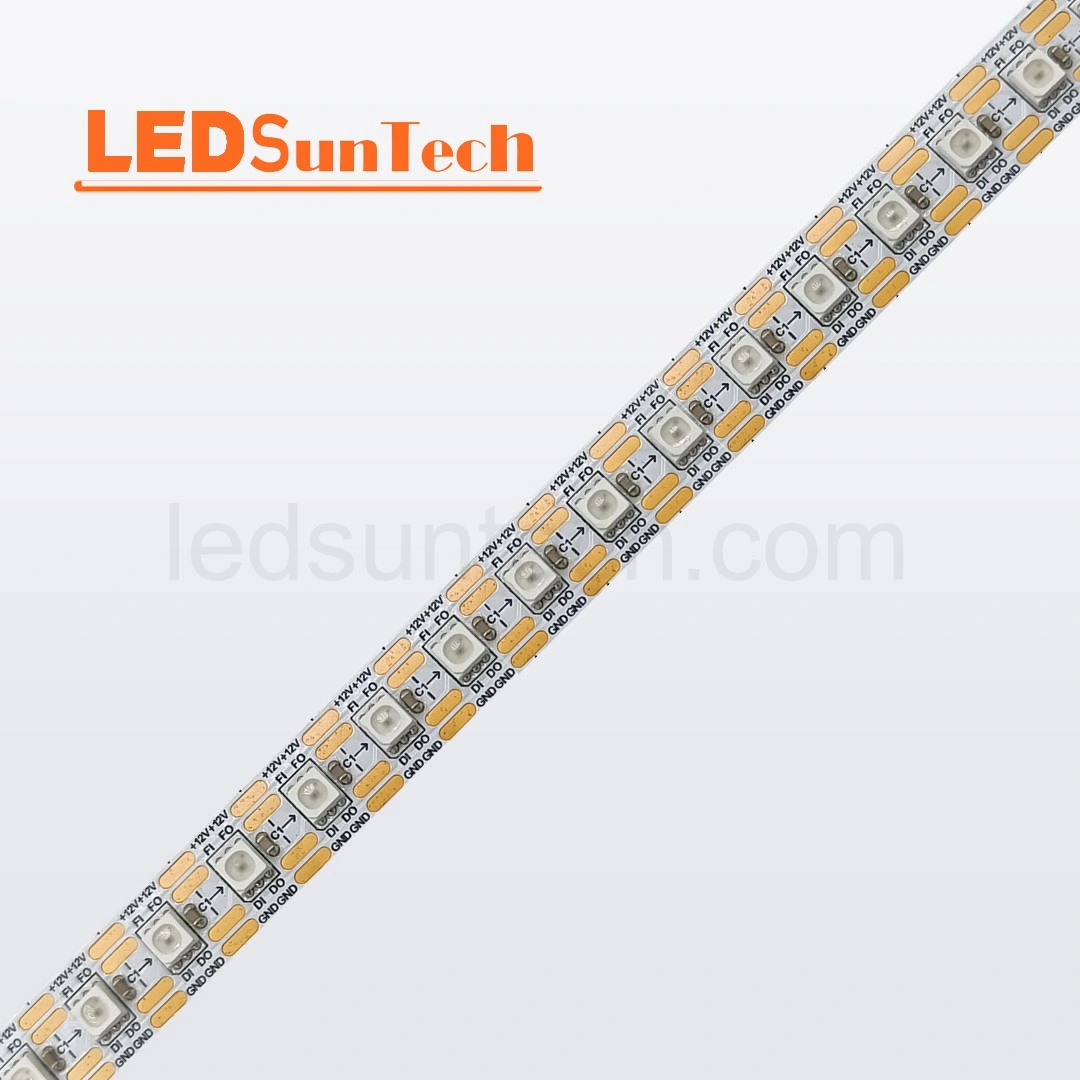

WS2815 DC12V 120 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 12 mm
New individually addressable RGB LED strip design at DC12v and high density 120leds/m with 12mm PCB, and you can control each LED individually by WS2815 built-in IC. This LED strip has break-continue functionality, if one of the LEDs on the strip is damaged, the spare signal wire will continue to work properly, adding security to your addressable lighting project.
WS2815 DC12V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC12V
Cutting Unit: 13.89 mm
Power: 20.6 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
The highest LED density addressable WS2815 RGB LED strip, with 144 SMD5050 LEDs per meter on 12mm wide PCB. DC 12V input and each RGB LED individually addressable. Dense LED arrangements can promise a more uniform illumination with a diffuser. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.
DMX
DMX DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
There are 60 addressable CCT LEDs per meter, each LED has 3 colors namely 3 in 1 white LED chip combines warm white 2700k, natural white 4000k and cool white 6500k. 10mm wide PCB for 60LEDs/meter, DC12V input, and a single DMX512 IC controls 3LEDs, 20 pixels per meter in total. This LED strip has break-continue functionality, if one LED lose work, others still work.

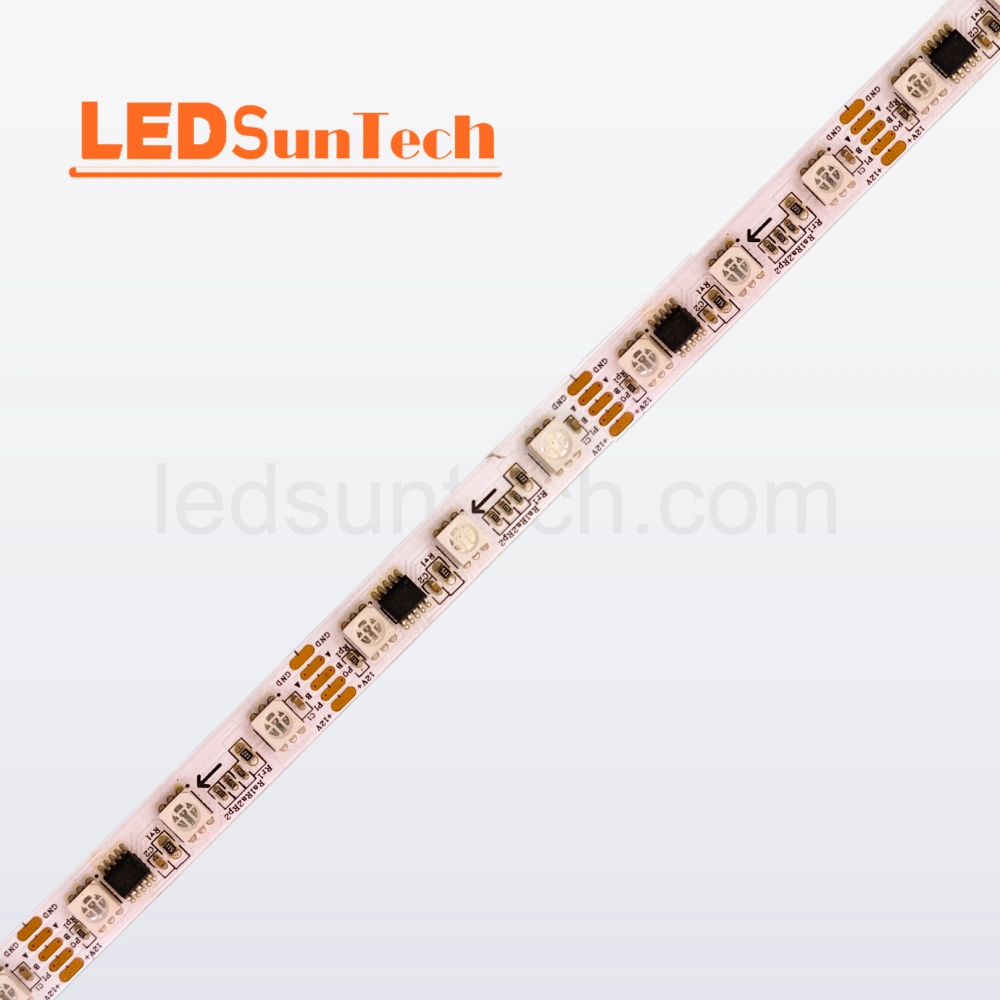

DMX DC12V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 33.3 mm
Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 8 mm
We offer a special DC12V addressable DMX512 LED strip with 60LEDs/m. Compared to the commonly available DMX 12V LED strip lights with 60 LEDs per meter and 20 pixels per meter on the market, it offers a higher pixel density of 30 pixels per meter. Each 2 LED of this DMX RGB LED strip is controlled by a 10-pin UCS512 DMX512 IC chip, so 2 LEDs are a pixel.
