170 Degree Wider Beam Angle Lensed Optical LED Strip For Light Box Signage Illumination
What is a Lens LED Strip?
Simply put, a lens LED strip is a regular LED strip with a small “magnifying glass” (optical lens) added to each LED to change and optimize the way light is emitted.
Without a reflector or lens, the light emitted by an LED bulb will scatter in all directions, neither reaching far nor focusing. However, with a lens, the light is “focused,” illuminating further, brighter, and with greater directionality.
Features of lens light strips：
The best part about our new LED strip with lens is that you don’t have to solder it.
170° ultra-wide beam angle, which makes it easy to see in large regions.
High luminous efficiency keeps the lightbox display bright and steady for a better view.
24V low-voltage power supply that is safe to use and works with most power installations.
With optical lenses, the light is focused and even, with no glare or spots.
You may change the colour temperature to move between warm and cool light to match the mood of the display.
If you are doing advertising signs, building lighting, or need to highlight the lighting effect, lens light strips are an ideal choice.
This optical LED light strip with a lens is mainly suitable for the following scenarios:
- Advertising light box lighting: Such as single and double-sided light boxes in shopping malls, subway stations, and along streets, providing uniform backlight effects without dark areas.
- Signboard backlighting: It is used for enterprise logos, wayfinding signs, floor indications, etc., to make the text and patterns clear and eye-catching.
- Architectural outline or decorative lighting: It is used in indoor ceilings, decorative walls, bars, and other places where concealed and uniform lighting is required.
- Ultra-thin light boxes and custom illuminated letters: Particularly suitable for thin and light light boxes with thickness requirements, achieving high brightness without light spots.
What are the distinctions between ordinary LED strips, neon LED strips, and lens LED strips?
Regular LED Strips light up from the top or one side, with bright LED beads and light that is not too direct. They are good for lighting up a room or under a cabinet.
Neon LED Strips light up everything around them and give off soft light like a glass neon tube. They are great for illuminated text and artistic decoration.
Lens LED Strips give off focused light in a certain direction. They are quite bright, can go a long way, and are great for advertising signs and illuminating buildings.
Why choose this 170° wide-angle lens LED light strip?
One-piece formed optical lens design: By using precision injection molding technology, the lens and LED light beads are seamlessly combined, completely eliminating the common “light bead grilliness” and light spot problems of traditional light strips, achieving a truly uniform and soft surface light source effect – especially suitable for advertising light boxes and high-end signs with strict requirements for light efficiency.
Strict brightness and color temperature grading: Each batch of products undergoes professional grading screening before leaving the factory to ensure that the light strips within the same order are highly consistent in brightness and color temperature, avoiding the embarrassing situation of “one part being bright and the other dark” or “mixed warm and cold” after installation, and ensuring the overall visual uniformity.
Support customization according to project requirements：Color temperature (2700K – 6500K, even RGB/RGBW), power density , strip length (whole roll or fixed length cut), Protection class (IP20 indoor/IP65、IP67 Sand other waterproof level).
Safe and reliable, with complete certifications: The product complies with international mainstream safety and environmental protection standards, including RoHS (Free of hazardous Substances) and CE (EU certification). Some models have passed UL/cUL (North American safety regulations Certification), and can be used with confidence in commercial and public space projects.
Optimized for light box and sign lighting: Not just ordinary light strips – from light shape, structure to heat dissipation design, all are deeply developed around “backlight uniformity” and “long-term stability”, making it an ideal choice for advertising manufacturers, sign engineering contractors and lighting designers.
LED Strip with Lens Products

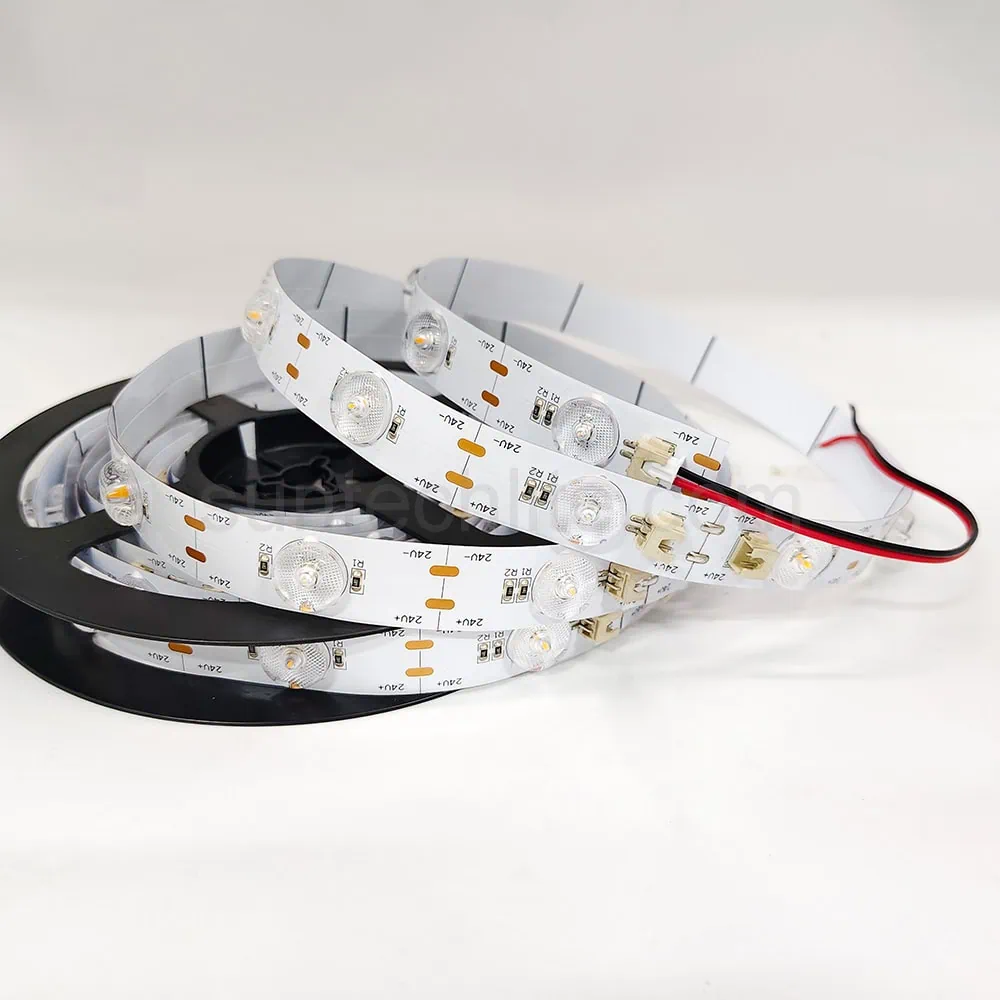

24V 170 Degree Lens Flexible LED Tape Light For Backlit
PCB Width: 20 mm
LED Density: 18 LEDs/m
Power: 18 W/m
Voltage: 24 V
Color: 1800K/2700K/3000K/4000K/5000K/6000K
Waterproof Grade: IP20
It offers multiple color temperatures such as 3000K (warm white), 4000K (natural white), and 6500K (cool white) to meet the atmosphere requirements of different scenes. It is ideal for commercial and indoor lighting scenarios such as advertising light boxes, illuminated letters, wayfinding signs, display cabinets, cabinet backlighting, and architectural outline lighting.
24V Optical Lens Tunable White LED Strip For Light Box Lighting
PCB Width: 20 mm
LED Density: 28 LEDs/m
Power: 24 W/m
Voltage: 24 V
Color: 1800K/2700K/3000K/4000K/5000K/6000K
Waterproof Grade: IP20
It integrates warm white (such as 2700K/3000K) and cold white (such as 6000K/6500K) LED chips. Through the controller, the color temperature can be infinitely adjusted from 2700K to 6500K, easily matching different environmental atmospheres . It supports long-term continuous operation and is suitable for commercial Spaces, public facilities and other places with high safety requirements.
24V Flexible LED Panel Sheet With Optical Lens For Marble Illumination
Voltage: 24V
Power: 20W
LED Qty: 98 pcs
PCB Size: 500*250mm
CRI: >80
Color+Lumen Flux: White
Light Efficiency: 95 Lm/w
Dimensions: 24V 35.71*35.71mm
It is suitable for atmosphere creation and key lighting in scenarios such as marble background walls and decorative surfaces.The panel surface is covered with high-transmittance wide-angle optical lenses, achieving a uniform surface light source without glare or light spots, avoiding the “bright spots” or “light shadows” problems caused by traditional point light sources.
