24V Addressable LED Strip

LEDSuntech’s 24V addressable LED strips provide high-performance and energy-efficient lighting effects. LEDSuntech offers three main types of 24V addressable LED strips:

SPI External IC: including UCS2903 LED Strip, WS2811 LED Strip, FW1935 LED Strip, UCS2904 LED Strip, SM16703 LED Strip, UCS1903 LED Strip, WS2818 LED Strip, and UCS7604 LED Strip, etc. These strips use an external SPI (Serial Peripheral Interface) controller and are ideal for complex custom lighting projects.

SPI Built-in IC: such as SK6812 LED Strip and WS2818 LED Strip. These strips have an integrated SPI controller. Flexible and easy installation. High data transfer speed and precise control of each LED.

DMX LED Strips: DMX LED strips use the DMX512 protocol to achieve synchronized and programmable lighting effects. Suitable for theatrical lighting, architectural lighting, and large event lighting.

Common applications for 24V addressable LED strips include commercial signage, large architectural lighting projects, outdoor installations, industrial settings, and extensive decorative displays. Its ability to provide vibrant and consistent lighting over long distances makes LEDSuntech’s 24V addressable LED strips an excellent choice for large commercial projects and creative installations.

Category

SPI External IC

UCS2903 LED Strip

UCS2903 DC24V 120 LEDs/m 20mm White LED Strip

Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm

There are 120 Addressable White LEDs per meter and 20mm wide pcb board for the 120LEDs/meter, DC 24V input voltage, and every 6 LEDs per row can be cut! Designed with tightly spaced two rows of 5050 White LEDs, this UCS2903 digital led tape creates an intense and even glow that brings a breathtaking visual feast to the environment.

UCS2903 DC24V 120 LEDs/m 20mm CCT LED Strip

Color: CCT
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm

There are 120 addressable CCT LEDs per meter. The voltage is DC24V, allowing long run distance. Three color temperatures ranged from 1800K-6500K are available for choice, which provides more diverse lighting effect for your application. This double row 20mm wide pcb board makes more SMD5050 LED diodes available within the same length. Therefore, higher light intensity and brightness will be generated.

UCS2903 DC24V 120 LEDs/m 20mm RGB LED Strip

Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20mm

There are 120 addressable RGB LEDs per meter. With DC24V input voltage, the led strip is 6 LEDs cuttable for one row. 5050RGB LED is controlled by UCS2903 IC with two data transmission wires which enables data continuity with one LED broken. 20mm wide pcb provides more RGB LEDs at the same length, which better helps to create the atmostopher you needed.

UCS2904 LED Strip

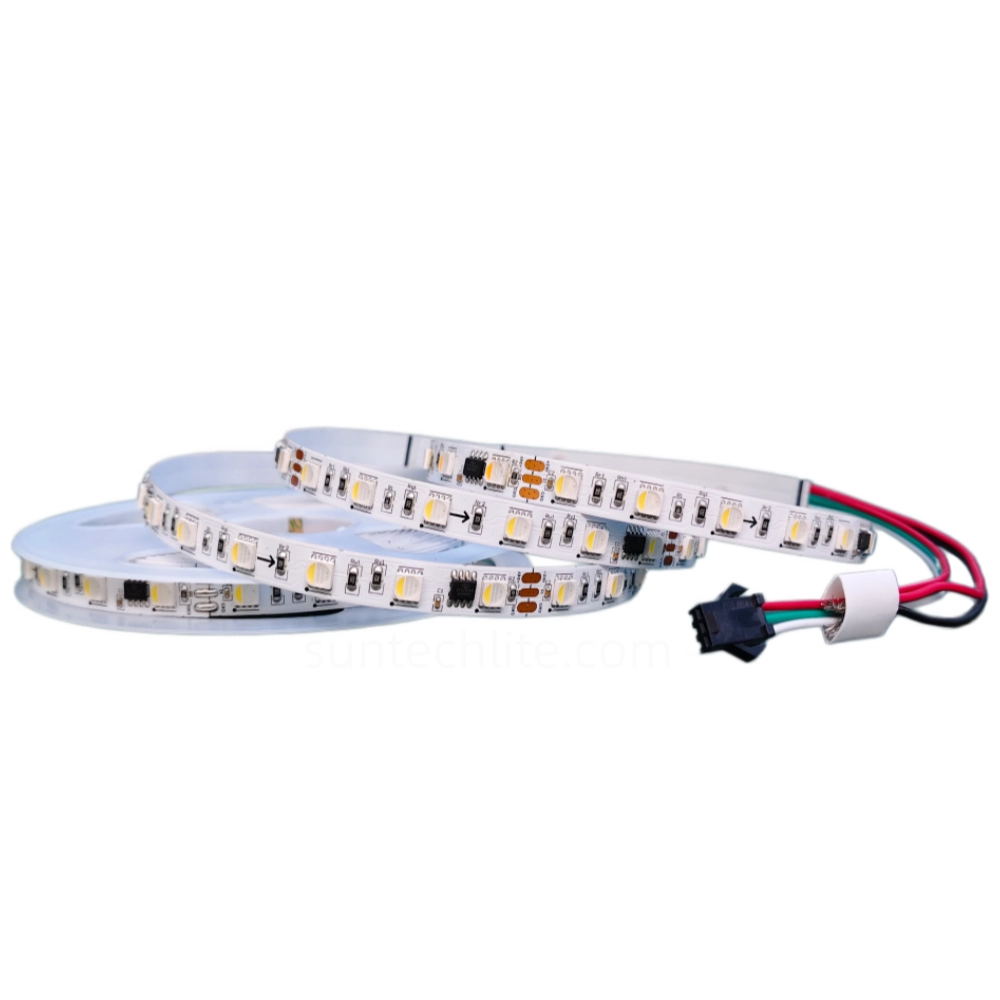

UCS2904 DC24V 60 LEDs/m 10mm RGBW LED Strip

Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15 mm

There are 60 addressable RGBW LEDs per meter. With DC24V input voltage, 6 LEDs are controlled by one pixel and there are 10 pixels in total for one meter. 10mm wide pcb is suitable for the SMD5050 RGBW LEDs. Two positive wires and two negative wires come out from the led strip to ensure enough power supply. That’s why this UCS2904 led strip can run at least 20 meters with single feed and no voltage drop.

UCS1903 LED Strip

UCS1903 DC24V 60 LEDs/m 10mm White LED Strip

Color: White
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm

There are 60 addressable White LEDs per meter. Black pcb board makes this led strip suitable for nightclubs, stage and other dark environments. With DC24V input, each 6 LEDs are controlled by UCS1903 IC. Compared with WS2811 IC, UCS1903 can run longer distance with no voltage drop because of its dual data transmission wires. UCS1903 led strip can run more than 20 meters with single feed.

UCS1903 DC24V 60 LEDs/m 10mm CCT LED Strip

Color: CCT
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm

There are 60 addressable CCT LEDs per meter. Compared with white color, CCT LEDs provide more various color temperatures. Black pcb is available. UCS1903 led strip has higher port scan frequency than WS2811 led strip. The port scan frequency of UCS1903 IC is 3500Hz, while WS2811 IC is only 400Hz. Besides, UCS1903 IC has a better performance in anti-static ability.

UCS1903 DC24V 30 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 30
Voltage: DC24V
Cutting Unit: 50 mm

Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm

There are 30 addressable RGB LEDs per meter. With DC12V input and relatively less LEDs per meter, the power consumption of the led strip is only 7.2W. But this led strip can run at least 15 meters with no voltage drop if power from one end. It is suitable to be applied to occasions where less power is needed while long run distance is also necessary.

UCS7604 LED Strip

UCS7604 DC24V 60 LEDs/m 10mm RGBW LED Strip

Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm

There are 60 addressable RGBW LEDs per meter. 10mm wide pcb board is appropriate for SMD5050RGW LEDs. RGBW LEDs provide larger range of color-changing patterns, which makes this led strip a good choice for big projects. This led strip is 6 LEDs cuttable, which is very flexible to be cut in different length. Dual data transmission also makes it more reliable.

WS2811 LED Strip

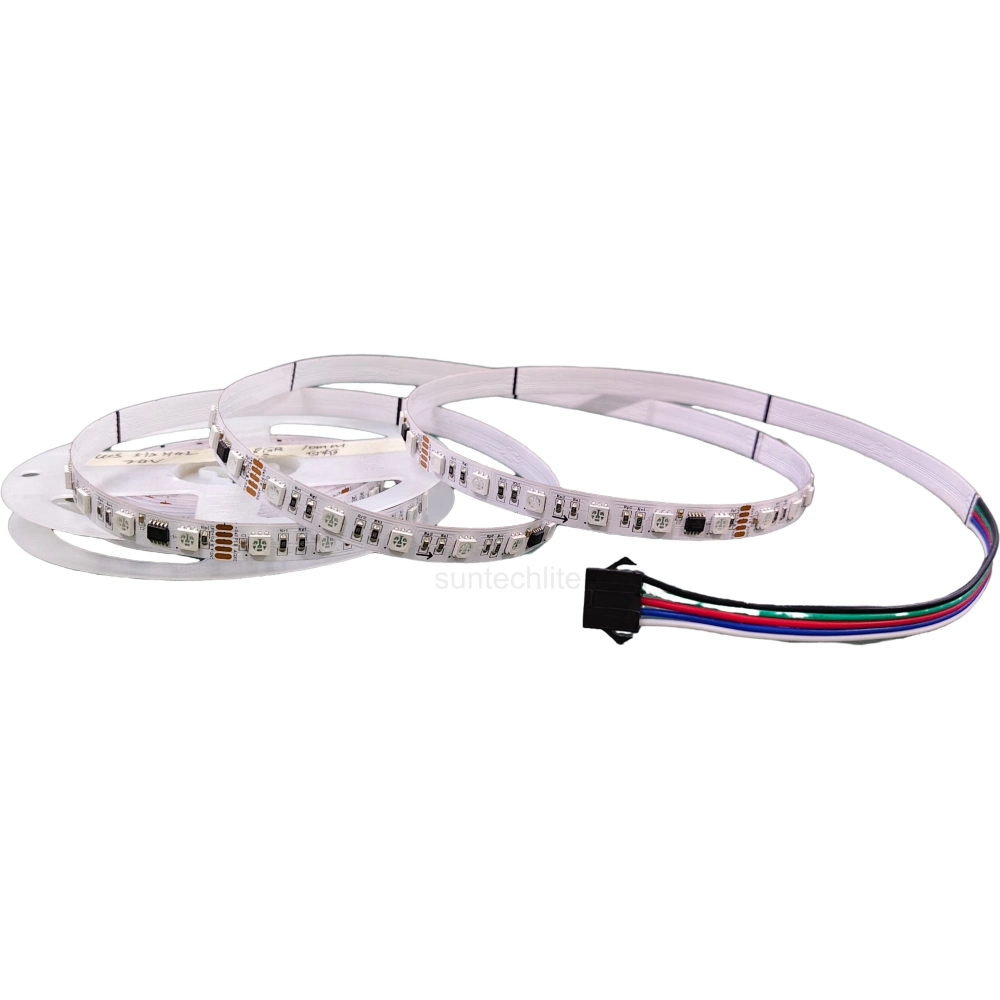

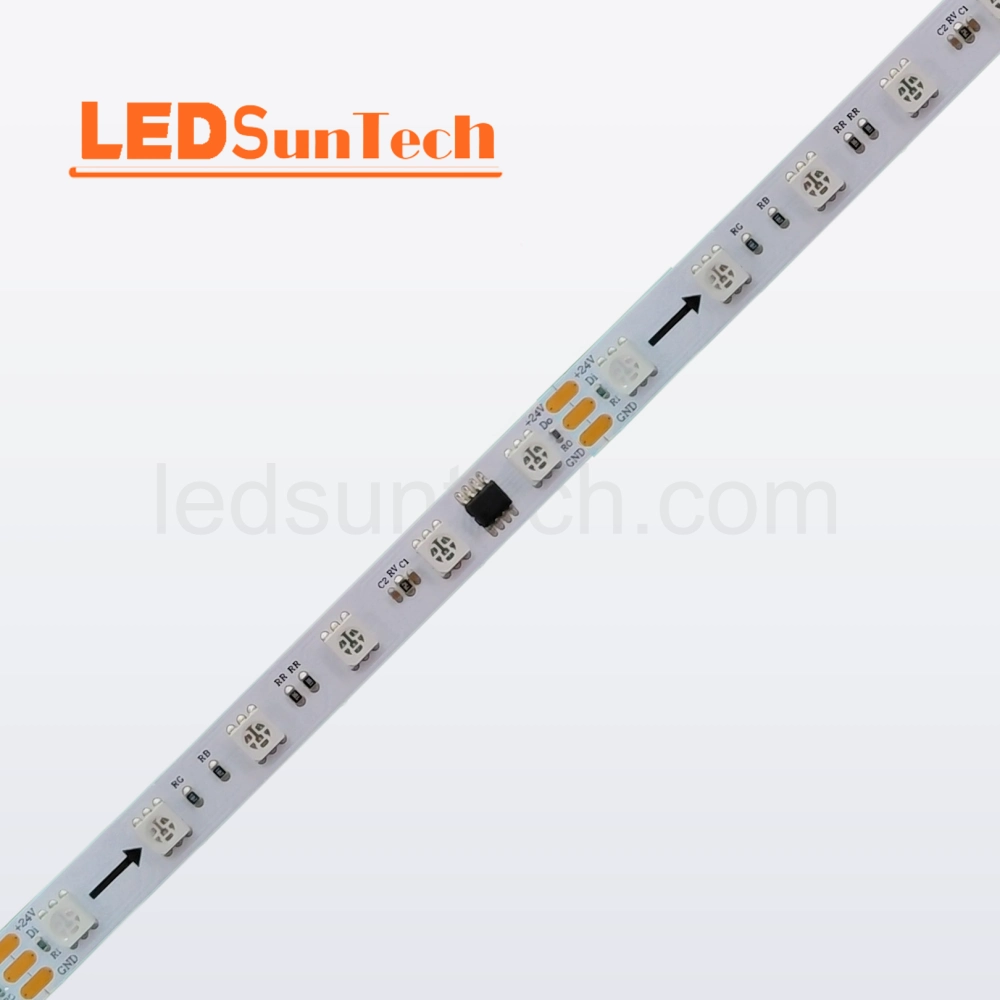

WS2811 DC24V 60 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 50 mm

Power: 28.8 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm

There are 60 addressable RGB LEDs per meter. The input voltage is 24V, which means it is 6 LEDs cuttable. These digital RGB LED strips are controlled by WS2811 IC which is built in 5050 SMD LEDs. Each 6pcs of SMD5050 RGB LEDs are controlled by one IC, which brings an aesthetically pleasing appearance.

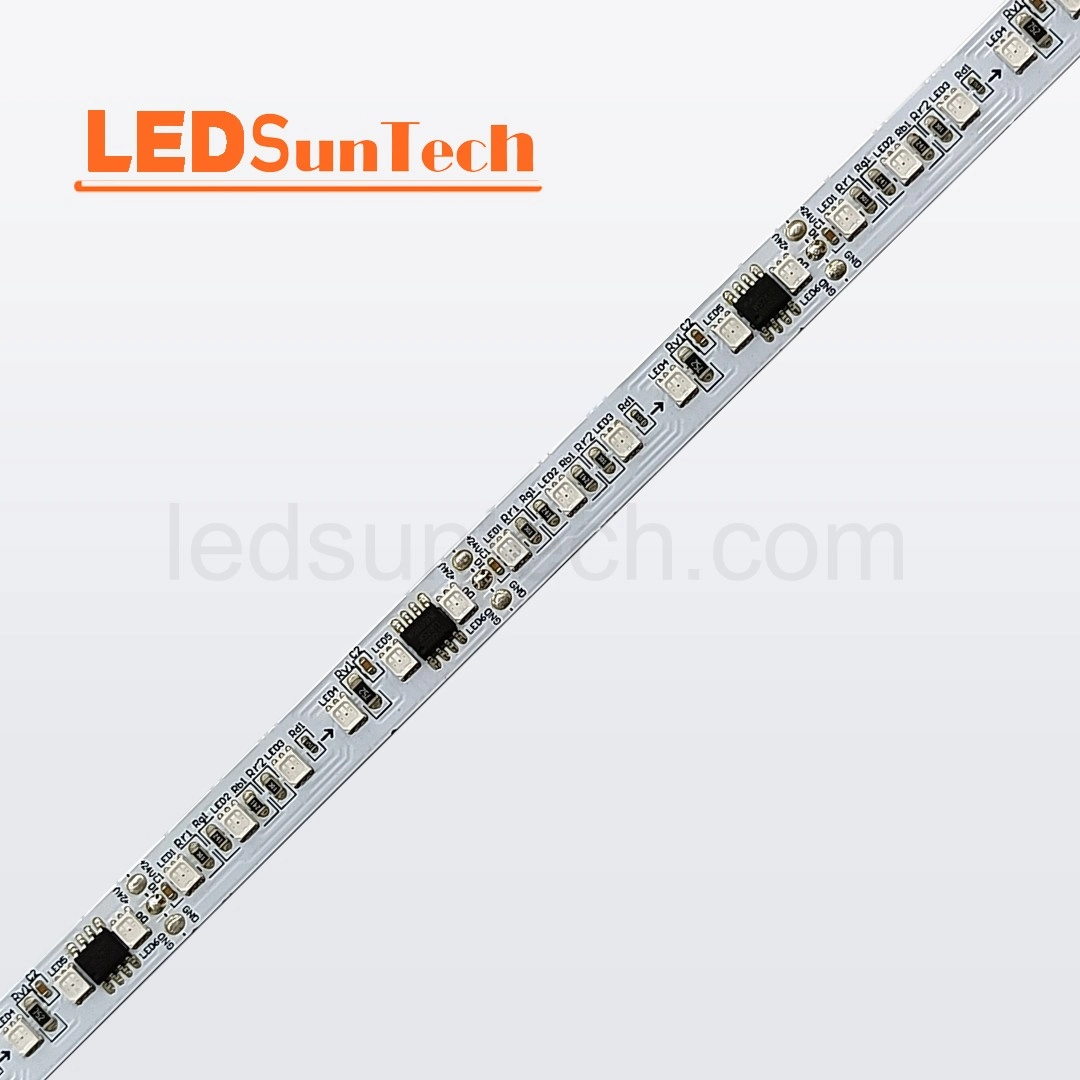

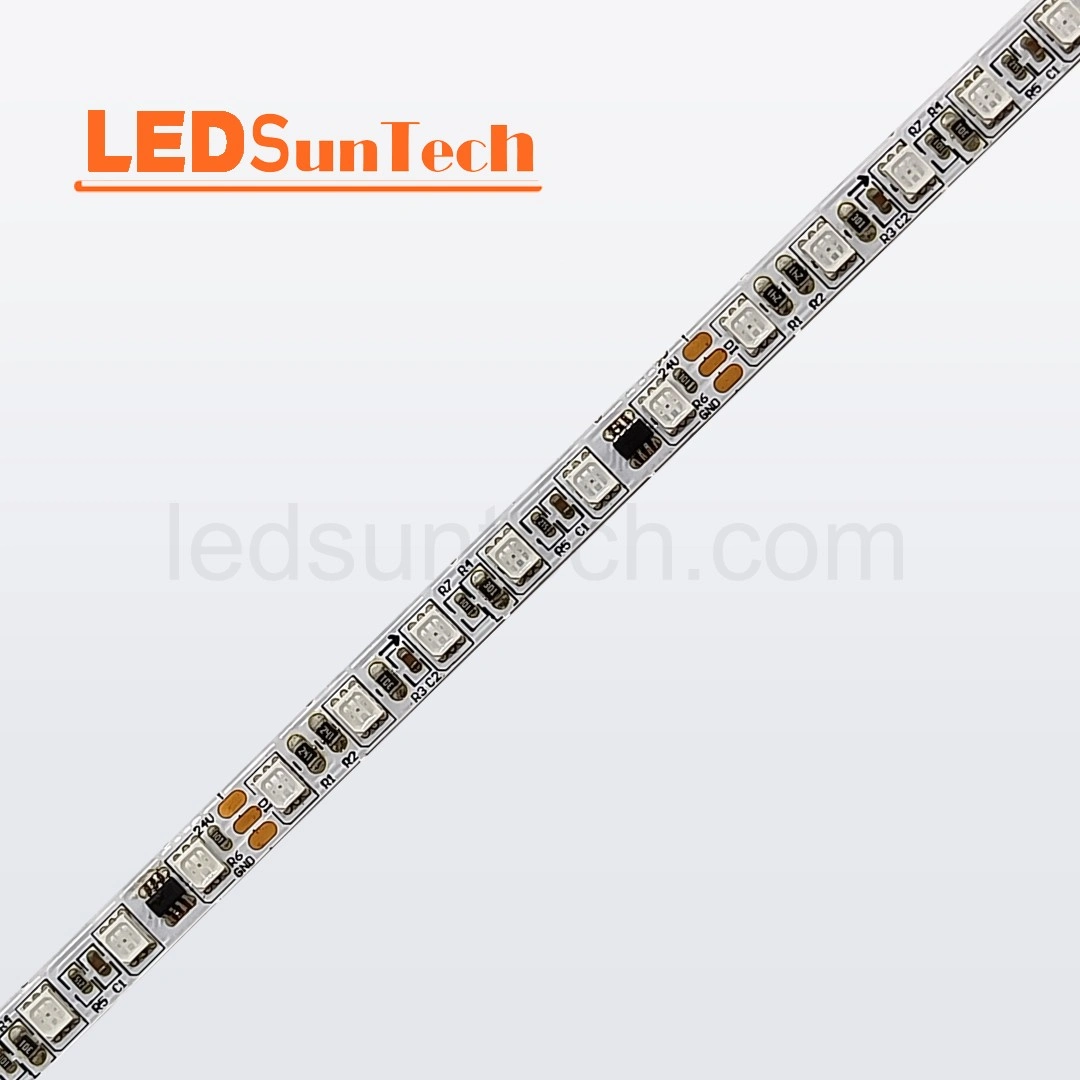

WS2811 DC24V 96 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5 mm

Power: 19.2 W/m
Pixel Qty: 16 Pixels
Break Continue: No
PCB Width: 10mm

There are 96 addressable RGB LEDs per meter. These led strips are 24V and each 6 LEDs can be cut. Each 6 LEDs are controlled by one WS2811 IC and there are 16pixels per meter, which has higher density than 60LED and 10 pixel per meter. That makes this led strips perform better than WS2811 60LED per meter in creating more lighting effect.

WS2811 DC24V 120 LEDs/m 5mm RGB LED Strip

Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 50 mm

Power: 24W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 5mm

There are 120 addressable RGB LEDs per meter. With higher density of 120 LEDs/m, this led strip provides a more uniform and even glow than 96 LEDs/m. The pcb width is 5mm, which is perfect for applications where limited space is allowed to install the led strip. This led strip can be easily hidden in the narrow places with high density.

WS2811 DC24V 60 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 50 mm

Power: 28.8 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm

There are 60 addressable RGB LEDs per meter. This led strip is DC24V input and 6 LEDs cuttable. This 60 LEDs/m led strip is a common type that can be applied to a plenty of occasions in normal life. For beginners who come into the world of addressable led strip for only a short time, this led strip could be a good choice to start with.

SM16703 LED Strip

SM16703 DC24V 48 LEDs/m 10mm White LED Strip

Color: White
LED Qty: 48
Voltage: DC24V
Cutting Unit: 125 mm

Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: No
PCB Width: 10mm

There are 48 addressable White LEDs per meter. With DC24V input voltage, this led strip is 6 LEDs cuttable and 8 pixels per meter. 10mm wide pcb is used for SMD5050 White LEDs. This led strip is suitable for you if you don’t need less LEDs per meter. Different from WS2811 IC led strip which is optimized for 5V and 12V systems, SM16703 IC is optimized for compact 24v 12v 5V designs.

WS2818 LED Strip

WS2818 DC24V 120 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm

There are 120 addressable RGB LEDs per meter. With 24V input, each 6 LEDs are controlled by one WS2818 IC. 120 LEDs/m provides high density of this led strip, which makes this led strip capable of providing more uniform lighting effect, bringing better visual experience. In addition, compared with WS2811 IC, this led strip has 4KHZ refresh rate, higher than WS2811.

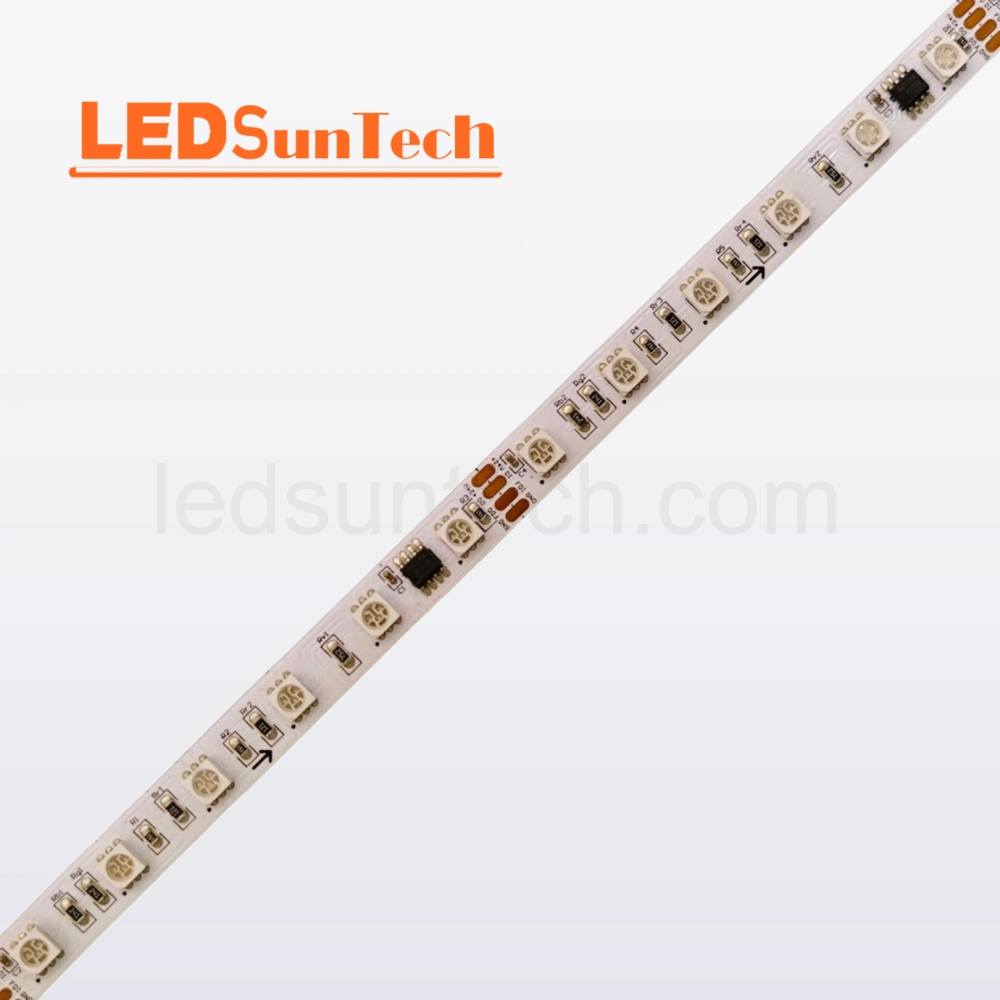

WS2818 DC24V 60 LEDs/m 10mm UV LED Strip

Color: UV 365nm/395nm
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm

There are 60 addressable UVA LEDs per meter. The wavelength is 365nm or 395nm of the UV LEDs. Each 6 LEDs are controlled by WS2811 IC. This addressable UV led strip combine UV led strip and addressable led strip together, which is suitable for people who expect the UV LEDs to show different wavelength at the same time to better control the UV LEDs.

UCS2904 LED Strip

UCS2904 DC24V 60 LEDs/m 10mm RGBW LED Strip

Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15 mm

There are 60 addressable RGBW LEDs per meter, 10mm wide pcb and 24V input. Each 6 LEDs are controlled by UCS2904 IC. This is the digitally-addressable type of LED strip. It is a 4-channel LED display driver / controller with a built-in MCU digital interface. This led strip is dual data transmission, which enables continuous signal transmission even there is one LED broken between two LEDs.

FW1935 LED Strip

FW1935 DC24V 120 LEDs/m 10mm White LED Strip

Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm

There are 120 addressable White LEDs per meter, 10mm wide pcb and 24V input voltage. This led strip is 12 LEDs cuttable. Every 12 LEDs are controlled by FW1935. There are 10 pixels per meter. This led strip has two data wires for signal transmission. Compared with WS2818 led strip, two-point transmission distance of this FW1935 led strip is longer.

SPI Built-in IC

SK6812 LED Strip

SK6812 DC24V 66 LEDs/m 10mm RGBW LED Strip

Color: RGBW
LED Qty: 66
Voltage: DC24V
Cutting Unit: 166.67 mm

Power: 22 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 10 mm

There are 66 addressable RGBW LEDs per meter. Unlike the normal SK6812 led strip, this led strip is DC24V input and 11 LEDs cuttable, which is barely seen in the market. This led strip is individually addressable. It has 66 pixels per meter. Only one data wire comes from this led strip. RGBW LEDs enable the led strip to create more color-changing patterns.

SK6812 DC24V 66 LEDs/m 12mm RGBW LED Strip

Color: RGBW
LED Qty: 66
Voltage: DC24V
Cutting Unit: 15 mm

Power: 21 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 12 mm

There are 66 addressable RGBW LEDs per meter. The input in DC24V. There are two positive wires and two negative wires come out from the led strip to complement the power. That’s why 5 pins and 12mm wide pcb are used. This led strip is individually controllable and one led cuttable, which makes it very flexible to fulfill any requirements of yours.

WS2818 LED Strip

WS2818 DC24V 120 LEDs/m 5mm RGB LED Strip

Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 10 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 5 mm

There are 120 addressable RGB LEDs per meter. With DC24V input voltage, every 12 LEDs are cuttable and there are 10 pixels per meter. Every 12 LEDs are controlled by WS2818 IC. The pcb board is 5mm wide, which is narrow enough to be installed in places of limited space. Compared with WS2811 led strip, this led strip has longer transmission distance between two pixel. Two data wires for signal transmission also makes it more reliable.

DMX

DMX DC24V 60 LEDs/m 10mm White LED Strip

Color: White
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm

This is addressable led strip with DMX control. There are 60 addressable White LEDs per meter.  It is 6 LEDs cuttable, short cutting length makes this led strip flexible. The input voltage is DC24V and the pcb width is 10mm. Compared with TTL/SPI led strip, the signal transmission of this led strip is more stable with fixed two date wire for signal transmission. The distance between the last pixel and the controller be less than 100 meters.

DMX DC24V 72 LEDs/m 8mm White LED Strip

Color: White
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm

Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8 mm

72 addressable White LEDs are arranged per meter on this led strip. The input voltage is DC24V. This led strip is 6 LEDs cuttable. There are 12 pixels per meter. 8mm wide pcb is relatively narrow for SMD5050 White LEDs, which saves much space when this led strip is installed. This DMX led strip has higher density of the LEDs, which ensures a better uniformity of the lighting compared with 60 LEDs/m led strip.

DMX DC24V 60 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 33.3 mm

Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 8 mm

This DMX addressable led strip has 60 addressable RGB LEDs per meter. The input voltage is DC24V and it is 2 LEDs cuttable. Every 2pcs of SMD5050 RGB LEDs are controlled by one pixel and there are 30 pixels per meter, which is very unique because common 24V led strip are whether 6 LEDs cuttable or 12 LEDs cuttable. This makes the led strip more flexible.

DMX DC24V 60 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm

The input voltage is DC24V and it is 6 LEDs cuttable. There are 10 pixels and 60 addressable RGB LEDs per meter. This led strip has two signal lines and one address line. Standard two data wires for transmission makes this led strip capable of transmission signal with one LED broken in the middle. The pcb is 10mm wide.

DMX DC24V 72 LEDs/m 8mm RGB LED Strip

Color: RGB
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm

Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8 mm

The quantity of the addressable RGB LEDs is 72 LEDs per meter. The voltage is DC24V and it is 6 LEDs cuttable. There are 12 pixels per meter. More LEDs on the pcb board enables this led strip to create a more balanced and coherent color transition. The pcb is 8mm wide. This is DMX led strip with two signal wires to help transmit the data.

DMX DC24V 120 LEDs/m 10mm RGB LED Strip

Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm

Power: 28 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm

There are 120 addressable SMD2835 RGB LEDs per meter. With DC24V input, this led strip is 12 LEDs cuttable and 10mm wide. There are 10 pixels per meter. This 120 LEDs/m DMX led strip has a very high density of LEDs. More LEDs per meter makes this led strip create a more natural and complex color transition. This led strip is available in IP20, IP65 and IP67.

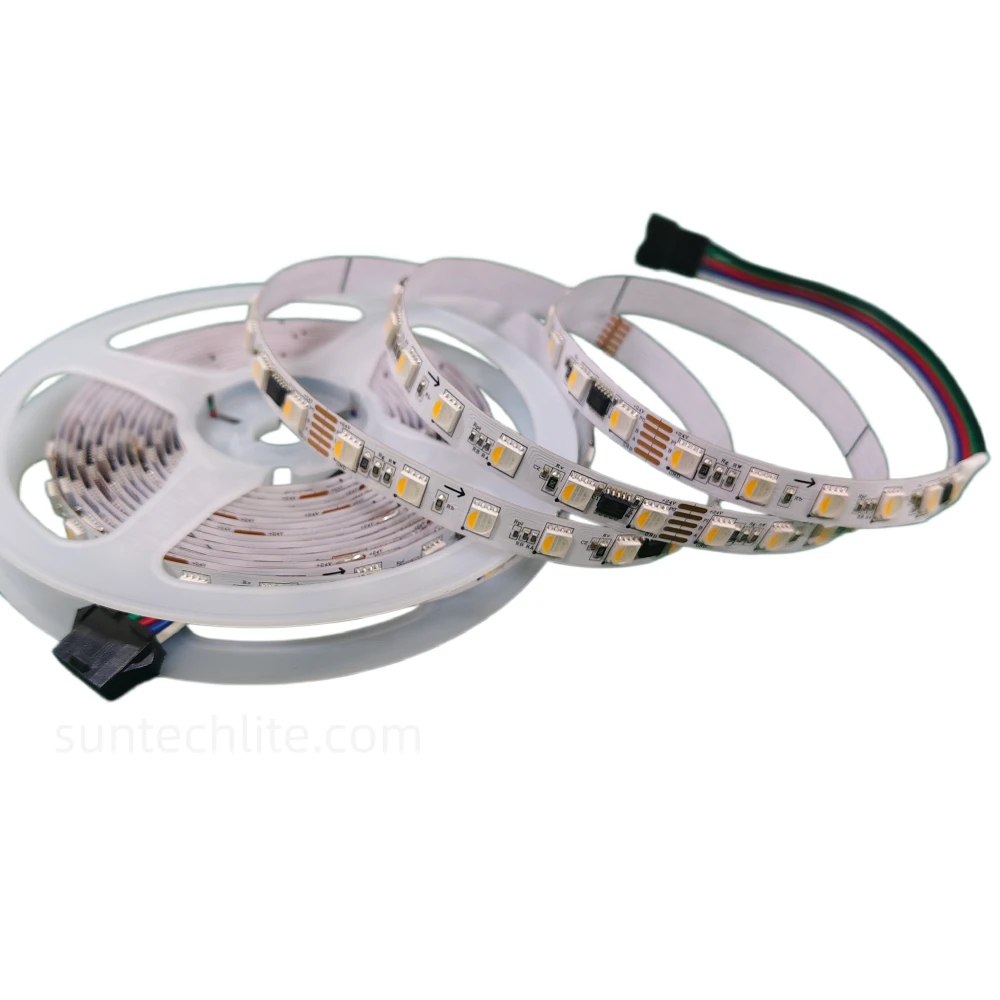

DMX DC24V 60 LEDs/m 10mm RGBW LED Strip

Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm

Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm

This RGBW DMX led strip has 60 LEDs per meter. This led strip has 24V input and 10 pixels per meter. One pixel controls 6pcs of SMD5050 RGBW LEDs. RGBW LEDs provides more subtle lighting adjustments. The dual signal wires provides long distance of signal transmission and stability of the data. We also have another version that is 12V and 20 pixels.
