48V Addressable LED Strip
48V Addressable LED Strip is an addressable LED strip powered by 48V DC voltage. Its core feature is that each LED bead integrates an independent control chip, which can realize independent programming of the color, brightness and dynamic effects of a single bead.
Compared with 12V and 24V addressable LED strips, the 48V smart pixel LED strip’s advantages:
- Long-distance operation without voltage drop: It can maintain brightness and color consistency at a distance of up to 50 meters or even longer, while 12V or 24V LED strips usually require additional power supply every 5 meters to avoid voltage drop problems.
- Lower current and line loss: At the same power, the current of 48V is only 1/4 of that of 12V, and the line loss is reduced to 1/16, which reduces energy loss and heating risks.
- More stable color and brightness consistency: Smaller voltage drop can avoid brightness and color temperature differences at the front and back ends of the light strip. Maintain consistent color and brightness over a wide voltage range to present smooth animation effects.
- Heat dissipation and life optimization: Due to the lower current, the 48V pixel LED strip generates less heat, combined with high thermal conductivity materials (such as 3OZ PCB and aluminum heat sink), it can effectively extend the life of LED chips and reduce light decay.
48v VS 24v VS 12v addressable LED strip:
| Characteristic | 12V | 24V | 48V |
|---|---|---|---|
| Max. voltage drop length | ~5m (requires segmented power supply) | ~10m | Over 50m |
| Current & Line loss | Highest current, maximum line loss | Medium current, lower line loss | Lowest current, minimal line loss |
| Application Scenarios | Small home decor, short-distance lighting | Medium commercial projects, mid-distance lighting | Large projects, long-distance/high-power needs |
| Safety | Safe but requires attention to high current heat risks | Higher safety | Highest, meets international safety standards |
| System Complexity | Simple but requires frequent power supply | Medium complexity | Simplified wiring, fewer power points |
| Cost | Low (requires additional power supplies/cables for long distance) | Medium | Higher initial cost, lower long-term maintenance |

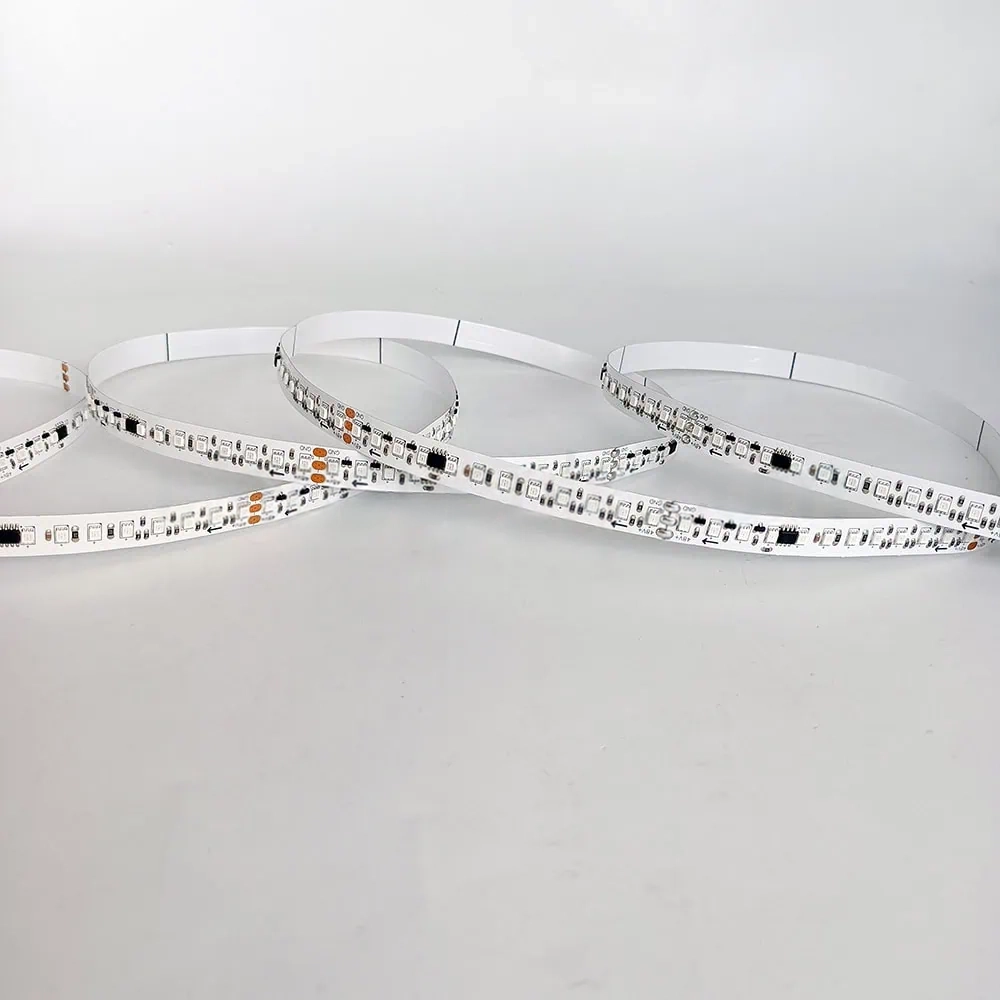

UCS2903 DC48V 120 LEDs/m 12mm RGB Addressable LED Strip
Color: RGB
LED Qty: 120
Voltage: DC48V
Cutting Unit: 100 mm
Power: 28.8 W/m
Pixel Qty: 120 Pixels
Break Continue: No
PCB Width: 12 mm
The color and width of the PCB board could be selected. PCB thickness can be 2oz, 3oz. From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.
DMX GS8516 DC48V 120 LEDs/m 10mm RGB Digital LED Strip
Color: RGB
LED Qty: 120
Voltage: DC48V
Cutting Unit: 100 mm
Power: 12 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
The 48V GS8516C SMD2835 RGB DMX strip can support up to 30 meters without voltage drop. This 48V LED strip has RGB color mode and 120 2835 RGB LEDs per meter. One IC controls 12 LEDs.
DMX GS8516 DC48V 96 LEDs/m 10mm RGBW Programmable LED Strip
Color: RGBW
LED Qty: 96
Voltage: DC48V
Cutting Unit: 125 mm
Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: Yes
PCB Width: 10 mm
DMX GS8516 LED strip is a 4-in-1 RGBW LED strip with breakpoint resume function. Dual signal transmission data to ensure signal stability. DMX RGBW has an additional white light channel than DMX RGB, which can present richer color effects.
