5V Addressable LED Strip
LEDSuntech’s 5V addressable LED strips mainly include:
WS2812 LED strips – easy installation, integrated control circuit.
WS2813 LED strips – dual data lines, stable signal, breakpoint resume function.
SK6812 LED strips – wider color range and higher brightness, support white, CCT, RGB, RGBW;
SK6813 LED strips – similar to SK6812, but with additional control functions;
APA102 LED strips – independent clock and data lines, fast refresh rate;
SK9822 LED strips – high color accuracy, high brightness, stable performance.
The main difference between 5V addressable LED strips and 12V and 24V addressable LED strips is voltage requirements and operating distance.
5V programmable LED strips are good for short runs with low power requirements, and 12V is suitable for most applications. 24V is ideal for long runs where voltage drop may be an issue.
However, 5V pixel LED strips generally offer greater control and flexibility because they are compatible with small microcontrollers in Arduino projects.
5V pixel programmable strips offer higher pixel density, ideal for complex displays and detailed lighting effects. Common applications include customizable home lighting, gaming settings, decorative displays, signage, and interactive installation lighting.
LEDSuntech’s 5V addressable LED strips offer precise color control and dynamic lighting. Welcome to consult and purchase.
Category
WS2812 LED Strip
WS2812 DC5V 100leds/75cm 2mm 2.6m RGB LED Strip
Color: RGB
LED Qty: 100leds/75cm
Voltage: DC5V
Cutting Unit: 7/5 mm
Power: 7.5 W/m
Pixel Qty: 60 Pixels
Break Continue: 100 Pixels/75cm
PCB Width: 2.6 mm
The WS2812 IC chip controls the individually addressable LEDs in this RGB interior LED light strip. It makes gentle light without using LED spotlights. It can make a lot of different colours when used with a pixel LED controller. These colours include marquee, flowing, gradient, curtain, trailing, chase, and cumulative lighting.
WS2812 DC5V 186LEDs/75cm 3mm RGB LED Strip
Color: RGB
LED Qty: 186LEDs/75cm
Voltage: DC5V
Cutting Unit: 4.03 mm
Power: 13.95 W/m
Pixel Qty: 186LEDs Pixels/75cm
Break Continue: No
PCB Width: 3 mm
There are 186 individually controllable LEDs on each strip, which is 75 cm long. It can light up whole houses effortlessly, and you can choose the length. It can also be used indoors to light up small places from behind. It works well for a lot of different types of indoor LED lighting, like under-cabinet lighting, backdrop lighting, and narrow area illumination.
WS2812 DC5V 60 LEDs/m 8mm W LED Strip
Color: W
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 8 mm
This 8mm white addressable LED strip is ideal for installations with limited space or intricate designs. DC 5 volt input, ideal for projects that require low-voltage channel letter and neon sign lighting solutions. The WS2812B addressable led strip can flexibly adapt to neon tube designs. It can be controlled via SPI controllers to achieve a perfect lighting effect. Notice the voltage drops at your installation.
WS2812 DC5V 60 LEDs/m 10mm W LED Strip
Color: W
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
Universal WS2812B dynamic white color chasing, sequencing, changing, and also static color modes are available on the Full-Color Controller and dream white chasing color LED Strip. Individually addressable LEDs allow for sequencing modes. Non-waterproof flexible LED light strip with 60 LEDs/M high power 5050SMD(Surface Mounted Devices) white LEDs programmable for chasing patterns. WS2812B IC chip control. 5m Per Reel By Sale.
WS2812 DC5V 60 LEDs/m 10mm WW LED Strip
Color: W
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
This WS2812 warm white LED strip features a built-in smart IC and SMD5050 LED chips. The brightness and on/off state of each LED can be controlled via a pixel controller. It offers customizable color temperatures from 3000K to 6000K.It contains 60 LEDs per meter, with each LED diode forming a segment. Flexible cutting to the desired installation length.
WS2812 DC5V 60 LEDs/m 10mm WWA LED Strip
Color: W
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
With WS2812 5v strip, white chasing lighting effect is also available, the color temperature could be selected and customized, such as warm white, natural white and cool white WS2812 white pixel LED light strip for project lighting. 5m/16.4ft for sale. 5DC low voltage input, 60 white lights (60 WS2812 pixels) per meter, each LED lights can be cut. 2 meters with almost no voltage drop at one end of the power injection.
WS2812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
This DC5V individually addressable LED strip light is controlled by WS2812 IC to display RGB color chasing led light color, 60 LEDs per meter, 10mm PCB width. A built-in Ws2812 IC individually controls 5050 LED chip, using a controller you can set the brightness and colors of each LED separately, creating different ambience. This strip is each 16.6 mm cuttable, one LED one cut, you can cut these strips freely without damaging the circuitry allows for precise length customization.
WS2812 DC5V 60 LEDs/m 6mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 50 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 6 mm
There are 60 addressable RGB LEDs per meter, and 6mm PCB width for 60LEDs/meter, DC5V input, and you can control each LED individually. This LED strip is designed for sign makers to make different light animation, as the zigzag function of the WS2812B 5050 digital RGB LED strip is suitable for applications such as LOGO & channel letter application.
WS2812 DC5V 148 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 148
Voltage: DC5V
Cutting Unit: 13.5 mm
Power: 20 W/m
Pixel Qty: 148 Pixels
Break Continue: No
PCB Width: 8 mm
This DC5V individually addressable LED strip, each LED can be individually programmed and controlled, one meter has 148 lights on 8mm thin PCB board. This product was designed by ourselves, not available on the market. Normal WS2812 LED strip in market is 144leds/m and width 12mm makes it difficult to install in a thinner place, with our narrow width WS2812B LED strip and highest density 148pixels/m, this issue could be solved.
WS2812C DC5V 200 LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 25 mm
Power: 40 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
Upgrade your lighting experience with ultra thin 3.5mm 5V WS2812C RGB LED strip, SMD 2121 neatly lined up on the PCB board, easy to fit into many places where space is limited. This LED strip has 200 LEDs per meter, and each 2121 LED can be individually programmed and controlled, you can set it to different color and brightness.

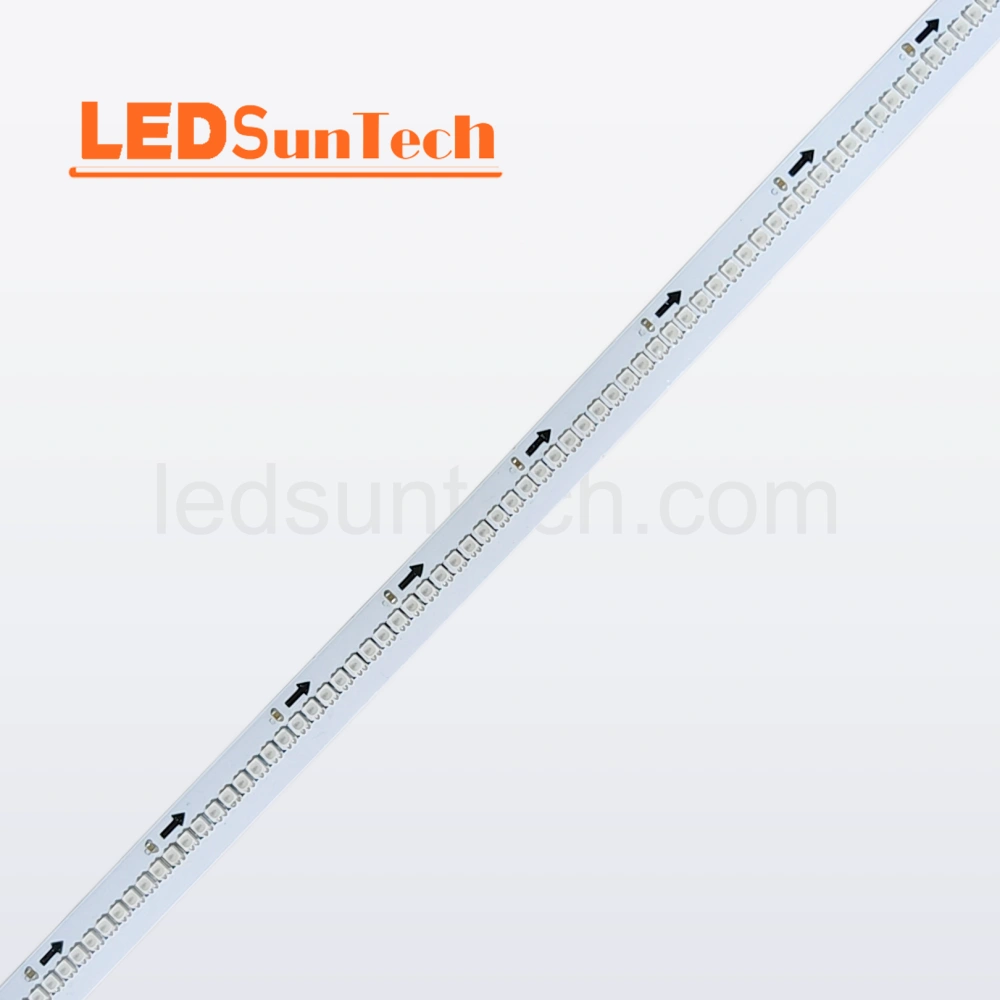

WS2812 DC5V 350 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 350
Voltage: DC5V
Cutting Unit: 2.85 mm
Power: 22 W/m
Pixel Qty: 350 Pixels
Break Continue: No
PCB Width: 10 mm
There are 350 addressable RGB LEDs per meter, and 10mm wide PCB for 350LEDs/meter, DC5V input, and you can control each LED individually. The WS2812 DC5V 350 LEDs/m 10mm RGB LED Strip LED strip has the highest LED density among all our current offerings. So it is widely used in the production of LED screens, LED walls, and billboards.
WS2813 LED Strip

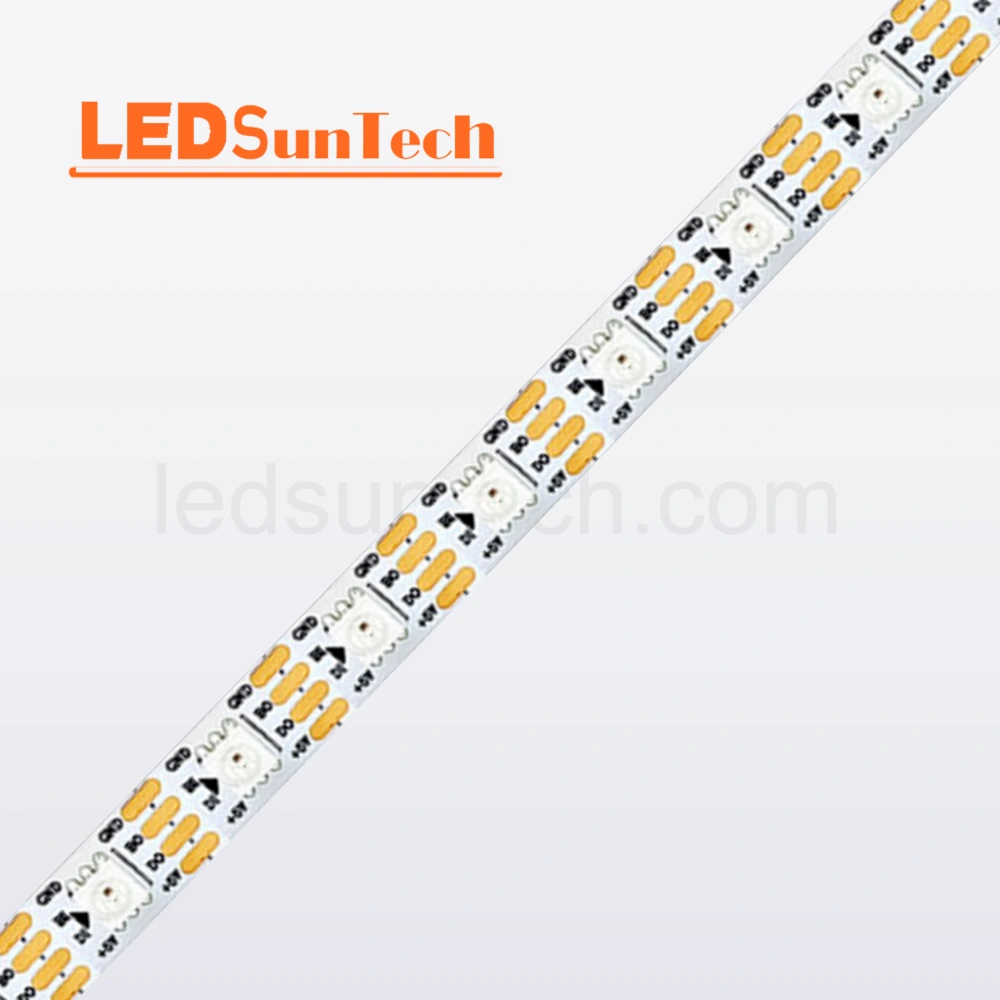

WS2813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This DC5V individually addressable LED strip light is controlled by WS2813 IC to display RGB color chasing led light color, 60 LEDs per meter, 10mm PCB width. This strip is each 16.6 mm cuttable, one LED one cut, you can cut these strips freely without damaging the circuitry allows for precise length customization. The break-continue function of this product ensures that a single LED failure does not affect the entire strip’s performance.
WS2813 DC5V 64 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 64
Voltage: DC5V
Cutting Unit: 15.62 mm
Power: 12 W/m
Pixel Qty: 64 Pixels
Break Continue: Yes
PCB Width: 10 mm
This DC5V WS2813 LED RGB strip has a breakpoint resume function, uses dual signal transmission, and has high stability. The WS2813 addressable LED strip is used with a controller and is very suitable for programmable DIY lighting projects.The digital addressable 5V LED strip can be cut per 1 LED, and the cutting segment is 15.6mm. One WS2813 IC controls 1 LED, and there are 64 pixels per meter.
WS2813 DC5V 144 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This DC5V individually addressable LED strip, each LED can be individually programmed and controlled by WS2813 IC, one meter has 144 lights on 10mm thin PCB board. The 144 LEDs allow for more refined lighting effects. It also has the function of break-continue, ensuring that a single LED failure does not affect the entire strip’s performance.
SK6812 LED Strip
SK6812 DC5V 60 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 8mm
Built-in SK6812 IC 5V SMD5050 white LED strip, each 5050 LED can be individually programmed and controlled, one meter has 60 LEDs on 8mm PCB board. This LED strip is a unique 5v addressable LED strip designed by Suntech for meeting the addressable white and individual control requirements. The digital white LED strip features the 5V SK6812 individually addressable feature, which allows each LED to adjust brightness independently to create dynamic light shows.
SK6812 DC5V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 8mm
The SK6812 addressable white LED strip is also highly customizable, with each LED being individually controllable. This means that users can create a wide range of lighting effects and patterns to suit their specific needs. Additionally, this LED strip is easy to install and can be cut to fit any length, making it suitable for a wide range of applications.
SK6812 DC5V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10mm
There are 60 addressable WWA LEDs per meter, and 10mm wide PCB for 60LEDs/meter, DC5V input, and you can control each LED individually by SK6812 built-in IC. The independently addressable WWA led strip comes with a wide range of static color temperature displays and allows you to create more detailed color temperature running effects.
SK6812 DC5V 60 LEDs/m 6mm RGB S LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 50 mm
Power: 8 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 6 mm
This 6mm-wide, micro-addressable S-type WS2812(SK6812) RGB LED strip features a serpentine PCB design, offering flexible bending and adaptability to uneven installation paths. This compact, cobra-shaped LED strip operates on a 5V power input and features three cuttable 5050 LEDs. It is individually programmable. Each LED houses a built-in WS2812 IC, representing a pixel. This micro 5V zigzag LED strip has 300 pixels per roll (5 meters/16 feet).

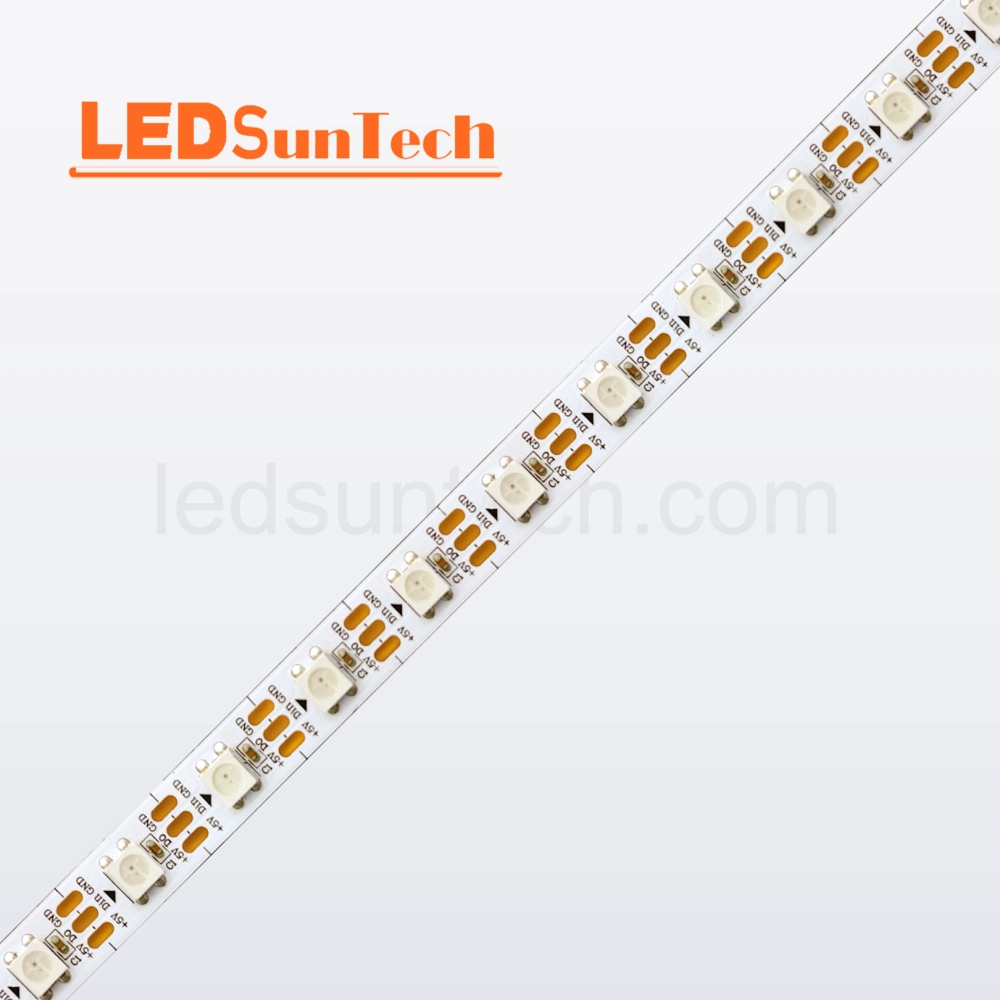

SK6812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
This DC5V individually addressable LED strip light is controlled by WS2812 IC to display RGB color chasing led light color, 60 LEDs per meter, 10mm PCB width. A built-in SK6812 IC individually controls 5050 LED chip. This LED strip is similar to the WS2812 DC5V 60 LEDs/m 10mm RGB LED Strip, but it has a higher frequency and brightness.
SK6812 DC5V 148 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 148
Voltage: DC5V
Cutting Unit: 13.5 mm
Power: 20 W/m
Pixel Qty: 148 Pixels
Break Continue: No
PCB Width: 8 mm
Normal WS2812 LED strip in the market is 144leds/m and width 12mm makes it difficult to install in a thinner place, with our narrow width WS2812B LED strip and highest density 148pixels/m, this issue could be solved. It could be customized to IP20/IP67 waterproof ratings, suitable for indoor & outdoor lighting environments.
SK6812 DC5V 60 LEDs/m 5mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 5 mm
This is an RGBW individually addressable LED strip controlled by SK6812 IC, operating at a low voltage of 5V. There are 60 addressable RGBW LEDs per meter on a 5mm PCB board, and each 5050 RGBW LED can be individually programmed and controlled. The 5mm width makes it very suitable for installation and lighting in narrow spaces.
SK6812 DC5V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
Built-in SK6812 IC 5V SMD5050 RGBW LED strip, each 5050 LED can be individually programmed and controlled, one meter has 60 LEDs on 10mm PCB board. SK6812 DC5V 60 LEDs/m 10mm RGBW LED Strip is one of the most common RGBW LED strips on the market. Use RGBW 4 in 1 5050 LEDs, available in more color options and color combinations.
SK6812 DC5V 144 LEDs/m 8mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43.2 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 8 mm
This 5V LED LED lights feature a high density of 144 LEDs per meter to provide bright illumination, and you can control each LED individually by SK6812 built-in IC. Normal SK6812 DC5V 144 LEDs/m RGBW LED Strip is 12mm width, we developed ultra thin 144leds/m 144pixels/m strip at 8mm width with SMD3535 RGBW LED. Can fit more thinner spaces.

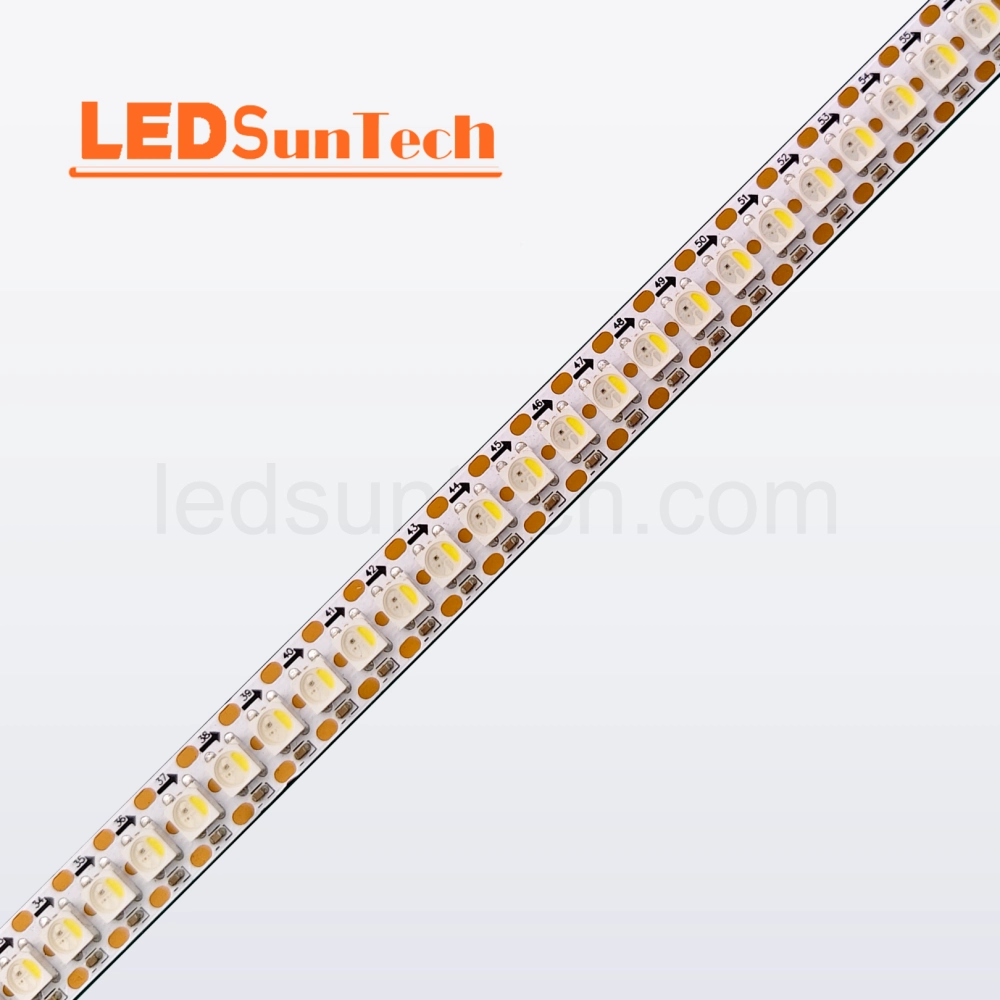

SK6812 DC5V 144 LEDs/m 12mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 25.9 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
This DC5V individually addressable LED strip, controlled by the SK6812 IC, displays RGBW color-chasing LED lights.It features 144 LEDs per meter, giving a total of 720 pixels in a 5-meter strip. Each LED is individually addressable. You can set it to a different color and brightness.
SK6813 LED Strip
SK6813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This RGB addressable LED strip is controlled by SK6813 IC chips, each LED can be individually programmed and controlled, one meter has 60 LEDs on 10mm PCB board. It uses two signal lines for data transmission, with break-continue function, ensuring that a single LED failure does not affect the entire strip’s performance.
APA102 LED Strip
APA102 DC5V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC5V
Cutting Unit: 33.33 mm
Power: 7.2 W/m
Pixel Qty: 30 Pixels
Break Continue: No
PCB Width: 10 mm
This APA102 RGB digital LED strip has a 5050 daylight white FPC board with 3M adhesive backing, which makes it easy to attach, uses little energy, and is very bright. One LED can be formed into a loop—each LED can be cut to size. This is energy-efficient and environmentally friendly, making it an ideal lighting tool for decorative contours and creating various shapes.

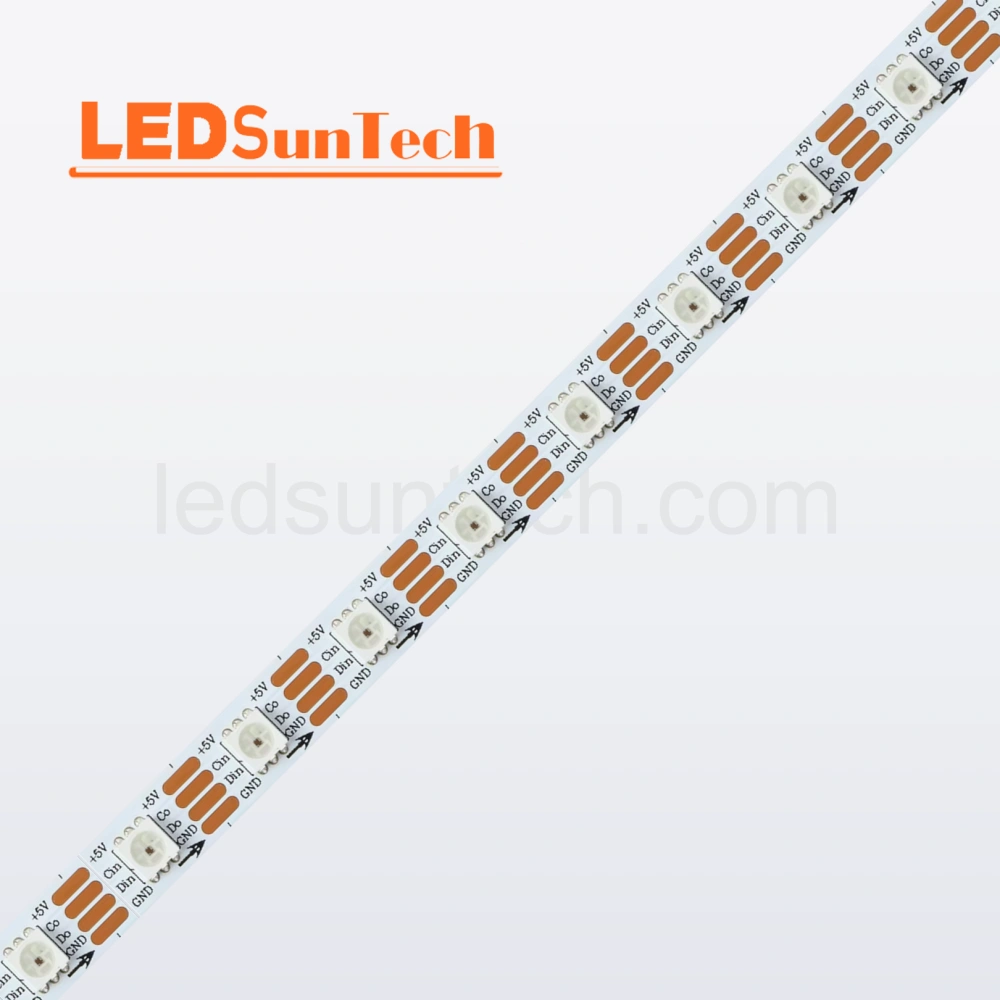

APA102 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
This LED strip operates at a low voltage of 5V, and one meter has 60 LEDs on 10mm PCB board. The APA102 individually addressable LED strip employ a 2-wire communication protocol consisting of a clock and data line. Although it has four wires, it does not have a break-continue function because what it has are not auxiliary data lines but clock lines.
APA102 DC5V 135 LEDs/m 3mm RGB LED Strip
Color: RGB
LED Qty: 135
Voltage: DC5V
Cutting Unit: 7.4 mm
Power: 27 W/m
Pixel Qty: 135 Pixels
Break Continue: No
PCB Width: 3 mm
The APA102-2020 also uses the APA102 as a driver IC, enabling color control and dimming, while also achieving high brightness.This product can be widely used in apa102-2020 digital RGB LED strips, apa102-2020 dot matrix lights, apa102 LED pixel lights, and full-color LED displays.

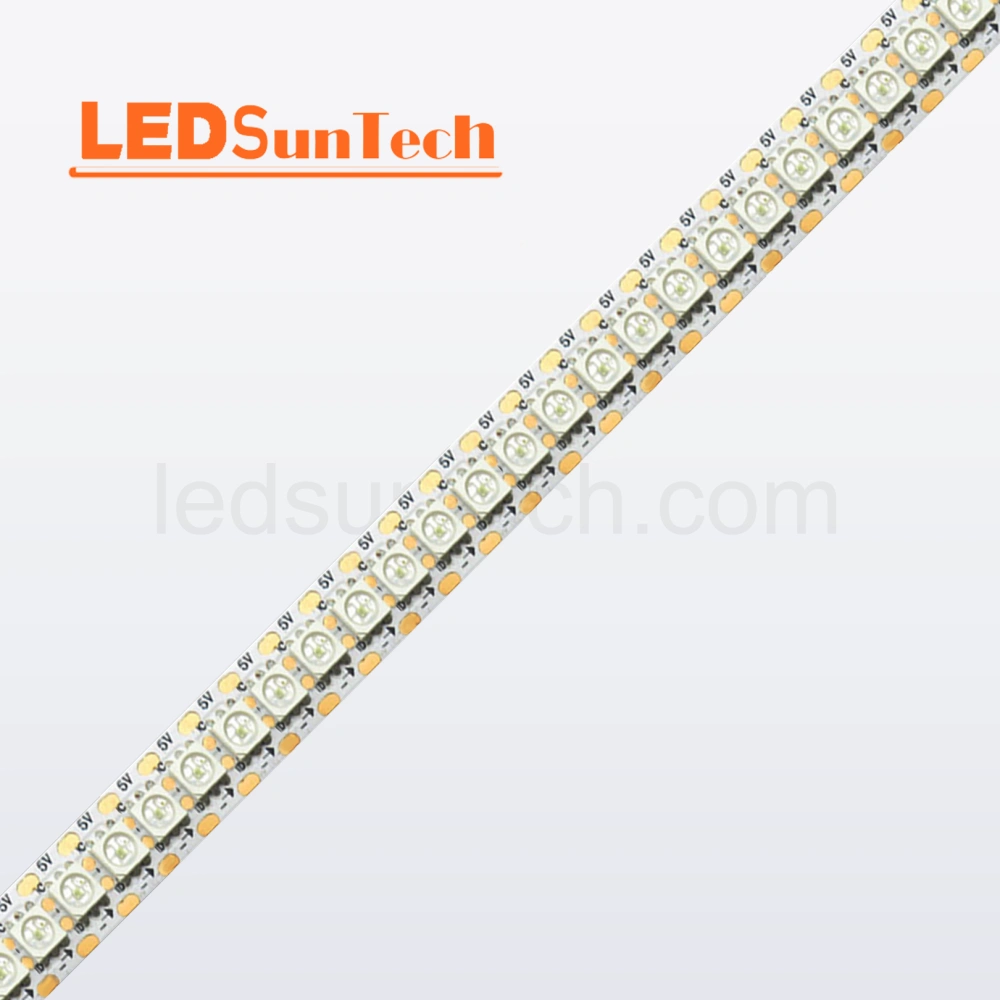

APA102 DC5V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
There are 144 addressable RGB LEDs per meter, and 12mm wide PCB for 144LEDs/meter, DC5V input, and you can control each LED individually by APA102 built-in IC. The 144 LEDs allow for more refined lighting effects. Clock lines enable more precise control and higher refresh rates, making light strip animations smoother. In addition, the separate design of the clock line and data line can reduce data latency.

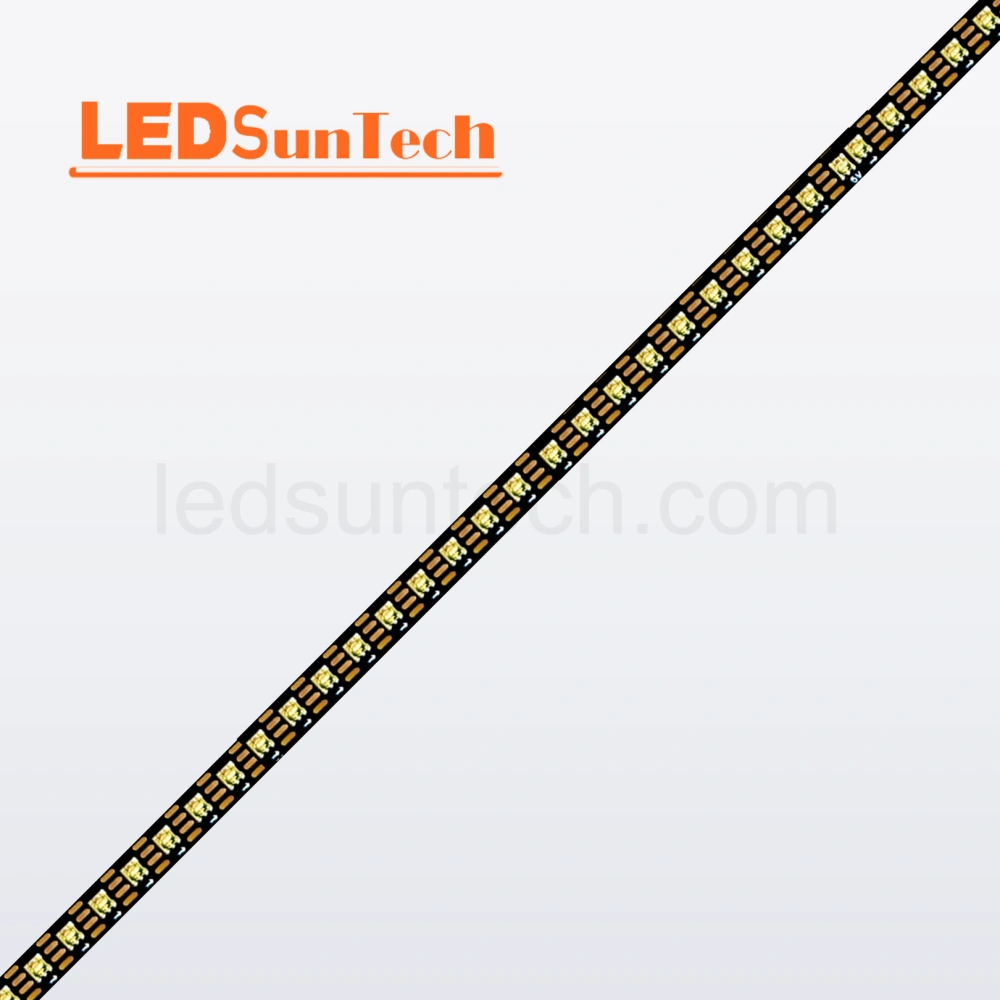

APA102 DC5V 200LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 5 mm
Power: 43 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 5 mm
5mm narrow 2020SMD 200LEDs/m higher density 5V built-in individually addressable RGB APA102 LED Strips. The 200LEDs/m 5mm APA102 5V LED strip is individually addressable, single LED cuttable, and each LED is a pixel. APA102 LED strip has a fast refresh rate 20K+Hz, which means that it can update the lighting display quickly and accurately. This is particularly important in applications where the lighting needs to match the beat of music or other audio cues.
SK9822 LED Strip
SK9822 DC5V 60LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
Built-in SK9822 IC 5V SMD5050 RGBW LED strip, each 5050 LED can be individually programmed and controlled, one meter has 60 LEDs on 10mm PCB board. The SK9822 is almost a direct replacement to the APA102 and is superior in some respects, most importantly its built-in constant-current control, it has a longer distance without voltage drop.
