5V LED Strip
Product Feature
(1) 5V LED LED strip mainly uses SMD2835 package size. Reinforced and thickened brackets, 0.75mm, to resist bending;
(2) The 5V power supply voltage can be used perfectly with mobile power supplies, computer USB interfaces, and other devices;
(3) The product power is optional, 9W/m, 14W/m, and 16W/m. The power can be customized according to customer requirements;
(4) LED densities: 120LEDs/m, 168LEDs/m, etc. The LED density can be customized ;
(5) The PCB board has 5mm/8mm options to adapt to different scenarios;
(6) The copper foil thickness of the double-sided PCB board adopts the standard 2OZ (35um on the front + 35um on the back);
(7) Conventional CRI>80, CRI>90 or>95 can be provided, color tolerance SDCM<5;
(8) The IP grades of the product are IP20, IP65, IP66, IP67, IP68;
(9) OEM or ODM;
(10) Product lifespan＞50000H.
5V LED Strip Manufacturers & Suppliers
LEDSuntech was founded in 2008 and is dedicated to the R&D and production of LED strips. It is a professional 5V LED strip manufacturer with ISO 9001, CE, RoHS, FCC, UL, ETL certifications. We have undertaken private label and OEM/ODM orders from more than 30 countries in the United States, Europe, Australia and Asia.
Our R&D and engineer team is experienced in electronic structure, appearance design, light control system and process improvement. Most of our products are designed by private molds to provide customized services for customers.
Our elite sales team works seamlessly with customers in logistics, customs and other aspects to provide customers with high-quality services.
What is 5V LED Strip?
5V LED light strip refers to the power supply voltage of DC5V. The conventional design is 1 LED + 1 resistor as one set.
It is recommended to use a 5V low-voltage light strip with a length not exceeding 3 meters. If it is too long, there will be a voltage drop, and it will be darker in the rear.
If the length is long, the voltage drop problem can be solved by adding a 5V power supply at intervals for recharge.
Why Choose 5V LED Strip?
1. It can achieve the effect of one LED one cut;
2. DC5V voltage is available everywhere, including computer USB interfaces, mobile power banks, etc., which is convenient and fast.
Precautions:
1. The power supply voltage of the white light strip is DC voltage and must not be directly connected to AC power;
2. In actual installation and use, the voltage of the LED strip must be consistent with the 5V driving power supply. Do not connect to a driving power supply with a voltage that does not match the light strip to avoid damage to the light strip; NOT 12V Or NOT 24V.
Wholesale 5V LED Strip Series
Our 5V LED strips come with 5V white LED strips and 5V CCT LED strips.
Chip type: 2835 SMD
PCB width: 5mm, 6mm, 8mm.
Waterproof type: IP20/IP65P/IP66/IP67/IP68, suitable for indoor and outdoor applications.
Lighting angle: 120°
The default shipping specification is 5 meters per roll, and the length and color can be customized. If you need customization, please contact us.
5V White LED Strip By Series
SMD2835, 1 LED/unit. Single LED single cut;
LED density is 120LEDs/m and 168LEDs/m;
PCB width is available in 5mm/8mm;
Color temperatures include: 2700K/3000K/4000K/5000K/6500K, the color temperature can also be customized.
Our factory has many specifications and models. If you cannot find a suitable one, please contact us for assistance.
Specification Download
| Specification Name | Download |
|---|---|

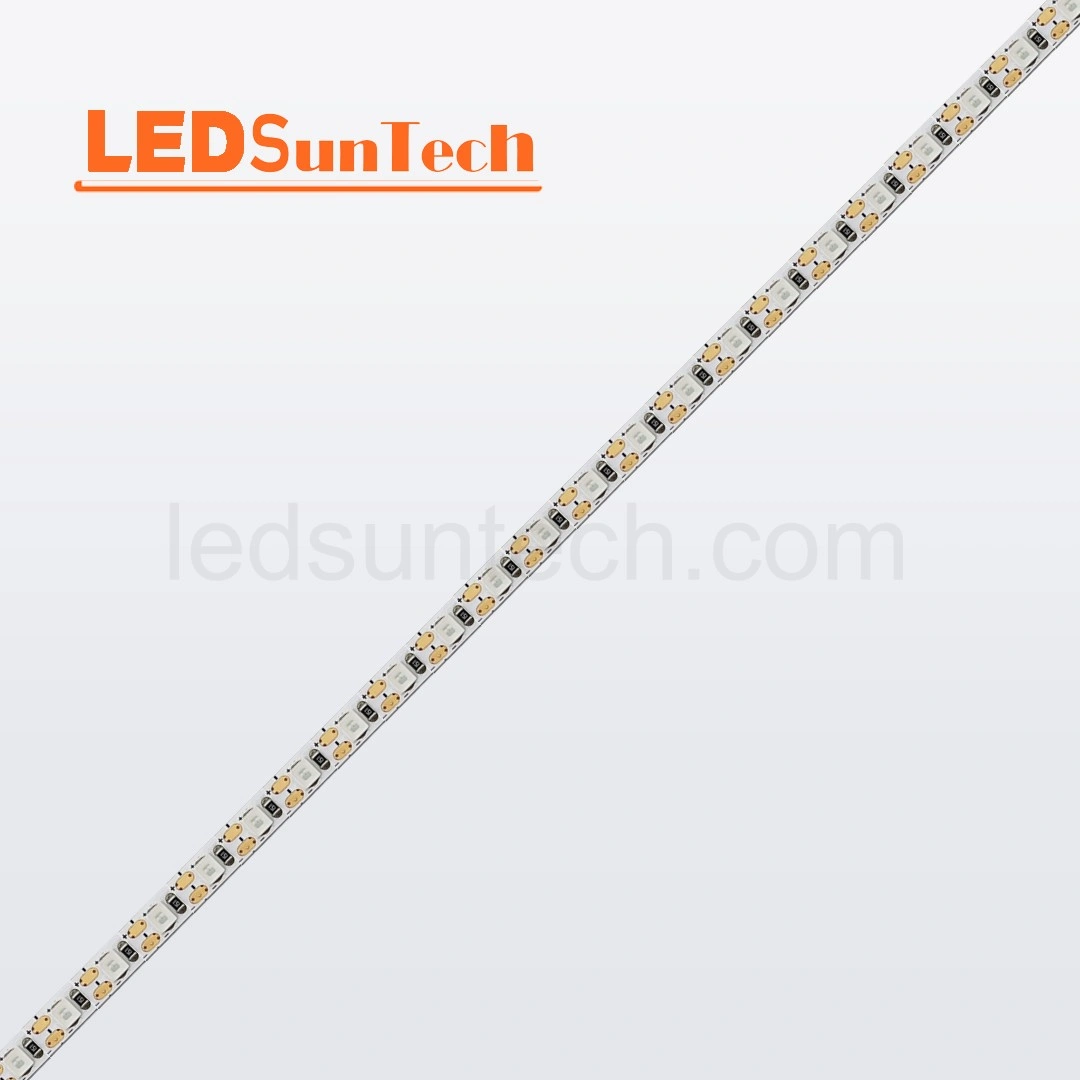

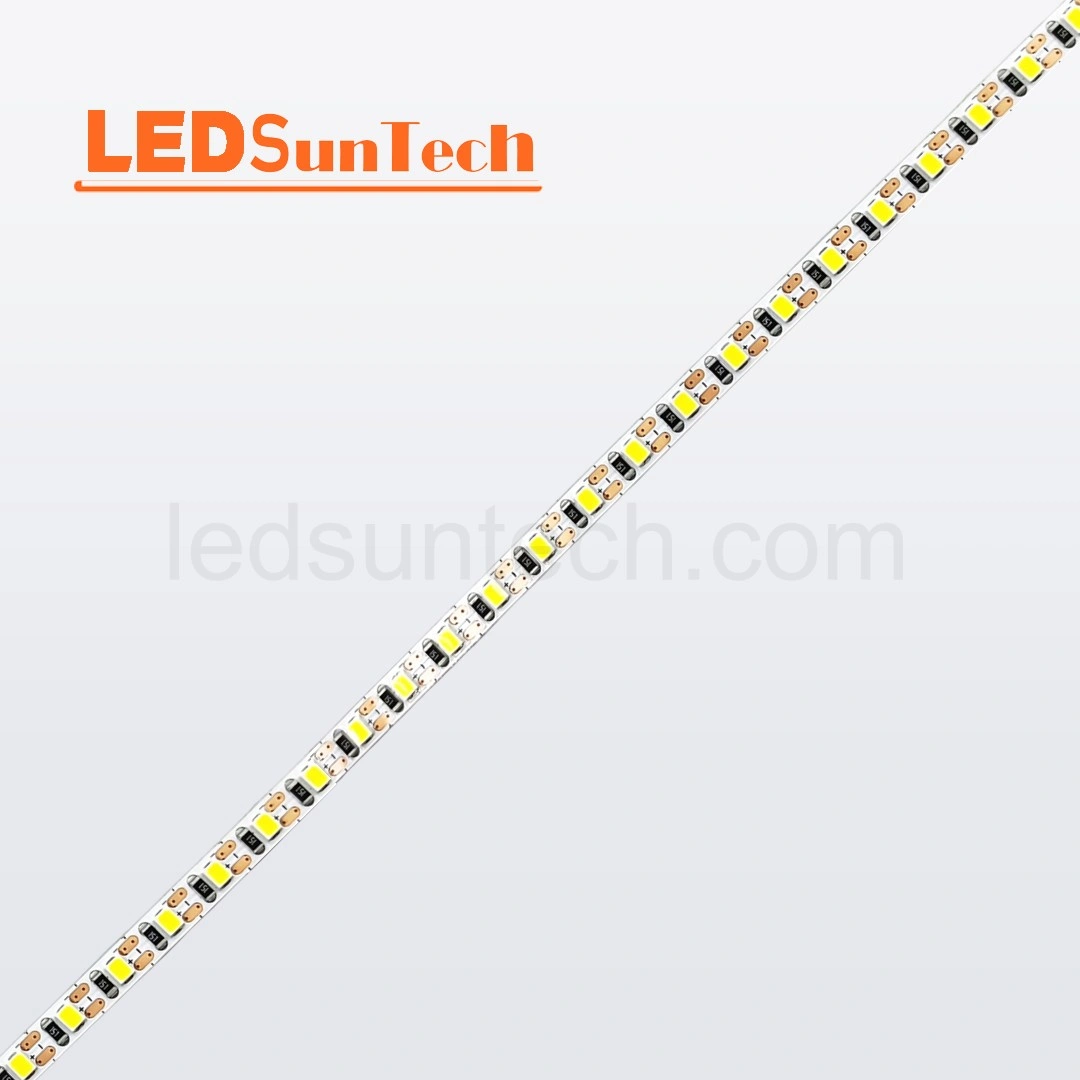

| 2835-DC5V-120leds/m-5mm-White LED Strip Specification |
|

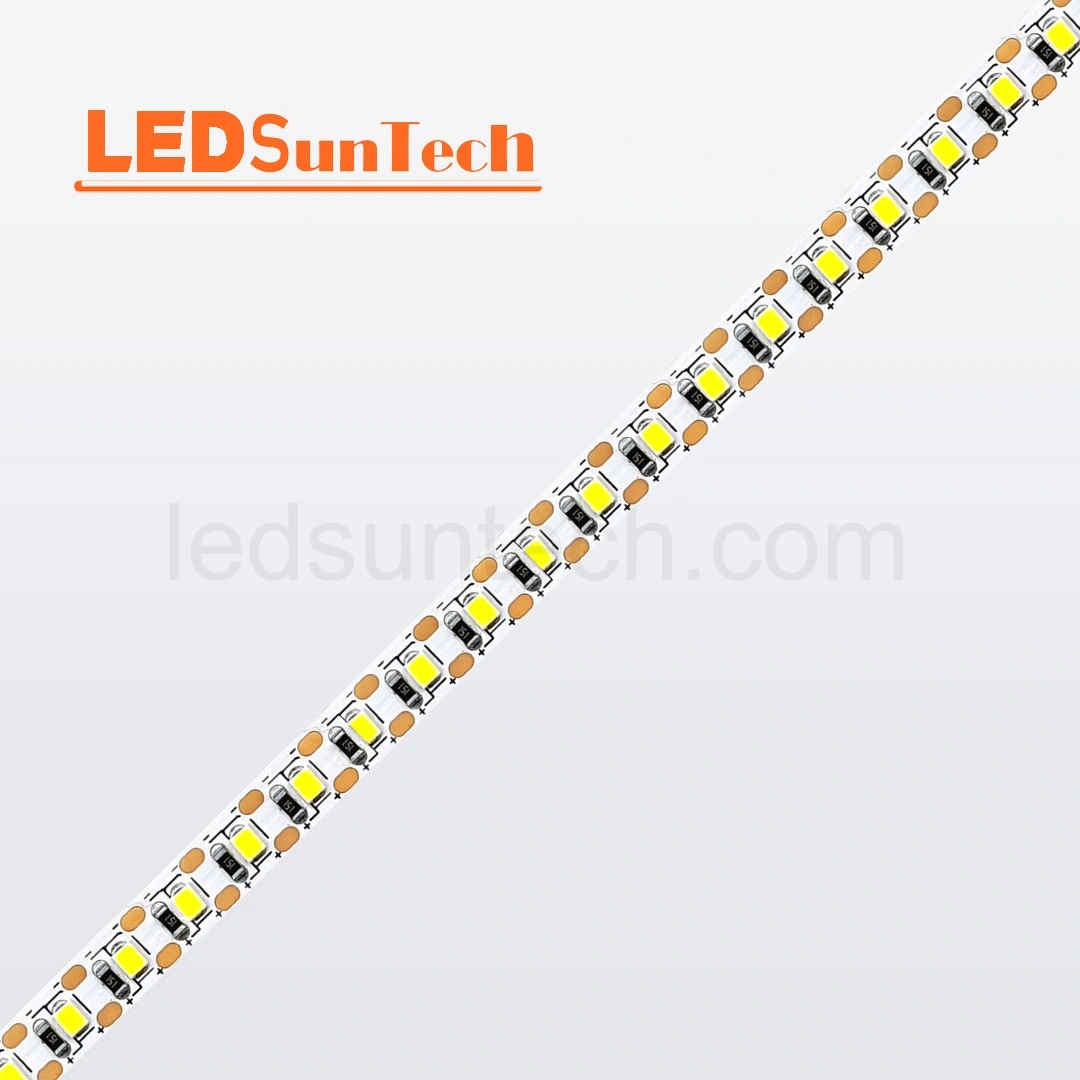

| 2835-DC5V-120leds/m-8mm-White LED Strip Specification |
|

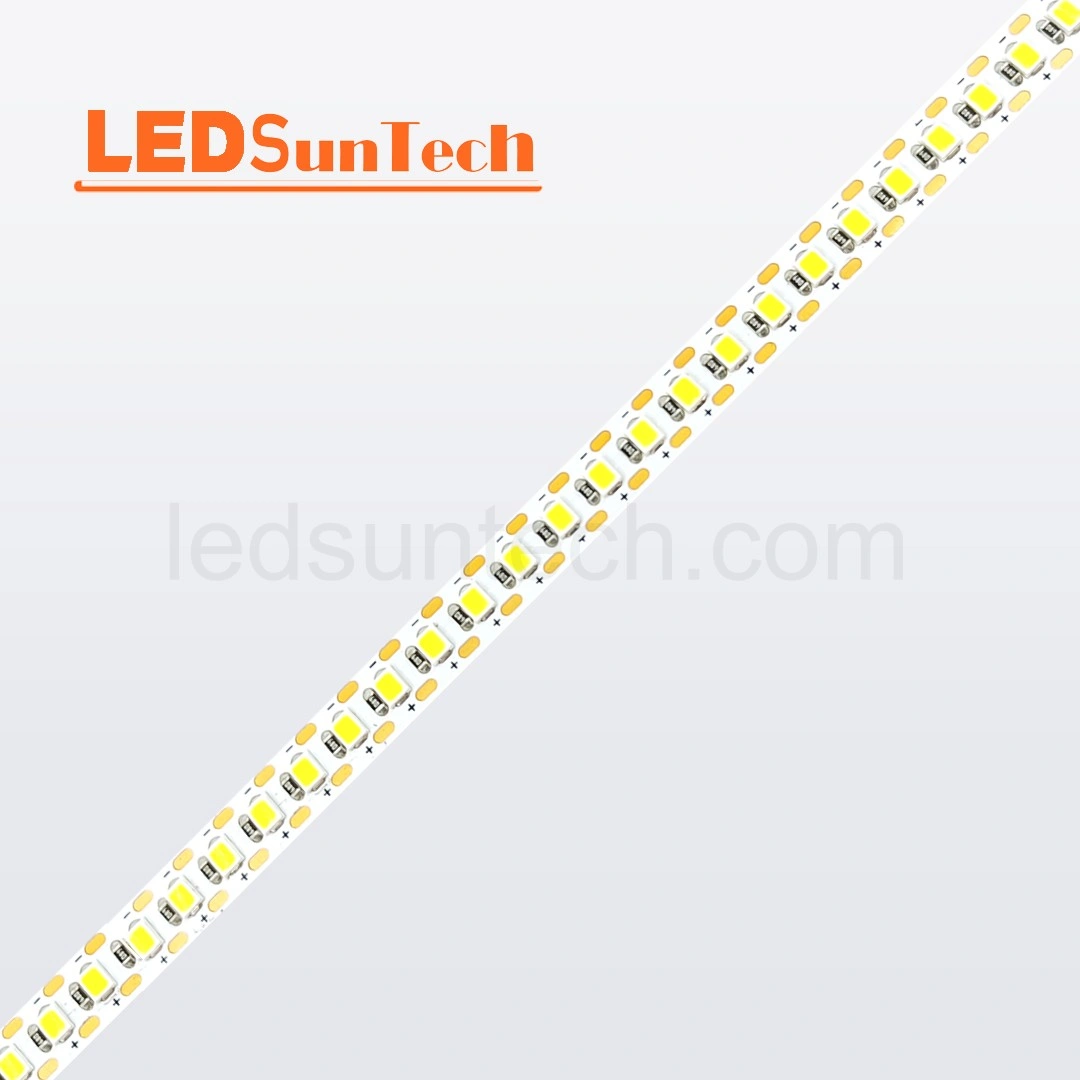

| 2835-DC5V-168leds/m-8mm-White LED Strip Specification |
|
5V CCT LED Strip By Series
SMD2835, 2 LEDs per cuttable unit;
LED lamp bead density is 120LEDs/m;
PCB width is available in 6mm/8mm;
Color temperatures include 2700K/3000K/4000K/5000K/6500K.
Specification Download
| Specification Name | Download |
|---|---|
| 2835-DC5V-120leds/m-6mm-CCT LED Strip Specification |
|
| 2835-DC5V-120leds/m-8mm-CCT LED Strip Specification |
|
Light Up Your LED Project With LEDSuntech!
Certification System
LEDSuntech has more than 1000 kinds of LED light strips. We want our customers to feel confident that their LED strips are safe and manufactured to the highest quality. In order to ensure the best performance of our LED light strip products, all products have been tested by third-party authoritative laboratories and have obtained multiple quality certifications including ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
