Addressable RGB LED Strip
An addressable RGB LED strip is an LED strip where each LED or pixel can be individually controlled by a controller. Custom color patterns and effects can be achieved by independently programming the color and brightness of each LED or pixel.
Unlike traditional non-addressable RGB LED strips, which can only change the color of the entire strip at a time (the entire strip turns red, green or blue); however, “addressable” means that each LED or each pixel can be individually “addressed” to control its settings (each LED or each Pixel can be individually changed to green, red or blue). For example, as shown in the figure below.
Addressable RGB LED Strip Features:
Individual Control–Each LED or pixel has a built-in integrated circuit (IC) that can be individually adjusted in color and brightness by “writing addresses”.
Complex Patterns–Controlling a programmed addressable RGB LED strip through a controller can achieve dynamic lighting effects such as color waves, chasing lights, and even displaying custom animations.
Controller required–To control addressable LED strips, a compatible controller is required to send commands to each individual LED or pixel, which needs to be pre-addressed to achieve the desired lighting effect.
Addressable LED strips can be used with an SPI controller or microcontroller, such as a Raspberry Pi, Arduino, or ESP32, to create dynamic, customizable lighting effects. Click here for more details.
Wiring WS2813 Addressable LED Strips to the Raspberry Pi
Programming WS2818 Addressable LED Strips with Arduino
How to Control Addressable WS2815 LED Strips with ESP8266
We have focused on addressable LED pixel lights for more than 15 years. LEDSuntech always takes the pursuit of excellence and customer-centricity as our development concept. Our existing LED lighting products have passed the CE, RoHS, FCC, and UL/ETL certifications. For more details, click here. For more details, click here. A Complete Guide to Choosing a Leading LED Light Manufacturer in China
Category
SPI External IC
WS2811 LED Strip
WS2811 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone encapsulated non-waterproof flexible LED strip with 30 high power 5050SMD (surface mount device) RGB LEDs per meter, programmable for chasing patterns.
WS2811 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This LED strip controlled by WS2811 IC supports dynamic color chasing, changing and static color modes. Each IC controls 3 RGB LED chips. There are 60 LEDs per meter, and the higher LED density supports richer color changes. The minimum cutting unit is 50mm, and you can cut it into different lengths according to the project and requirements.
WS2811 DC24V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 50 mm
Power: 28.8 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This led strip with 60 RGB color LEDs per meter uses WS2811 to provide control, so that the led strip can achieve color chasing and changing effects. It uses DC24V voltage for power supply, which is low-carbon, radiation-free, flicker-free, pollution-free to the human body and the environment, and safe and stable. It is equipped with a 3-pin connector and separate power/ground wires at both ends.
WS2811 DC24V 96 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5 mm
Power: 19.2 W/m
Pixel Qty: 16 Pixels
Break Continue: No
PCB Width: 10mm
This dream color WS2811 RGB LED strip has a high density of 96 lights per meter, able to provide bright colorful lighting. At the same time, this full color dynamic LED light strip also has a good heat dissipation layout for a longer lifespan. The external WS2811 IC chips are mounted on the PCB, with 16 ICs per meter. One WS2811 IC chip controls six RGB LED chips, and the control distance of one IC can be cut independently with scissors.
WS2811 DC24V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 50 mm
Power: 24W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 5mm
This WS2811 IC controlled RGB LED strip has a very high LED count of 120. However, the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes, such as stage, art design and DIY works. Using an SPI controller or DMX decoder, users can achieve rich lighting effects and animations as needed to create personalized lighting solutions.
WS2811 DC24V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 50 mm
Power: 28.8 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10 mm
This WS2811 LED strip with 120LEDs per meter is brighter than one with 60 LEDs per meter. One end of the 10m/32.8ft addressable RGB LED strip connected to the 24V power supply, there is no voltage drop, good color consistency. 24 volt DC low voltage input, 50mm can be cut,12 LED lights as a loop. Adapts 2835 SMD LEDs, high brightness, and low energy consumption.
UCS1903 LED Strip
UCS1903 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
Universal UCS1903 dynamic color chasing, sorting, changing and static color modes are available on full color controller and ideal color strip. LED has the advantages of low driving voltage, environmental protection and energy saving, high brightness, large scattering angle, good consistency, low power and long life. 12V voltage, safer for human body, no radiation, no flicker, long life of light strip and stable light emission.
UCS1903 DC24V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC24V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This RGB LED strip controlled by UCS1903 IC has 30 LED chips per meter, providing energy-saving and efficient lighting. This strip is powered by DC24V voltage. Compared with the strip using DC12V voltage, DC24V can transmit longer distances without obvious voltage drop. It is more suitable for occasions that require high brightness or high power.
SM16703 LED Strip
SM16703 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
Universal SM16703 dynamic color chasing, sequencing, changing and static color modes available on full color controller and dreamy color strip. Individually addressable LEDs allow sequencing mode. Silicone encapsulated non-waterproof flexible LED light strip, 30 LEDs per meter High power 5050SMD RGB LEDs, programmable chasing pattern. SM16703 IC chip controlled. This light strip is soft and easy to bend when installing. With adhesive on the back, it can be attached anywhere.
WS2818 LED Strip
WS2818 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
The WS2818 LED strip is addressable LED strip, breakpoint- continue, and can be programmed and controlled by the help of controller. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. This LED strip has 20 WS2818 ICs per meter, and each IC controls three RGB LED chips.
WS2818 DC12V 72 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8mm
72leds/m RGB addressable LED strip with backup function better than WS2811 which has only one signal cable; this strip has dual signal to make it better signal transmission. The 8mm width ensures versatility with various aluminum profiles in the market easy to DIY.This addressable RGB LED strip is versatile, suitable for projects requiring nuanced lighting control.
WS2818 DC12V 72 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 12mm
This product uses WS2818 IC to control the LED strip to achieve color chasing and changing, and also supports breakpoint resuming. There are 72 LED chips per meter on the 12mm wide PCB board, providing higher brightness and richer and more varied lighting. The minimum cutting unit is 41.6mm, and you can cut it to the length you need according to your needs.
WS2818 DC24V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 10 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 5 mm
This 5mm width LED strip 120leds/m with backup function is 10w per meter, and high density 120leds/m 10pixels/m, could be used for narrow places. This strip can be made into a 20m (65.6ft) long addressable LED strip with 120 LEDs per meter. Even if one LED is damaged during operation, the RGBIC LED strip will continue to operate normally as long as no two adjacent LEDs are damaged. This helps to safeguard the operational stability of projects, especially mega-projects.
WS2818 DC24V 120 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 8 mm
This DC24V high density addressable TM1934 WS2818 LED strip can be controlled by WS2818 or TM1934IC. We can customize it according to your needs.This strip is cuttable every 100mm. You can freely cut these strips without damaging the circuit, so as to achieve precise length customization. High-density LEDs are more suitable for complex, large installation projects.
WS2818 DC24V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
This is a 24V programmable RGB LED strip, with a high density of 120 LEDs per meter. Dual signal line version and signal breakpoint continuous transmission. The WS2818 RGB LED strip with 120 LEDs per meter, higher brightness and more even light. This digital pixel LED strip light works under 24V voltage, and needs a 24V power supply.
TM1934 LED Strip
TM1934 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
The universal TM1934 dynamic color chasing, sorting, changing, and static color modes are provided on the full-color controller and ideal ribbon. TM1934 supports breakpoint resuming. Each IC of this LED strip controls 3 RGB LED chips, and the minimum cutting unit is 50mm. TM1934 supports breakpoint resume. Each IC of this LED light strip controls 3 RGB LED chips. The minimum cutting unit is 50mm. You can cut it into any length you want according to your needs.
FW1935 LED Strip
FW1935 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
This is a 12V programmable RGB LED strip, with a high density of 60 LEDs per meter. Controlled by FW1935 out-built IC. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.
UCS2903 LED Strip
UCS2903 DC24V 120 LEDs/m 20mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20mm
This UCS2903 double row SMD 5050 addressable RGB led strip with 120 LEDs per meter, 20mm PCB wide. The addressable UCS2903 double row RGB LED strip has more LED diodes on the same length, which allows it to provide a stronger illumination, and more even and brighter light. This digital pixel LED strip light works under 24V voltage, and needs a 24V power supply.
UCS2903 DC48V 120 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC48V
Cutting Unit: 100 mm
Power: 28.8 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 12mm
This programmable LED strip is an intelligently controlled LED light source. Integrate the control circuitry and RGB chip into a single 2835 component package.This strip is flexible and easy to bend and install. A 5-meter waterproof flexible strip is provided with 3M adhesive on the back for easy attachment.48V addressable LED strips support longer lighting distances than 24V and 12V LED strips.
UCS5603 LED Strip
UCS5603 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 10mm
The universal UCS5603 dynamic color chasing, sorting, changing, and static color modes are provided on the full-color controller and ideal ribbon. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. There is a strong 3M tape backing on the strips, which can be ripped off and stuck to most surfaces.
GS8208 LED Strip
GS8208 DC12V 50 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 50
Voltage: DC12V
Cutting Unit: 20 mm
Power: 12 W/m
Pixel Qty: 50 Pixels
Break Continue: Yes
PCB Width: 12mm
This is a 12V programmable RGB LED strip, with 50 LEDs per meter. Controlled by GS8208 out-built IC, it has two signal transmission lines, even if one of them is broken, it will not affect the signal transmission. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.
GS8208 DC24V 50 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 50
Voltage: DC24V
Cutting Unit: 20 mm
Power: 12 W/m
Pixel Qty: 50 Pixels
Break Continue: Yes
PCB Width: 12mm
If you are looking for a DC24v individually controlled external IC but stable function, then this strip is your good choice. 50 pixels/m and 50leds/m, each LED is individually controlled, traditional GS8208 IC is DC12v input, with circuit design, we launch this new product that is DC24v input. Make it work a longer distance without a voltage drop than the DC12V input.
GS8208 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This GS8208 uses DC12V voltage, has 60 RGB LED chips per meter, and can resume transmission at a break point. Each IC controls only one LED chip, and the minimum cutting unit is only 16.6mm. Each LED can be cut without damaging the rest of the strip. If desired, you are free to shorten, lengthen, or bend it.
GS8208 DC24V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
Individually addressable RGB GS8208 24V LED strips are packaged with 5050 RGB LEDs. There are 60 LEDs per meter. External GS8208 ICs are single-point single-control. There are 60 SMD5050 LED chips per meter on a 10mm wide PCB board, which is brighter. The minimum cutting unit is 16.66mm, and you can cut it to the required length as needed. It can be applied to LED display screens, LED lighting/lighting projects.
TM1804 LED Strip
TM1804 DC12V 180 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 180
Voltage: DC12V
Cutting Unit:50 mm
Power: 20 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 12mm
This 12V high density TM1804 RGB LED strip has a density of up to 180 LEDs per meter, capable of providing bright, colorful lighting.This full color dynamic LED strip also has a good heat dissipation layout for longer life. External TM1804 IC chips are mounted on the PCB, 20 ICs per meter. The high density of LEDs and high quality ICs make this strip perfect for large installation projects, such as stage lighting, architectural lighting, festival lighting, etc.
TM1804 DC24V 180 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 180
Voltage: DC24V
Cutting Unit:100 mm
Power: 20 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 12mm
This high-density TM1804 LED strip has 180 addressable RGB LEDs per meter, 12mm width, and a DC24V input. You can control each pixel individually, and each IC controls 18 LEDs.This LED strip uses high-quality PCB, is flexible and easy to install, and is easy to bend. There is 3M adhesive backing on the back, which can be pasted anywhere.
WS2815 LED Strip
WS2815 DC12V 66 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 66
Voltage: DC12V
Cutting Unit: 90.9 mm
Power: 22 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 10mm
This RGB LED strip uses built-in WS2815 IC to control the color change of the strip. Each IC controls one LED to achieve color chasing, gradient and other effects. This strip is quite special, with 66 LED chips per meter. Compared with the conventional 60LED/M, the denser number of LEDs provides richer and smoother color changes.
SPI Built-in IC
WS2815 LED Strip
WS2815 DC12V 100leds/75cm 2.6mm 3mm RGB LED Strip
Color:RGB
LED Qty: 100leds/75cm
Voltage: DC12V
Cutting Unit: 7.5 mm
Power: 3 W/PCS
Pixel Qty: 100 Pixels/75cm
Break Continue: Yes
PCB Width: 2.6 mm
Take a look at our new 12V RGBIC automobile interior trim light strip. It’s only 2.6mm/3mm wide and very thin. It employs a two-wire data protocol to send data reliably. If one LED goes out, the whole strip won’t go dark. Using the smallest 1010 SMD LED chips and a built-in WS2815 addressable LED smart IC.
WS2815 DC12V 186leds/75cm 3mm RGB LED Strip
Color: RGB
LED Qty: 186leds/75cm
Voltage: DC12V
Cutting Unit: 4.0 mm
Power: 5.58/PCS W/m
Pixel Qty: 186 Pixels/75cm
Break Continue: Yes
PCB Width: 3 mm
The full-color 12V SPI super thin high-density 3mm 186leds/75cm LED strip for lighting cabinets and shelves is good for the environment and saves energy. The power is just 5.58W per piece. The design of the lamp bead with 186 LEDs and a height of 75 cm makes the light almost perfect.
WS2815 DC12V 30 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 4.3 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 10 mm
This WS2815 strip is IP67 rated. It is allowed to be applied outdoors. 30leds/m makes it cost effective, but pixel quantity is 30 pieces per meter, enough for outdoor usage. This RGB LED strip combines flexibility, durability, and ease of use, making it an ideal choice for creating memorable and dynamic lighting displays in night clubs and entertainment venues.
WS2815 DC12V 60 LEDs/m 5 mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 8.6 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 5 mm
For narrow space addressable dynamic lighting, we develop a new strip light, 5mm width WS2815 LED strip with DC12V and 60leds/m.This digital daylight LED strip features the 12V WS2815 individually addressable feature, which allows each light to adjust brightness independently to create dynamic light shows. The RGB color display provides great visual effects for residential spaces and commercial spaces that require bright, colorful, dynamic light.
WS2815 DC12V 60 LEDs/m 8mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 8 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 8 mm
This S type individually addressable WS2815 LED strip is designed with excellent bending ability and can be twisted to any angle. It also supports continuous transmission with single point damage. This S type LED strip is perfect for extreme curved surfaces and can be easily molded into different shapes. 3M adhesive backing tape and 3 LEDs cuttable also allow users to DIY shapes with this 12V S type led strip easily.
WS2815 DC12V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 8.6 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 8 mm
This is a 12V programmable RGB LED strip with 60 LEDs per meter. It uses the built-in WS2815 IC to support signal breakpoint resumption. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation. Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want.
WS2815 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 33.33 mm
Power: 8.6 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width:10 mm
The 10mm 12V 60LEDs WS2815 Addressable LED Strip is a versatile and dynamic lighting product. Add a splash of color and creativity to any bar setting. Operating on a DC12V power supply, it features a signal break-continue function. Lighting remains uninterrupted and consistent, even if one LED is compromised. The strip is equipped with high-intensity SMD5050 LEDs. This product has precise color control and vivid illumination.
WS2815 DC12V/24V 66LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 66
Voltage: DC12V/24V
Cutting Unit: 15.15 mm
Power: 13.2 W/m
Pixel Qty: 66 Pixels
Break Continue: Yes
PCB Width:10 mm
The brightest 24V single row 66-LED/meter RGBIC LED strip, with a 15-meter run distance and no voltage drop.This 24V WS2815 3535 RGB 66-LED addressable LED strip features a resume mechanism, allowing data transmission to resume where it left off upon power-up after a power outage or interruption.
WS2815 DC12V 84 LEDs/m 6mm S RGB LED Strip
Color: RGB
LED Qty: 84
Voltage: DC12V
Cutting Unit: 35.7 mm
Power: 12 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 6 mm
WS2815 LED strip is loved by most customers because of its breakpoint resume characteristics and high cost performance; as an upgraded version of WS2813 which is DC5v, WS2815 supports DC12V low voltage input, single LED cuttable, individually addressable, can reduce the working current of pixels, 5-7m with no voltage drop.This S type LED strip is designed for sign makers to make vivid, colorful channel letters. With bendable PCB, it is easy to install inside the signage to make an RGB visual impact.
WS2815 DC12V 84 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 84
Voltage: DC12V
Cutting Unit: 35.7 mm
Power: 18 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10 mm
This WS2815 led strip with 84 LEDs per meter is brighter than that with 60 LEDs per meter. One end of the 5m addressable RGB led strip connected to the 12V power supply. 12 volt DC low voltage input, 35.7mm can be cut, adapts 5050 SMD LEDs, high brightness, and low energy consumption.
WS2815 DC12V 96 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 96
Voltage: DC12V
Cutting Unit: 10.4 mm
Power: 13.8 W/m
Pixel Qty: 96 Pixels
Break Continue: Yes
PCB Width: 10 mm
96leds per meter WS2815 Addressable LED Strip Lights with pure color, 5050 RGB FPC board on the back of 3M glue, easy to install, low energy consumption, high brightness. The performance is stable and can do waterproof processing, unique line technology. Because of the dual signal transmission, the maintenance-free normal life of 50,000 hours or more and 5 years warranty.

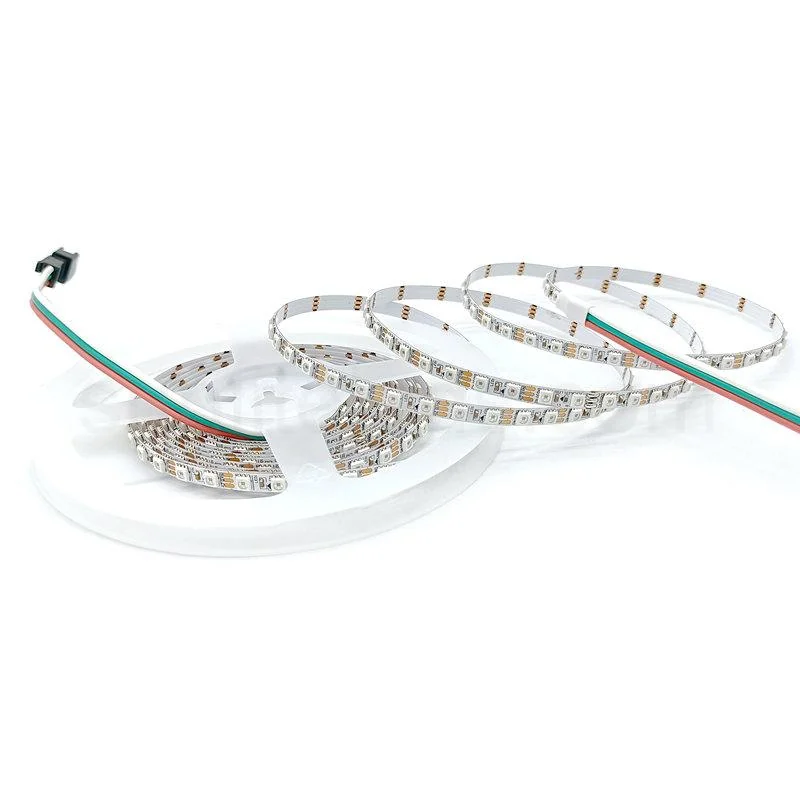

WS2815 DC12V 120 LEDs/m 5mm 3PIN RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 17.3 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5 mm
This WS2815 addressable LED strip light adopts an ultra-narrow 3.5*3.5mm LED chip with the driver IC integrated inside the SMD3535, saving a lot of space and achieving an ultra-narrow LED strip width of 5mm, High LED density achieves 120LED/m, you can easily achieve lighting the whole room, custom length and IP67 waterproof rating, indoor can be used for narrow space backlighting, outdoor can be used for ambient lighting.
WS2815 DC12V 120 LEDs/m 5mm 4PIN RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5 mm
This WS2815 IC controlled RGB LED strip has a very high LED count of 120, but the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes, such as stage, art design and DIY works. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
WS2815 DC12V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 17.3 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 10 mm
This RGB addressable LED strip is one of the most reliable commercially available, controlled by a built-in WS2815 IC chip. Two signal lines for data transmission and a resumable transmission feature. Each LED integrates a WS2815 chip for independent control. A built-in constant-current driver circuit provides signal shaping and current protection.
WS2815 DC12V 120 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 12 mm
This is a DC12V WS2815 RGB LED strip, with 120 lights per meter. Every 1 IC control 1 LEDs, each light-emitting diode is individual addressable, you can set the color of each LED. Using an SPI controller or DMX decoder, users can achieve rich lighting effects and animations as needed to create personalized lighting solutions.
WS2815 DC12V 144 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC12V
Cutting Unit: 13.89 mm
Power: 20.6 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 8 mm
Our 8mm 12V WS2815 144leds Individually controlled RGB LED Strip with independently addressable LEDs and Signal Breakpoint Resume Transmission can be used for customization and dynamic RGB lighting effects.Each LED can be controlled, and each 2leds can be cut at 13.8mm. This SMD3535 WS2815 adopts the chip of an international leading manufacturer, brightness is high and the angle is wide, consistent color and stable performance.
WS2815 DC12V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC12V
Cutting Unit: 13.89 mm
Power: 20.6 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This is an RGB addressable LED strip controlled by WS2815 IC, operating at a low voltage of 12V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.
WS2812 LED Strip
WS2812 DC5V 100leds/75cm 2mm 2.6m RGB LED Strip
Color: RGB
LED Qty: 100LEDs/75cm
Voltage: DC5V
Cutting Unit: 7/5 mm
Power: 7.5 W/pcs
Pixel Qty: 100 Pixels/75cm
Break Continue: No
PCB Width: 2.6 mm
The WS2812 IC chip controls the individually addressable LEDs in this RGB interior LED light strip. It makes gentle light without using LED spotlights. It can make a lot of different colours when used with a pixel LED controller. These colours include marquee, flowing, gradient, curtain, trailing, chase, and cumulative lighting.
WS2812 DC5V 186LEDs/75cm 3mm RGB LED Strip
Color: RGB
LED Qty: 186LEDs/75cm
Voltage: DC5V
Cutting Unit: 4.03 mm
Power: 13.95 W/pcs
Pixel Qty: 186LEDs Pixels/75cm
Break Continue: No
PCB Width: 3 mm
There are 60 Addressable RGB LEDs per meter, and 10mm wide for 60LEDs/meter, DC5V input, and you can control each LED individually. You can set the color of each LED’s red, green and blue component with 8-bit PWM precision. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
WS2812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
There are 60 Addressable RGB LEDs per meter, and 10mm wide for 60LEDs/meter, DC5V input, and you can control each LED individually. You can set the color of each LED’s red, green and blue component with 8-bit PWM precision. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
WS2812 DC5V 60 LEDs/m 6mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 50 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 6 mm
This S type individually addressable WS2812 LED strip is designed with excellent bending ability and can be twisted to any angle. This S type LED strip is perfect for extreme curved surfaces and can be easily molded into different shapes. Its 6mm narrow PCB width allows this S type led strip to easily fit into a variety of tight installation spaces.
WS2812 DC5V 148 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 148
Voltage: DC5V
Cutting Unit: 13.5 mm
Power: 20 W/m
Pixel Qty: 148 Pixels
Break Continue: No
PCB Width: 8 mm
This LED strip controlled by WS2811 IC supports dynamic color chasing, changing and static color modes. Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. There are 60 LEDs per meter, and the higher LED density supports richer color changes. The low voltage DC 5V voltage input makes it ideal for a variety of small decorative and DIY projects to provide ambience to your creations.
WS2812C DC5V 200 LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 25 mm
Power: 40 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
There are 200 Addressable RGB LEDs per meter, and 3.5mm wide for 200LEDs/meter, DC5V input. This extremely thin led strip features individually addressable WS2812C RGB LEDs, intelligent control, allowing for various LED colorful effects and animations to be displayed. The compact size of the WS2812C 2020 digital rgb led strip is suitable for applications where a slim design is required. It operates on a 5V low voltage, safer to use.
WS2812 DC5V 350 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 350
Voltage: DC5V
Cutting Unit: 2.85 mm
Power: 22 W/m
Pixel Qty: 350 Pixels
Break Continue: No
PCB Width: 10 mm
This LED strip controlled by WS2812 IC supports dynamic color chasing, changing and static color modes. There are 350 LEDs per meter, and the higher LED density supports richer color changes. The minimum cutting unit is 2.85mm, and you can cut it into different lengths according to the project and requirements. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
SK6812 LED Strip
SK6812 DC5V 60 LEDs/m 6mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 50 mm
Power: 8 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 6 mm
This 6mm-wide, micro-addressable S-type SK6812 RGB LED strip features a serpentine PCB design, offering flexible bending and adaptability to uneven installation paths. This compact, cobra-shaped LED strip operates on a 5V power input and features three cuttable 5050 LEDs. It is individually programmable. Each LED houses a built-in WS2812 IC, representing a pixel. This micro 5V zigzag LED strip has 300 pixels per roll (5 meters/16 feet).
SK6812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
Built-in SK6812 chip 5V RGB LED strip, each LED can be individually programmed and controlled, one meter has 60 lights on 10mm thin PCB board. 5V SK6812 is a single data channel addressable light strip with wide applicability and strong matching, work with Arduino. Suitable for home decoration lighting and mood lighting, Individually programmable and suitable for industrial lighting.
SK6812 DC5V 148 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 148
Voltage: DC5V
Cutting Unit: 13.5 mm
Power: 20 W/m
Pixel Qty: 148 Pixels
Break Continue: No
PCB Width: 8 mm
We can supply the highest LED strip 148leds per meter design at 5v at ultra thin PCB 8mm, if you are interested, please feel free to contact us.Normal WS2812 LED strip in the market is 144leds/m and width 12mm makes it difficult to install in a thinner place, with our narrow width WS2812B LED strip and highest density 148pixels/m, this issue could be solved. It could be customized to IP20/IP67 waterproof ratings, suitable for indoor & outdoor lighting environments.
SK6813 LED Strip
SK6813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This LED strip controlled by SK6813 IC supports dynamic color chasing, changing and static color modes. Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. It also supports continuous transmission with single point damage. There are 60 LEDs per meter, and the higher LED density supports richer color changes. The low voltage DC 5V voltage input makes it ideal for a variety of small decorative and DIY projects to provide ambience to your creations.
WS2813 LED Strip
WS2813 DC5V 64 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 64
Voltage: DC5V
Cutting Unit: 15.62 mm
Power: 12 W/m
Pixel Qty: 64 Pixels
Break Continue: Yes
PCB Width: 10 mm
This DC5V WS2813 LED RGB strip has a breakpoint resume function, uses dual signal transmission, and has high stability. The WS2813 addressable LED strip is used with a controller and is very suitable for programmable DIY lighting projects.This 64leds/m 10mm wide WS2813 LED strip product uses chips from leading international manufacturers. It has the characteristics of high brightness, wide angle, consistent color, and stable performance.
WS2813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This RGB addressable LED strip is one of the most reliable LED strip lights for commercial use, controlled by WS2813 IC chips. It uses two signal lines for data transmission, with breakpoint resume function. Each LED integrates a WS2813 for independent control. And the built-in constant current driver circuit provides signal shaping and current protection. It operates on a 5V low voltage, safer to use.
WS2813 DC5V 144 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This 5V WS2813 5050 RGB 144 addressable led strip has a breakpoint transmission failure recovery mechanism, which enables data transmission to continue from the last interrupted position when re-powered after a power failure or abnormal interruption. This dual signal WS2813 144 led strip RGB doesn’t need to add resistors inside the SMD LED or on the PCB board, presenting a clean look while maintaining functionality.
APA102 LED Strip
APA102 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
This LED strip controlled by APA102 IC supports dynamic color chasing, changing and static color modes. Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. There are 60 LEDs per meter, and the higher LED density supports richer color changes. It is very suitable for swimming pools, discotheques, bars, KTV and other atmosphere lighting.
APA102 DC5V 135 LEDs/m 3mm RGB LED Strip
Color: RGB
LED Qty: 135
Voltage: DC5V
Cutting Unit: 7.4 mm
Power: 27 W/m
Pixel Qty: 135 Pixels
Break Continue: No
PCB Width: 3 mm
The APA102-2020 SMD LED is a new APA102 integrated LED capable of three-channel RGB color illumination.Measuring only 2.0mm*2.0mm*0.75mm, it is smaller than the 5.0mm*5.0mm 5050 LED and offers significant advantages. This compact size will enable a wide range of new applications. The APA102-2020 also uses the APA102 as a driver IC, enabling color control and dimming, while also achieving high brightness.
APA102 DC5V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
This is an RGB addressable LED strip controlled by APA102 IC, operating at a low voltage of 5V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. This APA102 RGB DC5V 144 LEDs/m Addressable LED Strip Lights with pure color, 5050 RGB FPC board on the back of 3M glue, easy to install low energy consumption, high brightness.
APA102 DC5V 200LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 5 mm
Power: 43 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
This APA102 RGB DC5V 200LEDs/m Addressable LED Strip Lights have 200 RGB LEDs per meter, and 3.5mm wide for 200LEDs/meter, DC5V input. This extremely thin led strip features individually addressable APA102 RGB LEDs, intelligent control, allowing for various LED colorful effects and animations to be displayed. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes.
SK9822 LED Strip
SK9822 DC5V 60LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This SK9822 RGB LED Strip is 60 Addressable RGB LEDs per meter, and 10mm wide for 60LEDs/meter, DC5V input, and you can control each LED individually. This LED strip controlled by SK9822 IC supports dynamic color chasing, changing and static color modes, every LED can be individually addressable and show any color you want. The low voltage DC 5V voltage input makes it ideal for a variety of small decorative and DIY projects to provide ambience to your creations.
DMX
DMX DC12V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 33.3 mm
Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 8 mm
This LED strip controlled by UCS512 IC supports dynamic color chasing, changing and static color modes. Each IC controls 2 RGB LED chips. This DMX controlled RGB led strip with 12V+, GND, DAT, ADD/P 4CH wires. The signal transmission of DMX lights adopts parallel scheme when one of the LED lights fails, it does not affect the normal work and control of other lights, and ensures the overall project.
DMX DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
5meters 60LEDs/m DMX512 RGB led strip lights for sale, with 12V+ GND A B P 5CH wires. The 12V DMX LED strip supports the operation mode of the first installation and then writing code, and any animation effects can be realized through the ArtNet DMX controller programming. There are 60 RGB lights per meter, one DMX512 IC controls 3 LED lights, 1 pixel = 3 LEDs, 50mm / 3 lights can be cut and 20 pixels per meter. With a 10mm PCB width, it can be pasted anywhere with 3M tape back of the PCB.
DMX DC24V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 33.3 mm
Power: 14.4 W/m
Pixel Qty: 30 Pixels
Break Continue: Yes
PCB Width: 8 mm
This LED strip controlled by UCS512 IC supports dynamic color chasing, changing and static color modes. Each IC controls 2 RGB LED chips. This DMX controlled RGB led strip with 12V+, GND, DAT, ADD/P 4CH wires. The signal transmission of DMX lights adopts parallel scheme when one of the LED lights fails, it does not affect the normal work and control of other lights, and ensures the overall project.
DMX DC24V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
This LED strip controlled by UCS512 IC supports dynamic color chasing, changing and static color modes, DMX controlled RGB led strip with 12V+, GND, DAT, ADD/P 4CH wires. Each IC controls 6 RGB LED chips. There are 60 LEDs per meter, and the higher LED density supports richer color changes. It uses DC24V voltage for power supply, which is low-carbon, radiation-free, flicker-free, pollution-free to the human body and the environment, and safe and stable.
DMX DC24V 72 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8 mm
This LED strip controlled by UCS512 IC supports dynamic color chasing, changing and static color modes. There are 72 LED chips per meter on the 8mm wide PCB board, providing higher brightness and richer and more varied lighting. The signal transmission of DMX lights adopts parallel scheme when one of the LED lights fails, it does not affect the normal work and control of other lights, and ensures the overall project.
DMX DC24V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 50 mm
Power: 28 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
This is a DMX controlled RGB addressable LED strip controlled by UCS512 IC. DMX512 Digital Addressable RGB LED strip lights can be programed via the artnet pixel controller, easy to get the chasing color effects you like. There are 12o LED chips per meter on the 10mm wide PCB board. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes.

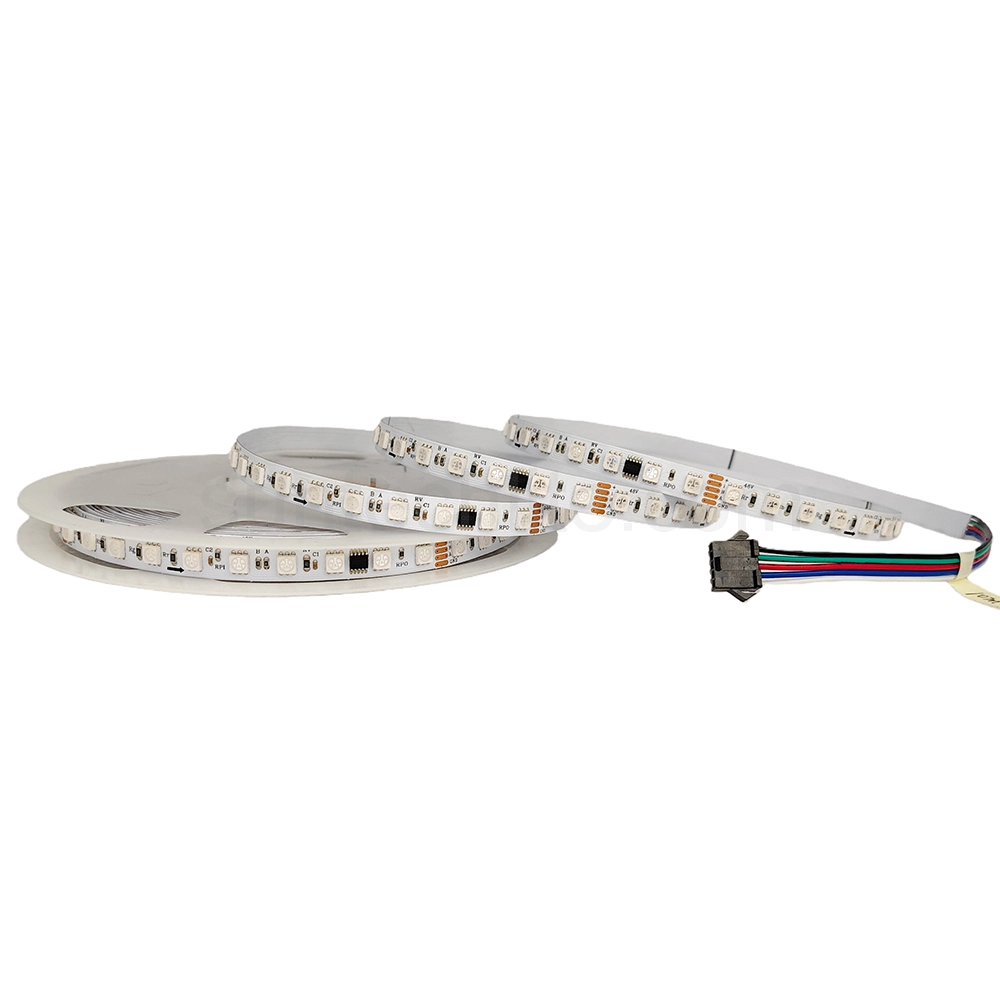

48V DMX512 RGB Addressable Pixel LED Strip Long Run 80 LEDs/m Minimal Voltage Drop
Color: RGB
LED Qty: 80
Voltage: DC48V
Cutting Unit: 125 mm
9Power: 9 W/m
Pixel Qty: 8 Pixels
Break Continue: Yes
PCB Width: 10 mm
Using a higher system voltage helps minimize end-of-run dimming and color shift on long-distance installations, so the entire light line looks more even and uniform. DMX programmable control supports long-distance runs and unlocks effects like gradients, flowing chases, pixel animations, and pixel mapping
DMX DC48V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC48V
Cutting Unit: 100 mm
Power: 12 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
At a higher 48 volt voltage, the LED strip can run longer distances. 3oz or 4oz double-layer PCB, high current flow, no voltage drop, same brightness from beginning to end. Equipped with 3M thermal backing tape, it simplifies installation and has good heat dissipation, less light decay, and longer life.
DMX DC12V 180 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 180
Voltage: DC12V
Cutting Unit: 50 mm
Power: 18 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 12 mm
This high density DMX512 GS8526 RGB LED strip has an operating voltage of 12V. 180 LEDs per meter, 20 pixels. Each IC controls 9 LEDs.Matching with an addressable LED controller for programming, it can create RGB effects such as flowing water and chasing. The high density of this strip makes it more suitable for lighting projects that require high brightness, so it is widely used in the production of LED screens, LED walls and billboards.
DMX DC24V 180 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 180
Voltage: DC24V
Cutting Unit: 100 mm
Power: 18 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 12 mm
The high-density LEDs are ideal for lighting projects with high brightness and rich color changes, such as stage, art design, and DIY works.This strip can be cut every 100 mm, 9 LEDs at a time. One IC controls 9 LEDs, which can achieve a variety of dynamic lighting effects, such as chasing, flowing water, and other lighting effects. Using an SPI controller or DMX decoder, users can achieve rich lighting effects and animations as needed to create personalized lighting solutions.
