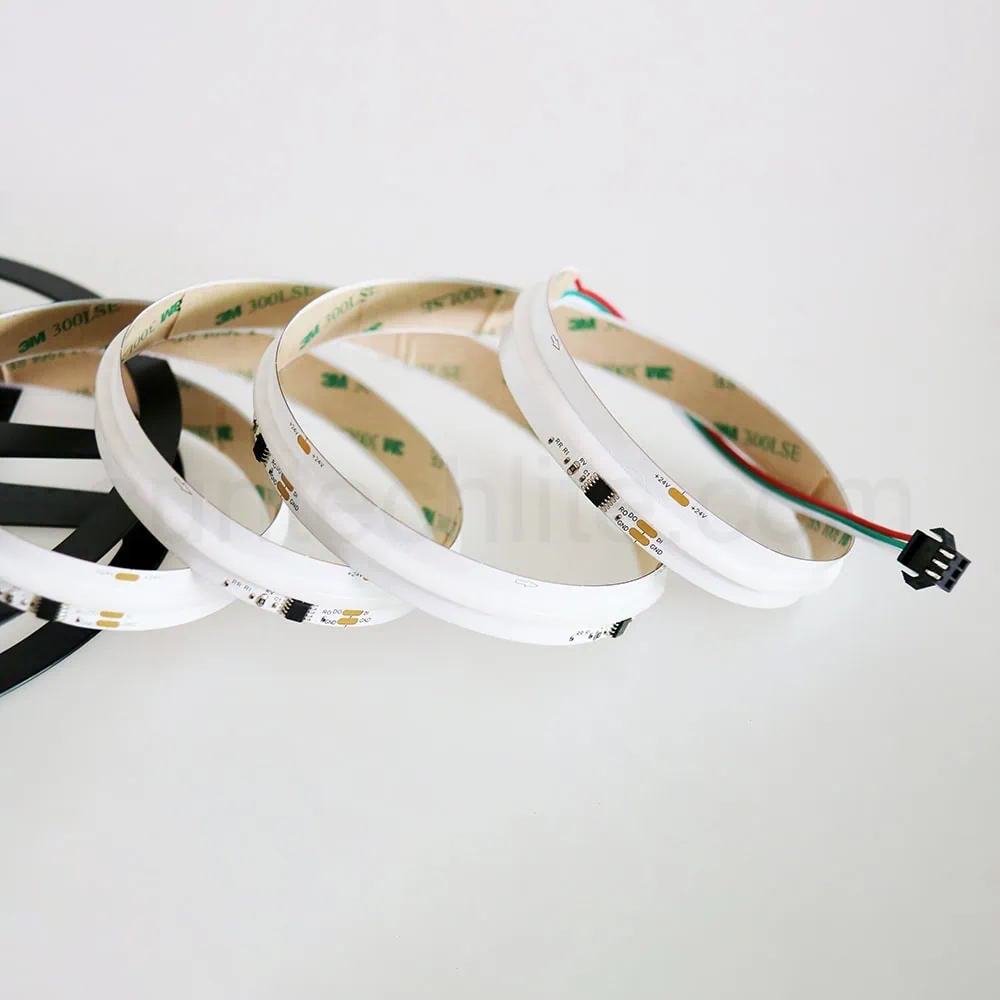

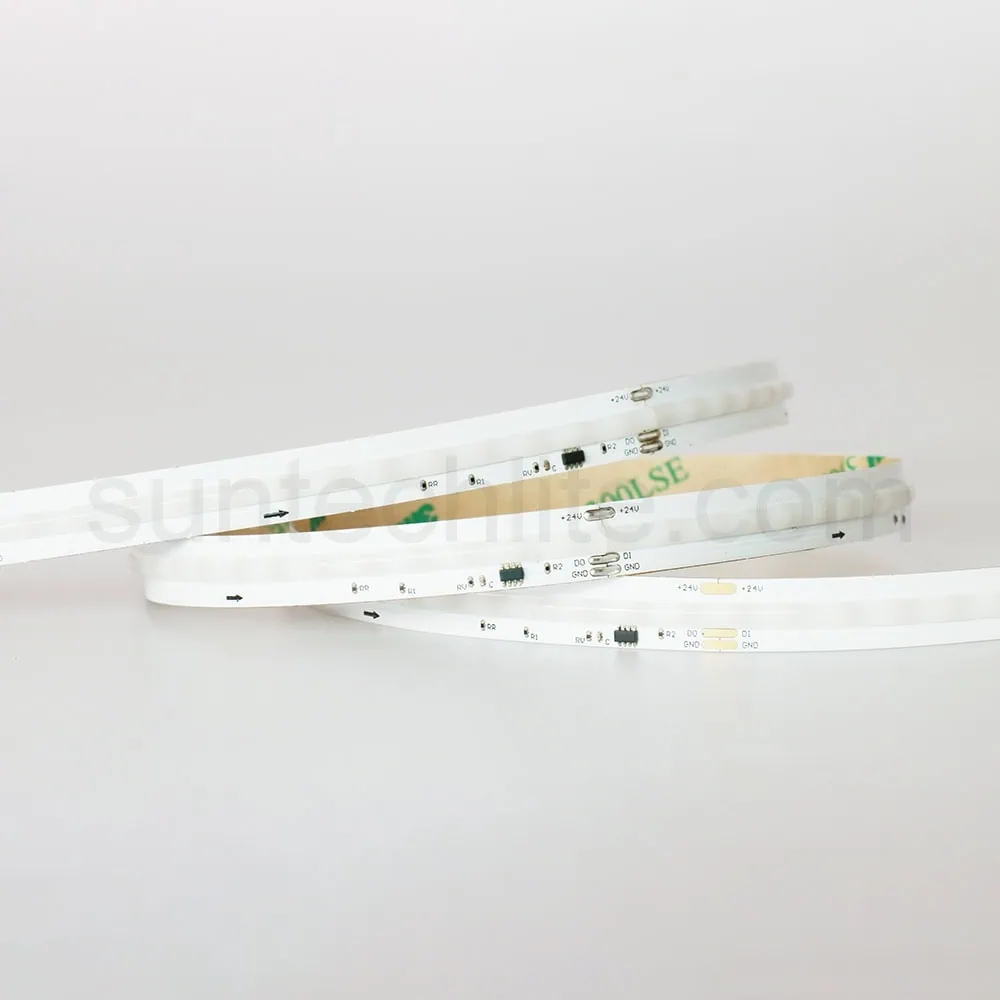

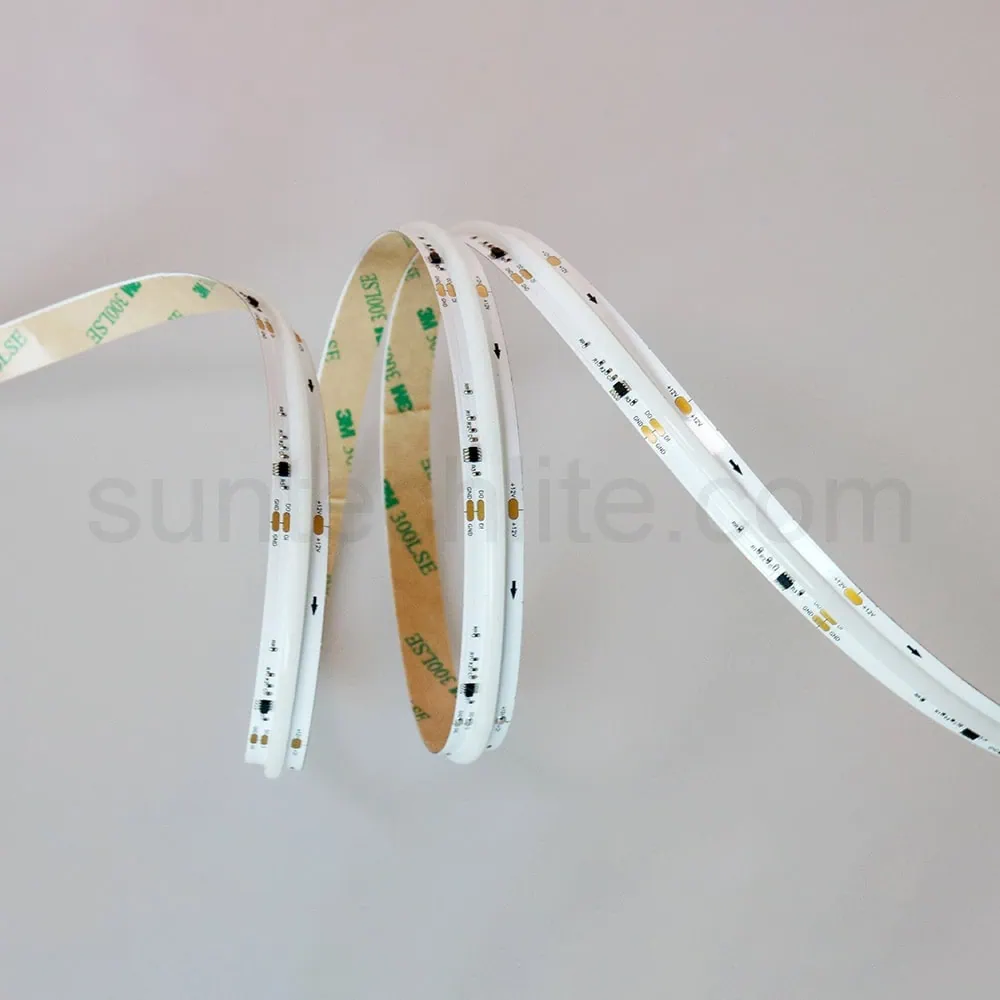

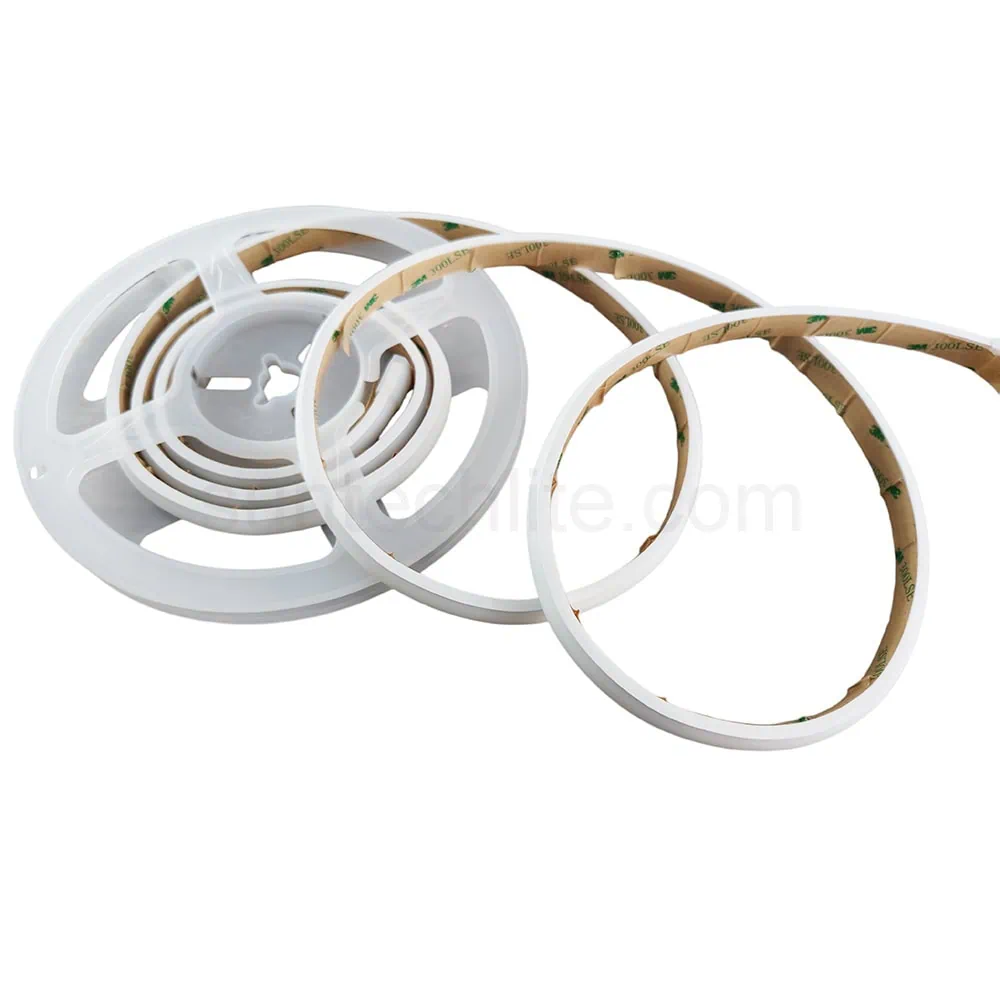

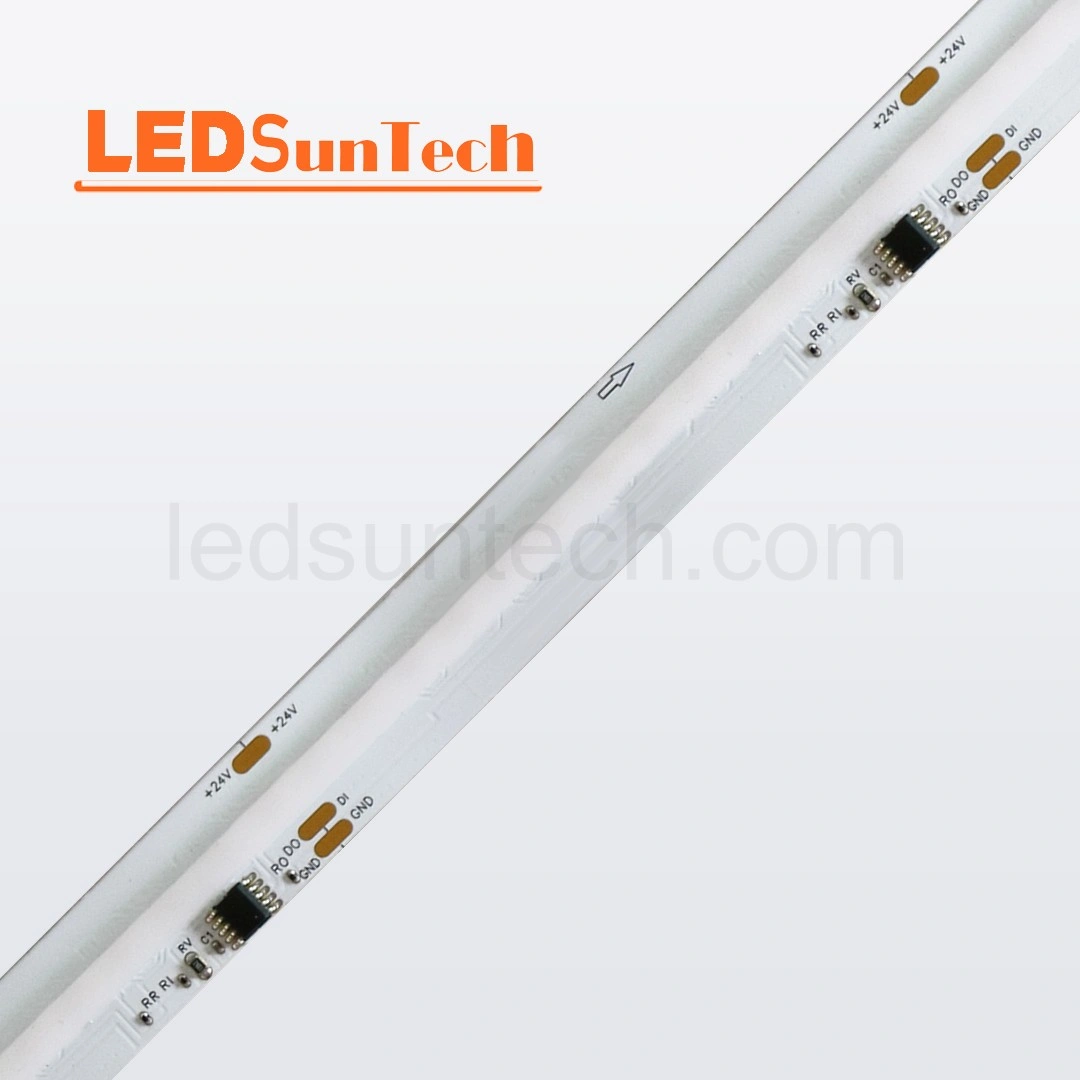

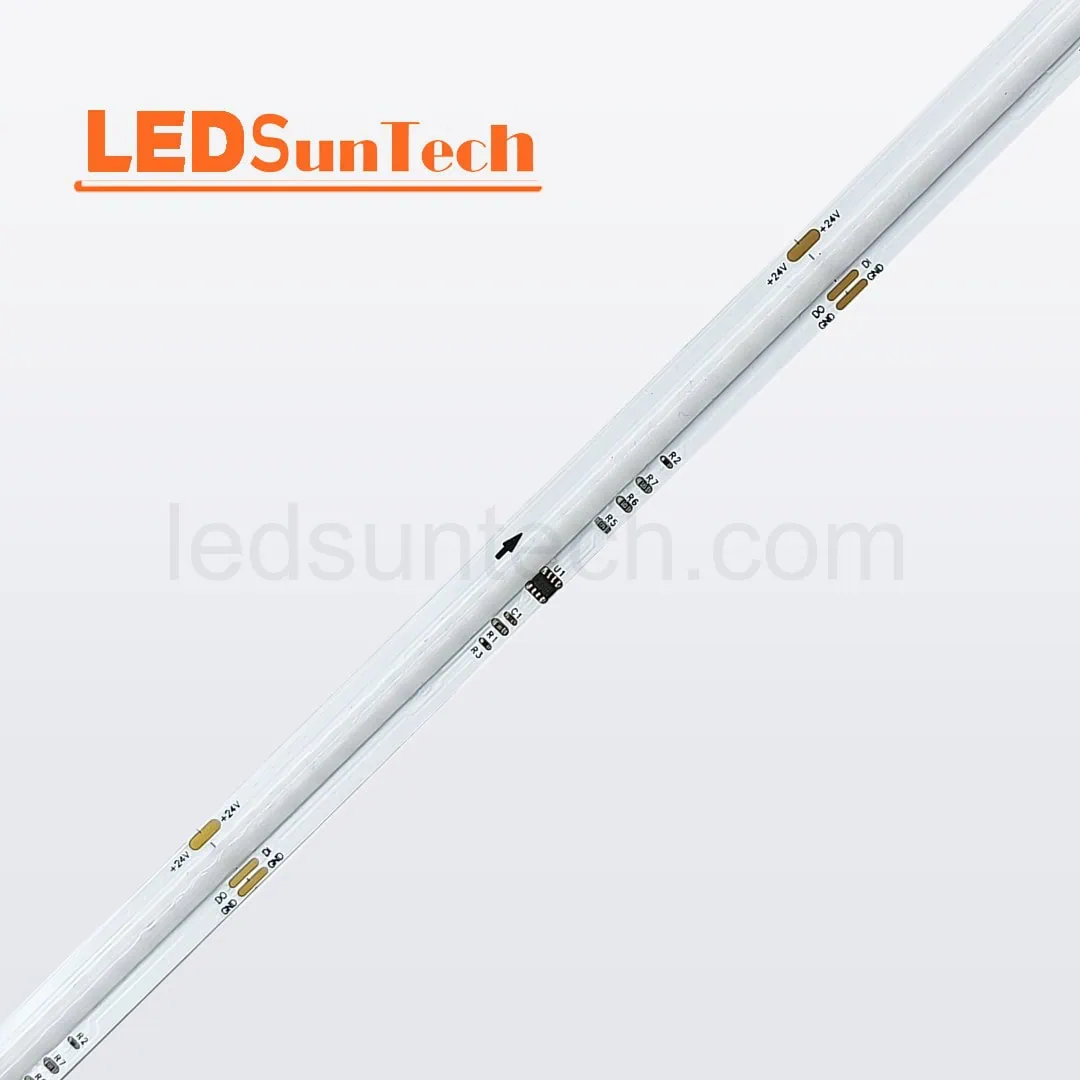

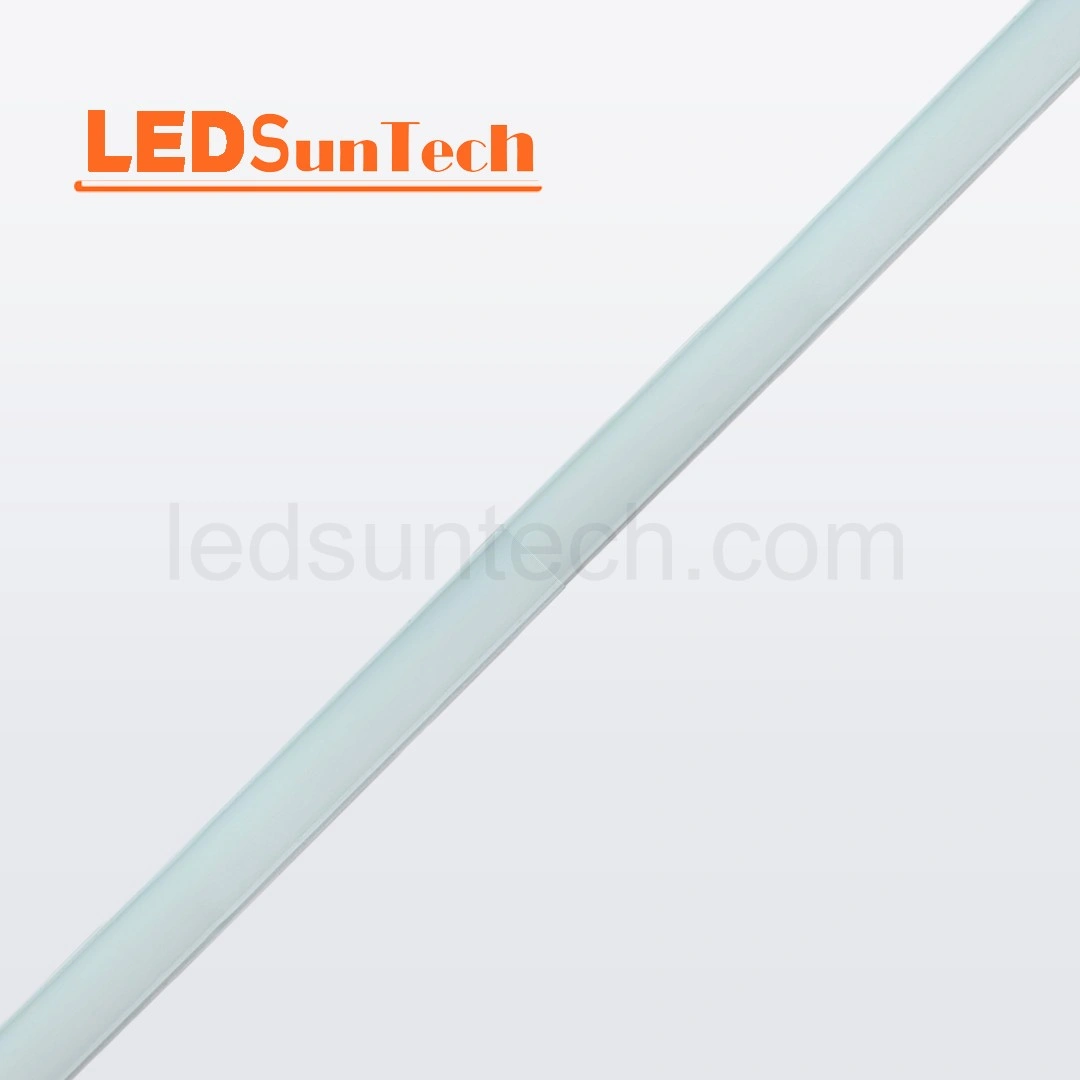

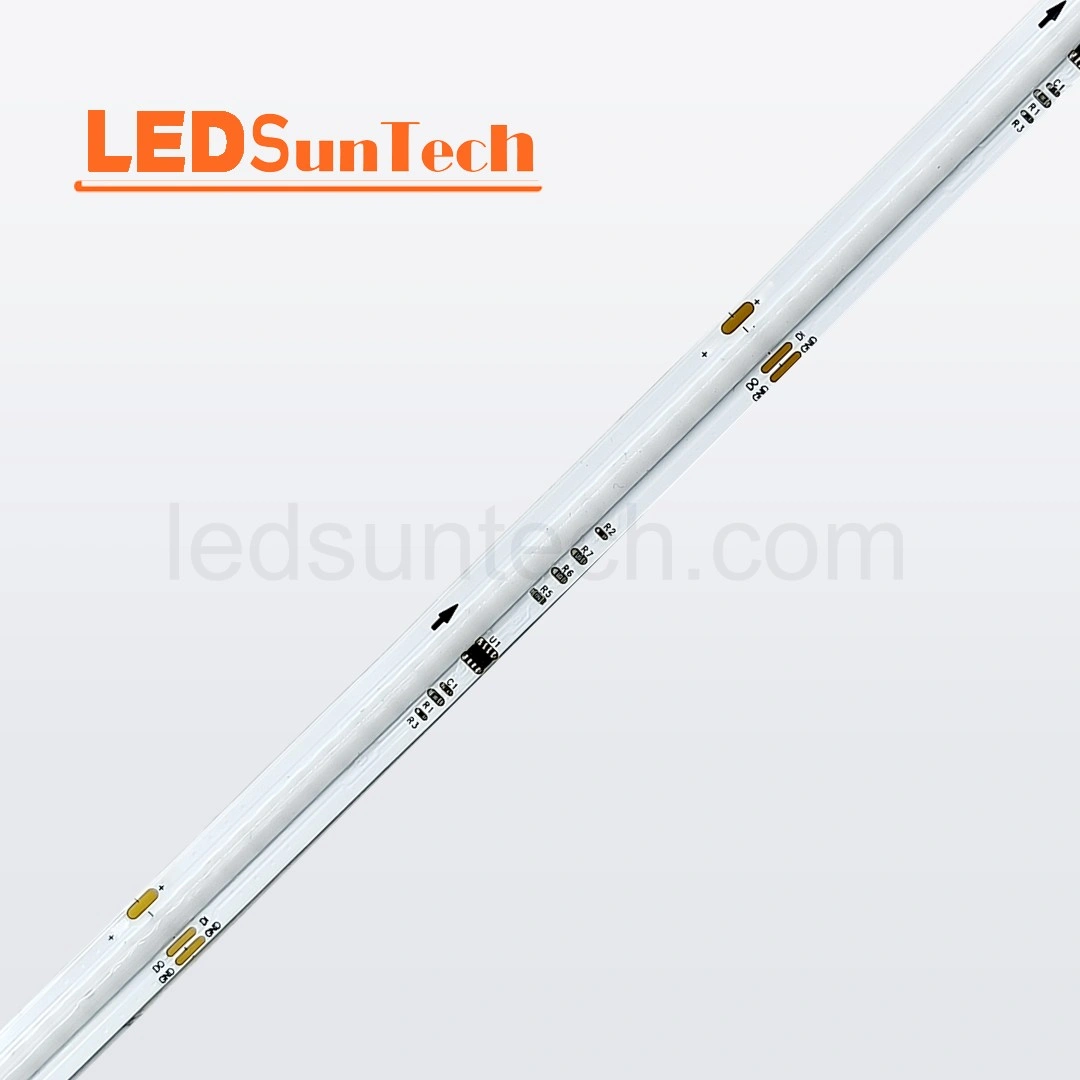

Addressable RGB RGBW RGBWW COB LED Strip
1. This addressable led strip uses COB technology. The light surface looks smooth and continuous. No visible dots. The effect is close to a light tube or panel light.
2. The RGB pixel COB LED strip uses red, green, and blue to create vivid colors. It is ideal for dynamic and personalized lighting.
3. The RGBW pixel COB LED strip adds a white chip. Colors look cleaner, and white light feels more natural. It suits both decoration and daily lighting.
4. The RGBWW smart COB LED strip includes warm white and cool white chips. Color temperature can be adjusted freely. It covers both atmosphere and practical lighting needs.
5. LED density can reach up to 720 LEDs per meter. The strip stays flexible. It fits curved surfaces and tight spaces with ease.
4. Power consumption is only 10 to 20 watts per meter. It replaces many traditional high power lights while using far less energy.
5. A strong 3M adhesive is pre applied on the back. Installation is quick and simple. It attaches easily to clean and smooth surfaces.
7. External Control IC options include WS2811, WS2812, UCS7604, and SK6812. Dynamic white lighting effects are supported. Brightness control, flowing effects, and smooth transitions are all possible.
8. Compared to LED SMD strips, reliability is higher. Lifespan can reach up to 50,000 hours.
9. Suitable for home, commercial, and decorative lighting. It also works well for accent and task lighting. With proper protection, outdoor use is possible.
10. Operates on safe 12V or 24V low voltage power. A matching power supply is required. Signal amplifiers are needed for dimming or color temperature control.
How to Control RGBW LED Strips with ESP8266
- Materials Required
- ESP8266 Control Board
- RGBW Led Strip
- Connection Diagram
- Code Upload and Demonstration Video
Ways To Control SPI And DMX Addressable LED Strip
- Madrix control
- Online control by Chinese software such as LED-play
- Main controller + sub controller(Big project)
- Built-in program Auto loop playback(Small project)
- Mobile Phone APP
SPI Addressable LED Strip What It Is and How to Choose
- What is an SPI addressable LED strip
- SPI pixel LED strips by IC type
- Three specs that control brightness, motion, and fit
- Choosing the IC and reliability options
- Ways to control SPI pixel strips
Why External IC RGBW Addressable LED Strips Are a Top Choice for Professional Lighting Projects
- External IC
- Why RGBW Is Not Just “More Colors”
- What “Addressable” Lets You Do
- 12V vs 24V vs 48V — How to Choose?
- Choosing Pixel Density (Pixels/M) Without Overthinking It
- Where External IC RGBW Pixel LED Tapes Use
Addressable RGB RGBW RGBWW COB LED Strip Series
Voltage: DC12V, DC24V. 0-100% dimmable.
Beam Pattern: 180° beam angle.
LED density: 420 LEDs/m, 560 LEDs/m, 630 LEDs/m, 700 LEDs/m, 720 LEDs/m.
PCB width: 10mm.
Waterproof grade: IP20, IP65, IP67, IP68.
Color: RGB, RGBW, RGBWW, RGBCCT and white light 1800K / 2700K / 3000K/ 4000K/ 5000K/ 6000K, customizable.
Specification Download
| Specification Name | Download |
|---|---|
| DC12V / 24V-320leds/m White COB LED Strip Specification |
|
| DC12V / 24V-320leds/m White High Efficiency COB LED Strip Specification |
|
| DC12V / 24V-360leds/m White Constant Current COB LED Strip Specification |
|
| DC12V / 24V-378leds/m White COB LED Strip Specification |
|
| DC12V / 24V-384leds/m White COB LED Strip Specification |
|
| DC12V / 24V-480leds/m White COB LED Strip Specification |
|
| DC12V / 24V-504leds/m White COB LED Strip Specification |
|
| DC12V / 24V-528leds/m-White COB LED Strip Specification |
|
Addressable RGB RGBW RGBWW COB LED Strip Manufacturers
Established in 2010, we are a leading manufacturer of addressable RGB RGBW RGBWW LED strips with over 15 years+ of industry expertise.
Our vertically integrated manufacturing process ensures cost efficiency, fast delivery, and customized solutions tailored to meet the needs of global clients. Partner with us for reliable, factory-direct LED lighting solutions backed by over a decade of manufacturing excellence.
What is Addressable RGB RGBW RGBWW COB LED Strip?
Addressable RGB COB LED strips are full color lighting strips with independent segment control. Each section can be controlled separately. Red, green, and blue chips mix together to produce a wide range of colors. The light output stays smooth and uniform with no visible grain or spots. The result feels clean, bright, and visually consistent.
Addressable RGBW COB LED strips build on this foundation. They still use red, green, and blue for color mixing, but add a dedicated white chip. This extra white channel makes a clear difference. Colors remain rich and vivid, while the white light becomes more natural and usable for everyday lighting. One strip can handle both decorative scenes and practical illumination without compromise.
Addressable RGBWW COB LED strips go one step further. They include two types of white light chips, warm white and cool white. This allows much greater flexibility. The strip can produce vibrant dynamic colors when needed. It can also shift the white light from warm tones to cool tones depending on the environment. Soft ambient mood or bright functional lighting becomes easy to achieve with the same product.
Please pay attention to the signal direction of the addressable COB LED strip. Reverse connection will cause permanent damage to the strip.
Why Choose Addressable RGB RGBW RGBWW COB LED Strip?
To upgrade the atmosphere of an esports room, place addressable RGB or RGBW COB LED strips along the edges of your monitor, desk, and feature wall. The change feels immediate. The space becomes more immersive and alive.
With programming, the lighting reacts to your setup. Waves of light can move across the desk. Breathing effects can rise and fade. Chasing patterns can follow the rhythm of your gameplay. The room no longer feels static.
COB technology makes a clear difference. The light appears as a smooth and continuous glow. No visible dots. No broken lines. Even the edges look sharp and clean. Compared to standard SMD strips, the overall effect feels more refined and high end.
99.9% Gold
Oxidation resistance; High temperature resistance
JST SM Connector
They are allowing multiple strips to be connected together for a long lighting solution
Cuttable
The rest LED strip can work normally
External IC
Change your favorite effect by setting the program with an LED controller
Flexible & Bendable
It can be folded into any shape
Adhesive Tape
Strong double side tape for easy installation
Addressable RGB RGBW RGBWW COB LED Strip Application
The colorful addressable RGB RGBW RGBWW COB LED strip has the characteristics of multiple colors, multiple modes, high brightness, strong flexibility and easy control. It is widely used in landscape lighting, decorative lighting, architectural lighting and other fields.
Certification System
LEDSuntech has more than 1000 kinds of LED led strips. We want our customers to feel confident that their LED strips are safe and manufactured to the highest quality. In order to ensure the best performance of our LED strip products, all products have been tested by third-party authoritative laboratories and have obtained multiple quality certifications including ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
