Addressable RGBW LED Strip
RGBW addressable LED strips have an additional white LED over RGB addressable LED strips. “RGBW” means each LED contains red, green, blue and white. It allows a wider range of colors to be created, including pure white. Standard RGB LED strips only have red, green and blue LEDs, no white LEDs.
Each LED or pixel of an addressable RGBW LED strip can be individually controlled for color and brightness. Custom color combinations and effects can be achieved.
Addressable RGBW LED strip features:
Individual control – Unlike regular LED strips where the entire strip can only display one color, each LED or pixel on an addressable strip can be individually set to a different color or brightness.
Wide range of color matching – The “W” in RGBW stands for white, and in addition to the usual RGB, warmer tones and pure white light can be created (although RGB can also produce white, but not pure white).
Controller required – To control individual LEDs or pixels, an addressable controller is required to send data signals to each LED or pixel. Complex animated lighting effects can be achieved.
Flexibility – can be easily bent and shaped to fit a variety of surfaces and contours.
Addressable RGBW LED strip applications:
Addressable RGBW LED strips enable control of individual LEDs or pixels to achieve dynamic color patterns and transitions across the strip. So RGBW LED strips are used for programmable detailed, customized LED lighting.
Home entertainment-TV backlighting, gaming setups, kitchen under-cabinet lighting;
Commercial spaces -product displays, storefront lighting, restaurant and bar mood lighting;
Events and exhibitions -stage lighting, themed installations, interactive displays;
DIY projects -custom lighting for furniture, artwork, and personal spaces;
Automotive lighting -automotive interior decoration.
Each LED or pixel of an addressable RGBW LED strip can be individually controlled to create different colors. Conventional RGBW LED strips can only create white, red or other colors for the entire strip at the same time.
The following two comparison videos show the lighting effects of addressable SK6812 LED strips and conventional 5050 RGBW LED strips.
SK6812 Addressable RGBW LED Strip Lighting Effect
Each LED or pixel can be controlled to change color
Conventional 5050 RGBW LED Strip Lighting Effect
The entire light strip changes to one color at the same time
Category
SPI External IC
TM1814 LED Strip
TM1814 DC12V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This LED strip controlled by TM1814 IC supports dynamic color chasing, changing and static color modes. Each IC controls 3 RGB LED chips. There are 60 LEDs per meter, and the higher LED density supports richer color changes. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.
UCS2904 LED Strip

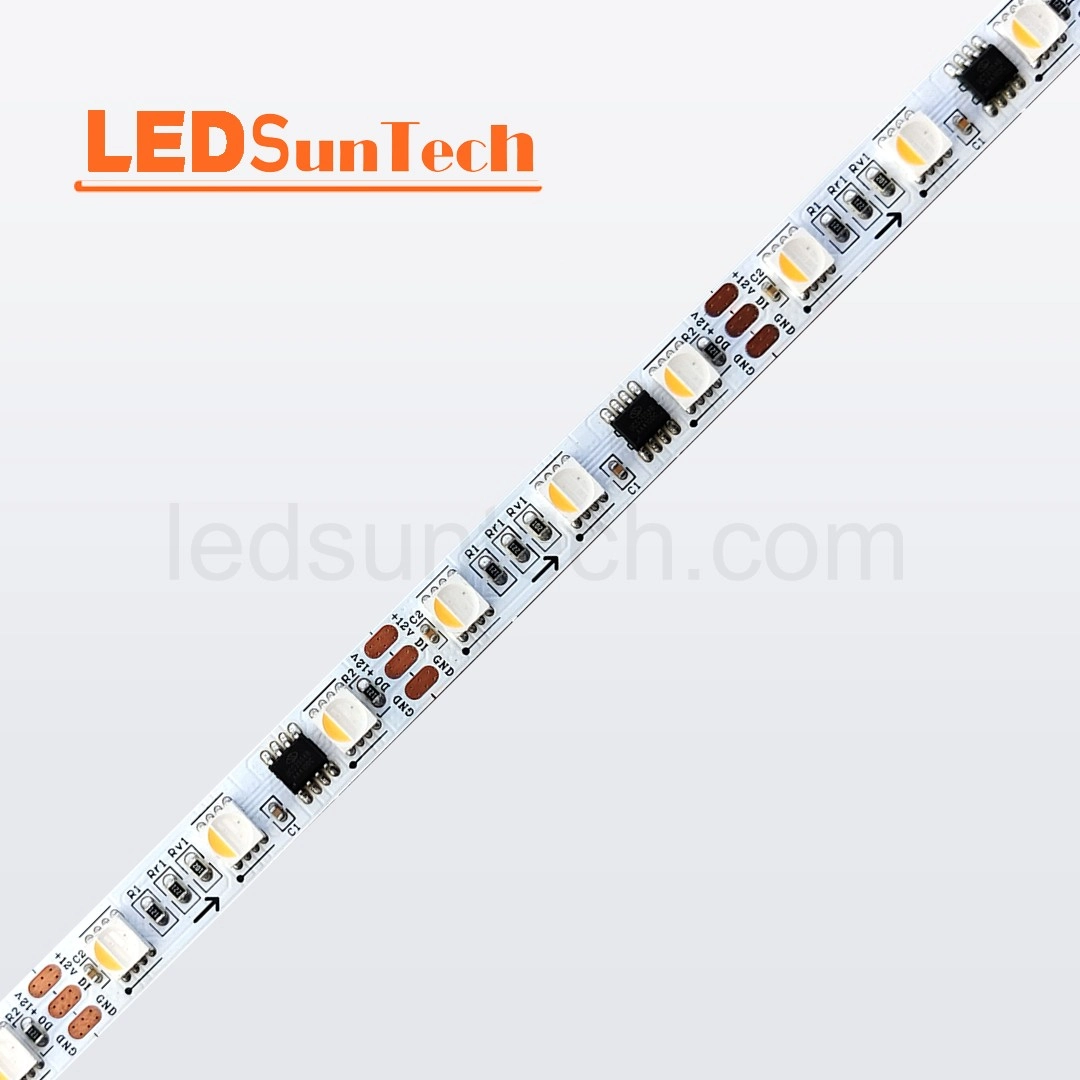

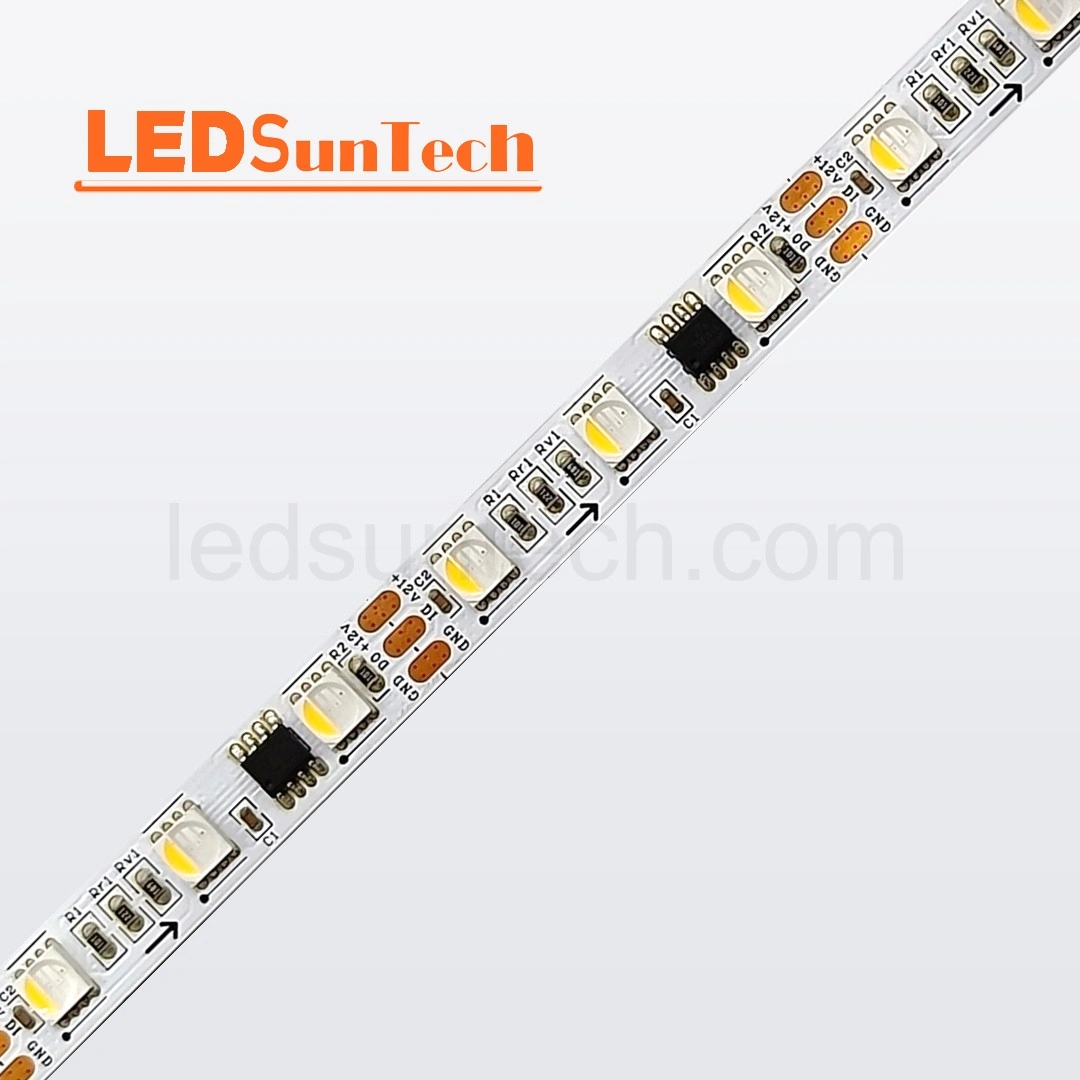

UCS2904 DC12V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 19.2 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This is an RGBW addressable LED strip controlled by UCS2904 IC. There are 60 Addressable RGBW LEDs per meter, and 10mm wide for the 60LEDs/meter, DC 24V input, and every 3 LED can be cut. The minimum cutting unit is 50mm, and you can cut it into different lengths according to the project and requirements. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.

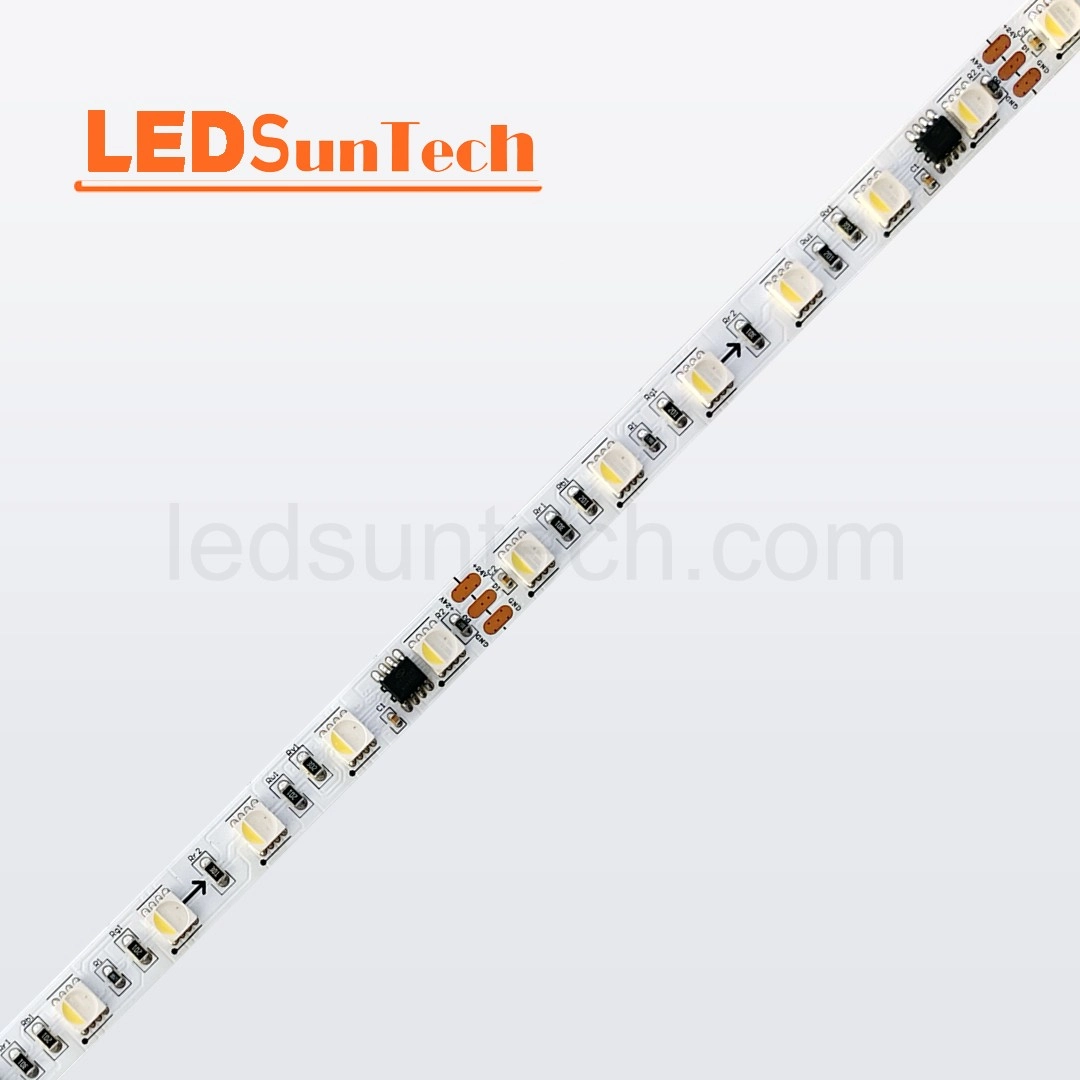

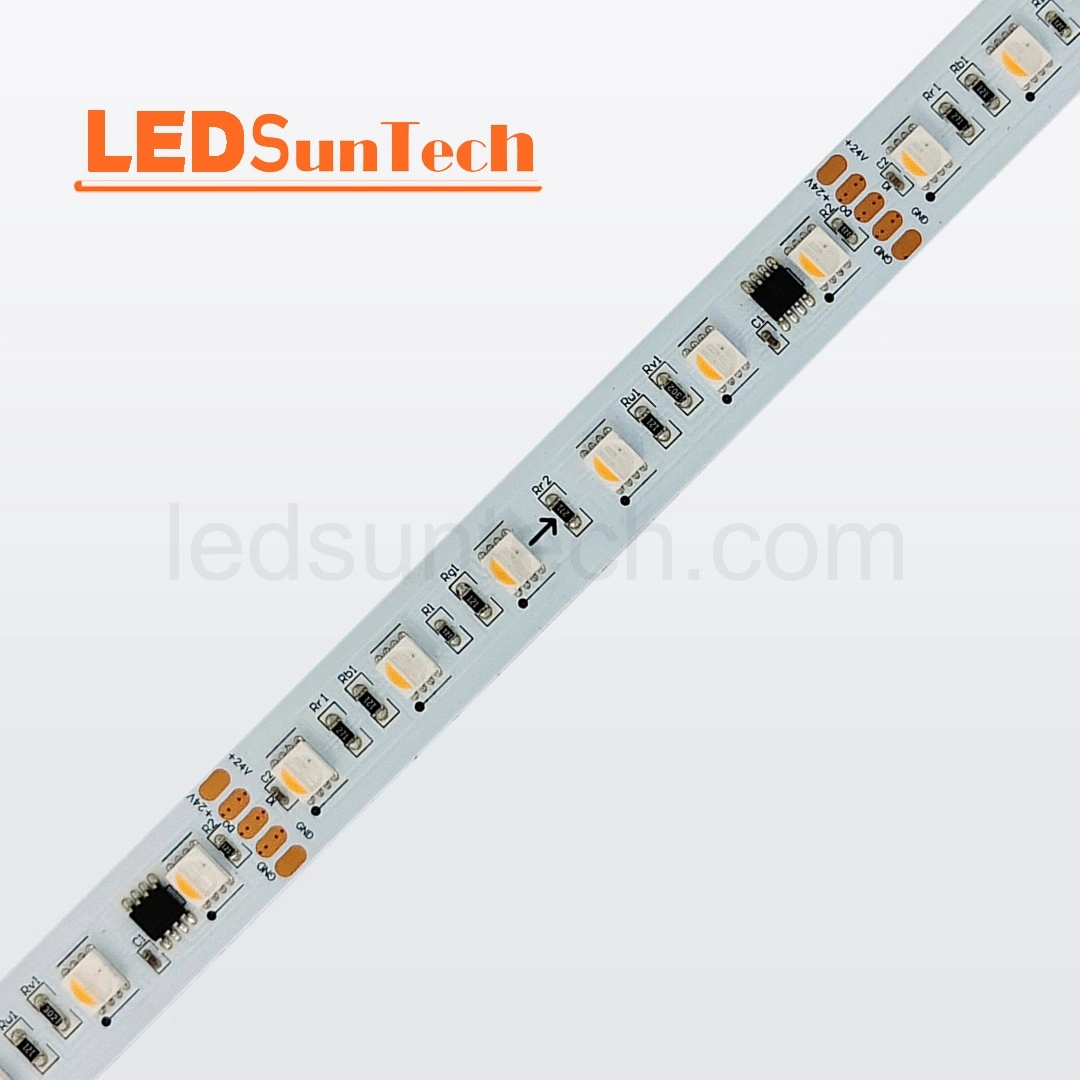

UCS2904 DC24V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 15 mm
The UCS2904 LED strip is addressable light, and can be programmed and controlled by the help of controller. There are 60 LED chips per meter on the 10mm wide PCB board. Compared with the strip using DC12V voltage, DC24V can transmit longer distances without obvious voltage drop. It is more suitable for occasions that require high brightness or high power.

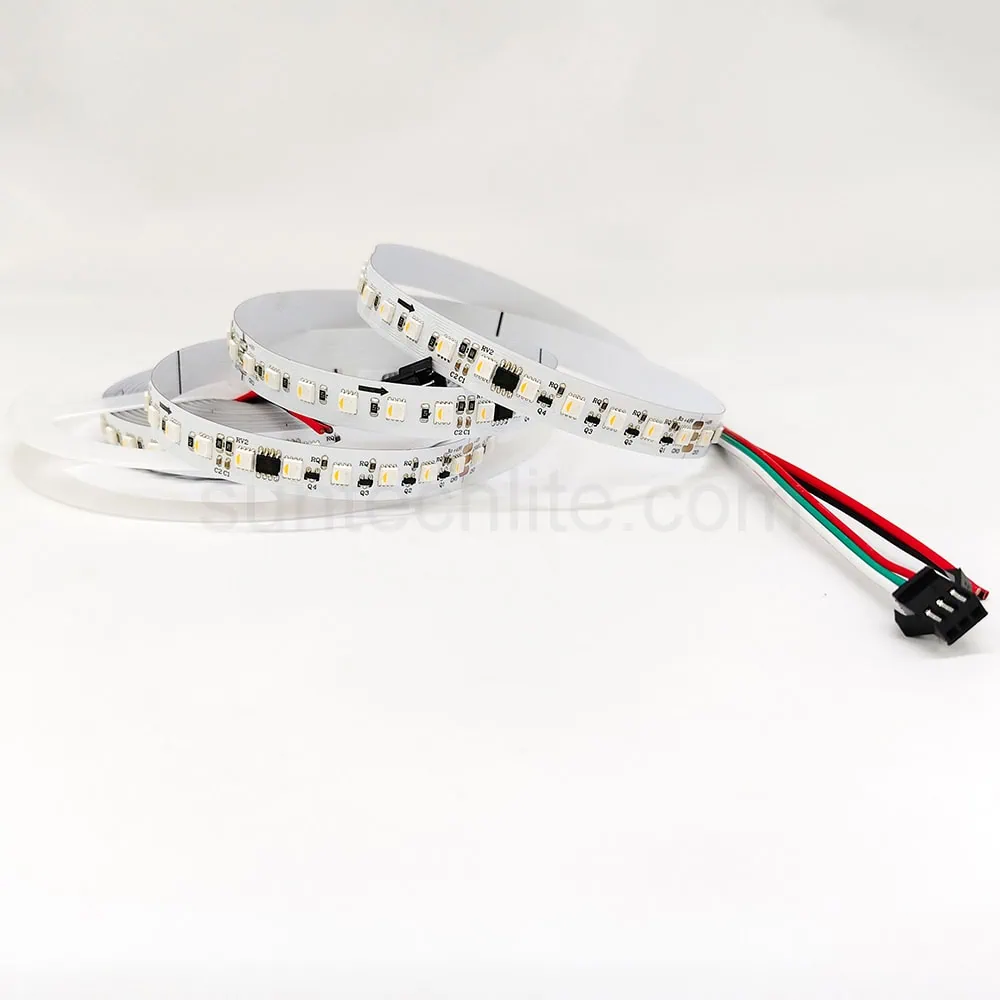

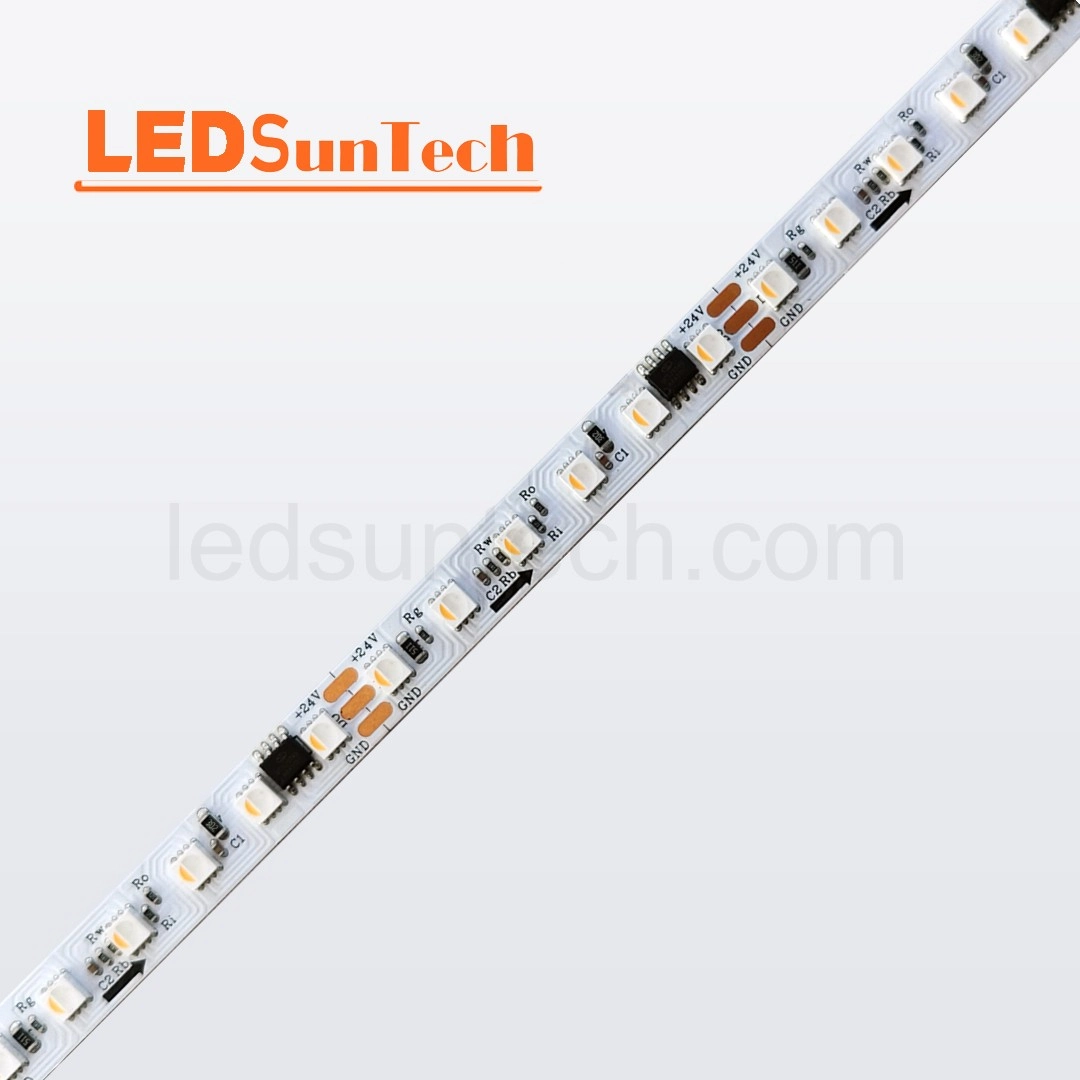

UCS2904 DC48V 96 LEDs/m 12mm RGBW LED Strip
Color: RGBW
LED Qty: 96
Voltage: DC48V
Cutting Unit: 125 mm
Power: 29 W/m
Pixel Qty: 8 Pixels
Break Continue: No
PCB Width: 12 mm
The 48V addressable RGBW SPI LED strip UCS2904 uses 48V power. Support longer cable lengths (5 to 20 meters). This reduces the effects of voltage drop and signal degradation over long transmission distances.
UCS7604 LED Strip

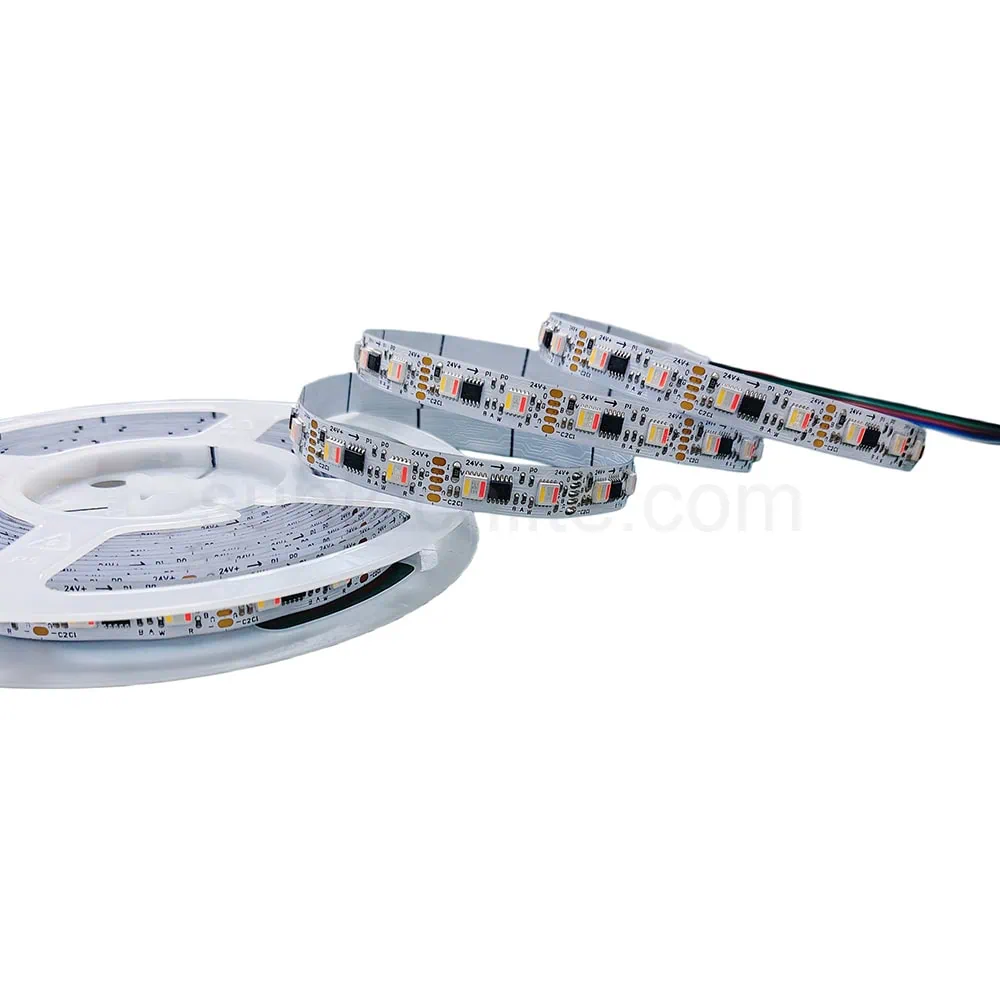

UCS7604 DC24V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
The UCS7604 LED strip is addressable RGBW LED strip, breakpoint- continue, and can be programmed and controlled by the help of controller. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected. It uses DC24V voltage for power supply, which is low-carbon, radiation-free, flicker-free, pollution-free to the human body and the environment, and safe and stable.
UCS7604 DC24V 144 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC24V
Cutting Unit: 41.67 mm
Power: 24 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 10 mm
The UCS7604 also uses a patented dual decoding engine to monitor 2 channels at the same time, and if any channel signal is a problem, it will be switched in real time, namely, break continue function. The RGBW channel output of UCS7604 adopts a 65535-level grayscale output and has an independent current adjustment function for each channel.
FW1834 LED Strip

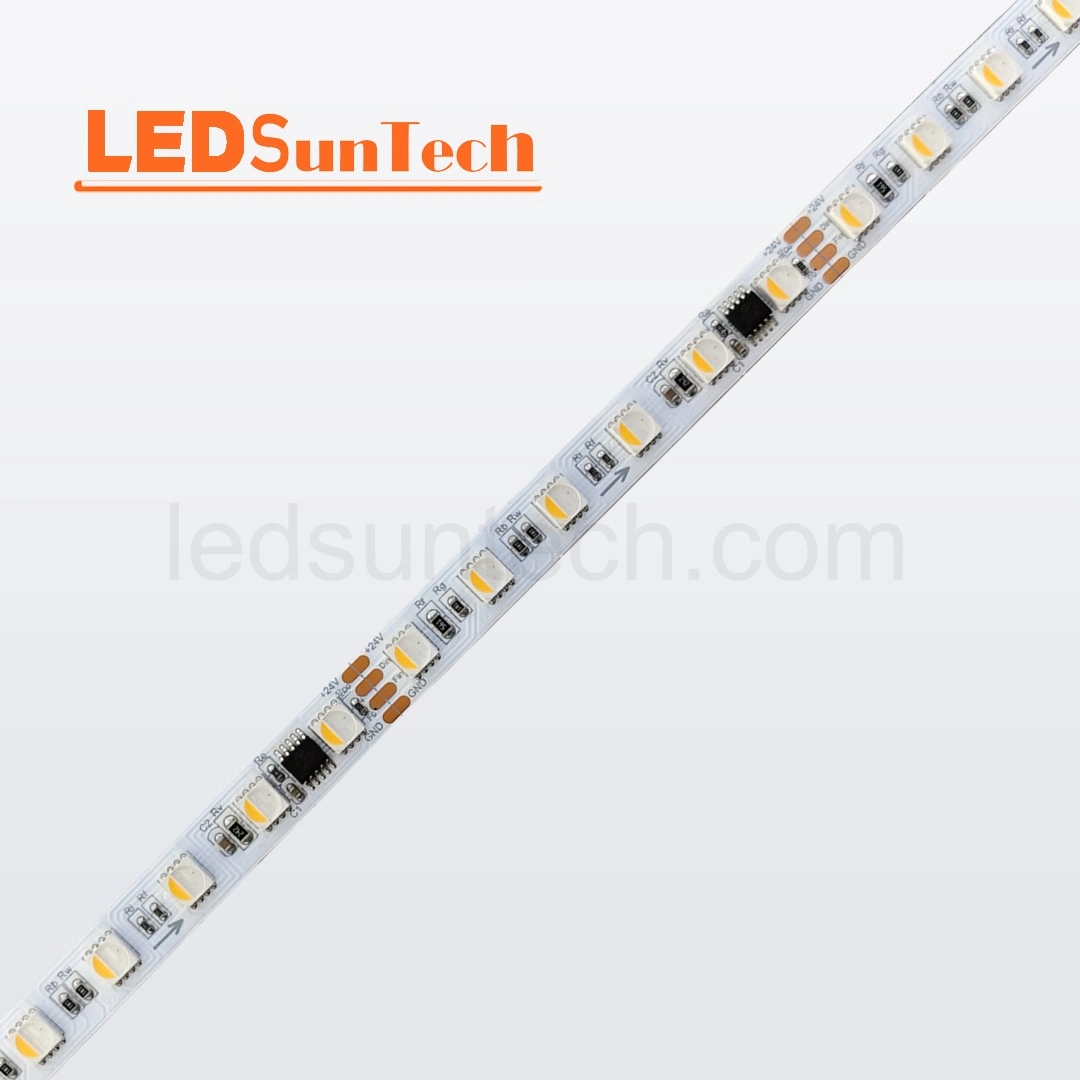

FW1834 DC24V 72 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 24 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 10 mm
The addressable RGBW light strip with 72LEDs/m is 10mm PCB width, 24V DC input, 12 pixels per meter, one IC controls 6 RGBW lights (1 pixel = 6 LEDs). And it consumes 24 watts for each meter. When choosing the LED strip power supply, the wattage of the addressable RGBW light strip should not exceed 80% of the power supply capacity. And it requires an addressable RGBW led controller to achieve various lighting effects.
UCS8904 LED Strip

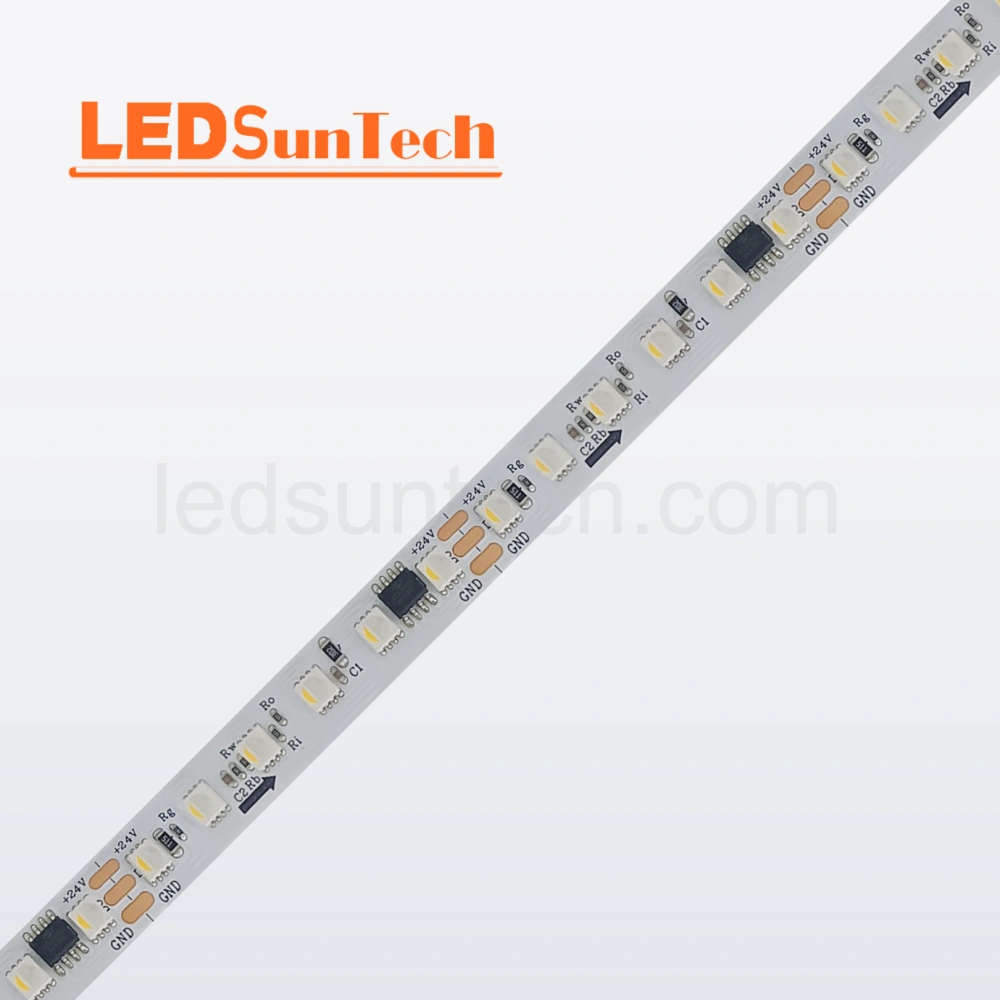

UCS8904 DC24V 96 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 96
Voltage: DC24V
Cutting Unit: 62.5 mm
Power: 20 W/m
Pixel Qty: 16 Pixels
Break Continue: Yes
PCB Width: 10 mm
The UCS8904B is a 4-channel LED display driver/controller with a built-in MCU digital interface, data latches and LED high-voltage driving functions. It features superior performance and reliable functions. Under the control of the external MCU, it performs independent grayscale control through a data-cascading transfer for driving large outdoor color dot-matrix LED panels.
SPI Built-in IC

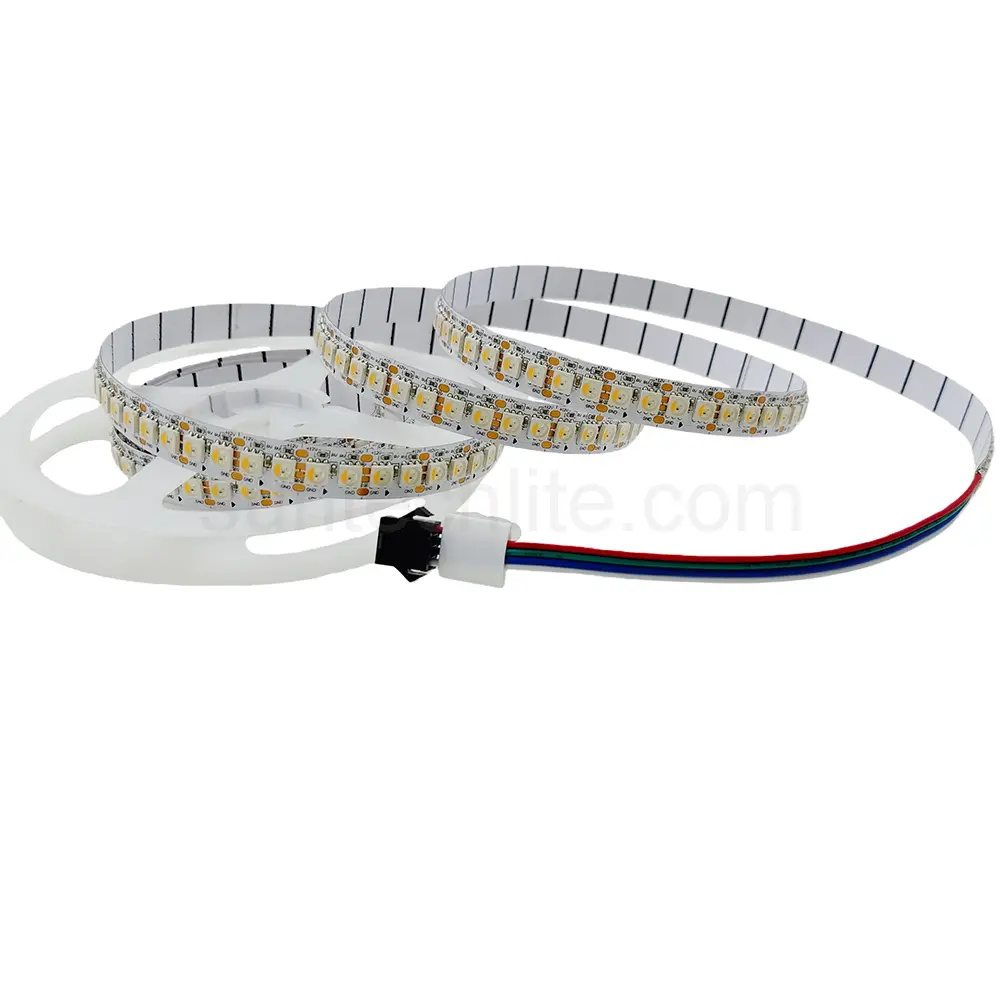

WS2815 LED Strip

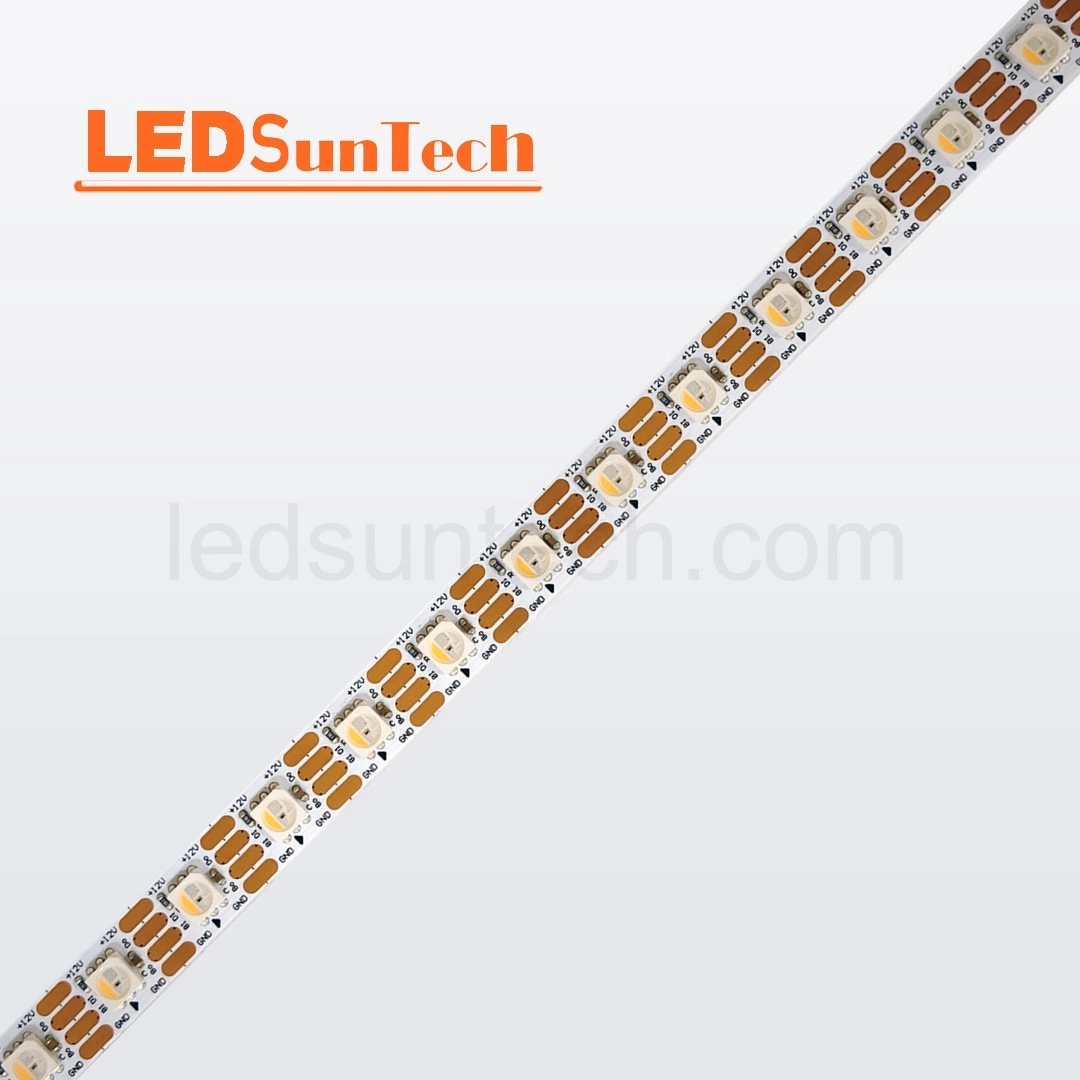

WS2815 DC12V 72 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 72
Voltage: DC5V
Cutting Unit: 13.88 mm
Power: 14.4 W/m
Pixel Qty: 72 Pixels
Break Continue: Yes
PCB Width: 10 mm
Dual-signal version with signal continuity: If one LED fails, the backup data signal will continue to function; however, if two LEDs fail in a row, the remaining LEDs will not illuminate. Individually addressable: Each built-in WS2815 IC controls a single LED. Each LED is individually programmable and capable of displaying any desired color.
SK6812 LED Strip
SK6812 DC5V 60 LEDs/m 5mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 5 mm
This SK6812 IC controlled RGBW LED strip has 60 LEDs per meter, but the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes, such as stage, art design and DIY works. It allows each RGBW LED area to be an individual color and brightness. DC5V low voltage, safer to use.
SK6812 DC5V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
Universal SK6812 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. The minimum cutting unit is 16.67mm, and you can cut it into different lengths according to the project and requirements. The low voltage DC 5V voltage input makes it ideal for a variety of small decorative and DIY projects to provide ambience to your creations.
SK6812 DC24V 66 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 66
Voltage: DC24V
Cutting Unit: 166.67 mm
Power: 22 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 10 mm
This is a RGBW led strip lighting controlled by the SK6812 smart IC. It allows each RGBW LED area to be an individual color and brightness. Thus to produce multiple colors on a single RGBW strip. Every IC control 1 LEDs, every LED can be individually addressable and show any color you want. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
SK6812 DC24V 66 LEDs/m 12mm RGBW LED Strip
Color: RGBW
LED Qty: 66
Voltage: DC24V
Cutting Unit: 15 mm
Power: 21 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 12 mm
There are 66 Addressable RGBW LEDs per meter, and 12mm wide for the 66LEDs/meter, DC 24V input, and every LED can be cut. The PCB width of this LED strip is 12mm because it uses two sets of electrodes, which can distribute the current load more efficiently and reduce the line resistance, thereby reducing energy loss and heat generation on the line.
SK6812 DC24V 72 LEDs/m 12mm RGBW LED Strip
Color: RGBW
LED Qty: 72
Voltage: DC12V
Cutting Unit: 13.8 mm
Power: 22 W/m
Pixel Qty: 72 Pixels
Break Continue: No
PCB Width: 10 mm
This programmable four-in-one RGB+white LED strip produces a mix of colored lights and precise, pure white light. White light color temperatures are available in 3000K, 4000K, and 6500K. This small addressable LED strip is suitable for holiday lighting and party decorations. For a wider range of white light color temperatures, consider the five-in-one RGBCCT digital light strip.
SK6812 DC5V 144 LEDs/m 8mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43.2 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 8 mm
This is a RGBW addressable LED strip controlled by SK6812 IC, operating at a low voltage of 5V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. The RGBW led strip lights have a separate white chip channel, its white color is pure white, unlike RGB white which is bluish or purplish.
SK6812 DC5V 144 LEDs/m 12 mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 25.9 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
Using 4-in-1 RGBW 5050 LEDs, it offers a wide range of color options and combinations. Paired with an SPI controller, it can create a variety of color-chasing effects. You can control the SK6812 LED strip with any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any other “raw” microcontroller/microprocessor.
DMX

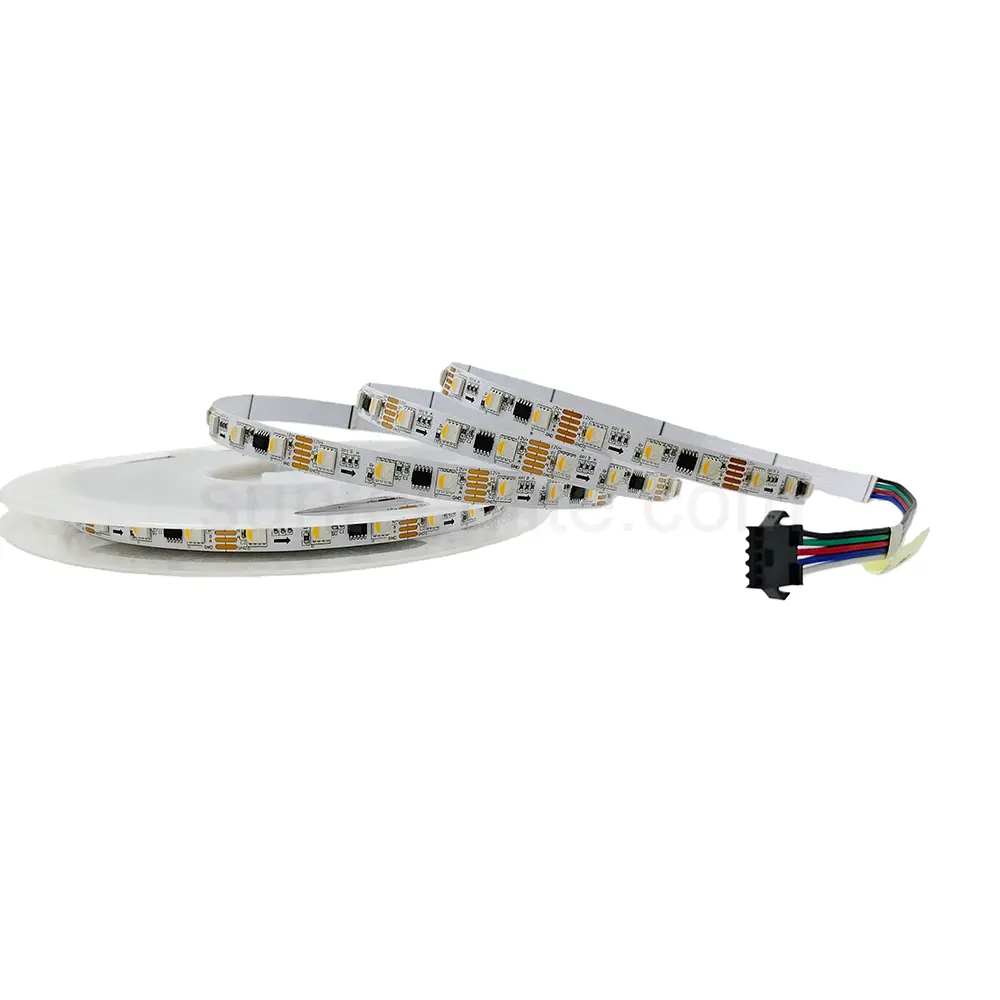

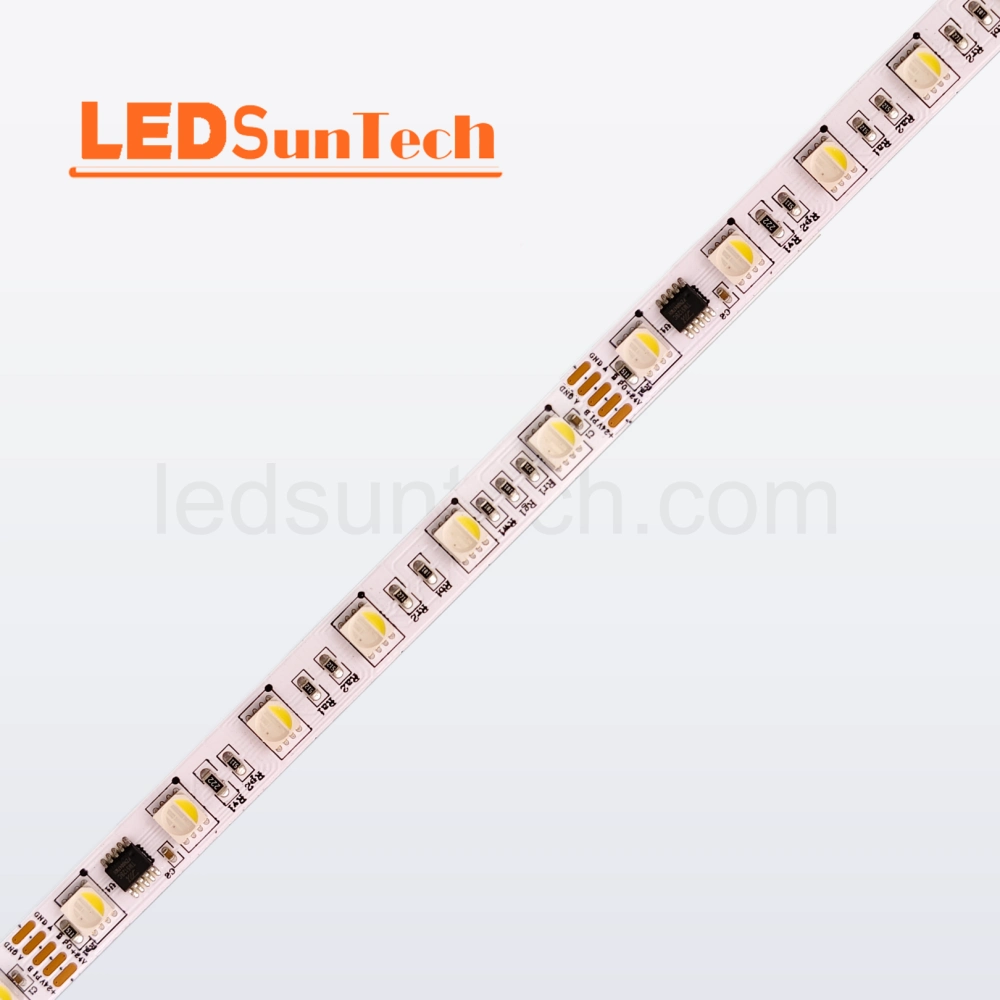

DMX DC24V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 19.2 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
This is a DMX controlled RGB addressable LED strip controlled by UCS512 IC. DMX512 Digital Addressable RGB LED strip lights can be programed via the artnet pixel controller, easy to get the chasing color effects you like. The RGBW led strip lights have a separate white chip channel, the separate white channel also allows mixing with other color channels to create a variety of color effects. here are 60 LEDs per meter, each IC controls 6 RGBW LED chips.
DMX DC48V 96 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 96
Voltage: DC48V
Cutting Unit: 125 mm
Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: Yes
PCB Width: 10 mm
48V DMX GS8516 LED strip uses SMD4040 LED package. There are 96 LEDs per meter. One IC controls 12 LEDs. GS8516 SMD4040 RGBW DMX strip can support up to 30 meters of line length. Reduce the impact of voltage drop and signal attenuation in large DMX LED lighting systems or occasions where long-distance transmission is required.
