Addressable RGBWW RGBCCT LED Strip
RGBWW or RBBCCT addressable LED strip is a smart LED strip. It has five types of diodes: red, green, blue, cold white, and warm white. It can achieve the common colorful color-changing effect, and a variety of white light outputs from warm white to cool white. It can independently control the color temperature of each LED.
All LEDs on non-addressable LED strips display the same color or color temperature at the same time, and the state of each lamp bead cannot be controlled individually.
Addressable LED strips embed driver chip ICs in each or each group of LED, so that each or each group of LEDs can be individually set in color and brightness through digital signals.
Application
- Indoor atmosphere lighting: background lights and ceiling light strips in living rooms, dining rooms, and bedrooms, and color temperature or dynamic effects can be switched according to mood.
- Commercial display: windows, billboards, stage lights, and gorgeous visual impacts can be achieved through addressable control.
- Smart home: Link with HomeKit, Alexa, Google Home and other platforms to automatically change color and brightness in timed or scene mode.
- Outdoor decoration: Waterproof RGBWW light strips can be used for lighting along courtyards, bridges, and building outlines, combining functionality and aesthetics.
Common pixel LED strip types:
| Type | Number of Diodes | Function Introduction |
|---|---|---|
| Single Color | 1 | Fixed single color temperature or monochrome light |
| RGB | 3 | Mixes red, green, and blue for multiple colors |
| RGBW | 4 | Adds white diode to RGB for better white reproduction |
| RGBWW | 5 | Adds warm white to RGBW for wider color temperature range |
| RGBCCT | 5 | Similar to RGBWW with adjustable Correlated Color Temperature |

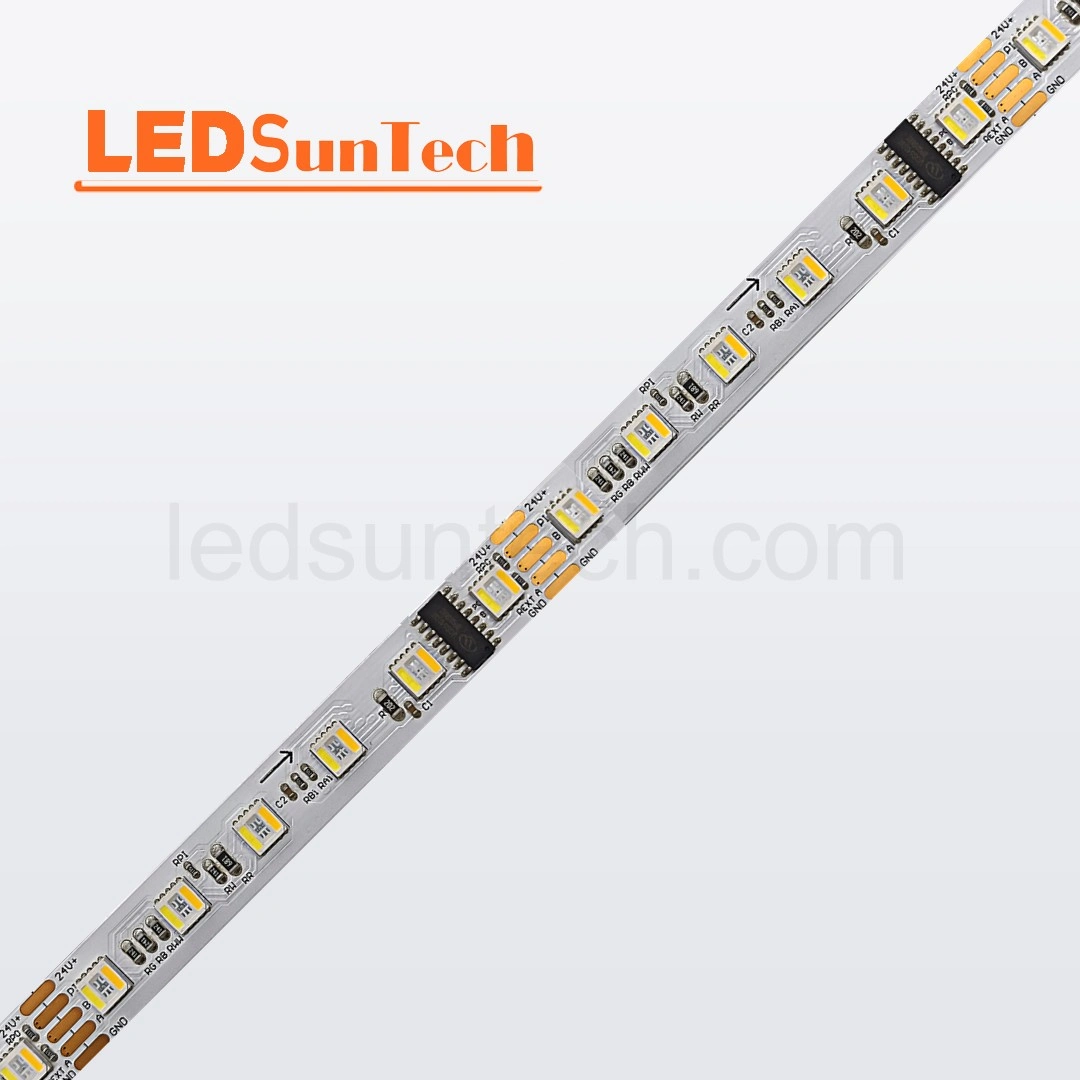

DMX DC24V 72 LEDs/m 12mm RGBWW Programmable LED Strip
Color: RGBWW
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.33 mm
Power: 20 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 12 mm
DMX UCS512G6 LED strip is a 5-in-1 RGBWW LED strip with a breakpoint resume function. Dual signal transmission data. Using DMX controller, users can achieve rich lighting effects and animations, such as flowing water, chasing and other lighting effects.

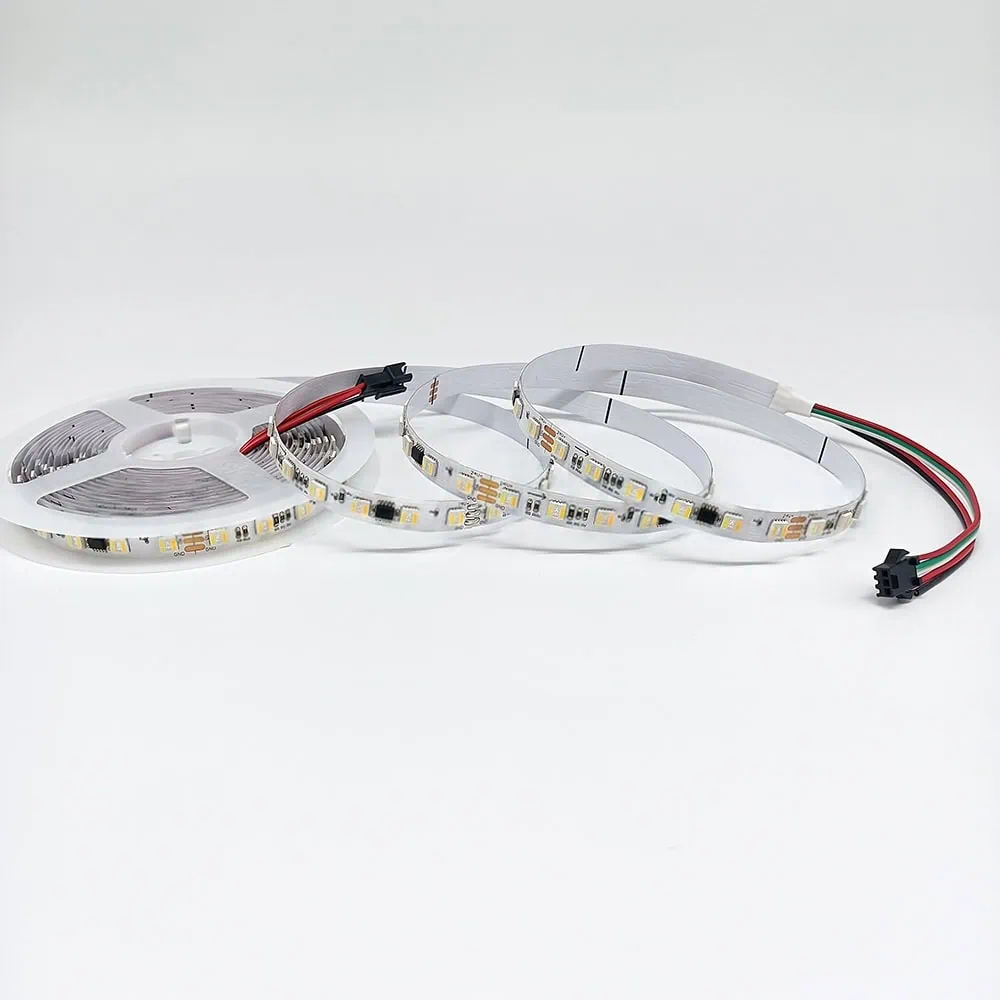

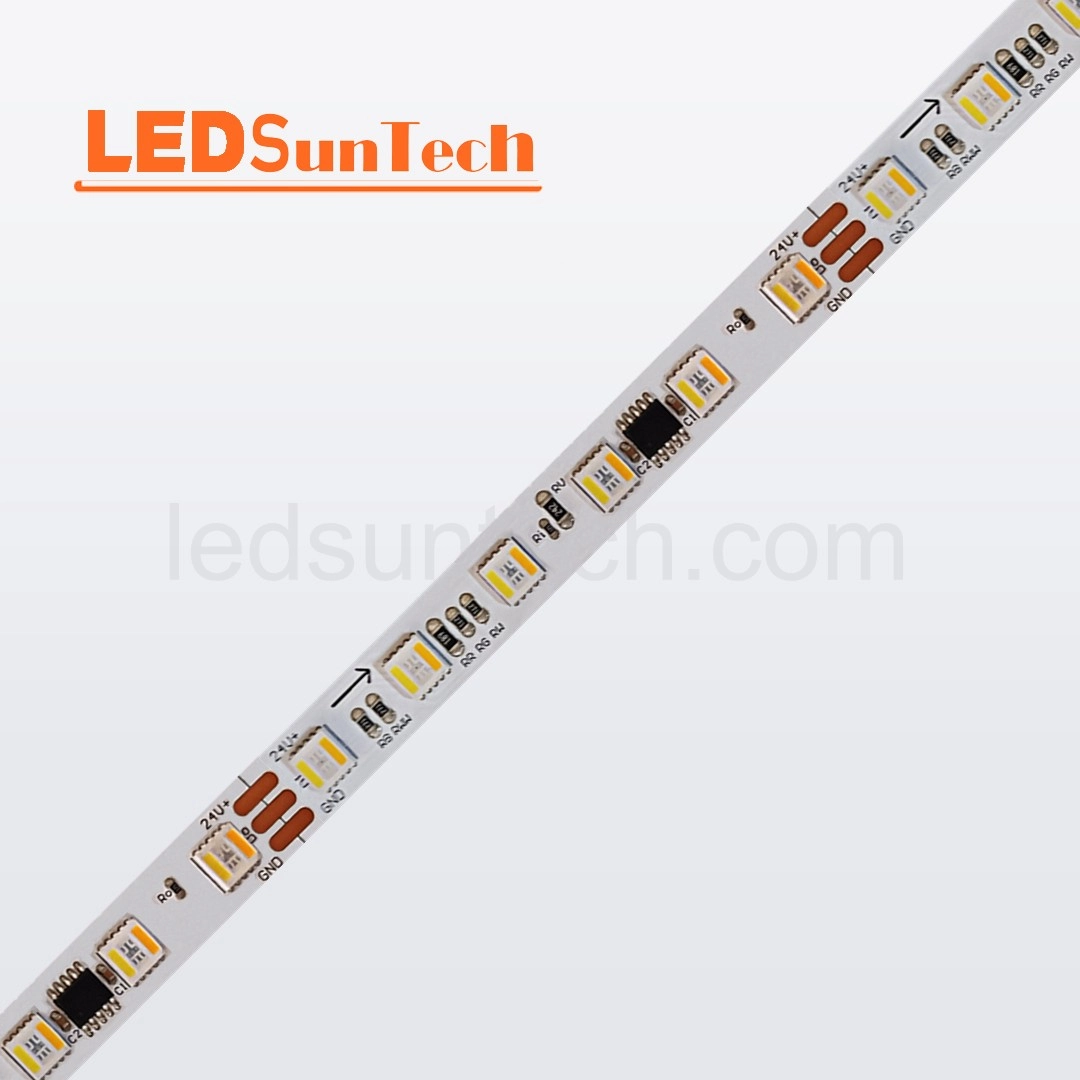

RGBCCT FW1906 24V 72leds 10mm Programmable LED Strip
Color: RGBCCT
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.33 mm
Power: 25 W/m
Pixel Qty: 12 Pixels
Break Continue: No
PCB Width: 10 mm
Addressable DC24V FW1906 RGBCCT 5-in-1 LED strip has a service life of up to 50,000+ hours. FW1906 LED strip has 3 wires input and output, which are data line, GND line and power + line.
