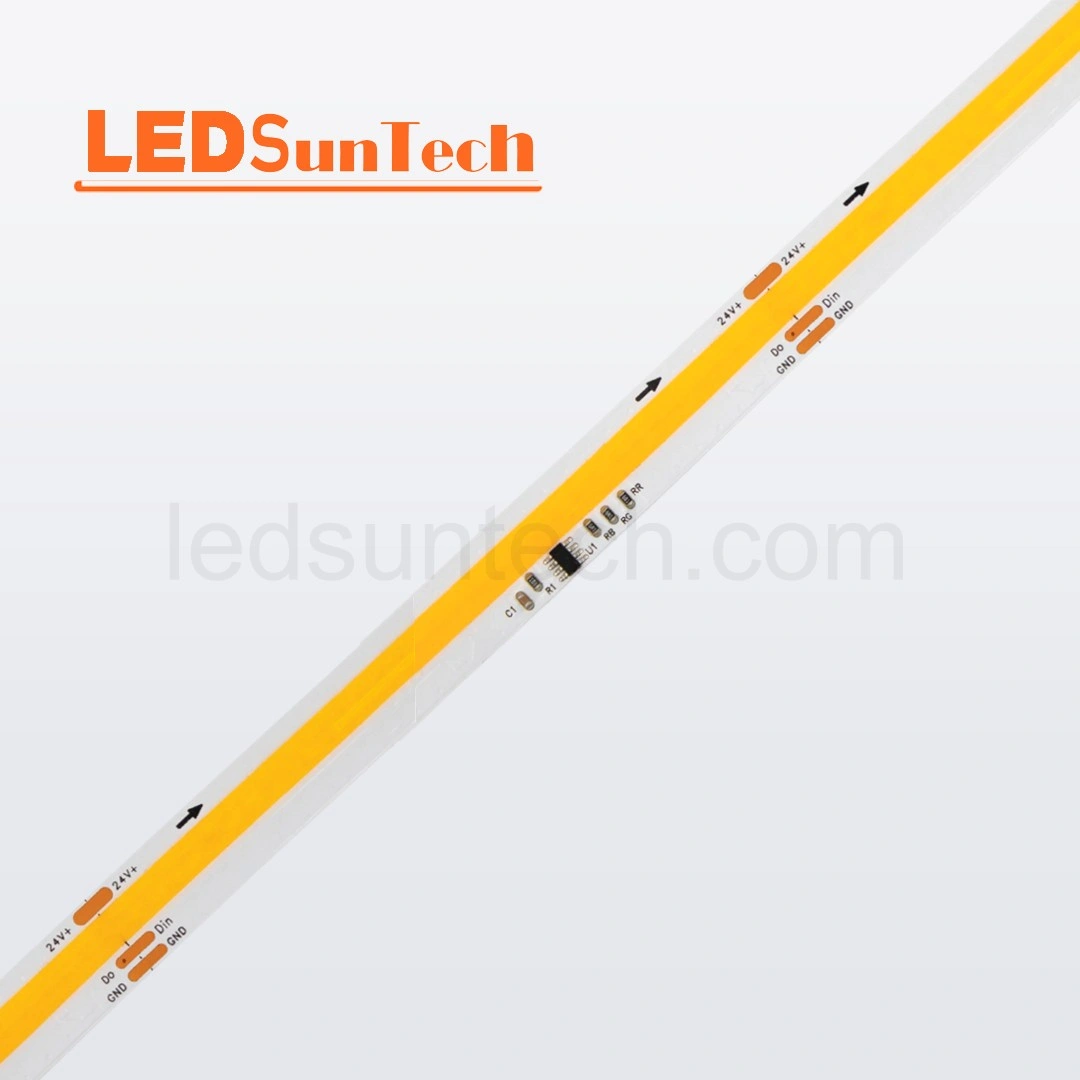

Addressable White COB LED Strip
1. This addressable white led strip uses COB technology. LED chips are directly integrated on the board. The light surface looks smooth and continuous. No visible dots. The effect is close to a light tube or panel light.
2. Brightness reaches over 1000 lumens per meter. CRI is above 90. Colors appear natural and true.
3. LED density can reach up to 360 LEDs per meter. The strip stays flexible. It fits curved surfaces and tight spaces with ease.
4. Power consumption is only 7 to 12 watts per meter. It replaces many traditional high power lights while using far less energy.
5. A strong 3M adhesive is pre applied on the back. Installation is quick and simple. It attaches easily to clean and smooth surfaces.
6. The strip can be cut at marked points. Standard length goes up to 5 meters. Longer runs can be achieved through connectors or soldering.
7. External Control IC options include WS2811, UCS1903, and SK6812. Dynamic white lighting effects are supported. Brightness control, flowing effects, and smooth transitions are all possible.
8. Compared to LED SMD strips, reliability is higher. Lifespan can reach up to 50,000 hours.
9. Suitable for home, commercial, and decorative lighting. It also works well for accent and task lighting. With proper protection, outdoor use is possible.
10. Operates on safe 12V or 24V low voltage power. A matching power supply is required. Signal amplifiers are needed for dimming or color temperature control.
Connect and Control White LED Strips via Raspberry Pi
- Raspberry Pi Board
- 5V White LED Strip
- Raspberry Pi 4B Control Board Monochrome White LED Strip Wiring Diagram
- Raspberry Pi Sngle White LED Connection Diagram
- Code Upload
- Video of Final Effect
Warm White vs Soft White vs Bright White vs Cool White vs Daylight Bulbs
- Color Temperature vs Brightness vs Wattage
- Kelvins vs Watts
- Comprehensive Analysis of Five Color Temperatures
- Scene Matching: From Rollover to High-end Feeling
Ways To Control SPI And DMX Addressable LED Strip
- Madrix control
- Online control by Chinese software such as LED-play
- Main controller + sub controller(Big project)
- Built-in program Auto loop playback(Small project)
- Mobile Phone APP
SPI Addressable LED Strip What It Is and How to Choose
- What is an SPI addressable LED strip
- SPI pixel LED strips by IC type
- Three specs that control brightness, motion, and fit
- Choosing the IC and reliability options
- Ways to control SPI pixel strips
Addressable White COB LED Strip Series
Voltage: DC12V, DC24V. 0-100% dimmable.
Beam Pattern: 180° beam angle.
LED density: 360 LEDs/m, 378 LEDs/m.
PCB width: 10mm.
Waterproof grade: IP20, IP65, IP67, IP68.
Color temperature: 1800K / 2700K / 3000K/ 4000K/ 5000K/ 6000K, customizable.
Specification Download
| Specification Name | Download |
|---|---|
| Addressable-DC24V-360led-10mm-White-COB LED Strip Specification |
|
| Addressable-DC12V / 24V-378leds-White COB LED Strip Specification |
|
Addressable White COB LED Strip Manufacturers & Suppliers
LEDSuntech is a leading addressable COB strip manufacturer in China. Our pixel white COB LED strip series offers various parameter options.
We possess strong capabilities in R&D, production, marketing, and customer service. Our products are sold worldwide—primarily across Europe, the United States, Australia, and Asia—and enjoy an excellent reputation in the global market.
What is Addressable White COB LED Strip?
This addressable white COB LED strip is a flexible lighting solution built with Chip on Board technology. LED chips are mounted directly onto the PCB. The result is a clean, continuous line of light with no visible dots and no glare.
Built in intelligent ICs include WS2811, WS2815, UCS1903, and SK6812. Each segment operates independently. Precise control is achieved at every section.
When connected to controllers such as Raspberry Pi or Arduino, the strip delivers dynamic white lighting effects. Brightness can be adjusted with accuracy. Flowing patterns, chasing effects, and smooth transitions are all supported.
It is widely used in high end linear lighting. Ideal for smart lighting projects that require refined control and a premium visual finish.
Why Choose Addressable White COB LED Strip?
In high end cabinetry lighting projects, standard SMD LED strips often show clear bright spots between each diode. This becomes even more obvious inside aluminum channels or when no diffuser is used. The result feels uneven and low end.
Addressable white COB LED strips offer a completely different experience. With a density of 300 to 360 chips per meter, the light surface appears as one continuous line. No dots. No breaks. Brightness can exceed 1000 lumens per meter, and the effect looks smooth and refined, close to a fluorescent tube.
Built in chips such as WS2811 or SK6812 allow segmented control. Each section works independently. The strip delivers a clean light output while still supporting precise control. This combination is something traditional LED strips simply cannot achieve.
Standard white LED strips only support overall dimming. The effect is basic. In comparison, addressable COB strips allow each segment to respond individually. When connected to a controller, the strip can create flowing light, gradual transitions, and zone based dimming. Even a single 5 meter run can produce rich and layered lighting effects.
The COB structure places LED chips directly on the PCB. Heat spreads more evenly across the surface. Temperature rise stays lower. This leads to a longer lifespan of over 50000 hours and reduces the risk of brightness decay or partial failure.
For projects that require a clean visual effect and smart control at the same time, this type of LED strip stands out. It delivers both performance and reliability in one solution.
Addressable White COB LED Strip Application
High-end Residential Lighting Projects, Showroom and Exhibition Hall Lighting, Retail Window Display Lighting, Architectural Outline Lighting, Landscape Lighting Projects…
Certification System
LEDSuntech has more than 1000 kinds of LED led strips. We want our customers to feel confident that their LED strips are safe and manufactured to the highest quality. In order to ensure the best performance of our LED strip products, all products have been tested by third-party authoritative laboratories and have obtained multiple quality certifications including ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
