Addressable White LED Strip
Addressable white LED strips offer significant advantages in control and customization than regular white LED strips. Conventional white LED strips emit uniform white light. But addressable white LED strips allow for individual control of the brightness and color temperature of each LED or pixel. So it results in richer dynamic lighting effects.
Addressable white LED strips allow for individual control of each LED or pixel. This results in higher color accuracy and better energy efficiency.
LEDsuntech offers 3 types of addressable programmable white LED strips:
SPI external ICs: including WS2811 LED strips, SM16703 LED strips, UCS2903 LED strips, GS8208 LED strips, WS2818 LED strips, UCS1903 LED strips, and FW1935 LED strips, etc.
SPI built-in ICs: including WS2815 LED strips and SK6812 LED strips, etc.
DMX LED Strips: Use the DMX512 protocol to achieve synchronized and programmable lighting effects.
Common applications for addressable white LED strips include smart home lighting, architectural decoration, commercial signage, automotive lighting, stage and event lighting, and interactive displays.
Category
SPI External IC
WS2811 LED Strip

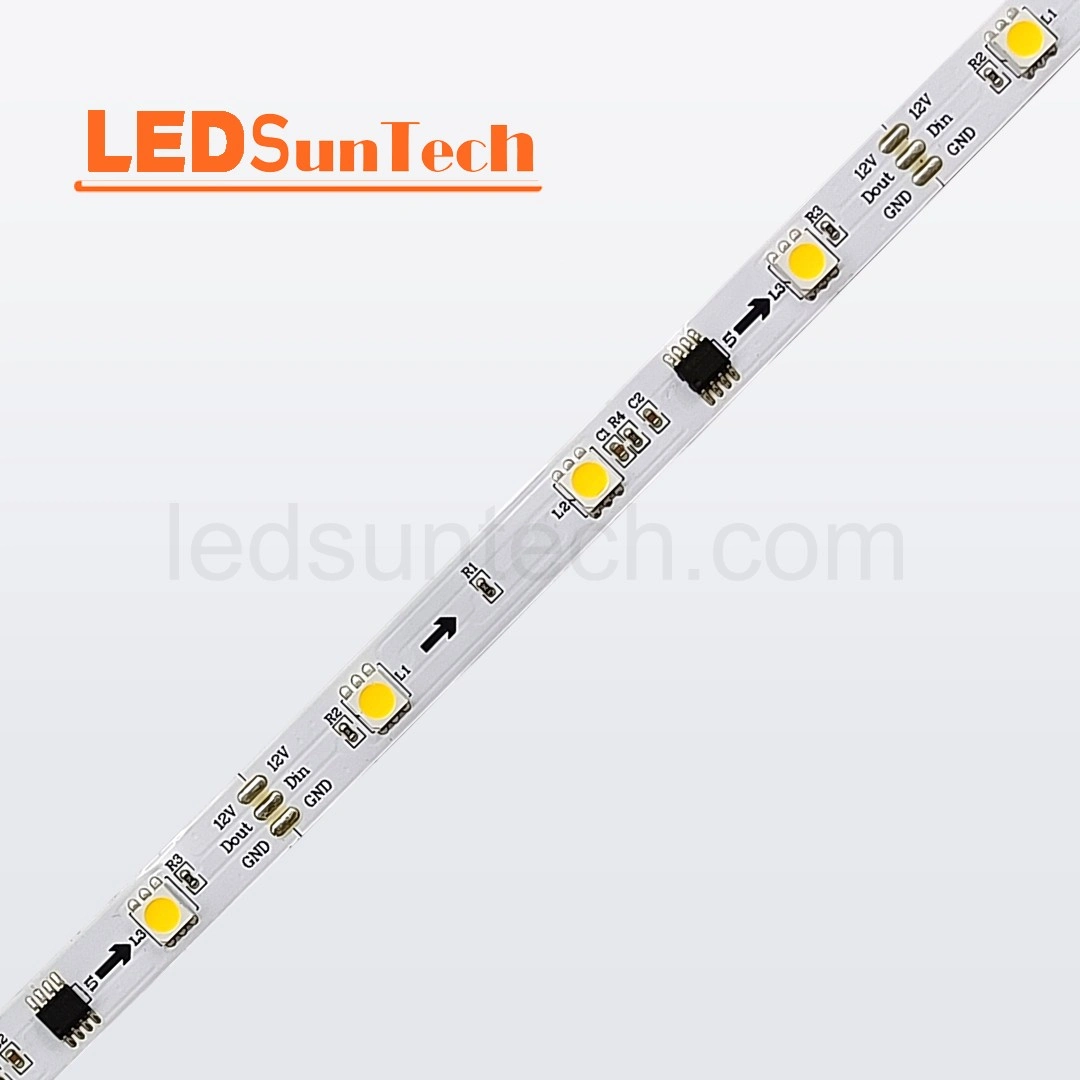

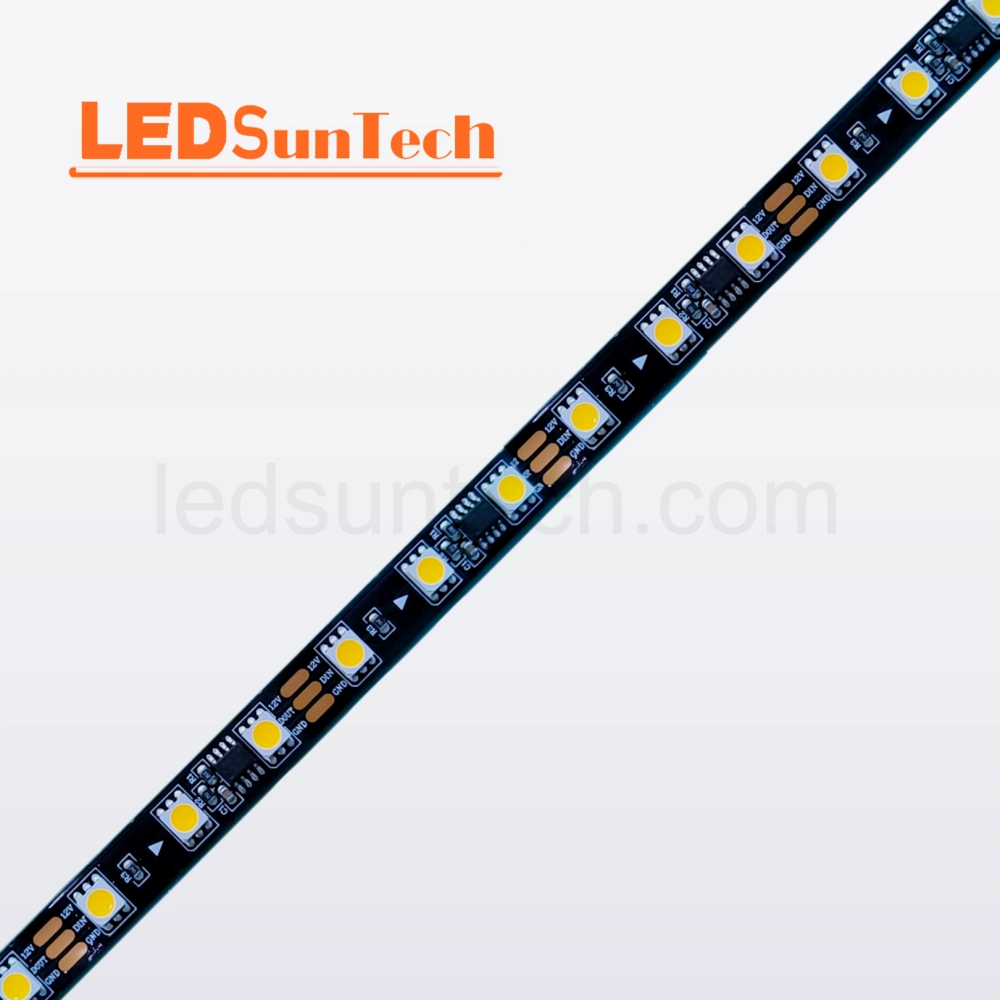

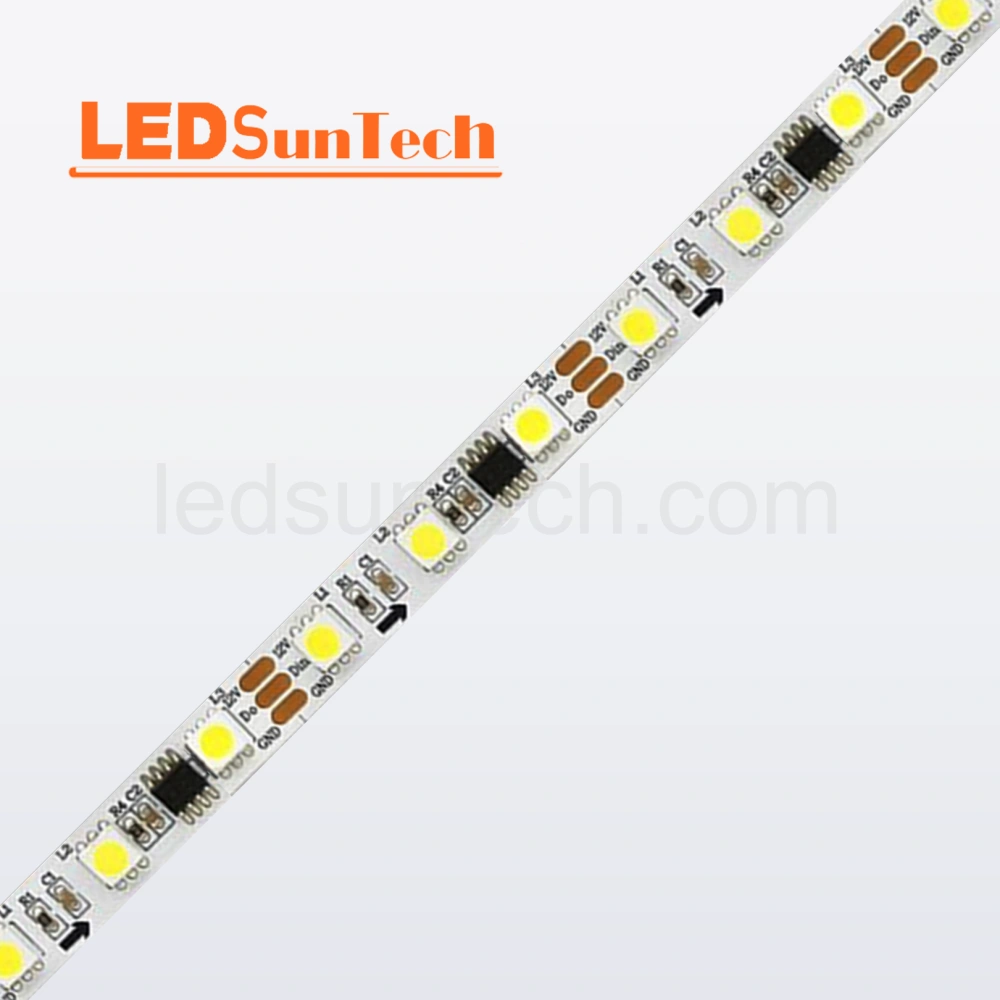

WS2811 DC12V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This DC12V addressable white led trip adopts SMD5050 White LEDs. The width of the digital CCT strip is 10mm. There are 60 LEDs per meter and every 3 LEDs/50mm as a cut. The black pcb board makes this led strip perfect to be installed in dark spaces. With 3 pin JST wires, this led strip only take one signal line for data transmission.

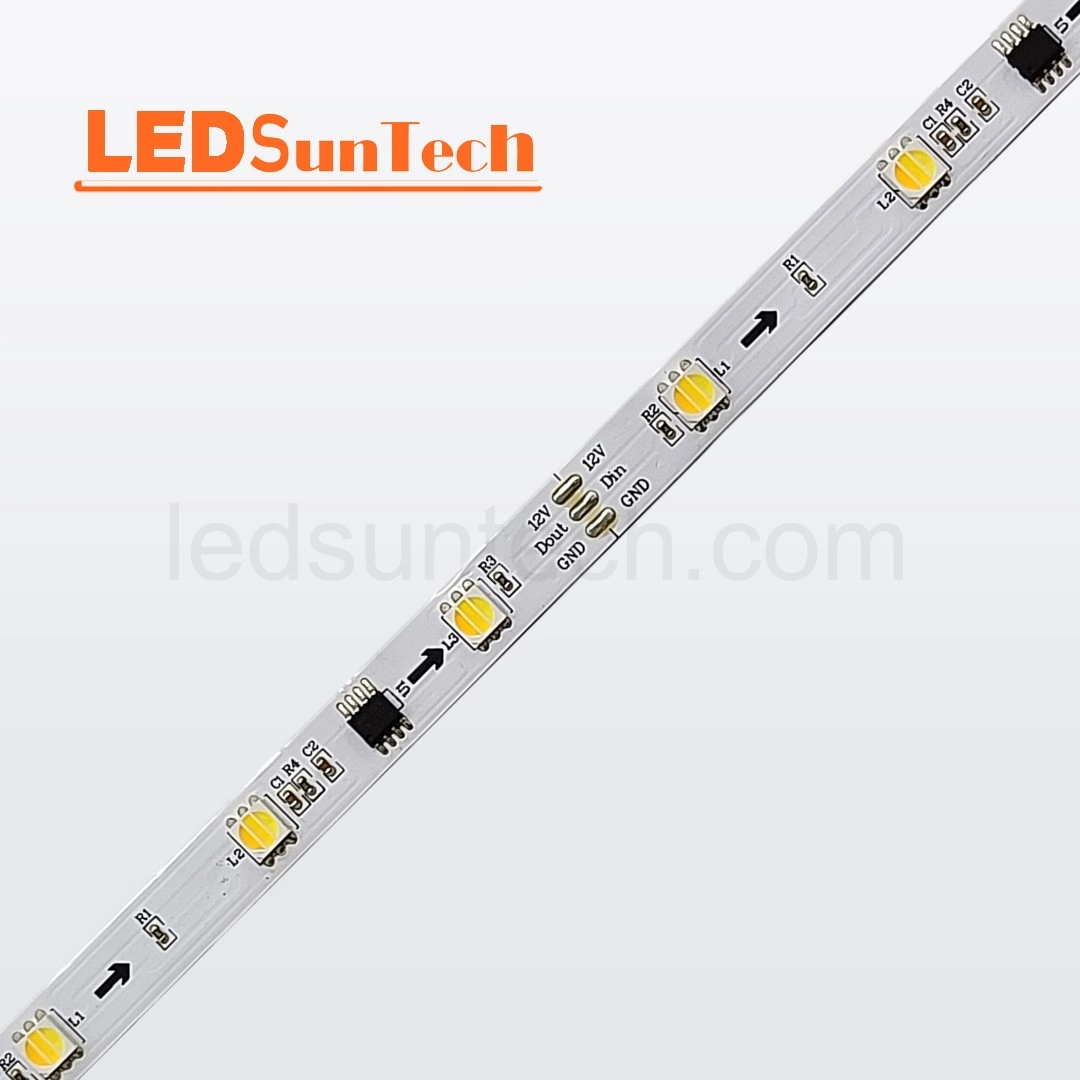

WS2811 DC12V 30 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10mm
There are 10 pixels per meter and each control 3pcs of SMD5050 CCT LED, every 3 LEDs/100mm as a cutting unit. This WS2811 led strip is single signal transmission. Compared with other ICs, this WS2811 led strip is suitable for beginners who want to start the travel in the world of addressable led strip. The pcb width is 10mm and many color temperatures are available.

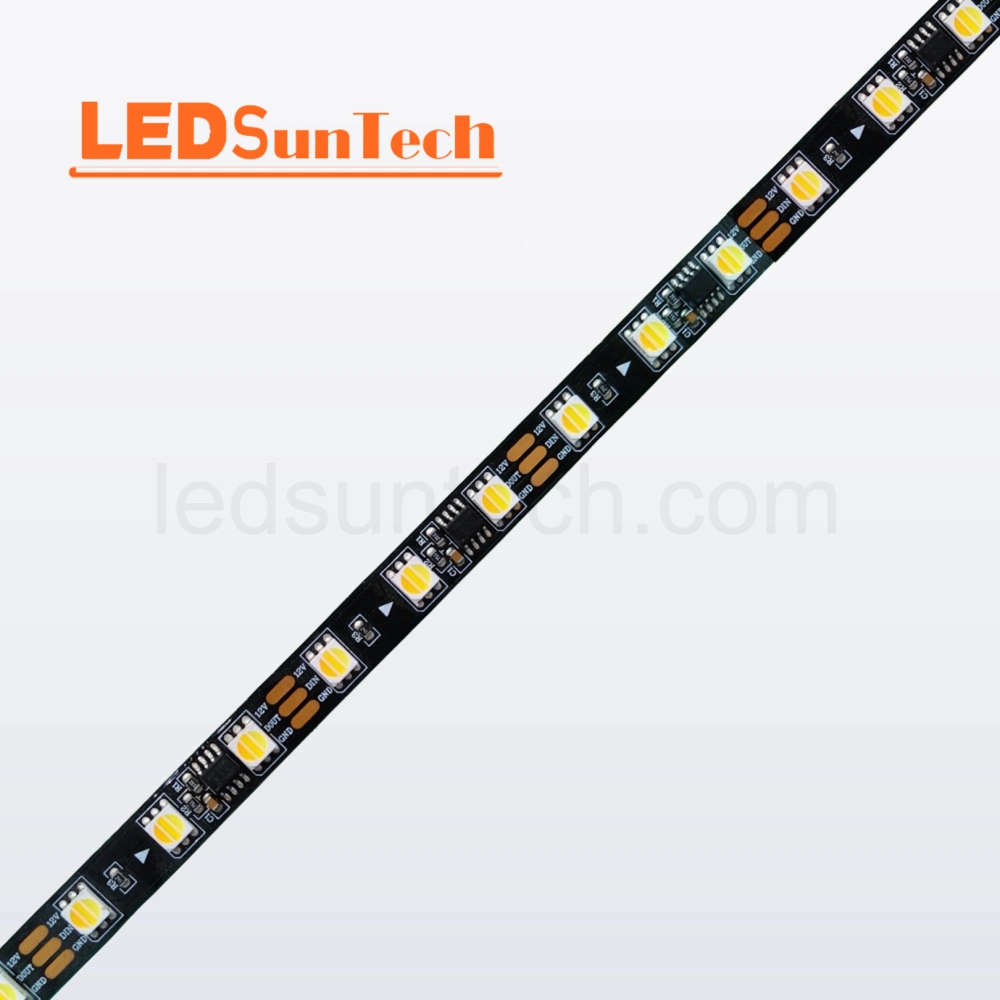

WS2811 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 10mm
This addressable tunable white LED tape adopts 3-in-1 5050SMD and WS2811 external chips. Not like the regular non-addressable led strip, this led strip makes every LED on the pcb controllable and adjustment by using the corresponding controller. The pcb width is 10mm and it is DC12V input. Black pcb makes this led strip suitable for applications like nightclubs and bars.
SM16703 LED Strip

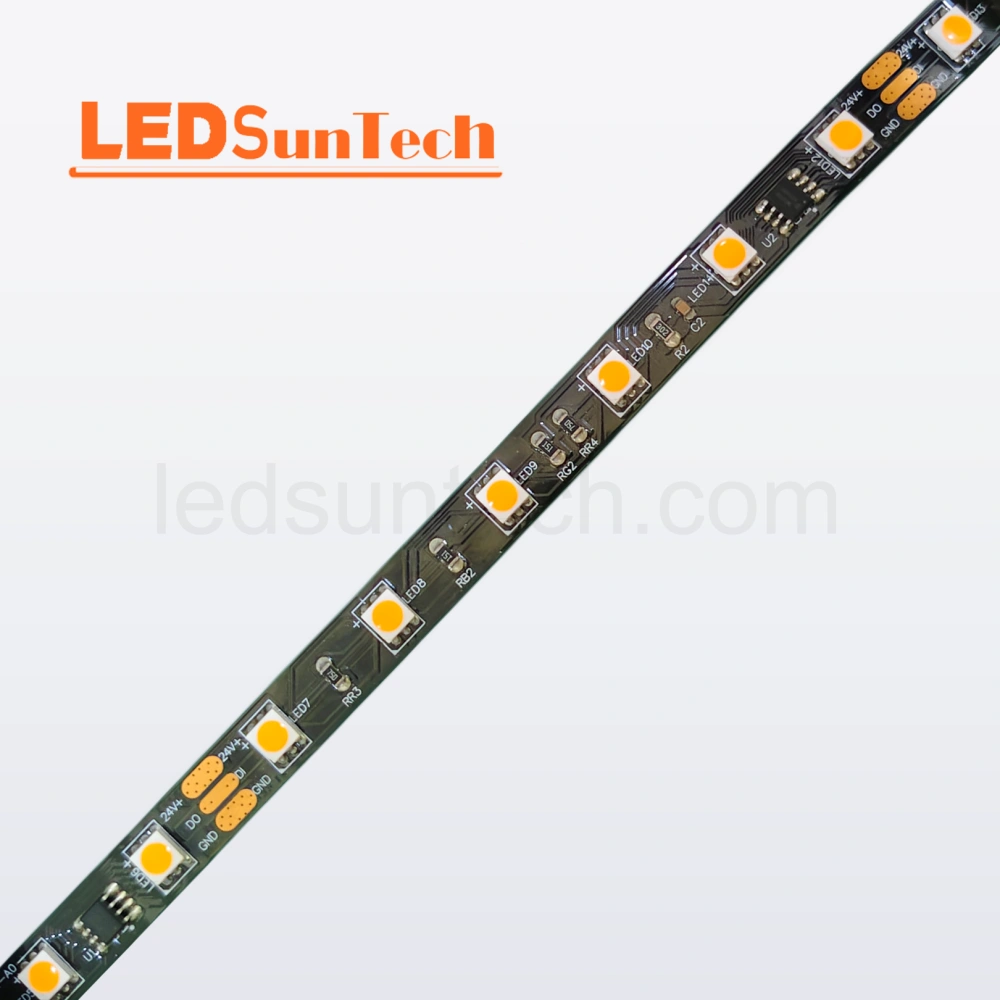

SM16703 DC24V 48 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 48
Voltage: DC24V
Cutting Unit: 125 mm
Power: 12 W/m
Pixel Qty: 8 Pixels
Break Continue: No
PCB Width: 10mm
There are 48 LEDs and 8 pixels per meter. With DC24V input, this led strip is 6LEDs/125mm cuttable. This addressable white led strip applies to SMD5050 LEDs with external SM16703 ICs. This led strip is able to be made in IP20, IP65 and IP67 to fulfill your multiple needs. Back on the led strip is genuine 3M adhesive, which supports fast fixing on various surfaces.
UCS2903 LED Strip
UCS2903 DC24V 120 LEDs/m 20mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm

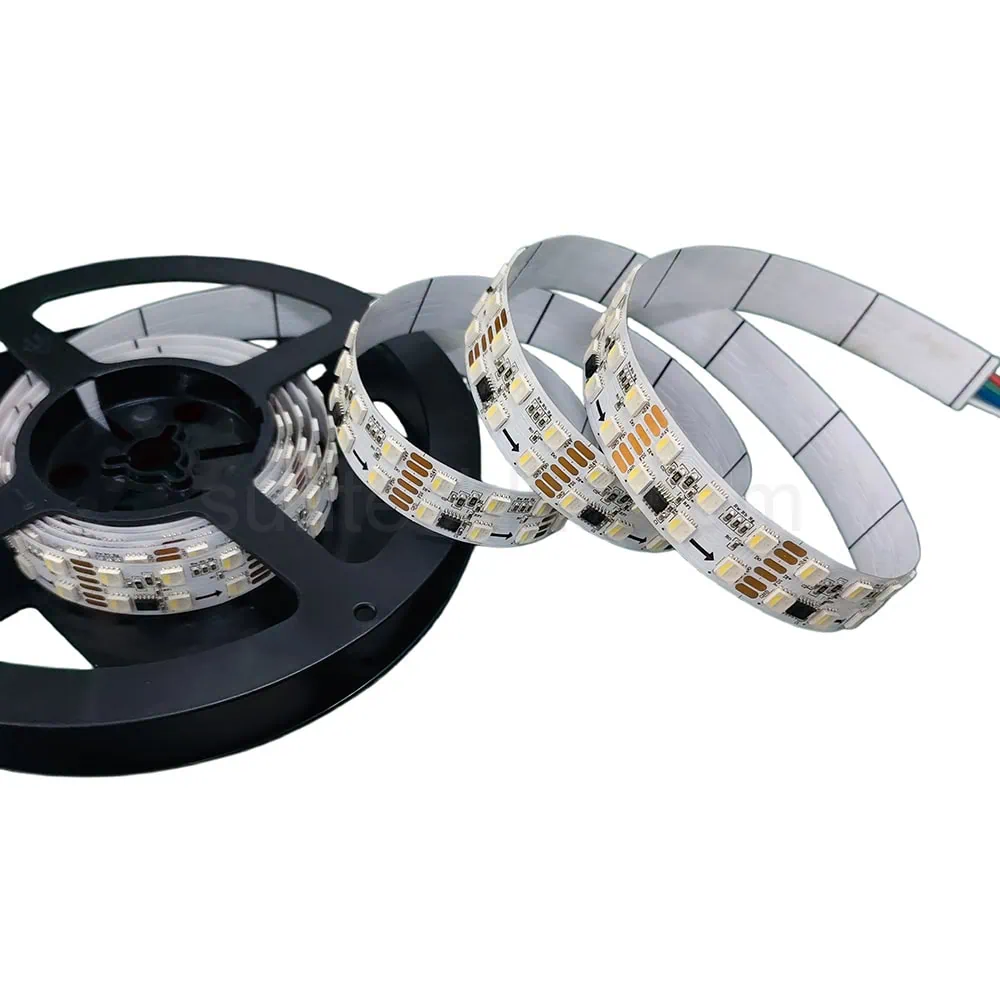

There are 120 LEDs/m on this 20mm white addressable white led strip. With DC24V input, it is 12 LEDs/100mm cuttable. Designed with two rows of pcb, this 120 LEDs led strip can provide a more cohesive and intensive lighting effect with its high density. There are 5 pin lines on the pcb with two positive wires, two negative wires and one signal line.
UCS2903 DC24V 120 LEDs/m 20mm CCT LED Strip
Color: CCT
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm
This double row addressable CCT led strip adopts external UCS2903 ICs. The input voltage is DC24V. Every 12 LEDs are controlled by one pixel. The back tape is genuine 3M cohesive, which makes the led strip easily fixed and installed on the surface. Various color temperatures are available to be chosen. The pcb width of this double row led strip is 20mm.
GS8208 LED Strip

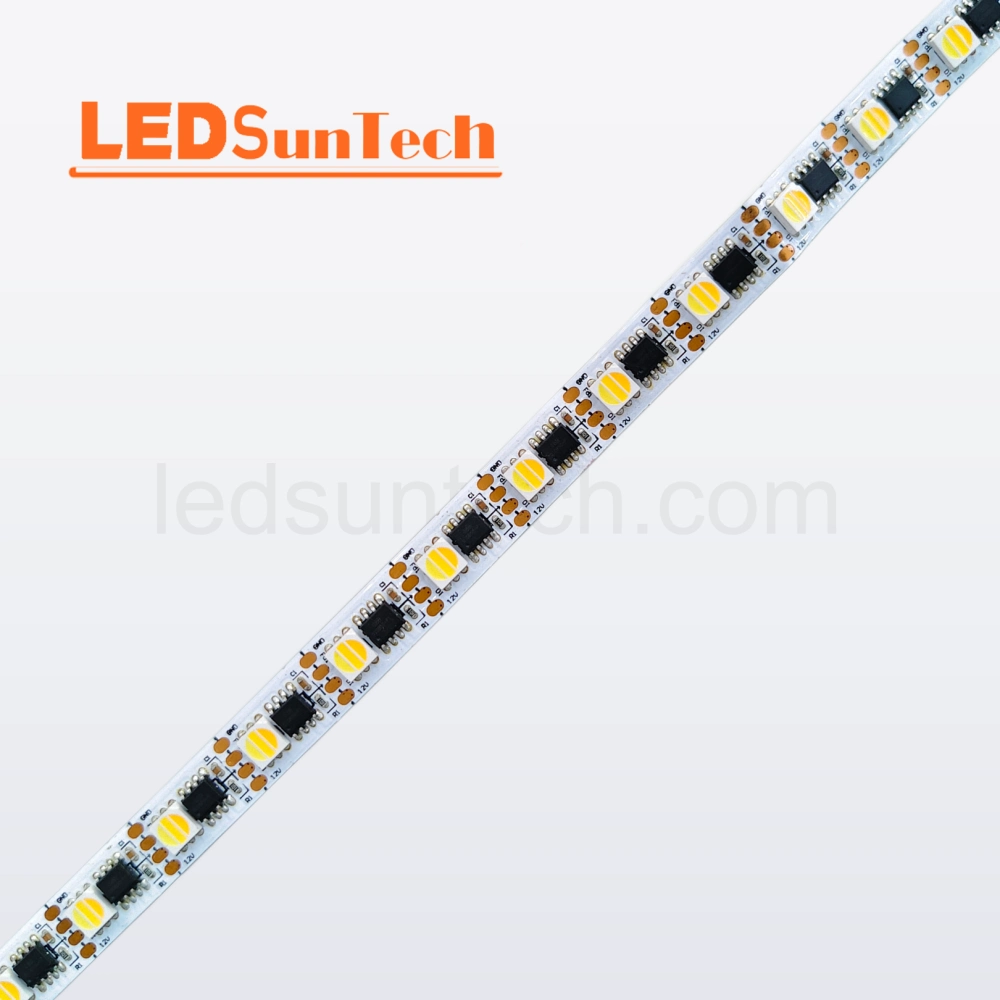

GS8208 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
This GS8208 addressable white led strip has 60 LEDs and 60 pixels per meter, which seldom happens on an external IC. The pcb is 10mm wide. This led strip is one led cuttable. Every 16.6mm of the led strip can be cut, which greatly increases the flexibility of this led strip. Two signal wires guarantee the continuity of the lighting.
WS2818 LED Strip
WS2818 DC12V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
There are 20 pixels per meter and each controls 3pcs of SMD5050 White LED, every 3 LEDs/50mm as a cutting unit. This led strip adopts 4-pin JST cable. Two data wires come from this led strip, which provides a continuous lighting even with one LED broken. 3000K warm white, 4000K natural white and 6500K daylight color temperature are available choices.

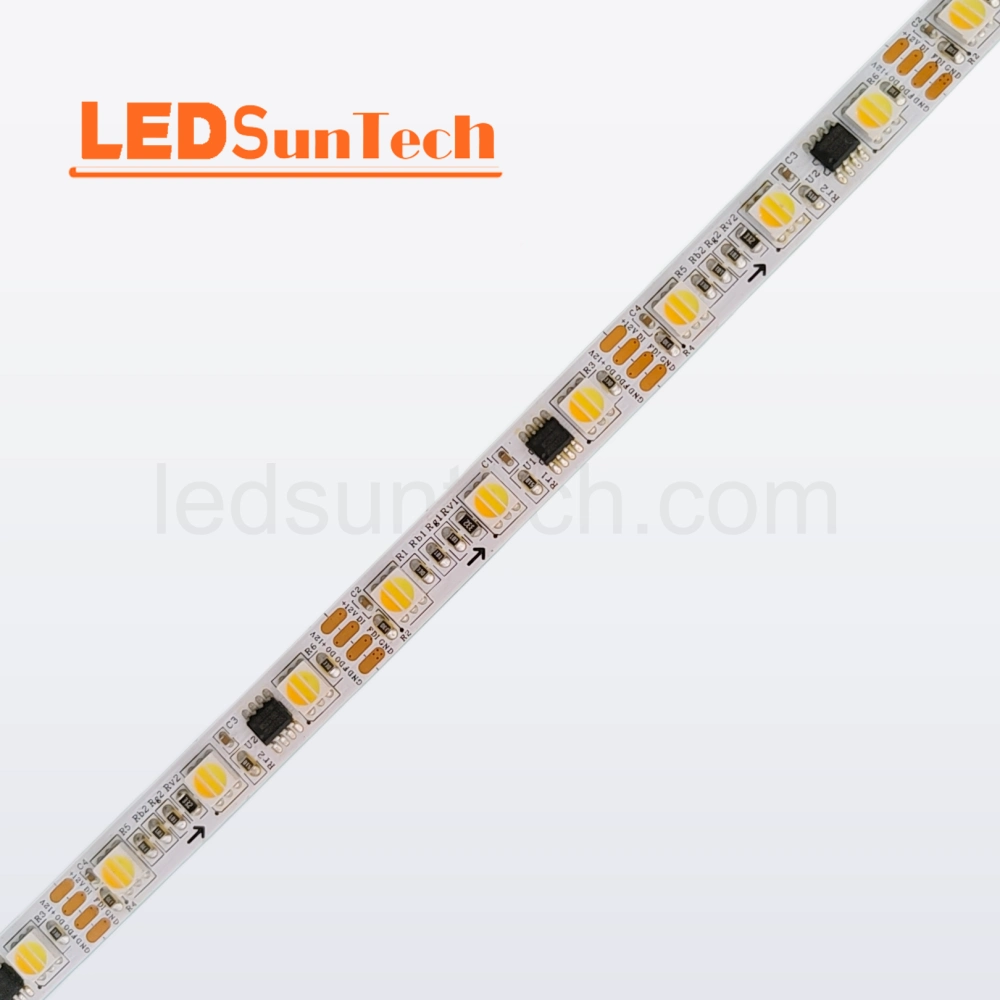

WS2818 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10 mm
12V addressable tunable white LED tape adopts 3-in-1 SMD5050 and WS2811 external chips. There are 60 LEDs and 20 pixels per meter. Each pixel control 3pcs of White LEDs. It is 50mm cuttable and the width of the digital CCT strip is 10mm. The intelligent LED strip is flexible and can be folded into different shapes, suitable for personalized sapce lighting.
WS2818 DC12V 72 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8 mm
There are 24 pixels per meter and each controls 3pcs of SMD5050 LEDs, every 3 LEDs/50mm as a cutting unit. The width of the digital white strip is 10mm. The back side comes with genuine 3M adhesive, which is powerful to fix the led strip on surface of different materials. Multiple IP ratings are available such as IP20, IP65 and IP67.
WS2818 DC12V 72 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 72
Voltage: DC12V
Cutting Unit: 41.6 mm
Power: 17.2 W/m
Pixel Qty: 24 Pixels
Break Continue: Yes
PCB Width: 8 mm
This 12V addressable tunable white LED tape uses 3-in-1 SMD5050 and WS2811 external chips. There are 72 LEDs and 24 pixels per meter. Each pixel control 3pcs of White LEDs. It is 41.6mm cuttable. This 72 LEDs/m led tape has more LEDs in the same 5 meters, which contributes to the consistency and uniformity of the lighting. Compared with WS2811 IC, this WS2818 led tape has longer transmission distance.
UCS1903 LED Strip

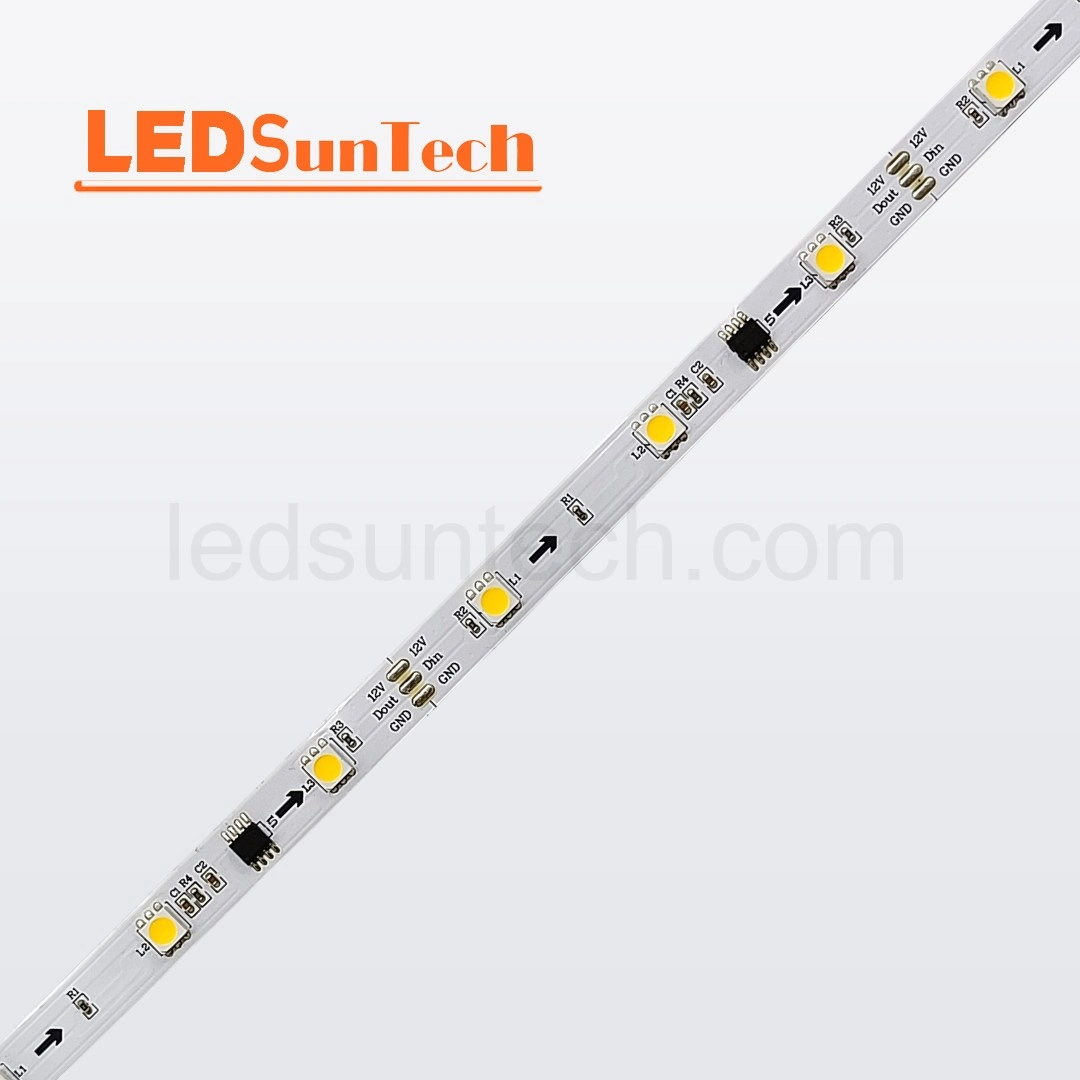

UCS1903 DC12V 30 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
This addressable white led tape enables white light adjustment. It adapts SMD5050 White LEDs. There are 10pcs of UCS1903 ICs per meter and each controls 3pcs of SMD5050 White LED, every 3 LEDs/100mm as a cutting unit. The circuit board is designed with one data wire. 3000K warm white, 4000K natural white, 6500K daylight color temperature are available options.
UCS1903 DC12V 30 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 30
Voltage: DC12V
Cutting Unit: 100 mm
Power: 7.2 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
There are 10 pixels per meter and each controls 3pcs of SMD5050 CCT 3-in-1 LED, every 3 LEDs/100mm as a cutting unit. Different from regular white led strips, this is addressable white led strip. You can control each White LED by using controllers to command the white glow as you want. Besides, 3-in-1 White LED also brings a good strip light appearance.
UCS1903 DC24V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
This pixel led strip has 10 pixels per meter and each controls 6pcs of SMD5050 White LED, every 6 LEDs/100mm as a cutting unit. Compared with WS2811 addressable white led strip, this UCS1903 led strip is able to transmit signal between two pixels whose distance is more than 20 meters. This 5-wire design pixel light strip has two positive wires and two negative wires for power backup.
UCS1903 DC24V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 10 mm
10 pixels are arranged for one meter of this led strip and each controls 6pcs of SMD5050 CCT 3-in-1 LED, every 6 LEDs/100mm as a cutting unit. With multiple White color temperatures, this led strip helps to create a dynamic white light atmosphere in your application. The black pcb makes this led strip integrate to the environment, reinforcing the white LEDs when lit up in the dark space.
FW1935 LED Strip

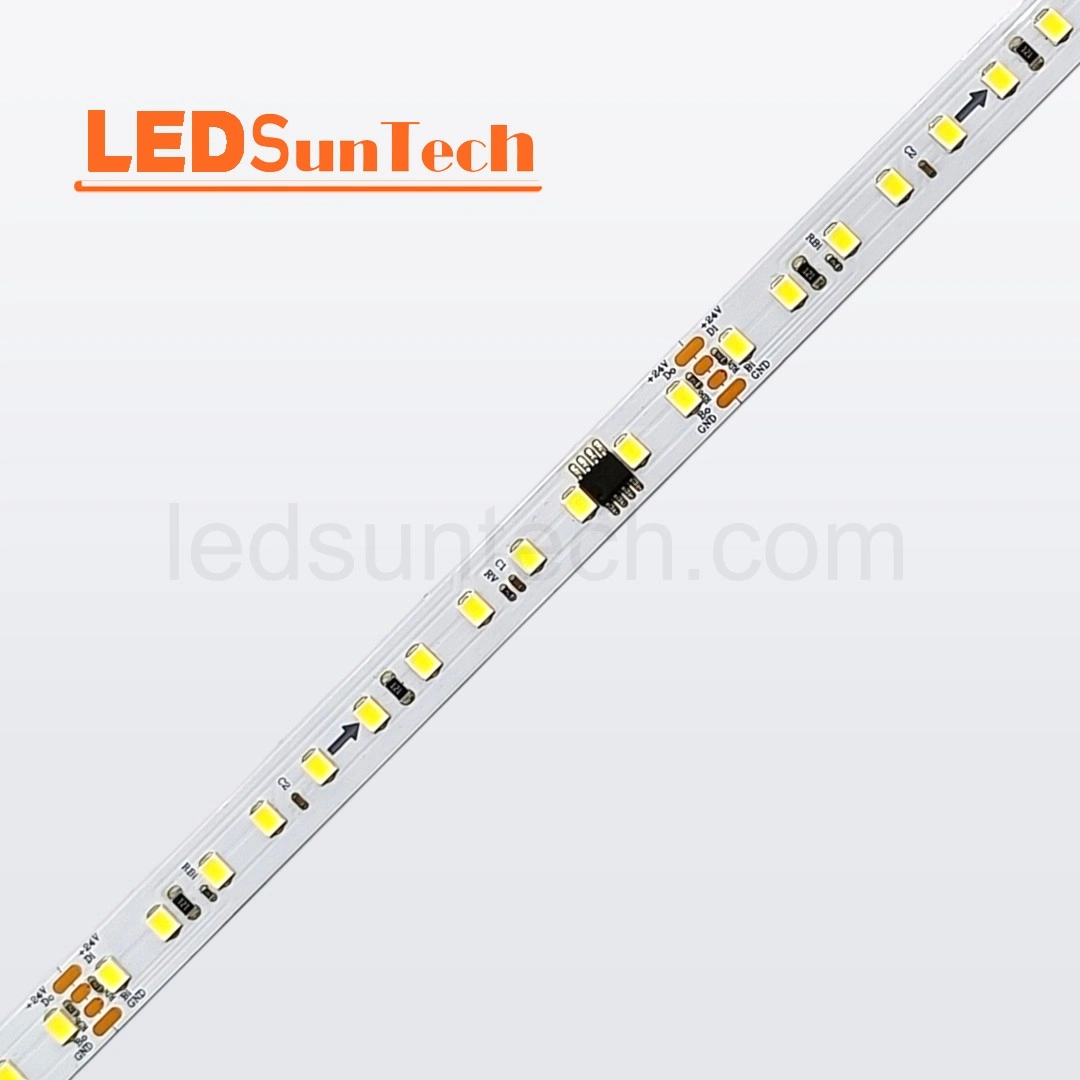

FW1935 DC24V 120 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
There are 120 LEDs per meter on this FW1935 digital white led strip. The input voltage is DC24V and the pcb width is 10mm. This led strip adopts SMD2835 White LEDs. 3000K warm white, 4000K natural white and 6500K daylight are available. It is 12 LEDs cuttable. This led strip use 4 pin JST wire with two signal lines for data transmission.
SPI Built-in IC
WS2815 LED Strip

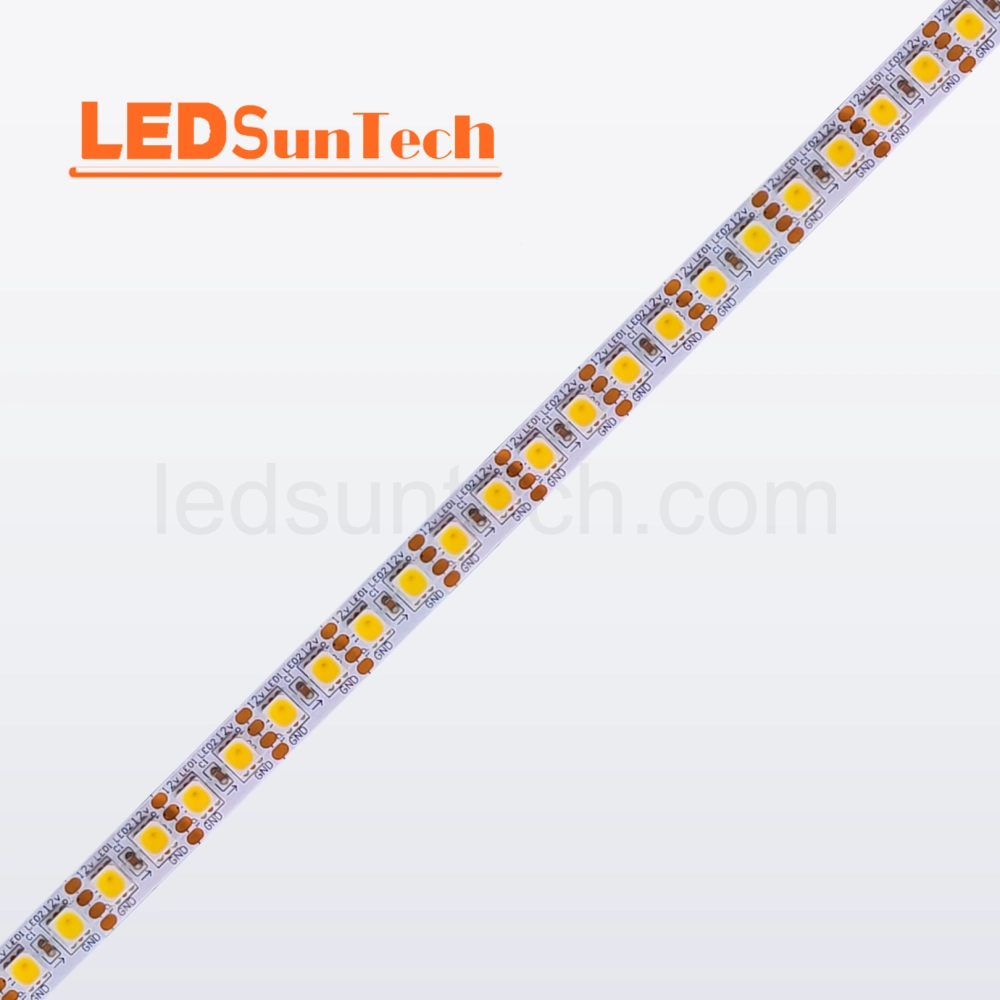

WS2815 DC12V 84 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 84
Voltage: DC12V
Cutting Unit: 11.9 mm
Power: 12 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10mm
This addressable white led strip is individually controllable with the internal WS2815 IC. There are 84 LEDs and 84 pixels per meter. With DC12V input voltage, each one led of this led strip can be cut. The cutting unit is 11.9mm long. The short cutting length makes this led strip extremely flexible for different kinds of applications. The width of pcb is 10mm and it adopts SMD5050 White LEDs.
WS2815 DC12V 96 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 96
Voltage: DC12V
Cutting Unit: 10.41 mm
Power: 13.8 W/m
Pixel Qty: 96 Pixels
Break Continue: Yes
PCB Width: 10mm
There are 96 LEDs and 96 pixels per meter. With DC12V input voltage, this led strip is one led cuttable. The cutting unit is 10.41mm long. This addressable white led strip is individually controllable with the internal WS2815 IC. Dual signal transmission also makes this led strip continue to transmit the data continuously. The width of the pcb is 10mm.
WS2815 DC12V 120 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 10mm
This individually addressable white led strip adopts the internal WS2815 IC. There are 120 LEDs and 120 pixels per meter. With DC12V input voltage, this led strip is two leds cuttable. The cutting unit is 16.6mm long. The width of pcb is 10mm. With higher density of LEDs, this led strip can provide a more consistent and uniform glow.
SK6812 LED Strip

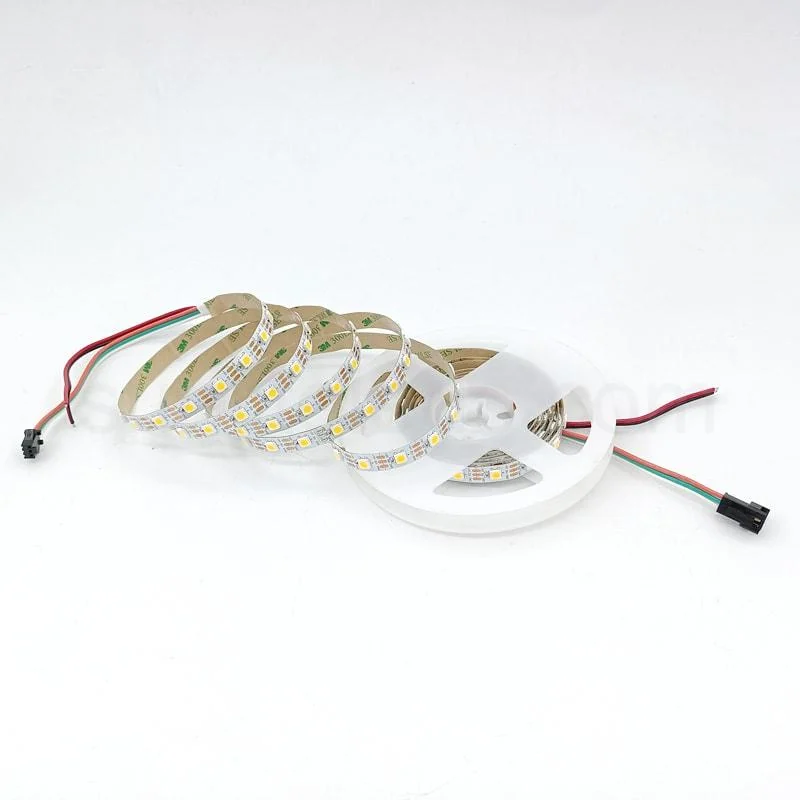

SK6812 DC5V 60 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 8mm
SMD5050 White LEDs with internal SK6812 IC are used for this individually addressable white led strip. With DC5V input voltage, this led strip is one leds cuttable. The cutting unit is 16.6mm long. The width of pcb is 8mm. The individually LEDs give much freedom for users to create the lighting effect they want. This led strip use genuine 3M cohesive on the back of pcb.
SK6812 DC5V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10mm
We offer this individually addressable white led strip with SMD3535 CCT LEDs and internal SK6812 IC. With DC5V input voltage, this led strip is two leds cuttable. The cutting unit is 16.6mm long. The width of pcb is 10mm. This led strip is available in IP20, IP65 and IP67 IP ratings. Individually addressability enlarges the application areas of this led strip.
DMX

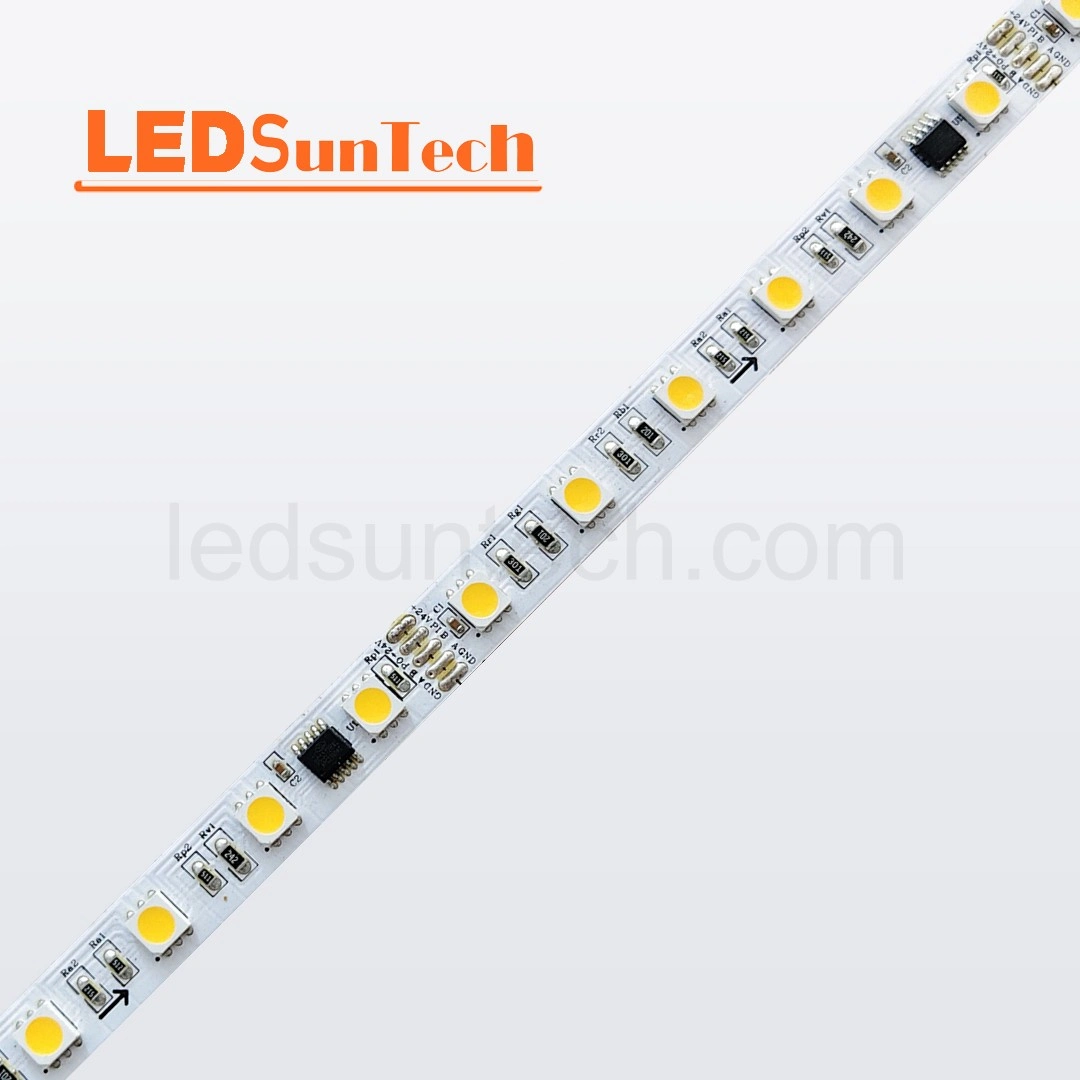

DMX DC24V 60 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
Compared with the SPI/TTL led strip, this DMX led strip use 5 pin JST wire with two signal lines for more stable data transmission. This DMX addressable white led strip has 60 LEDs and 10 pixels per meter. This led strip adopts SMD5050 White LEDs. The input voltage is DC24V and the width is 10mm. It is 6 LEDs/100mm cuttable.

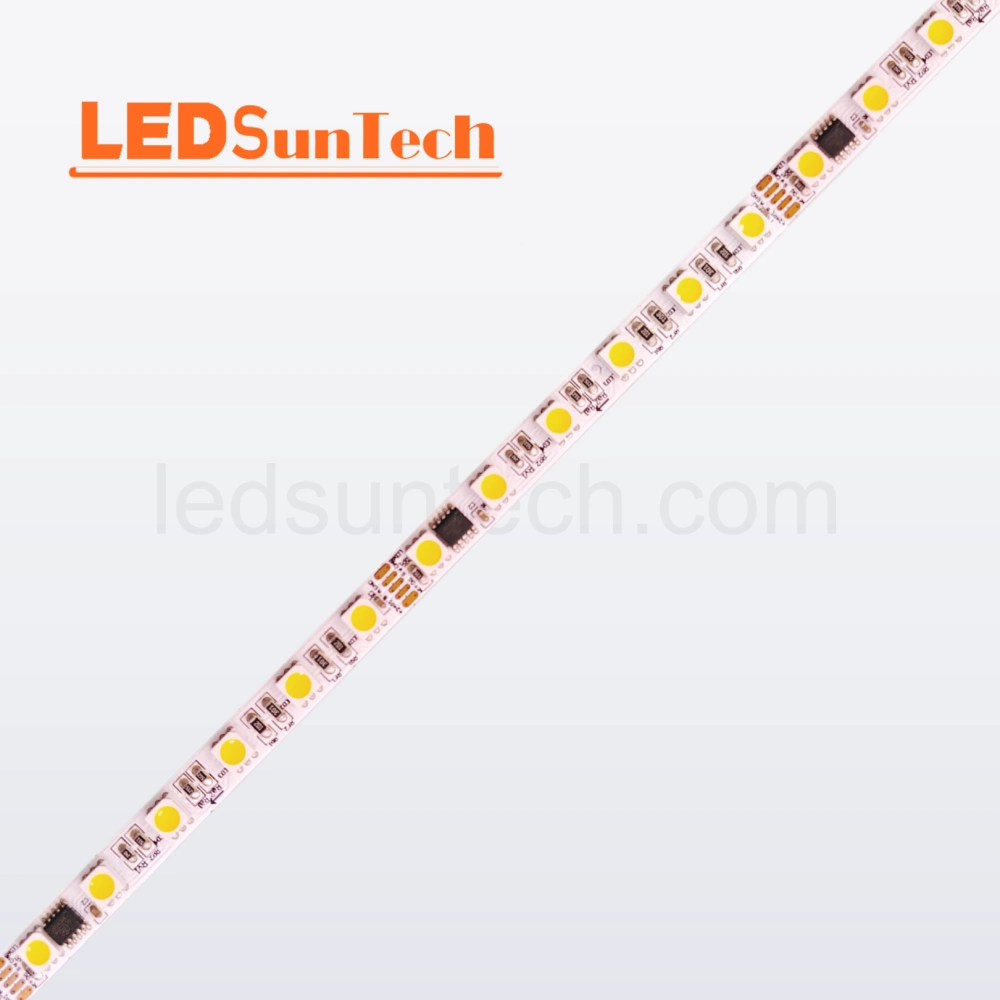

DMX DC24V 72 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 72
Voltage: DC24V
Cutting Unit: 83.3 mm
Power: 17.3 W/m
Pixel Qty: 12 Pixels
Break Continue: Yes
PCB Width: 8 mm
The input voltage is DC24V and the width is 8mm. It is 6 LEDs/83.3mm cuttable. Self-adhesive tape on back, which makes this led strip easy to stick to your home or retail store and facilitate your installation. This DMX addressable white led strip has 72 LEDs and 12 pixels per meter. This led strip adopts SMD5050 White LEDs.

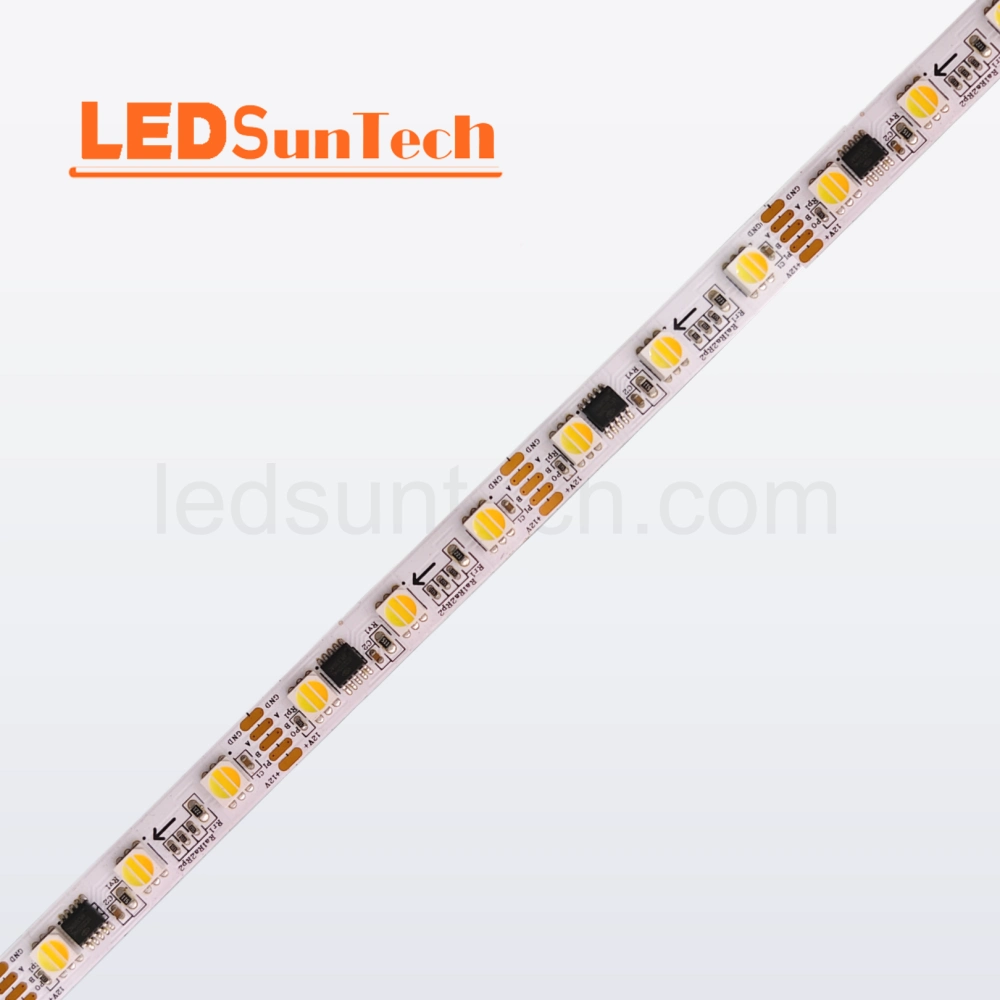

DMX DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 50 mm
Power: 14.4 W/m
Pixel Qty: 20 Pixels
Break Continue: Yes
PCB Width: 10mm
This DMX addressable white led strip has 60 LEDs and 20 pixels per meter. This led strip adopts SMD5050 CCT LEDs. The input voltage is DC12V and the width is 10mm. It is 3 LEDs/50mm cuttable. The tunable white addressable LED strip can quickly switch the color temperature to reach more diverse visual effects, bringing an aesthetic feast to people.
