LED strip lights are among the most versatile lighting options today. One question many users often ask is straightforward:
Can you cut LED strip lights?
The answer is yes. However, you cannot cut them just anywhere.
In this guide, you will learn exactly where to cut, how to cut it safely, and how to reconnect your LED strip safely and correctly.
Can You Cut All LED Strip Lights?
Most LED strip lights are designed to be cut. But not all of them work the same way.
Standard LED strips such as single color, RGB, and most 12V or 24V strips can be cut safely. However, some special types require extra attention.
| LED Strip Type | Can Be Cut | Notes |
|---|---|---|
| SMD 12V/24V | Yes | Most common and easy to cut |
| COB LED Strip | Yes | Requires precise cutting |
| Neon LED Strip | Yes | Needs resealing after cutting |
Where Can You Cut LED Strip Lights?
You can cut LED strip lights only at the designated cut points. The exact location depends on the type of strip you are using.
① SMD LED Strip
- SMD LED strips are the most common and easy to cut. Look for clear cut lines and large copper pads. They are typically cut every 3 LEDs for 12V or 6 LEDs for 24V. Understand the different voltage LED strips: 5V vs 12V vs 24V LED Strip?
② COB LED Strip
- COB LED strips have cut points that are much closer together. The copper pads are smaller and harder to see. You need to align them precisely when reconnecting.
Click here to learn more: SMD LED Strip vs COB LED Strip
③ Neon LED Strip
- Neon LED strips have a protective outer silicone layer. You must cut through both the internal strip and this outer layer. After cutting, you need to reseal the end to keep it waterproof.

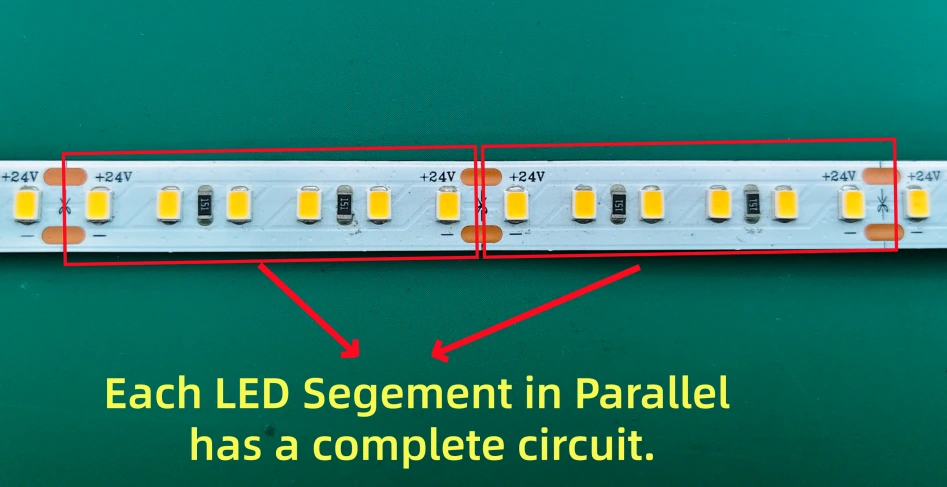

Why LED Strips Can Only Be Cut at Specific Points?
LED strip lights are more than simple light sources. They consist of a series of small electrical segments connected together.
Each segment includes:
- A group of LEDs
- A resistor or control component
- Copper traces connecting the circuit
Read this blog to learn circuits of LED strip: Series and Parallel Circuits for LED Strip
Cutting LED strips incorrectly can cause serious damage.
You might find that parts of the strip do not light up or that the entire strip stops working.
Since this often permanently damages the circuit, these strips usually cannot be repaired.
Tools You Need to Cut LED Strip Lights
Before you begin, gather the right tools to ensure clean cuts and reliable connections.
| Tool | Purpose |
|---|---|
| Scissors | Clean and straight cutting |
| Ruler | Accurate measurement |
| Connector | Quick reconnection |
| Soldering iron | Strong and stable connection |
| Heat shrink tube | Insulation and protection |
How to Cut LED Strip Lights?
- First, locate the marked cutting lines on your strip. These lines are clearly labeled with a scissors icon and copper pads, and they appear at fixed intervals along the strip.

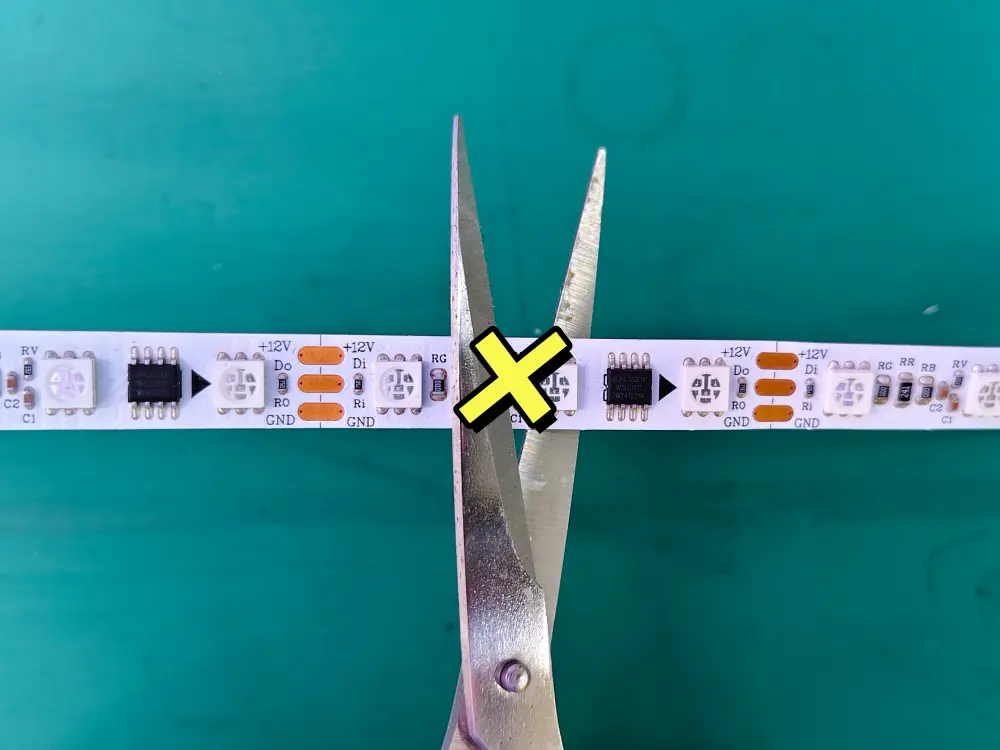

- Only cut along these marked lines. Cutting between the marks will damage the internal circuit and cause part of the strip to stop lighting up.
- You should use sharp scissors and cut along the designated line. The cut must be straight and clean.
- After you finish cutting, you can power the shortened strip normally or connect it to compatible connectors for your lighting project.
How to Reconnect LED Strip Lights After Cutting?
After cutting, you may want to reuse the remaining strip. There are two main ways to reconnect it.

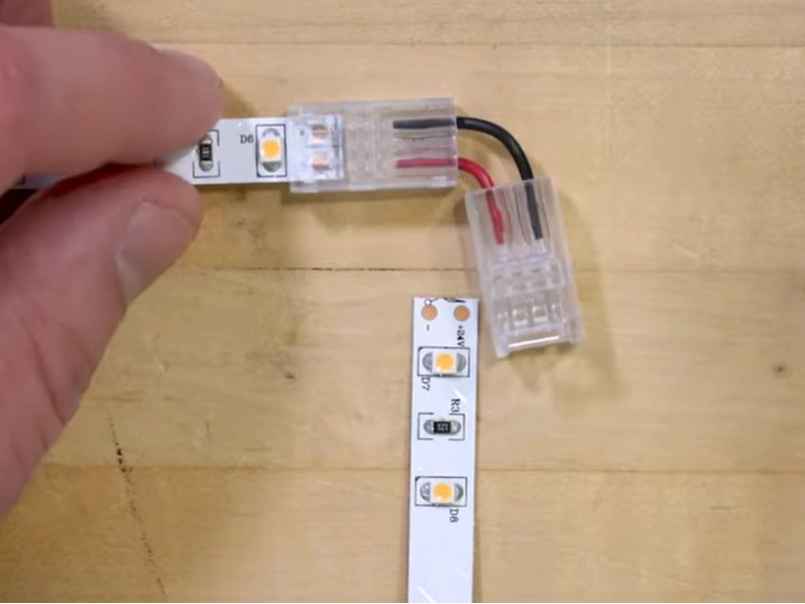

1. Using LED Connectors
- This method is fast and simple. You do not need to solder anything. However, the connection might get loose later. It is not the best choice for heavy power use.

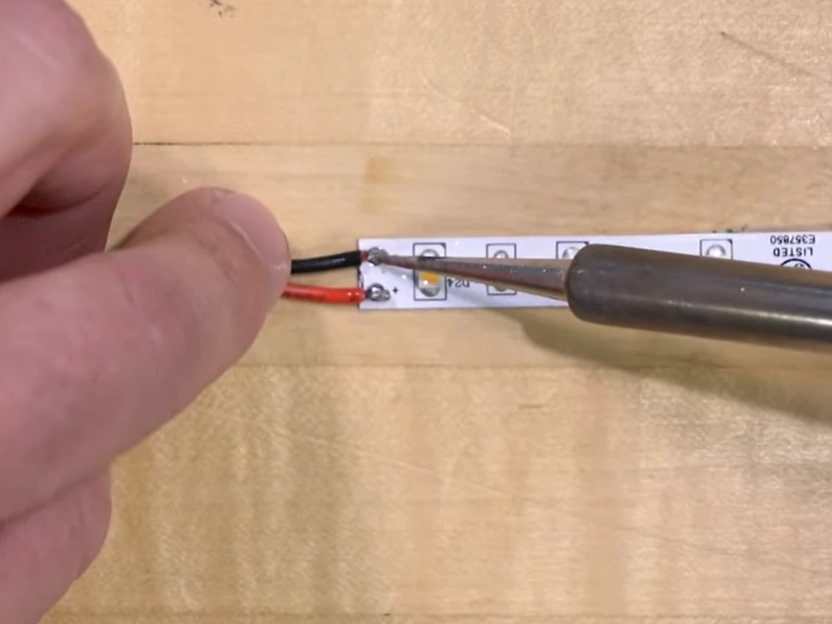

2. Soldering
- Soldering makes a very strong link. It is perfect for long-term use. But you need special tools and skills. It also takes more time than connectors.
More information: How to Solder LED Strip
Special Cases You Should Know
Some LED strips require extra care when cutting.

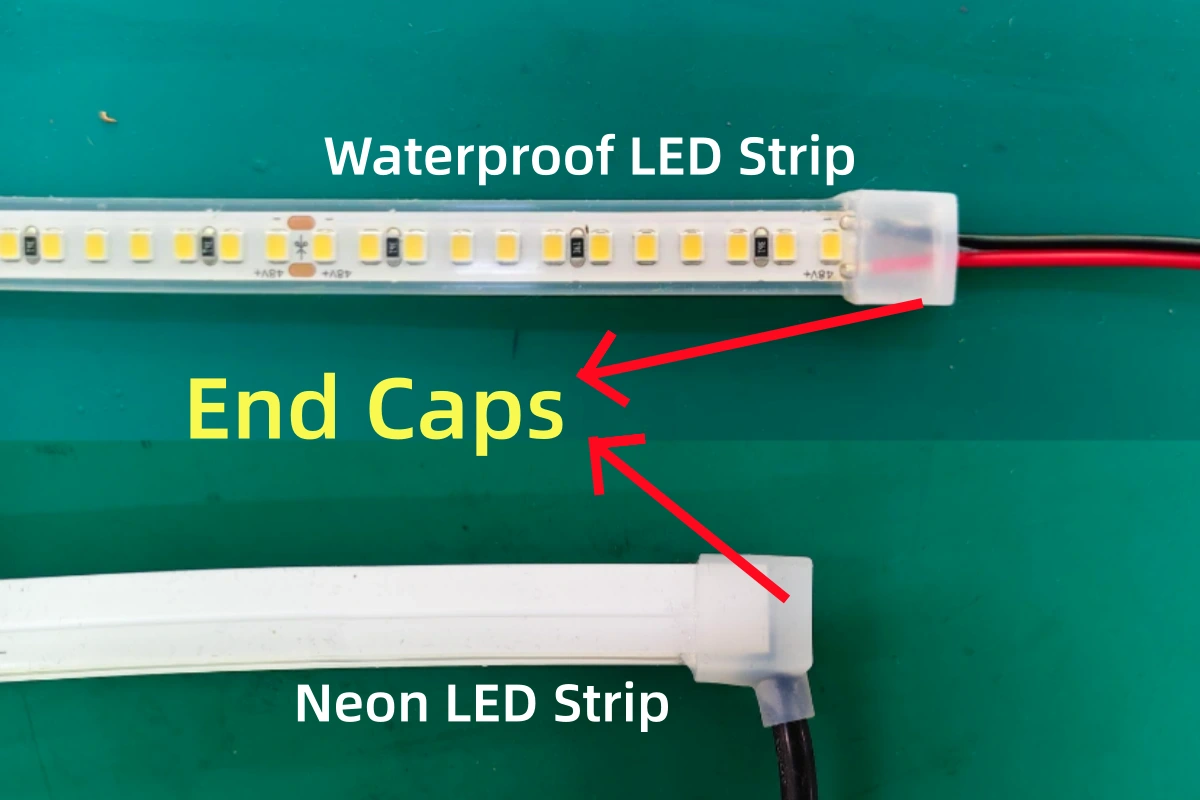

Cutting Neon and Waterproof LED Strips
- Remove the silicone coating carefully
- Reseal the end with silicone or end caps
Cutting Addressable LED Strips
- Follow signal direction
- Incorrect cutting may affect data transmission
