DC24V COB LED Strip
Product Feature
1. Stable 24V Performance
The design of DC24V is suitable for medium to long distance installation scenarios. It reduces voltage loss and maintains consistent brightness.
2. Seamless Dot Free Light
The FCOB technology can create soft and uniform light effects and can also achieve clear linear lighting effects. It is recommended to use aluminum channels to enhance the heat dissipation.
3. Reliable and Easy Installation
It has better resistance to oxidation and is easier to solder than traditional designs, which makes installation more reliable. If used in conjunction with a compatible dimmer, you can also adjust the brightness.
4. Flexible Structure with Strong Adhesive
This strip-like object has excellent flexibility and can be installed in various positions. It has a strong adhesive surface that can maintain a fixed state for a long time and is easy to connect to a 24-volt DC power supply.
5. Cuttable and Widely Applicable
It can be cut and soldered for free, which makes it great for architectural lighting, commercial spaces, and indoor decorative lighting that needs smooth, even light.
Wholesale DC24V COB LED Strip Series
Voltage: DC24V. 0-100% dimmable.
LED density: 320 LEDs/m, 360 LEDs/m, 378 LEDs/m, 384 LEDs/m, 420 LEDs/m, 480 LEDs/m, 504 LEDs/m, 528 LEDs/m.
PCB width: 6mm, 8mm, 10mm, 12mm.
Waterproof grade: IP20, IP65, IP66, IP67, IP68.
White COB LED Strip By Series
LED density: 320 LEDs/m, 378 LEDs/m,384 LEDs/m, 480 LEDs/m, 504 LEDs/m, 528 LEDs/m, 576LEDs/m, 608LEDs/m, 630LEDs/m, 840LEDs/m, 910LEDs/m.
PCB Width: 10mm, 12mm, 14mm.
Waterproof grade: IP20, IP66, IP67.
Specification Download
| Specification Name | Download |
|---|---|
| DC24V-320leds/m White COB LED Strip Specification |
|
| DC24V-320leds/m White High Efficiency COB LED Strip Specification |
|
| DC24V-378leds/m White COB LED Strip Specification |
|
| DC24V-384leds/m White COB LED Strip Specification |
|
| DC24V-480leds/m White COB LED Strip Specification |
|
| DC24V-504leds/m White COB LED Strip Specification |
|
| DC24V-528leds/m-White COB LED Strip Specification |
|
| DC24V-400led-5mm-White-COB LED Strip Specification |
|
| DC24V-400led-3mm-White-COB LED Strip Specification |
|

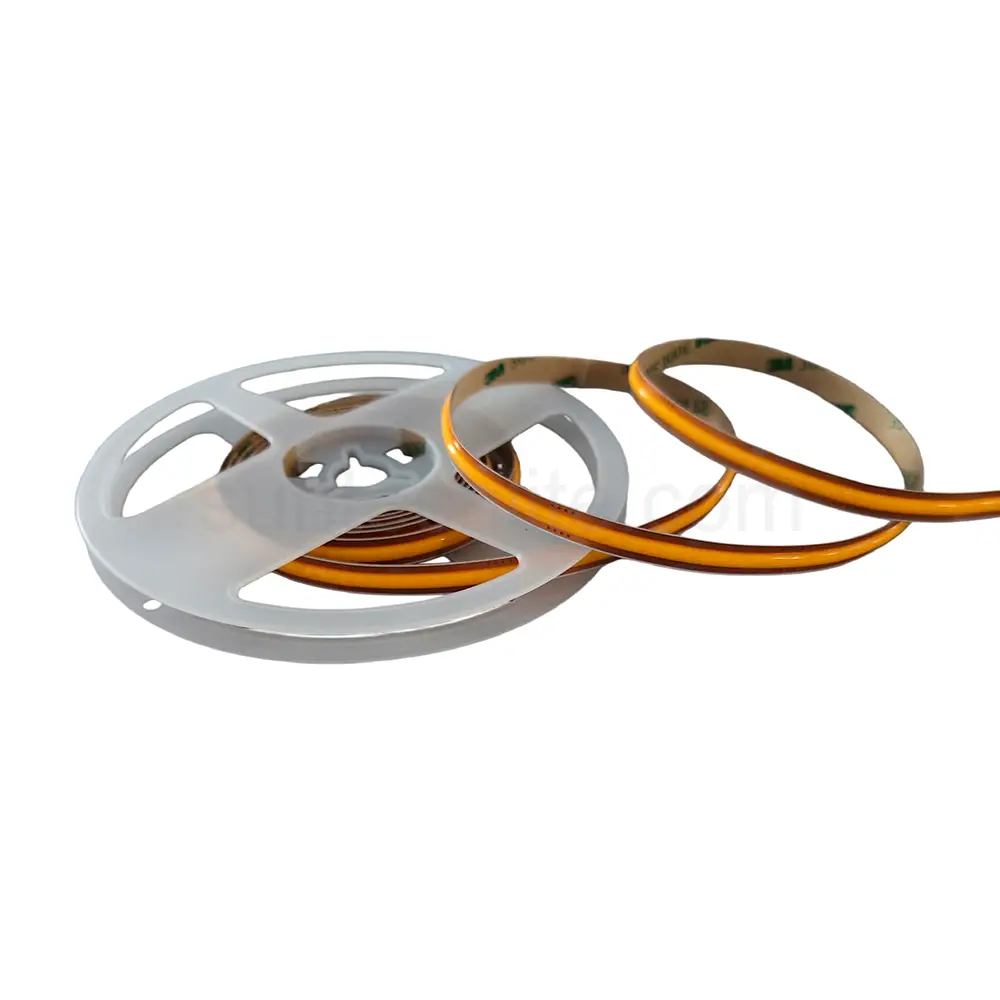

| DC24V-528led-8mm-White-COB LED Strip Specification |
|

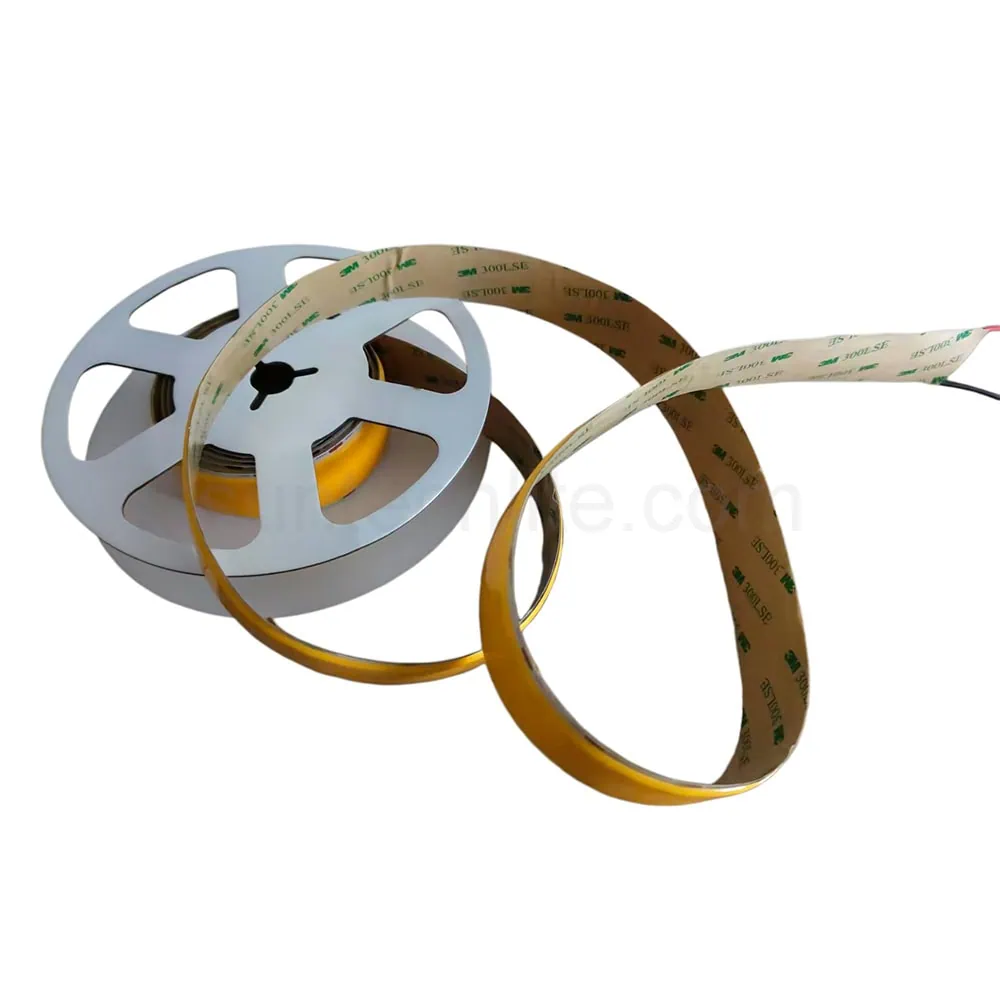

| DC24V-1600led-30mm-White-COB LED Strip Specification |
|
| DC24V-960led-15mm-White-COB LED Strip Specification |
|
| DC24V-480led-8mm-White-Constant Current COB LED Strip Specification |
|

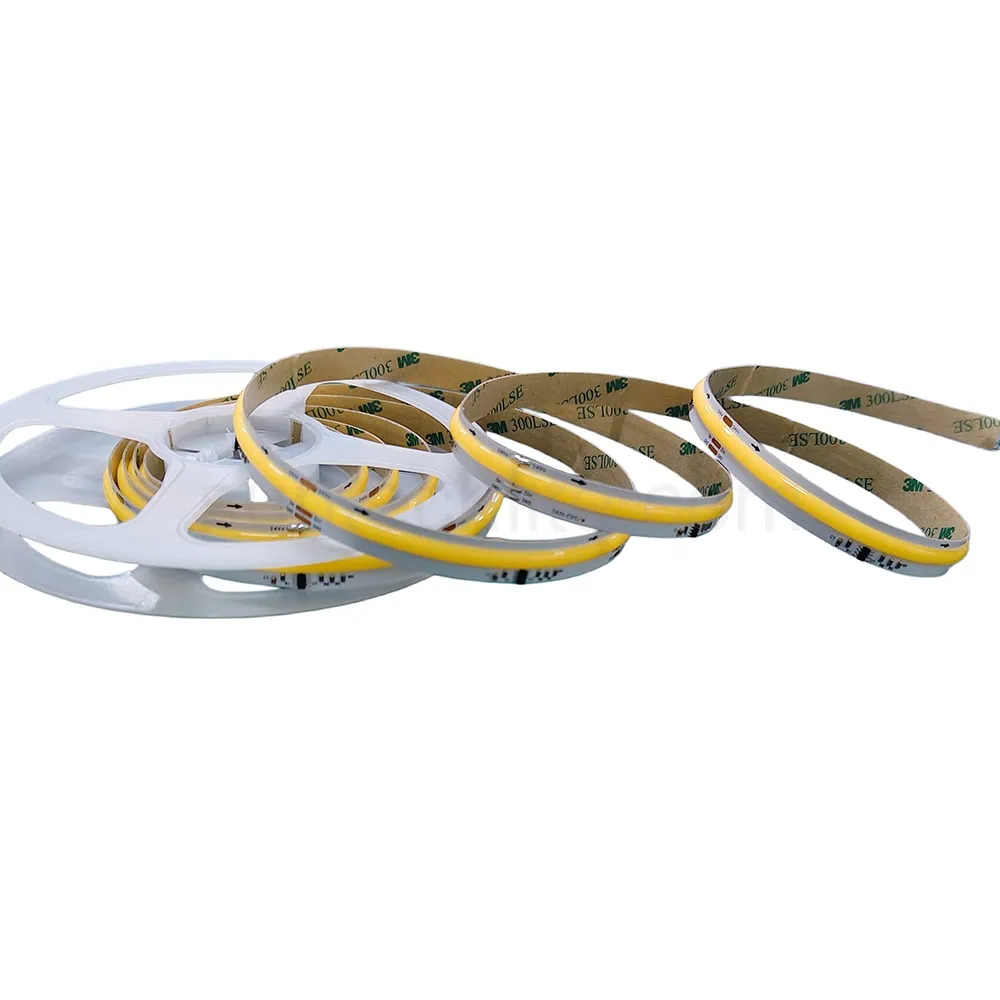

| DC24V-360led-10mm-Addressable White-COB LED Strip Specification |
|

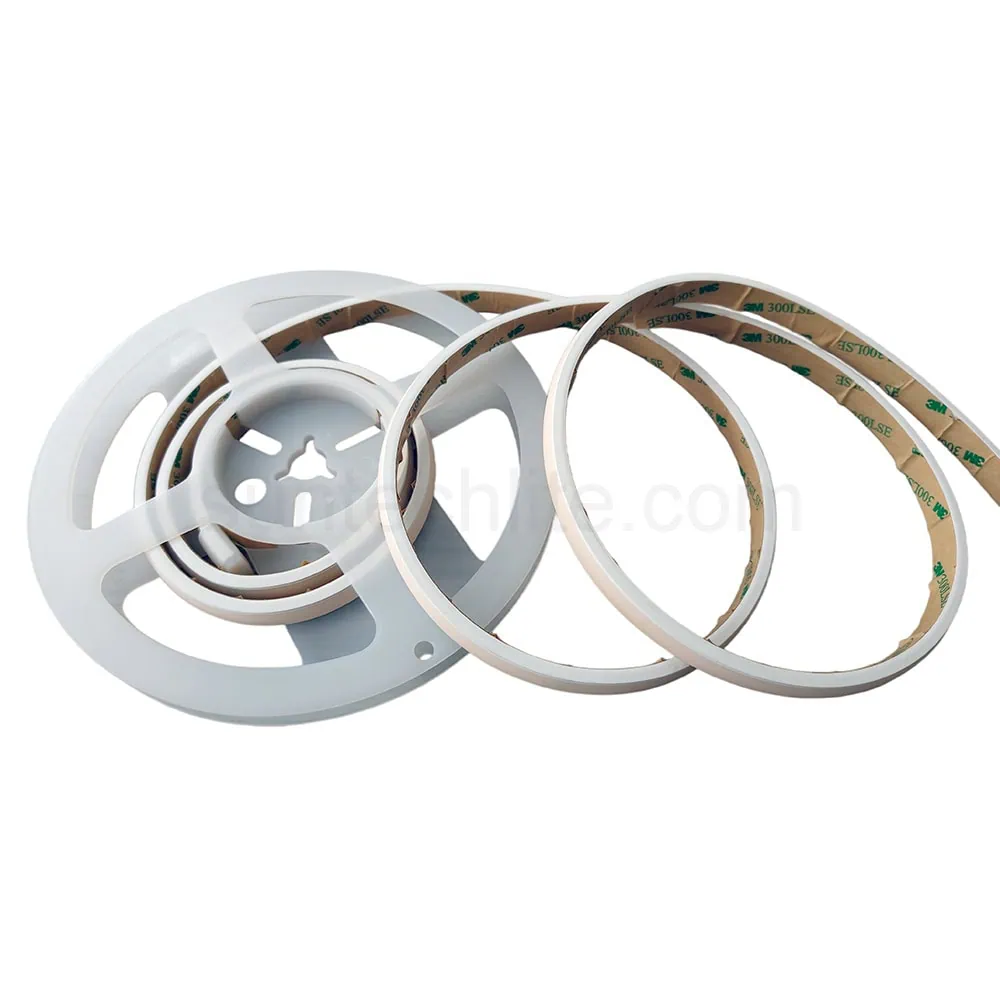

| DC24V-528led-White- Neon COB LED Strip Specification |
|
CCT COB LED Strip By Series
LED density: 576 LEDs/m, 608 LEDs/m.
PCB Width: 10mm.
Waterproof grade: IP20, IP66, IP67.
Specification Download
| Specification Name | Download |
|---|---|
| DC24V-576leds/m CCT COB LED Strip Specification |
|
| DC24V-608leds/m CCT COB LED Strip Specification |
|
| DC24V-576led-10mm-Addressable CCT-COB LED Strip Specification |
|
RGB COB LED Strip By Series
LED density: 630 LEDs/m, 840 LEDs/m.
PCB Width: 10mm, 12mm.
Waterproof grade: IP20, IP66, IP67.
Specification Download
| Specification Name | Download |
|---|---|

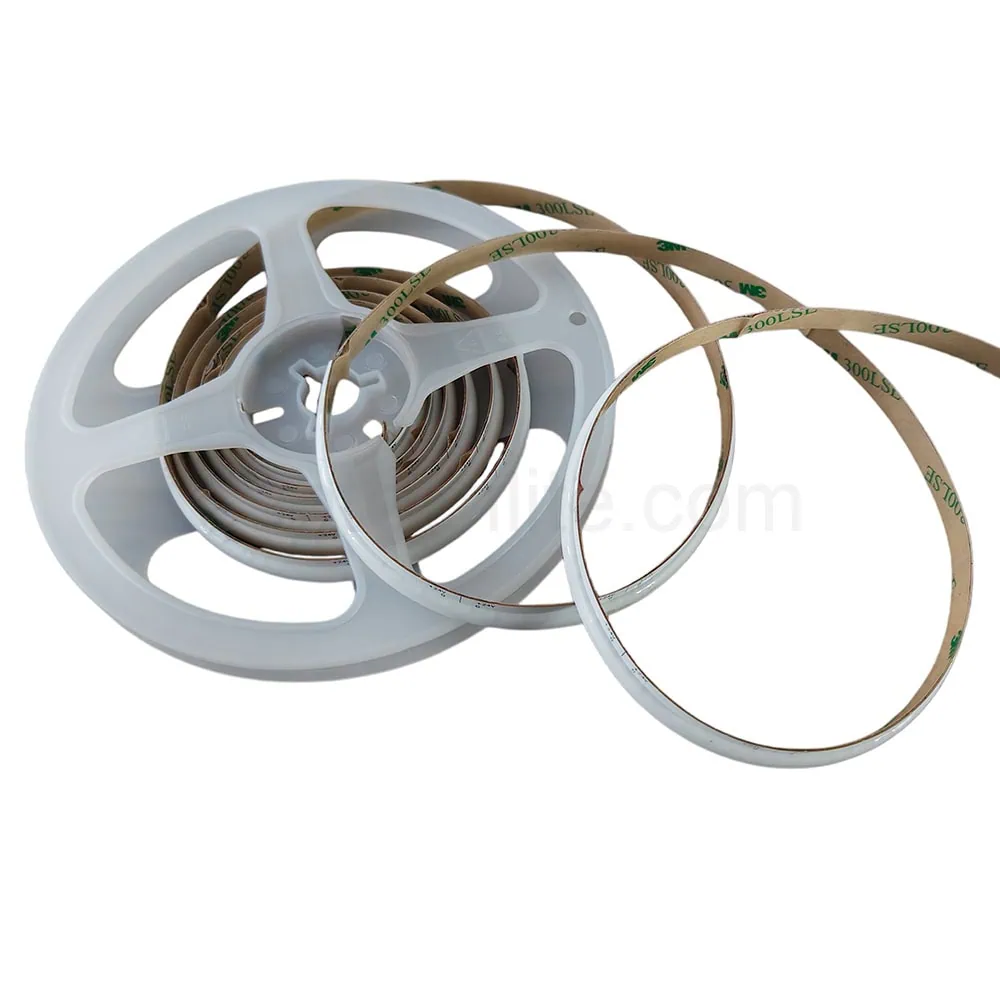

| DC24V-630leds/m RGB COB LED Strip Specification |
|
| DC24V-840leds/m RGB COB LED Strip Specification |
|
| DC24V-630led-10mm-RGB Sideview-COB LED Strip Specification |
|
RGBW COB LED Strip By Series
LED density: 840 LEDs/m.
PCB Width: 12mm, 14mm.
Waterproof grade: IP20, IP66.
If the parameters you need are not here, please contact us for customization.
RGBWW RGB+CCT COB LED Strip By Series
LED density: 840 LEDs/m, 910LEDs/m.
PCB Width: 12mm, 14mm.
Waterproof grade: IP20, IP67.
If the parameters you need are not here, please contact us for customization.

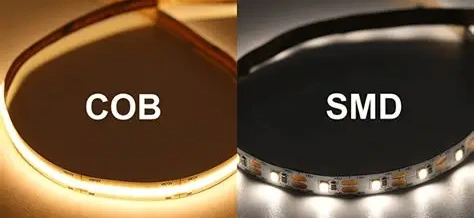

COB vs SMD LED Strip
| Feature | COB LED Strip | SMD LED Strip |
|---|---|---|
| Light effect | Continuous smooth | Visible dots |
| Visual comfort | High | Medium |
| Beam angle | 180° | 120° |
| Design feeling | Premium | Standard |
COB LED strip is designed for high end visual lighting where uniformity matters more than simple illumination.
Why Choose LEDSuntech DC24V COB LED Strip
LEDSuntech focuses on high-quality LED strip lighting solutions, offering:
- Stable DC24V COB LED strip production
- Custom LED density and PCB width options
- OEM and ODM lighting solutions
- Professional LED PCB design support
- Reliable factory direct supply
DC24V COB LED Strip Application
- Architectural Lighting
Ideal for ceiling coves, wall grooves, stair lighting, and indirect lighting design.
- Commercial Lighting
Perfect for retail stores, shopping malls, hotels, and exhibition displays.
- Indoor Decorative Lighting
Used in cabinets, kitchens, wardrobes, and TV backlighting to create a modern lighting effect.
Frequently Asked Questions
Is the COB LED strip better than the SMD LED strip?
Yes, this COB light strip emits a softer and more evenly distributed light. There are no visible LED dots. It is better for modern architectural and decorative lighting than SMD strips because it is easier on the eyes.
Can the DC24V COB LED strip be cut?
Yes, it can be cut at the marked positions on the light strip.. Each section can be used independently, allowing flexible length adjustment for different installation needs. Proper reconnection can be done by soldering or using compatible connectors.
Do I need an aluminum profile?
It is recommended. An aluminum profile helps with heat dissipation, improves stability, and extends lifespan. It also protects the strip and enhances the final lighting effect by improving light diffusion.
Why Choose LEDSuntech
LEDSuntech high-quality DC24V COB LED strip products have passed a series of certifications such as ISO:9001, CE, RoHS, FCC, UL, ETL, etc. We specialize in 24V LED light strips. For products, we pay attention to details. Not only is the technology reliable, it’s also beautifully designed. For customers, excellent quality is our principle.
16-Years History
Focuses on high quality SMD LED strips, COB LED strips and addressable LED strips
Independant R&D
Professional engineering team provides complete technical support
Customization
We have rich experience in designing and producing products according to customers’ needs. We are always here to help you
Global Market
Our products have been sold to more than 30+ countries all over the world
Fast Delivery
Experienced workers and fully automated production lines ensure products are delivered on time.
Flexible MOQ
We offer flexible minimum order quantities. The MOQ is 5m. It is convenient for you to conduct quality testing.
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
The following are the main products:
SPI LED strips: WS2811, WS2812, WS2813, WS2815, SK6812, SK6813, SK9822, UCS1903, UCS5603, UCS2903, UCS2904, APA102…
DMX LED strips: DMX RGB LED strips, DMX RGBW LED strips, DMX CCT LED strips…
LED neon lights: side-lit LED neon lights, direct-lit LED neon lights, round LED neon lights, black LED neon lights…
LED controller: K-1000C, K-8000C, XB-Z2, T–790K, SP106E, SP107E…
