DC5V COB LED Strip

Product Feature

The 5V COB LED strip operates at low voltage, which meets the safety and flexibility requirements of smart home ambient lighting, DIY wearable designs, and model lighting. It can be powered directly by a USB port, portable power bank, or DC5V power supply, which makes it convenient for a wide range of applications.

The “dot effect” commonly seen in traditional SMD strips becomes less noticeable when powered by 5V and with a COB optical design. It can emit soft and uniform light, thereby enhancing the overall visual effect and creating a more refined lighting effect.

The COB products are more flexible, thus they can easily fit onto curved or uneven surfaces without affecting their performance.

It comes in various colors, including white and those that change color. We also offer customization to meet various lighting needs.

Find out more about the differences between SMD LED Strip, COB LED Strip, and CSP LED Strip.

Wholesale DC5V COB LED Strip Series

Voltage: DC5V. 0-100% dimmable.

Beam Pattern: 180° beam angle.

LED density: 480 LEDs/m.

PCB width: 2mm, 2.7mm.

Waterproof grade: IP20, IP65, IP67, IP68.

Color temperature: 1800K / 2700K / 3000K/ 4000K/ 5000K/ 6000K, customizable.

DC5V COB LED Strip By Series

Specification Download

Specification Name	Download
DC5V-480led-2mm-White-COB LED Strip Specification
DC5V-480led-2.7mm-White-COB LED Strip Specification

What is DC5V COB LED Strip?

A 5V DC COB LED strip is a flexible lighting circuit that offers excellent lighting performance and also enables the convenience of low-voltage operation.Unlike traditional SMD technology, the COB technology does not install individual packaged LED beads on the circuit board. Instead, multiple bare LED chips are directly mounted on the substrate. These chips will then be covered with a fluorescent layer and sealant. This results in continuous and linear light sources without any point-like appearance.

5V is a standard low voltage, the same as the output voltage of a standard USB port. This enables the strip to be powered by common USB adapters, computer USB ports, or portable power sources, which makes it highly flexible in various settings.

Choose Your Color: A Buyer’s Guide

Cool White (6000K): Bright, new, and full of energy. Best for lighting tasks.
Natural White (4000K): Clean and well-balanced. Perfect for setting up an office.
Warm White (3000K): Comfortable and calming. Great for bedrooms and lighting that sets the mood.
RGB/Dream Color: Change the colors to fit your mood or the game. (Needs a controller).

How to Power 5V LED Strips with USB?

Most 5V COB LED strips have exposed wires at both ends, which makes the installation more flexible.

A USB to DC adapter cable can be used for small setups. It converts the exposed wires into a standard USB connection, which allows power from TV ports, laptops, or phone chargers. But USB power is limited and works best for short strips or low-light use.

The power bank can be used for lighting that needs to be portable and temporary. It gives you a flexible and easy way to get power without having to install anything permanently.

If you want longer LED strips or brighter lights, you should definitely use a stable 5V power adapter. This will make sure that the LED strips always have consistent brightness, stable operation, and full utilization of the performance of the LED strips

Tip:
This strip runs on 5V, so the voltage drops as it gets farther away.

Recommended Maximum Length: To get the best brightness, we suggest running no more than 5 meters from a single power source.
For Longer Runs: If you need to light up a long area (more than 5 meters), think about using our 12V or 24V COB series, or powering the strip from both ends.

DC5V COB LED Strip Application

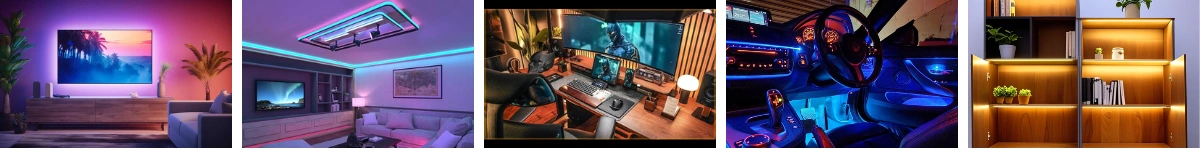

TV Backlighting; Desktop and Workstation Lighting; DIY and Creative Projects; Cabinet and Shelf Lighting; Automotive Interior Lighting; Portable and Temporary Lighting…

FAQ

1. Can a DC5V COB LED strip be cut?
Yes, it can be cut at designated cutting points so that it can be adjusted to different installation lengths according to project requirements.

2. Can I power a DC5V COB LED strip with USB?
Yes, it can be powered by USB interfaces, which means it can be connected to computers, laptops, power banks, or USB adapters for easy use.

3. Is the DC5V COB LED strip suitable for long-distance installation?
It is not recommended for long-distance installation because 5V systems may experience voltage drop, so it is better suited for short runs and localized lighting.

4. What makes the DC5V COB LED strip safe to use?
It is safe because it operates at low voltage (5V DC), which reduces electrical risk and makes it suitable for indoor and DIY applications.

How to Connect Strip to Strip for COB?

Light Up Your LED Project With LEDSuntech!

DC5V COB LED Strip Manufacturers & Suppliers

LEDSuntech is a China-based manufacturer of DC5V COB LED strips. We provide reliable and easy-to-use LED lighting solutions for customers worldwide. Our products focus on stable performance, practical application, and energy efficiency. Warmly welcome your inquiry!

Certification System

LEDSuntech has more than 1000 kinds of LED strips. We want our customers to feel confident that their LED strips are safe and manufactured to the highest quality. In order to ensure the best performance of our LED light strip products, all products have been tested by third-party authoritative laboratories and have obtained multiple quality certifications including ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
