DMX LED Strip
Product Feature
1. DMX LED strip Adopt DMX512 communication protocol and external IC.
Address selection, dimming signal parallel, input signal will continue to transmit, and will not be affected by the damage of a certain pixel.
2. High-quality LED chip
DMX LED strip adopts high-quality LED chip, with high brightness, high color saturation, high color reproduction and other characteristics, ensuring the quality and stability of the light.
3. High energy efficiency
Adopt energy-saving LED light source, low power consumption, can significantly reduce energy costs, while reducing environmental pollution.
4. Colorful lighting effect
Adopt White/CCT/RGB/RGBW LED chip, can present colorful lighting effects, can meet the lighting needs of various occasions.
5. Strong durability
DMX LED strip is made of high-quality materials, with the characteristics of durability, waterproof, dustproof, etc., and can operate stably for a long time.
6. Easy to install
DMX LED strip adopts a simple and easy-to-use installation method, which can be installed without professional technology and tools.
7. Customizable
It can be customized according to customer needs, such as light strip length, color, control method, etc. OEM and ODM are welcome.
DMX LED Strip Manufacturers & Suppliers
LEDSuntech is China’s leading DMX LED strip manufacturer. Our high-quality DMX LED strip products have passed a series of certifications such as ISO:9001, CE, RoHS, FCC, UL, ETL, etc. We specialize in DMX LED light strips. For products, we pay attention to details. Not only is the technology reliable, it’s also beautifully designed. For customers, excellent quality is our principle.
What is DMX LED Strip?

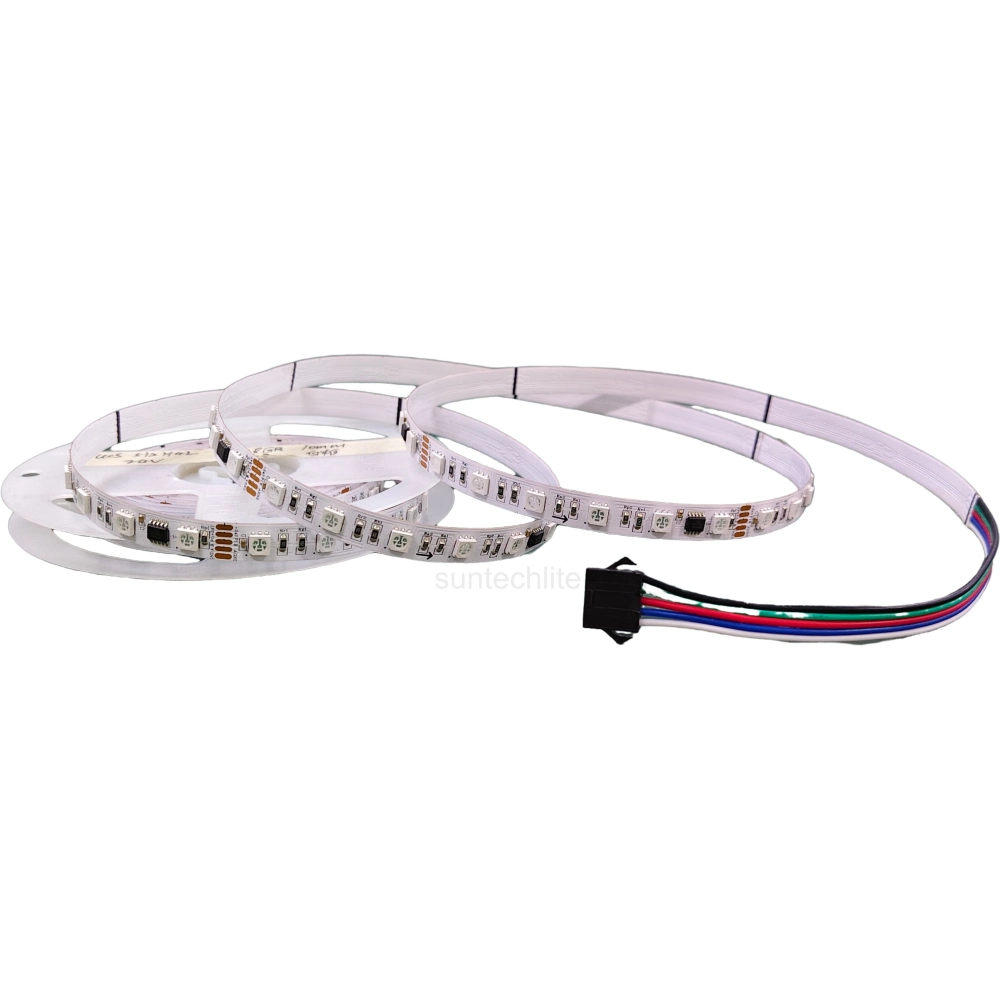

DMX LED strip is a high-performance, multi-functional LED light strip with external IC that uses the advanced DMX512 communication protocol.
DMX LED strip can be dimmed, colored, changed and other lighting effects through the DMX controller.
The external IC design of the light strip can greatly improve the stability of the light strip and the uniformity of the lighting effect, making the light softer, more comfortable and delicate.
The working voltage is 12V, 24V; the LED density is 60LEDs/m, 72LEDs/m, 120LEDs/m; the colors are white light, CCT, RGB, RGBW.
DMX LED strip uses differential signal transmission, and the input signal will continue to be transmitted and will not be affected by the damage of a certain pixel.
What is differential signal? Differential transmission is a signal transmission technology. Different from the traditional practice of one signal line and one ground line, differential transmission transmits signals on both lines. The amplitude of the two signals is the same and the phase is opposite. The signal transmitted on these two lines is a differential signal.
If you have special parameters, please contact us for customization.
Why Choose DMX LED Strip?
1. DMX512 protocol
It is compatible with the standard DMX512 (1990) protocol and the extended DMX512 protocol through data reception, and is often used to control lights used on stage, in bars or clubs. “512” stands for digital multiplexing with 512 pieces of information. One DMX line transmits 512 channels. One RGB light strip requires 3 DMX channels (red, green and blue) to control.
2. Addressable
Each pixel (each LED or a small group of LEDs) can be controlled independently. Since the color and brightness of each pixel can be programmed individually, complex lighting effects and animations can be achieved.
3. Signal parallel protocol
Each pixel does not affect the operation of other pixels. The signal sent to each pixel is sent in parallel, not serially. If one LED or its control IC fails, the next LED on the strip can continue to work and light up.
4. Differential signal transmission mode
Differential transmission is a signal transmission technology. Different from the traditional practice of one signal line and one ground line, differential transmission transmits signals on both lines. The two signals have the same amplitude and opposite phase. The signal transmitted on these two lines is a differential signal. This method is not susceptible to interference from other electronic devices and long-distance signal loss, which is very suitable for stage and architectural lighting applications where cables may be laid over long distances.
5. High brightness
High-quality LED chip, pure gold wire and copper bracket LED, higher brightness and better quality.
6. Each pixel can be cut individually
DMX LED strips are flexible and cuttable, you can do DIY projects and install them where you want.
7. DMX external IC
The DMX external IC model is UCS512H4L. The UCS512H series is a DMX512 differential parallel protocol LED driver chip. It can select 1/2/3/4 field high-precision constant current output and 65536 grayscale levels.
8. Plug-in protection resistor
The LED chip is packaged in the form of a flexible board, with (12V) 3 lights as one pixel or (24V) 6 lights as one pixel. The signal input and output ends are equipped with plug-in protection resistors and capacitors, which make the performance more stable.
DMX LED Strip Application
It is suitable for entertainment venues such as bars, KTVs, nightclubs, and can also be used in various scenes such as home decoration and commercial exhibitions to create colorful light and shadow effects.
DMX LED Strip Classification

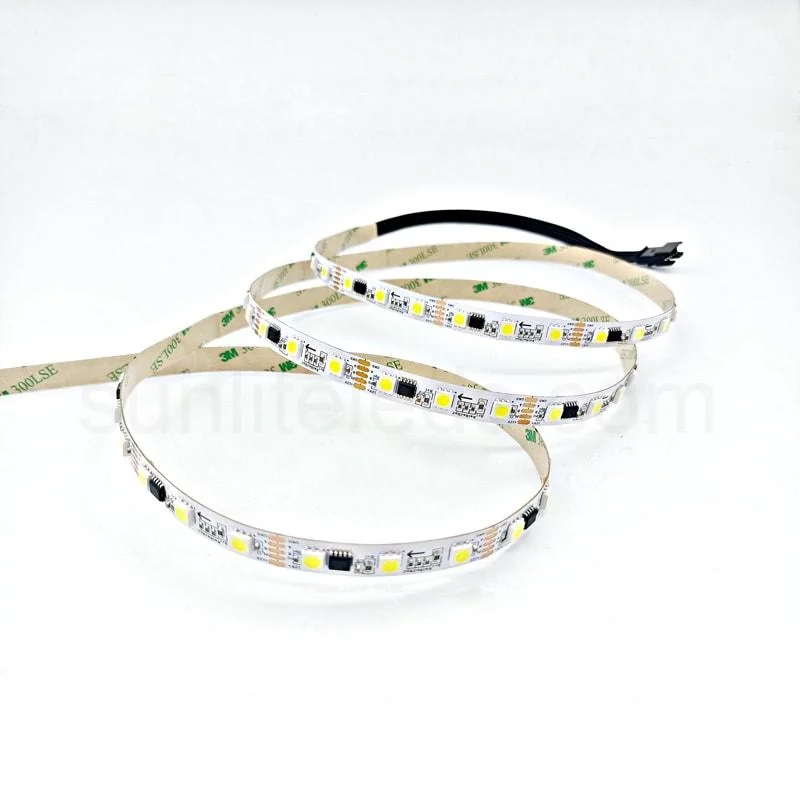

DMX White LED Strip By Series
Voltage is 24V; LED density is 60 LEDs/m and 72 LEDs/m; PCB width is available in 8mm/10mm; Color temperatures are 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
Specification Download
| Specification Name | Download |
|---|---|
| DMX 5PIN 60 LEDs/m 24V Addressable White LED Strip Specification |  |
| DMX 5PIN 72 LEDs/m 24V Addressable White LED Strip Specification | |

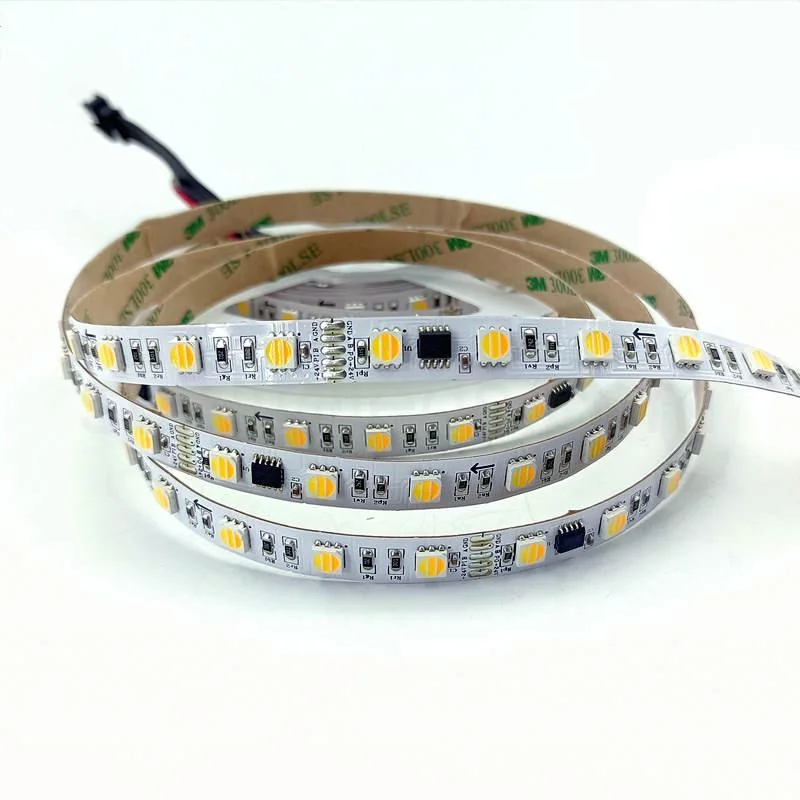

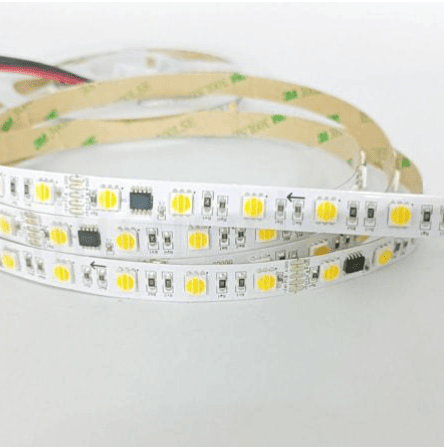

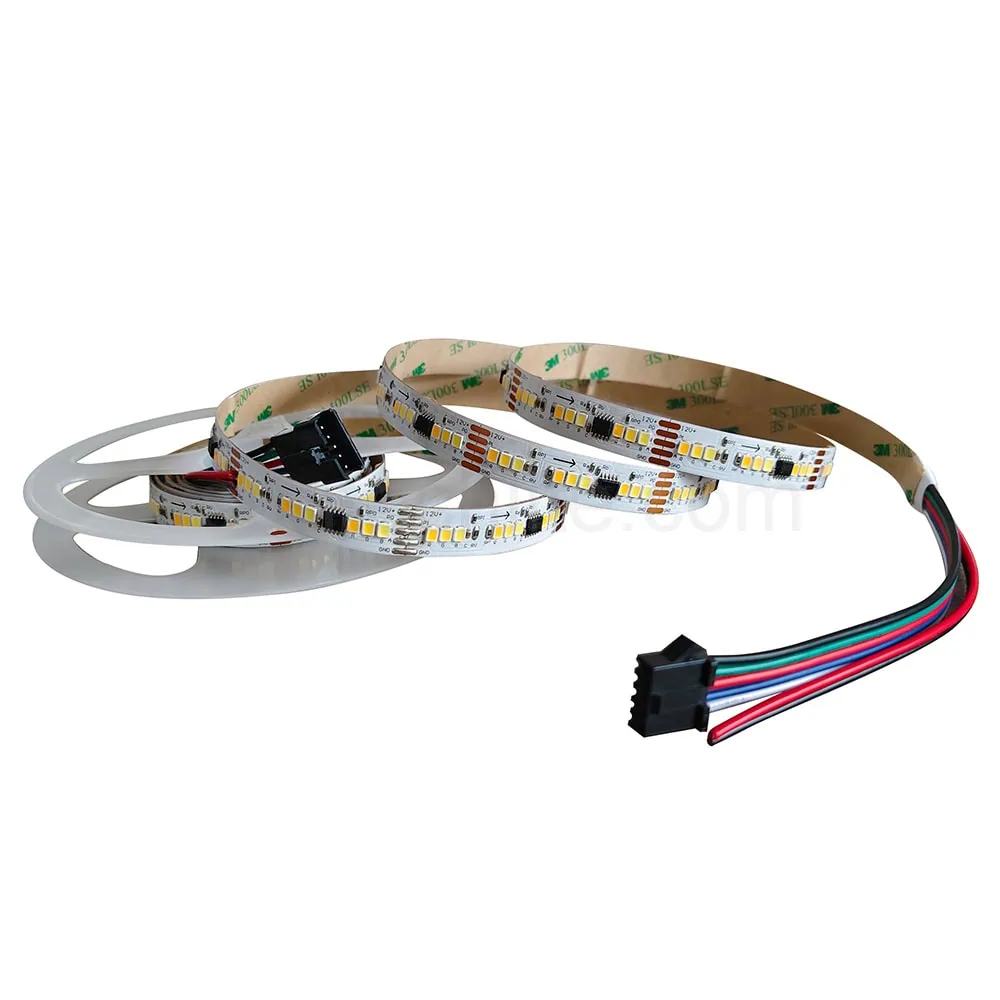

DMX CCT LED Strip By Series
Voltage is 12V, 24V; LED density is 60 LEDs/m, 72 LEDs/m; PCB width is available in 8mm/10mm; Color temperatures are 2700K/3000K/4000K/5000K/6500K.
Specification Download
| Specification Name | Download |
|---|---|
| DMX 5PIN 60 LEDs/m 12V Addressable CCT LED Strip Specification | |
| DMX 5PIN 72 LEDs/m 24V Addressable CCT LED Strip Specification | |

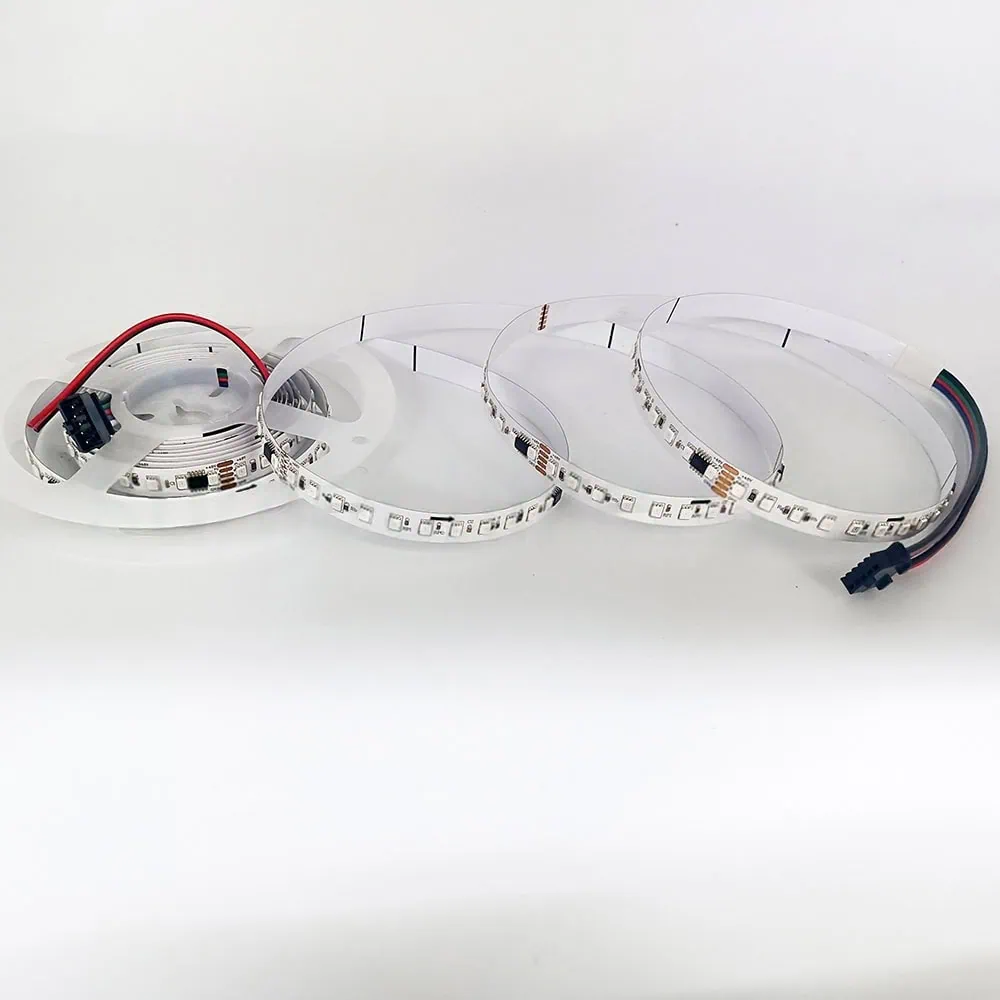

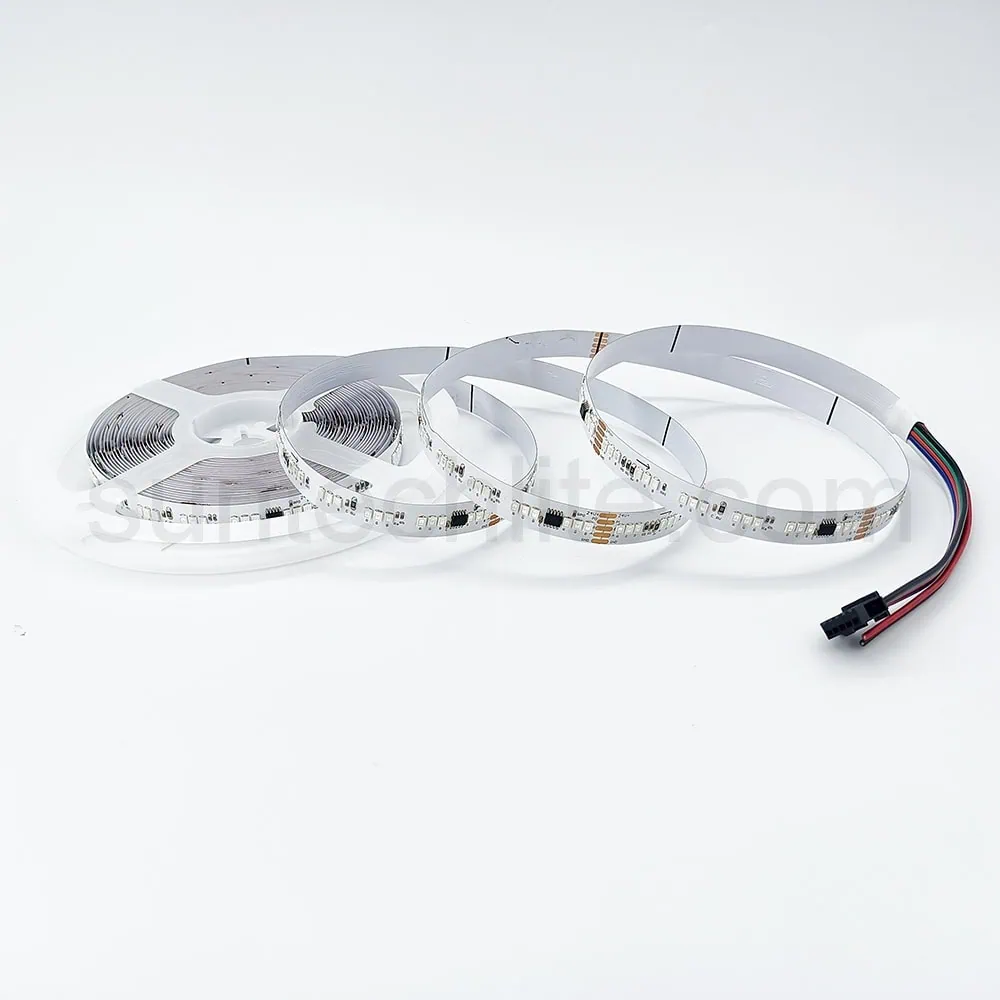

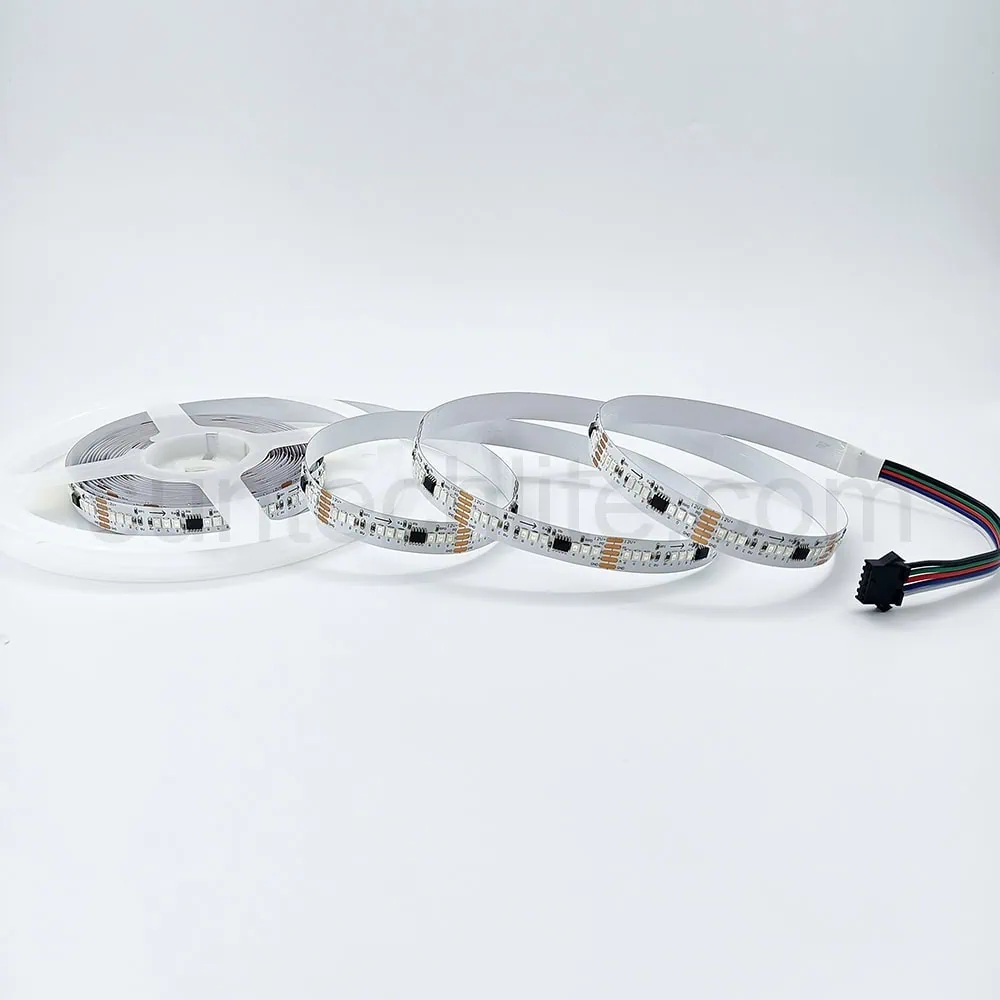

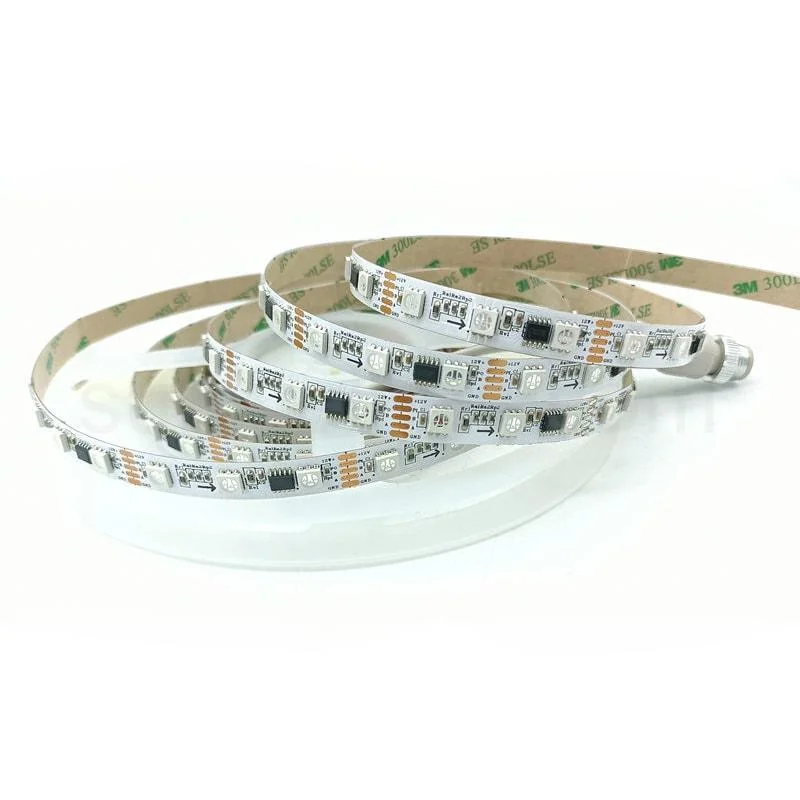

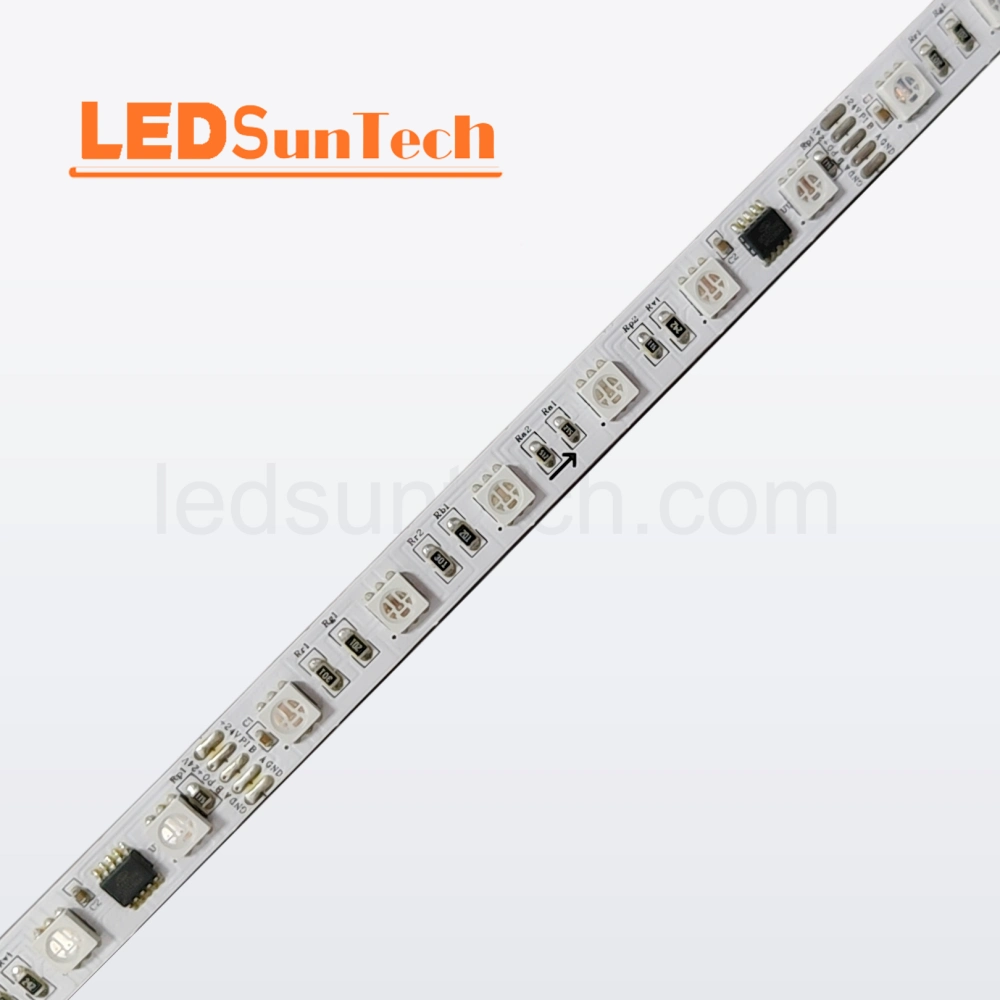

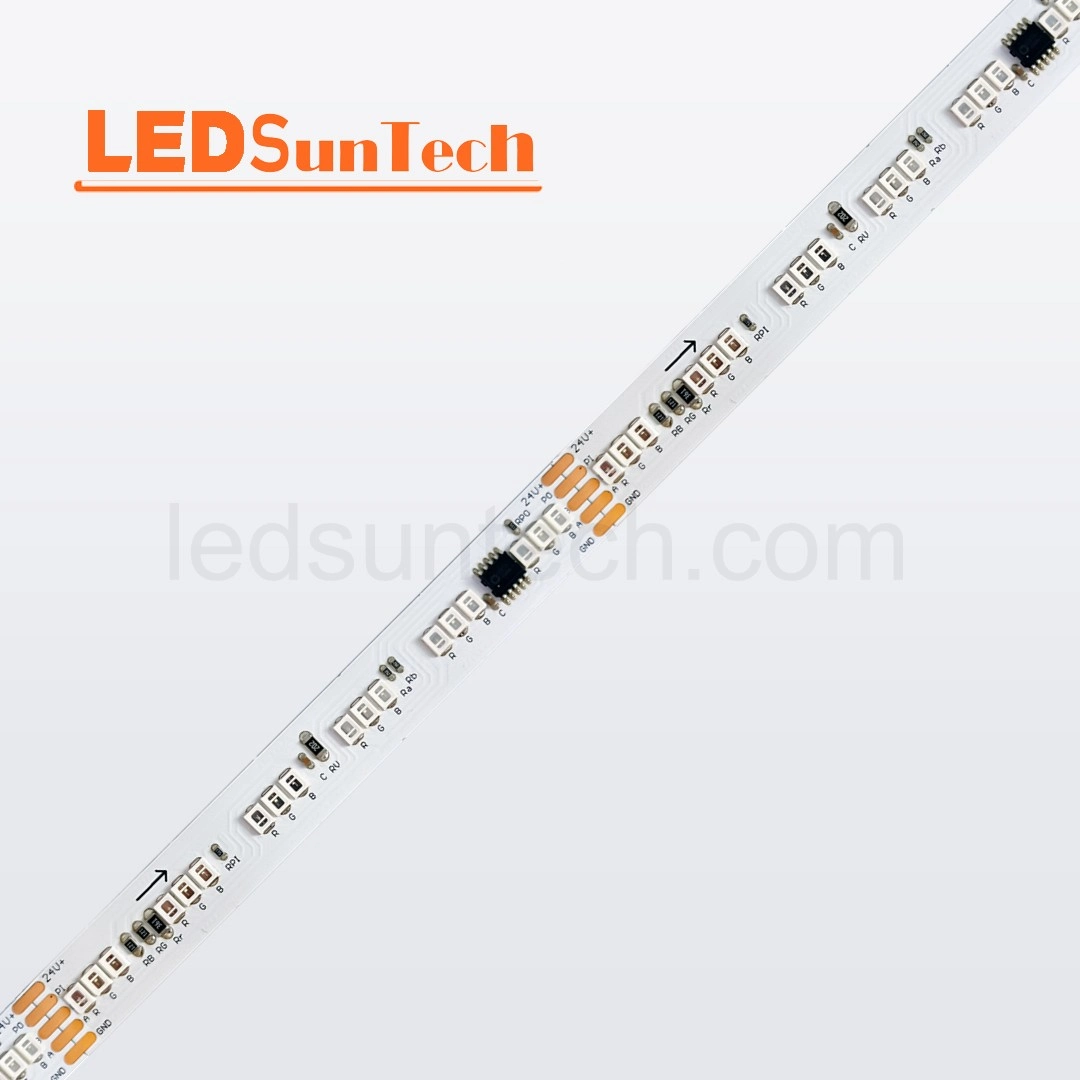

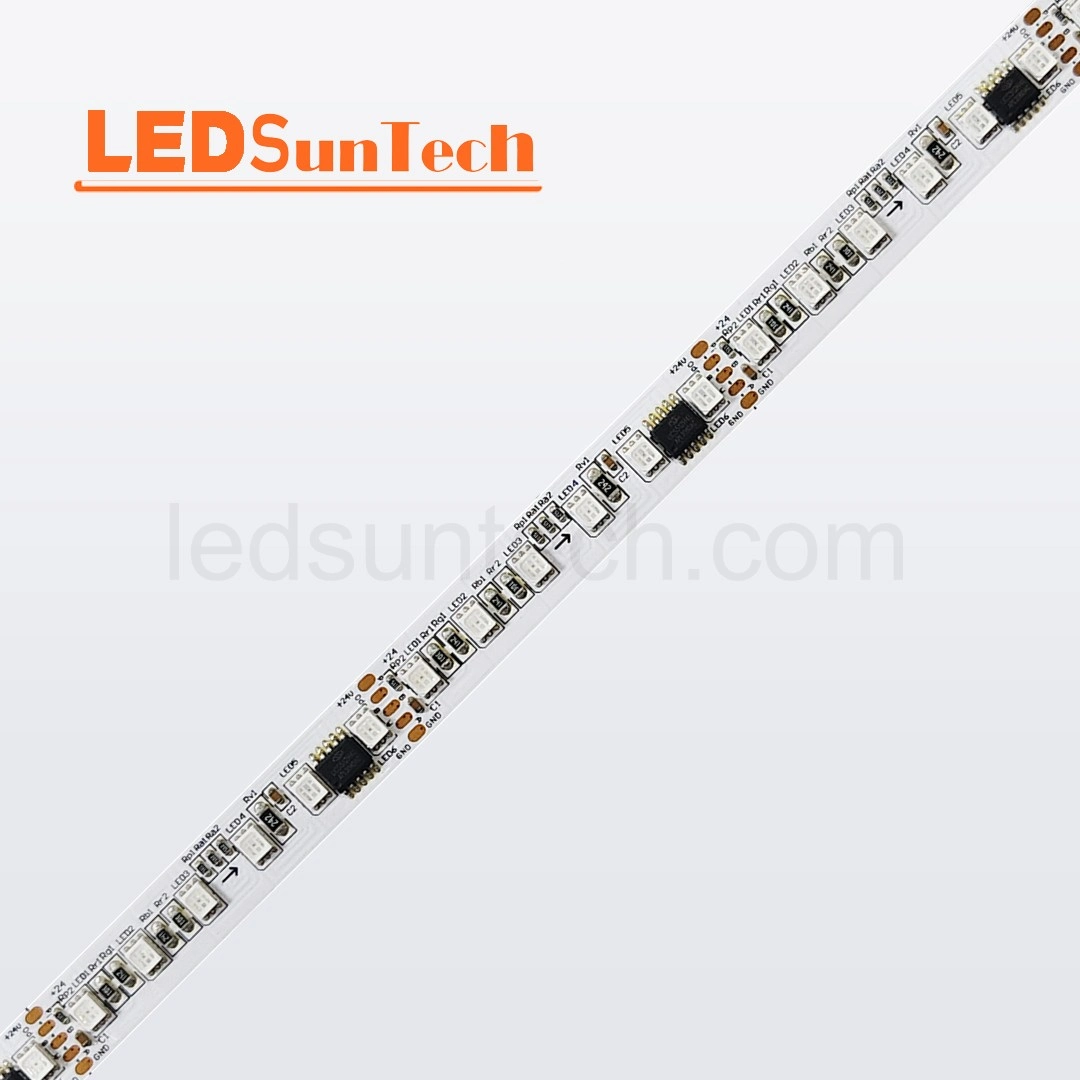

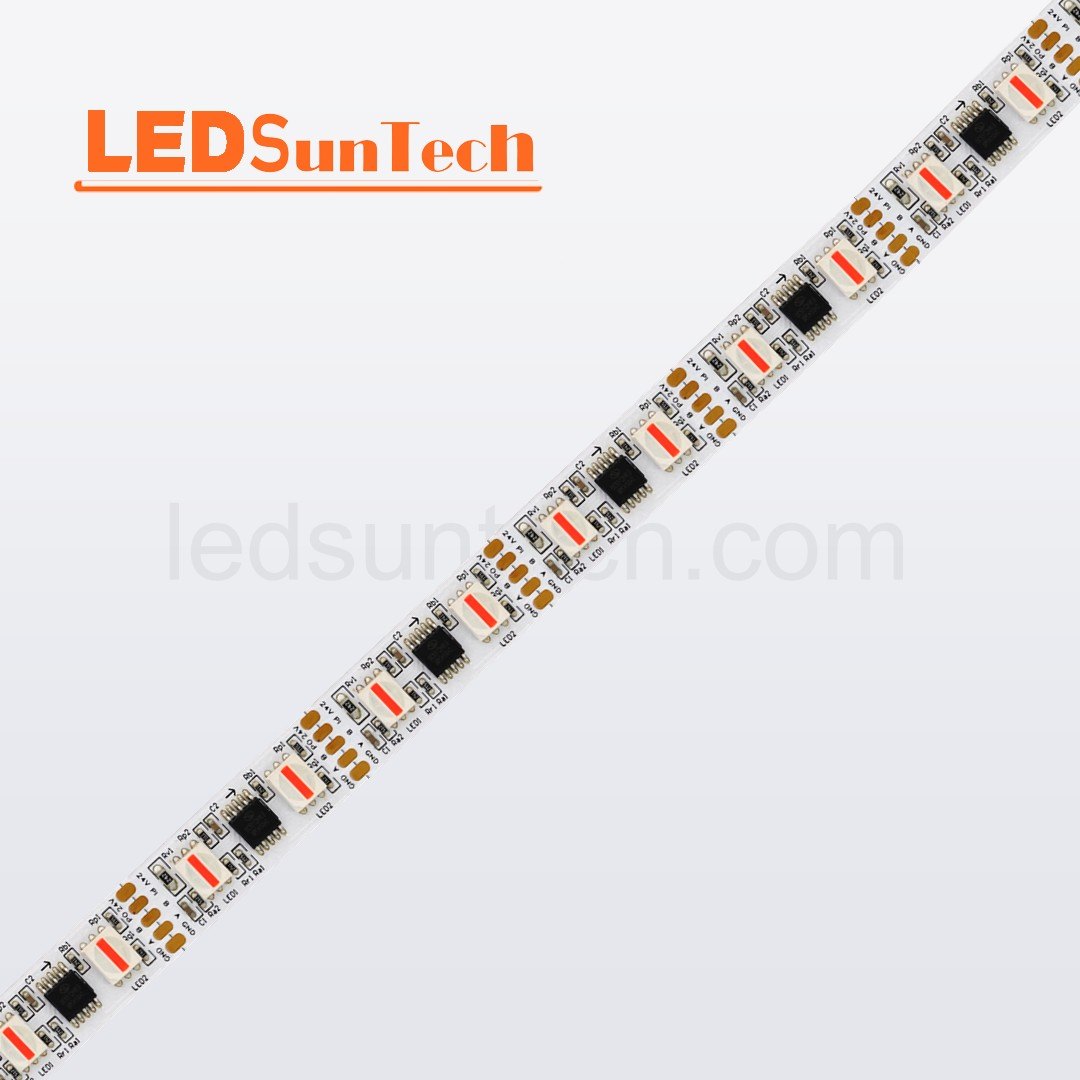

DMX RGB LED Strip By Series
Voltage is 12V, 24V; LED density is 60 LEDs/m, 72 LEDs/m, 120 LEDs/m; PCB width is available in 8mm/10mm.
Specification Download
| Specification Name | Download |
|---|---|
| DMX 5PIN 60 LEDs/m 12V Addressable RGB LED Strip Specification |
|
| DMX 5PIN 60 LEDs/m 24V Addressable RGB LED Strip Specification |
|
| DMX 5PIN 72 LEDs/m 24V Addressable CCT LED Strip Specification |
|
| DMX 5PIN 120 LEDs/m 24V Addressable CCT LED Strip Specification |
|
DMX RGBW LED Strip By Series
Voltage is 24V; LED density is 60 LEDs/m; PCB width is available in 10mm.
Specification Download
| Specification Name | Download |
|---|---|
| DMX 5PIN 60 LEDs/m 24V Addressable RGBW LED Strip Specification |
|
FAQ
Question 1. How many RGB LED strips can be controlled with one DMX line?
Answer: One RGB strip requires 3 DMX channels (red, green, and blue) to control. Since the DMX protocol transmits 512 channels, a maximum of 512/3 = 170 RGB LED strips can be controlled with one DMX line.
Question 2. What is the DMX address of a DMX LED strip?
Answer: The DMX address in a DMX LED strip is a unique identifier assigned to each pixel or group of pixels, allowing lighting effects to be controlled individually. It specifies the position of the pixel in the DMX data stream.
Question 3. How to calculate the DMX address?
Answer: Based on the number of pixels in the strip, calculate the total DMX address per meter. For RGB strips, multiply the number of pixels by 3. For RGBW, multiply by 4.
Question 4: What is the difference between SPI LED strip and DMX LED strip?
Answer: Here is a table briefly explaining the difference between the two. If you are confused, please contact our professional engineering team to answer your questions.
Differences between SPI LED Strip & DMX LED Strip
| DMX | SPI | |
|---|---|---|
| CABLE DISTANCE | 300m long cable | Recommended <1M * |
| CABLE STRUCTURE | 3 wires (DMX+, DMX-, GND) | 2 wires (Data, GND) |
| DATA SPEED | 250kbps (slow) | >800kbps (much faster) |
| DATA LIMITATION | 512channels | Unlimited ( depends on SPI line speed) |
| MAX. NO. OF RGB PIXELS | 170 | >1000 |
| COMMUNICATION STANDARD | Standard | Different protocols |
DMX LED Strip Customization
| Parameter | Optional | Parameter | Optional |
|---|---|---|---|
| LED Type: | SMD2835, SMD3535, SMD2216, SMD5050 | IP Rating: | IP20, IP54, IP65, IP66, IP67, IP68 |
| LED Density: | 60LEDs/m, 120LEDs/m, 132LEDs/m, 168LEDs/m, 180LEDs/m, 240LEDs/m | 3M Tape Type: | 9080A, 9948, 9495 |
| LED Brands: | EPISTAR chip, Osram, Philips | Length: | 5m/reel, 10m/reel, 20m/reel |
| Voltage: | 5V, 12V, 24V, 36V, 48V | PCB Width | 5mm, 6mm, 8mm, 10mm,12mm,15mm,20mm |
| Color: | White(1800K/2700K/3000K/4000K/5000K/6000K), CCT, RGB, RGBW,RGBWW,RGBCCT | Wire: | AWG18, AWG22 |
| Power: | 6W/m, 7.2W/m, 8W/m, 12W/m, 14W/m, 15W/m, 16W/m, 18W/m, 20W/m | Label: | ODM OEM customization |
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
The following are the main products:
SPI LED strips: WS2811, WS2812, WS2813, WS2815, SK6812, SK6813, SK9822, UCS1903, UCS5603, UCS2903, UCS2904, APA102…
DMX LED strips: DMX RGB LED strips, DMX RGBW LED strips, DMX CCT LED strips…
LED neon lights: side-lit LED neon lights, direct-lit LED neon lights, round LED neon lights, black LED neon lights…
LED controller: K-1000C, K-8000C, XB-Z2, T–790K, SP106E, SP107E…
