Flexible LED Light Sheet Panel
◎ LED Cuttable & Foldable
◎ High Density LED Array
◎ Easy Connection for Usage
◎ White / CCT / RGB / RGBW / RGBCCT / Addressable RGB
◎ OEM and ODM are Welcome
◎ 5 Years Warranty
◎ Used for Backlighting / Signage Lighting / Large Scale Commercial Ceiling Lighting
What are Flexible LED Light Sheets?
Flexible LED light sheets are thin, flexible substrates with densely packed LED chips on their surface that emit uniform light. Flexible LED light sheet is also known as LED sheet panel, LED paper sheet, LED backlight film, LED light flex sheet, and flexible LED backlit panel.

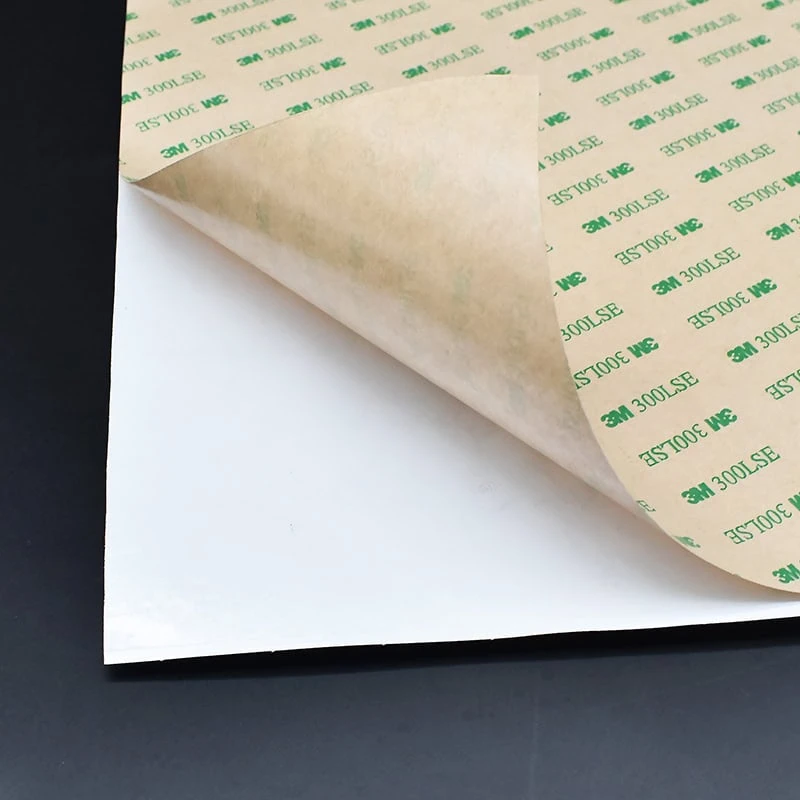

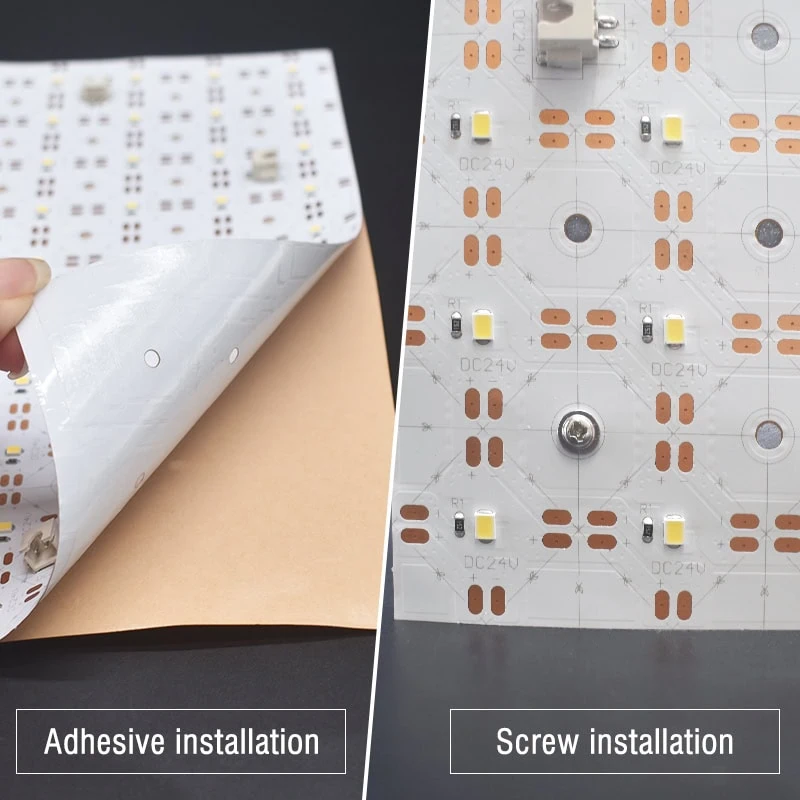

They can be cut along the marking lines into almost any shape and bent or folded to fit curved, tilted or irregular surfaces. Intuitive plug-and-play connectors (such as XH or pigtail connectors) and adhesive backing design simplify installation and reduce labor costs. Its flexibility allows it to be installed inside a light box, panel frame, or directly behind translucent materials for smooth backlighting.
Flexible LED Light Sheets Key Features
Flexibility
Can bend, twist, and conform to surfaces; bend radius up to 90° without performance loss.
Cuttable

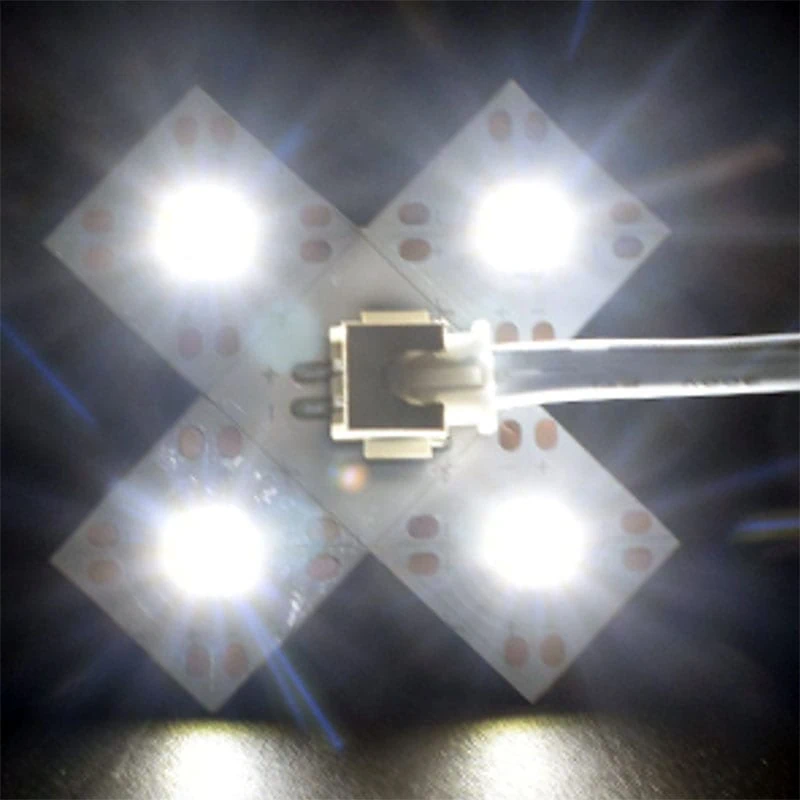

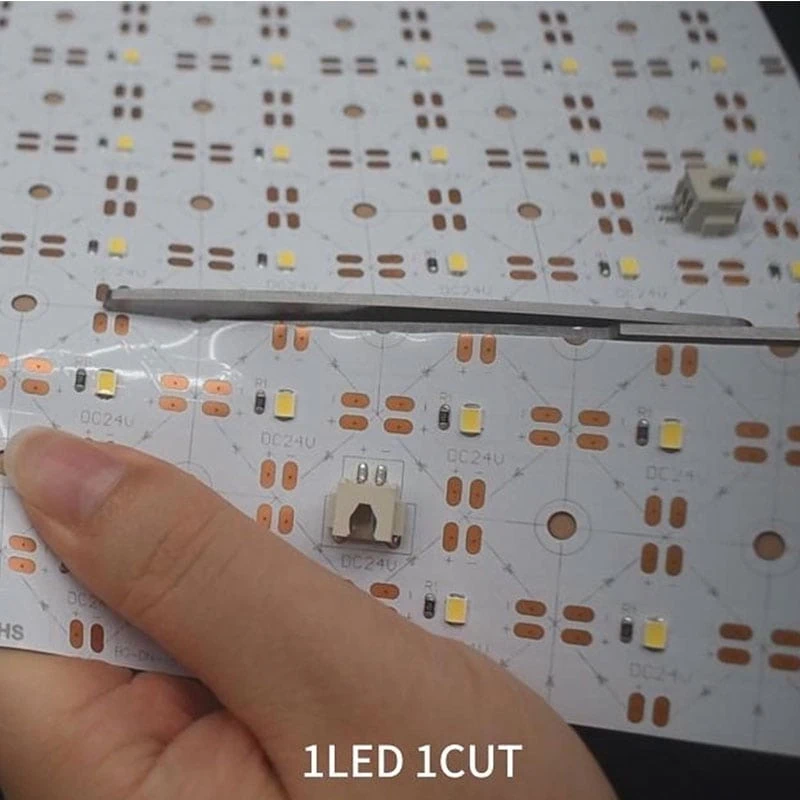

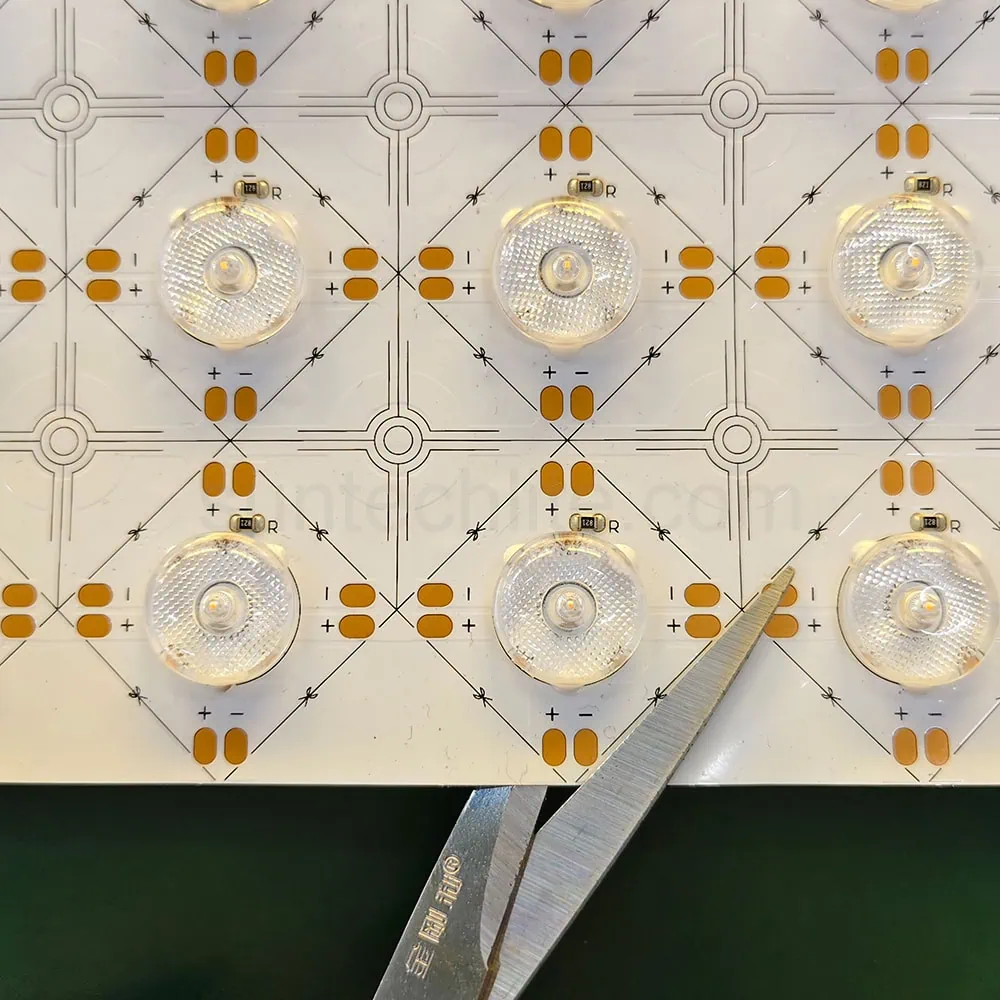

Designed with printed cut-lines, sheets can be precision-snipped or die-cut into any shape or size.
Customizable
Customized color temperature, voltage, size, LED density, connector, lens type, etc.
Double-Layer PCB
a dual-layer flexible PCB ensuring durability and consistent electrical connectivity even when bent repeatedly.
Thickness & Weight
Often less than 1 mm thick and extremely lightweight, ideal where space and weight constraints exist.
Energy Efficiency
Low power consumption with lifespans often exceeding 50,000 hours.
Uniform Light Distribution
Dense LED arrangement eliminates hotspots and shadows, yielding smooth, continuous illumination.
Easy to Connect

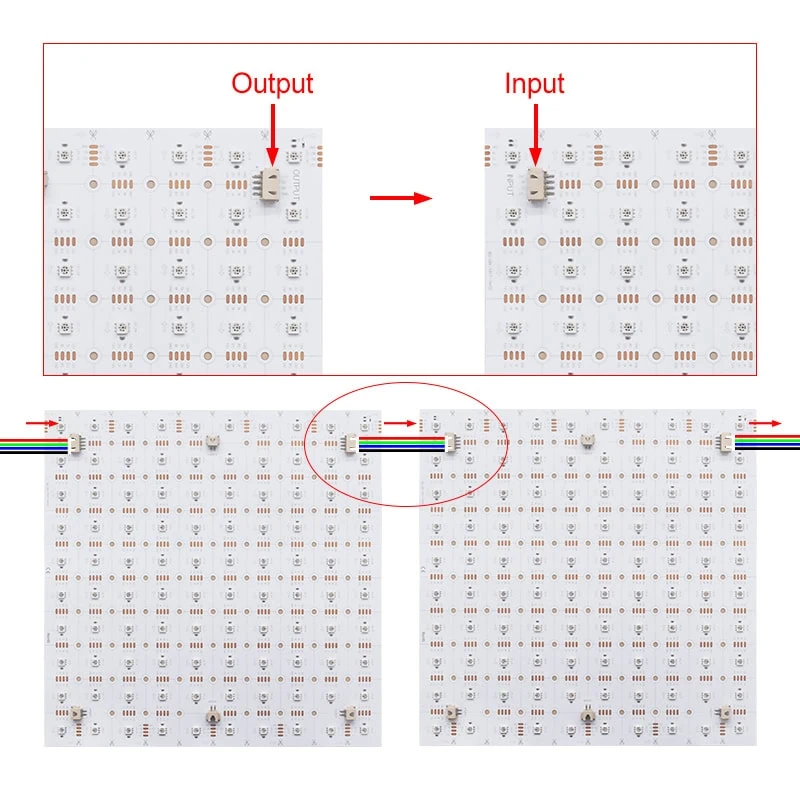

Standardized connectors allow daisy-chaining multiple sheets for expansive installations without soldering.
Bulk Purchase Flexible LED Panels – Organized by Series
LED paper sheets can be cut along horizontal, vertical and diagonal cutting lines, and can be flexibly bent within a controlled bending radius to easily fit curves and corners.
LEDSuntech supports monochrome white light, tunable white (CCT), RGB, RGBW, RGBCCT and addressable RGB (IC control) modes. Provide high color rendering index LED sheet products. Support OEM & ODM customization.
LED sheets & boards series products have passed UL, CE, RoHS and other safety and environmental certifications, and provide a 5-year limited warranty, reliable quality.

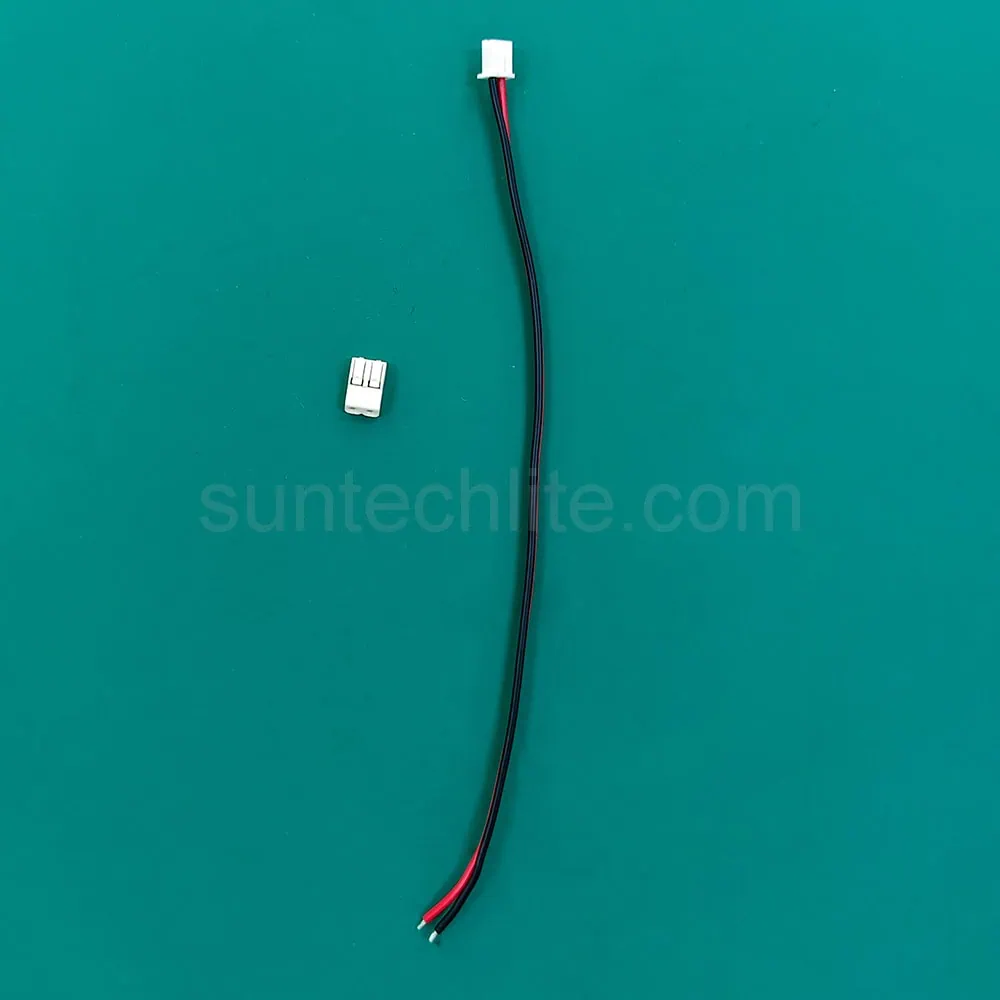

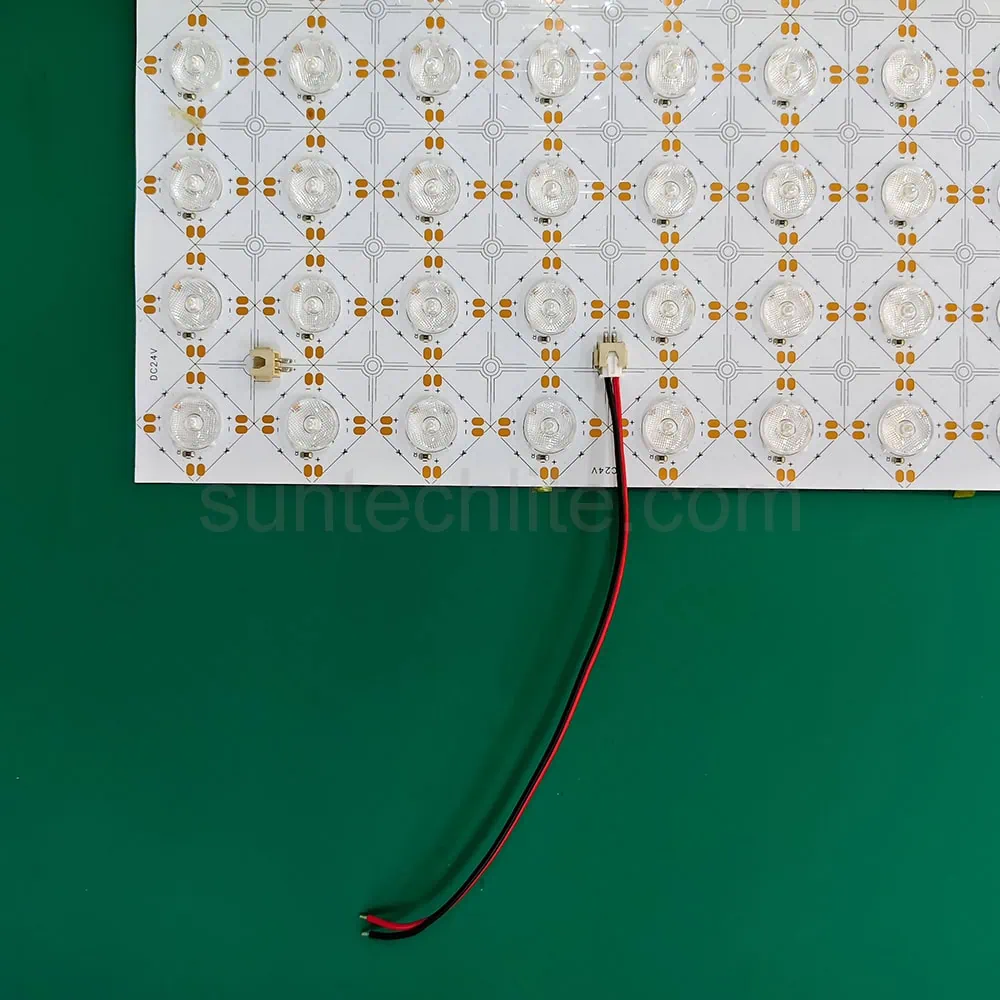

Flexible ultra-thin LED sheets support solder-free, quick-plug connection. On-board plug-in connectors or modular wiring can be directly connected to multiple sheets, saving time and effort in installation. Ultra-thin flexible LED panels substrates with compact component layout can be hidden in advertising light boxes, display boards and other space-constrained scenes without additional support. Suitable for stone/glass/acrylic backlighting, sign light boxes, large-area lighting of commercial ceilings, exhibition displays and other environments.
White LED Light Sheet

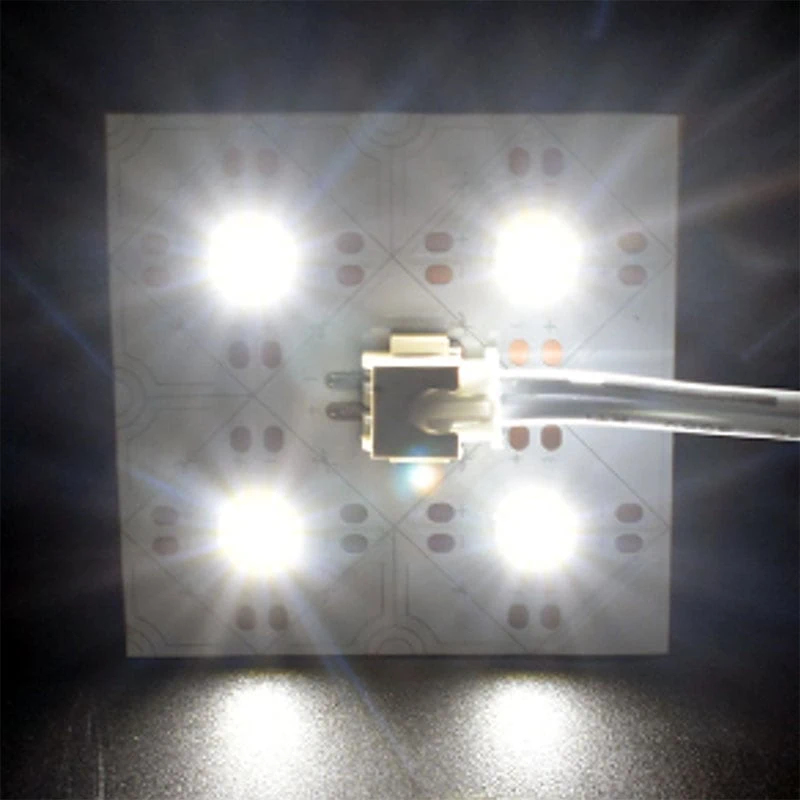

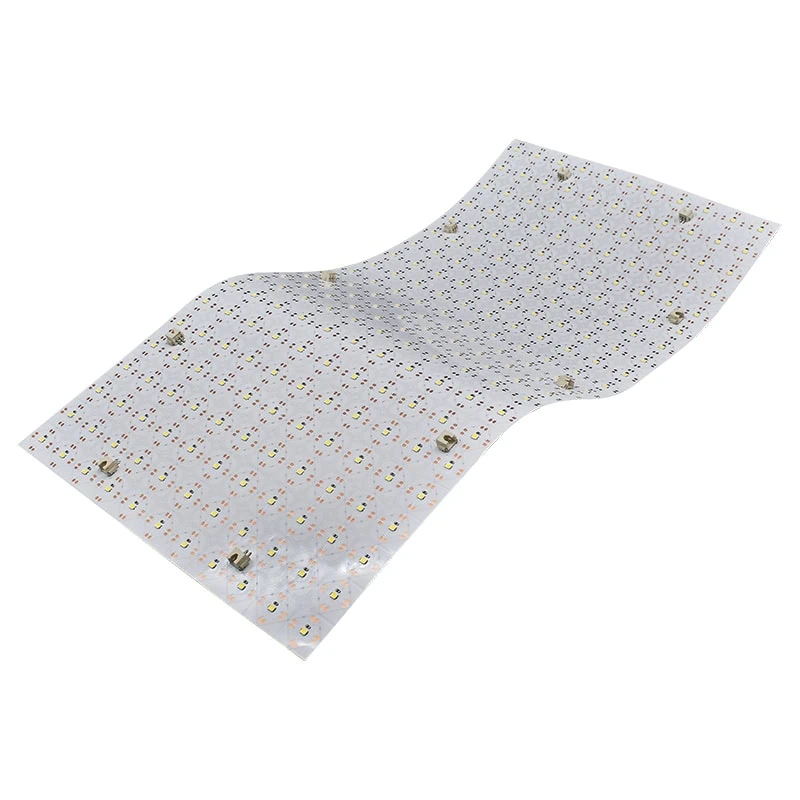

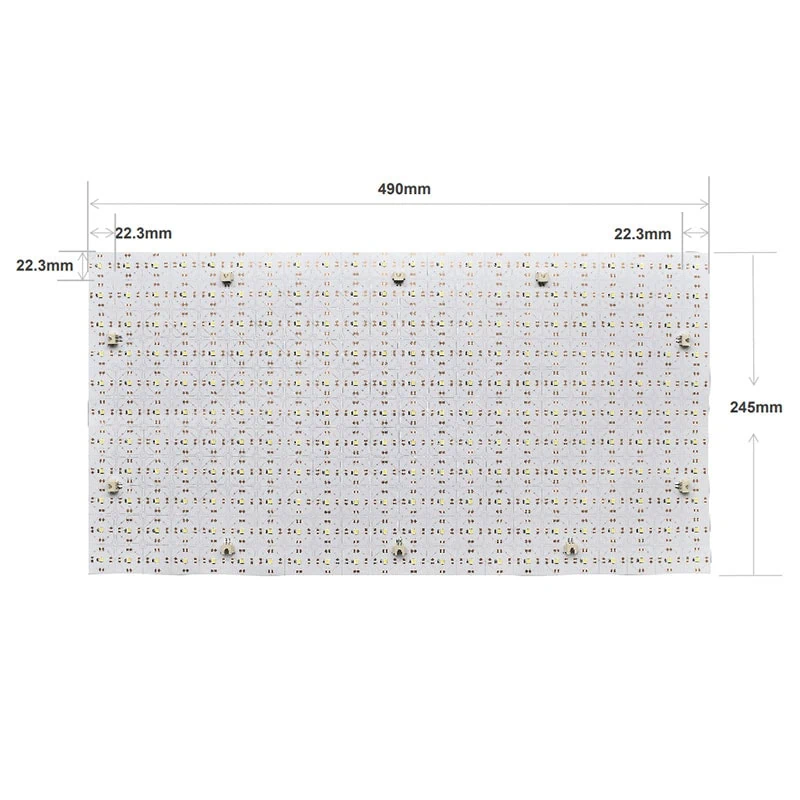

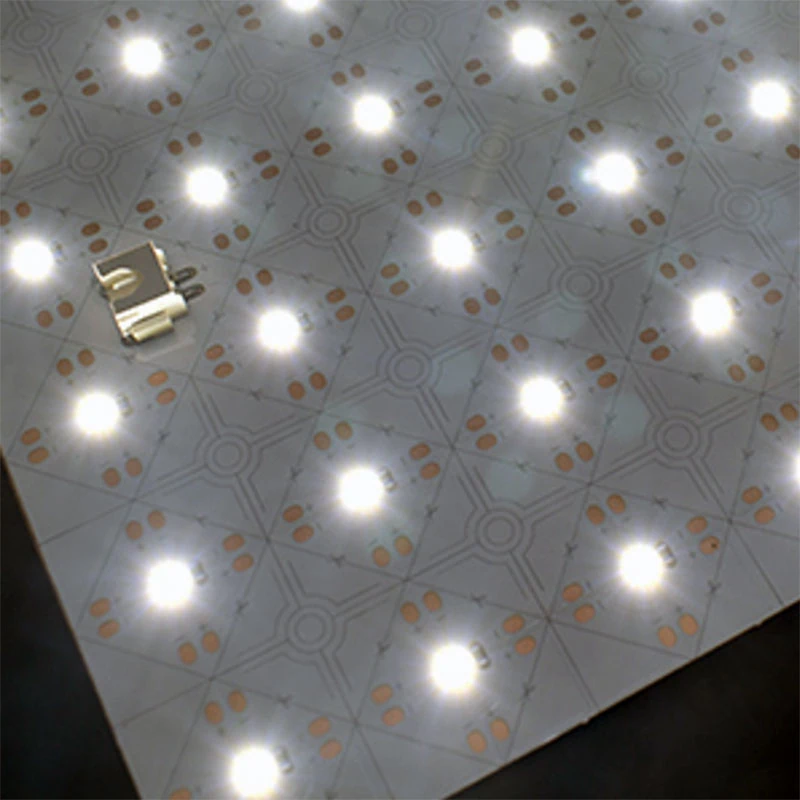

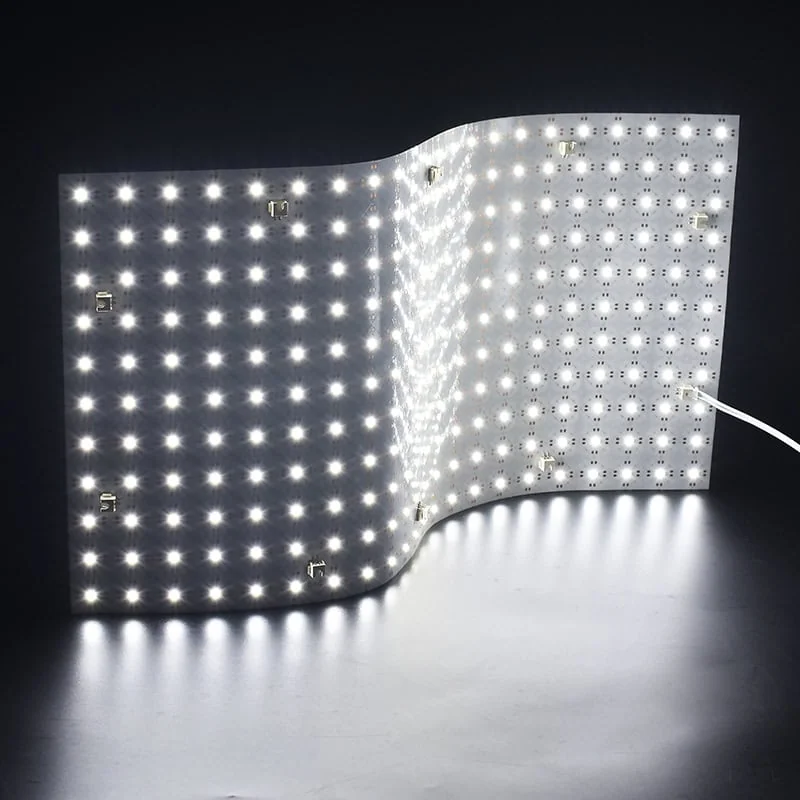

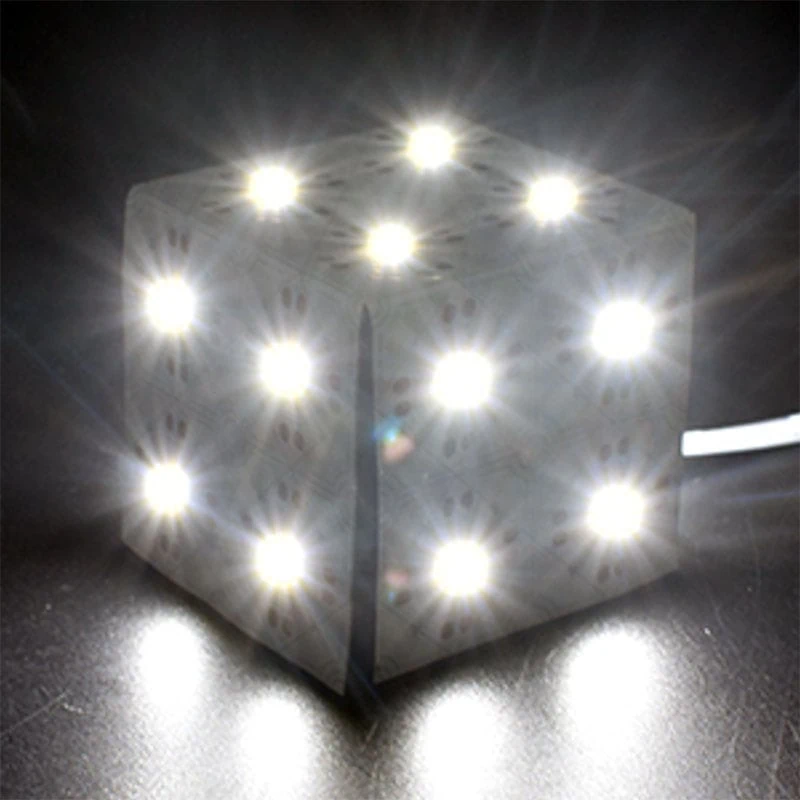

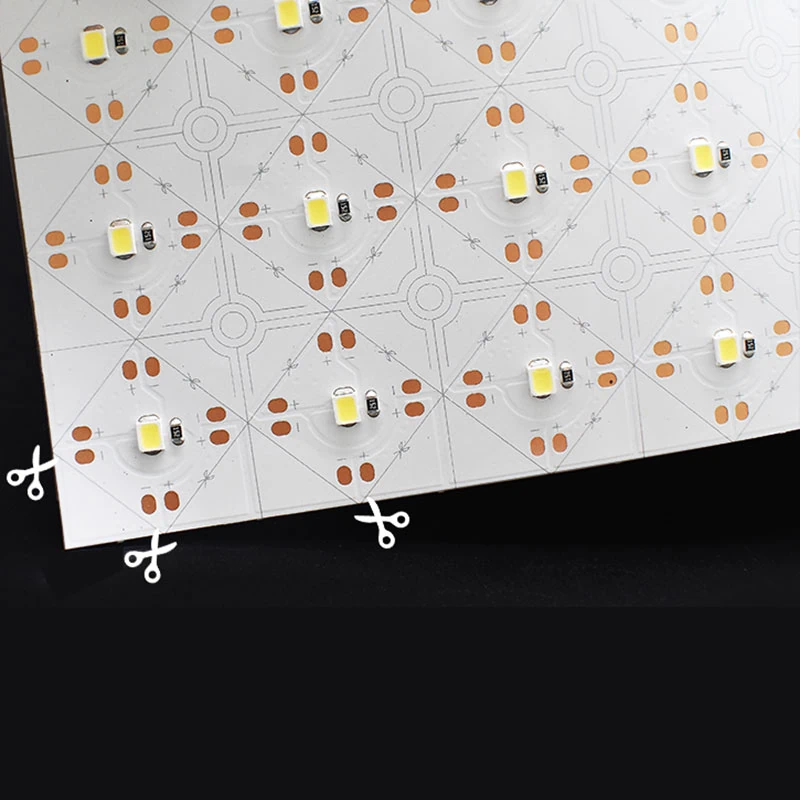

SMD2835 242 LEDs/PCS Flex White LED Light Sheet For Home Decoration Lighting
Voltage: DC12/24V
Current: 2.33A/1.16A
Power: 28W/PCS
Luminous: 2800Lm/PCS
Dimensions: 490*245mm
Cut Length: 1LEDs/ 22.3*22.3mm
LED Type: SMD2835, high brightness LED
LED Quantity: 242 LEDs/PCS
LED Color: 1800-20000K
CRI: Ra>80
Light Efficiency: 100Lm/W
Beam Angle: 120°

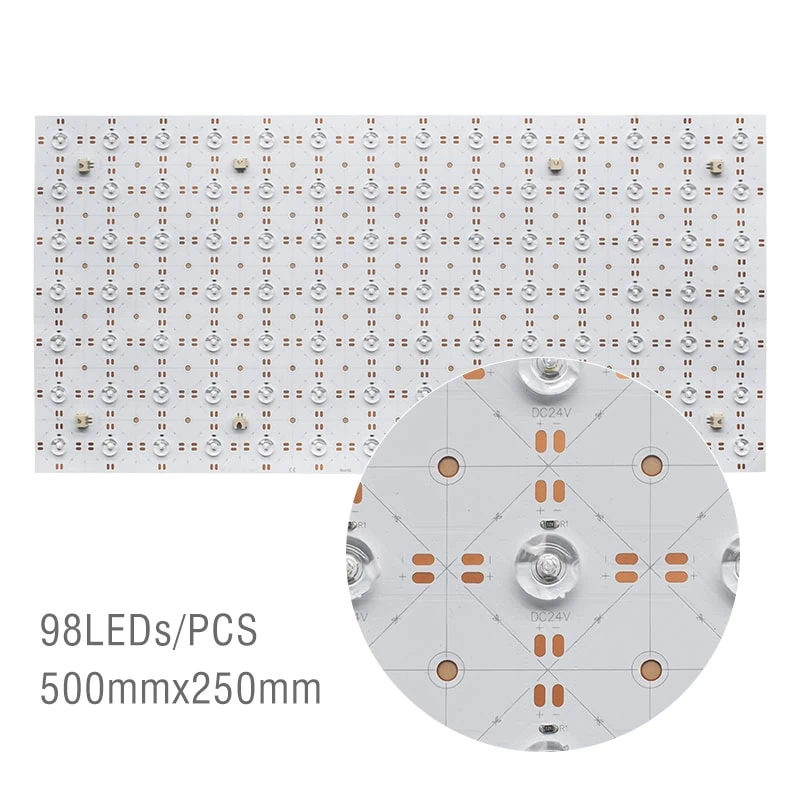

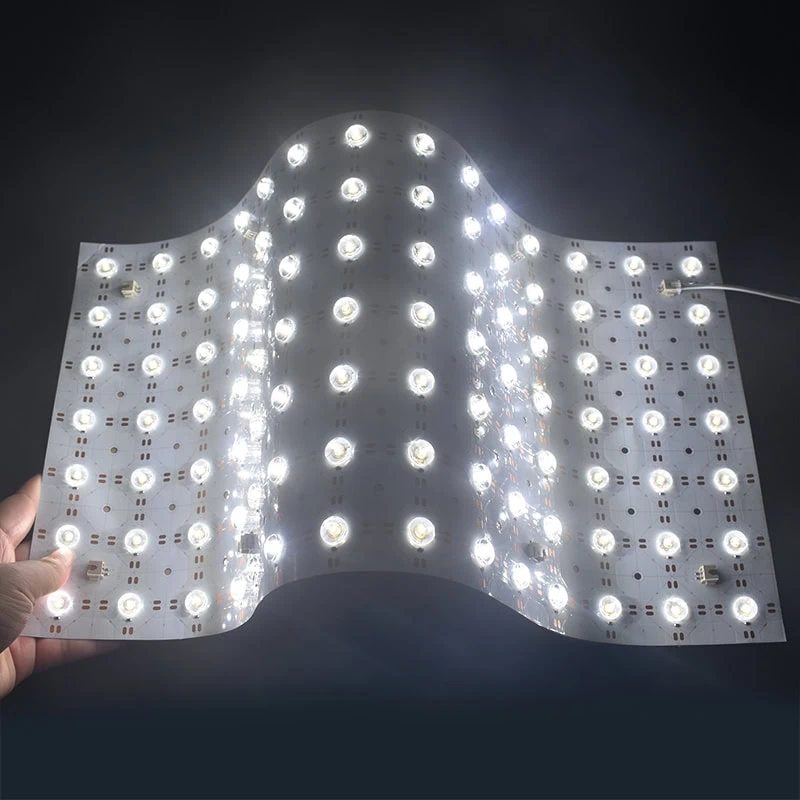

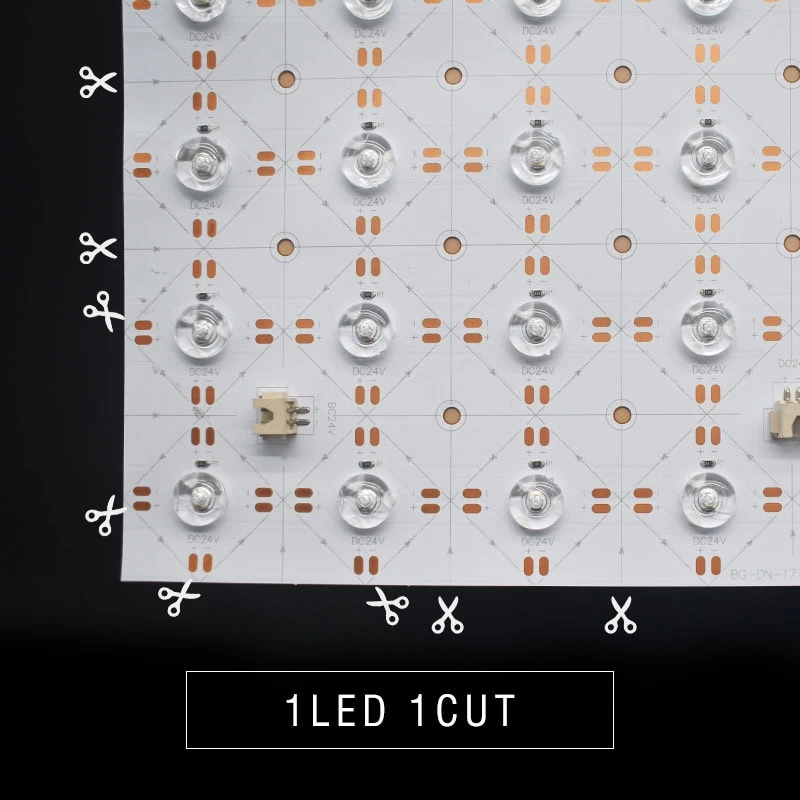

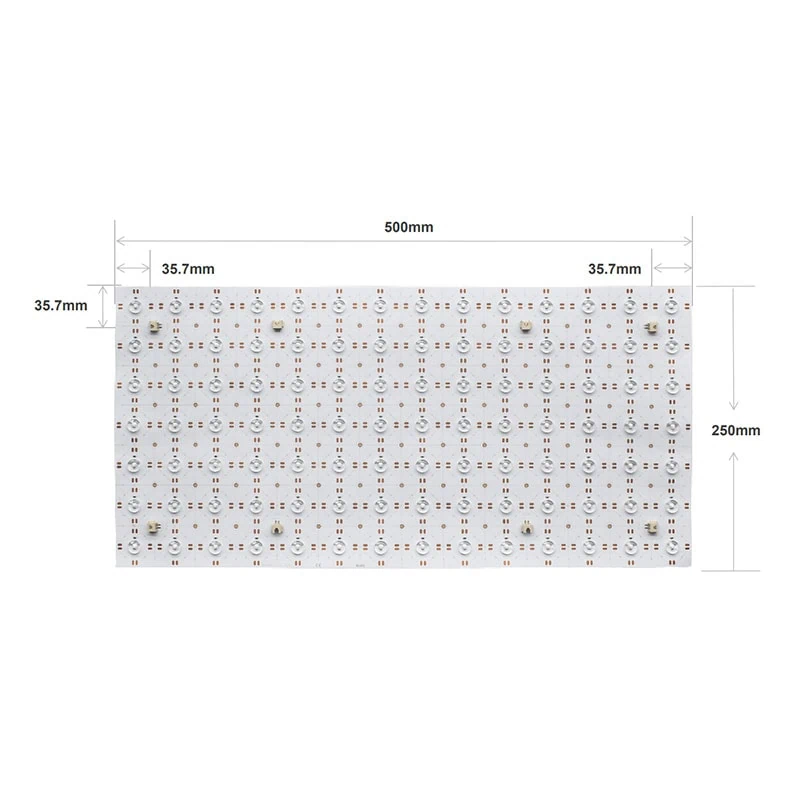

SMD2835 98 LEDs/PCS Flex White LED Light Sheet For Light Box Lighting
Voltage: DC24V
Current: 0.83A
Power: 20W/PCS
Luminous: 1800Lm/PCS
Dimensions: 500*250mm
Cut Length: 1LEDs/ 35.7*35.7mm
LED Type: SMD2835
LED Quantity: 98 LEDs/PCS
LED Color: 2200-6500K
CRI: Ra>90
Light Efficiency: 90Lm/W
IP Grade: IP20 IP54

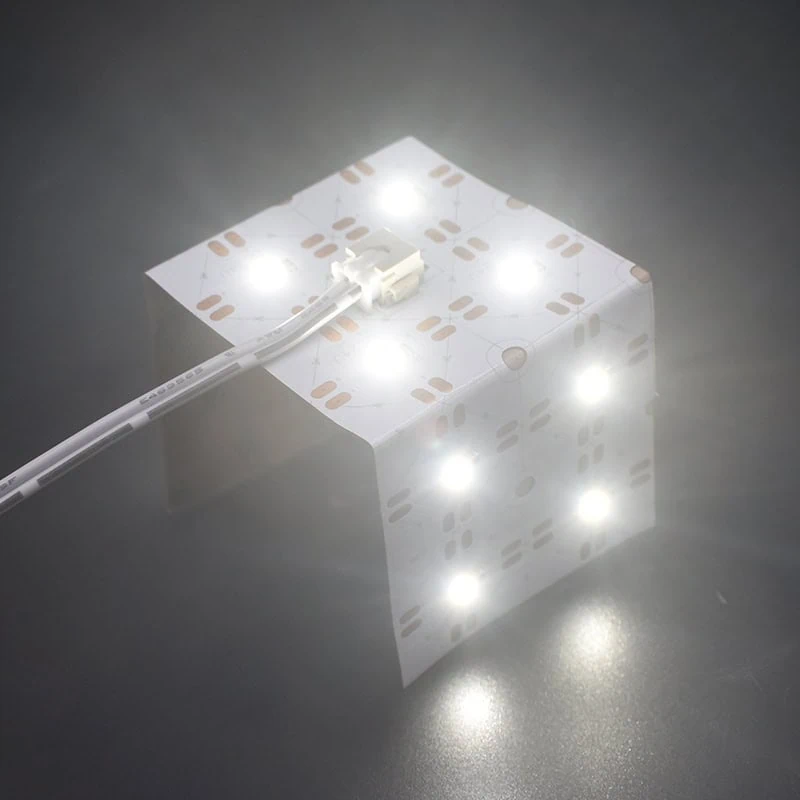

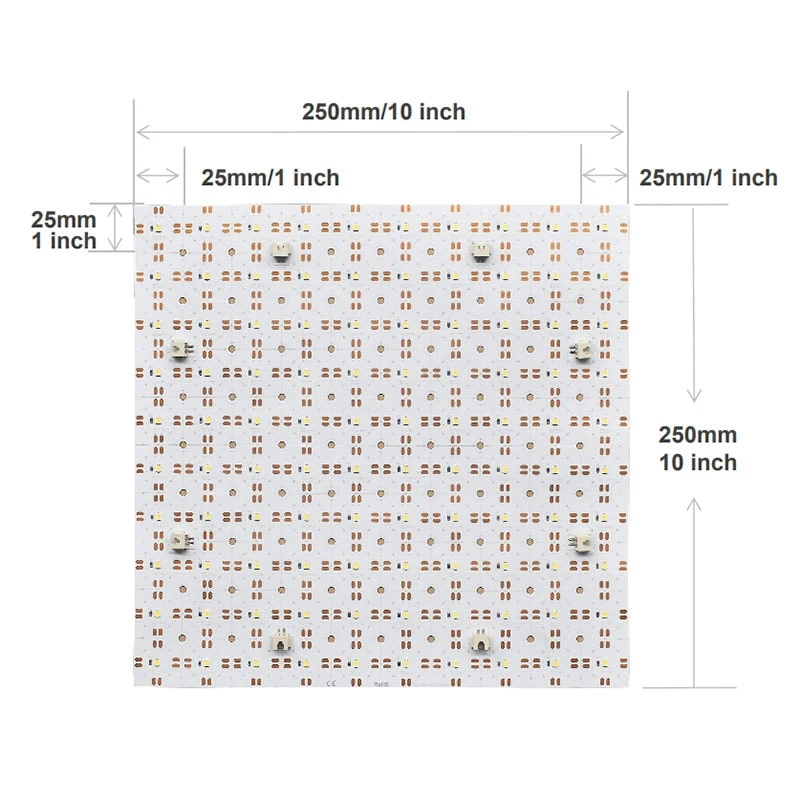

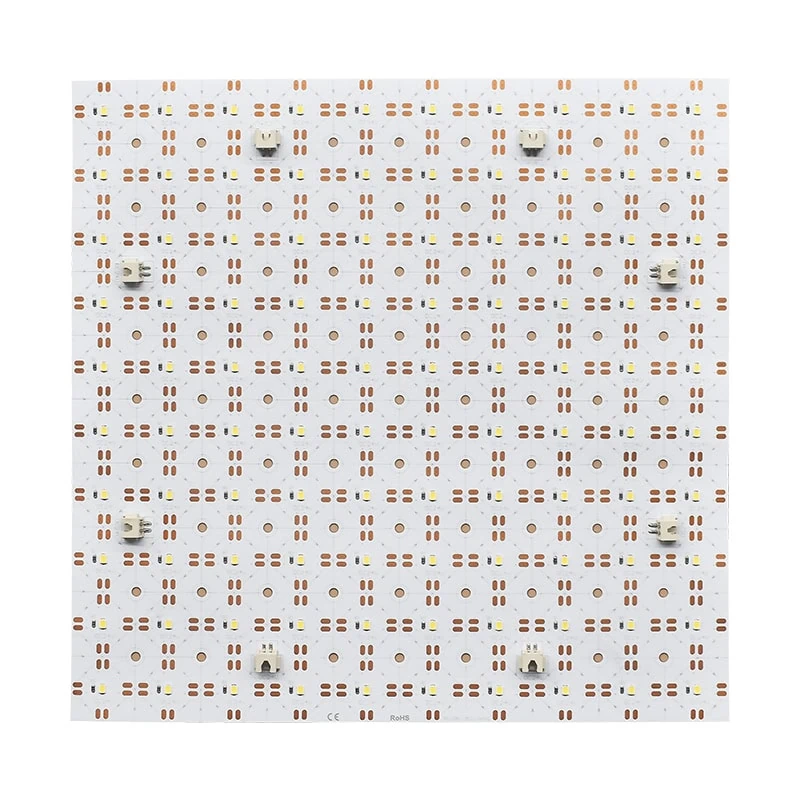

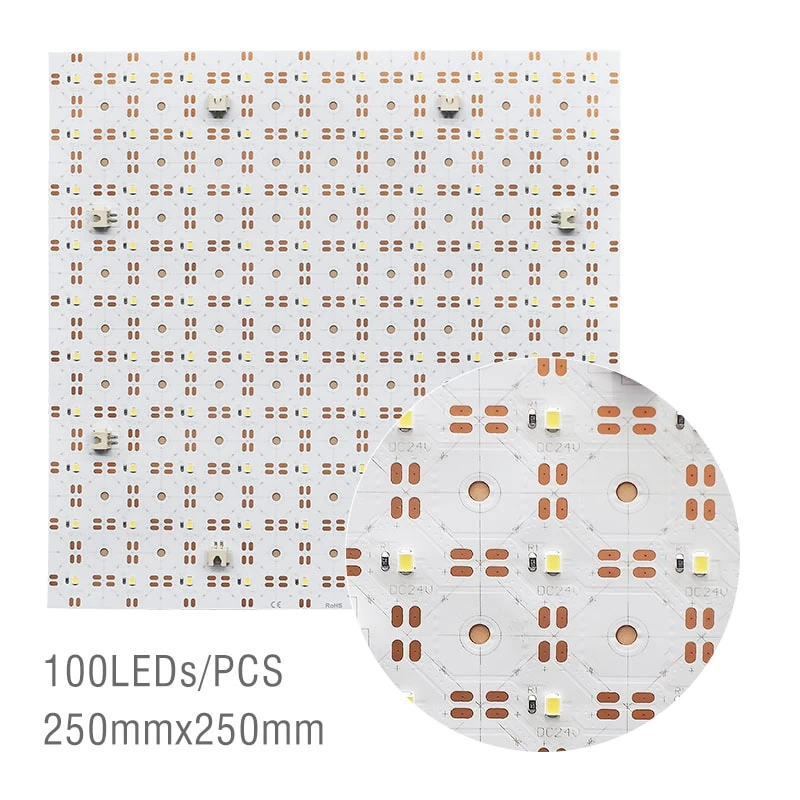

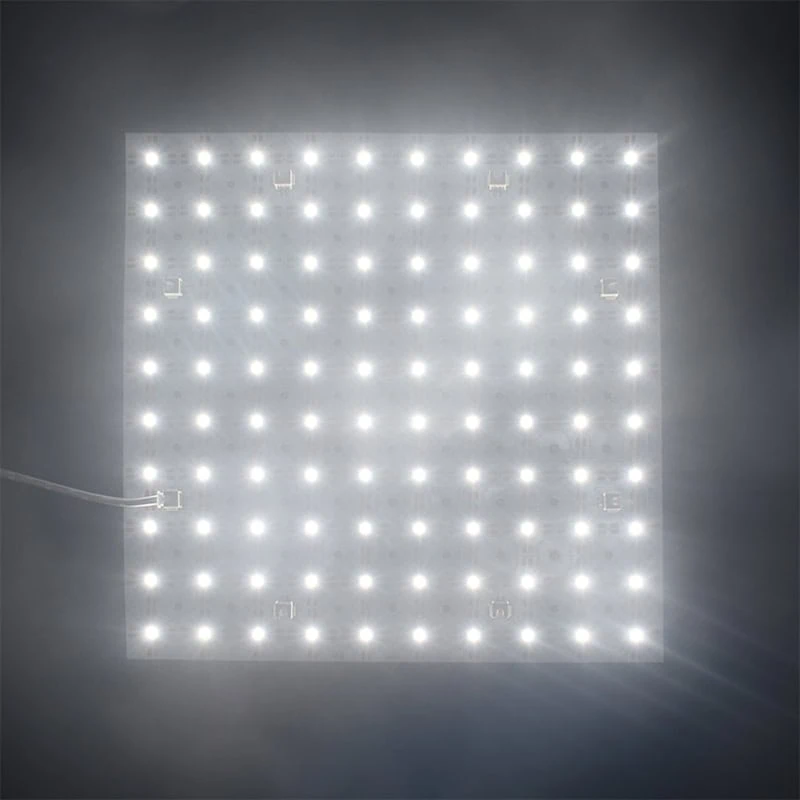

SMD2835 100 LEDs/PCS Flex White LED Light Sheet For Entertainment Lighting
Voltage: DC24V
Current: 0.5A
Power: 12W/PCS
Luminous: 1200Lm/PCS
Dimensions: 250*250mm
Cut Length: 1LEDs/ 25*25mm
LED Type: SMD2835
LED Quantity: 100 LEDs/PCS
LED Color: 2200-6500K
CRI: Ra>90
Light Efficiency: 100Lm/W
IP Grade: IP20 IP54
CCT Tunable White LED Light Sheet

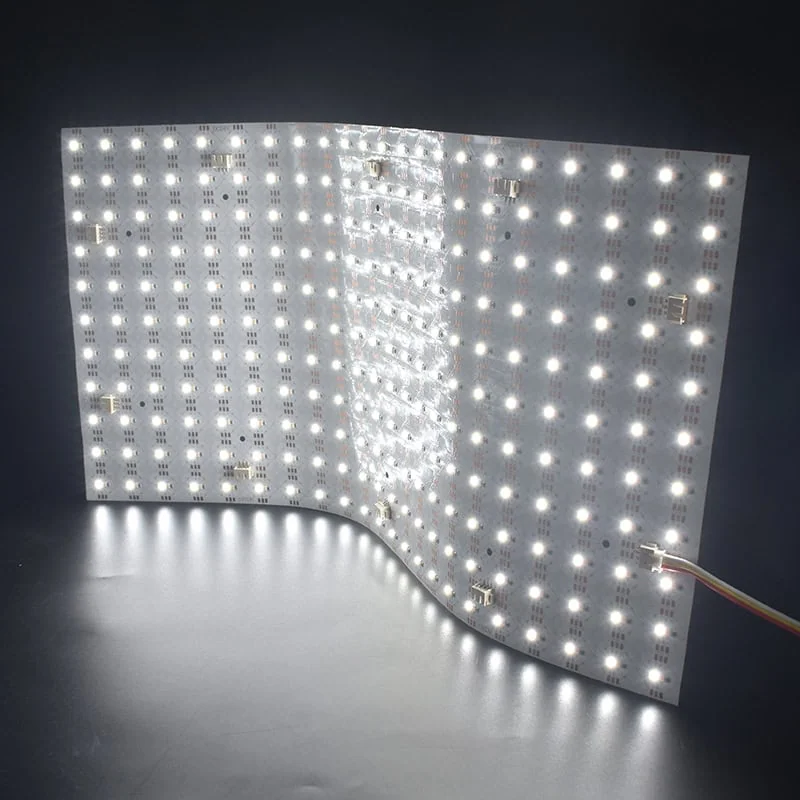

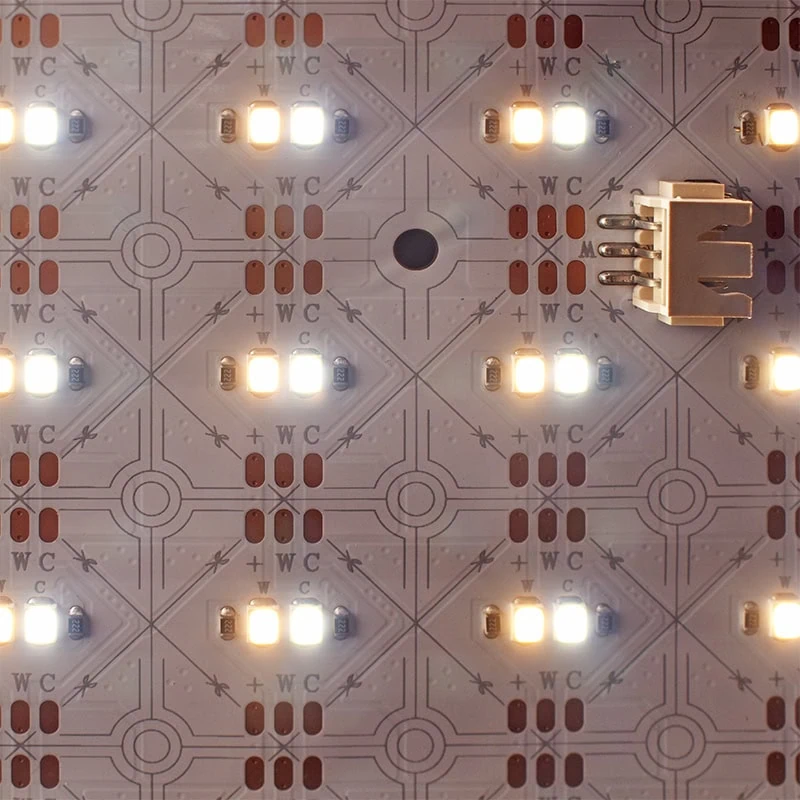

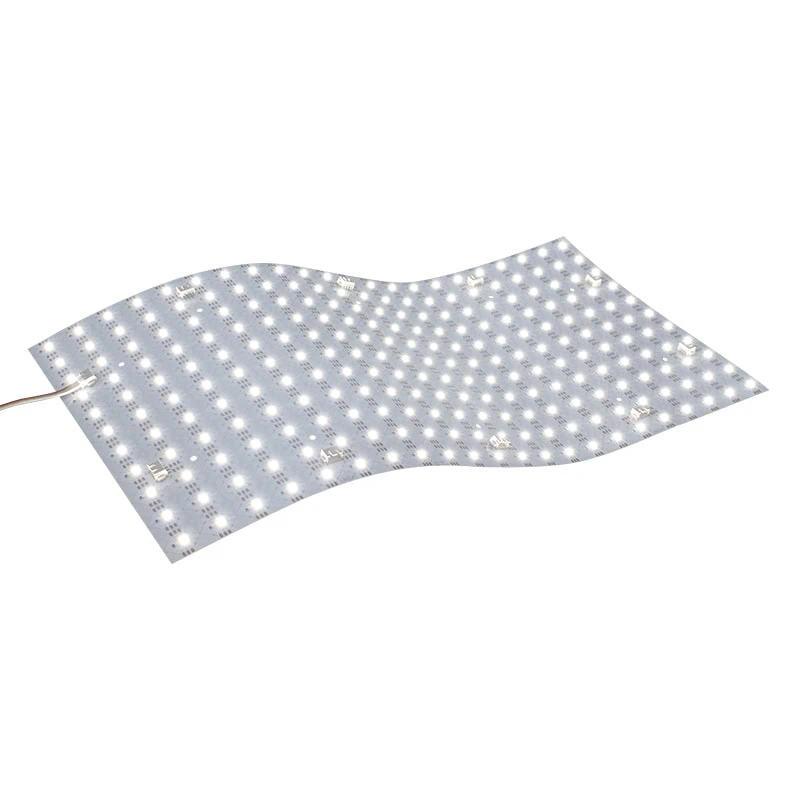

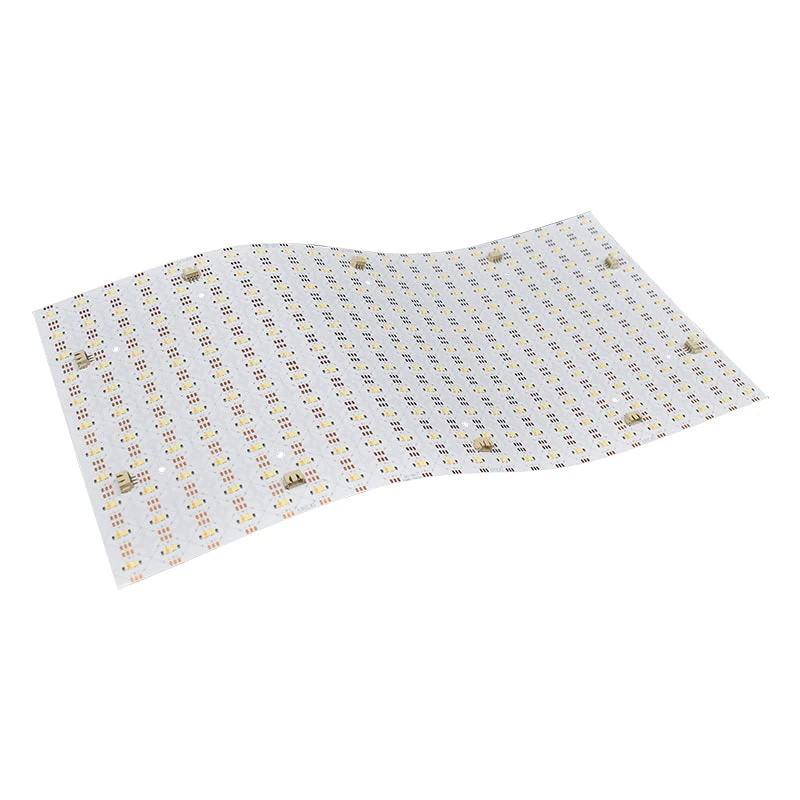

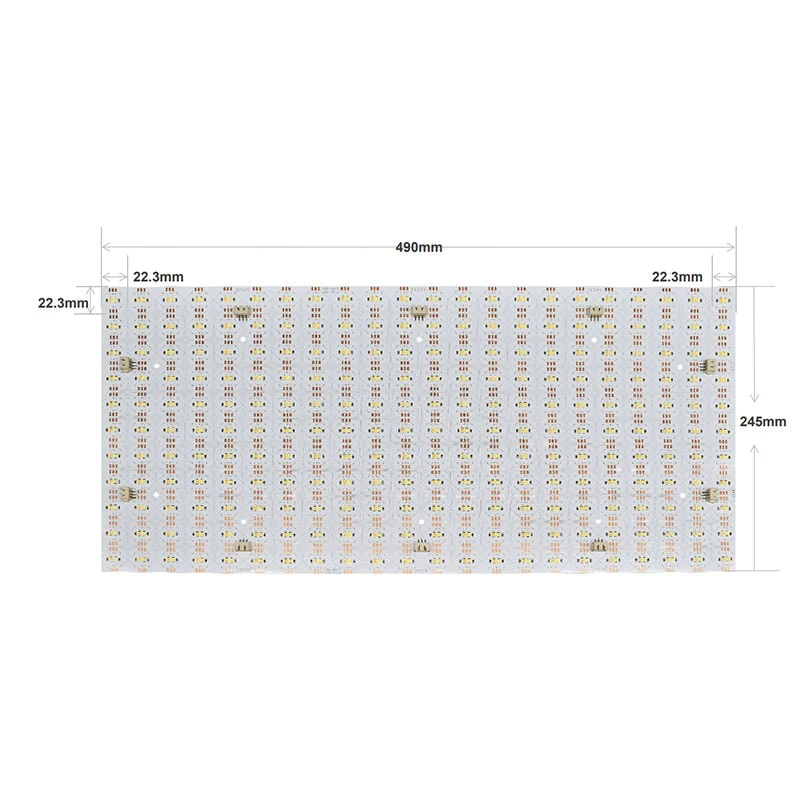

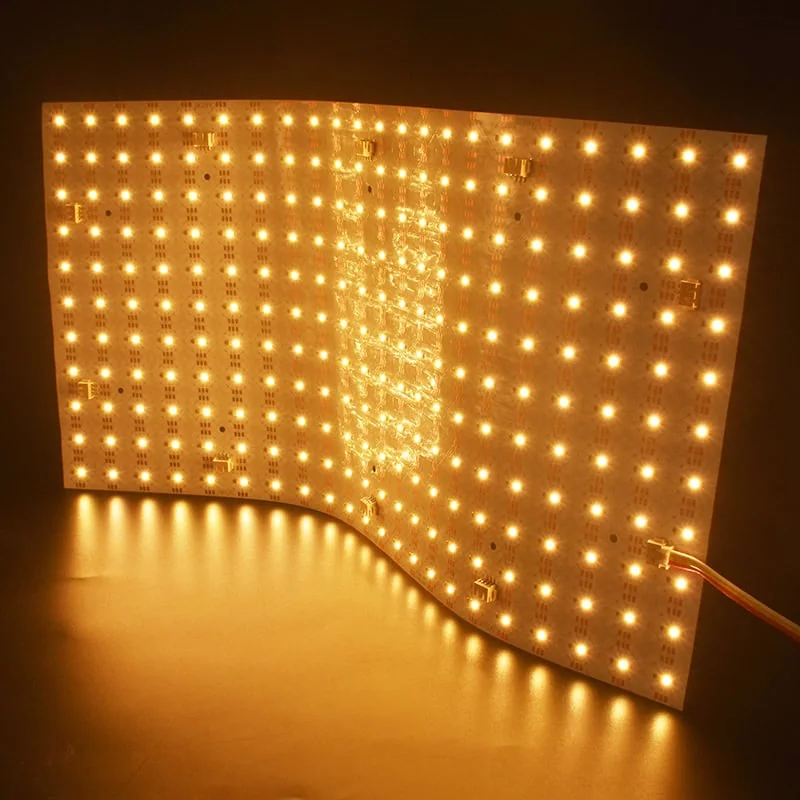

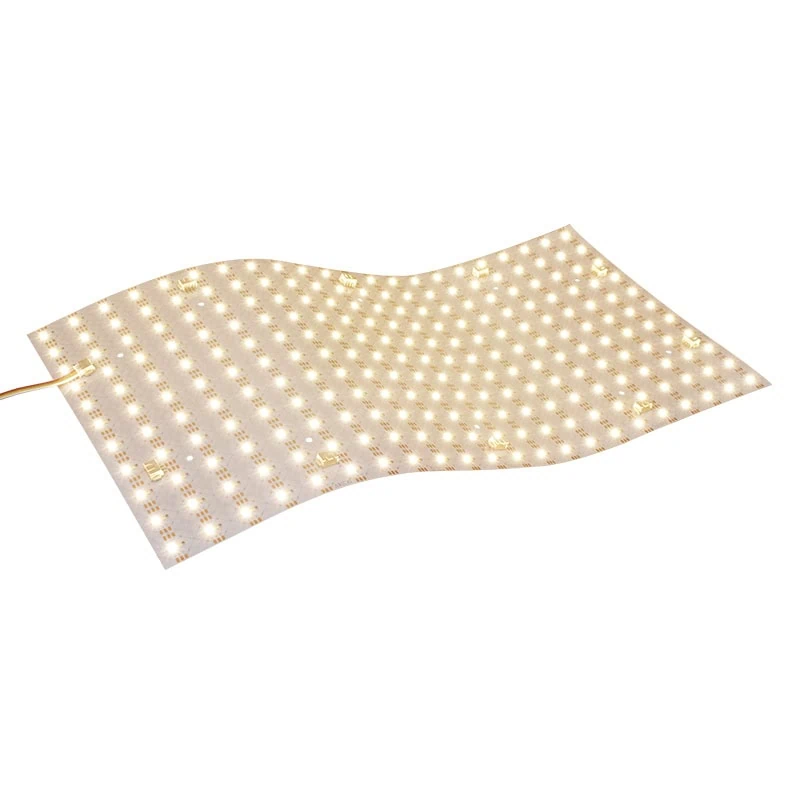

SMD2835 484 LEDs/PCS Flex CCT LED Light Sheet For Backlighting
Voltage: DC24V
Current: 1.66A
Power: 40W/PCS
Luminous: 3800Lm/PCS
Dimensions: 490*245mm
Cut Length: 2LEDs/ 22.3*22.3mm
LED Type: SMD2835, high brightness LED
LED Quantity: 484 LEDs/PCS
LED Color: 2700 + 6500K
CRI: Ra>80
Light Efficiency: 95Lm/W
Beam Angle: 120°

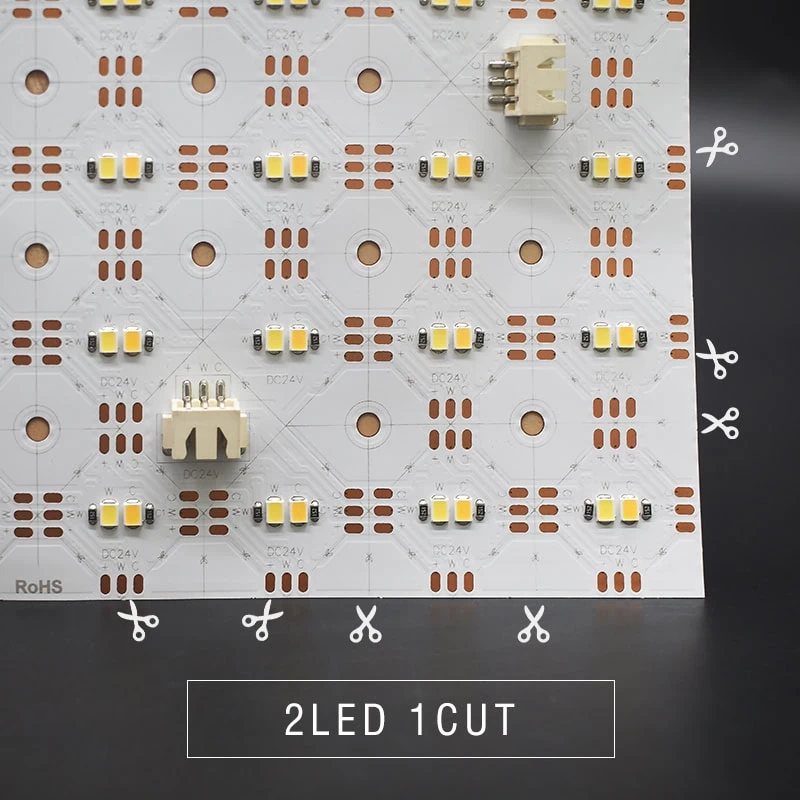

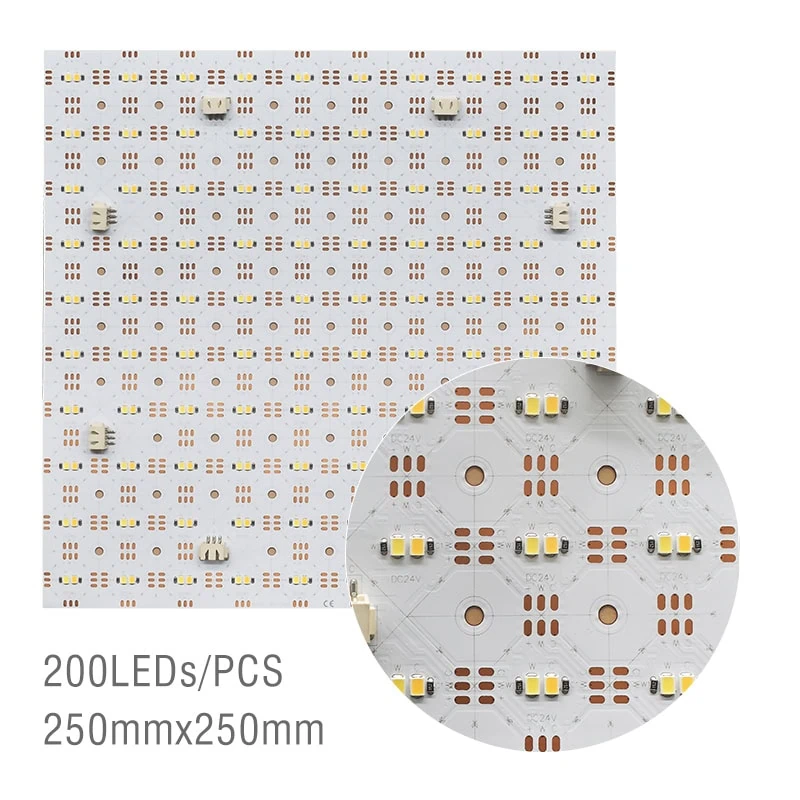

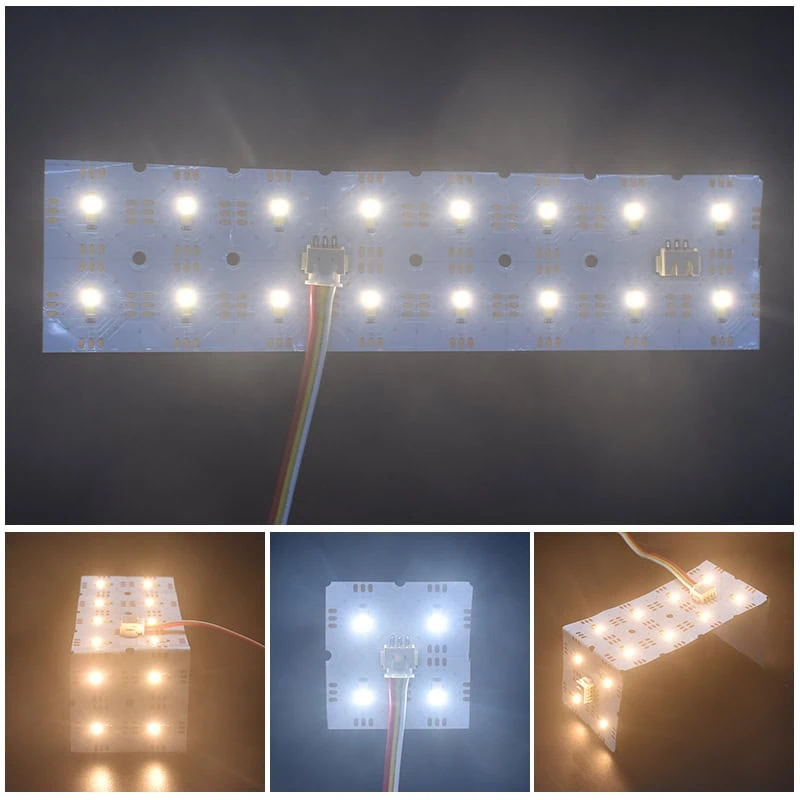

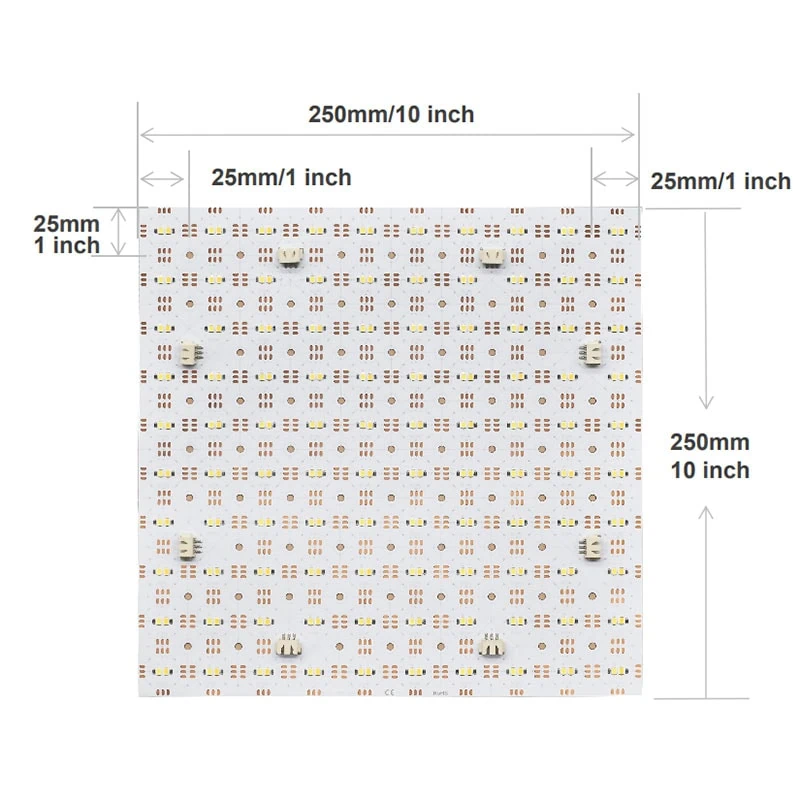

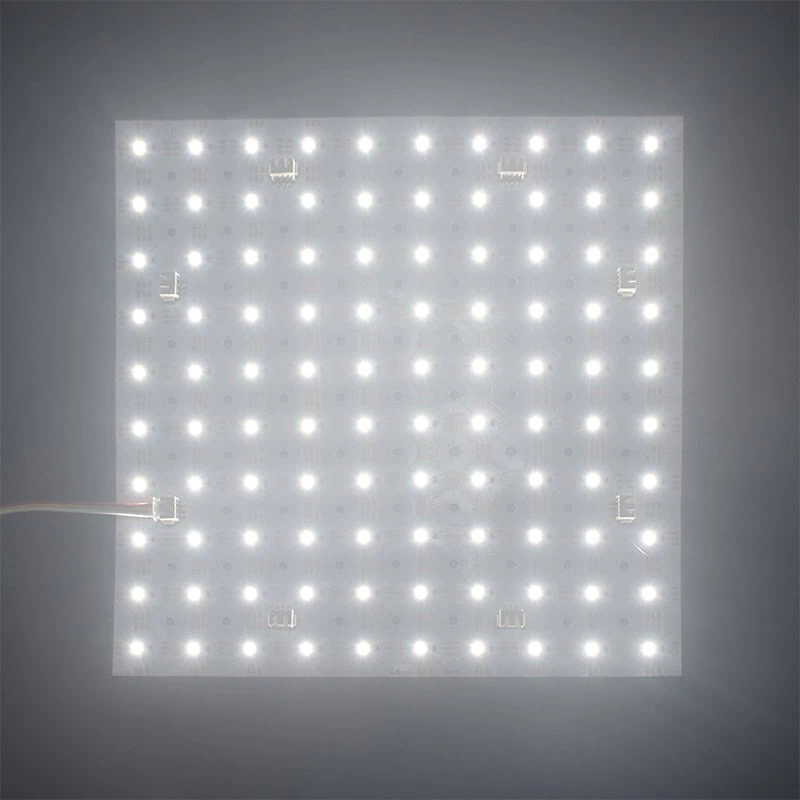

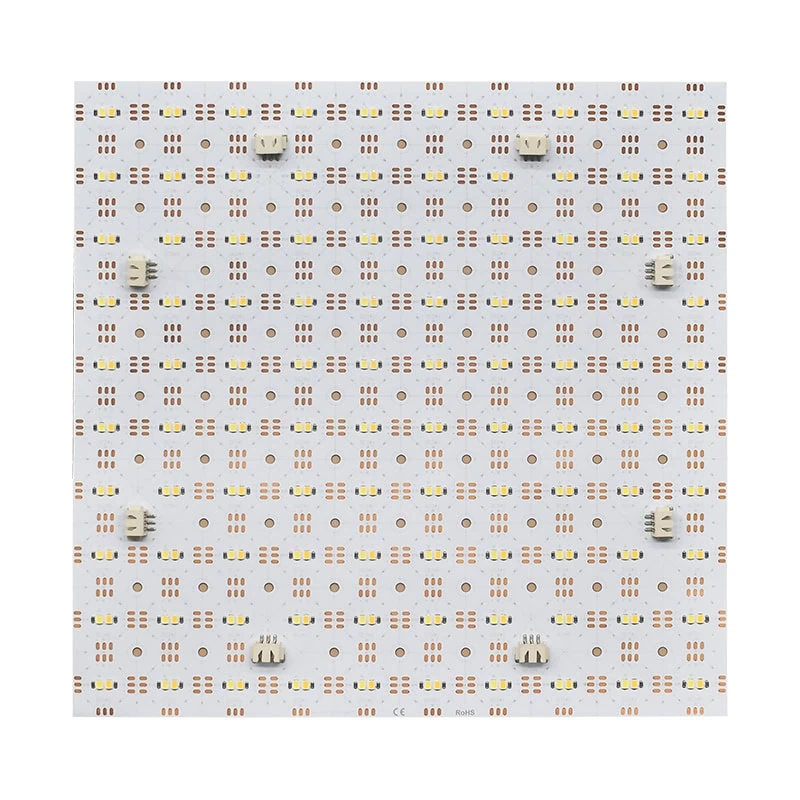

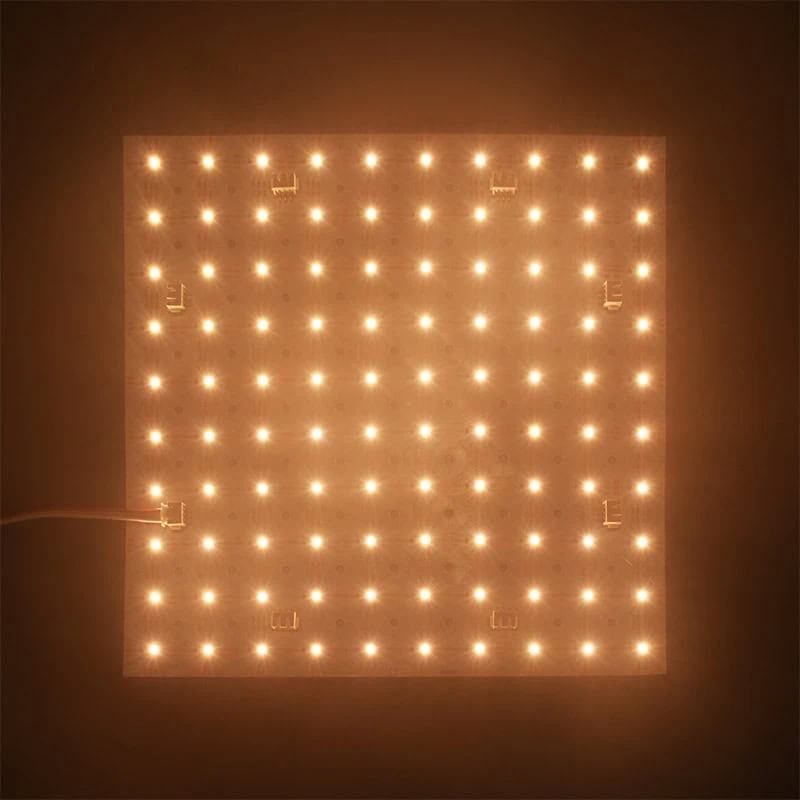

SMD2835 200 LEDs/PCS Flex CCT LED Light Sheet For Sign Lighting
Voltage: DC24V
Current: 0.66A
Power: 16W/PCS
Luminous: 1600Lm/PCS
Dimensions: 250*250mm
Cut Length: 2LEDs/ 25*25mm
LED Type: SMD2835
LED Quantity: 200 LEDs/PCS
LED Color: 2700 + 6500K
CRI: Ra>90
Light Efficiency: 100Lm/W
IP Grade: IP20 IP54
RGB LED Light Sheet

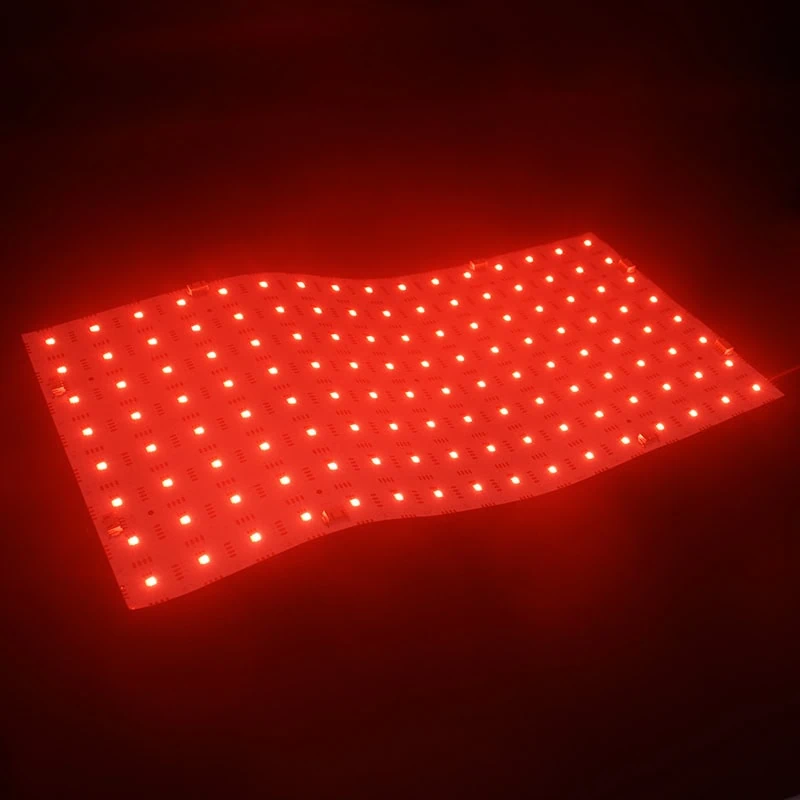

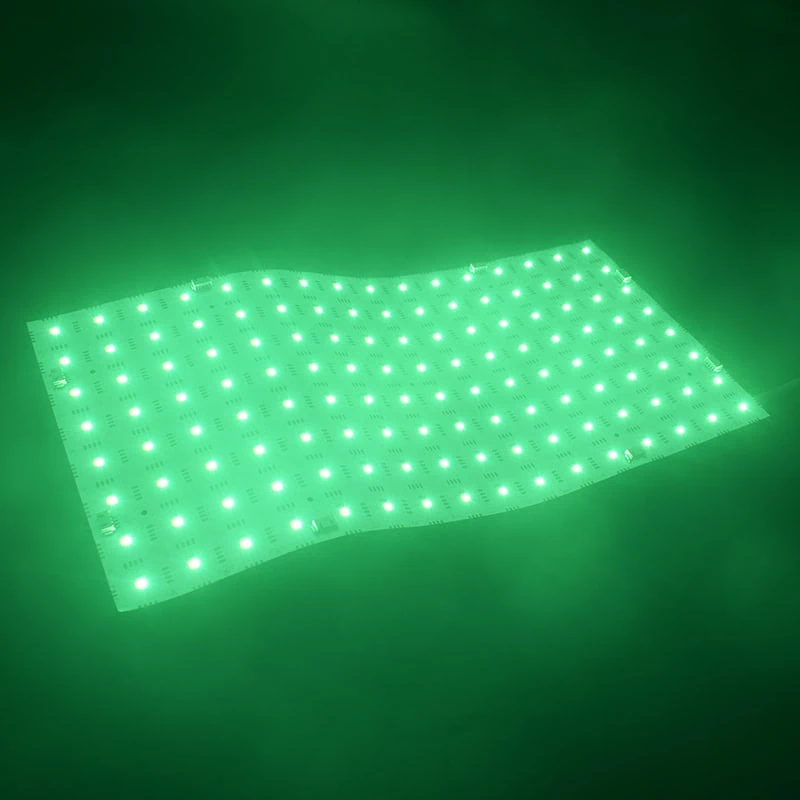

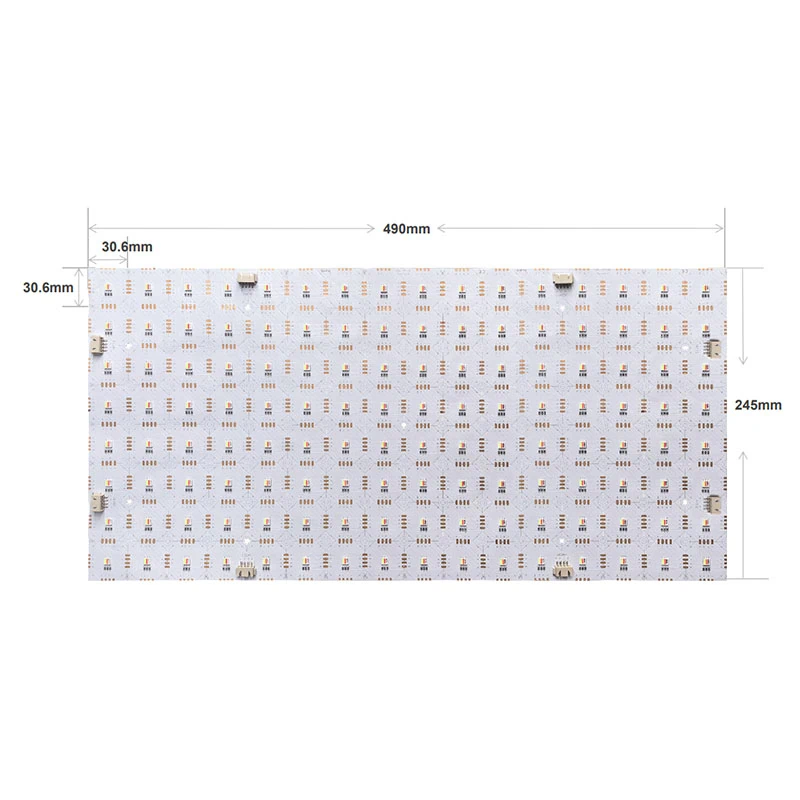

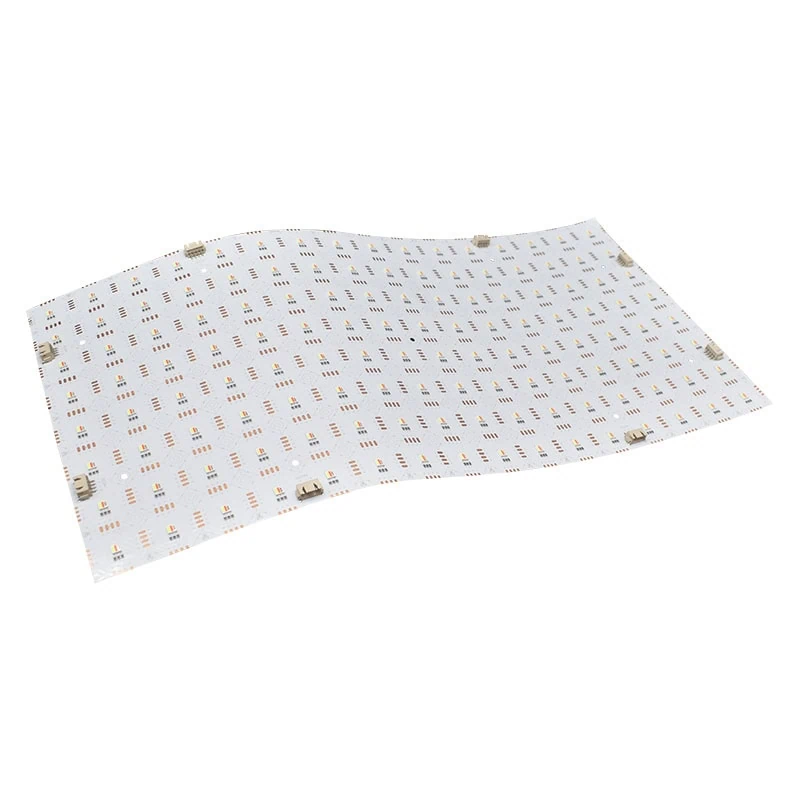

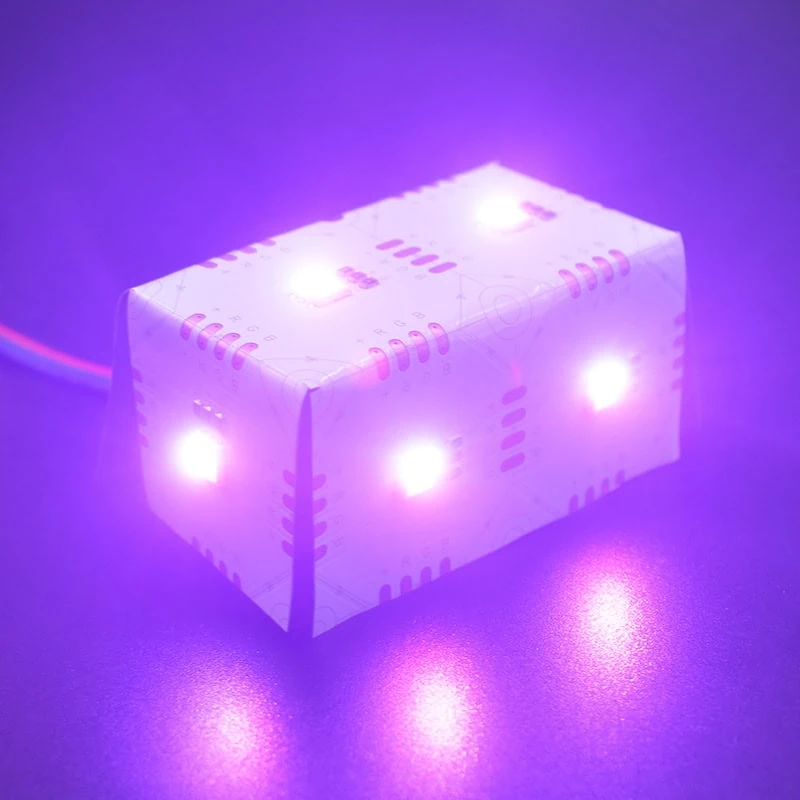

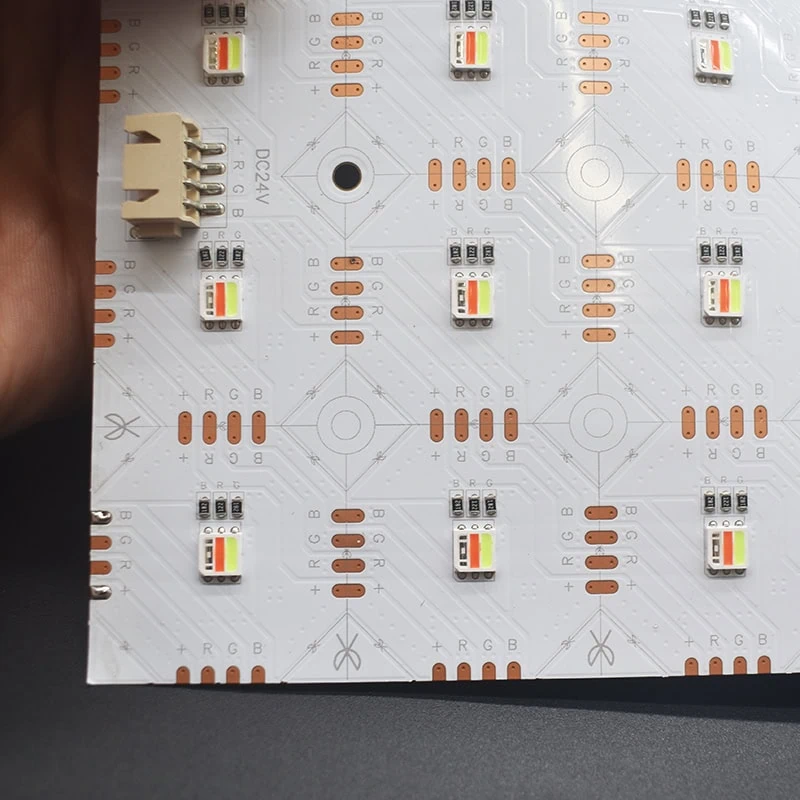

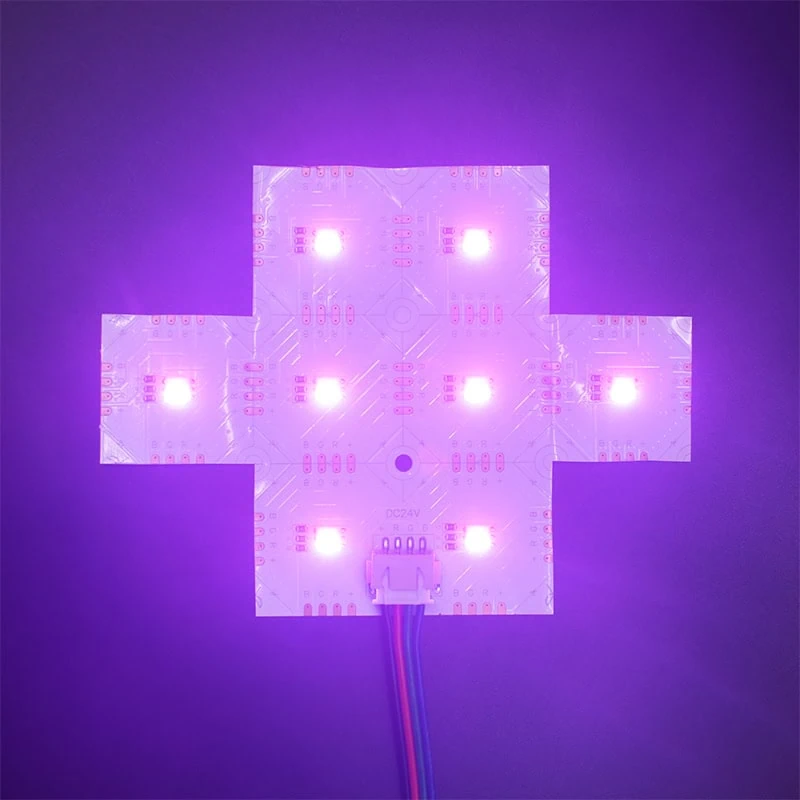

SMD5050 128 LEDs/PCS Flex RGB LED Light Sheet For Large Ceiling Lighting
Voltage: DC24V
Current: 1.87A
Power: 45W/PCS
Beam Angle: 120°
Dimensions: 490*245mm
Cut Length: 30.6*30.6mm
LED Type: SMD5050
LED Quantity: 128 LEDs/PCS
LED Color: RGB
Lifetime: 36000 hours
PCB Material: Double layer FPC
IP Grade: IP20 IP54
RGBW LED Light Sheet

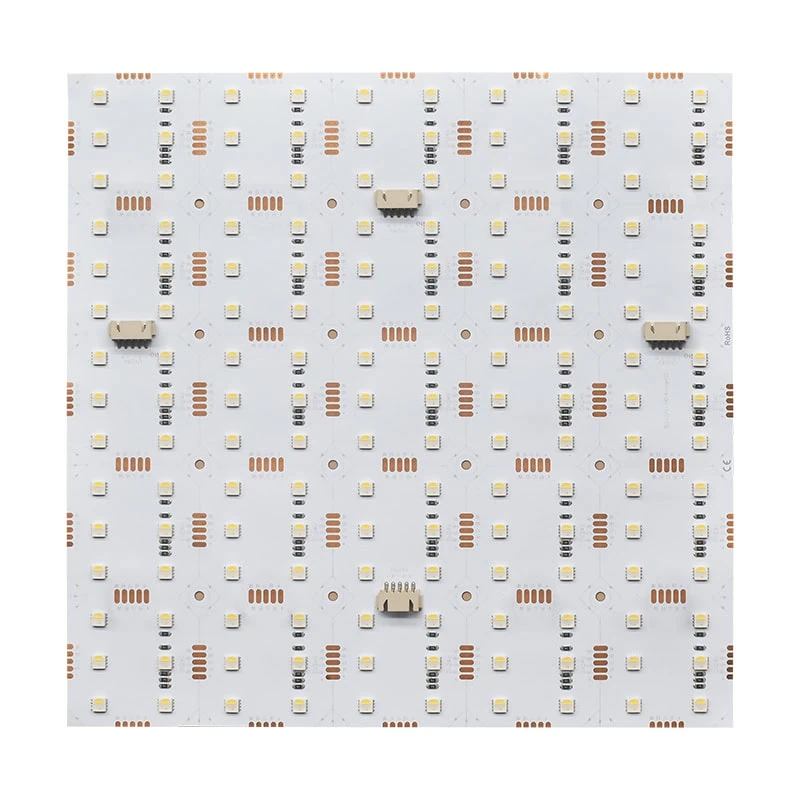

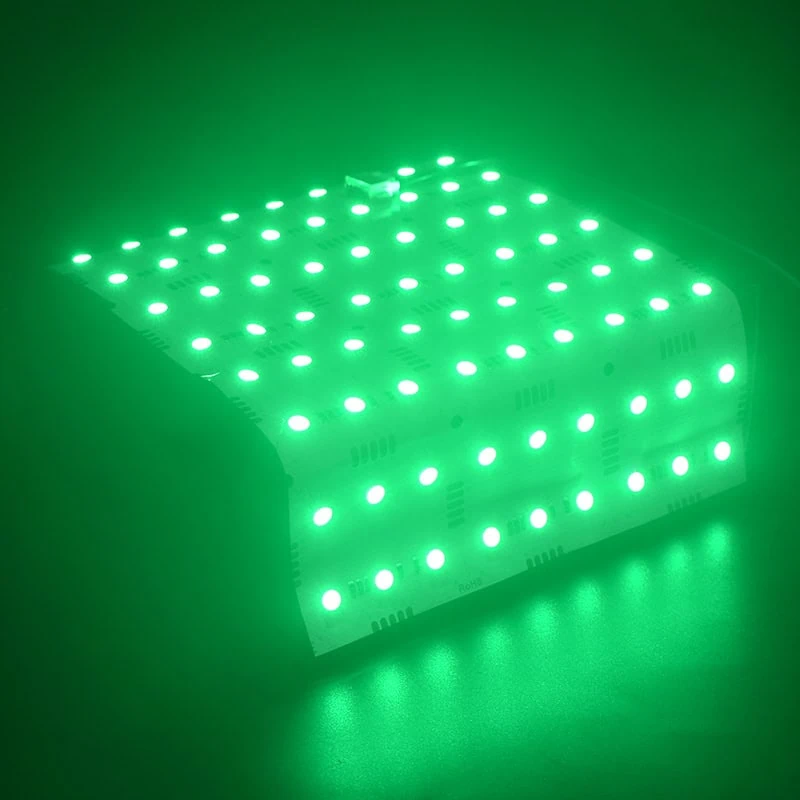

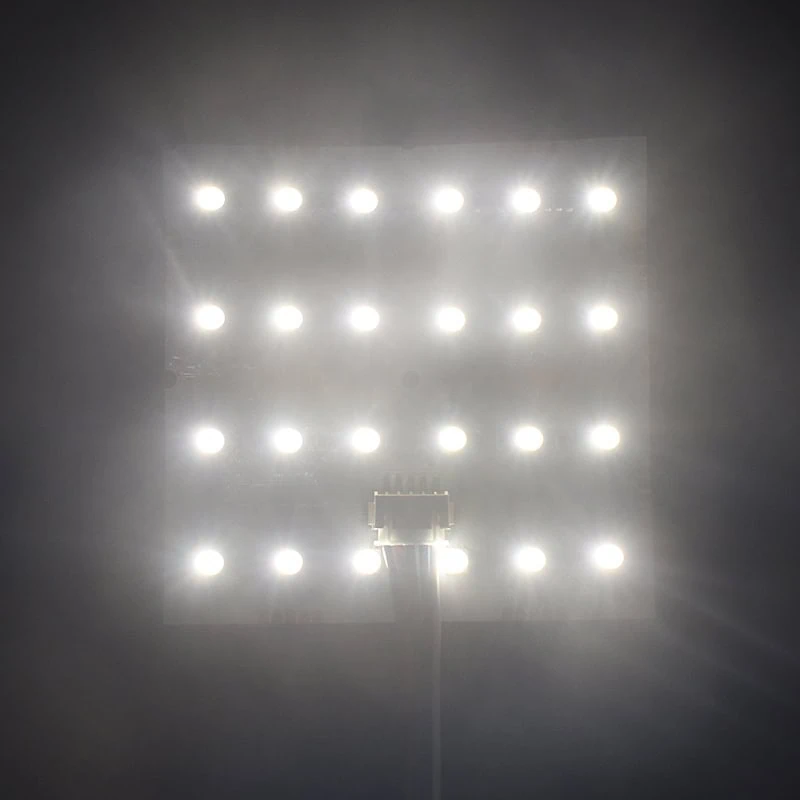

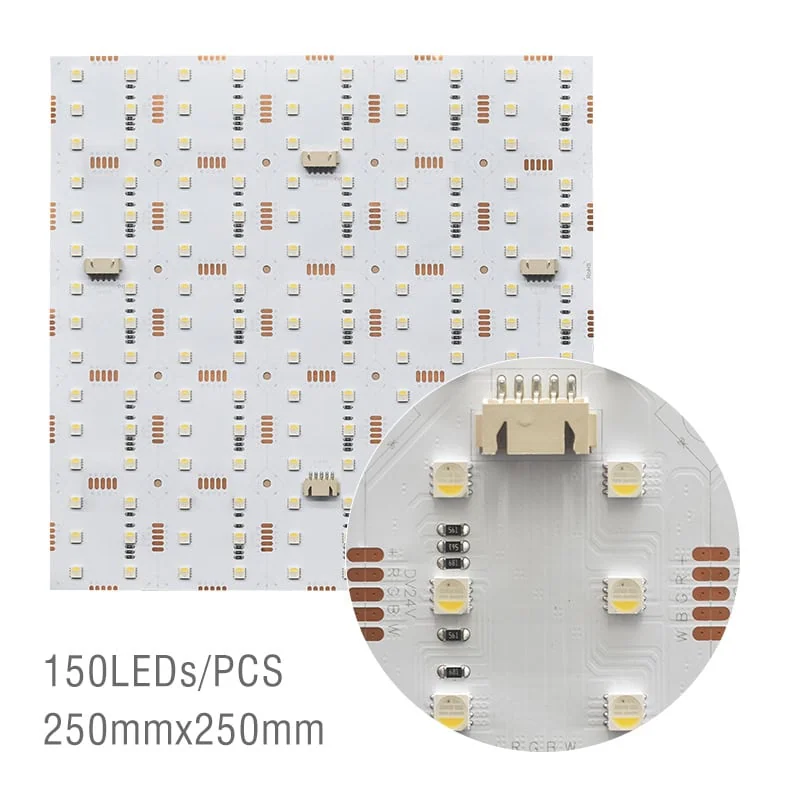

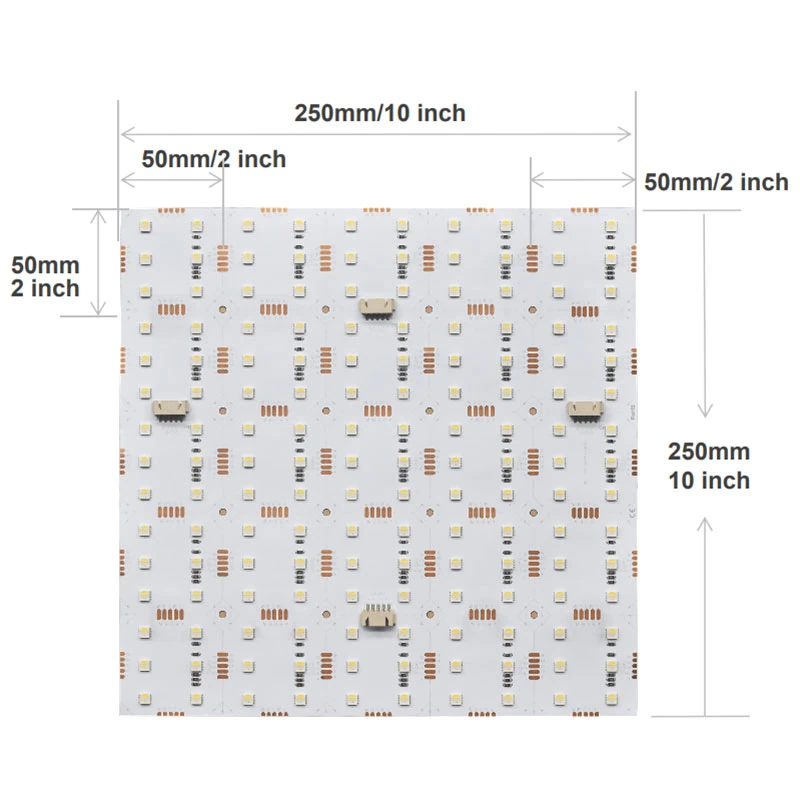

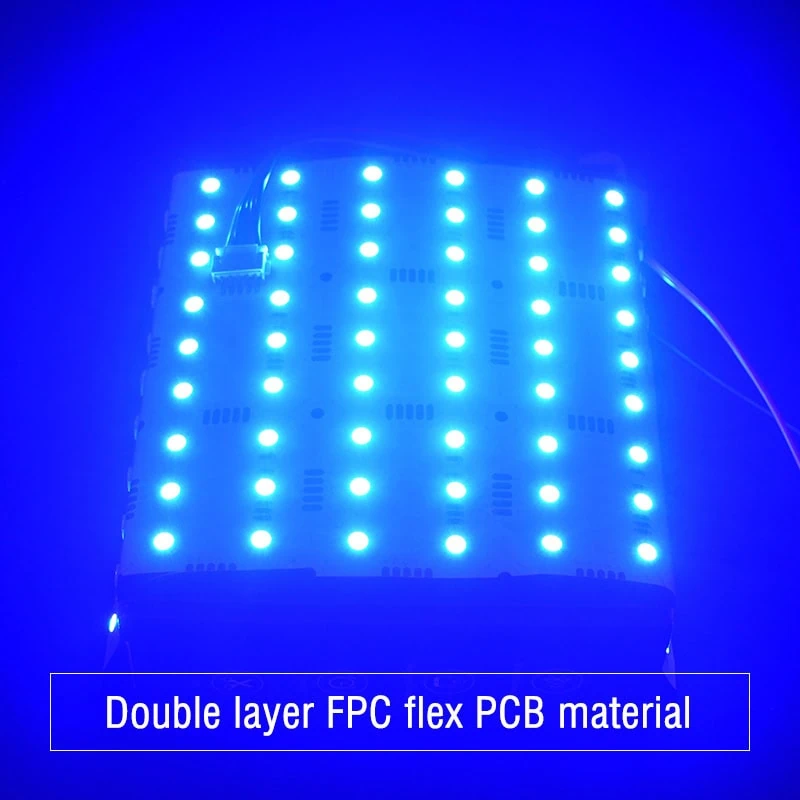

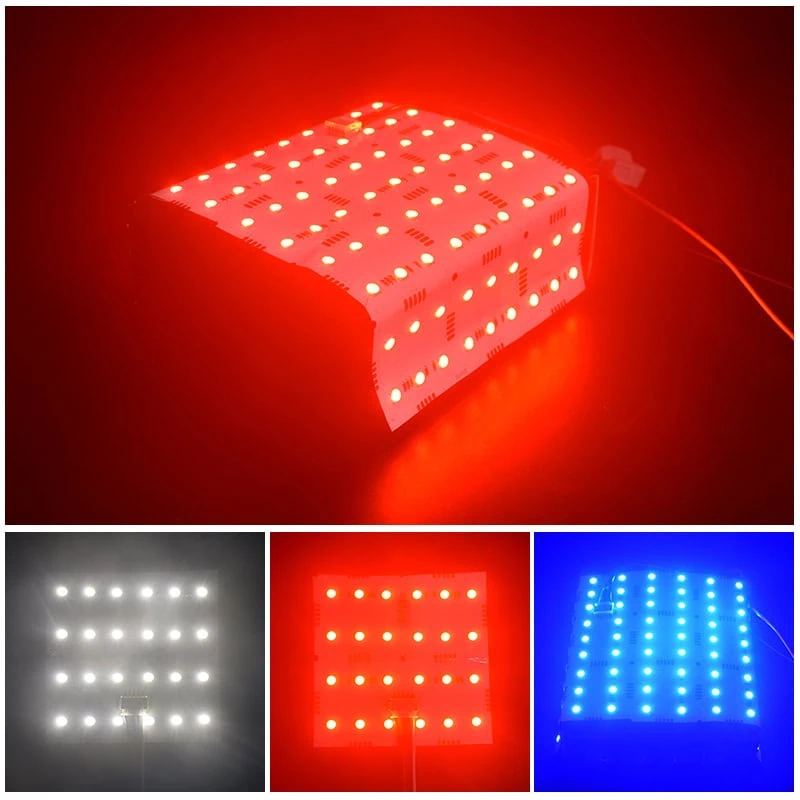

SMD5050 150 LEDs/PCS Flex RGBW LED Light Sheet For Curved Architectural Lighting
Voltage: DC24V
Current: 0.75A
Power: 18W/PCS
Light Efficiency: 90Lm/W
Dimensions: 250*250mm
Cut Length: 50*50mm
LED Type: SMD5050
LED Quantity: 150 LEDs/PCS
LED Color: RGBW
PCB Material: Double layer FPC
Beam Angle: 120°
IP Grade: IP20 IP54

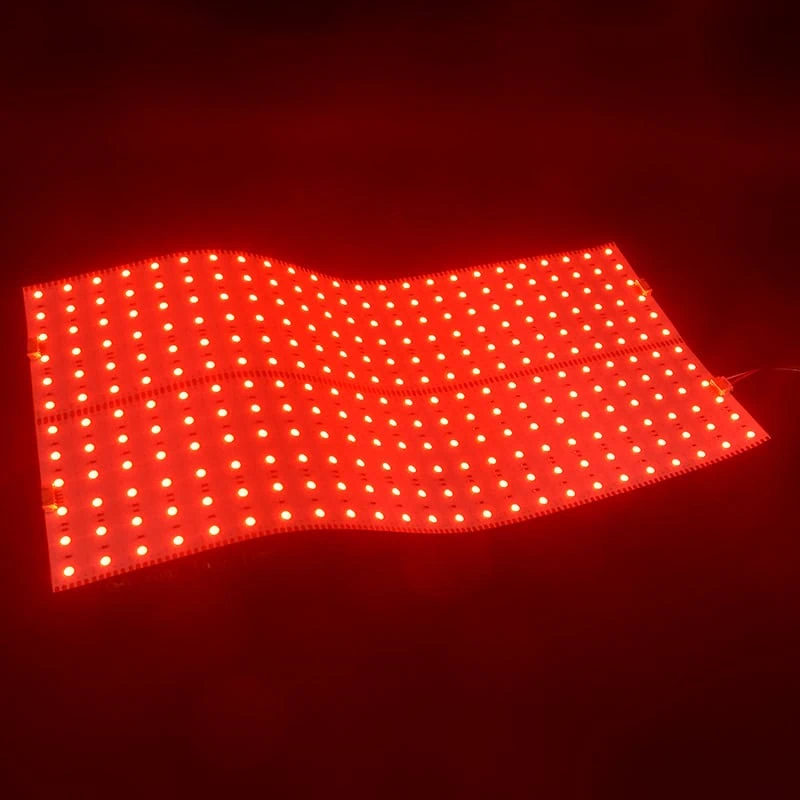

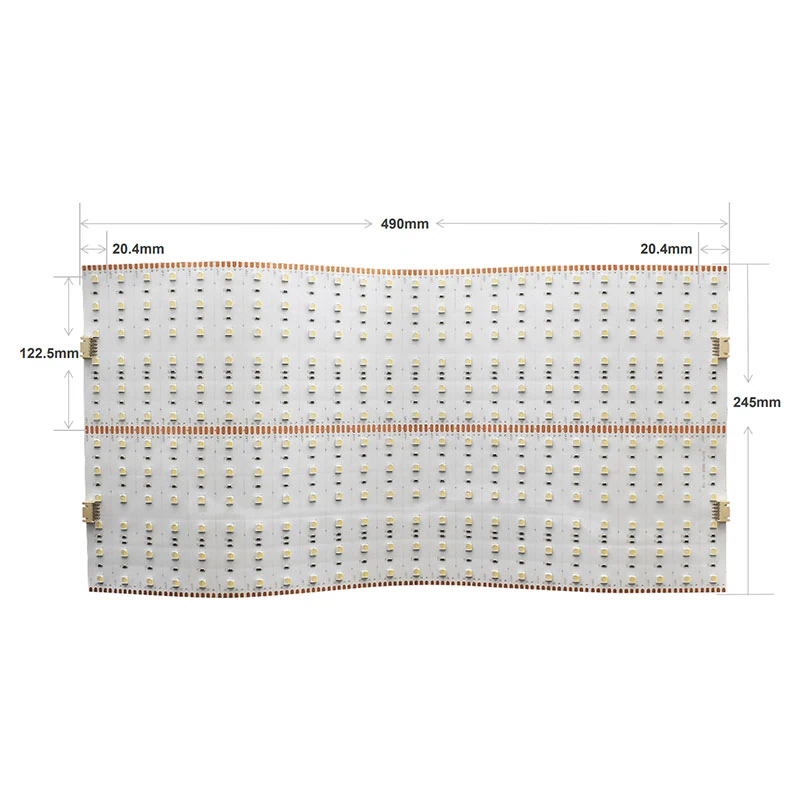

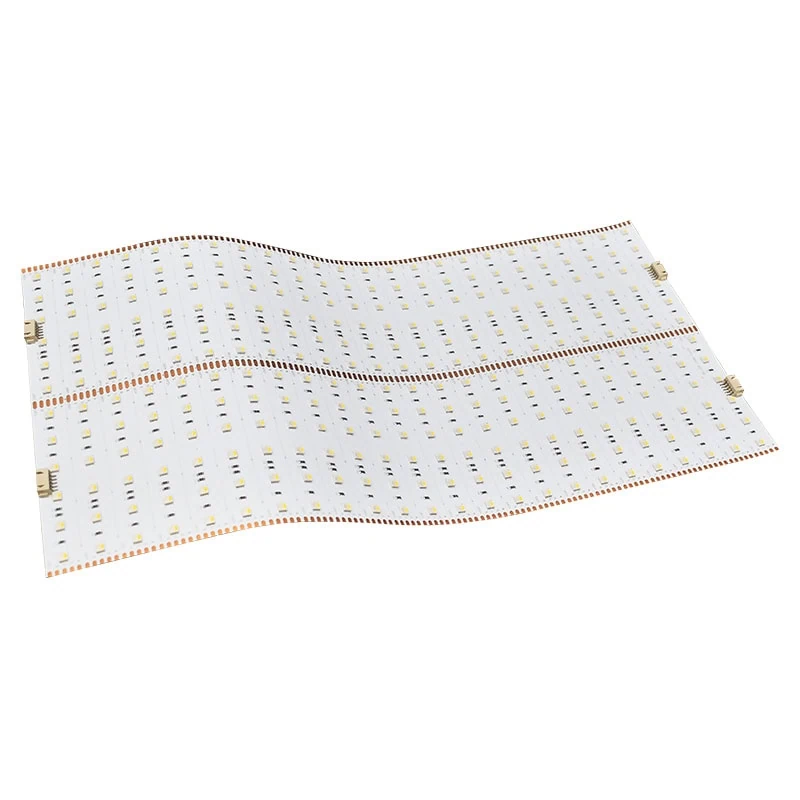

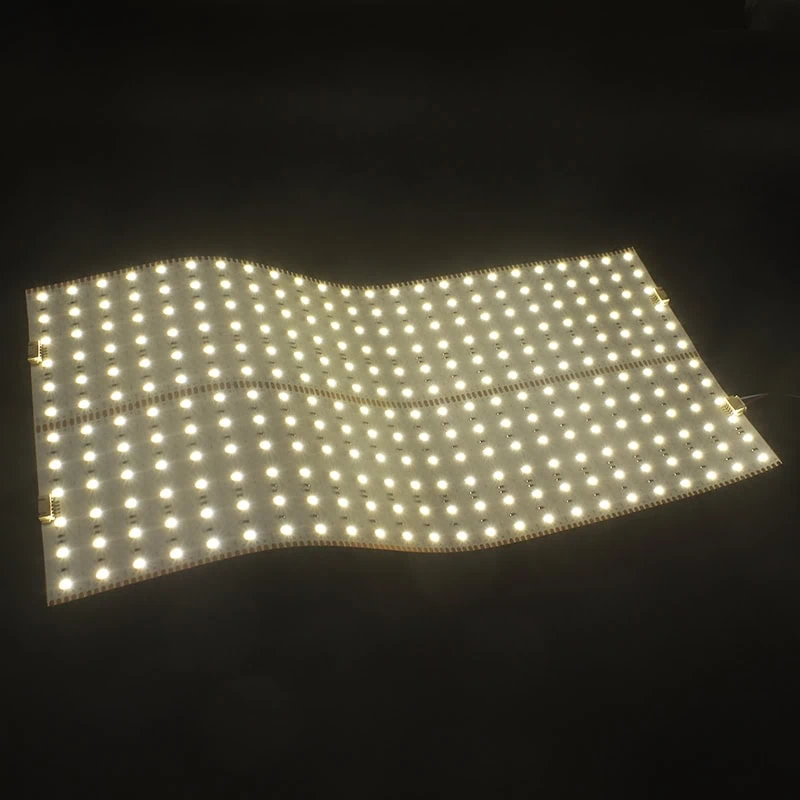

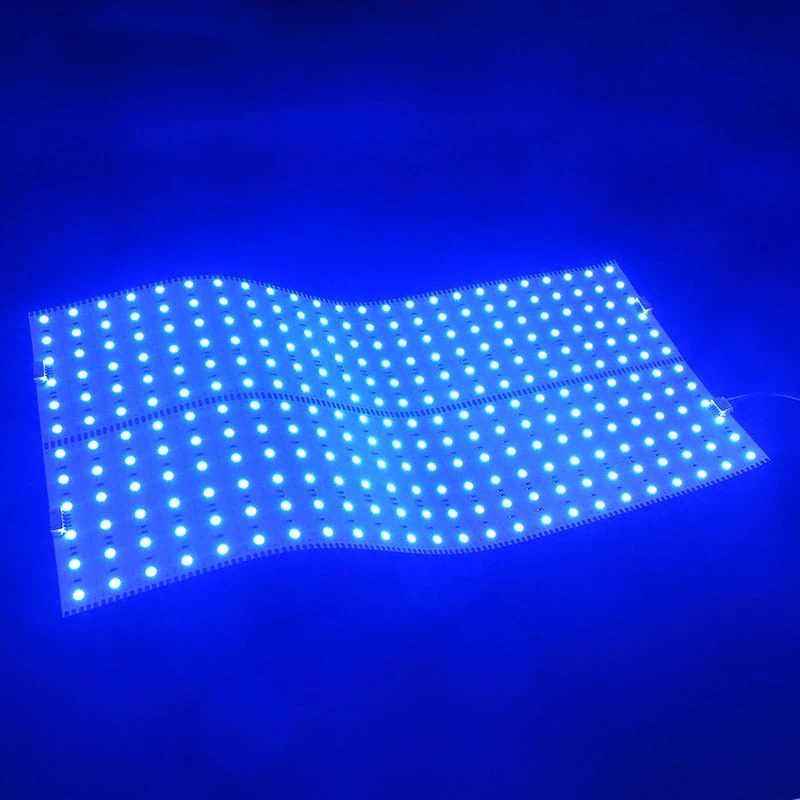

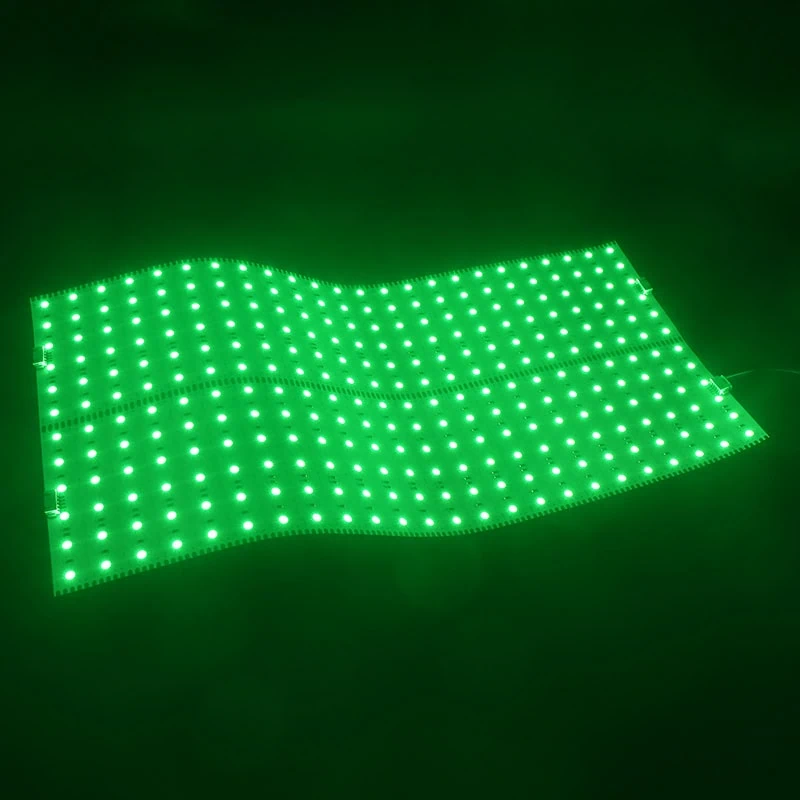

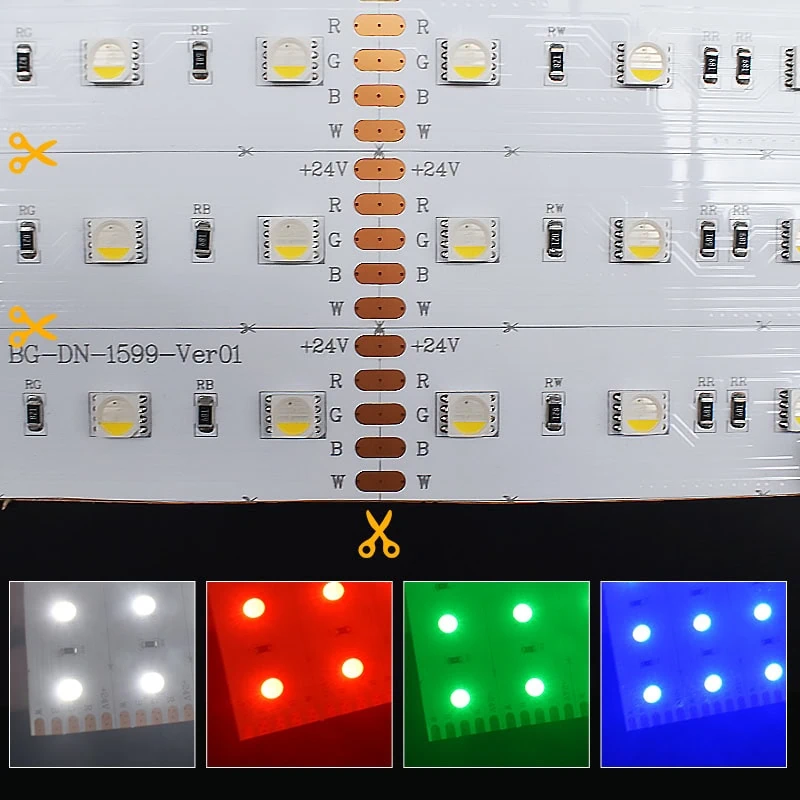

SMD5050 288 LEDs/PCS Flex RGBW LED Light Sheet For Background Wall Lighting
Voltage: DC24V
Current: 2A
Power: 48W/PCS
Luminous: 2400Lm/PCS
Dimensions: 490*245mm
Cut Length: 20.4mm
LED Type: SMD5050
LED Quantity: 288 LEDs/PCS
LED Color: RGBW
CRI: Ra>80
Light Efficiency: 100Lm/W
IP Grade: IP20 IP54

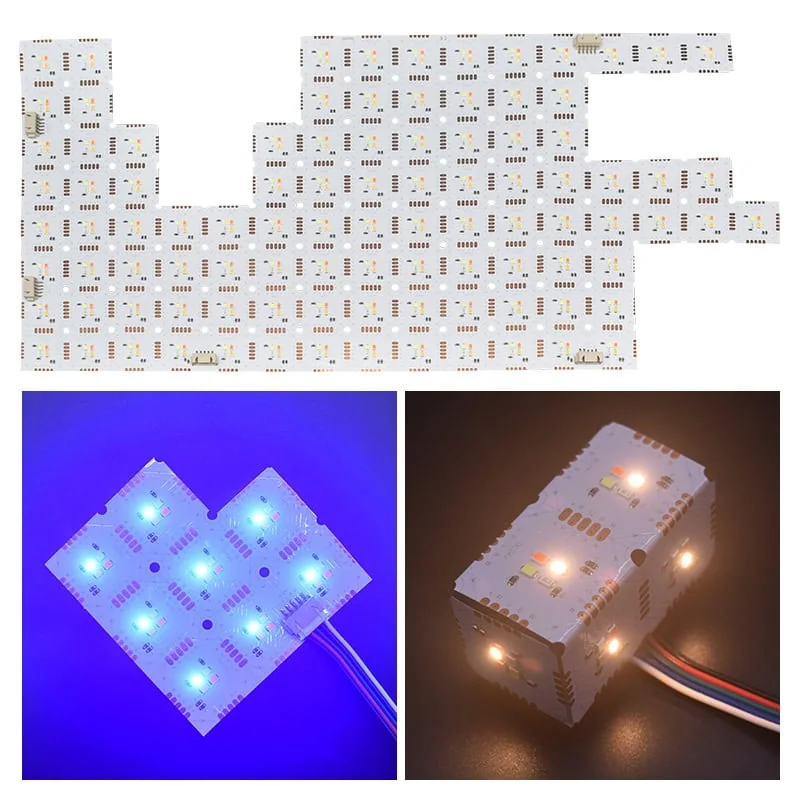

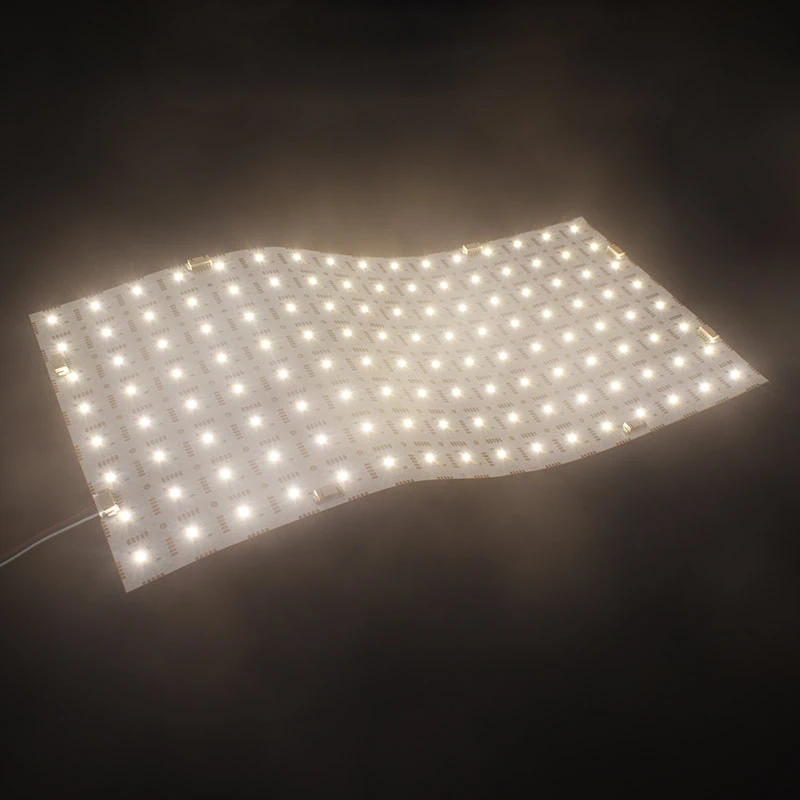

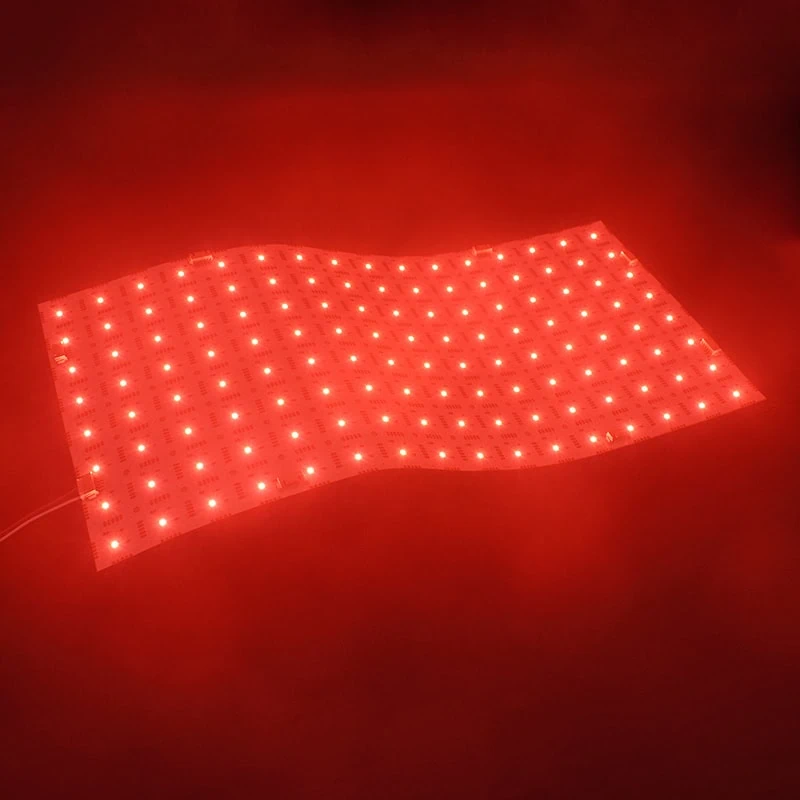

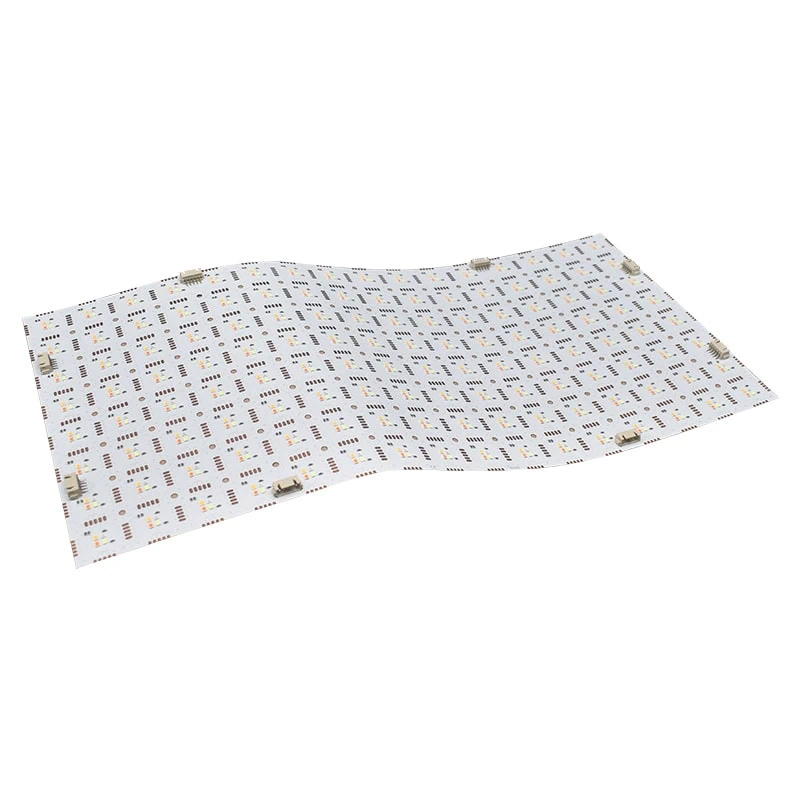

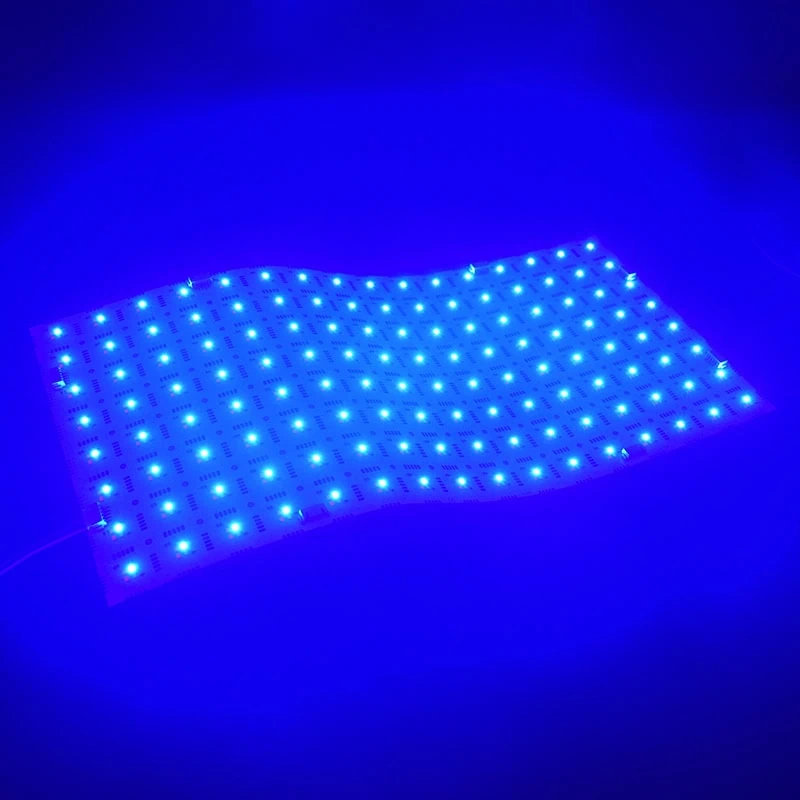

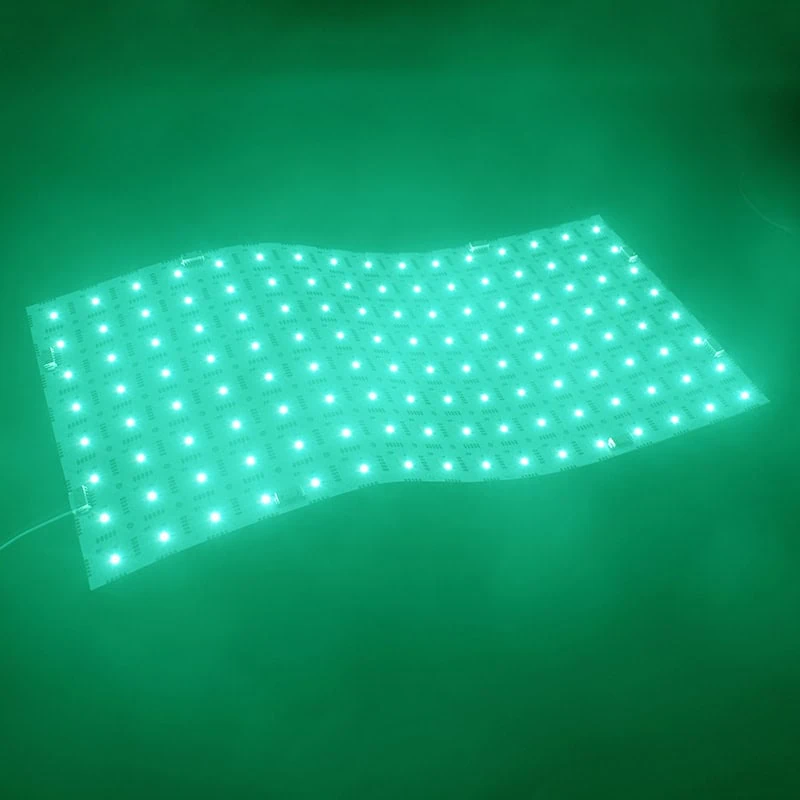

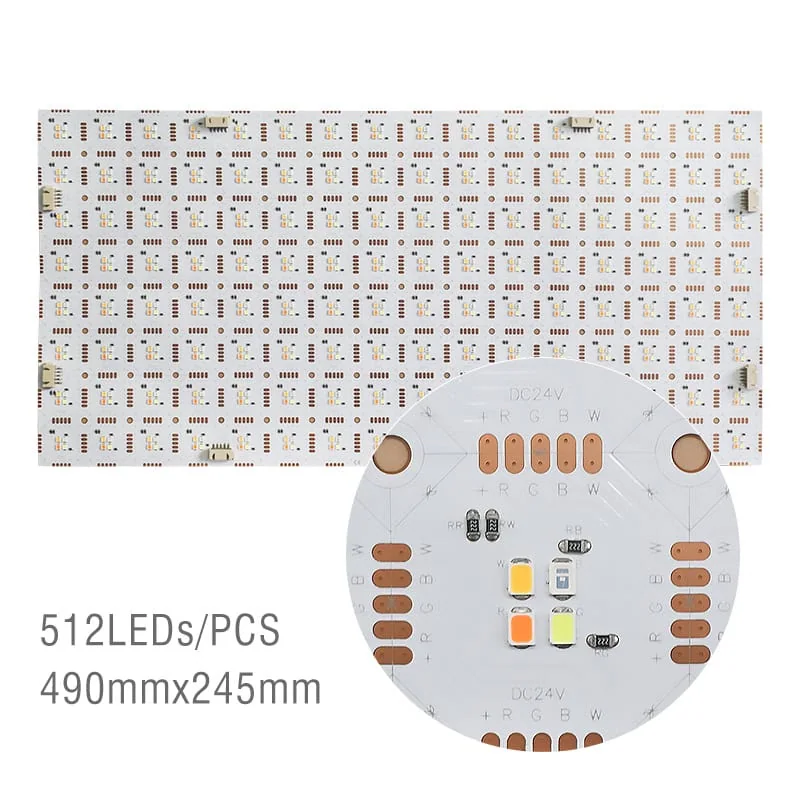

SMD2835 512 LEDs/PCS Flex RGBW LED Light Sheet For Landscape Lighting
Voltage: DC24V
Current: 1.87A
Power: 45W/PCS
Luminous: 1000Lm/PCS
Dimensions: 490*245mm
Cut Length: 30.6*30.6mm
LED Type: SMD2835
LED Quantity: 512 LEDs/PCS
LED Color: RGBW
CRI: Ra>80
Light Efficiency: 90Lm/W
Beam Angle: 120°
RGBCW RGBCCT LED Light Sheet

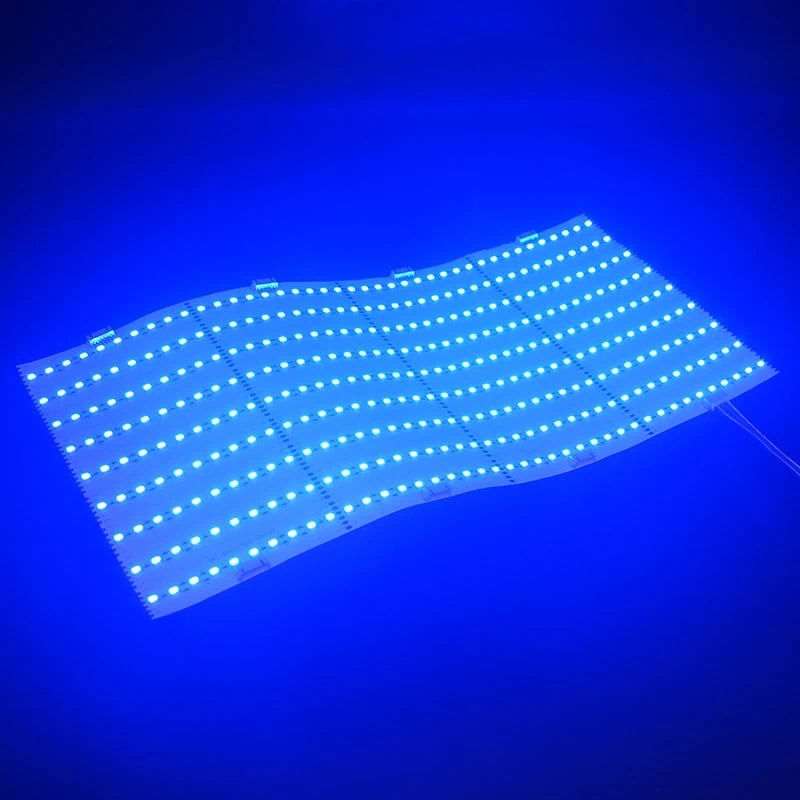

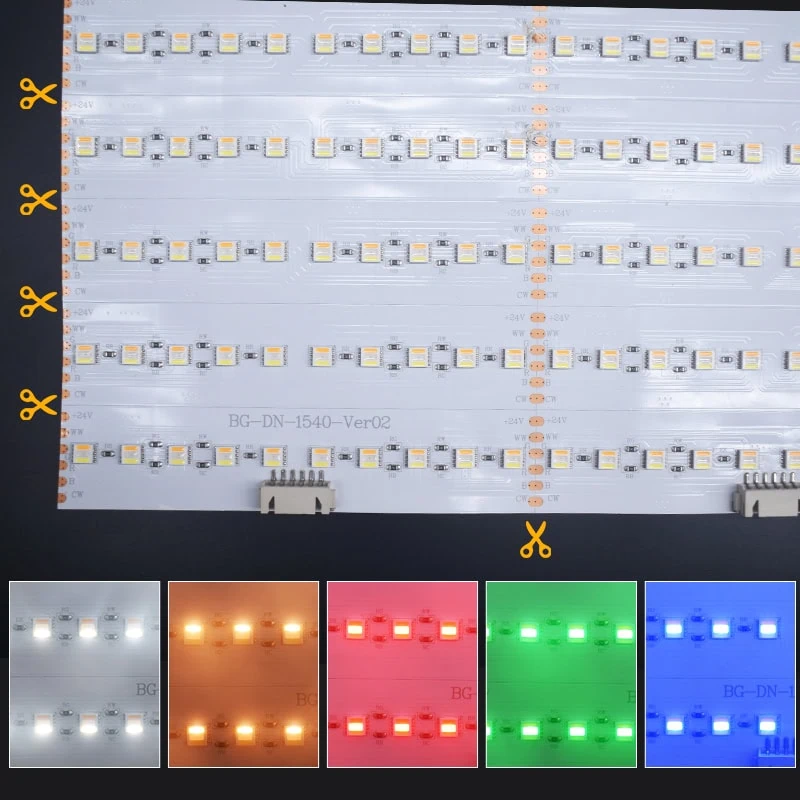

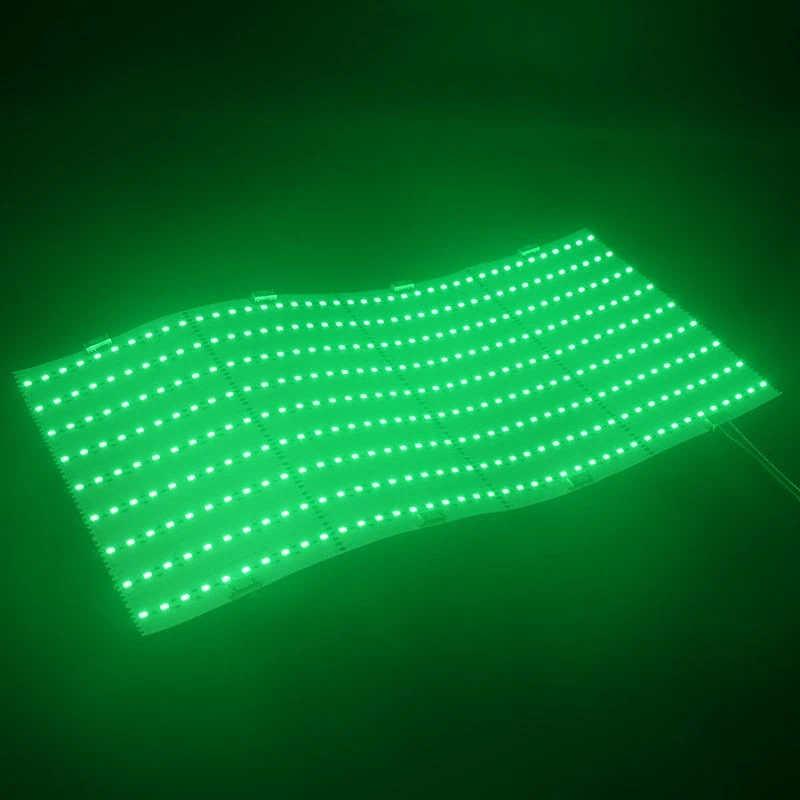

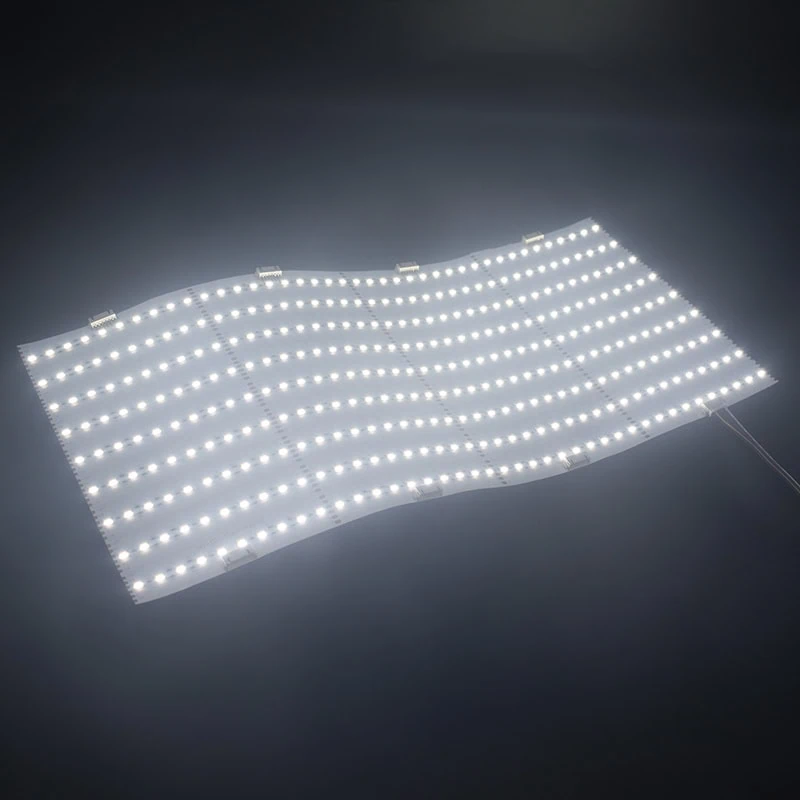

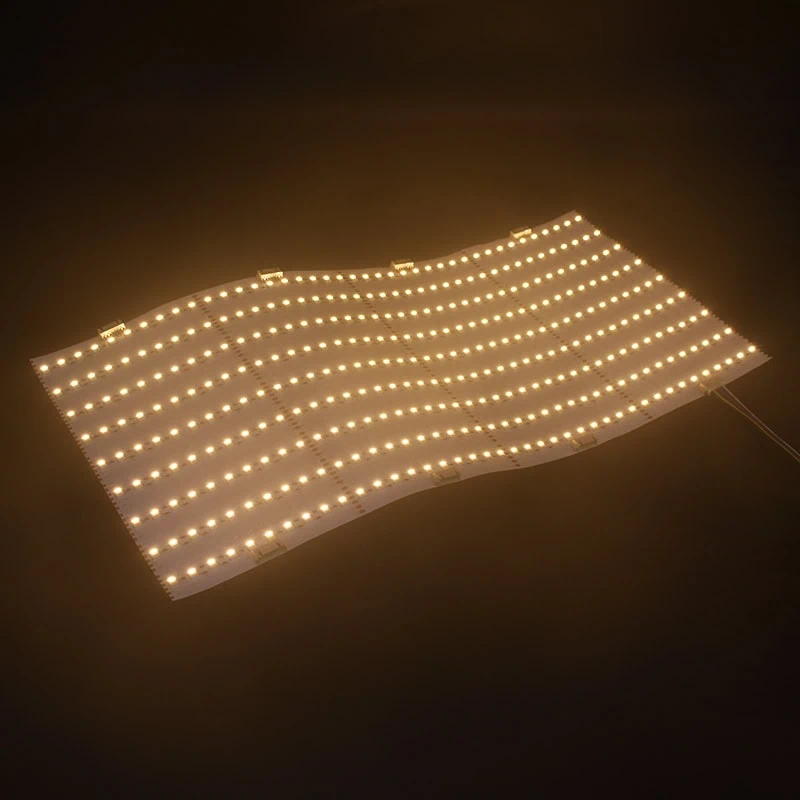

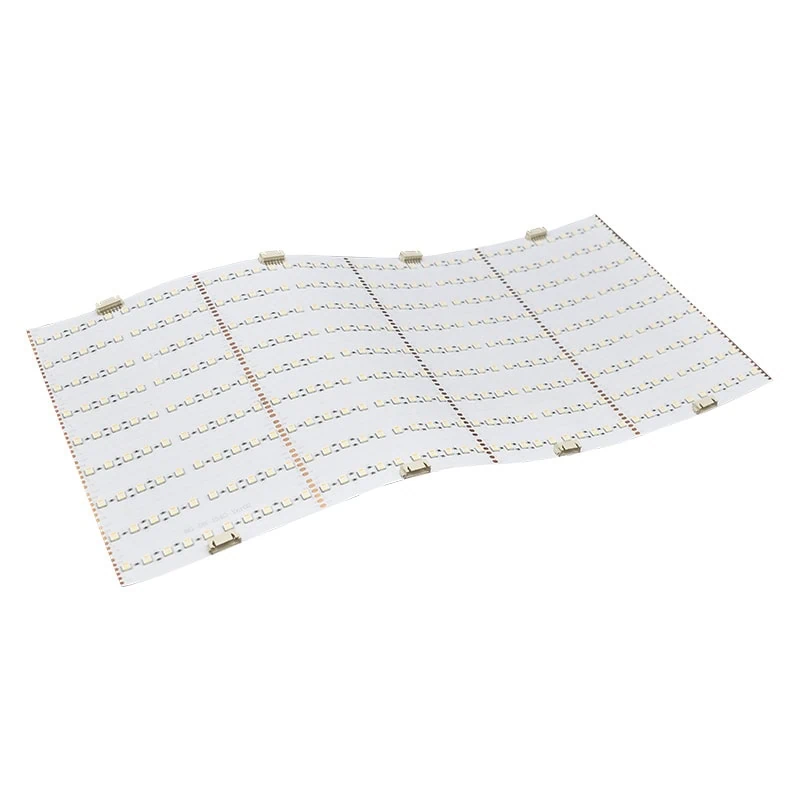

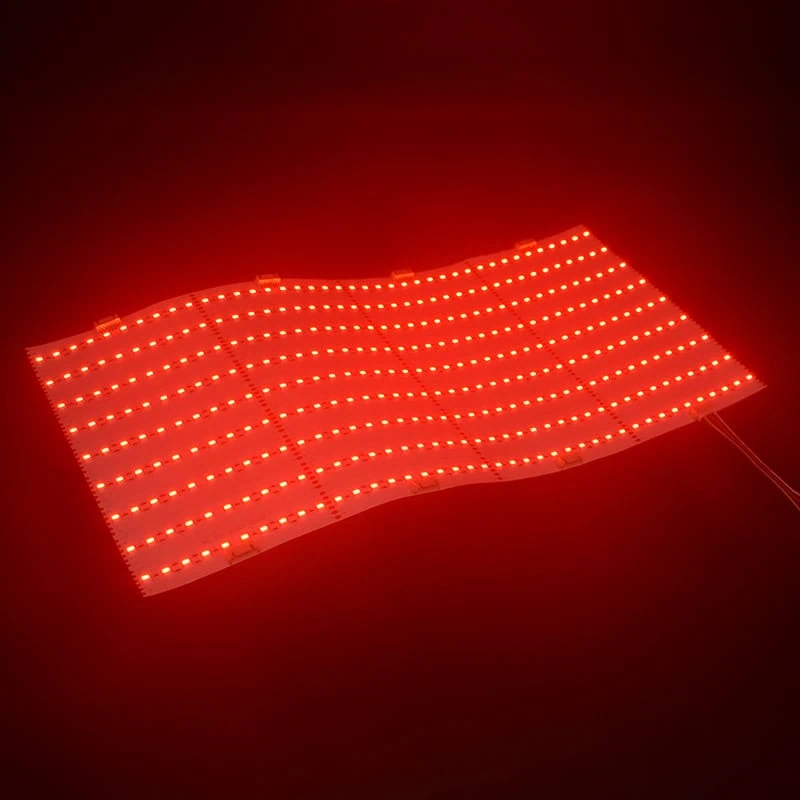

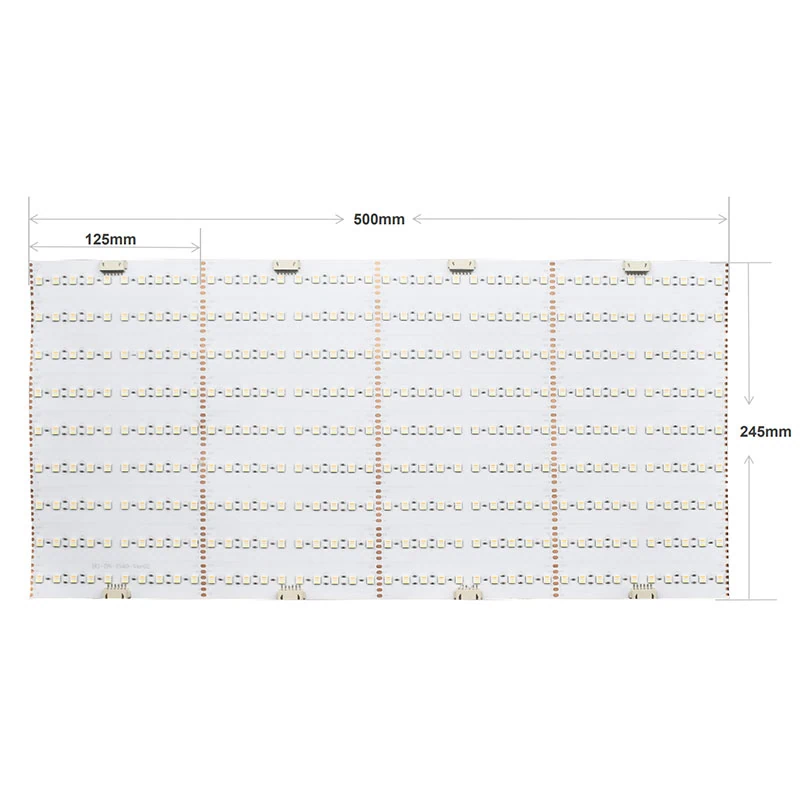

SMD5050 360 LEDs/PCS Flex RGBCW LED Light Panel For Stage Lighting
Voltage: DC24V
Current: 2.5A
Power: 60W/PCS
Luminous: 2160Lm/PCS
Dimensions: 500*245mm
Cut Length: 125mm
LED Type: SMD5050
LED Quantity: 360 LEDs/PCS
LED Color: RGBCW
CRI: Ra>80
Light Efficiency: 90Lm/W
Beam Angle: 120°

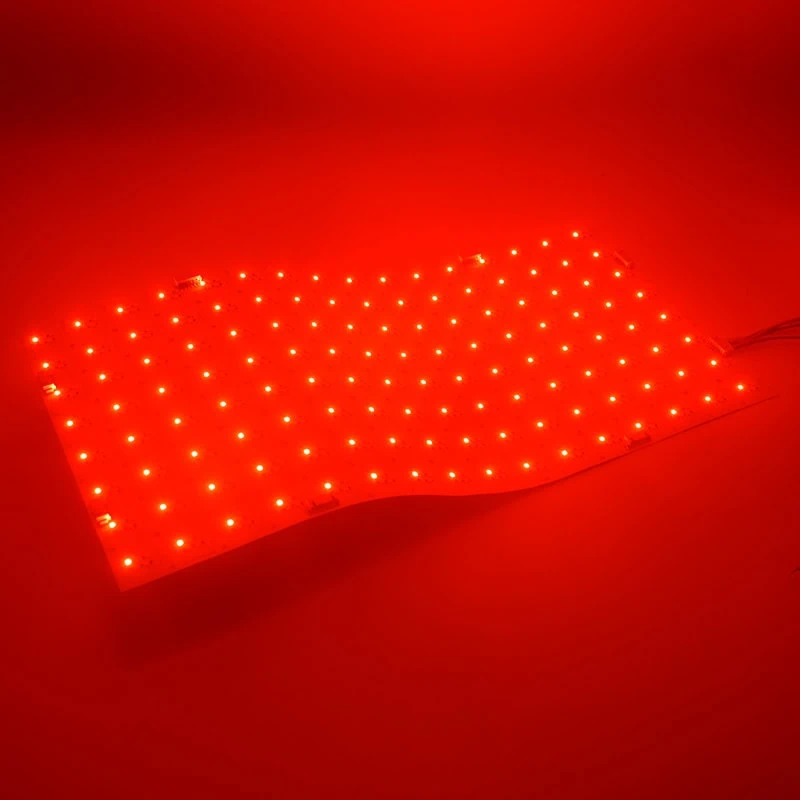

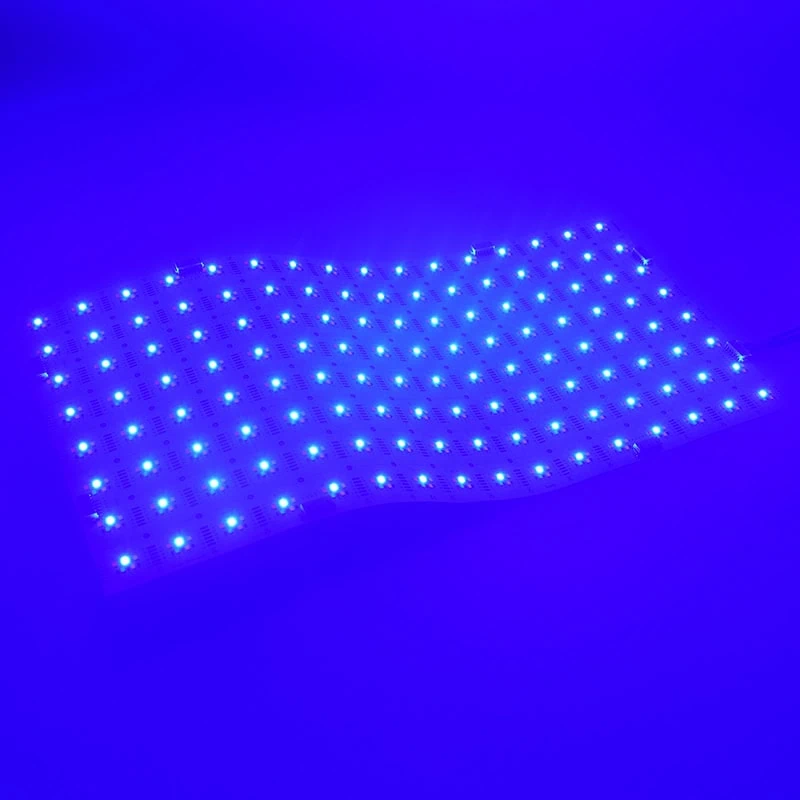

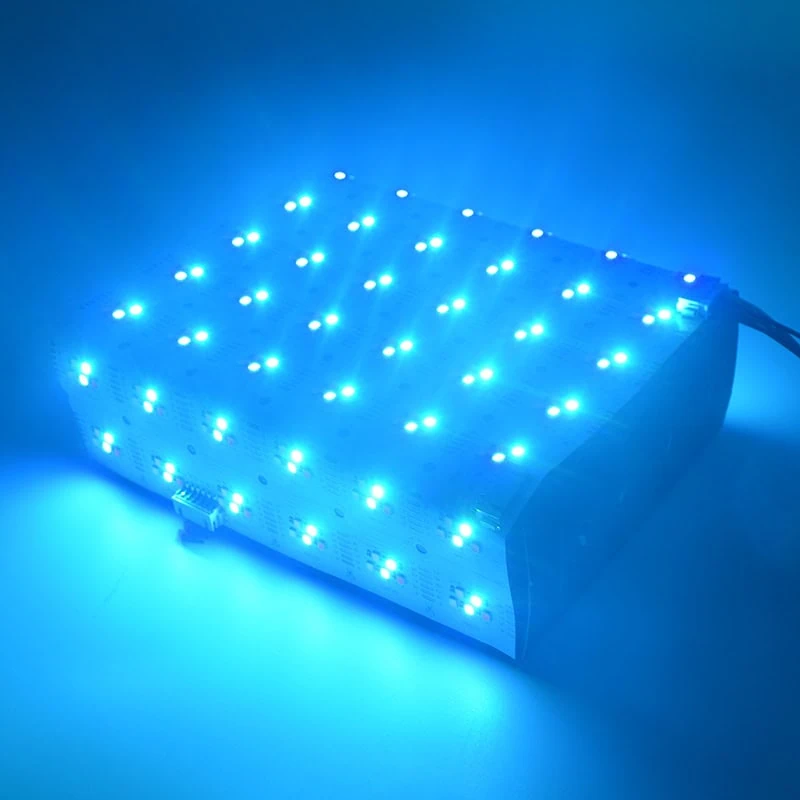

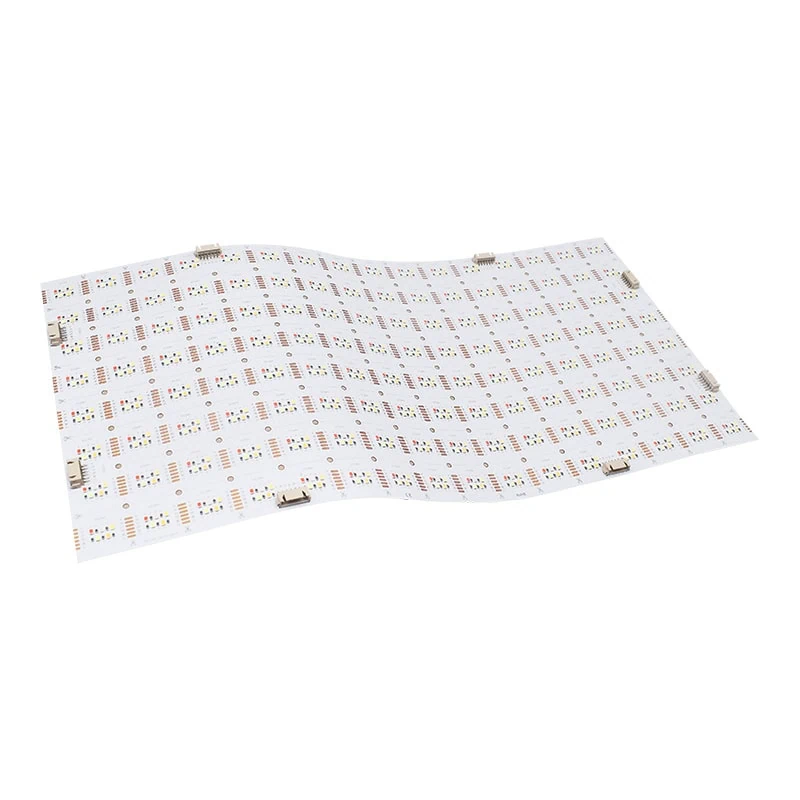

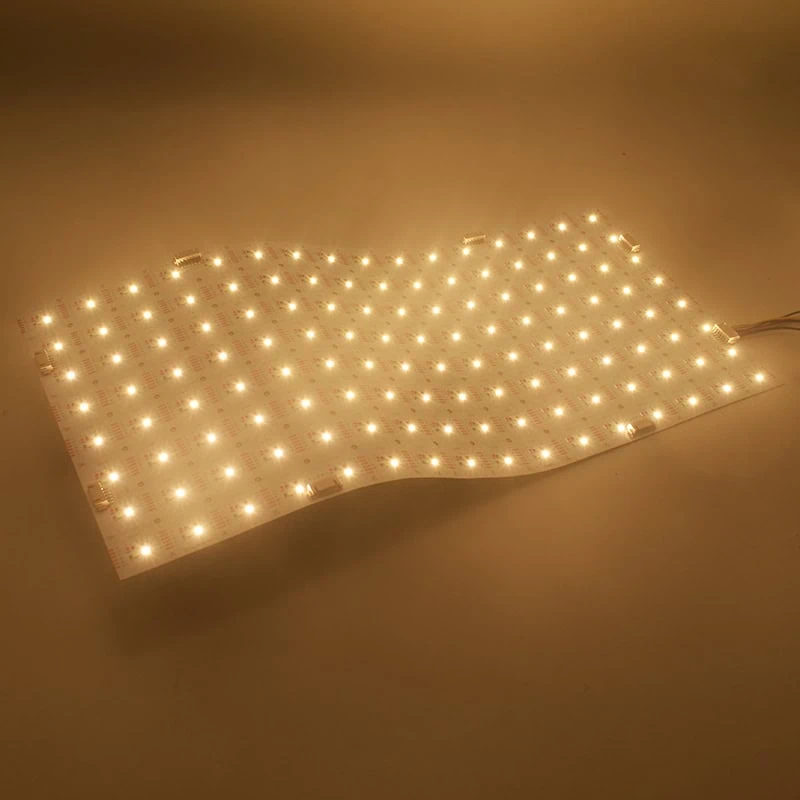

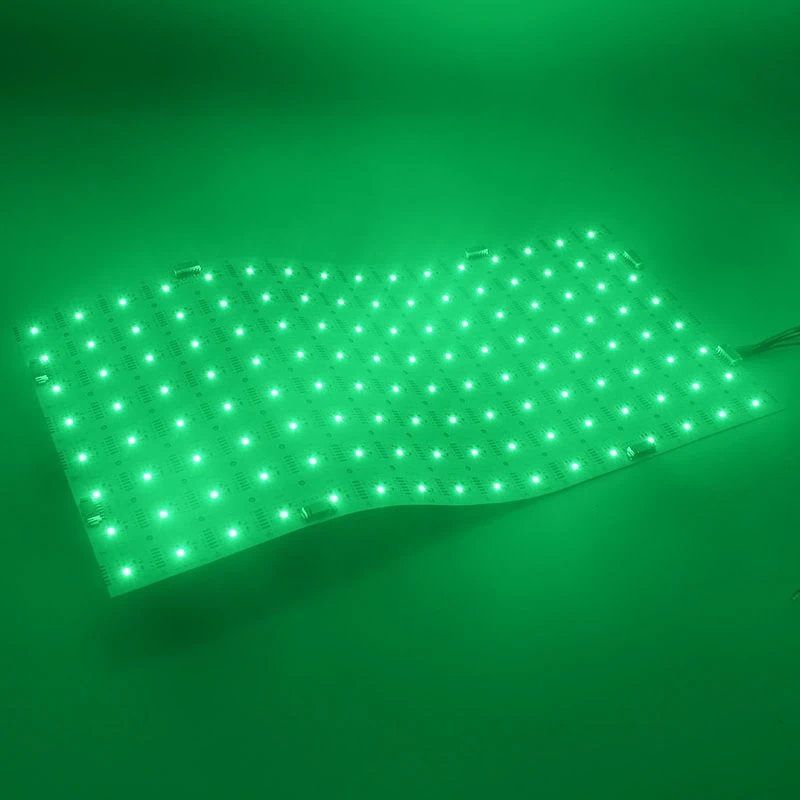

SMD2835 640 LEDs/PCS Flex RGBCCT LED Light Panel For Advertising Lighting
Voltage: DC24V
Current: 2.08A
Power: 50W/PCS
Luminous: 1800Lm/PCS
Dimensions: 490*245mm
Cut Length: 30.6*30.6mm
LED Type: SMD2835
LED Quantity: 640 LEDs/PCS
LED Color: RGBCCT
CRI: Ra>90
Light Efficiency: 90Lm/W
Beam Angle: 120°
Addressable Pixel RGB LED Light Sheet

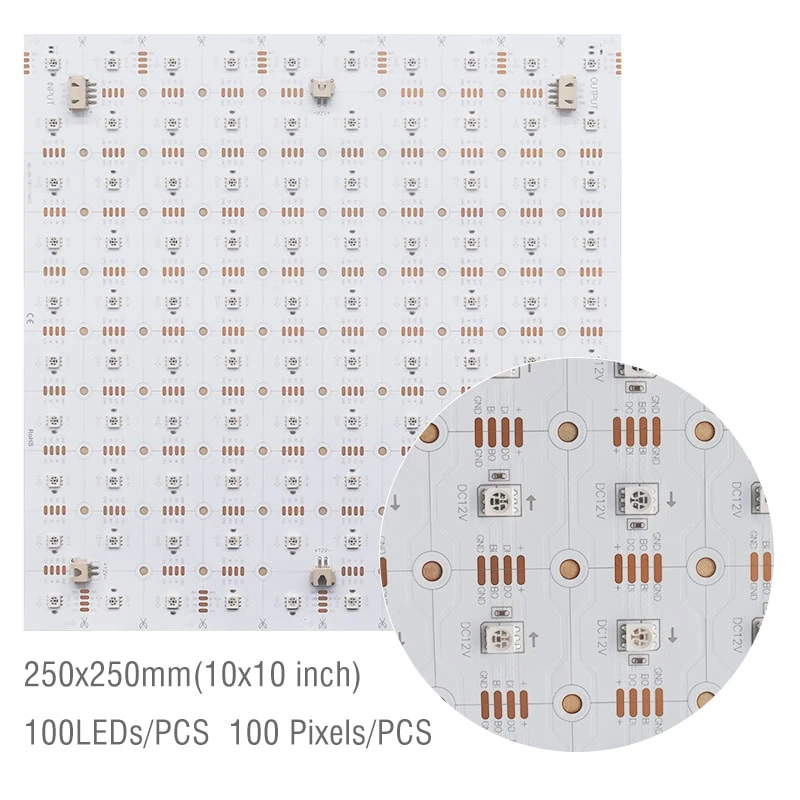

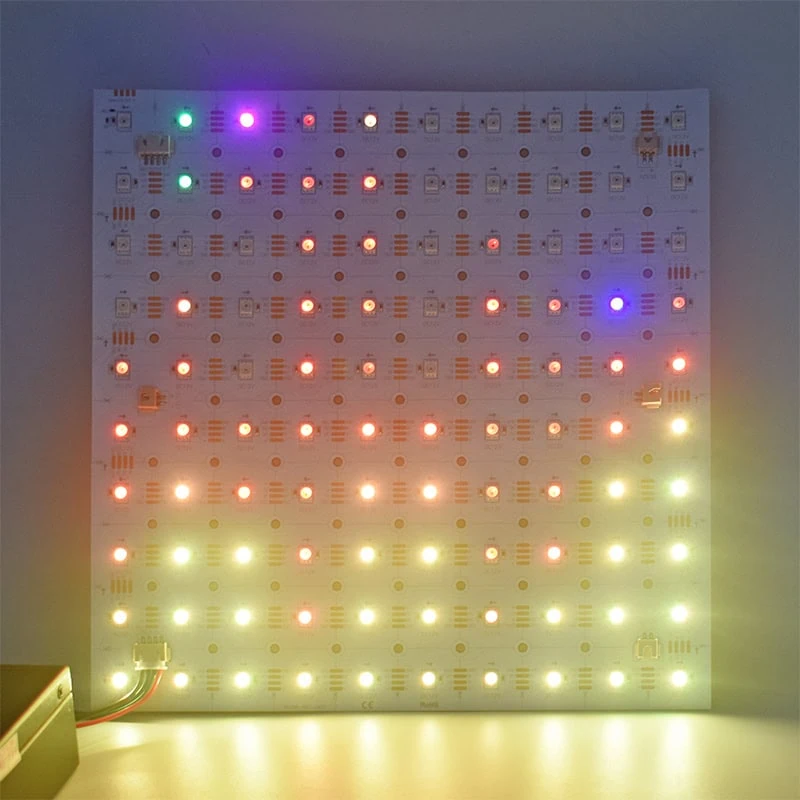

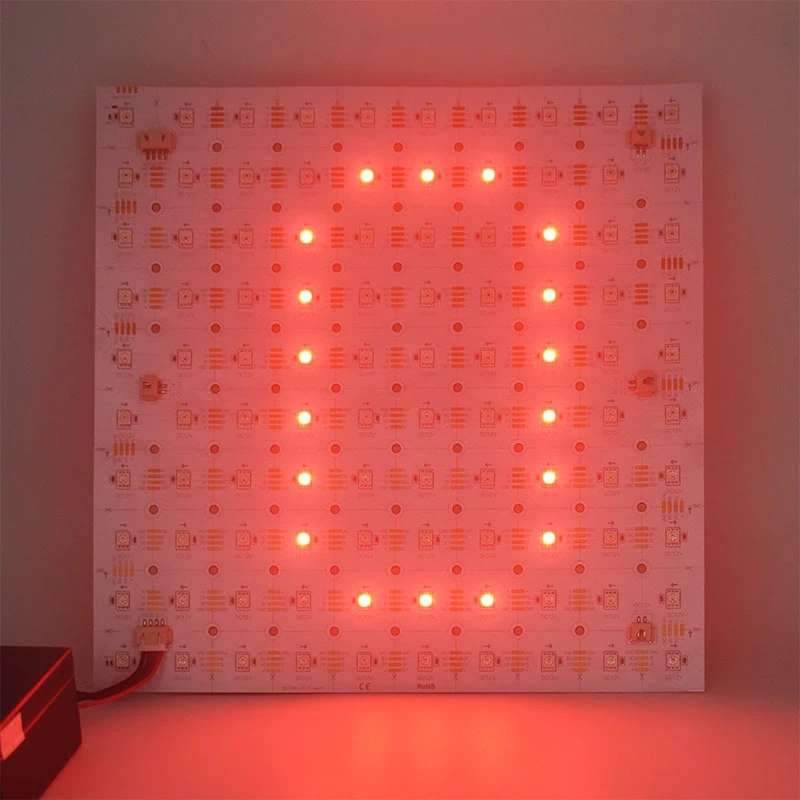

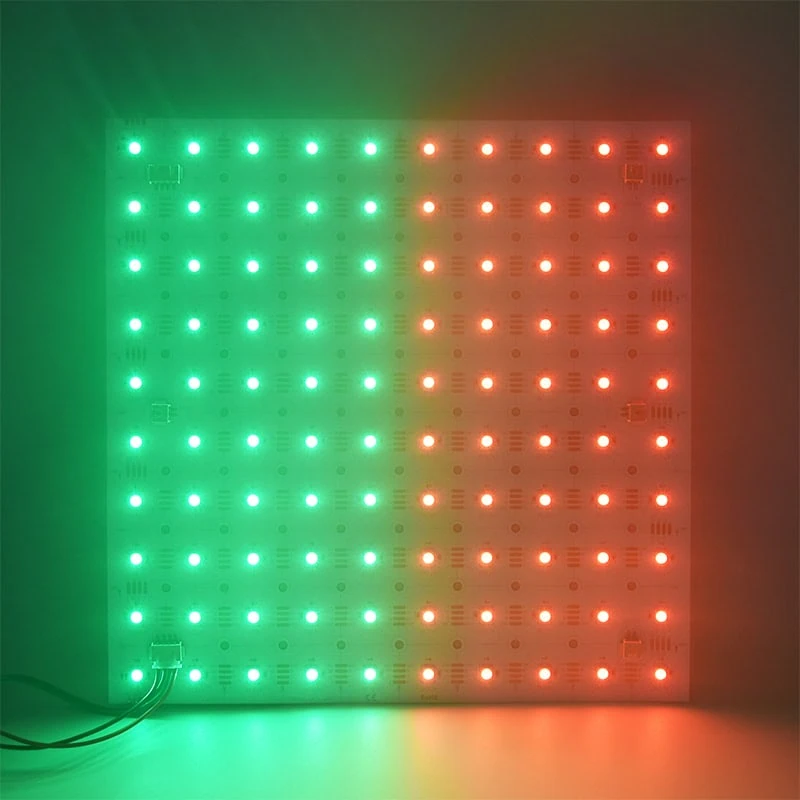

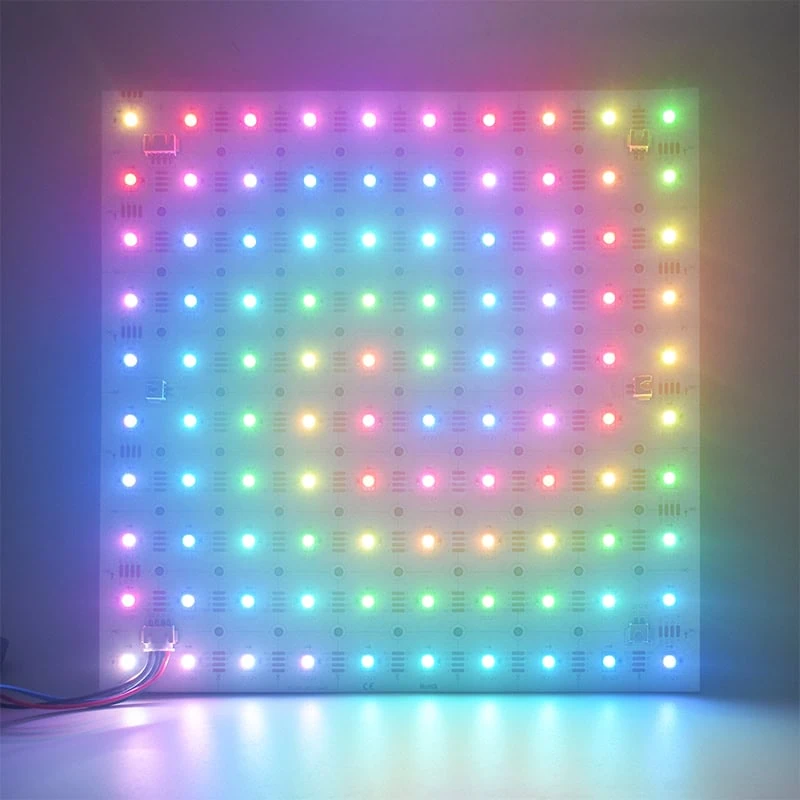

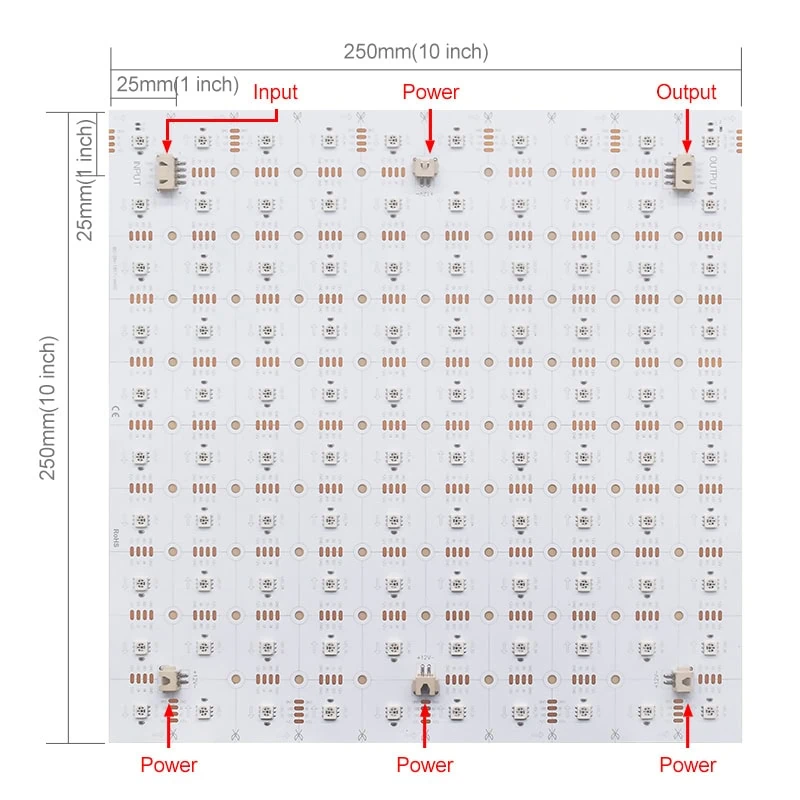

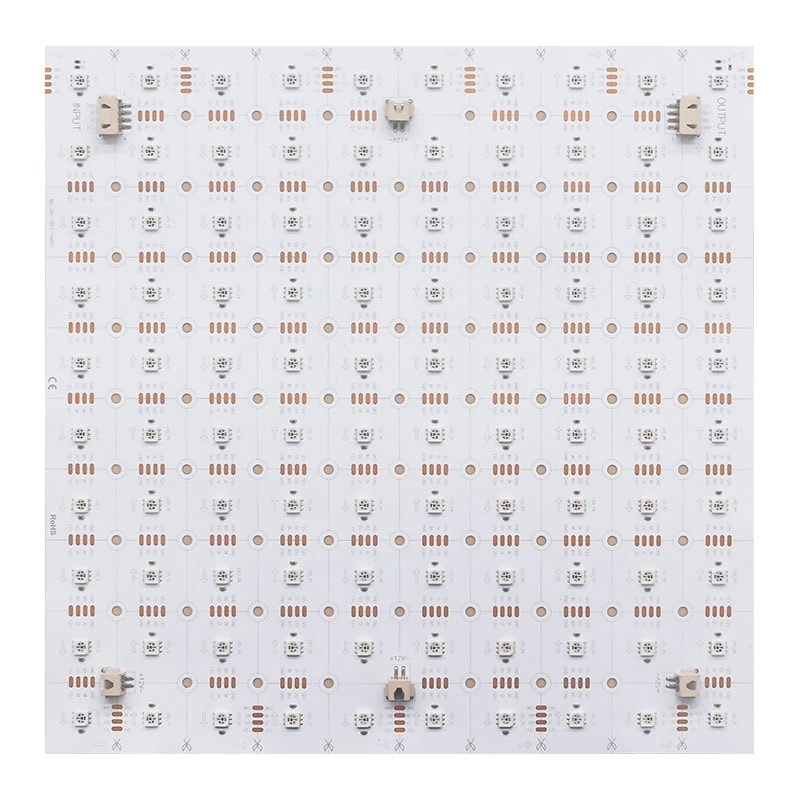

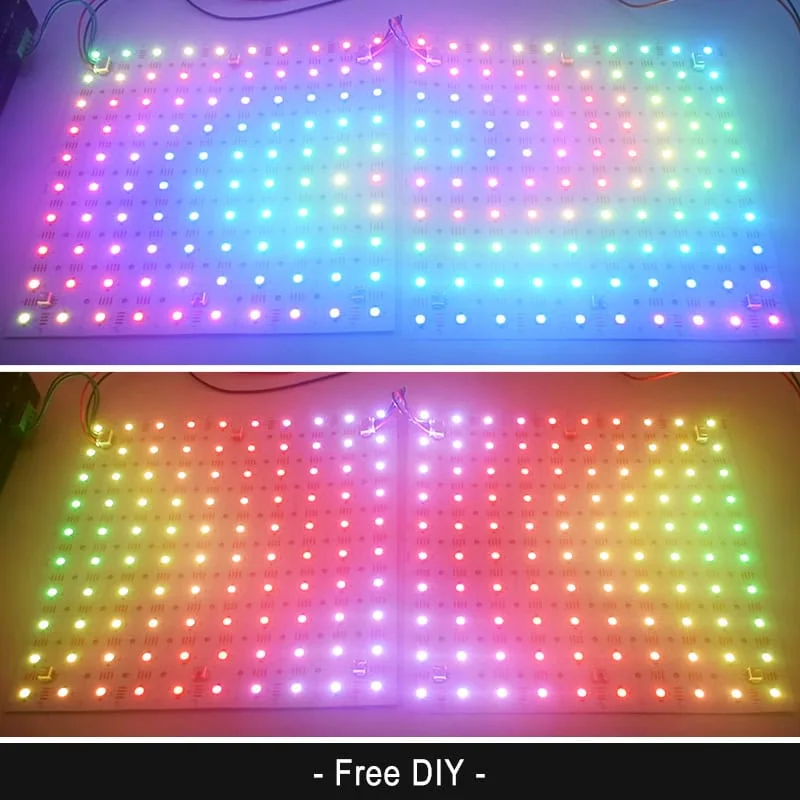

SMD5050 100 LEDs/PCS Flex RGB Digital LED Light Sheet For Facade Lighting
Voltage: DC12V
Current: 1.08A
Power: 13W/PCS
Beam Angle: 120°
Dimensions: 250*250mm
Cut Length: 25*25mm
LED Type: SMD5050
LED Quantity: 100LED/100Pixels/PCS
LED Color: Pixel RGB
Red: 620-625nm
Green: 520-525nm
Blue: 465-470nm

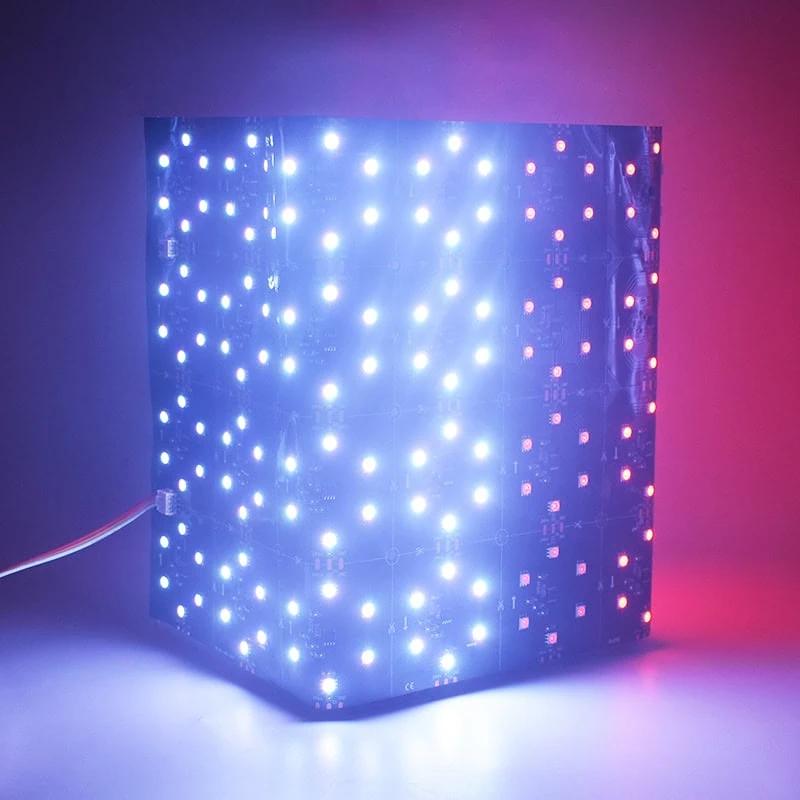

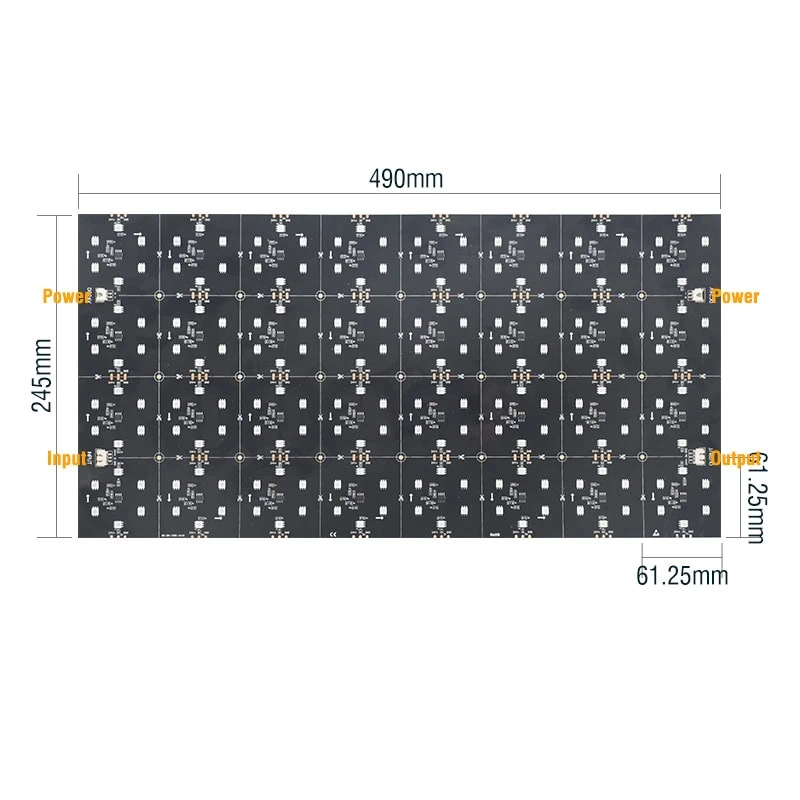

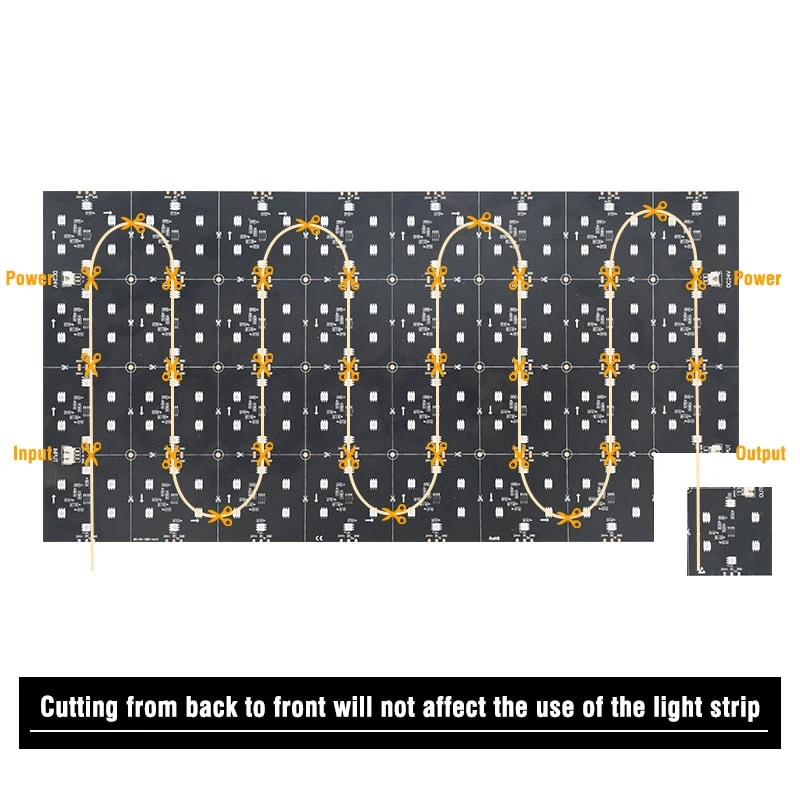

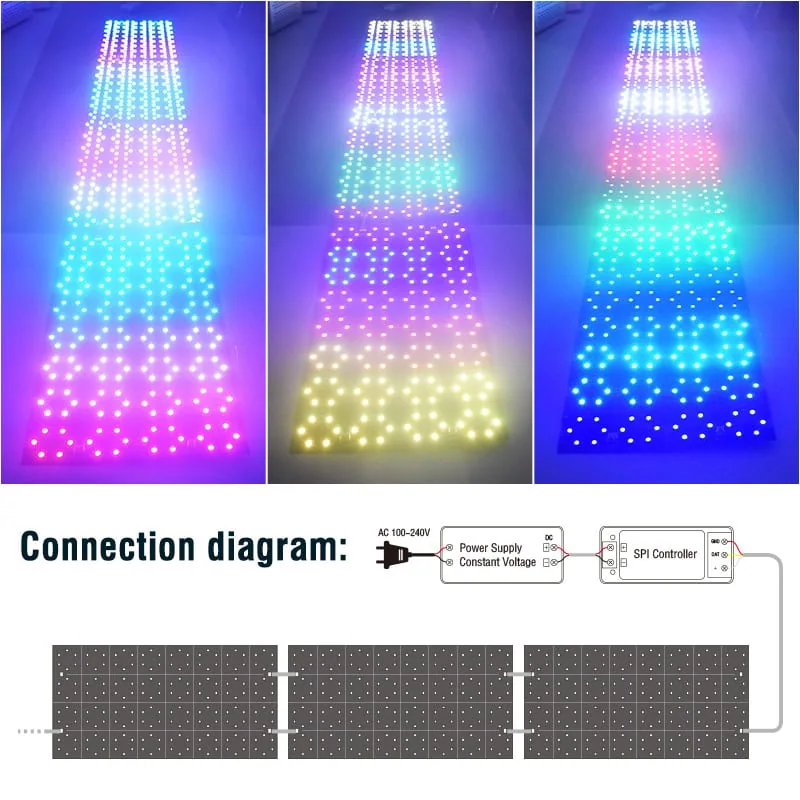

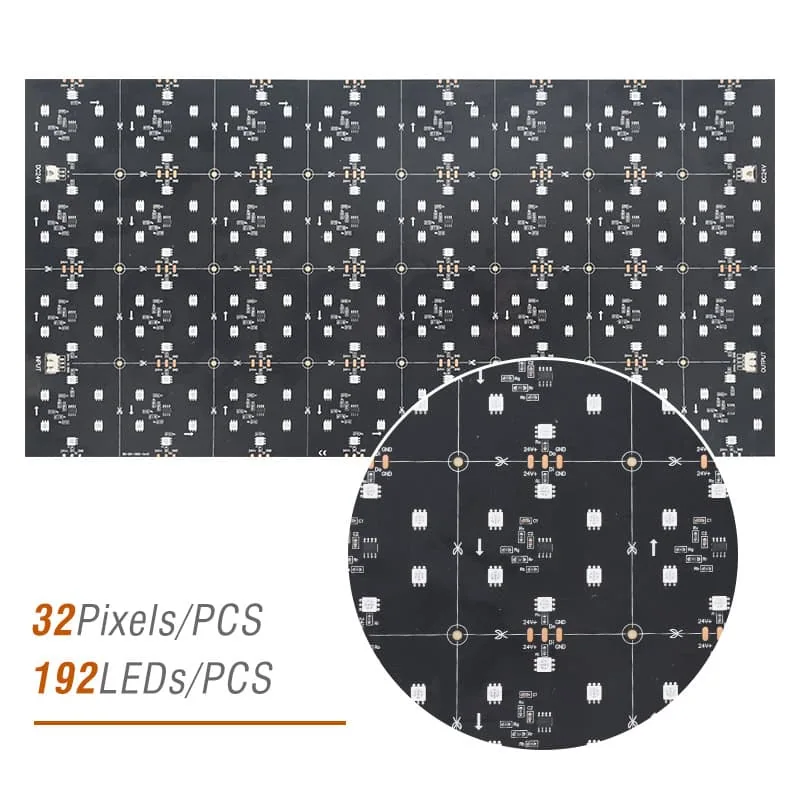

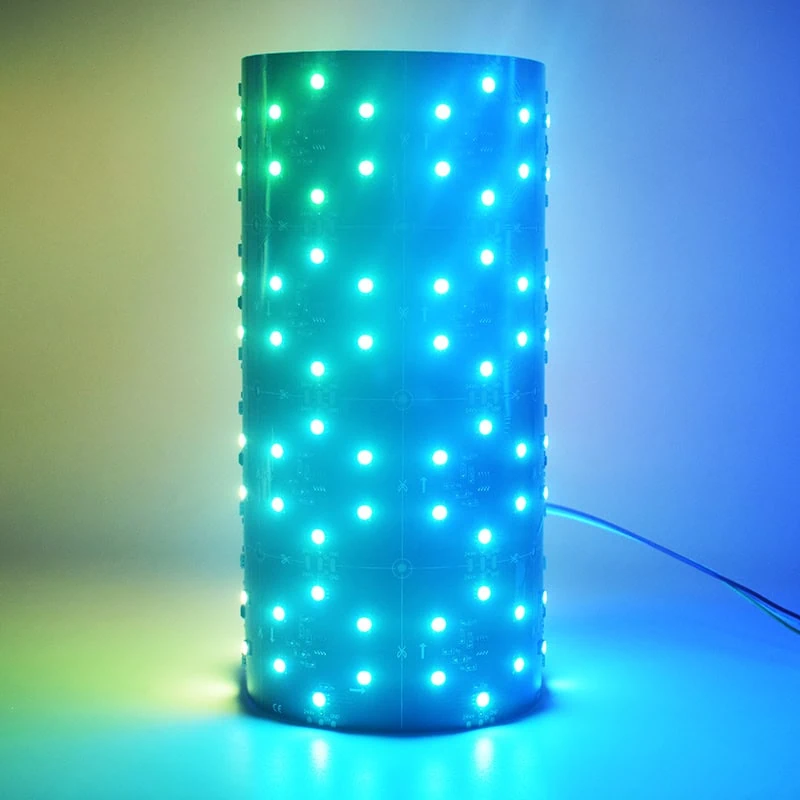

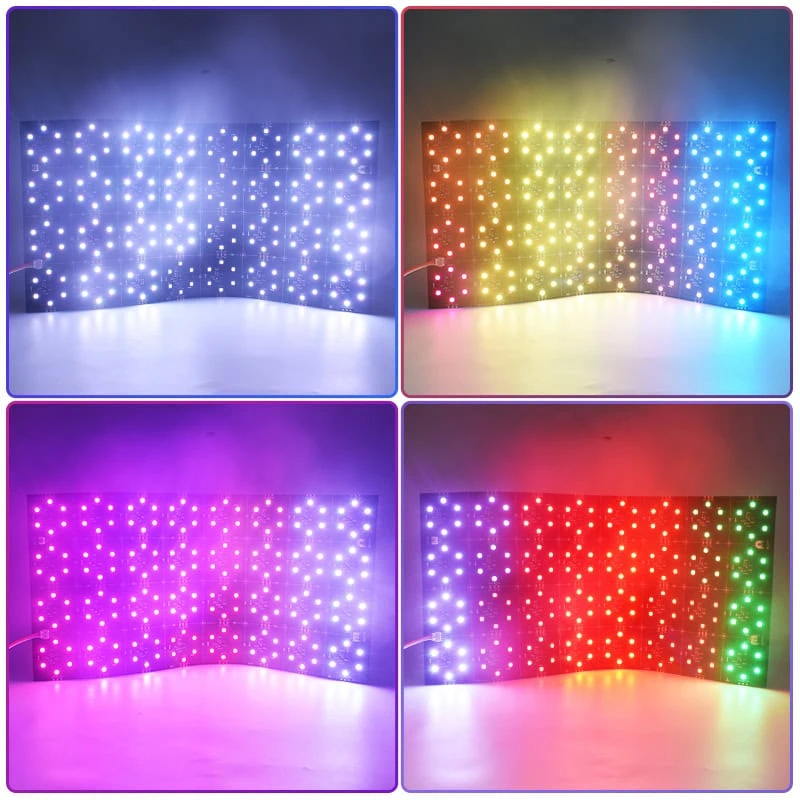

SMD5050 192 LEDs/PCS Flex RGB Programmable LED Light Sheet For Event Lighting
Voltage: DC24V
Current: 1.75A
Power: 42W/PCS
Beam Angle: 120°
Dimensions: 490*245mm
Cut Length: 61.25*61.25mm
LED Type: SMD5050
LED Quantity: 192LED/32Pixels
LED Color: Digital RGB
Red: 620-625nm
Green: 520-525nm
Blue: 465-470nm
LED Light Sheet Panel Video
LED Light Sheet Panel
Addressable LED Light Sheet Panel
