FW1906 LED Strip

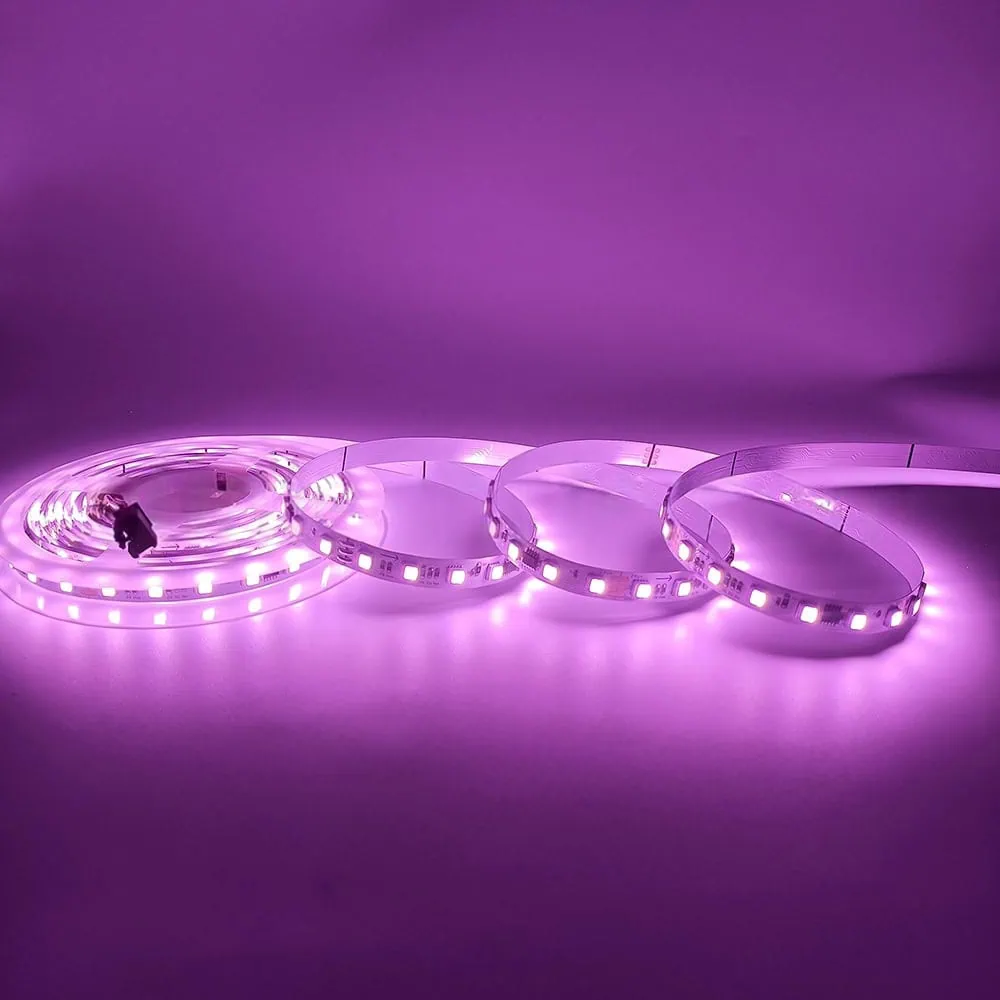

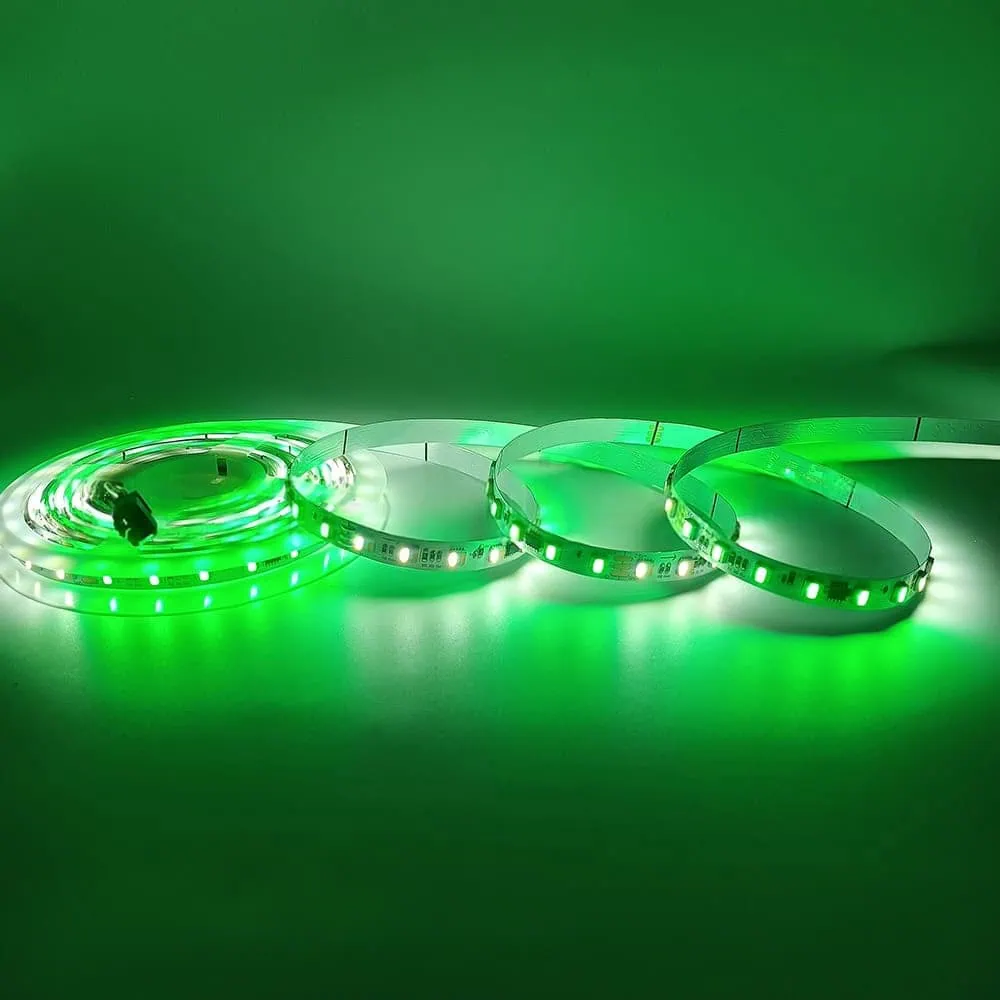

The addressable FW1906 RGBWW Digital LED Strip, similar to the WS2812B, uses a single data signal. The standard density is 72 LEDs per meter. This 24V FW1906 addressable RGB CCT LED strip features six LEDs per pixel.
More Addressable RGBWW RGBCCT LED Strip, click to buy.
Product Feature
1. FW1906 employs a 3-wire configuration (data wire, GND wire, positive power wire).
2. FW1906 offers variable color temperatures (2700K warm white to cool white at 6500K). White light and RGB could also be independently controlled, and this could allow over 1 trillion unique color settings for appropriately matching lighting demands.
3. The standard density of FW1906 is 72,5050 SMD LEDs for every meter. The pixel unit includes every 6 LEDs which help the accurate control of specific strip parts, as well as the flexibility for dynamic light effects.
4. The FW1906 uses a single data signal for control. This lets you freely program each color’s behavior for customizing dynamic modes, static colors, and transitions.
5. FW1906 LED strip: External FW1906 IC, addressable individually.
6. Single-line SPI address drive can make an RGB + CCT five-in-one addressable LED strip.
7. PWM refresh rate can reach 2 kHz/m, data transmission rate up to 800 kbps, support any dynamic running, water, flashing, text, image, and animation effects.
8. 24V long-distance stable power supply: Compared with traditional 5V pixel strips, the 24V design has less voltage attenuation in long-length applications, and can achieve more than 10 meters of continuous operation without obvious brightness attenuation.
9. Using ultra-high brightness 5050 SMD top-level LED, strong luminous flux, service life can reach 50,000+ hours.
10. Cut once every 6 lights, with 3M tape on the back, supporting multiple protection levels IP20/IP65/IP67.
FW1906 LED Strip Manufacturers & Suppliers
We are LEDSuntech. A reliable and quality FW1906 LED strip manufacturer and supplier in China with more than 10 years of rich experience in LED lighting.
We are able to provide LED lighting solutions for our customers’ projects, especially addressable LED strips with a complete connection system. Our factory is ISO9001 certified. Our products have passed various certifications such as CE, RoHS, FCC, UL, ETL, etc.
If you are looking for a reliable supplier of colorful addressable LED strips, please contact us, we will wholeheartedly provide you with quality products and services.
What is FW1906 LED Strip?
FW1906 LED Strip is a digital addressable LED strip based on FW1906 SPI protocol IC. FW1906 IC Specification Datasheet.
Each FW1906 chip is packaged as SOP10, and one IC can drive 6 5-in-1 5050SMD lamp beads at the same time to form a programmable pixel group.
Internal structure: dual RGB channels (6 outputs in total), plus independent warm white and cold white channels, through internal constant current and brightness adjustment circuit, support 256 grayscale and 2 kHz PWM drive.
Control interface: single-line series cascade, signal input (DIN), output (DO) and power + (VDD), ground (GND), simple and easy to use, compatible with a variety of controllers.
FW1906 LED Strip Advantage
1. Supports independent adjustment of RGB and adjustable color temperature (2700 K–6500 K) white light, arbitrary color mixing, ultra-rich colors and adjustable white light.
2. Regular specifications include 60 leds/m, 72 leds/m, 84 leds/m, which can be selected as needed to achieve more refined lighting effects.
3. 24V working voltage greatly reduces line voltage drop. Support longer LED strip length, and facilitates construction and layout of large projects.
4. Can be cut and 3M tape attached, supports multiple protection levels, and adapts to various indoor and outdoor environments.
5. Can be used with control systems such as Tuya WiFi, SD controller, DMX512, Art‑Net, and even voice control through Alexa, Google Home and IFTTT.

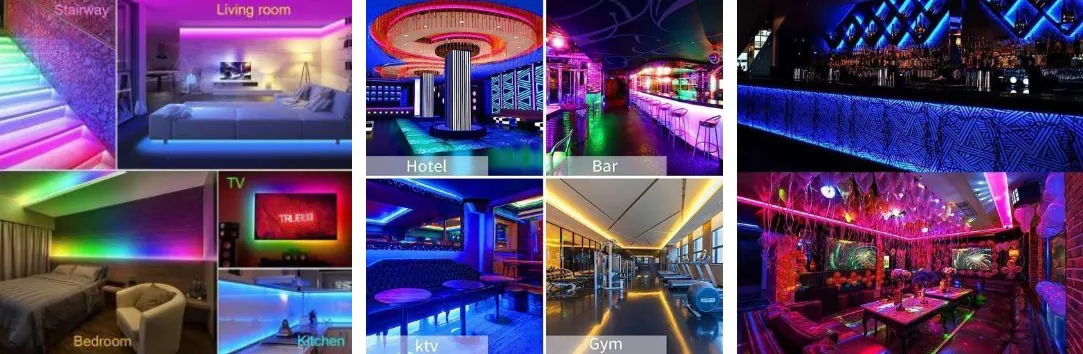

FW1906 LED Strip Application
- Architectural lighting: large-scale lighting decoration such as curtain wall outlines, bridge facades, commercial street scene projection.
- Stage and performance: theater backlight, concert stage edge, disco marquee lighting effect and other variable effect applications.
- Indoor decoration: home cabinets, bar counters, hotel corridors, shop windows and other atmosphere lighting arrangements.
- Outdoor landscape: garden sketches, fountain outlines, night scene lighting projects, etc., IP65/IP67 version is waterproof and dustproof.
- Advertising and logo: programmable display of text, logo, dynamic graphics to enhance the interactivity between brand and space.
Wholesale FW906 LED Strip Series
Voltage: 24V.
PCB Width: 10mm.
LEDs density: 72 LEDs/m.
Color: RGBCCT
Waterproof type: IP20/IP65
If the parameters of the fw1906 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.
Specification Download
| Specification Name | Download |
|---|---|
| 3PIN RGBCCT 72ledsm FW1906 24V LED Strip Specification |
|
Product Testing
In order to provide customers with the best product quality, we are equipped with complete quality testing equipment. Distributed according to safety area, EMC area, photoelectric area, IP waterproof area, aging area and product reliability area. The inspection covers products such as LED light strips, neon light strips, linear lamps, power supplies and related accessories. Providing customers with the highest quality products is our consistent aim.
