High Density Addressable LED Strip
High density addressable LED strips are also called IC-controlled high-density LED strips. A large number of programmable LEDs are compactly arranged on a single flexible PCB board – usually 120, 144, or even up to 180 or more per meter.
Unlike ordinary light strips, each LED (or each group of LEDs) is individually addressable. The color, brightness, and dynamic effects of each LED can be set independently through software. This allows ultra-smooth gradients, precise streamers, and complex animations.
Combining ultra-dense pixel pitch with onboard control chips, these high density LED strips have the following features:
120-180 or more LEDs per meter for seamless gradients and delicate visual effects. With ultra-high resolution.
Each pixel is equipped with a dedicated IC for independent color and brightness adjustment. It can be individually addressed and controlled point by point.
LEDSuntech offers multiple versions such as single cold white/warm white, adjustable color temperature (CCT), RGB, RGBW, RGBCCT, etc.
Category
Addressable White LED Strip
UCS2903 DC24V 120 LEDs/m 20mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm
There are 120 LEDs/m on this 20mm white addressable white led strip. With DC24V input, it is 12 LEDs/100mm cuttable. Designed with two rows of pcb, this 120 LEDs led strip can provide a more cohesive and intensive lighting effect with its high density. There are 5 pin lines on the pcb with two positive wires, two negative wires and one signal line.
UCS2903 DC24V 120 LEDs/m 20mm CCT LED Strip
Color: CCT
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20 mm
This double row addressable CCT led strip adopts external UCS2903 ICs. The input voltage is DC24V. Every 12 LEDs are controlled by one pixel. The back tape is genuine 3M cohesive, which makes the led strip easily fixed and installed on the surface. Various color temperatures are available to be chosen. The pcb width of this double row led strip is 20mm.
FW1935 DC24V 120 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
There are 120 LEDs per meter on this FW1935 digital white led strip. The input voltage is DC24V and the pcb width is 10mm. This led strip adopts SMD2835 White LEDs. 3000K warm white, 4000K natural white and 6500K daylight are available. It is 12 LEDs cuttable. This led strip use 4 pin JST wire with two signal lines for data transmission.
WS2815 DC12V 120 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 10mm
This individually addressable white led strip adopts the internal WS2815 IC. There are 120 LEDs and 120 pixels per meter. With DC12V input voltage, this led strip is two leds cuttable. The cutting unit is 16.6mm long. The width of pcb is 10mm. With higher density of LEDs, this led strip can provide a more consistent and uniform glow.
Addressable RGB LED Strip
WS2811 DC24V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 50 mm
Power: 24W/m
Pixel Qty: 20 Pixels
Break Continue: No
PCB Width: 5mm
This WS2811 IC controlled RGB LED strip has a very high LED count of 120. However, the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes, such as stage, art design and DIY works. Using an SPI controller or DMX decoder, users can achieve rich lighting effects and animations as needed to create personalized lighting solutions.
WS2818 DC24V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 14.4 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10mm
This is a 24V programmable RGB LED strip, with a high density of 120 LEDs per meter. Dual signal line version and signal breakpoint continuous transmission. The WS2818 RGB LED strip with 120 LEDs per meter, higher brightness and more even light. This digital pixel LED strip light works under 24V voltage, and needs a 24V power supply.
UCS2903 DC24V 120 LEDs/m 20mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 24 W/m
Pixel Qty: 10 Pixels
Break Continue: No
PCB Width: 20mm
This UCS2903 double row SMD 5050 addressable RGB led strip with 120 LEDs per meter, 20mm PCB wide. The addressable UCS2903 double row RGB LED strip has more LED diodes on the same length, which allows it to provide a stronger illumination, and more even and brighter light. This digital pixel LED strip light works under 24V voltage, and needs a 24V power supply.
WS2815 DC12V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 5 mm
This WS2815 IC controlled RGB LED strip has a very high LED count of 120, but the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes, such as stage, art design and DIY works. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.

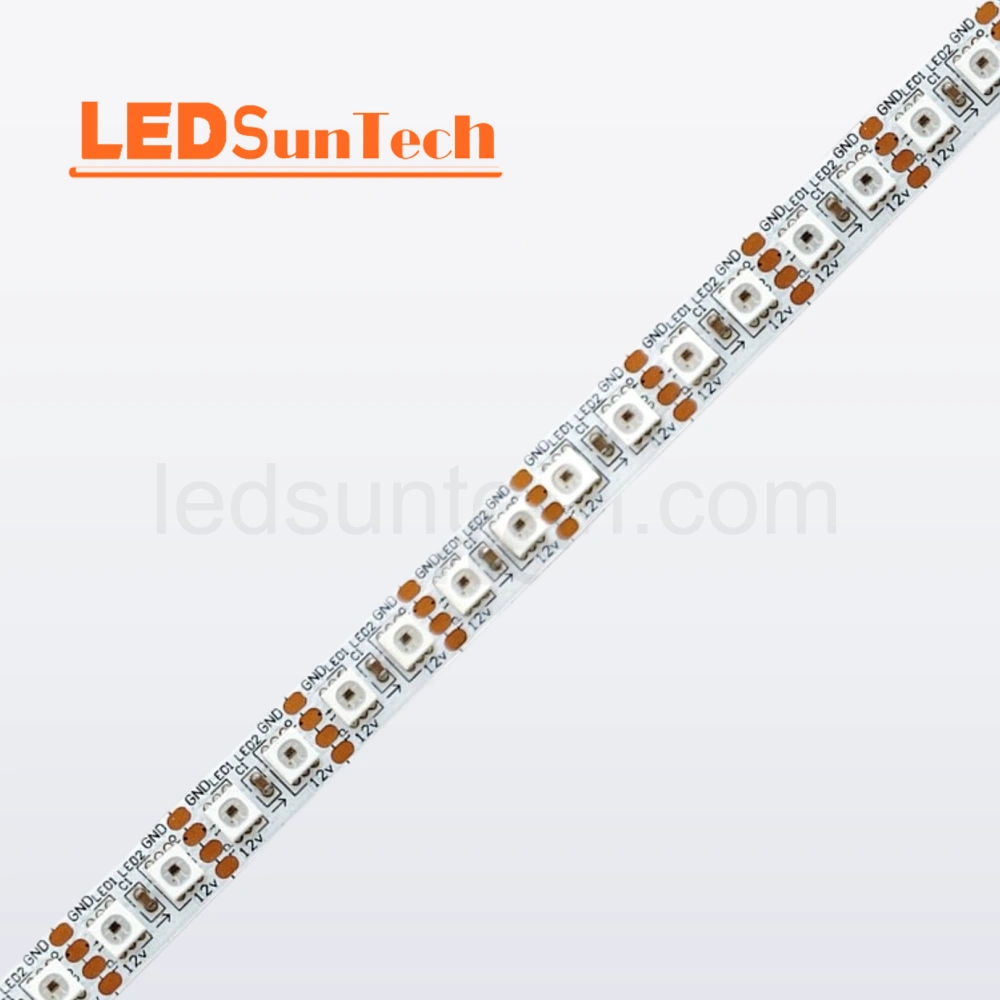

WS2815 DC12V 120 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 24 W/m
Pixel Qty: 120 Pixels
Break Continue: Yes
PCB Width: 12 mm
This is a DC12V WS2815 RGB LED strip, with 120 lights per meter. Every 1 IC control 1 LEDs, each light-emitting diode is individual addressable, you can set the color of each LED. Using an SPI controller or DMX decoder, users can achieve rich lighting effects and animations as needed to create personalized lighting solutions.

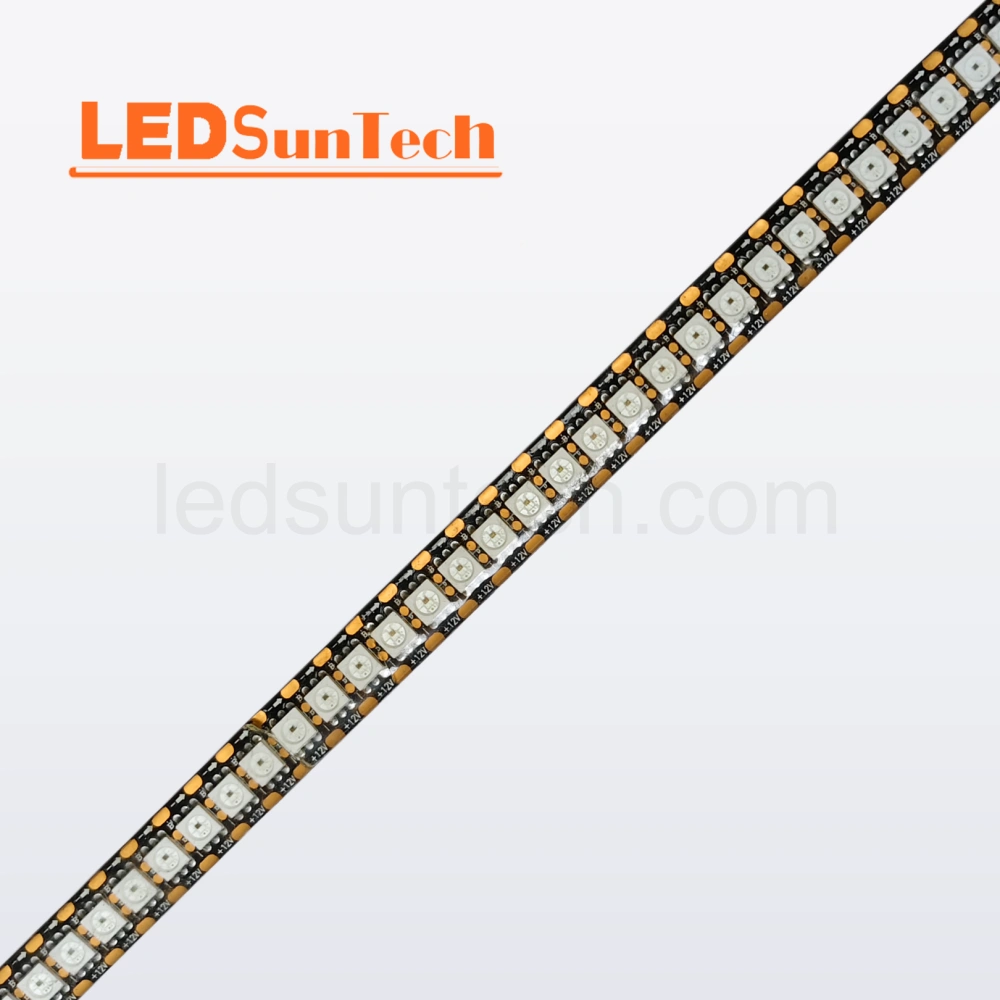

WS2815 DC12V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC12V
Cutting Unit: 13.89 mm
Power: 20.6 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This is an RGB addressable LED strip controlled by WS2815 IC, operating at a low voltage of 12V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.
WS2812 DC5V 148 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 148
Voltage: DC5V
Cutting Unit: 13.5 mm
Power: 20 W/m
Pixel Qty: 148 Pixels
Break Continue: No
PCB Width: 8 mm
This LED strip controlled by WS2811 IC supports dynamic color chasing, changing and static color modes. Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. There are 60 LEDs per meter, and the higher LED density supports richer color changes. The low voltage DC 5V voltage input makes it ideal for a variety of small decorative and DIY projects to provide ambience to your creations.
WS2812C DC5V 200 LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 25 mm
Power: 40 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
There are 200 Addressable RGB LEDs per meter, and 3.5mm wide for 200LEDs/meter, DC5V input. This extremely thin led strip features individually addressable WS2812C RGB LEDs, intelligent control, allowing for various LED colorful effects and animations to be displayed. The compact size of the WS2812C 2020 digital rgb led strip is suitable for applications where a slim design is required. It operates on a 5V low voltage, safer to use.
WS2812 DC5V 350 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 350
Voltage: DC5V
Cutting Unit: 2.85 mm
Power: 22 W/m
Pixel Qty: 350 Pixels
Break Continue: No
PCB Width: 10 mm
This LED strip controlled by WS2812 IC supports dynamic color chasing, changing and static color modes. There are 350 LEDs per meter, and the higher LED density supports richer color changes. The minimum cutting unit is 2.85mm, and you can cut it into different lengths according to the project and requirements. With a 3M double-sided tape, you can stick the addressable led strip to any flat or uneven surface.
WS2813 DC5V 144 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This 5V WS2813 5050 RGB 144 addressable led strip has a breakpoint transmission failure recovery mechanism, which enables data transmission to continue from the last interrupted position when re-powered after a power failure or abnormal interruption. This dual signal WS2813 144 led strip RGB doesn’t need to add resistors inside the SMD LED or on the PCB board, presenting a clean look while maintaining functionality.
APA102 DC5V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
This is an RGB addressable LED strip controlled by APA102 IC, operating at a low voltage of 5V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. This APA102 RGB DC5V 144 LEDs/m Addressable LED Strip Lights with pure color, 5050 RGB FPC board on the back of 3M glue, easy to install low energy consumption, high brightness.
APA102 DC5V 200LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 5 mm
Power: 43 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
This APA102 RGB DC5V 200LEDs/m Addressable LED Strip Lights have 200 RGB LEDs per meter, and 3.5mm wide for 200LEDs/meter, DC5V input. This extremely thin led strip features individually addressable APA102 RGB LEDs, intelligent control, allowing for various LED colorful effects and animations to be displayed. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes.
WS2818 DC24V 120 LEDs/m 5mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 10 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 5 mm
This WS2818 IC controlled RGB LED strip has a very high LED count of 120, but the width of the strip is only 5mm. It is very suitable for use in narrow places that require high brightness and rich color changes. It uses DC24V voltage for power supply, which is low-carbon, radiation-free, flicker-free, pollution-free to the human body and the environment, and safe and stable.

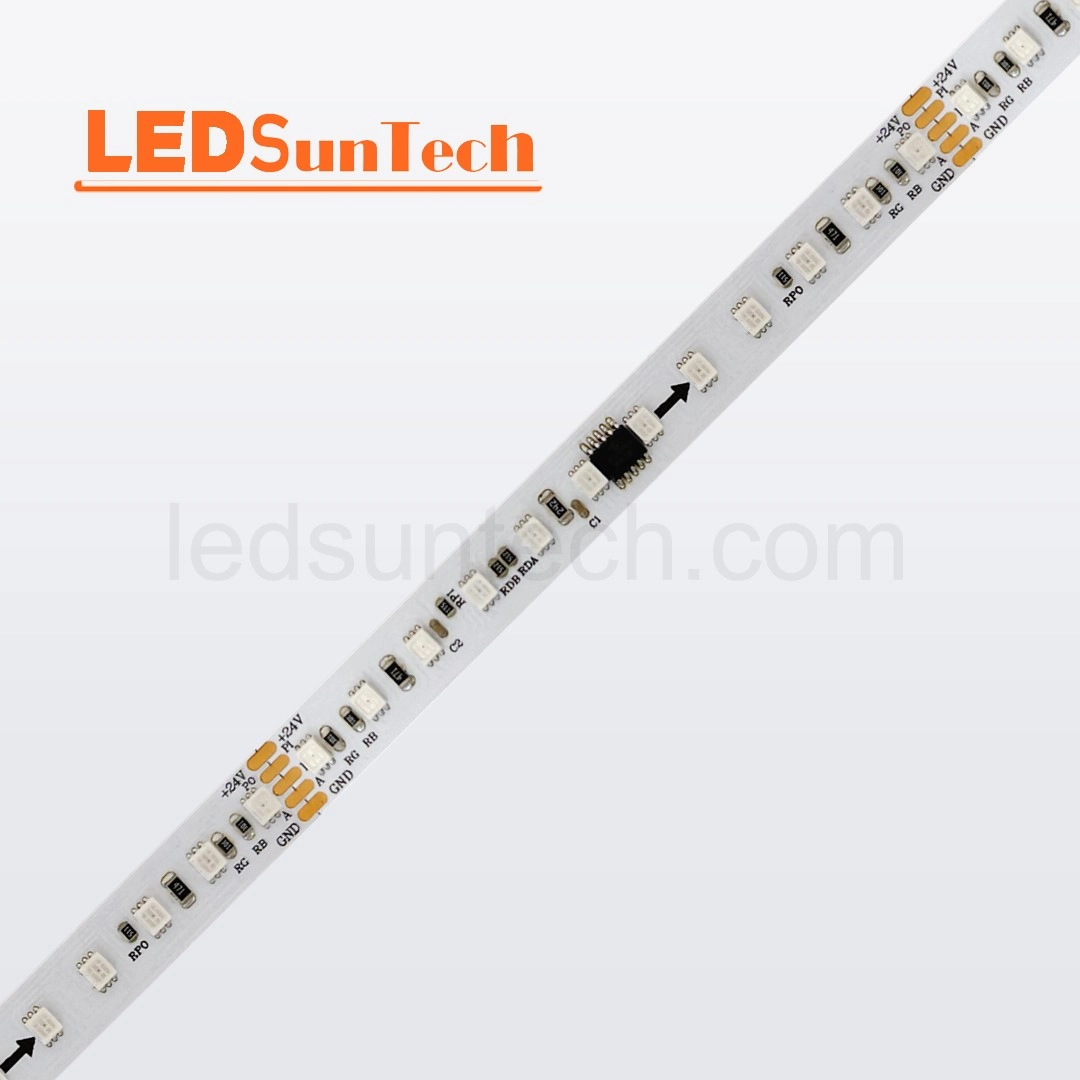

DMX DC24V 120 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 120
Voltage: DC24V
Cutting Unit: 100 mm
Power: 28 W/m
Pixel Qty: 10 Pixels
Break Continue: Yes
PCB Width: 10 mm
This is a DMX controlled RGB addressable LED strip controlled by UCS512 IC. DMX512 Digital Addressable RGB LED strip lights can be programed via the artnet pixel controller, easy to get the chasing color effects you like. There are 12o LED chips per meter on the 10mm wide PCB board. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes.
Addressable RGBW LED Strip
SK6812 DC5V 144 LEDs/m 8mm RGBW LED Strip
Color: RGBW
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43.2 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 8 mm
This is a RGBW addressable LED strip controlled by SK6812 IC, operating at a low voltage of 5V. There are 144 LED chips across each meter. High density ensures a bright and even RGB LED lighting, with various dynamic lighting modes. The RGBW led strip lights have a separate white chip channel, its white color is pure white, unlike RGB white which is bluish or purplish.
