When choosing an LED strip, one question always comes up: how bright is the brightest LED strip?
Many people assume that higher watts or more LEDs mean more brightness. But in reality, brightness is not that simple. The true performance of an LED strip depends on factors like lumens, efficiency, LED type, voltage, and even how it is installed.
In this guide, we will break down what really determines brightness and help you understand how to choose the right LED strip for your needs.

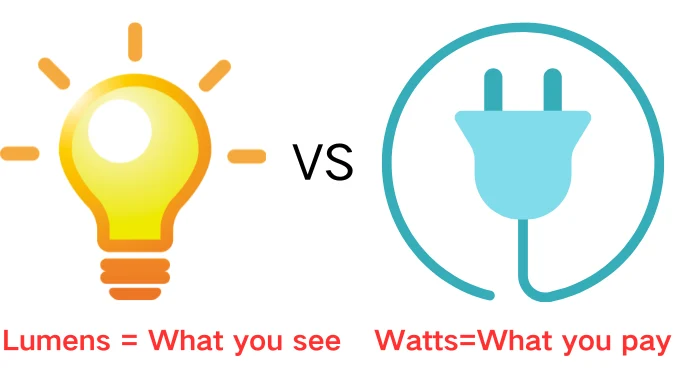

Lumens vs. Watts: What Truly Defines Brightness
Lumens (lm) are the standard unit for measuring luminous flux—the total visible light emitted by a source. While wattage tells you how much energy a light consumes, lumens tell you how bright it actually is.
Two Misconceptions about Brightness
1: “More watts = brighter”
Watts only show how much power is used, not how bright the light is. Higher wattage does not always mean higher brightness.
2: “More LEDs = more light”
A higher LED count does not guarantee more brightness. What really matters is lumen output and efficiency.
What different lumen levels look like
- 200–400 lumens: soft and gentle light, good for mood or background lighting
- 600–900 lumens: bright enough for accent lighting, like cabinets or walls
- 1000+ lumens: strong light for tasks, such as work areas or kitchens
Next time don’t focus on watts or LED quantity. Lumens per meter is the best way to judge real brightness.
Standard vs. High-Efficacy LED Strip
Lumens (lm) show how bright a light is. The higher the lumens, the brighter the light.
Luminous efficacy (lm/W) shows how efficient the light is, which means how much brightness you get for each watt of power. Higher efficacy means more energy saving and less heat.
Simply put:
- more lumens = brighter light
- higher efficacy = better energy savings and lower heat generation.
| Category | Standard | Higher Efficacy | Ultra-High Efficacy |
|---|---|---|---|
| Typical Efficacy | 80 – 100 lm/W | 130 – 180 lm/W | 200 – 230 lm/W |
| Lumens/m (based on 10W/m) | ~800 – 1000 lm/m | ~1300 – 1800 lm/m | ~2000 – 2300+ lm/m |
| Cutting Spec | 3 or 6 LEDs/cut | 8 LEDs/cut | 9 LEDs/cut |
| Voltage | DC 12V / 24V | DC 24V | DC 24V |
| Best For | Budget projects, short runs. | Retail displays, general ambient light. | Museums, long runs, task lighting. |
At the same power consumption (10W/m), the ultra-efficient LED strip is 2.5 times brighter than the standard LED strip, and generates significantly less heat.

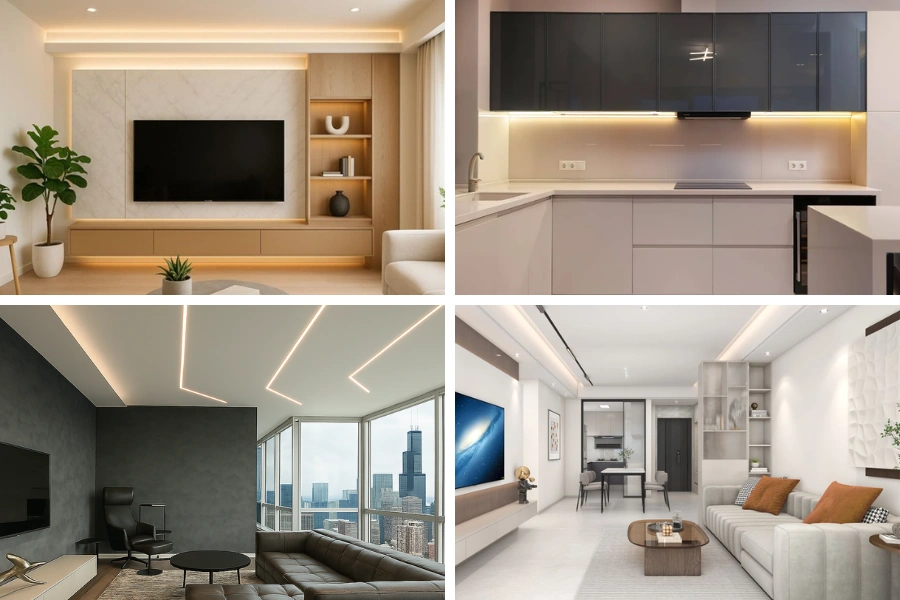

Best Use Cases for Standard and High-Efficiency Models
Standard LED Strip Positioning: Basic lighting, local accent, good value for money
- Ambient lighting: Great for TV backlighting or ceiling coves where you need soft, indirect light
- Short-range lighting: Good for under cabinets or shelves where you need simple, practical lighting
- DIY projects: Affordable and easy to use, perfect for hobby and custom setups

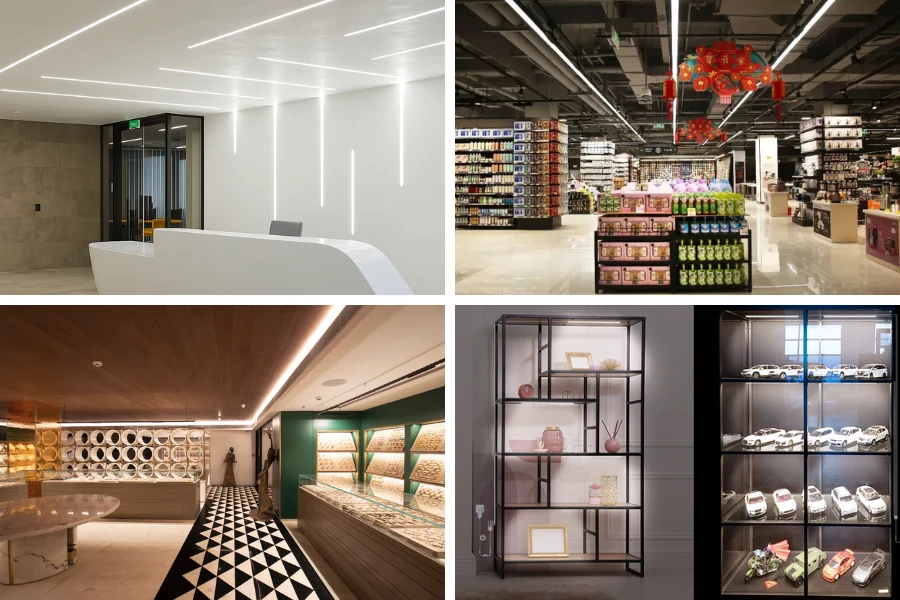

High-Efficacy LED Strip Positioning: Main lighting, high-end applications.
Luminous Efficacy vs. CRI
In general, when you increase efficiency, CRI may decrease, and vice versa.
However, modern LED technology is improving, so you can now get both good efficacy and high CRI in many products.
| CRI (Ra) | Category | Efficacy | Best For… |
|---|---|---|---|
| < 70 | Low CRI | Highest | Warehouses, Tunnels (Industrial) |
| 80-85 | Standard | Balanced | Homes & Offices (General Use) |
| > 90 | High CRI | Lower | Museums & High-end Retail |
| > 97 | Full Spectrum | Lowest | Photography & Premium Home Care |
3 Factors that Determine Brightness
1. LED Type & Density
| LED Type | Power per LED(W) | Lumens per LED | Key Characteristics |
|---|---|---|---|
| SMD 3528 | 0.06 – 0.08 | 6 – 8 | Low power, low brightness density |
| SMD 2835 | 0.2 | ~24 | High efficacy, best cost performance |
| SMD 5050 | 0.24 | 18 – 20 | Larger chip, lower efficacy than 2835 |
| COB | 0.03 – 0.05 | 4 – 7 | Seamless light, high density |
The Density Factor
Thanks to better LED technology, modern strips can produce more light while using less power. Here’s how different densities look in real use:
- Standard density: 30–60 LEDs/m — visible light dots, suitable for hidden installation
- High density: 120–180 LEDs/m — dots are still visible up close, but the light is smoother
- Ultra density: 240+ LEDs/m — dots are hardly visible, looks almost like a continuous line
- COB: 300–500+ LEDs/m — no visible dots, completely smooth light

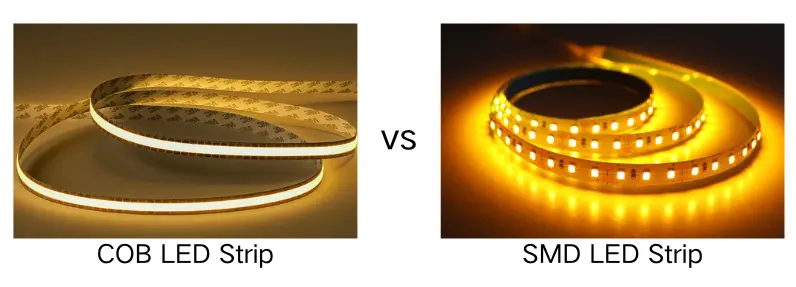

The COB Advantage
COB strips often look brighter even if the lumen values are similar. This is because the light comes from a continuous line instead of separate points, so it appears more even and stronger to the eye.
2. Voltage & Voltage Drop
The “bright at the beginning and dim at the end” issue in long LED strips happens because voltage drops along the strip due to resistor.
Even a small voltage drop can make the LEDs noticeably dimmer and cause the color to shift toward yellow.
If you want to learn about the knowledge related to installing LED strips, you can click on: How to Install LED Strip Lights in Your Bedroom
| Voltage | Best For | Voltage Drop |
|---|---|---|
| 12V | Short runs (<5m) | Highest—drops fast |
| 24V | Most homes | Medium—balanced performance |
| 48V | Long runs, commercial | Lowest—best for distance |
3. Heat & Mounting
High temperature makes LEDs less efficient, so brightness drops as temperature rises. It can also speed up light decay and cause the color to shift slightly yellow.
How you install the strip affects heat dissipation. If you install it without an aluminum channel or stick it on insulating materials, heat builds up and brightness drops quickly.
Installation with an aluminum channel can help release heat faster, keep the LEDs cooler and brighter, and extend their lifespan.
Learn more relevant information : LED Strip Troubleshooting
How Much Brightness Do You Actually Need
Here’s the truth: more lumens isn’t always better. A strip that looks perfect behind a TV can be too bright in a kitchen. The key is to choose the right brightness for your space.
Match Lumens to Your Space
| Where | Lumens Per Meter | What You Need to Know |
|---|---|---|
| Behind TV / Ambient glow | 400-700 lm/m | You want a glow, not a spotlight. Too bright here actually ruins the effect and strains your eyes during movies. |
| Under cabinets / Desk work | 800-1200 lm/m | You need clear light so you can see what you are doing, such as chopping vegetables, reading, or working. |
| Accent walls / Artwork | 600-900 lm/m | Enough to make things pop, not so bright it washes out colors. |
| Bedroom mood lighting | 200-500 lm/m | Keep it low and relaxed. Your bedroom shouldn’t feel like an operating room. |
Conclusion
Choosing the brightest LED strip is not about picking the highest number on the spec sheet. It is about finding the right balance between brightness, efficiency, installation, and application.
From lumen output and LED density to voltage stability and heat management, every factor plays a role in how bright your strip actually performs in real use.
Instead of asking “what is the brightest,” a better question is: what brightness is right for your space?
When you match the right lumens per meter to the right application, you not only get better lighting, but also better comfort, efficiency, and long term performance.
