ESP8266 is a powerful 32-bit microcontroller. How to control RGBW LED strips with ESP8266?
This article will show you how to properly connect and use ESP8266 with RGBW led strip. And it will teach you how to program the ESP8266.
1. Materials Required
Non-Waterproof Power Supply
Output
- Voltage: DC5V
- Current: Up to 40A
- Power Rating: 200W
Input
- Voltage Range: AC 110V/220V (dual input supported, switch-selectable， with short circuit, overload, and overvoltage protection)
- The device only supports 5V (such as mobile phone charging)
Low power, short distance scenarios (such as small DIY projects).
Used in this setup:
- Powers the RGBW LED strip and ESP8266 controller (via 5V/GNDline)
- Sufficient current for many LEDs
- Industrial grade reliability and good heat dissipation and ventilation
ESP8266 Control Board
Model: ESP8266
Operating Voltage: 3.3V-5V
Input Voltage (recommended): ESP8266 has two voltages, one is the external power supply port is 5V, Type-C5V, output pin 3.3V
Digital I/O Pins: 5 (supports PWM)
Maximum operating pixels: 800-1000 pixels
Programming Interface: USB Type-C
Use in this setup:
- The ESP8266 controller is used as a controller to send digital data signals to the RGBW LED strip.
- Connect an external power supply through the 5V and GND pins to power the RGBW LED strip.
- It should be noted that the GPIO of the ESP8266 is a 3.3V logic level, so the GPIO pins need to be level-converted before connecting to the LED strip signal pins. The R\G\B\W solder joint interface of the RGBW LED strip is connected to the 5V data output pins (HU1-HU4) in the level converter through four wires, and then connected to the digital I3-16 interface through the 3.3V (LU1-LU4) interface.
RGBW Led Strip
Type: Regular RGBW Led Strip, with four colors: R\G\B\W.RGBW light strips add white (W) LEDs to the traditional RGB (red, green, and blue) light strips, so RGBW light strips can generate richer and more natural colors than RGB LED strips.
Voltage: DC5V
Features: It is composed of a four-in-one LED chip, providing a wider range of color choices and richer lighting effects.
LED Density: 60 LEDs/m
Accessories & Tools
- Connecting Wires: Use appropriate gauge, e.g., 18–22 AWG，Any model from 18-22AWG is a good choice.
- Logic-Level Shifter: Must use 4-way level converter
2. Wiring Schematic

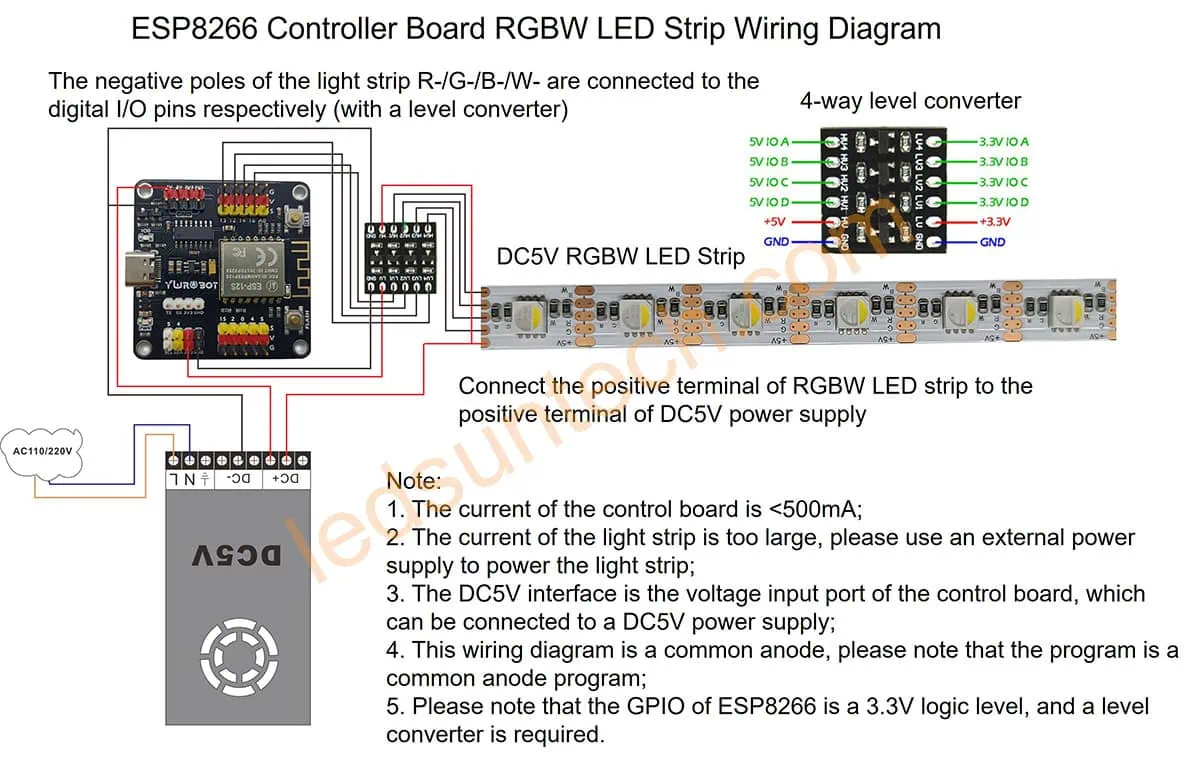

Here’s a ESP8266 schematic wiring diagram for RGBW Led strip from LEDSuntech.
Note:
1. The control board current of ESP8266 is less than 500mA;
2. The current of the light strip is too large, please use an external power supply to power the light strip;
3. The DC5V interface is the voltage input port of the control board, which can be connected to a DC5V power supply;
4. This wiring diagram is a common anode, please note that the program is a common anode program;
5. Please note that the GPIO of ESP8266 is a 3.3V logic level, and a level converter is required.
3. Connection Diagram
Tips:
- Short, direct data wire from ESP8266 to DIN
- Safety terminal connection on power supply
- Always disconnect power before rewiring
4. Code Upload
Software: Arduino IDE
Library Used: FastLED
LEDSuntech’s engineering team provides professional and extensive multiple effect codes. If you have any questions, please contact our professional engineers.
// Define RGBW control pins
#define RED_PIN 12 // D6
#define GREEN_PIN 13 // D7
#define BLUE_PIN 14 // D5
#define WHITE_PIN 4 // D2
// PWM range setting (0-1023 for ESP8266)
const int pwmRange = 1023;
void setup() {
// Initialize serial communication
Serial.begin(115200);
// Set PWM pin to output mode
pinMode(RED_PIN, OUTPUT);
pinMode(GREEN_PIN, OUTPUT);
pinMode(BLUE_PIN, OUTPUT);
pinMode(WHITE_PIN, OUTPUT);
// Initial state is all off
analogWrite(RED_PIN, 0);
analogWrite(GREEN_PIN, 0);
analogWrite(BLUE_PIN, 0);
analogWrite(WHITE_PIN, 0);
Serial.println("RGBW LED Controller Ready");
}
void loop() {
// Example: loop through different colors
setColor(255, 0, 0, 0); // red
delay(1000);
setColor(0, 255, 0, 0); // green
delay(1000);
setColor(0, 0, 255, 0); // blue
delay(1000);
setColor(0, 0, 0, 255); // white
delay(1000);
setColor(255, 255, 255, 255); // all on
delay(1000);
setColor(0, 0, 0, 0); // all off
delay(1000);
// Example: warm white gradient
for(int i = 0; i = 0; i--) {
setColor(i, i/3, 0, i/2);
delay(20);
}
}
// Set RGBW color function (0-255)
void setColor(int red, int green, int blue, int white) {
// Map 0-255 values to 0-pwmRange
analogWrite(RED_PIN, map(red, 0, 255, 0, pwmRange));
analogWrite(GREEN_PIN, map(green, 0, 255, 0, pwmRange));
analogWrite(BLUE_PIN, map(blue, 0, 255, 0, pwmRange));
analogWrite(WHITE_PIN, map(white, 0, 255, 0, pwmRange));
Serial.print("Set Color - R:");
Serial.print(red);
Serial.print(" G:");
Serial.print(green);
Serial.print(" B:");
Serial.print(blue);
Serial.print(" W:");
Serial.println(white);
}
5. Demonstration Video
Check out the video that shows how to control the light-changing effect of a RGBW LED strip with an ESP8266 controller.
With the ESP8266 microcontroller, you can customize the lighting effects to your needs. With the right power supply and coding, you can easily create smooth and colorful animations.
If you need or are interested in using the ESP8266 programmable with any LED Strip, please feel free to contact us.
