LED strips are becoming increasingly popular in the decoration of both residential and commercial spaces. More and more people are choosing to use LED strips to enhance their shelves.
How to install LED strip lights on shelves?
LED strips can replace traditional lights and also make your shelves and room look better. How you install the LED strips depends on the type, material, and purpose of the shelves. In this blog, you’ll find easy tutorials on how to set up LED strips on multiple shelves, floating shelves, and glass shelves.
How to Install LED Strip Lights on Multiple Shelves
1. Measure and Plan
Start by picking how you want to install the lights. If you go for horizontal installation, stick the LED strip along the front edge of each shelf to shine light down onto the lower shelves.
If you want to go vertical, just stick the LED strip along the sides of the bookshelf and try to hide the edges a bit. After that, measure your shelves or the height of the columns to see how much LED strip you’ll need. And don’t forget to check that the total wattage stays within what your power supply can handle!
2. Install the LED Strip Lights
- First, wipe down the area where you’ll stick the strip with a cleaner to help the adhesive stick better.
- Then, peel off the backing and firmly stick the strip along the edge of the shelf (horizontally or vertically) with the lights facing back.

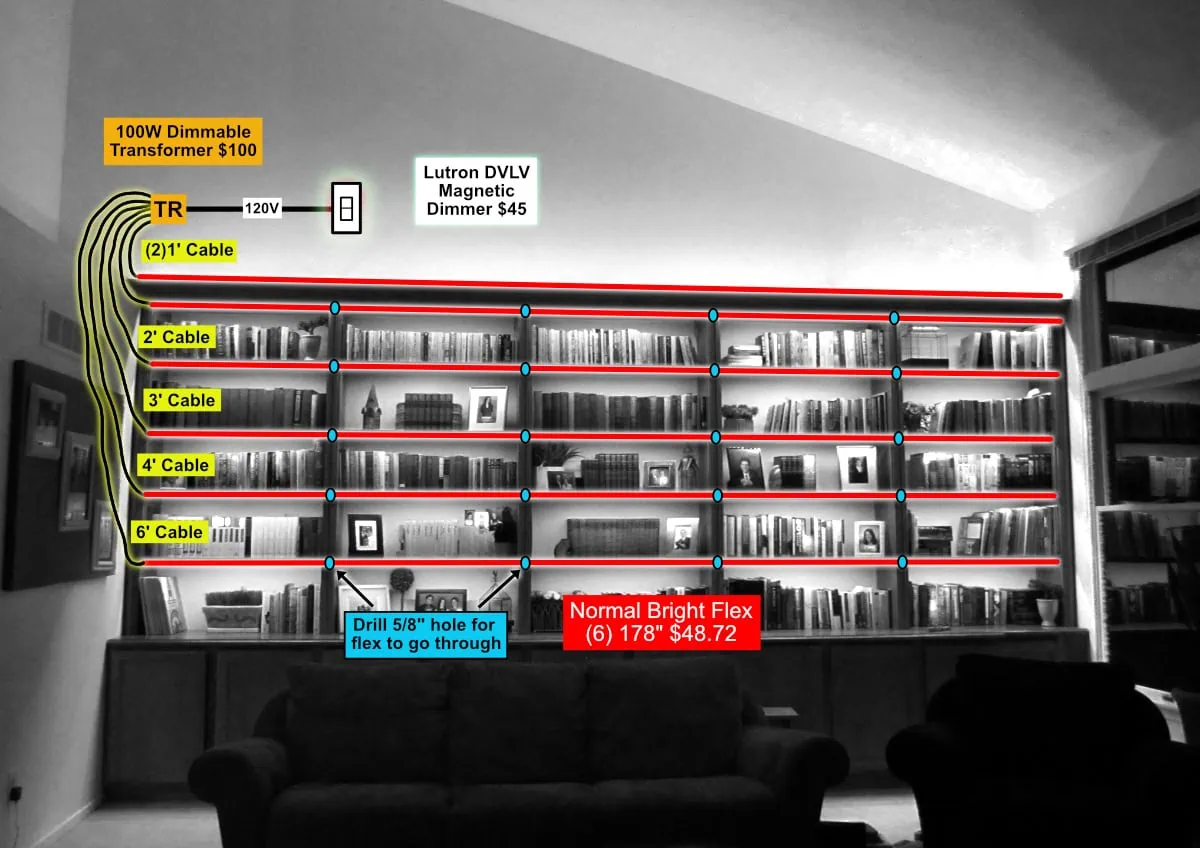

- To keep the light consistent, if your shelf has dividers, you can drill holes about 1.6 cm (5/8 inches) in diameter between them to let the strip pass through and avoid any shadows.
3. Set Up the Power Supply
Have a licensed electrician hook up the high-voltage line (120VAC) to the power supply (like a 12VDC 100W model), and make sure to hide it at the top of the bookshelf or in a discreet spot. Then, run the low-voltage wires from the power supply to each LED strip location.
4. Wiring and Power On
First, strip the low-voltage wires to identify the positive and negative sides: the side with white text is the positive (+) and should connect to the red terminal of the power supply, while the side without text is the negative (-) and should connect to the blue terminal.
Next, use wire nuts to secure each connection, making sure that each LED strip is wired individually to the power supply. And remember to always turn off the power before making any connections!
5. Test and Adjust
Turn on the power to test the lighting, checking for uniform brightness across all shelves.
Adjust the positioning of the strips or the color temperature as needed (if using adjustable color temperature strips).
Tips
- Preemptive Testing: Test all LED strips prior to full installation to avoid discovering faults after setup.
- Segmented Control: Consider using independent controls for each shelf, such as a segmented remote or smart app, to avoid turning on all lights at once.
- Hide the Power Supply: Mount the power supply on the back or bottom of the shelving unit, using Velcro for easy removal.
- Socket Planning: Place the power outlets close to the middle shelves to reduce wiring complexity.
- Color Temperature Selection: Warm light (2700K-3000K) creates a cozy atmosphere, while cool light (4000K+) enhances a modern feel.
- Supplemental Lighting: Top shelves can be enhanced with additional LED strips, spotlights, or sensor lights for added ambiance.
Tool List for Installing LED Light Strips on a Multiple Shelves
| Tools/Materials | Usage Instructions | Key Notes (Easily Overlooked!) |
|---|---|---|
| Tape Measure/Laser Rangefinder | Precisely measure shelf length for LED strip planning | Leave 5cm margin to prevent strip detachment |
| Scissors/Utility Knife | Cut strips at designated marks only | Seal cuts with waterproof glue |
| LED Strip + Power Adapter | Core power supply (12V/24V standard) | Adapter wattage must exceed total strip power |
| Adhesive Promoter | Enhance strip adhesion | Apply on cleaned surface, wait 1min before installation |
| Connectors/Soldering Kit | Connect segments or repair breaks | Use L-shaped connectors for flexible shelf corners |
| Invisible Clips/Cable Ties | Alternative adhesive-free fastening | Trim excess tie length with diagonal cutters |
| Insulating Electrical Tape | Cover exposed wire connections | Use flame-retardant material for safety |
| Flat Extension Cord | Hide cables between shelves | Choose flat type to hide behind panels |
| Voltage Tester | Pre-installation functionality check | Test each segment individually first |
| Anti-slip Gloves | Prevent fingerprints (white shelves!) | Cotton gloves preferred over rubber to avoid adhesive residue |
Why is a backing adhesive promoter necessary?
Backing adhesive promoters are often overlooked, but dust accumulation or humidity on shelves can easily cause light strips to fall off. An adhesive promoter can enhance adhesion by 80%.
Why is a voltage tester necessary?
A voltage tester can prevent reinstallations due to single-point failures after installation, saving time and effort!
How to Install LED Strip Lights on Floating Shelves
1. Preparation
Mark the position of the shelf on the wall, ensuring that subsequent drilling and wiring are located behind the shelf. Use colored tape to indicate the order of the shelves for easy reinstallation.
2. Grooving
First, create a groove fixture with an 18mm thick board to form a J-shaped guide. Use a router with a bearing bit to carve out the grooves. Make sure the groove depth matches the aluminum diffuser, which should be about 10mm wide and positioned close to the front edge of the shelf.
3. Installing the Diffuser
Insert the pre-cut aluminum channel into the groove, cutting the end at a 45° angle to facilitate wiring, and ensure that a wire passage is reserved inside the channel while taking care to avoid drilling through the front of the shelf.
4. Concealing the Wiring
Start by installing a yellow conduit inside the wall. You can use a vacuum cleaner to help pull the fish tape through — it makes the job easier! This will keep all the wires coming out neatly from the bottom of the outlet panel so your wall looks clean and tidy.
5. Installing the LED Strip Lights
Stick the LED strip into the aluminum channel. Connect any extension leads and hide them at the end of the channel. Don’t forget to position the diffuser slightly off at the joints of the LED strips to achieve a seamless look.
6. Connecting the Power
Connect the LED strip using a low-voltage driver and control the switch with a remote outlet. The final wiring must be completed by a licensed electrician according to electrical regulations.
Finally, the lighting can be controlled via voice or remote, with a concealed design that gives the shelf a floating light and shadow effect.
Tips
Please keep in mind that floating shelves have limited weight-bearing capacity, so it is advisable to refrain from using heavy power supplies.
The diffusion channel is effective in minimizing the harsh glare produced by LED lights, thereby creating a more inviting atmosphere.
Utilize durable materials for the fixture to ensure proper alignment throughout the installation process.
It is prudent to plan the wiring route within the wall in advance to prevent any interference with the studs.
How to Install LED Strip Lights on Glass Shelves
1.Selection and Installation of Light Guides
When selecting aluminum light guides, it’s best to choose those specifically designed for glass or acrylic. These light guides have a base for mounting the LED strips and a limit strip on top to protect the lights from damage.
The length of an aluminum light guide channel is generally 1 meter or 2 meters, and they can be connected up to 6 meters to keep the power supply continuous.
To make sure everything fits securely, I recommend using glass that is 8mm thick. This way, you’ll get a nice snug fit with the light guides and ensure they align properly with the limit strip.
2. LED Strip Selection
Different LED strips serve different purposes. Suntechlite offer the following types of LED strips suitable for installation on glass shelves:
Constant Current LED strip: Single-ended power supply can achieve a no-voltage-drop distance of over 15 meters. Fewer power inputs are needed, which reduces installation complexity.
High Efficiency LED Strip: Compared to normal LED strips, this type of light strip offers higher brightness at the same power consumption, while also having a longer lifespan.
Color-Changing LED Strip: If you want versatility, these strips let you choose from a full spectrum of colors and adjust brightness and color-changing speed. Plus, you can control them using a remote or a smartphone app. We offer Tunable White CCT, RGB, RGBW, and RGBWW types of color-changing LED strips.
3. Installation Process

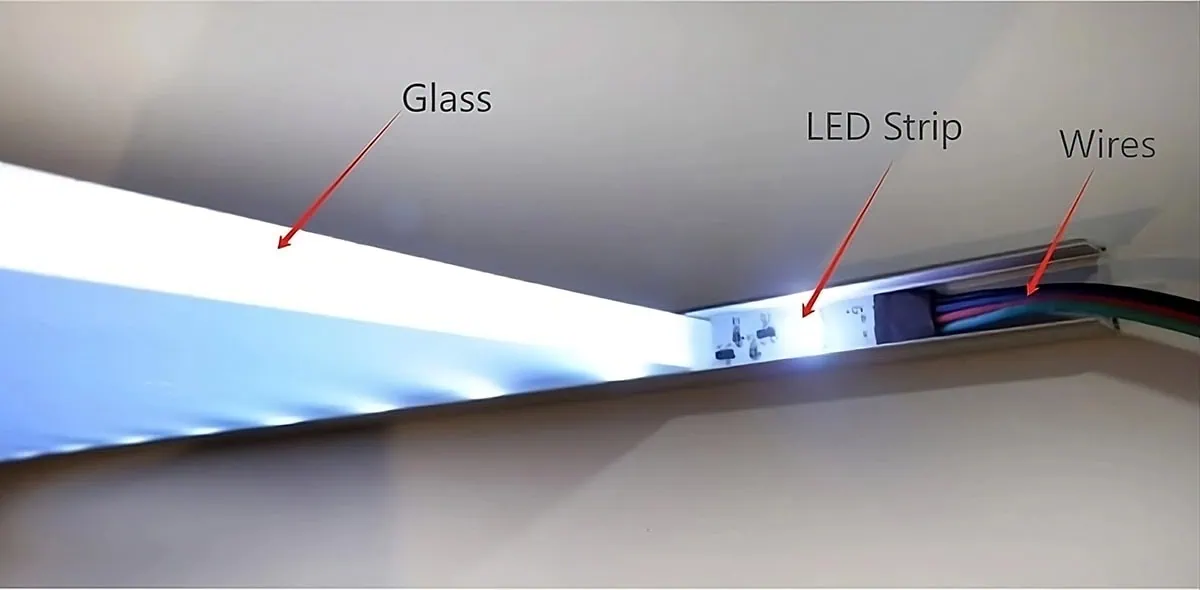

Fix the LED strip to the bottom of the light guide, then vertically insert the edge of the glass panel into the light guide, ensuring it is flush against the limit strip to accurately direct the light from the strip into the glass.
When connecting multiple segments of the light guide, plan the power supply lines for the LED strips to avoid overloading.
4. Light Effect Optimization
Frosted glass helps scatter light, which improves overall lighting consistency, while transparent glass highlights the edge lighting effect, making it ideal for a modern atmosphere.
Summary of Advantages
By combining aluminum light guides with LED strips, glass panels can achieve an invisible lighting effect, balancing functionality and aesthetic design. This setup is especially suitable for modern homes and commercial displays, creating an immersive light and shadow atmosphere at night.
Notes
- Avoid compressing the LED strip: When installing the glass, make sure it lines up with the limit strip of the light guide to avoid misalignment that could damage the LED strip.
- Long-term stability: Opt for high-quality LED strips to lower maintenance costs; lower-quality strips can degrade or fail over time.
- Control flexibility: To achieve smart dimming with adjustable color LED strips, you will need a dedicated controller.
Pro Tips for All Installations
For all installations, keep essential tools like adhesive, zip ties, and electrical tape on hand for a smoother setup. When choosing color temperatures, go for 3000K (warm white) to create a cozy, homey feel, or 4000K (neutral white) for a brighter, more professional workspace atmosphere.
You can learn more about how to choose the right color temperature through several blogs on our website:
2700K vs 2800K vs 3000K LED Strip: Choosing the Best Warm White LED Strip for Outdoor Lighting
Conclusion
The core differences between the three types of shelves lie in wiring methods, mounting techniques, and aesthetic priorities:
Multi-layer Shelves: Focus on organizing wiring for each tier, ensuring secure installation, with an emphasis on tidiness and functionality.
Floating Shelves: Wires are concealed within the wall, with strong adhesive to prevent detachment, achieving a sleek and suspended effect.
Glass Shelves: Perfect edge alignment with invisible mounting, highlighting transparency and visual elegance.
FAQ
1. Do LED strips get hot? Are they safe for daily use?
Yes, they do produce some heat, especially high-power strips (over 14W/m). You can adding aluminum channels helps keep things cool. Just keep them away from books or other flammable items—common sense goes a long way!
2. Can I cut the strips if they’re too long? What if I mess up the cut?
Yes! Look for the tiny scissors symbol printed on the strip—that’s your cutting guide. Accidentally snipped the wrong spot? Grab a soldering iron or a quick connector to patch it up. We’ve linked a simple repair guide if you need visuals: https://www.youtube.com/watch?v=bTRLt-fzTwg
3. How long do these lights actually last? Will they get yellow?
Good-quality strips can shine bright for 30,000+ hours—that’s like using them 8 hours daily for a decade. Cheap ones might yellow or dim over time, but sealed premium strips hold up way better.
4. Can I use these in steamy places like bathrooms?
Totally! Grab waterproof strips labeled IP67/IP68 (silicone coating). Keep the power adapter dry, and slap some waterproof sealant on the connections—better safe than sorry.
5. How to hide wires and controllers?
For multiple shelves: You can sneak wires behind the back panel and stick them down with Velcro.
For floating shelves: You can pre-install PVC conduit to hide them, or use tape that matches the wall color.
Pro tip: Using a mini controller hidden in a bookshelf gap or behind a socket is also a great option.
