Individually Addressable LED Strip
Individually addressable LED strips are popular for dynamic lighting and flexible installation. Individually addressable LED strips allow each LED to be controlled individually to achieve complex effects and patterns. LEDSuntech offers a comprehensive range of LED strips to meet different application needs:
WS2812 LED strips operate at 5V, have single-point single control and built-in WS2812 IC. But it lacks breakpoint recovery function. LEDSuntech also offers 3.5mm ultra-thin SMD2020 200 LEDs/m products for space-constrained installations.
WS2813 LED strips have breakpoint recovery function. Operate at DC5V and contain built-in WS2813 IC. It is an upgraded version of WS2812 with higher reliability.
WS2815 LED strips use DC12V power supply, built-in WS2815 IC, and have breakpoint recovery function. WS2815 is superior to WS2813, which can reduce voltage drop and extend service life.
SK6812 LED strip is powered by 5V, built-in SK6812 IC and 3PIN connector, and supports multiple color options such as white light, CCT, RGB and RGBW. But it does not have breakpoint recovery function.
SK6813 LED strip is also powered by 5V, but has dual data signal and breakpoint recovery function. Data transmission speed is up to 800kpbs, which can achieve more complex lighting effects.
SK9822 LED strip maintains 5V power supply while providing higher brightness and stability, 4-wire protocol (+,-, clock, data), supporting single LED bead control and multi-LED bead linkage control, and can achieve a variety of lighting configurations.
APA102 LED strip is powered by 5V, built-in IC and dual signal lines (data and clock) for faster and more reliable data transmission. But it does not support breakpoint recovery.
The GS8208 LED strip is an enhanced version of the 5V WS2812B LED strip, featuring dual signal transmission and breakpoint recovery to improve performance and reliability in complex installations.
With these diverse options, LEDSuntech ensures that customers can find the perfect individually addressable LED strip for their specific lighting project.
Below is a comparison table of the Individually Addressable LED Strips provided by LEDSuntech, highlighting their key features:
LED Strip | Voltage | Internal IC | Single Point Single Control | Breakpoint Resume | Signal Type |
---|---|---|---|---|---|
WS2812 | 5V | WS2812 IC | Yes | No | Single Signal |
WS2813 | 5V | WS2813 IC | Yes | Yes | Dual Signals |
WS2815 | 12V | WS2815 IC | Yes | Yes | Dual Signals |
SK6812 | 5V | SK6812 IC | Yes | No | Single Signal |
SK6813 | 5V | SK6813 IC | Yes | Yes | Dual Signals |
SK9822 | 5V | SK9822 IC | Yes | No | Single Signals |
APA102 | 5V | APA102 IC | Yes | No | Single Signal |
GS8208 | 5V | GS8208 IC | Yes | Yes | Dual Signals |
Voltage — Working voltage required for each LED strip.
Internal IC — Integrated circuit built into the LED strip, essential for control and functionality.
Single Point Single Control — Whether the LED strip can be controlled from a single point.
Breakpoint Resume —The LED strip can resume operation from a breakpoint in case of a failure or interruption.
Signal Type —The LED strip uses a single or dual signal for data transmission, which affects the control flexibility and reliability.
Category
WS2812 LED Strip
WS2812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
SPI WS2812 low-voltage 5V individually controlled addressable RGB LED strip, with 60 ICs per meter, each IC controls 1 LED RGB light.The feature of individual control makes programming richer and more controllable. 60LEDs per meter means 300LEDs per roll. One LED equals 16.6mm and can be cut, making the connection more flexible. K1000C controller and K8000C controller can be used to realize regional lighting design, such as lighting performances, courtyard decoration, atmosphere enhancement, etc.
WS2812 DC5V 60 LEDs/m 6mm S RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 50 mm
Power: 12 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 6 mm
60leds per meter LED strips are the most popular one, and the appropriate led bead density is one of the reasons. The 6mm width allows you to move in small spaces, and its unique Z-shape allows illuminated letters and logos to no longer have corner dark areas. This feature also allows the LED strip to be easily installed along irregular surfaces. The back of the led strip has 3M LSE double-sided tape, making installation easier.
WS2812C DC5V 200 LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 25 mm
Power: 40 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
3.5mm 200leds/m high-density LED strips are specially designed for small spaces. The ultra-thin LED strip size 3.5mm with a sleek black PCB and the design that each led bead can be individually controlled allow for diverse lighting options.25mm unit cut, set of 5led beads, 40W/m Flexible advanced LED strip not only ensures brightness, but also makes it the perfect choice for those lighting solutions that require efficiency and complexity.
WS2812 DC5V 350 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 350
Voltage: DC5V
Cutting Unit: 2.85 mm
Power: 22 W/m
Pixel Qty: 350 Pixels
Break Continue: No
PCB Width: 10 mm
With 350 LEDs per meter and 1,750 LEDs per roll, the high-density LED strips provide dotless lighting and uniform lighting while immersing people in a comfortable environment.5V low voltage power supply is safer in use.The flexibility of these LED strips also allows them to be bent and shaped at will to follow curves and contours, making them ideal for entertainment venues, stage decorations, and architectural lighting.
WS2813 LED Strip
WS2813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
WS2813 RGB addressable LED strip has a break continue function. It is better than WS2812 with only one signal line. This LED strip has dual signals, making its signal transmission better. Operate at DC5V and contain built-in WS2813 IC. It is an upgraded version of WS2812 with higher reliability.The WS2813 LED strips are suitable for a wide range of applications, including home lighting, commercial lighting, entertainment lighting, and automotive lighting.
WS2813 DC5V 144 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
This WS2813 144LEDs/m RGB led strip comes with a 4-pin JST SM connector on each end. Every LED segment can be cut at 6.9mm.The 12mm wide PCB can accommodate SMD 5050 lamp beads and has a wider light-emitting area.WS2813 is individually addressable. Every 1 WS2813 IC control 1 LED, every LED can be shown any color you want. By varying the level of red, green, and blue (RGB) per LED, many color combinations can be made.
WS2815 LED Strip
WS2815 DC12V 84 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 84
Voltage: DC12V
Cutting Unit: 11.9 mm
Power: 12 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10mm
White light is the most common light on the market. Whether it’s bathroom lighting or cabinet installation, white is the first choice. Individually controlled WS2815 addressable white light has IC control, making ordinary white light more mysterious.It can show charming effects by switching between different modes of the simple controller SP105E or the main control and sub-control all-in-one machine K8000C.12 voltage makes it easier to match the right power supply and controller.No voltage drop within 5 meters, making wiring for small projects stress-free.
WS2815 DC12V 96 LEDs/m 10mm White LED Strip
Color: White
LED Qty: 96
Voltage: DC12V
Cutting Unit: 10.41 mm
Power: 13.8 W/m
Pixel Qty: 96 Pixels
Break Continue: Yes
PCB Width: 10mm
Different from the regular WS2815 30leds/m and 60leds/m addressable LED strips on the market, our self-developed high-density and break continue 96leds/m addressable LED strips are more popular.Due to its 96leds/m density of LED beads and 13.8W low power consumption, 96leds/m is more suitable for use in small neon tubes, avoiding the problems of light spots and excessive temperature.96 leds per meter is quite good for even dynamic lighting such as stage design, concerts, and theaters to create dynamic backdrops and effects.

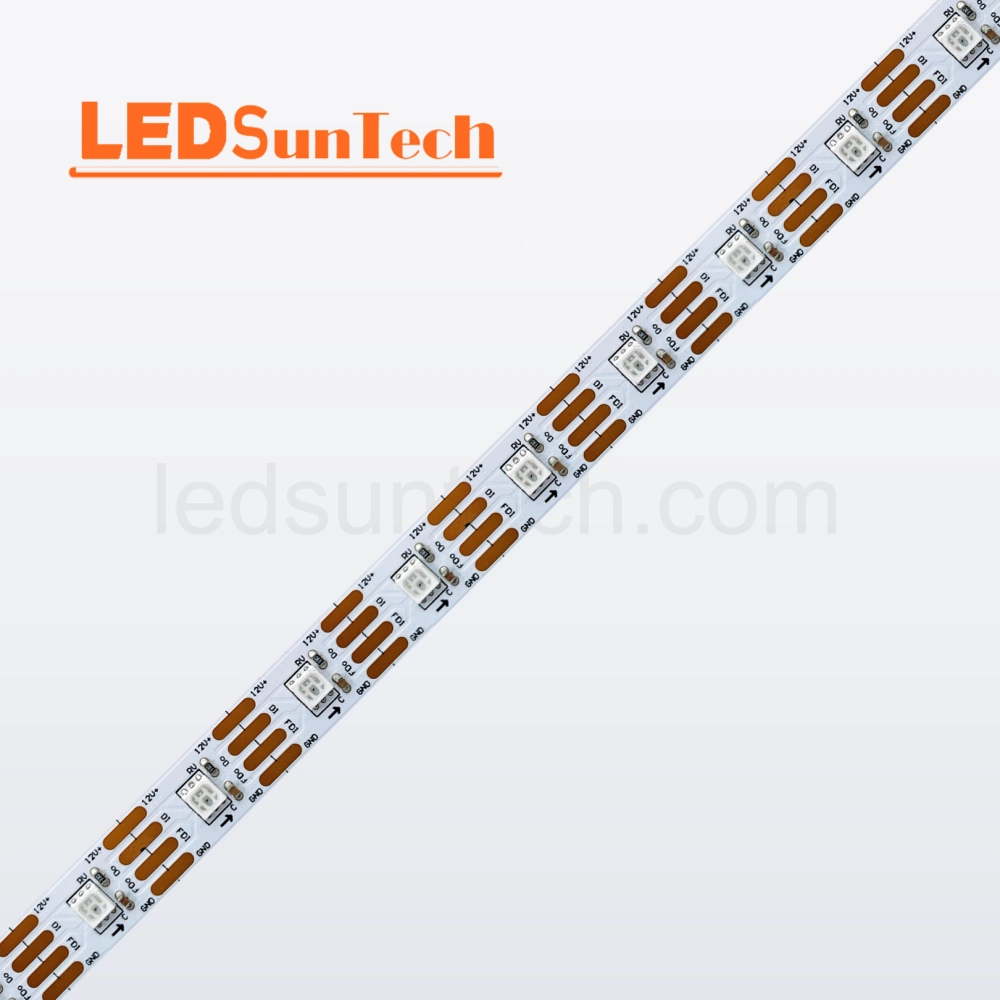

WS2815 DC12V 60 LEDs/m 8mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.67 mm
Power: 8.6 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 8 mm
The 8mm thin PCB width individually addressable RGB LED strip uses built-in WS2815 smart IC, combined with SMD5050 high-quality LED chip, to present rich static and dynamic dreamy color effects through the addressable SPI controller.The use of Bluetooth music controller SP107 can make the WS2815 RGB lights dance with the music. The colorful and eye-catching lights can be well used in KTV, nightclubs and other entertainment venues.
WS2815 DC12V 84 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 84
Voltage: DC12V
Cutting Unit: 35.7 mm
Power: 18 W/m
Pixel Qty: 84 Pixels
Break Continue: Yes
PCB Width: 10 mm
WS2815 LED strip powered by a DC12v source, it has a more stable performance due to its dual-channel data transmission. it incorporates a signal backup function to ensure uninterrupted lighting effects even if one LED fails.Double-sided FPCB: Use an S-shaped PCB, which can be bent arbitrarily, not easily broken, and illuminates irregular spaces. With the capability to be cut every LED, or at 11.9mm intervals. it allows for customization to fit specific project requirements.
WS2815 DC12V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC12V
Cutting Unit: 13.89 mm
Power: 20.6 W/m
Pixel Qty: 144 Pixels
Break Continue: Yes
PCB Width: 12 mm
For projects that require smooth animation effects and delicate images, WS2815 RGB 144leds/m is the best choice. High-density LED beads make the light even and sharp-free, and independently controllable ICs provide diversified programming options. Every 2 leds are a cutting unit. The mini cutting unit is very friendly for special length and customized projects, and can be cut according to actual needs.
SK6812 LED Strip

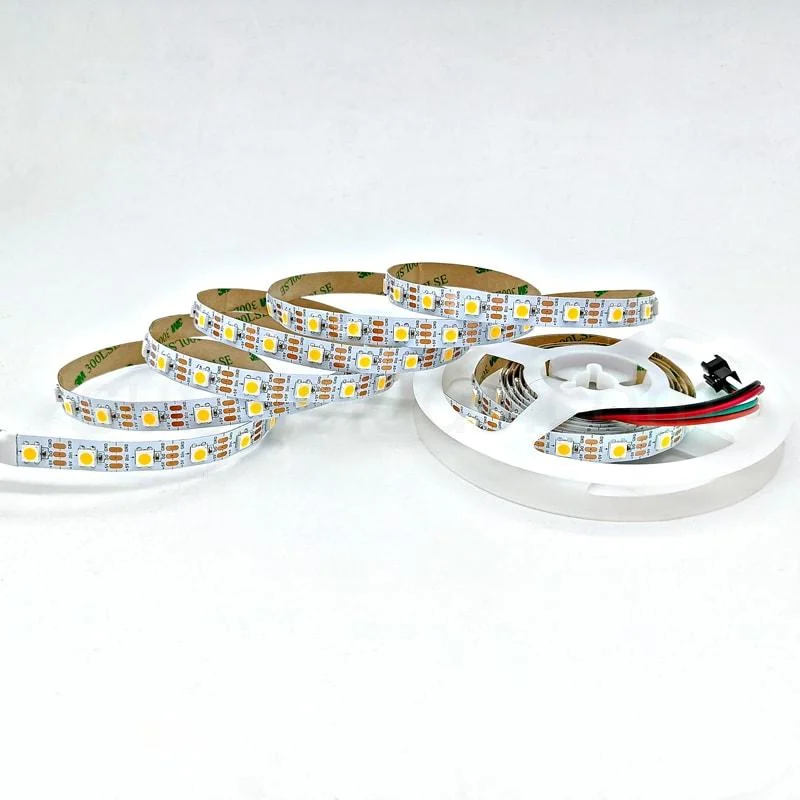

SK6812 DC5V 60 LEDs/m 8mm White LED Strip
Color: White
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 8mm
SK6812 white addressable LED strip supports 5V low voltage input and 16.6mm cutting unit, allowing each LED to be cut individually. By matching a simple controller or K1000C, K8000C LED controller, you can realize a magical lighting journey. The white light is no longer monotonous. It beats at different frequencies, making people immersed in a smart rather than soft atmosphere.
SK6812 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
The SK6812 5V LED strip is Individually addressable LED strip, every led bead is controlled by a separate IC. With RGB LED beads, It can emit light of many colors. Because of its bright colors, it is often used for stage lighting decoration and holiday shopping mall decoration. In addition to the commonly used IP20 light strips, I can produce higher waterproof levels according to customer needs, such as IP65, IP66, IP67 and IP68.
SK6812 DC5V 60 LEDs/m 5mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 5 mm
5mm width LED strip, 60leds/m, 14.4W per meter. The ultra-thin light strip width design not only ensures quality, but also brings convenience to projects that need to install lighting in small spaces. Under the control of the controller, it can not only emit light in four colors: red, green, blue, and white, but it can also superimpose and mix the four primary colors at will to create more unexpected surprises.
SK6812 DC5V 60 LEDs/m 10mm RGBW LED Strip
Color: RGBW
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.67 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
It uses SK6812 IC (Integrated Circuit) as its driver. SK6812 RGBW LED strip lights can usually be controlled by pixel controllers (such as K1000C, K8000C) to produce a wide range of colors. This LED strip can also be cut to specific lengths and reattached as needed.The SK6812 LED strip can be powered by a compatible power supply with appropriate voltage (5V). Low-voltage power supply is also safer in use.
SK6812 DC24V 66 LEDs/m 12mm RGBW LED Strip
Color: RGBW
LED Qty: 66
Voltage: DC24V
Cutting Unit: 15 mm
Power: 21 W/m
Pixel Qty: 66 Pixels
Break Continue: No
PCB Width: 12 mm
Different from DC5V and 12V, SK6812 DC24 has a stronger voltage drop advantage. With its voltage stability, and long-distance without voltage drop, the SK6812 24V LED strip is better choice for demanding outdoor and architectural projects. Its ability to maintain uniform brightness over extended lengths makes it a preferred choice for creating immersive and visually striking lighting designs. It can work over long distances and does not require repeatedly recharge.
SK6813 LED Strip
SK6813 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
SK6813 pixel protocol is designed by China Osco, SK6813 RGB LED strip is a 3-channel LED strip, which allows to control red, green, blue LEDs. Precisely control each group of LEDs to present different animation effects. It is also powered by 5V, but it is different from the SK6812. SK6813 has dual data signal and break continue function. Data transmission speed is up to 800kpbs, which can achieve more complex lighting effects.
SK9822 LED Strip
SK9822 DC5V 60LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 18 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
SK9822 uses top SMD internal integrated high quality external control line serial cascade constant current IC, the SK9822 LED strip is individually controlled LED strip With a high refresh rate at 30MHz and low latency, data transmission speed can reach 800Kbps and the PWM control terminal can realize 256 adjustment levels. The SK9822 delivers smooth and seamless color transitions, ensuring a truly immersive and engaging lighting experience.
APA102 LED Strip
APA102 DC5V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC5V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: No
PCB Width: 10 mm
The APA102 RGB addressable led strip with SPI protocol does not require cumbersome address writing steps. You can power on and use it after you get the product. Free cutting length can flexibly adjust the length of the LED strip without damaging the circuit. The density of 60leds/m has the widest range of applications. It is a good choice whether it is TV background wall decoration or furniture cabinet bottom lighting.
APA102 DC5V 144 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 144
Voltage: DC5V
Cutting Unit: 6.9 mm
Power: 43 W/m
Pixel Qty: 144 Pixels
Break Continue: No
PCB Width: 12 mm
There are 144 Addressable RGB LEDs per meter and 12mm wide, DC5V input, and you can control each LED individually! Yes, that’s right, this is the digitally-addressable type of LED strip. You can set the color of each LED’s red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).In addition, the unique density of 144 lights can match neon lights of any height without causing light spots.
APA102 DC5V 200LEDs/m 3.5mm RGB LED Strip
Color: RGB
LED Qty: 200
Voltage: DC5V
Cutting Unit: 5 mm
Power: 43 W/m
Pixel Qty: 200 Pixels
Break Continue: No
PCB Width: 3.5 mm
There are very few high-density light strips with 200 leds/m on the market. Our light strips are developed on the premise of ensuring high density and 3.5mm ultra-thin light strips. The 5mm cutting unit gives you no worries. If a single lamp bead is damaged, just cut it off. Ultra-thin and flexible LED light strips are the best choice for light box lighting, interesting letters, or furniture decoration.
GS8208 LED Strip
GS8208 DC12V 60 LEDs/m 10mm CCT LED Strip
Color: CCT
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10 mm
CCT three-in-one LED beads combine three kinds of white light with different color temperatures. Compared with traditional led beads, it not only saves space but also makes the integration between light and light smoother. Under the control of an external IC, each led bead can light up different colors at the same time. Soft yet special, any combination of light beams brings a different experience to your bedroom, commercial lighting, and cinema.
GS8208 DC12V 60 LEDs/m 10mm RGB LED Strip
Color: RGB
LED Qty: 60
Voltage: DC12V
Cutting Unit: 16.6 mm
Power: 14.4 W/m
Pixel Qty: 60 Pixels
Break Continue: Yes
PCB Width: 10mm
The advantage of an external IC is that it helps dissipate heat. GS8208 is an addressable RGB LED strip with an external IC. The individually controlled design allows each LED lamp bead to correspond to an IC. The GS8208 integrated circuit supports dual signal line versions and signal break continuous transmission. If one LED is damaged, the operation of other LEDs will not be affected.

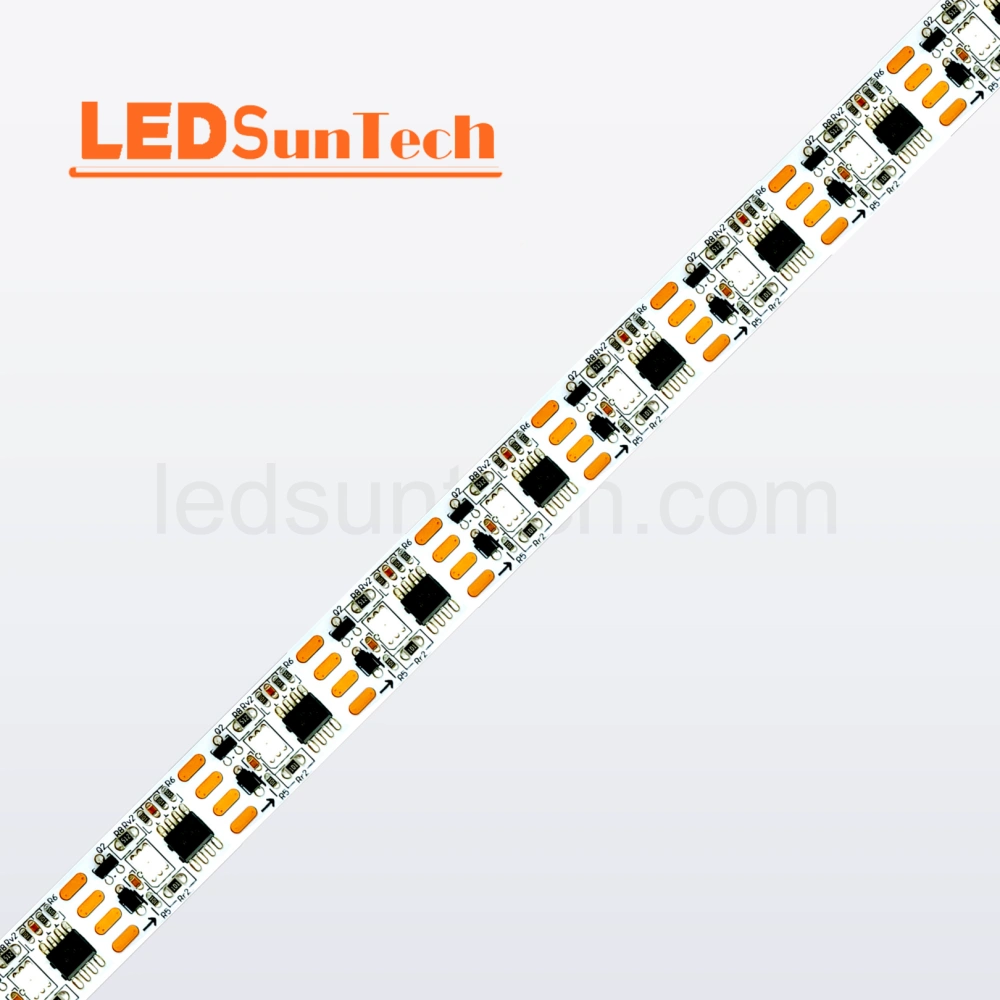

GS8208 DC12V 50 LEDs/m 12mm RGB LED Strip
Color: RGB
LED Qty: 50
Voltage: DC12V
Cutting Unit: 20 mm
Power: 12 W/m
Pixel Qty: 50 Pixels
Break Continue: Yes
PCB Width: 12mm
GS8208 with DC12V, individually controlled addressable, it is single LED cuttable, external IC and RGB optional. In addition, it also has dual signal function. Dual signal IC working mechanism is roughly the same as single signal addressable LED strip light, but breakpoint resume addressable LED strip light has a higher PWM refresh frequency, a more realistic display effect, and less stroboscopic phenomenon.
