IP67 LED Strip
Product Feature
(1) IP67 LED strip color temperature drift is smaller, which can ensure that the color temperature after sealing is not much different from the original color temperature and the color temperature consistency is good;
(2) Since the LED light strip is formed by one-time lamination, the plug and the light strip are integrated into one, which has excellent waterproof properties and is not easily eroded by water;
(3) Silicone and light strips are co-extruded, and can be extruded hundreds or thousands of meters at a time. The extrusion size is standard, and the light strips are marked smooth and clean.
(4) Silicone has a short curing time, which improves shipping speed and greatly improves efficiency;
(5) It has excellent light transmittance and refractive index, which can minimize the light attenuation of the light source;
(6) OEM or ODM can be provided;
(7) Product life＞50000H.
IP67 LED Strip Advantages
It can be seen after cutting the light strip that the LED light strip is formed by one-time lamination. The edges of both ends of the LED light strip are pressed tightly with the silicone without any looseness.
The product uses high-brightness SMDLED as the light source, which is energy-saving, high-brightness, low light decay and long life; the horizontally arranged resistor welding design effectively prevents the light strip from falling off and being damaged when it is bent. The current is stable and the light strip has a longer life.
IP67 LED Strip Application
Commercial lighting, shopping malls, buildings, parks, roads, bridge lighting, etc.
Wholesale IP67 LED Strip Series
Our IP67 LED strips have many types: 2835 IP67 LED Strip By Series, 3535 IP67 LED Strip By Series, 5050 IP67 LED Strip By Series.
LED Type: SMD2835; SMD3535; SMD5050.
PCB width: 10mm, 12mm, 15mm.
Waterproof type: IP67, suitable for indoor and outdoor applications.
Lighting angle: 120°
Our IP67 LED strip products use high-quality SMDLED as the light source. Power on without step-down, bright and uninterrupted. If you don’t see the product parameters you need here, please don’t hesitate to contact us immediately. Our team of engineers will give you the most satisfactory design.
Please see our IP67 LED strip product display as follows.
Tunable White CCT IP67 Outdoor LED Strip
RGBW IP67 Outdoor LED Strip
RGB+CCT IP67 Outdoor LED Strip
IP67 LED Strip Classification

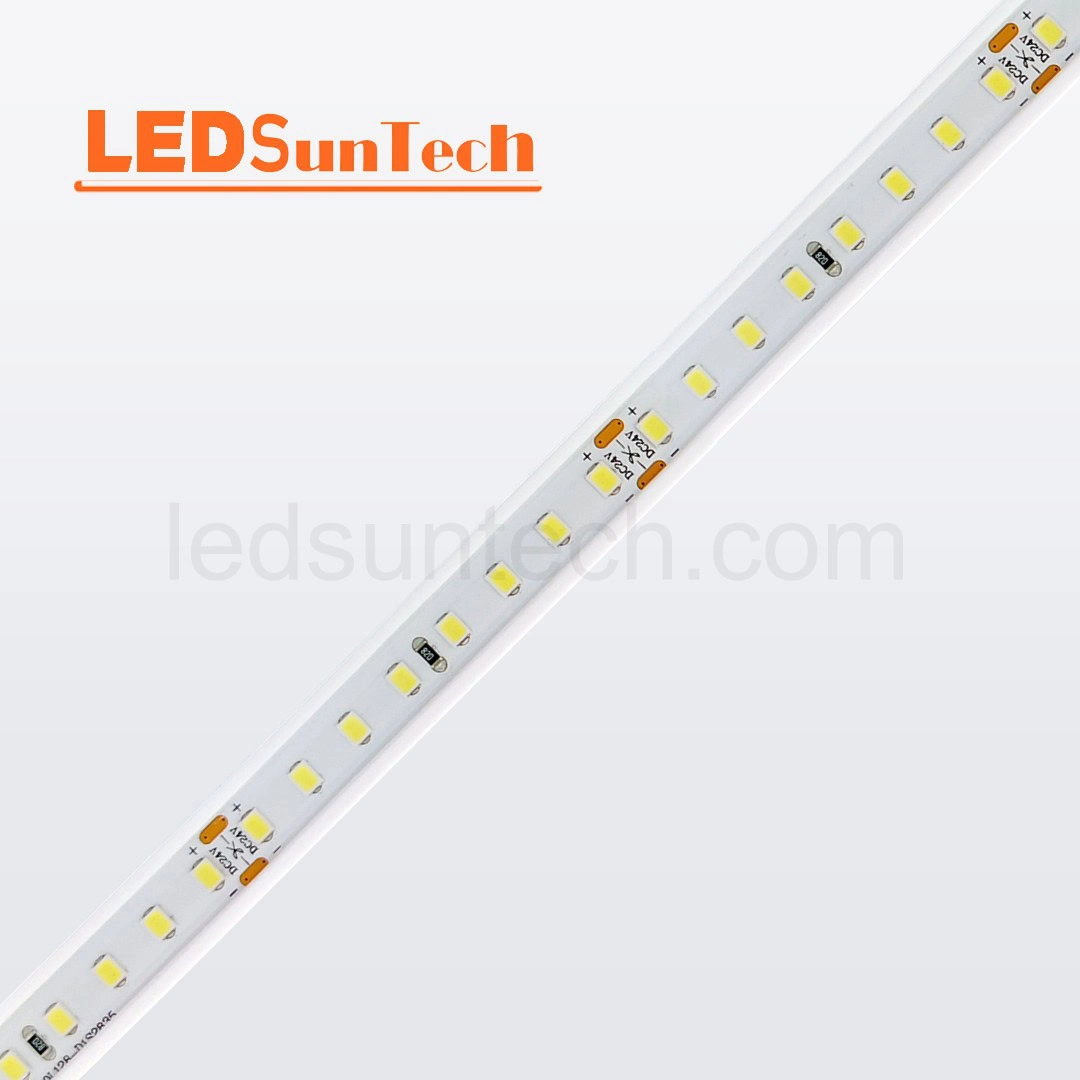

2835 IP67 LED Strip By Series
Features: SMD2835; LED density is 60leds/m, 168 LEDs/m, 192 LEDs/m and 240leds/m; PCB width is available in 10mm/12mm; Color temperatures: White/CCT.
The IP67 rating signifies that the strip is fully protected against dust and can be immersed in water up to 1 meter deep for short periods.
Specification Download
| Specification Name | Download |
|---|---|
| 2835-DC24V-60leds/m-12mm-White LED Strip Specification |
|
| 2835-DC24V-168leds/m-10mm-White LED Strip Specification |
|
| 2835-DC24V-192leds/m-10mm-CCT LED Strip Specification |
|
| 2835-DC24V-240leds/m-10mm-White LED Strip Specification |
|
3535 IP67 LED Strip By Series
Features: SMD3535; LED density is 120leds/m; PCB width is available in 10mm; Color temperatures: RGB.
This 120leds per meter DC24v RGB LED strip is the best choice to ensure dotless and uniform lighting. The 3535 RGB strip comes with an adhesive backing and 4-pin terminal connectors at both ends, simple to install on a variety of surfaces.
Specification Download
| Specification Name | Download |
|---|---|
| 3535-DC24V-120leds/m-10mm-RGB LED Strip Specification | |

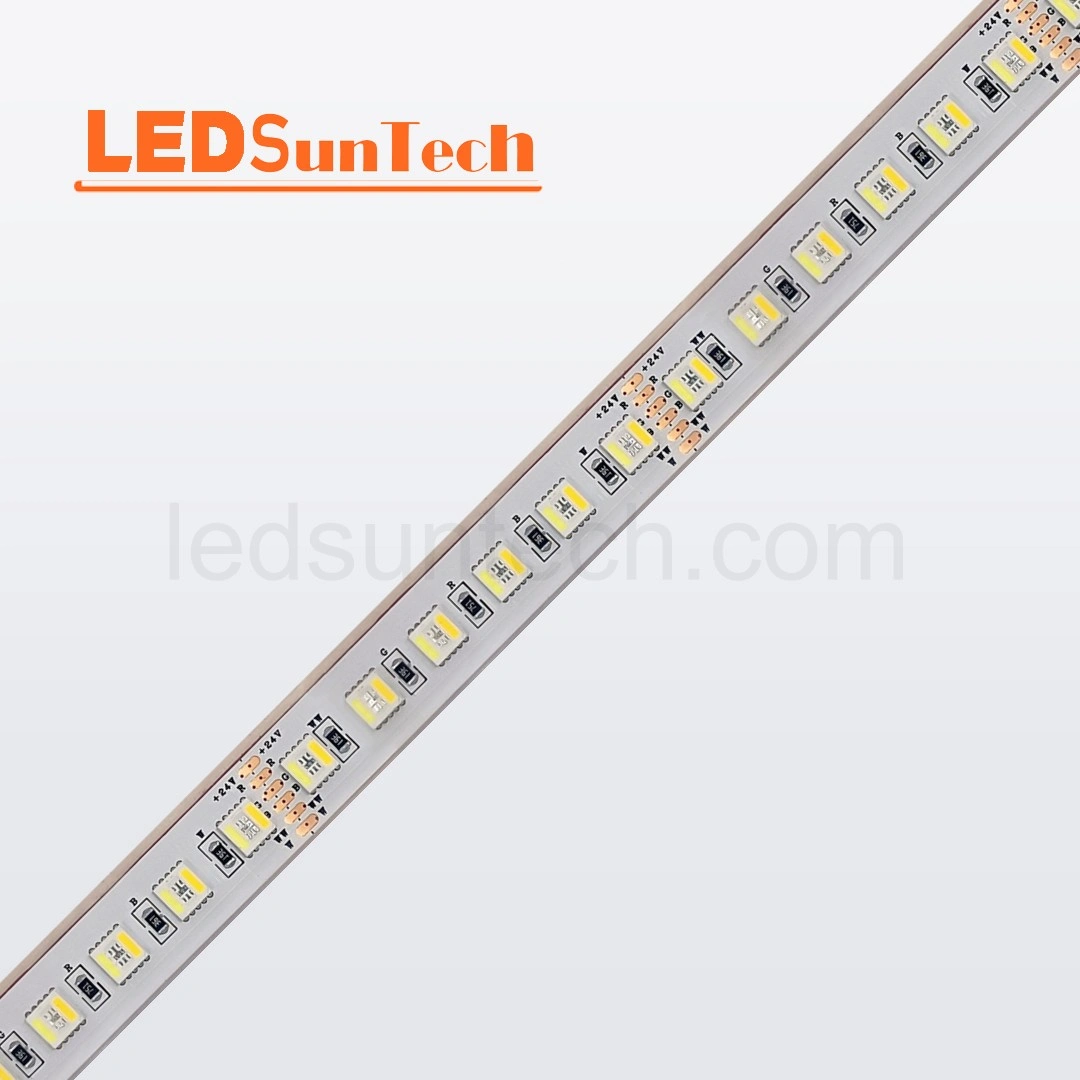

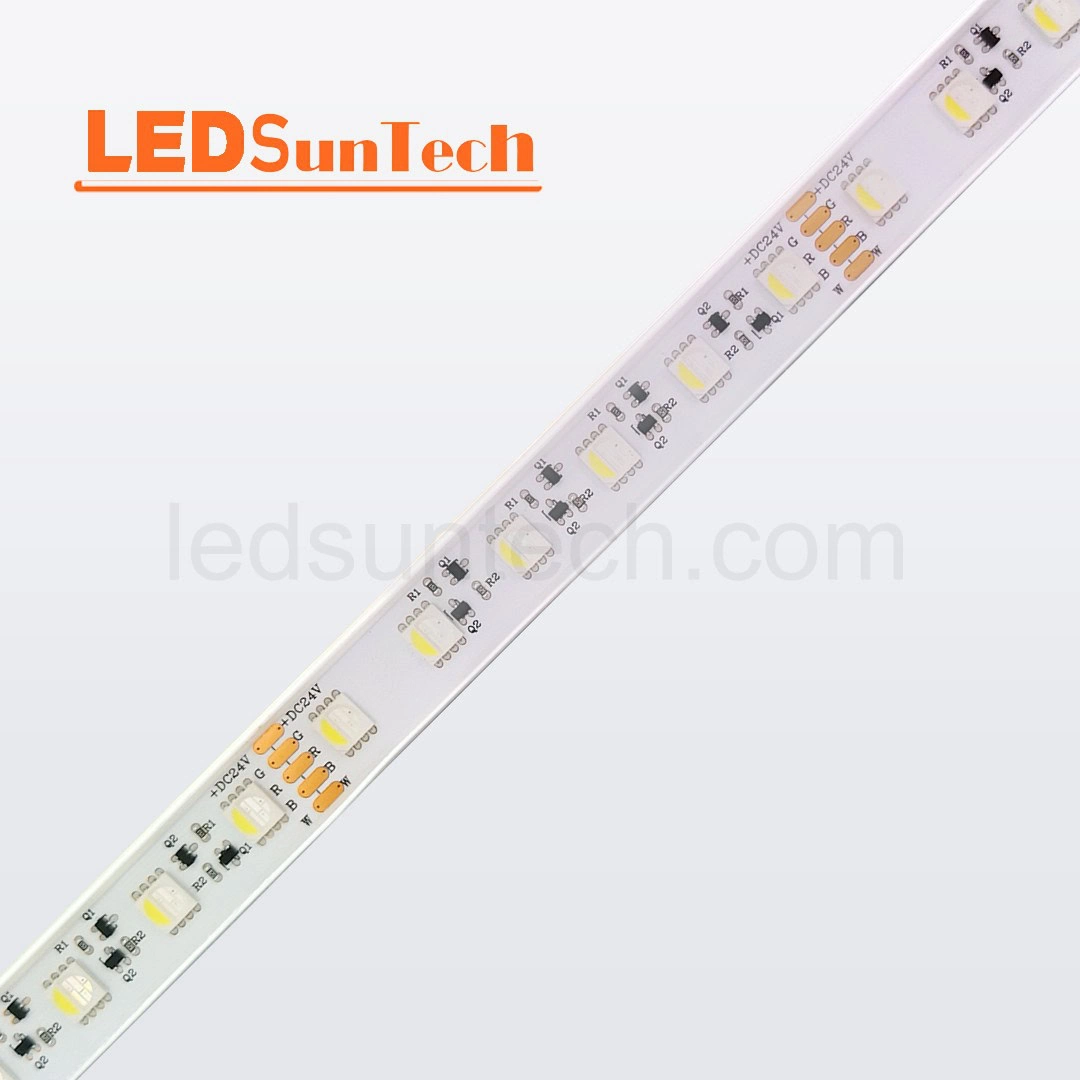

5050 IP67 LED Strip By Series
Features: SMD5050; LED density is 60leds/m, 108leds/m, 90leds/m; PCB width is available in 10mm/12mm/15mm; Color temperatures: RGB/RGBW/RGBWW.
Although the DC12V IP67 LED light strip is very popular, the DC24V IP67 LED light strip also has its own advantages. The working distance of the DC12V LED light strip is usually 5m. DC24V voltage can ensure a longer working distance than DC12v IP67 LED light strip.
Specification Download
| Specification Name | Download |
|---|---|
| 5050-DC12V-108leds/m-15mm-RGBW LED Strip Specification |
|
| 5050-DC12V-60leds/m-12mm-RGBW LED Strip Specification |
|
| 5050-DC24V-60leds/m-10mm-RGB LED Strip Specification |
|
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
The following are the main products:
SPI LED strips: WS2811, WS2812, WS2813, WS2815, SK6812, SK6813, SK9822, UCS1903, UCS5603, UCS2903, UCS2904, APA102…
DMX LED strips: DMX RGB LED strips, DMX RGBW LED strips, DMX CCT LED strips…
LED neon lights: side-lit LED neon lights, direct-lit LED neon lights, round LED neon lights, black LED neon lights…
LED controller: K-1000C, K-8000C, XB-Z2, T–790K, SP106E, SP107E…
