LED strips don’t work? It might be a polarity issue.
Unlike household light bulbs that can be screwed in any direction to light up, LED strips require DC (Direct Current) power, which means they have a strict Positive (+) and Negative (-) polarity. If you reverse them, the LED strip will simply fail to light up. However, in a few cases, especially with cheap, non-protected strips, the reverse of polarity may cause the internal components to burn out.
Understanding how to identify LED Polarity is key to a safe and successful installation.
Learn more about LED strip troubleshooting and wiring selection to prevent common mistakes.
Why Polarity Matters
Diodes can only conduct in one direction. An LED is a Light Emitting Diode. By definition, a diode only allows current to flow from the anode (+) to the cathode (-).
Reverse polarity = No light/flickering/even damage. The circuit is incomplete.
Safety: While 12V/24V reversing won’t cause an electric shock to you, it may damage the controller or cause abnormal heating of the LED strips if the reverse protection function is lacking.
How to Identify Polarity on LED Strips
Method 1: Visual Inspection
① Check Printing Markings
Most LED strips have clear PCB markings:
+12V / +24V: Positive
GND / – : Negative
② Look at Wire Colors
Most standard white LED strips come with two wires.
Red wire = Positive (+) (Standard DC color code)
Black wire = Negative (-)
Warning: Don’t blindly trust the colors. Some common strips may change their colors. Make sure to check the printing marks on the circuit board first.
For a deeper understanding of wiring standards and signal types, refer to: LED Strip Wiring Color Codes Explained.

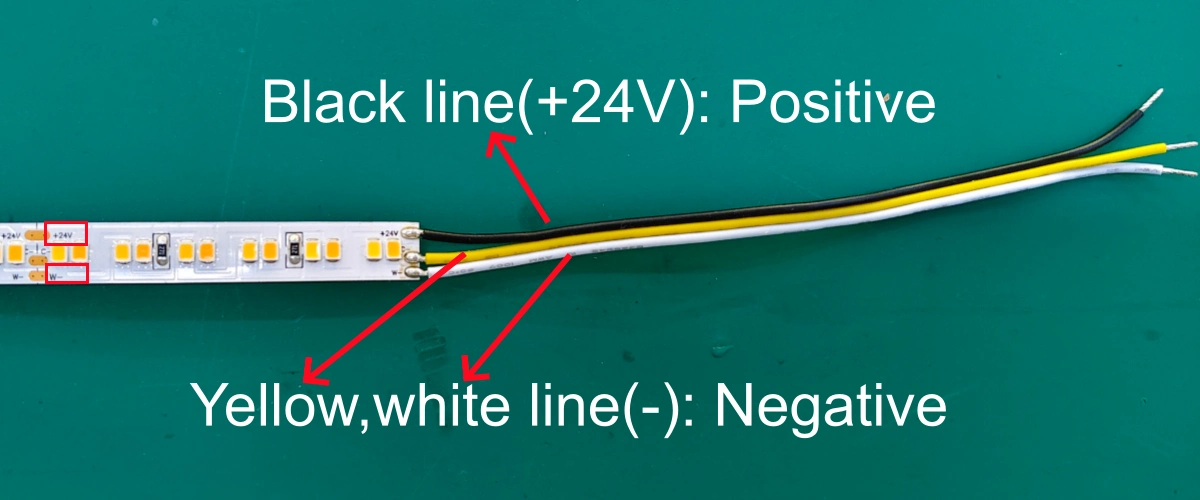

For CCT (tunable white) LED strips, which have both warm white (WW) and cool white (CW) channels, there are usually three wires:
- Black wire = Positive (+) common
- Yellow or White wire = Warm White (-) or Cool White (-)
Helpful link about warm white LED strip: 3000K vs 3500K vs 4000K for living room

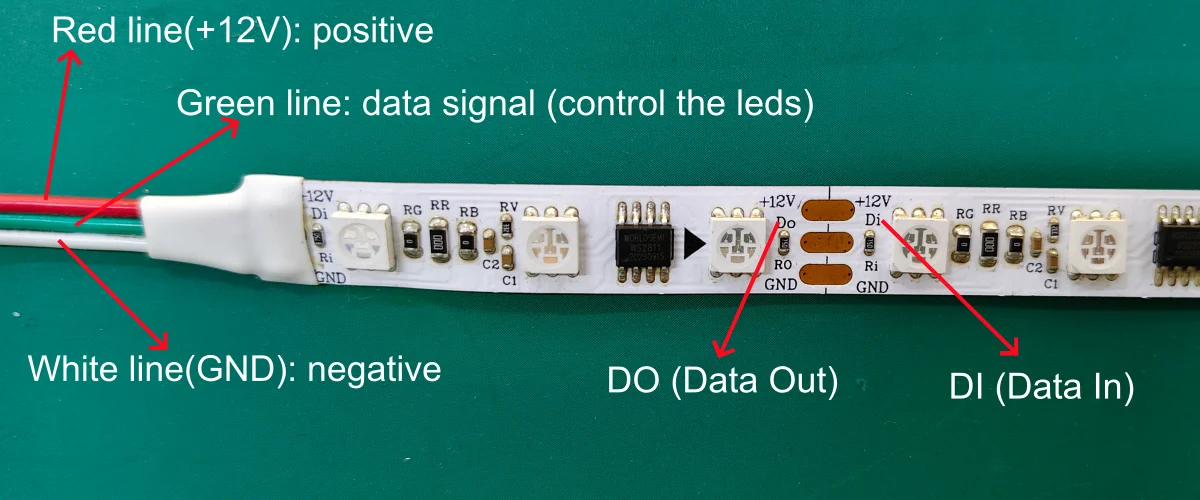

For Addressable LED Strips, which are slightly different from regular LED strips because they don’t just have positive and negative, they also include a data signal line that controls each LED individually.
Learn more about addressable LED strips: WS2812 vs WS2813 vs WS2815
Most addressable LED strips have three main parts:
- V+ (Positive)
- GND (Negative)
- DATA (Signal) – Controls the LEDs
Unlike regular LED strips, addressable strips have a data direction.
- Data flows in one direction only
- There are usually arrows printed on the strip
- The arrow shows the direction the signal travels
If you connect the strip in the wrong direction:
- The LEDs will not light up
- The strip may power on, but won’t change colors

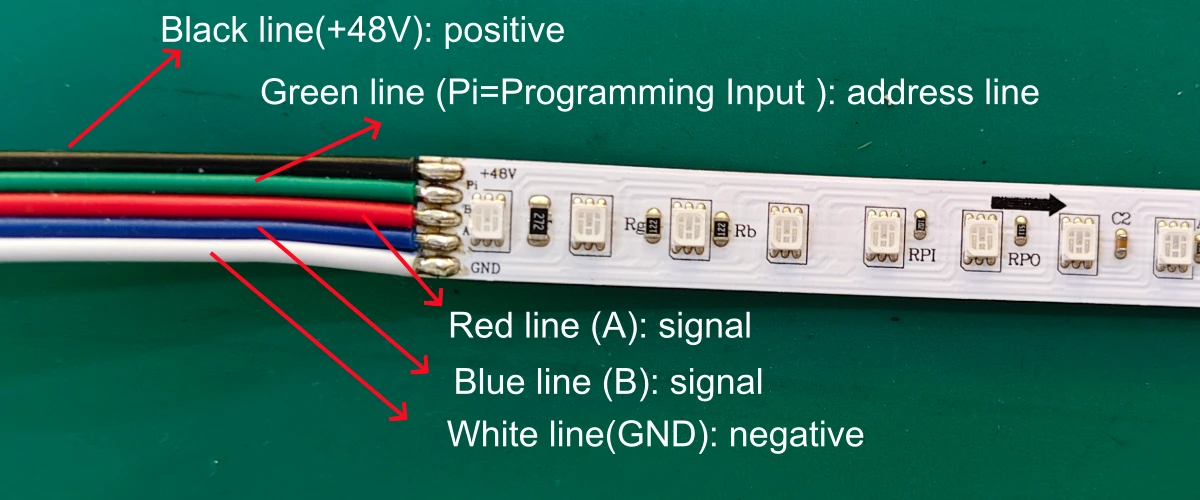

A DMX LED strip includes power wires, signal wires, and an address wire, and each wire has a specific function:
- +24V / 12V (Positive): Supplies power to the LED strip
- GND (negative) Completes the power circuit
- A / D+ / Signal+: DMX Positive Signal. Transmits the control data.
- B / D- / Signal-: DMX Negative Signal. Works with the positive signal line to create a differential signal, improving noise immunity.
- PI / Address Line: This is a special line used only when setting the address code for the chips on the strip via a programmer.
Important Notes
- Never mix up power wires and signal wires
- DMX requires a DMX controller or decoder to operate
- DMX uses a differential signal (D+ and D−), which helps reduce interference in long-distance communication.

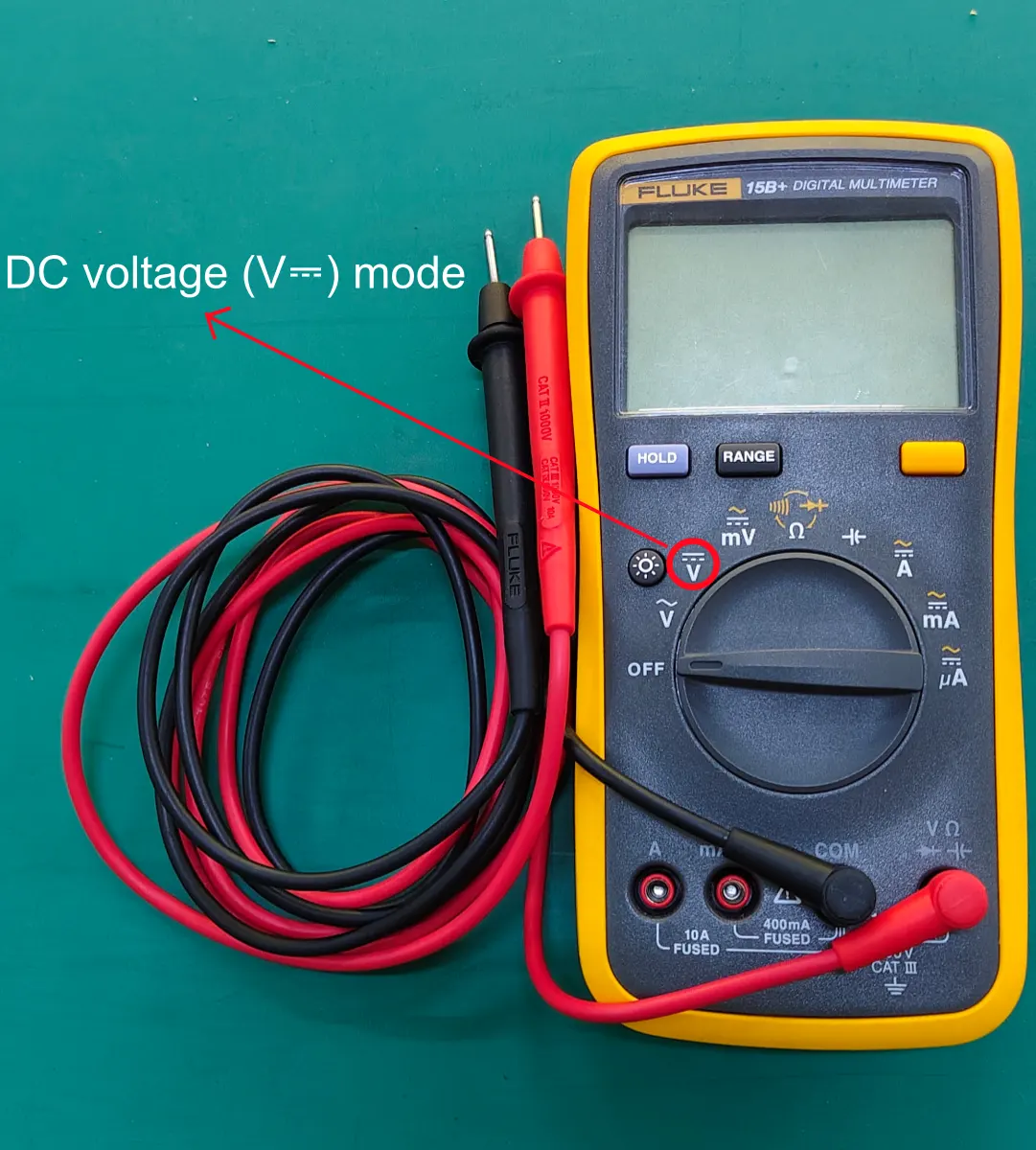

Method 2: Use a Multimeter
If the PCB markings are worn or unclear, a multimeter is the most reliable way to check polarity:
- Set your multimeter to DC voltage mode.
- Power the LED strip with its correct supply voltage.
- Place the red probe on one contact and the black probe on the other.
Read the display:
- Positive reading → red probe is on the positive (+) side, black on negative (−)
- Negative reading → probes are reversed
Tip: If the strip is not powered, you can use continuity mode to trace connections, but it won’t directly show + or -.
Common LED Strip Wiring Mistakes to Avoid
Reverse connection of the LED strip
This is the most common problem. If the positive and negative poles are connected in reverse, the strip will not light up. In some cases, it may even cause damage.
Use incorrect voltage
Make sure that the power supply voltage matches the LED strip (5V, 12V, or 24V). Using an excessively high voltage may burn out the LED, while an excessively low voltage may cause the lights to be dim or flicker erratically.
Ignore the arrows on the addressable strip
The addressable LED strip has a signal direction. If the connection ends are connected wrongly, the strip may light up but will not respond to control instructions.
Mix up the power and data wires
In the addressable strip, confusing the data line with the power line may cause the strip to fail to work properly or damage the control chip.
Tips for a Safe LED Installation

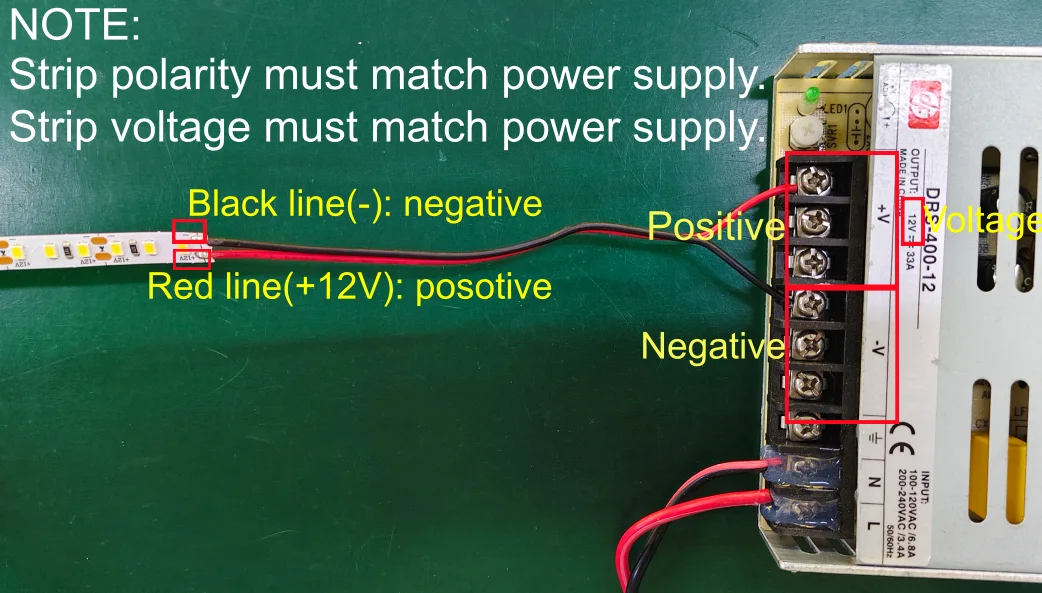

Check the polarity again before powering on
Take a few seconds to confirm if the connection is correct. This simple habit can prevent hardware damage and save you from unnecessary troubleshooting later.
Choose a reliable power supply device
Select a device with a stable output and sturdy structure. Avoid using cheap, low-quality, or incompatible adapters.
Label the cables for complex wiring systems
When connecting multiple cables or conducting long-distance wiring, marking each cable helps avoid confusion during installation.
Use connectors to avoid welding errors
Snap-on connectors are more convenient to use and can significantly reduce the occurrence of wiring errors, which is especially protective for beginners.
