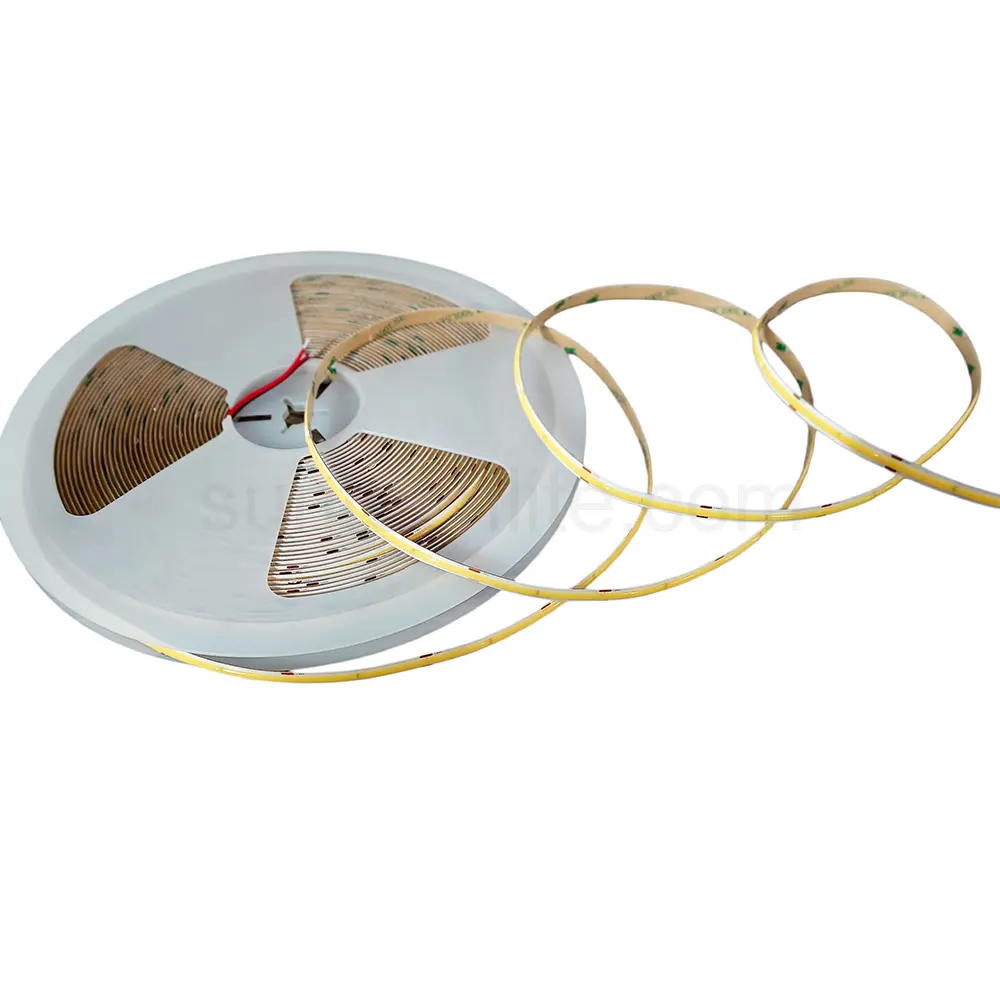

Long Run COB LED Strip
Wholesale Long Run COB LED Strip Series
PCB Width: 8mm.
LEDs density: 480LEDs/m.
Max Run Length: 20m
Color: 1800K/2700K/3000K/4000K/5000K/6000K, can be customized.
Specification Download
| Specification Name | Download |
|---|---|
| DC24V-480led-8mm-White-Constant Current COB LED Strip Specification |
|
What is Long Run COB LED Strip?
Our long-run LED strips are different from regular strip lights because they have tiny constant current integrated circuits on the printed circuit board instead of simple resistors. This ensures that each LED chip receives exactly the same current, thereby achieving high brightness uniformity.
The long run COB LED strips are specifically designed for long-term lighting applications that require stable brightness and minimal voltage drop. They offer seamless and spot-free lighting effects and have a longer installation length.
Why choose our Long Run COB LED Strip?
1. Seamless, without point-like lighting
By directly installing the LED chips on the PCB and encapsulating them in a layer of fluorescent powder, we achieve extremely high light point density. The result is a continuous and smooth beam, which will not have dark spots even when observed closely.
2. Excellent color reproduction
Lighting is not only about brightness, but also about the accuracy of color presentation. Our strip lights can accurately reproduce the colors of the objects being illuminated.
3. Excellent heat management and long durability
Heat can cause light output attenuation and color changes, and gradually deteriorate over time. The “long-life” series is made to last. We use a high-quality 2-milligram copper double-layer printed circuit board. This makes the LED cooler and lasts longer by letting heat escape more easily.
4. High efficiency and high brightness
Our COB technology maximally increases the surface area of the light, which makes it more energy efficient. It provides intense brightness suitable for focused lighting and main ambient lighting.
5. Multi-functionality and installation
Even though the wiring layout of this strip light is very tight, the cutting lines are very clear, so you can change its length without hurting the circuit. It also has a lot of color options, like single color, CCT , and RGB/RGBW, so you can use it for different types of lighting designs. There are different versions of this product, such as IP20 (for indoor use), IP65 (for splash-proof), and IP67/IP68 (for waterproof use).
Long Run COB vs Standard COB LED Strip
| Feature | Standard COB LED Strip | Long Run COB LED Strip |
| Driving Architecture | Constant Voltage (Resistor-based) | Integrated Constant Current IC |
| Max Single-Ended Run | 5 – 10 Meters | 20 – 30 Meters |
| Luminance Consistency | 20% – 40% drop at the tail end | < 3% variance (Perfectly uniform) |
| Voltage Drop Issue | High (Significant dimming over distance) | Ultra-Low (Compensated by ICs) |
| Wiring Complexity | High (Requires multiple power feeds) | Minimal (One feed for the entire run) |
Essential Installation Details
A. Line Layout Suggestions
Although Long Run can achieve single-ended power supply of 20 meters, for circuits longer than 30 meters, we recommend using dual-ended power supply to ensure the electrical performance reaches the optimal stable state and guarantees safety.
B. Power Supply Calculation
Always calculate the total power (W = W/m × length). For example, a 20-meter-long light strip that is 10 watts per meter, considering a 20% safety margin, requires at least 240 watts of power.
FAQ
How long can a COB LED strip run continuously?
Depending on the voltage and power design, it can run for 10–20 meters without a noticeable drop in brightness.
Do I still need power injection?
Less frequently than standard strips, but still needed for very long installations.
Is COB better for long-run lighting?
Yes, because it provides uniform light without visible dots.
Can it be dimmed?
Yes, compatible with dimmers and controllers.
