Voltage is very important when choosing an LED strip. It affects brightness, installation, safety, cost, and other factors. Therefore, we need to select the appropriate voltage according to different projects.
This blog post will explain the differences between low vs high voltage LED strips in detail from multiple aspects and help you find the right voltage for your project.
Low vs High Voltage LED Strips
| Feature | Low Voltage (12V/24V DC) | High Voltage (110V/220V AC) |
|---|---|---|
| Power Source | Requires transformer/driver | Plugs directly into wall |
| Safety | Very safe, low risk | Risk of shock; must install properly |
| Max Run Length | 5–20m before voltage drop | Up to 100m continuously |
| Installation | Easy, DIY-friendly | Requires basic electrical knowledge |
| Flicker | Stable with quality driver | May show visible flicker |
| Dimming & Control | Excellent (dimming, RGB, smart) | Few smart options |
| Heat | Lower output | Higher over long runs |
| Lifespan | 30,000–70,000 hours | 20,000–30,000 hours |
| Cost | Higher upfront (strip + driver) | Lower upfront, no driver needed |
| Long-Term Cost | Lower energy use | Higher energy use, more maintenance |
Low‑Voltage LED Strips: Lighting for Your Home and Living Spaces
Low-voltage 12V/24V LED strips run on safe DC power via a power supply, can be cut to size, and are compatible with various color-changing controllers
Living Room Lighting
Need cove lighting, TV backlighting, or headboard accents? A low voltage tunable white LED strip can be chosen safely, bent easily, and work with many kind of dimmers or smart controllers.
- Learn More: Living room ambient lighting example
Kitchen Lighting
Go with a 12V high-CRI strip under cabinets, and it brings out true colors and pairs neatly with aluminum channels for a smooth glow.
- Learn More: How to install LED strips on shelves
Stairs & Hallways
For stair edges and hallways, it would be best to choose a 24V single-color strip when you need brightness for longer distances. In humid or high-traffic areas, the IP65 or IP66 provides additional protection.
- Learn More: Stair lighting example
Retail Lighting
Want to adjust color and brightness? RGBW LED strips let retail displays highlight product details and adapt to different setups with ease. They can also be paired with controllers for greater flexibility and dynamic scenarios.
High‑Voltage LED Strips: Long‑Distance Lighting for Buildings and Outdoor Spaces
High-voltage 110V/220V LED strips run directly on AC, support very long runs, are highly durable with thick waterproof casing, and require no external transformer.

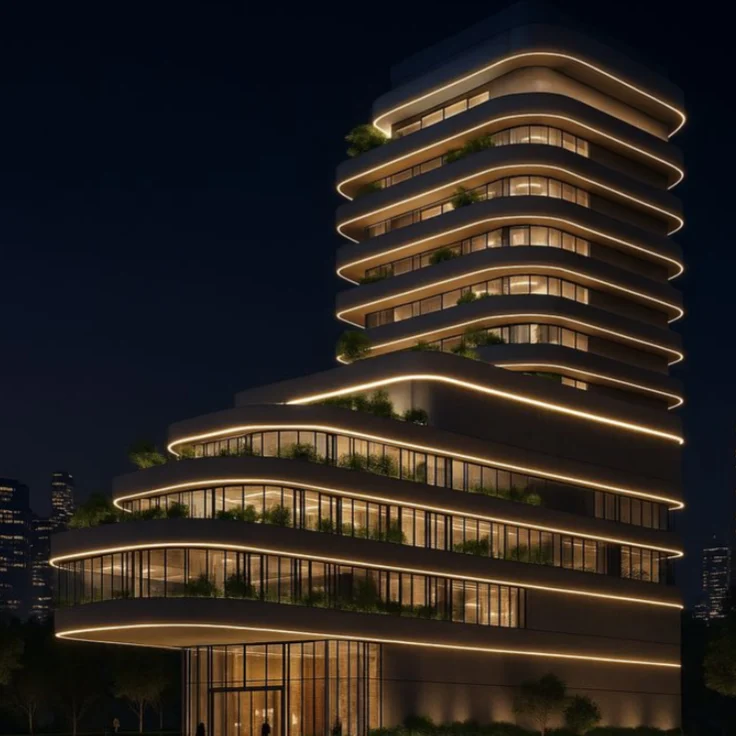

Facade Lighting
The building outline and the roof lines need to maintain uniform lighting over a long distance, and the 110V/220V LED strips can achieve this. Their IP67 or IP68 waterproof coating can withstand the long-term effects of outdoor conditions.
- Learn More: Outdoor installation guide
Garden & Path Outdoor Lighting
Is it for covering fences, walkways or terraces? The high-voltage waterproof LED strips can reduce the need for multiple power connections, which make outdoor installations neater and more efficient.
- Learn More: Warm white outdoor LED selection
How to choose LED Strip Voltage
The selection of the appropriate voltage depends on the installation length, safety requirements, and dimming needs.
| Voltage | Max Run | Power | Best For |
|---|---|---|---|
| 12V DC | 5–8 meters | 4–14W/m | Short to medium runs, flexible installations |
| 24V DC | 10–15 meters | 8–20W/m | Medium to long runs, higher output setups |
| 48V DC | 20–30 meters | 10–25W/m | Long runs with low-voltage safety |
| 110–220V AC | 20–50+ meters | 8–30W/m | Outdoor & long-distance lighting |
In short, higher voltage for longer runs and higher wattage, lower voltage for safety and flexible installations. Learn more in 48V long-run LED solution.
Conclusion
- Choose low voltage (12V/24V) for safety, dimming, smart control, and indoor short to medium runs.
- Choose high voltage (110V/220V) for long runs, simple AC connection, or large-scale outdoor lighting.
- Always use high quality strips and follow safe installation practices for reliable, long-lasting performance.
