SPI Pixel LED Strip

Want smooth pixel chasing and clean motion effects, but if you pick the wrong voltage, pixel density, or power plan, you will get dim tails, color shift, and blocky looking steps. This guide breaks down the most common SPI addressable pixel LED strip specs and shows how to choose the right setup using three simple decision points.

This article will cover the following topics:

  • What SPI means and how it relates to addressable pixel control

  • How to choose 12V vs 24V, plus the right pixels per meter and LEDs per meter

  • How to match controller and power wiring to prevent flicker, frame drop, and tail end color change

Spec snapshot
SPI Addressable LED Strip in one view
Voltage
Voltage options
12V fits shorter runs and finer segmentation. 24V fits longer runs with more stable brightness.
12V 24V
PCB
PCB width
Choose 5mm, 8mm, or 10mm to match your channel space, aluminum profile, and target bend radius.
5mm 8mm 10mm
Density
LED density
60, 72, or 120 LEDs per meter helps balance brightness, uniformity, and budget.
60 LEDs per meter 72 LEDs per meter 120 LEDs per meter

What is an SPI addressable LED strip

An SPI addressable LED strip uses a serial data signal to control pixels in sequence. The controller sends color and brightness data down the strip, and each pixel reads the part meant for it, then passes the remaining data to the next pixel.

The key idea behind addressable lighting is simple: each pixel can change color or brightness independently. That is why you can create chasing, gradient wipes, and complex animations instead of one solid color across the entire run.

SPI is popular because it handles animated patterns reliably. When you run quick chases or detailed fades, the pixels respond promptly and the effect looks cleaner on camera.

If you want practical wiring and control setups for both systems, see Ways To Control SPI And DMX Addressable LED Strip.

Controller to strip data flow
Controller Outputs: Data, Ground, Power SPI LED strip Pixels read and pass data forward Data Ground Power Data controls pixels, Ground is the reference, Power drives the LEDs
esp8266 ws2815 schematic

These two diagrams explain SPI pixel strip control from both a concept view and a real wiring example.

Diagram 1 shows the basic connections from controller to strip: Data, Ground, and Power. Data goes to DIN and pixels read then pass data forward. Ground is the shared baseline for the data signal, so the controller and the strip must be connected to the same ground. Power supplies energy to light the LEDs and affects brightness stability.

Diagram 2 shows a typical wiring setup (ESP8266 to a 12V WS2815 strip). The 12V power supply powers the strip directly. Wire the controller DATA to the strip DIN, and tie the controller ground to the power supply ground. If the data signal is weak or noisy, add a level shifter to help it run more reliably.

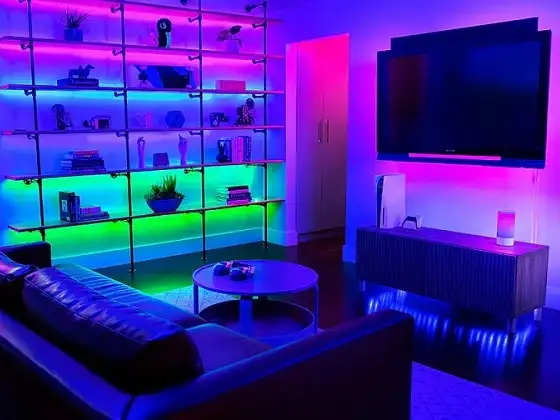

SPI Pixel LED Strip 1
SPI fits smooth pixel animation and chasing

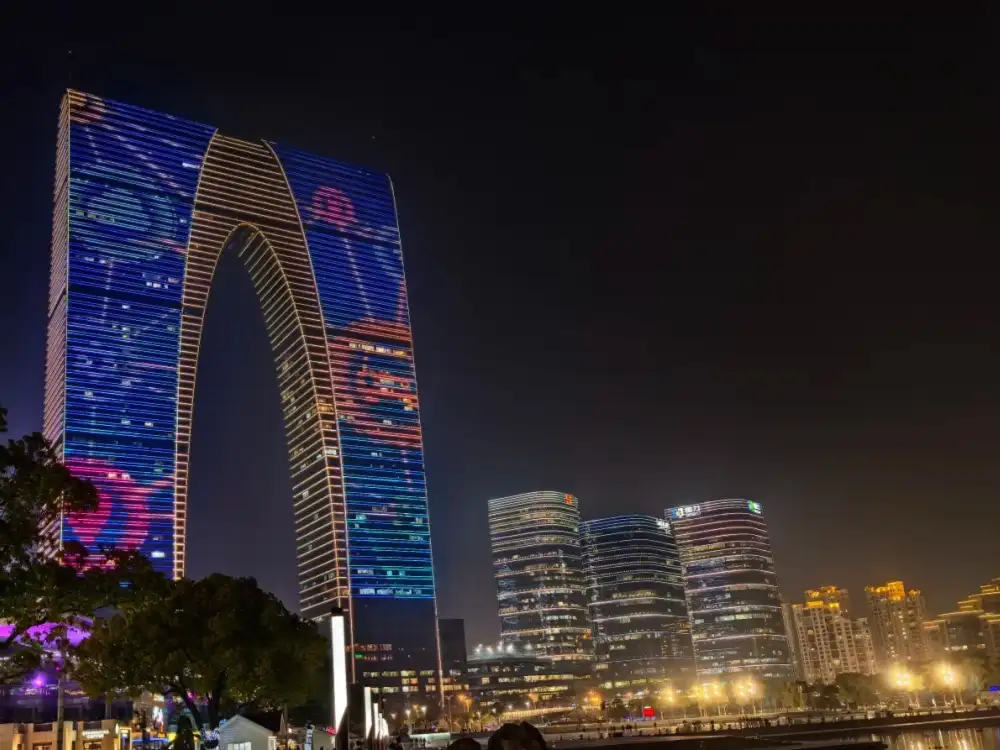

DMX lighting network
DMX fits centralized control and long cable runs
Quick compare
SPI or DMX, which matches your project
Choose when you wantSPIDMX
Motion detailPixel effectsScene control
Typical sitesRooms, displays, signageStages, facades, venues
Best outcomeSmooth chasing and gradientsClean system level wiring
Rule of thumb

You need smooth pixel motion

You need centralized control
Quick tip: If your project needs both, place network control upstream and keep pixel control close to the strip.

SPI pixel LED strips by IC type

The eight strips shown on the poster can be grouped by IC family. The first four items and items six and seven are TM1934 based designs in both RGB and white versions. Items five and eight are WS2818 based designs.

TM1934 SPI addressable LED strip
TM1934 is an external IC SPI addressable solution designed for pixel effects such as chasing, gradients, and segmented animation, with an emphasis on stable performance in real installs. It is a strong fit for projects that care about reliability and easier maintenance.

Color options
RGB versions are used for full color pixel animation.
White versions are used when you want white light with segmented control or dynamic white effects.

DC12V and DC24V options.
PCB width: 5mm, 8mm, 10mm.
LED density: 60, 72, 120 LEDs per meter.

WS2818 SPI addressable LED strip
WS2818 is also an external IC SPI addressable family, commonly chosen for projects that want extra signal reliability. A key reason to pick WS2818 is the dual signal style design and breakpoint style continuity, which helps reduce the risk of the whole strip going dark if one point fails.

Why pick it
Better fault tolerance for demanding installs.
Good choice for longer runs or harder to access locations where maintenance is costly.

Quick rule of thumb
If you prioritizes engineering stability and a broad set of build options like different PCB widths and LED densities, start with TM1934.
If you are most concerned about failure risk and wants extra signal margin, highlight WS2818.

Three specs that control brightness, motion, and fit

SPI addressable strips come in many SKUs, but most buying mistakes come from missing just three specs. If you lock these in first, everything else becomes an easy filter.


Voltage: 12V or 24V

12V is often chosen for shorter runs or projects that need shorter cut sections. A common structure is WS2811 12V with 60 LEDs per meter and 20 pixels per meter, where each pixel groups 3 LEDs, with a 50mm cutting unit.
24V is often chosen for longer runs and a steadier power plan. A common structure is 60 LEDs per meter and 10 pixels per meter, which reduces current for the same power level and helps brightness hold up better as runs get longer.

Simple rule:
Pick 12V when cut flexibility matters more. Pick 24V when run length and stability matter more.


Pixels density

Pixels per meter is your motion detail. More pixels means the same animation has finer steps, so chases look smoother and gradients look cleaner. Fewer pixels can still look great for simple effects, and it is often easier on wiring and budget.

For example

  • Around 10 pixels per meter for simple chases and basic patterns

  • Around 12 pixels per meter as a balanced middle option

  • 20 plus pixels per meter when motion smoothness and detail are the priority


PCB width and LED density

PCB width decides whether the strip fits your channel and whether you can hide it cleanly.

  • 5mm and 8mm are great when space is tight and you want a cleaner install

  • 10mm is a common choice when you have more room and want a robust layout

If you are not sure which PCB width fits your channel or profile, use this LED Strip Width Guide as a quick reference.

LED density shapes uniformity and brightness potential.

  • 60 and 72 LEDs per meter are solid general choices

  • 120 LEDs per meter is often used when you want a more even look at closer viewing distances
    A practical example for tight installs: 120 LEDs per meter on a 5mm PCB is a strong fit when space is limited and you still want better uniformity.

Choosing the IC and reliability options

Specs help you narrow down the right strip, but reliability features determine how it will behave on site. Two strips can look similar on a spec sheet, yet act very differently once you add connectors, longer runs, and real maintenance needs.

Built in IC vs external IC

Built in IC means the control chip is inside the LED, so the strip can be more compact and the pixel pattern stays very consistent. External IC means the chip sits on the PCB, which often gives more freedom in PCB width, layout, and protection choices.

Breakpoint resume and dual data

If one pixel or one data point fails, the strip can often keep running. Breakpoint resume helps prevent a full blackout, and dual data provides a backup signal path for more stable long runs.

Checklist
Reliability checklist
Dual data
Adds a backup data path to reduce signal failure risk on longer runs.
Breakpoint resume
Helps the rest of the strip keep running if one pixel fails.
Power plan
Use proper wire gauge and power feed points to prevent dim tails and color shift.
Diagram
Single data vs dual data signal path
Single data One data path. If it breaks, everything after can stop. DATA break Dual data Backup path helps keep data moving after a break. Primary DATA Backup DATA break signal continues
Note: dual data provides extra margin. Power planning still matters for brightness stability.

Ways to control SPI pixel strips

For SPI pixel strips, the best control setup depends on project size, cable distance, and how tightly you need effects to stay in sync.

For small projects

Most small installs use a compact pixel controller or a development board.

  • ESP32 based controllers (WLED) are a popular choice for flexible patterns, app control, and fast setup. They are ideal when the controller can sit close to the strip and cable runs are short.

  • For simple standalone playback without a network, a basic offline pixel controller is often easier for installers.

Recommend:

  • H801WiFi LED Controller for app based control and quick presets

  • K1000C Pixel LED Controller for simple offline playback

For larger projects

Bigger sites often use lighting software and a compatible controller.

For large synchronized installs, this article shows common software plus controller architectures and wiring notes.

A common approach is software driven playback for timed shows, with a controller handling the pixel outputs close to the installation. This is a strong fit when you need synchronized effects across multiple zones, long outlines, or repeating schedules.

Recommend:

  • K 4000C Addressable LED Controller for more pixels and richer offline programs

  • K8000C Addressable LED Controller for larger pixel counts and longer runs

For DMX sites using SPI strips

If a job site is already built around DMX, you can still run SPI strips by using a controller that supports DMX to SPI output.

Recommend:

  • CM 328DW Touch Video Offline DMX SPI Controller for DMX based control plus offline playback

For long cable distance or tougher wiring

If the controller is far from the first pixel, or you see flicker, random colors, or dropped pixels, add a signal stage to keep data clean.

Recommend:

  • MR CF01 SPI Signal Booster Amplifier or BC 294 SPI Signal Amplifier

Diagram
Control setup for SPI pixel strips
Small project Pixel controller ESP32 or similar SPI LED strip Pixel effects output Data and Ground Larger project Software Show playback Controller Pixel outputs Network Data and Ground SPI LED strip Multi zone installs Power supply is planned separately

FAQ

What is an SPI addressable LED strip?

An SPI addressable LED strip uses a serial data signal to control pixels in sequence. Each pixel can change color or brightness independently for effects like chasing and gradients.

Choose SPI when you want pixel level animation and smooth motion effects. Choose DMX when you need a standardized lighting network with centralized control across a larger site.

White scenes draw more power and make voltage drop more obvious, so the tail can dim or shift color. White also reveals unevenness faster than RGB, especially on long straight runs.

Flicker is often caused by an undersized power supply, poor grounding, long data wiring, or noisy connections. Keeping data and ground solid and placing the controller closer to the strip helps reduce flicker.

Breakpoint resume means the strip can keep working past a failed pixel on certain designs, reducing full blackout risk. It is worth it for long runs, hard to access installs, or projects where downtime is costly.
