Thinnest LED Strip
Product Feature
(1) Thinnest LED strip mainly uses LED chips with 2835 lamp package size and use reinforced thickened brackets of 0.75mm to resist bending;
(2) Ultra-narrow LED soft light strips are generally used in conjunction with small-sized neon tubes or aluminum profiles, or used in very narrow spaces;
(3) The lamp bead density is 60 LEDs/m, 120 LEDs/m, 144 LEDs/m, 168 LEDs/m, 180 LEDs/m, 240 LEDs/m, etc., and the lamp bead density can also be customized according to customer requirements;
(4) PCB boards are available in 2.5mm/3mm/4mm/5mm/6mm to adapt to different scenarios;
(5) The power supply voltage is DC12V, DC24V;
(6) The conventional CRI is >80, and CRI >90 or >95 can also be provided, and the color tolerance SDCM <5;
(7) The IP ratings of the products are: IP20, IP65, IP66, IP67, IP68;
(8) OEM or ODM cooperation modes are available;
(9) Product lifespan > 50,000 hours.
Why Choose LEDSuntech
Our high-quality thinnest LED strip products have passed a series of certifications such as ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
As an innovative thinnest LED strip supplier, we are proud to develop more customized lighting solutions. Join us to learn about the many advantages of our ultra narrow led strip. These advantages make our ultra slim LED strip the first choice for those seeking high-quality LED strips.
Wholesalers, distributors, dealers, traders, and agents are welcome to purchase in bulk from us.
16-Years History
Focuses on high quality SMD LED strips, COB LED strips and addressable LED strips
Independant R&D
Professional engineering team provides complete technical support
Customization
We have rich experience in designing and producing products according to customers’ needs. We are always here to help you
Global Market
Our products have been sold to more than 30+ countries all over the world
Fast Delivery
Experienced workers and fully automated production lines ensure products are delivered on time.
Flexible MOQ
We offer flexible minimum order quantities. The MOQ is 5m. It is convenient for you to conduct quality testing.
What is Thinnest LED Strip?
Ultra-thin LED strips are strips with very narrow widths, usually only 2.5mm/3mm/4mm wide.
This series of products are the thinnest LED strips in our range. This slim design allows the LED lights to be installed in hard to install places.
Like most LED strips, the thinnest LED strip series needs to be installed inside an aluminum profile for a number of reasons. This is the proper way to install your strip to ensure the safety and longevity of your product. The aluminum profile acts as a heat sink and absorbs any excess heat generated by your LED lights. It also protects your lights from human contact, dust, and other debris.
Why Choose Thinnest LED Strip?
The ultra-thin narrow light strip adopts a delicate and slender appearance design, which is lighter and softer than traditional light strips.
Not only is it easy to install, but it can also be better integrated into various scenes such as home and business.
In addition, its width is only very narrow, allowing you to feel an unprecedented visual shock in the lighting effect.
Secondly, it is its functional characteristics. The ultra-thin narrow light strip has a variety of colors to choose from, and its delicate line design can create a unique atmosphere for various scenes.
Application of Thinnest LED Strip
The appearance of ultra-thin narrow light strips breaks the shackles of traditional light strips and brings new possibilities for lighting design in modern homes, commercial spaces and other scenes.
Wholesale White LED Strip Series
Our Thinnest LED strips come in many varieties: 2.5mm 3mm 4mm 5mm 6mm;
Chip types: 2835SMD, 2216SMD, 3535SMD;
PCB width: 2.5mm 3mm 4mm 5mm 6mm;
Waterproof types: IP20, IP65, IP66, IP67, IP68.
Ultra-narrow LED soft light strips are used in conjunction with small-sized neon tubes or aluminum profiles, or in very narrow spaces.
You can be confident in your purchase of our high quality thinnest LED strip range. Our ultra-thin LED strips contain Epistar chips, Intermatix phosphors, 99.9% pure gold wire and pure copper.
Thinnest LED Strip Classification
2.5mm 3mm LED Strip By Series

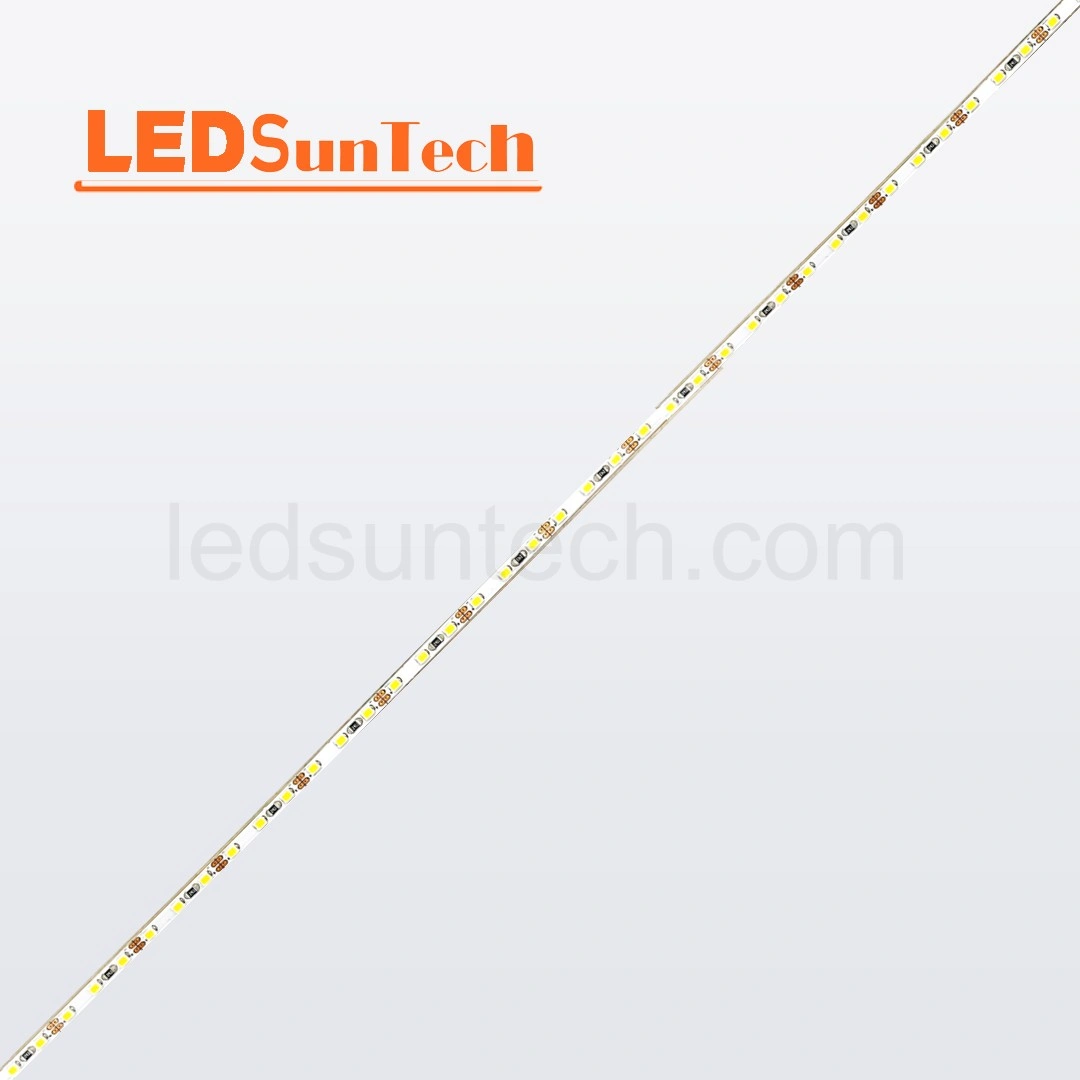

The 2.5mm wide LED strip is a custom light strip with 156 LEDs/m. The lamp beads used are 2017 packages, with the smallest width size, wattage of 4W, and voltage of DC12V.
The 3mm wide LED strip has 2835 lamp beads, the number of lamp beads is 120 LEDs/m, the regular wattage is 4W/5W, and the voltage is DC12V and DC24V.
Specification Download
| Specification Name | Download |
|---|---|
| 2017-DC12V-156leds/m-2.5mm-White LED Strip Specification |
|
| 2835-DC12V-120leds/m-3mm-White LED Strip Specification |
|
| 2835-DC24V-120leds/m-3mm-White LED Strip Specification |
|
4mm LED Strip By Series
4mm wide LED strip with 2835 lamp beads, the number of lamp beads is 60 LEDs/m, 90 LEDs/m, and 120 LEDs/m. The conventional wattage is 5W/6W, and the voltage is DC12V and DC24V.
Specification Download
| Specification Name | Download |
|---|---|

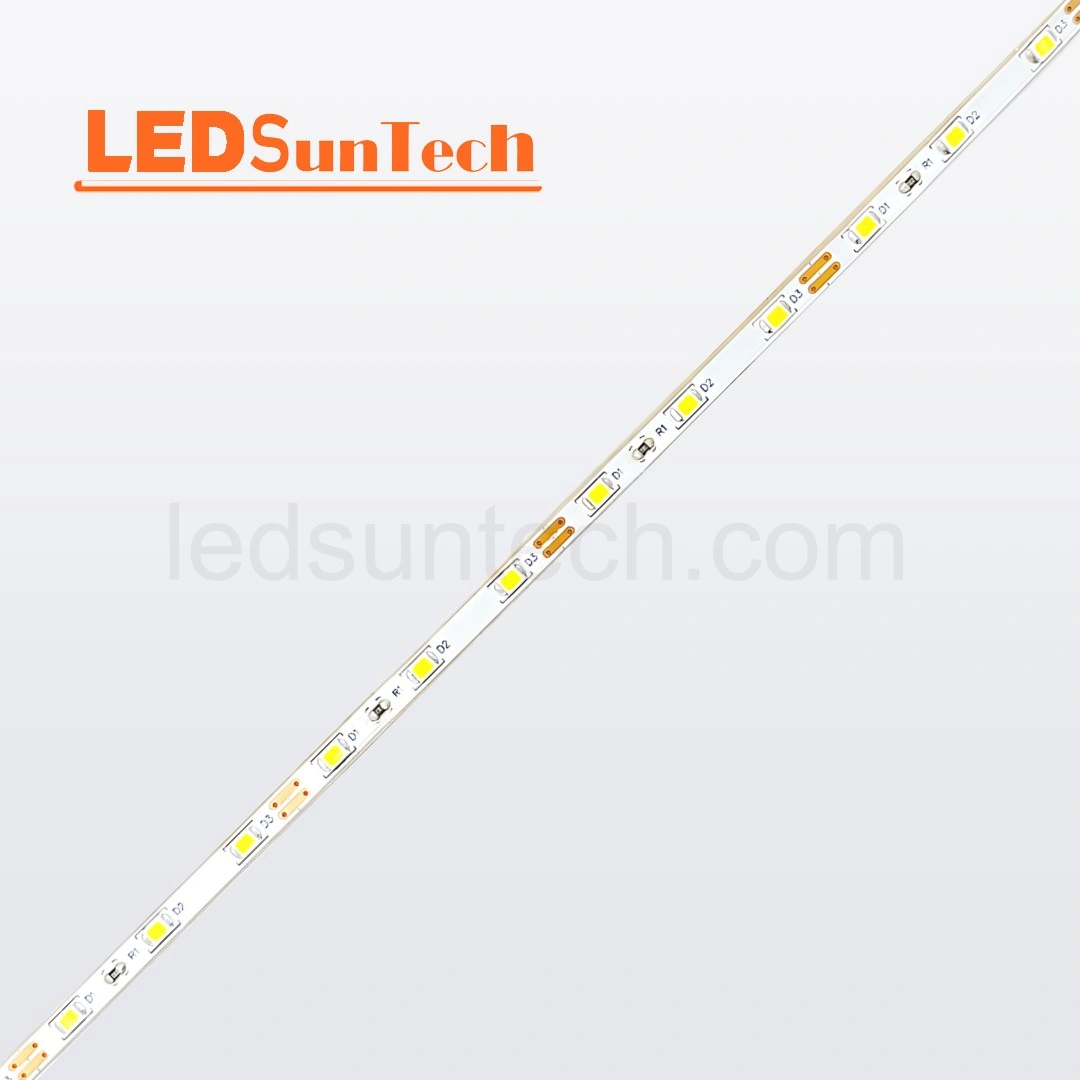

| 2835-DC12V-60leds/m-4mm-White LED Strip Specification |
|
| 2835-DC12V-90leds/m-4mm-White LED Strip Specification |
|
| 2835-DC12V-120leds/m-4mm-White LED Strip Specification |
|

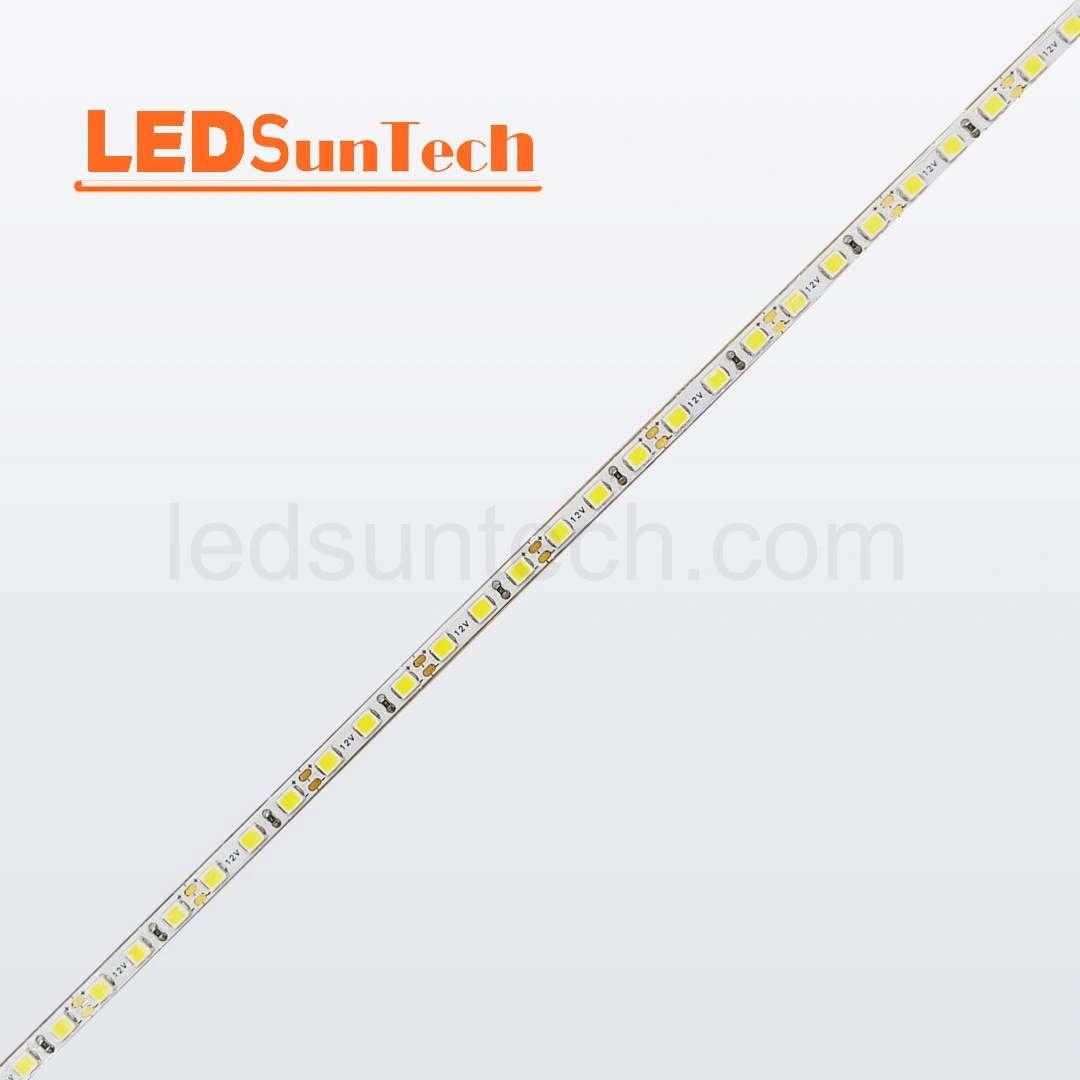

| 2835-DC12V-132leds/m-4mm-White LED Strip Specification |
|
5mm LED Strip By Series

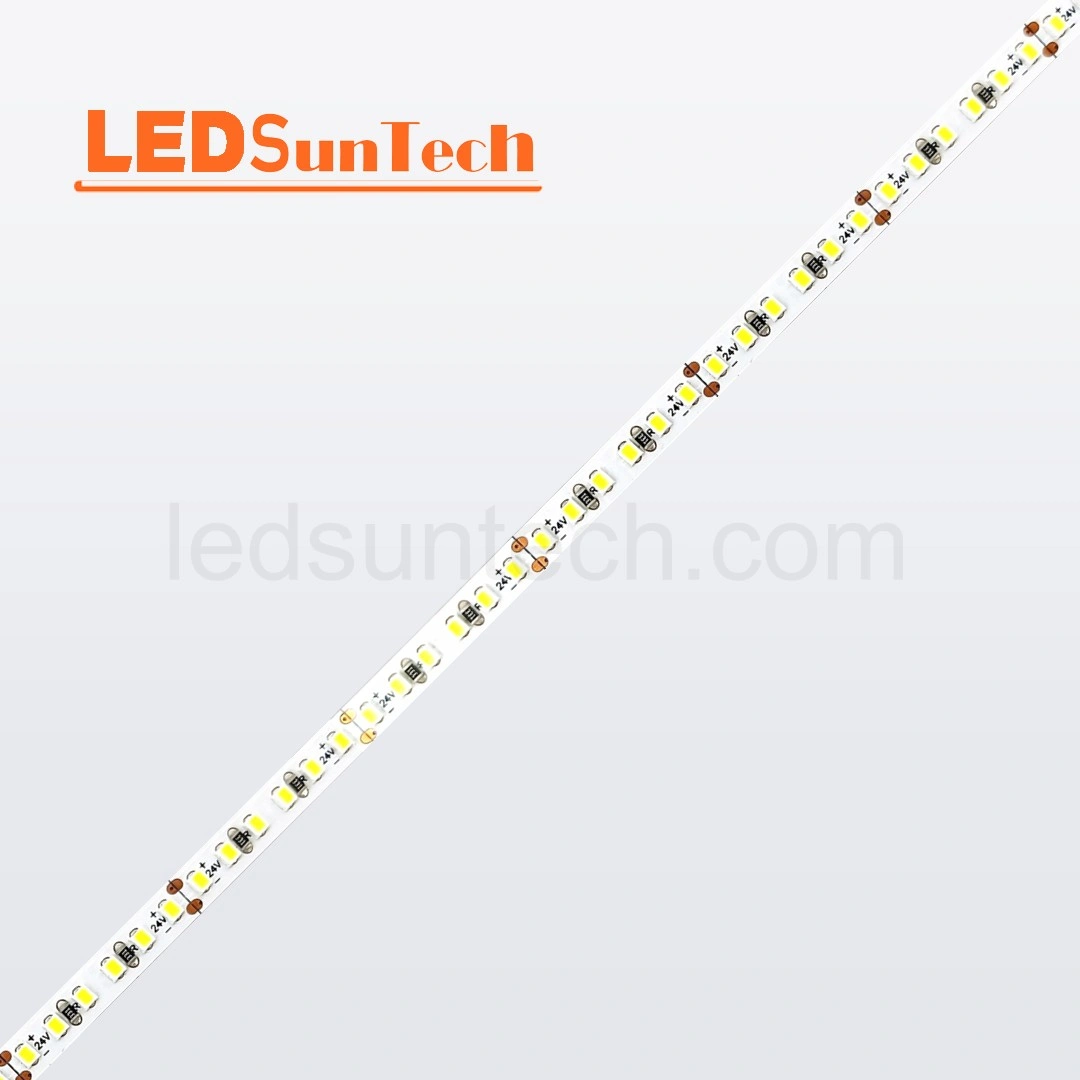

5mm wide LED strips use 2216 dual color temperature lamp beads. The number of lamp beads is 240 LEDs/m, the wattage is 9W, and the voltage is DC12V and DC24V.

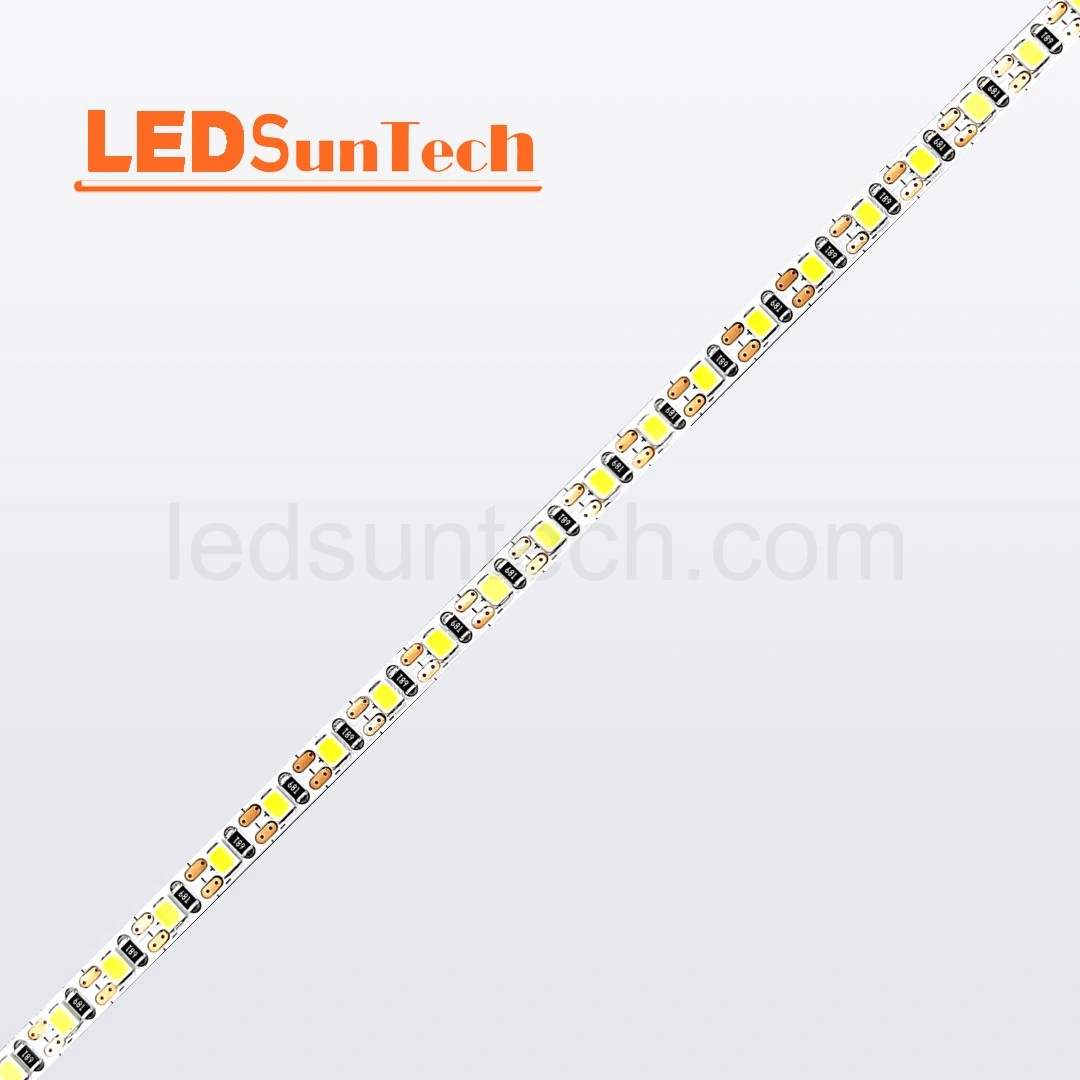

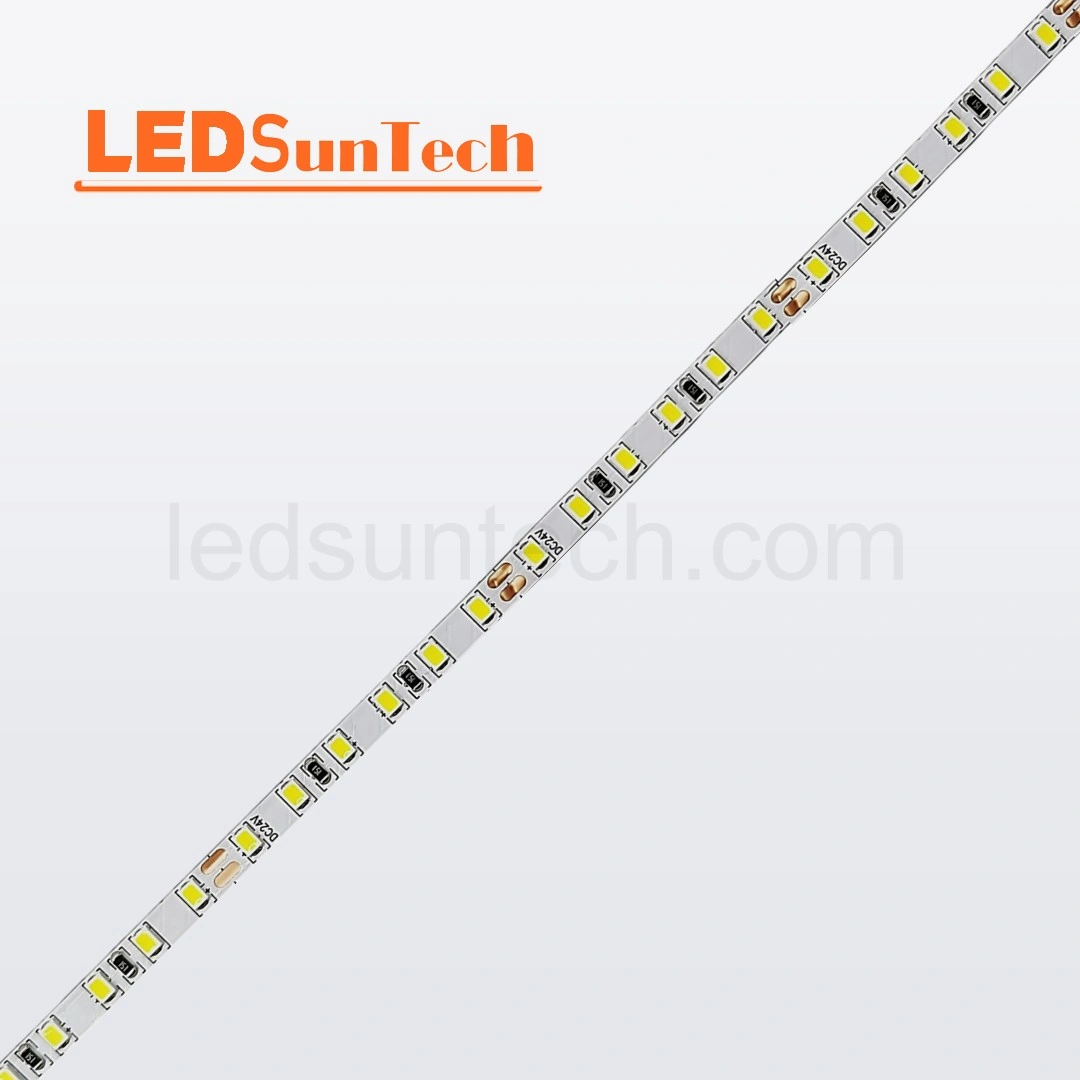

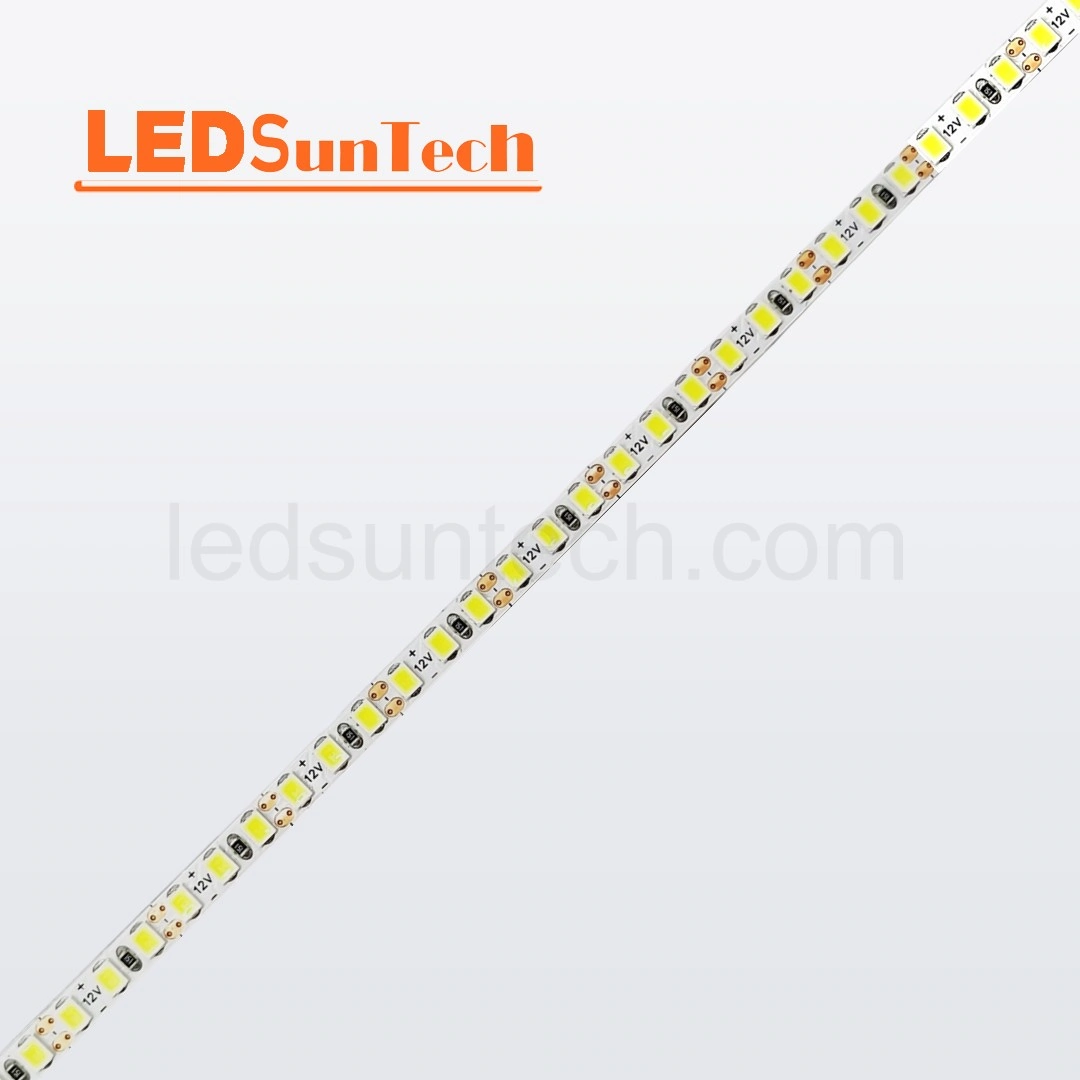

5mm wide LED strips use 2835 lamp beads, the number of lamp beads is 60LEDs/m, 144LEDs/m, 168LEDs/m, 180LEDs/m, 240LEDs/m. The wattage is 5W and 9W, and the voltage is DC12V and DC24V.
–2835 SMD 5mm LED Strip–

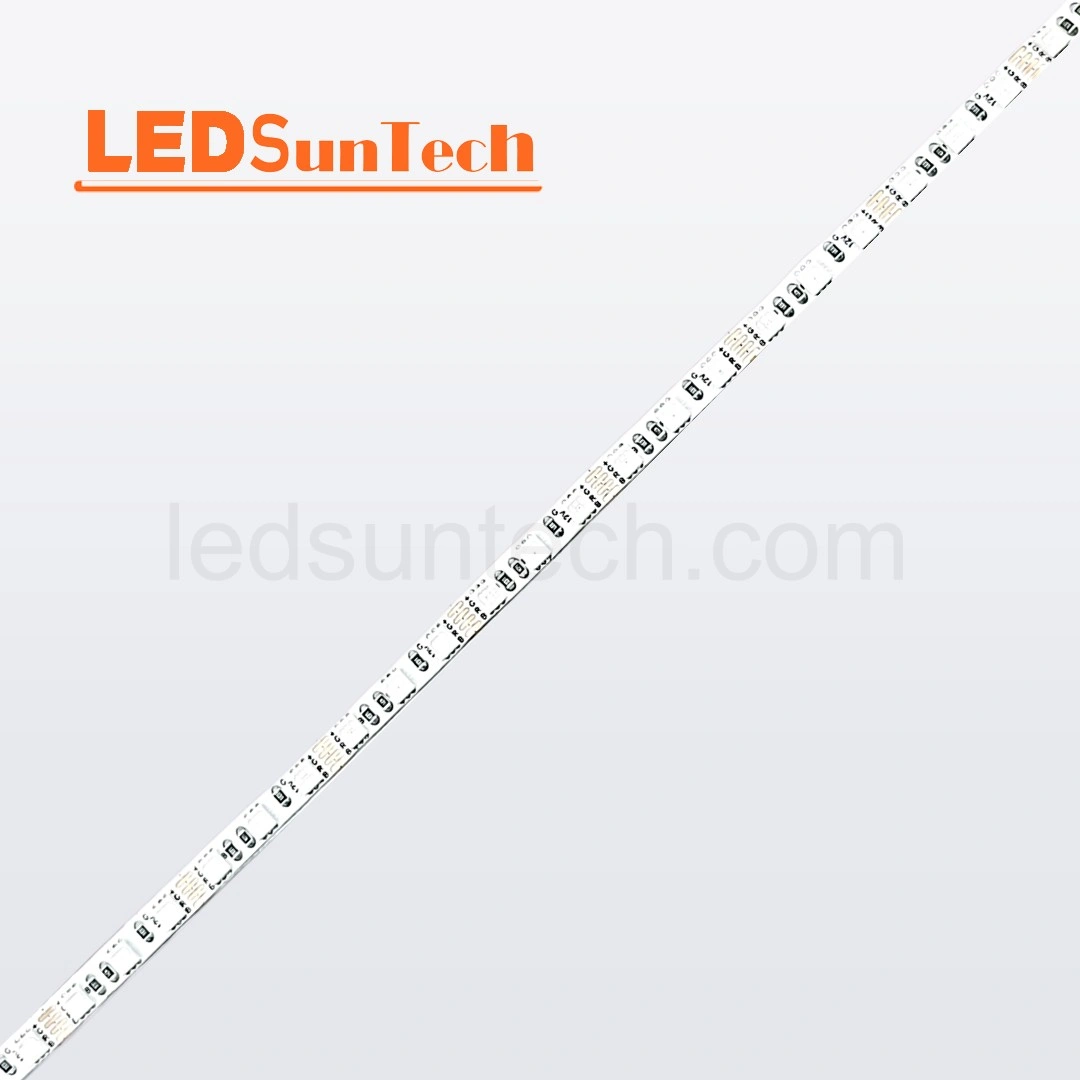

–3535 SMD 5mm LED Strip–
–2216 SMD 5mm LED Strip–
Specification Download
| Specification Name | Download |
|---|---|

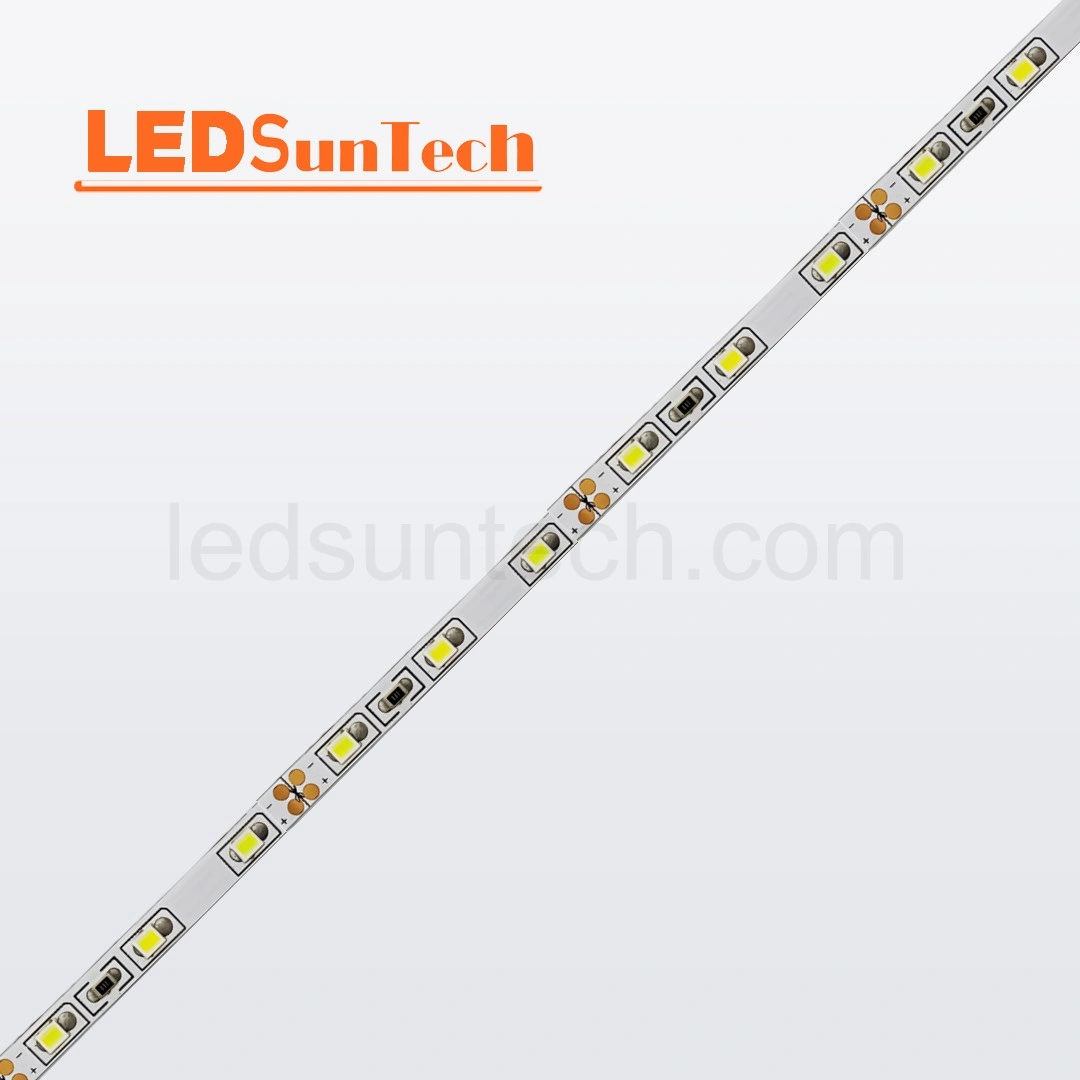

| 2835-DC12V-60leds/m-5mm-White LED Strip Specification |
|

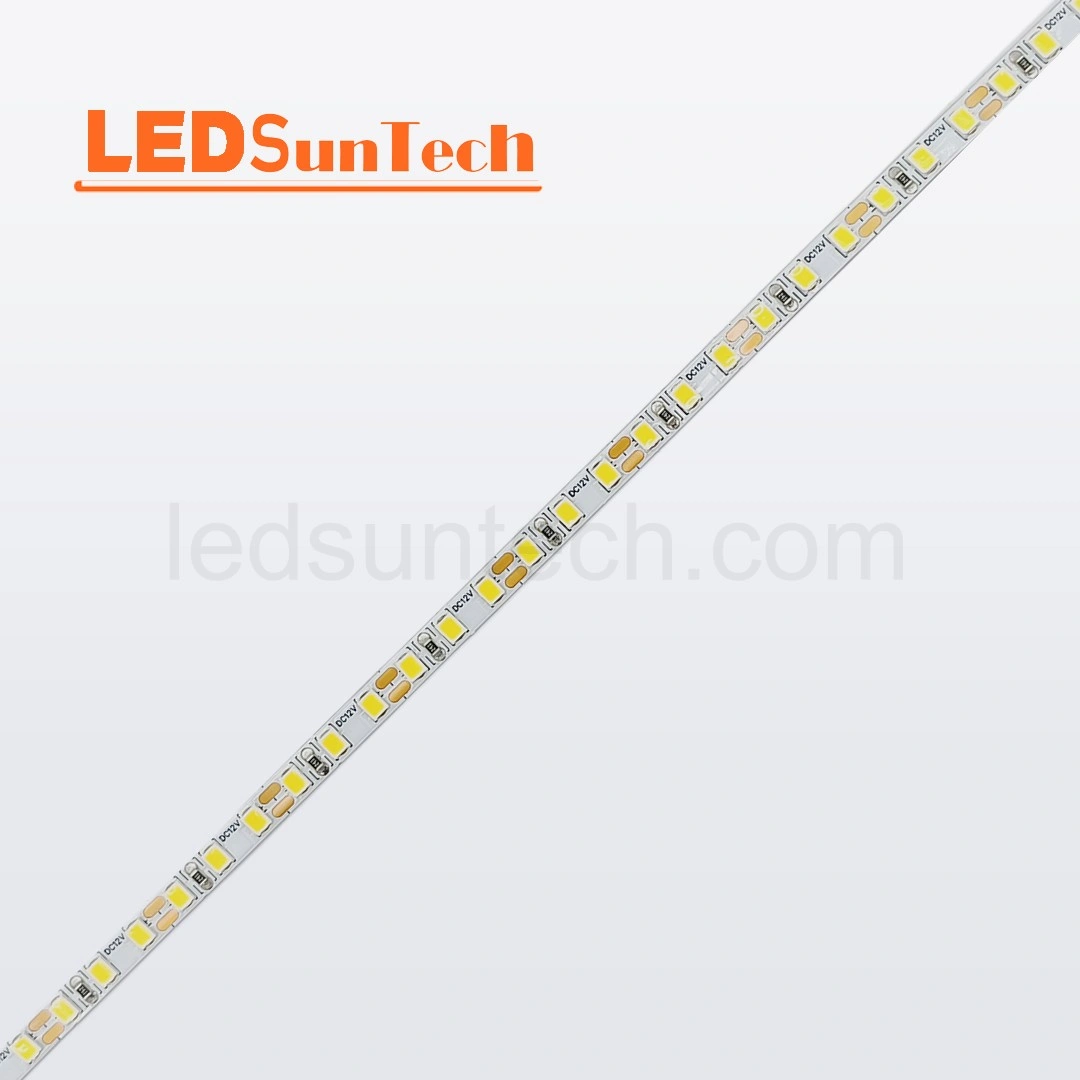

| 2835-DC12V-144leds/m-5mm-White LED Strip Specification |
|

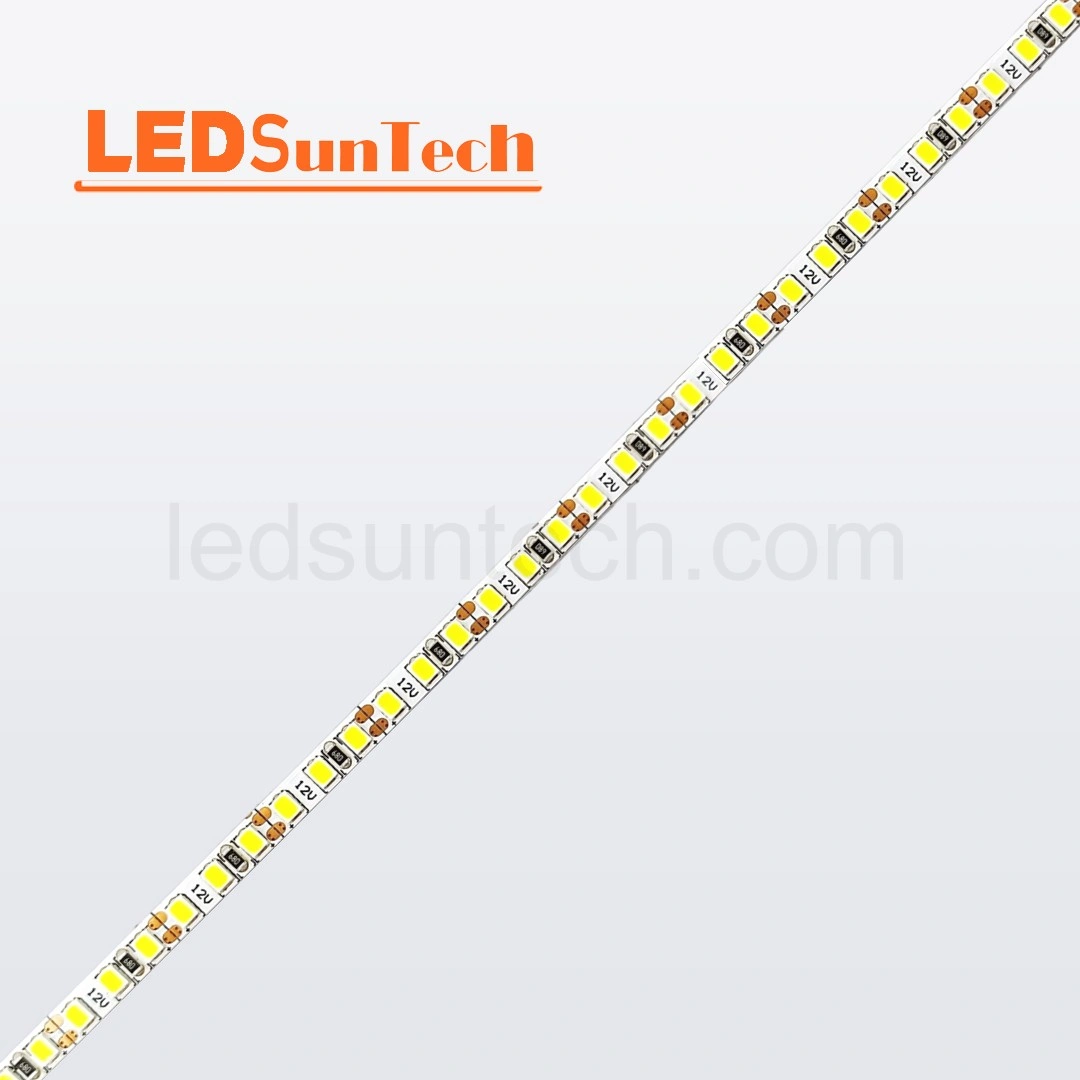

| 2835-DC12V-168leds/m-5mm-White LED Strip Specification |
|

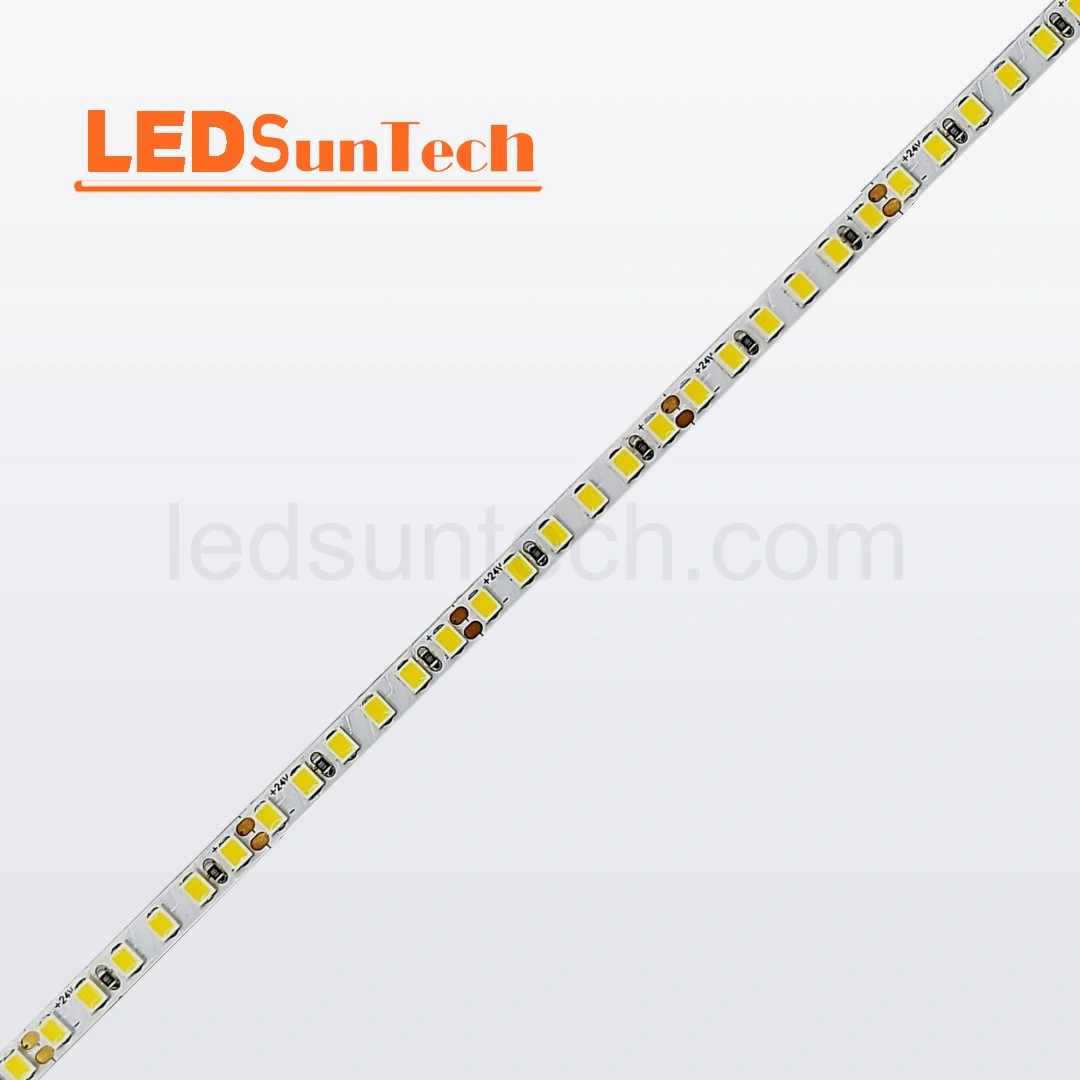

| 2835-DC24V-180leds/m-5mm-White LED Strip Specification |
|
| 2216-DC12V-240leds/m-5mm-CCT LED Strip Specification |
|
| 2216-DC24V-240leds/m-5mm-CCT LED Strip Specification |
|
6mm LED Strip By Series
6mm wide LED strips use 2835 lamp beads. The number of lamp beads is 120 LEDs/m, 140 LEDs/m, 168 LEDs/m, the regular wattage is 9W, and the voltage is DC12V and DC24V.
Specification Download
| Specification Name | Download |
|---|---|
| 2835-DC24V-120leds/m-6mm-White LED Strip Specification |
|

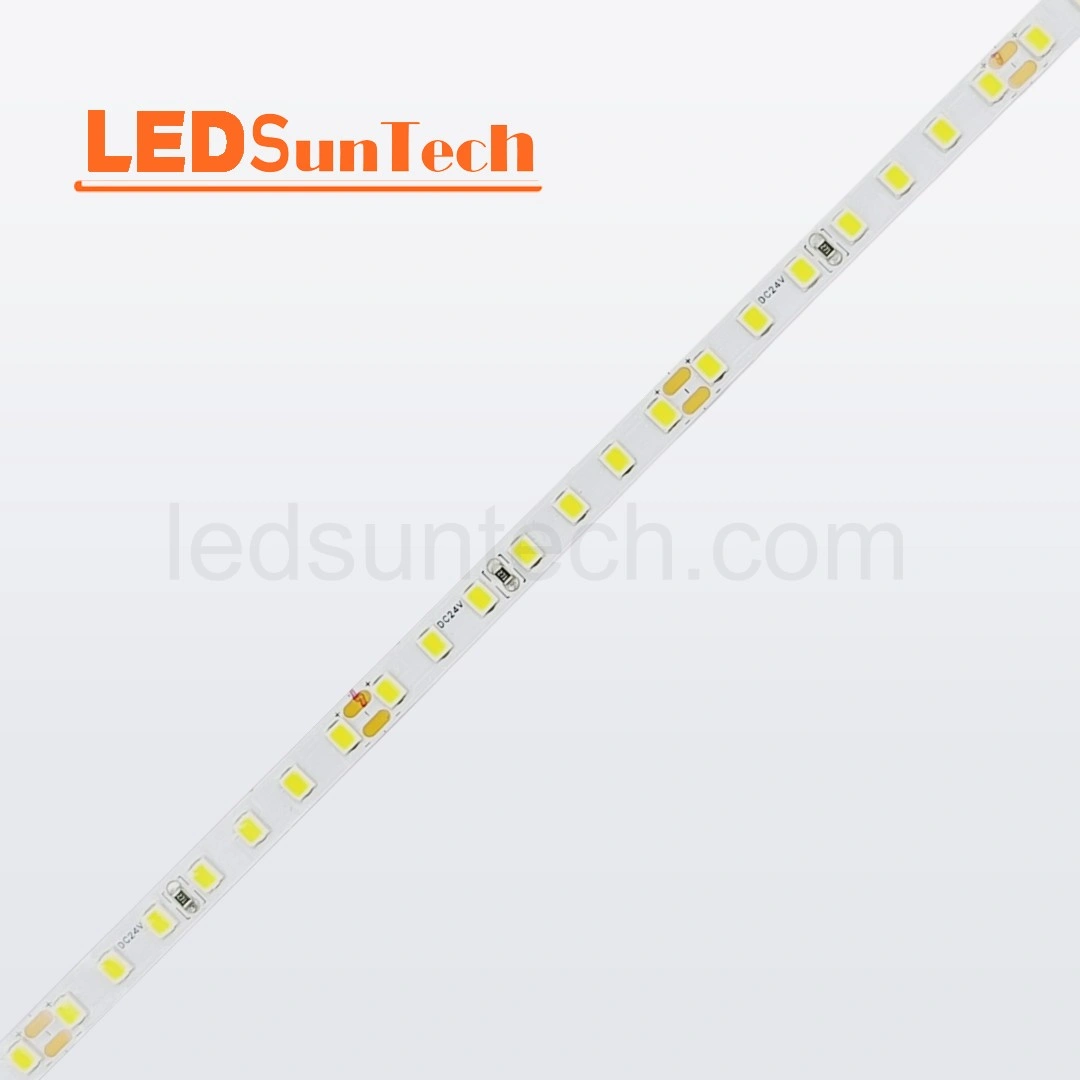

| 2835-DC24V-140leds/m-6mm-White LED Strip Specification |
|

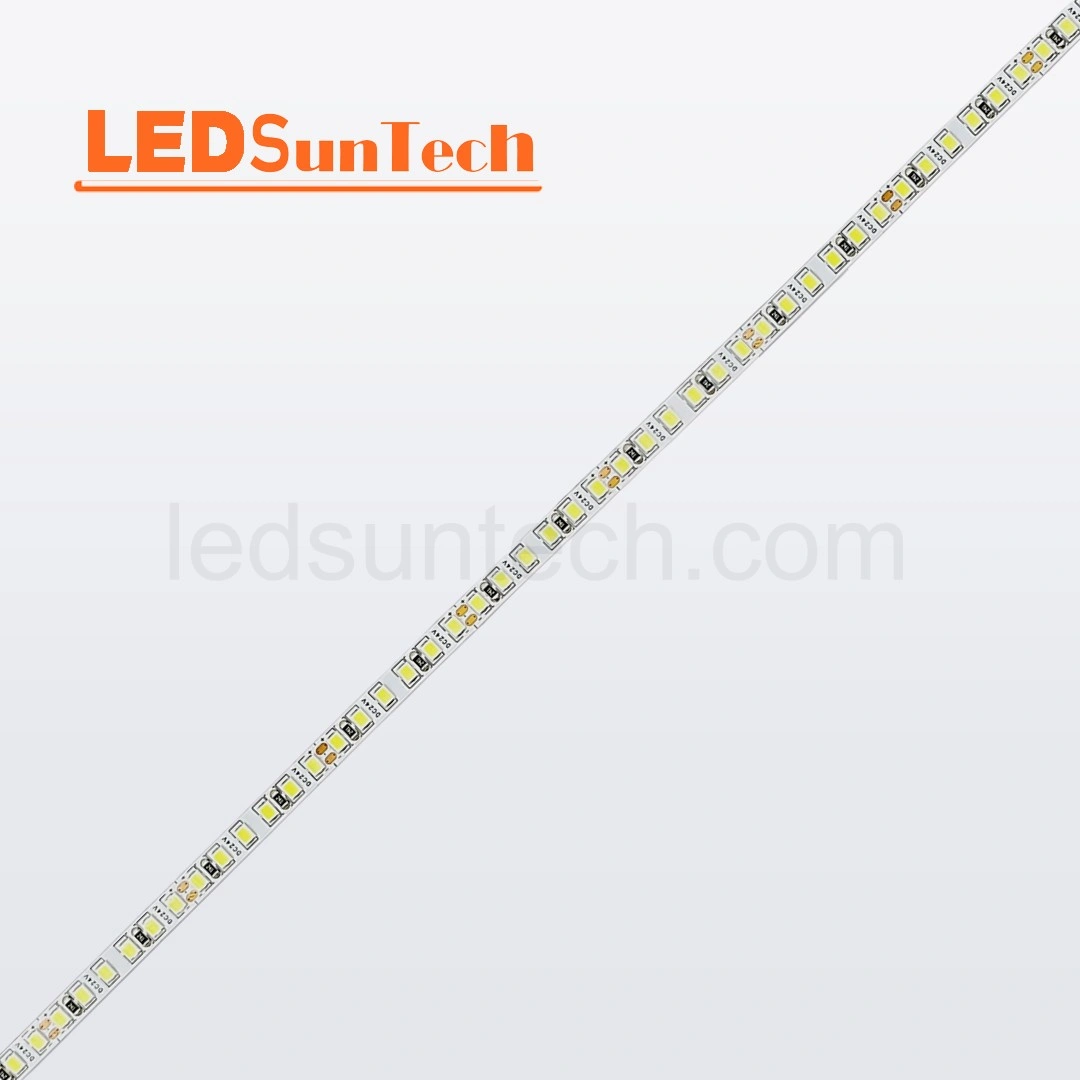

| 2835-DC24V-168leds/m-6mm-White LED Strip Specification |
|
FAQ
1. What are the types of lamp beads for ultra-thin light strips?
Answer: SMD2216/SMD2835/SMD3535, etc.
2. How to use ultra-thin light strips?
Answer: Generally used with small-sized neon tubes or aluminum profiles, or used in very narrow spaces.
