TM1804 LED Strip
Add Your Heading Text Here
Product Feature
1.TM1804 LED Strip is digitally programmable and has an internal dedicated three-channel LED driver control circuit, which makes it possible to set illumination parameters with accuracy.
2. Equipped with an SOP8 package, the TM1804 LED Strip has high-performance capability with stable and reliable quality.
3. TM1804 LED Strip can complete data reception and decoding via just a single signal line, which offers a simple and efficient transmission method.
4.TM1804 LED Strip supports cascade control and can be spliced to realize a dot-matrix display on large outdoor color screens with strong expandability.
5. The TM1804 LED Strip’s strong versatility in professional lighting makes it suitable for a broad range of uses, from architectural lighting and stage lighting to contour illumination.
6. The TM1804 chip uses high-voltage CMOS technology and supports 5 V–24 V input, which is suitable for long-distance wiring and reduces power consumption. Built-in 256-level grayscale correction, PWM frequency exceeds 400 Hz, achieving smooth brightness transition and color rendering.
7. Only one data line (DIN/DO) is required to cascade more than 1,024 pixels and maintain stability at a refresh rate of 30 FPS.
8. Marked with cutting points at 5 cm intervals, the light strip allows for free cutting as needed.
9. The flexible copper foil PCB paired with strong 3M adhesive backing allows for simple and quick installation.
10. Provide 30–180 LED/m (10–60 pixels/m) in multiple specifications.
11. IP66/IP68 waterproof level is optional, meeting indoor, outdoor, and underwater needs.
TM1804 LED Strip Manufacturers & Suppliers
We are a professional pixel TM1804 LED strip manufacturer in Shenzhen, China. Our smart TM1804 LED strip products, from design to material selection to production quality inspection, are always higher than the industry standards.
We are committed to delivering the highest quality LED lighting—all assembled in our in-house production facilities and designed to meet the needs of commercial lighting projects.
LEDSuntech is more than just an LED lighting company. One of the greatest values we bring to our customers is our exceptional service and guidance, ensuring that our customers’ requirements are met.
What is TM1804 LED Strip?
TM1804 LED strip is a smart pixel light strip controlled by the TM1804 chip. It has a three-channel LED driving circuit. Each LED can be independently programmed to control color and brightness. The light strip adopts a flexible PCB substrate, with 30-180 LEDs per meter (such as 2835/5050 package).
It supports on-demand cutting (usually every 5cm). Single-line serial data reception and forwarding, supporting low-speed (400 kbps) and high-speed (800 kbps) communication modes.
TM1804 LED Strip Advantage
- Compared with the previous generation TM1803, TM1804 significantly improves communication stability and reduces bit error rate through improved data timing method.
- Built-in RC oscillation synchronization and power-on reset circuit, strong anti-interference ability and stable signal transmission.
- High-voltage drive capability (up to 24 V) reduces line voltage drop and enables continuous laying over longer distances without interrupting power supply.
- The SOP‑8 packaged IC is exposed on the PCB surface, which helps to quickly dissipate heat and improve reliability and life under high density and high brightness conditions.
- Compatible with various controllers and protocols, such as PixLite (Art‑Net/sACN), DMX512 and Arduino and other open source platforms, with strong adaptability.
TM1804 LED Strip Application
- Architectural and contour lighting: used for large-scale exterior wall decoration such as building facades, bridges, and landscape contours, with good wind and rain resistance and remote pixel control capabilities.
- Stage and event lighting: can achieve complex pixel-level dynamic effects in concerts, theaters, nightclubs and other places, and cooperate with light and shadow programming to create a shocking visual experience.
- Advertising and backlight display: suitable for acrylic letters, light box advertisements, and display cabinet backlights, which can present high-brightness, uniform and varied visual effects.
- Home and commercial decoration: used in interior decoration such as ceilings, cabinets, and stair steps, the color temperature and brightness can be adjusted at will to create a diverse atmosphere.
- Automotive and special lighting: can be used as interior atmosphere lights, body decorative lights or underwater lamps, with good vibration resistance and waterproof performance, meeting various creative lighting needs.

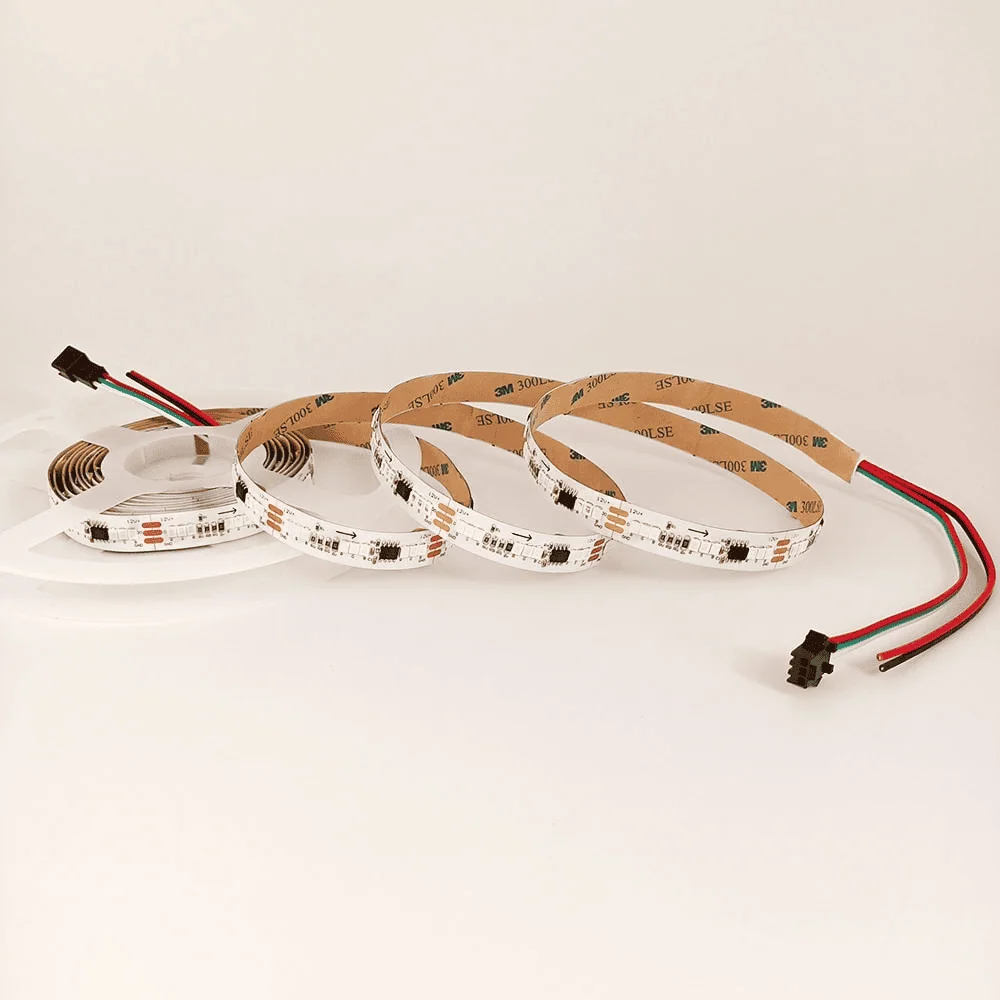

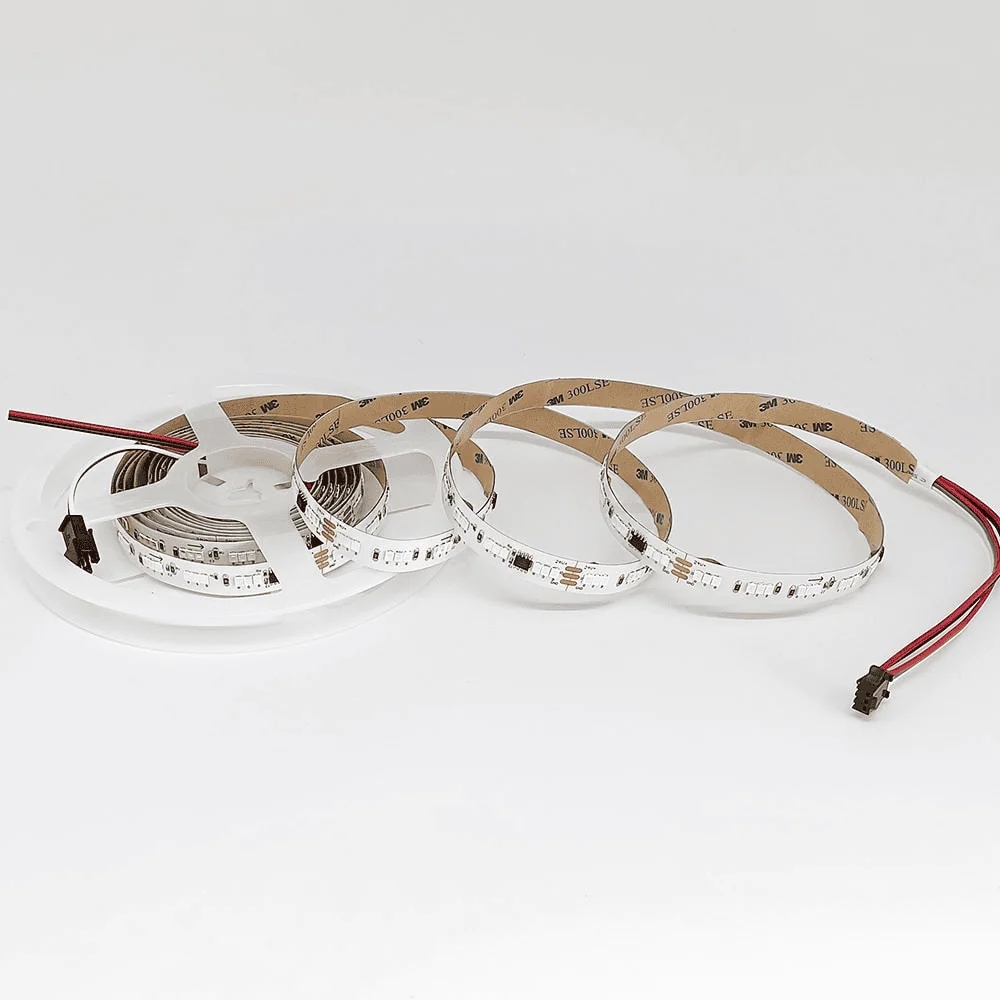

Wholesale TM1804 LED Strip Series
Voltage: 12V/24V
PCB Width: 12mm
LEDs density: 180 LEDs/m
Color: RGB
Waterproof type: IP20
If the parameters of the TM1804 LED strip above do not have what you need. Then, please contact our experienced team of engineers for customization.
Specification Download
| Specification Name | Download |
|---|---|
| 3PIN TM1804 180leds/m 24V Addressable RGB LED Strip Specification |
|
FAQ
1. Is the length of this TM1804 LED strip adjustable?
Answer: Yes, equipped with a 50mm cutting mark per section, the pixel TM1814 RGB strip lets you modify its length flexibly to meet your requirements.
2. Can it be used outdoors?
Answer: Yes. You can customize the waterproof IP65/IP67/IP68 addressable TM1804 LED strip.
3. How to control the lighting effect?
Answer: You have multiple control choices: use an external controller, connect to a smart home system, or leverage a single-line serial interface for easy operation.
4. What color modes does this strip support?
Answer: The TM1804 RGB LED strip features support for various color modes, including the fundamental RGB color mode.
5. Does it support cascading?
Answer: Yes, cascading is supported by the TM1804 LED strip, and good signal transmission remains achievable even with the cascading of multiple strips.
6. What is the power supply requirement for this strip?
Answer: Constant voltage power supplies of DC12V and DC24V are the intended match for the TM1804 RGB LED strip, as it is designed to operate with these specifications.
7. What should I pay attention to when installing the strip?
Answer: When installing the strip, please keep its surface clean and dry, and refrain from bending it excessively or subjecting it to stress—these actions may compromise its service life and intended effect.
8. Do you provide customized services?
Answer: Yes, customized services are available from us—including adjustments to length, color, brightness, and control methods—ensuring the LED strips are precisely tailored to meet your specific requirements.
