TM1834 LED Strip
Product Feature
- TM1834 adds a backup signal line based on the original TM1814 single signal to ensure that it can continue to transmit when the main signal is abnormal, greatly improving the reliability of the light strip and the stability of the project.
- Supports a PWM refresh frequency of up to 1000 Hz, which can achieve smoother gradients and dynamic effects without flickering.
- Multiple ICs can be cascaded in series, and the external controller can accurately control the brightness of the four-color channels of each pixel through the SPI protocol.
- Supports DC 12 V (every 3 LEDs are 1 pixel) and DC 24 V (every 6 LEDs are 1 pixel) power supply solutions to meet the needs of different power supply environments.
- Provides a variety of waterproof options such as IP20 bare board, IP65 silicone dispensing, IP67 silicone tube and IP68 filling tube, suitable for an indoor dry environment or an outdoor wet scene.
TM1834 LED Strip Manufacturers & Suppliers
Our programmable TM1834 LED strip products, from design to material selection to production quality inspection, are always higher than the industry standards. We are committed to providing you with the highest quality LED lighting, assembled in our own production facilities, and designed for commercial lighting projects.
LEDSuntech is more than just an LED lighting company. One of the greatest values we bring to our customers is our exceptional service and guidance, ensuring that our customers’ requirements are met.
What is TM1834 LED Strip?
TM1834 LED strip is a four-channel addressable RGBW strip based on the TM1834 driver chip. 72 LEDs 5050 packaged LEDs are integrated per meter (RGB+white, white light can be selected in 3000K/4000K/6000K color temperature).
A single IC can independently drive a group of RGBW with a total of 4 outputs (i.e., 1 pixel).
Supports personalized customization of length, color temperature, waterproof level, and LED arrangement density.
TM1834 LED Strip Advantage
- Compared to the previous generation TM1814, TM1834 adopts dual signal transmission technology, with stronger signal anti-interference ability, higher stability, and supports longer-distance cascade control.
- The PWM refresh rate can reach 400kHz (or 1000Hz), and the data transmission rate can reach 800Kbps, which can achieve smooth gradient, chasing and other dynamic effects.
- Support 12V/24V voltage options, the 24V version can be cut every 6 LEDs (83.3mm), the 12V version can be cut every 3 LEDs, adapting to different installation scenarios.
- Using the SPI protocol, compatible with SD card controller, DMX512, Art-Net and other control systems, can be linked with Raspberry Pi, Arduino and other development boards.
- Provide IP20 (bare board), IP65 (silicone coating), IP67 (silicone casing), IP68 (full glue filling) and other protection levels to meet indoor and outdoor needs.
- The double-sided lamination PCB process is used to ensure that the conductive layer is stable and does not fall off, and the light strip is highly flexible and can be bent into shape.
TM1834 LED Strip Application
Can be used for architectural outline lighting, shopping mall neon, window display, advertising signs, etc.
Widely used in hotel lobbies, restaurant nightclubs, bars, KTV, home living room backlighting and bar decoration
Adapt to dynamic visual effects such as performance stages, exhibition booths, and museum lighting installations
Festival lights, party decorations, and festival scene layouts, which can achieve audio response and interactive lighting effects
Combined with single-chip microcomputers and LED control software, it can be used for maker spaces, lighting programming teaching, music interactive devices, homemade game console lighting effects, etc.

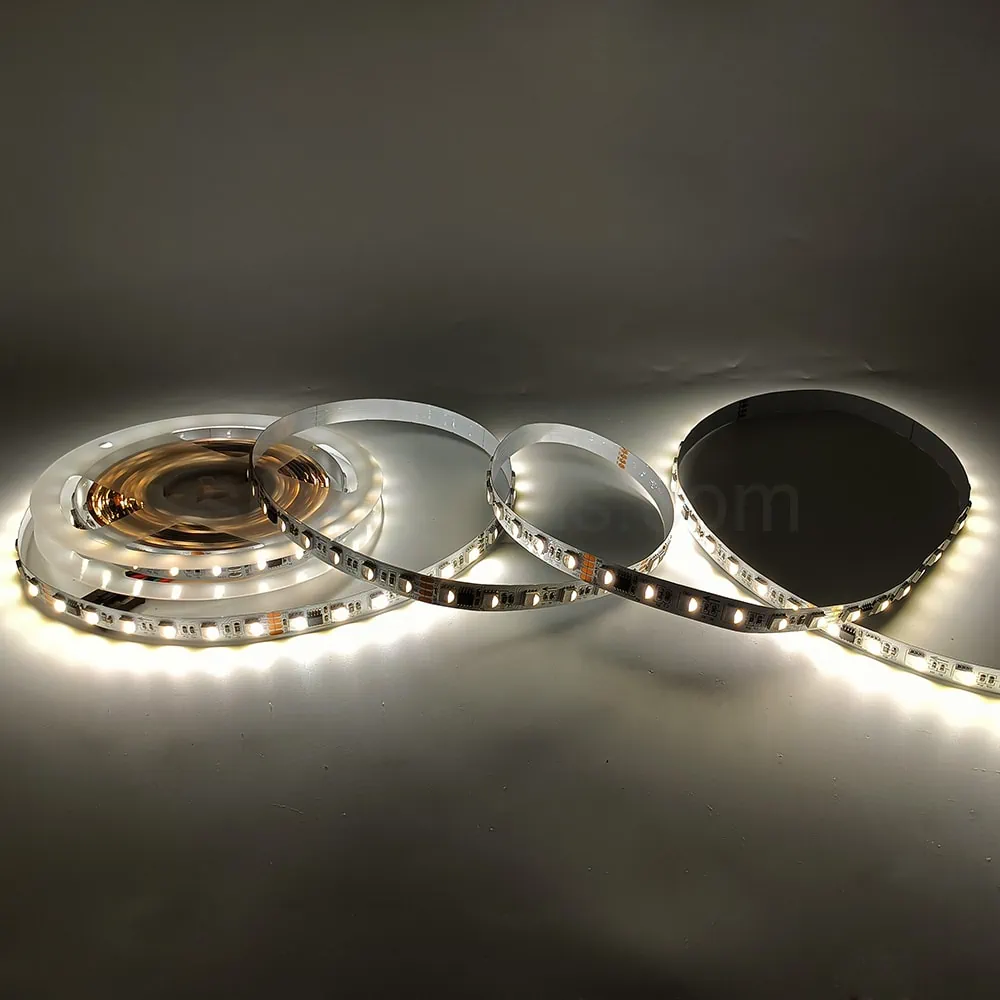

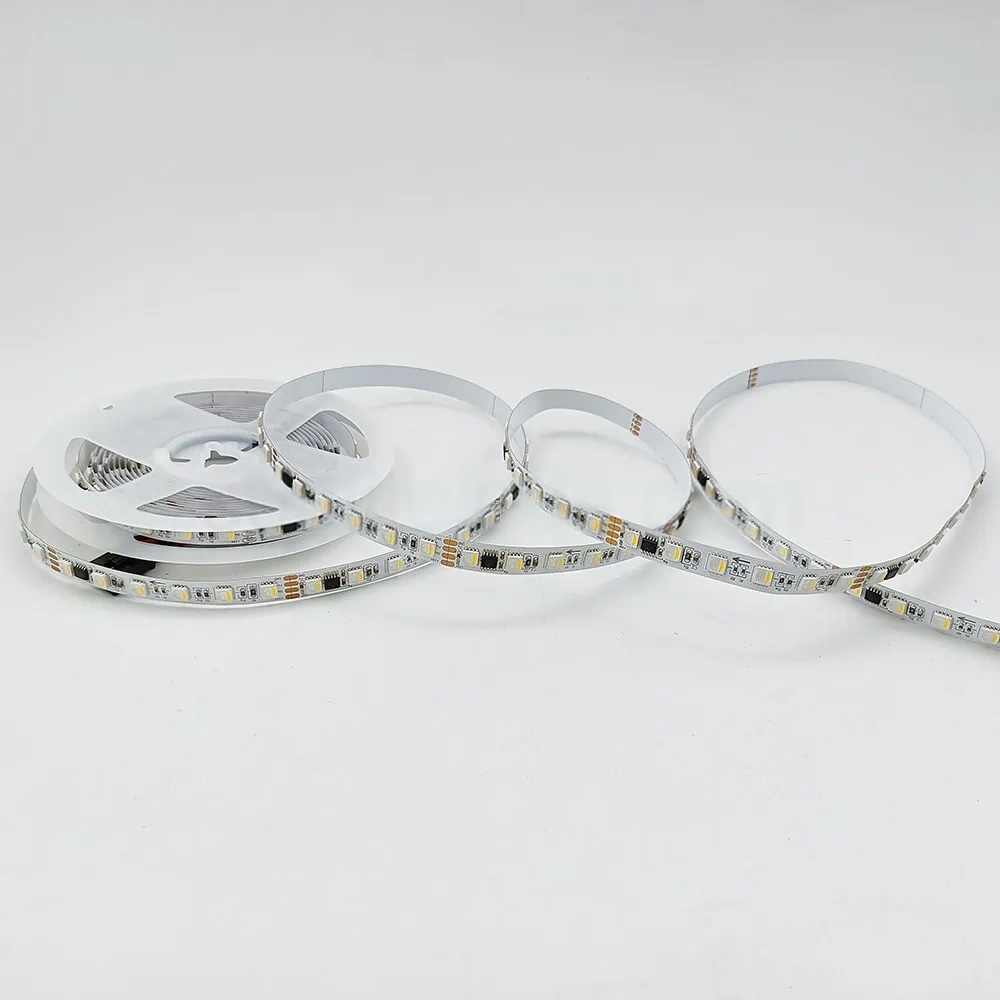

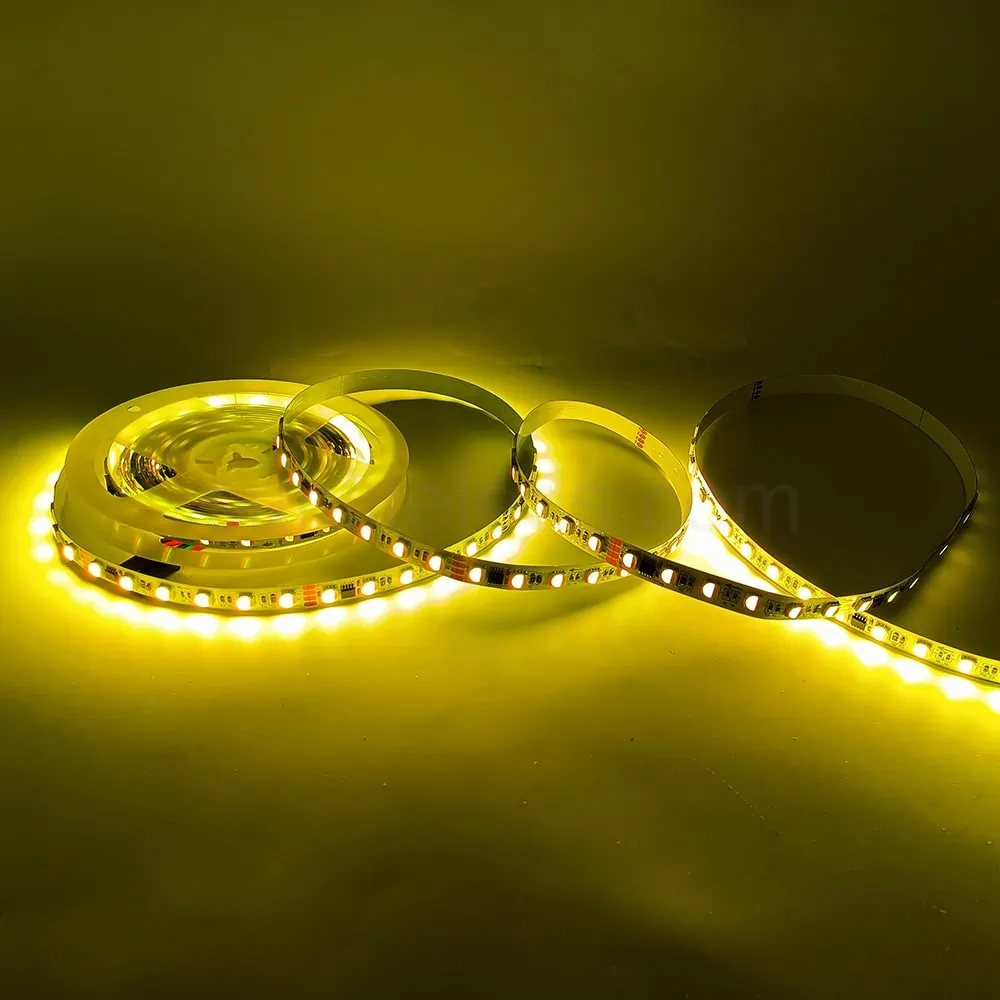

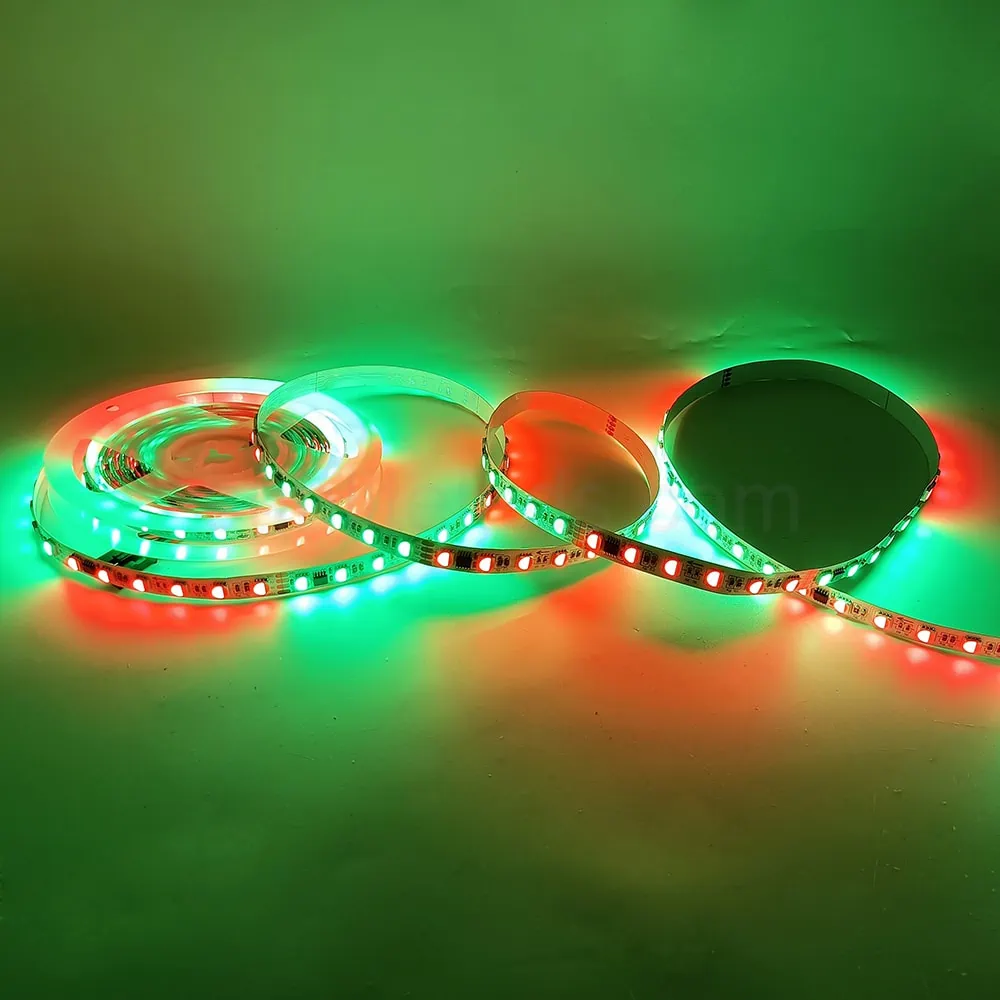

Wholesale TM1834 LED Strip Series
Voltage: 24V
PCB Width: 10mm
LEDs density: 72 LEDs/m
Color: RGBW
Waterproof type: IP20
If the parameters of the TM1834 LED strip above do not have what you need. Then, please contact our experienced team of engineers for customization.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN TM1834 72leds/m 24V Addressable RGBW LED Strip Specification |
|
FAQ
1. Can the RGBW LED strip be cut?
Answer: It can be cut, but it needs to be cut at the specified position at the cutting point, otherwise, it will affect the use of the light strip. At the same time, it is necessary to rewire according to the length after cutting to ensure the correct connection of the power supply and controller.
2. What is the control method of the RGBW LED strip?
Answer: There are many control methods for RGBW LED strips, and the common ones are manual switch, remote control, controller, etc. Different control methods need to be selected according to actual needs, and ensure that the connection between the controller and the light strip is correct and stable.
3. Can RGBW LED strip be used for outdoor lighting?
Answer: RGBW LED strip can be used for outdoor lighting, but it is necessary to select a suitable protection level and ensure that the light strip and power supply, controller and other equipment have waterproof and dustproof functions.
At the same time, pay attention to electrical safety issues such as lightning protection and voltage surge protection when used outdoors.
