TM1934 LED Strip
Product Feature
1. The 5050 TM1934 LED strip is an external IC. One IC controls 3 LEDs (12V) or 6 LEDs (24V). The controller controls the circuit inside the FPCB by controlling the IC, thereby controlling the LED strip to change different effects.
2. 4Pin female/male JST SM connector.

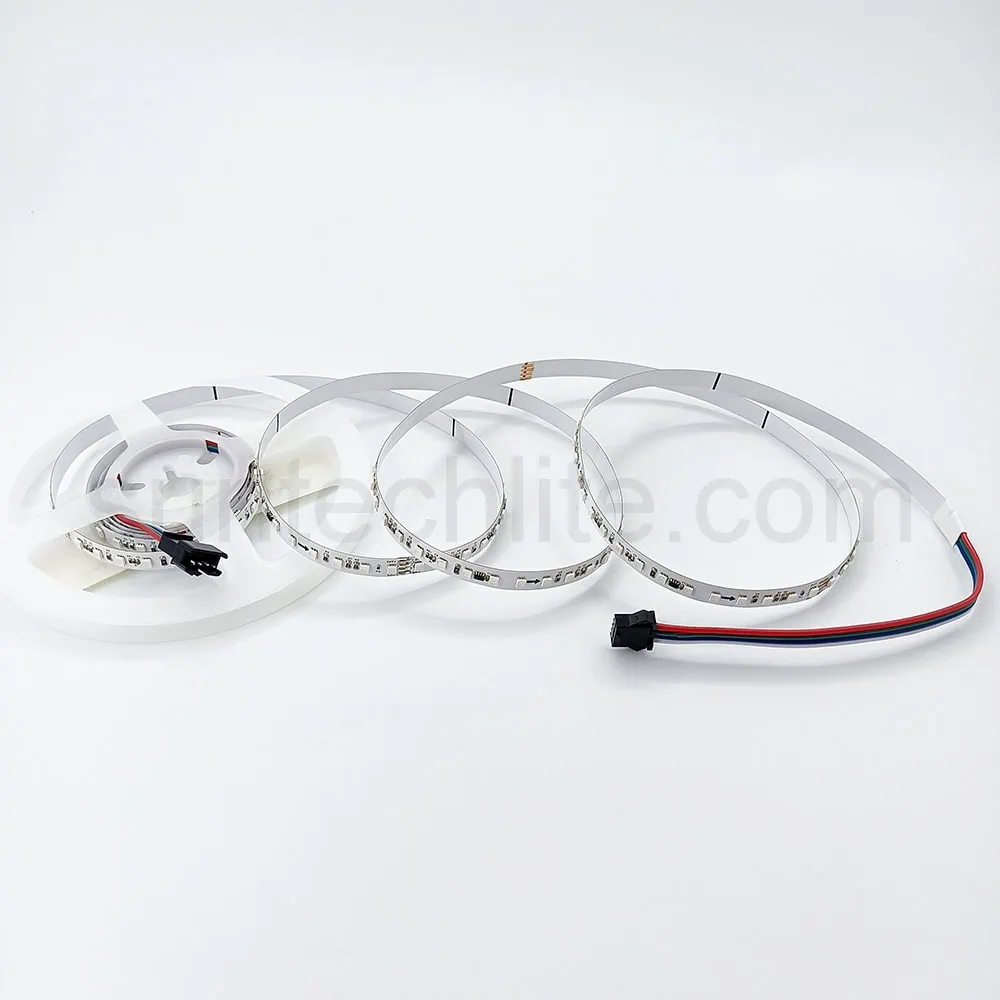

3. Our latest developed 120leds DC24V 10 Pixels 2835 TM1934 Addressable RGB LED Strip can control 12 LEDs, 12 LEDs/cutting with one IC.
4. Dual signal breakpoint transmission. If one LED on the strip is broken, the backup signal channel will continue to transmit data to the next normal LED, which will not affect the normal work of other LEDs.
5. TM1934 LED strip is compatible with various controllers, including Arduino, Raspberry Pi and DMX512.
6. The changing effects of TM1934 strip are not limited to the various effects built into the current controller, and can be programmed according to customer needs.
7. The TM1934 light strip has an intelligent reverse connection protection function. When the product is installed, it is connected to a 5V power supply. Reverse connection of the power supply will not damage the lamp beads.
8. Built-in signal shaping circuit. After any pixel receives the signal, it is output after waveform shaping to ensure that the line waveform distortion will not accumulate.
9. Each pixel can achieve 256 levels of brightness display with three primary colors, complete 16777216 colors of full-color display, and the port scanning rate is 2KHZ/s.
10. No signal amplification circuit is required When the transmission distance between any two points does not exceed 5 meters. When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points, and the data transmission speed can reach 800KHZ. The light color consistency is strong and the cost performance is high.
11. Customizable design, OEM and ODM are welcome.
TM1934 LED Strip Manufacturers & Suppliers
We are a professional TM1934 LED strip manufacturer in Shenzhen, China, with more than 16 years of rich experience in LED lighting.
With our advanced technology, high quality, super brightness, low light decay and long life LED, we have received good response from many customers. All TM1934 LED strip products meet international product standards and have obtained UL, CE, FCC, ROHS certification.
We are able to provide LED lighting solutions for customers’ projects, especially LED strips with complete connection systems.
What is TM1934 LED Strip?
TM1934 LED strip is a digital light strip that uses SMD 5050 or SMD 2835 lamp beads, external IC TM1934, dual signal transmission and is addressable and programmable.
TM1934 light strip adopts single-line three-channel LED constant current drive circuit, which can switch input through dual-channel digital interface (DIN, FDIN), cascade with DO port, and external controller only needs single-line control chip.
The LED density of TM1934 LED strip we produce is 60 LEDs/meter, 72 LEDs/meter, 120 LEDs/meter, etc.; the power supply voltage is DC12V (3 LEDs/pixel), DC24V (6 LEDS/pixel or 12 LEDs/pixel); the cutting unit is 3 LEDs/cutting, 6 LEDs/cutting, 12 LEDs/cutting, etc.; the commonly used lamp bead package sizes are 5050, 2835; the colors are monochrome/CCT/RGB, etc.
TM1934 LED Strip Advantage
1. High quality: using high-quality RGB three-in-one lamp beads, no color difference, high brightness, good light mixing, users can achieve a more perfect visual effect during operation;
2. Programmable: through the single-line zero-code protocol, RGB three-channel mode, programming design fantasy mode, meteor, chase, water drop, horse racing and other effects are better;
3. Low maintenance cost: TM1934 has breakpoint resume function, reducing maintenance cost.
4. Control method: 12V light strip one IC controls 3 LEDs, 24V light strip one IC controls 6 LEDs. We also provide 24V TM1934 LED strips, of which one IC controls 12 LEDs.
TM1934 LED Strip Application
Home decoration lighting; Exhibition hall lighting; Hotel lobby lighting; Bar club lighting; Terrace and garden lighting; Architectural lighting; Automotive lighting; Car and motorcycle lighting; Ambient lighting…
Wholesale TM1934 LED Strip Series
Voltage: 12V / 24V.
PCB Width: 5mm, 10mm.
LEDs density: 60 LEDs/m, 120 LEDs/m.
Color: RGB.
Waterproof type: IP20.
If the parameters of the TM1934 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.
TM1934 5050 LED Strip By Series
Voltage: DC12V; LED density: 60 LEDs/m; PCB width: 10mm; Color: RGB.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN RGB WS2818 / TM1934 / UCS5603 60LEDs/m 12V Addressable RGB LED Strip Specification |  |
TM1934 2835 LED Strip By Series
Voltage: DC24V; LED density: 120 LEDs/m; PCB width: 5mm, 10mm; Color: RGB.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN RGB 120LEDs/m TM1934 24V RGB Addressable LED Strip Specification |
|
FAQ
1. Do you provide free samples?
Answer: Yes, we can provide free samples. Just send us an inquiry and our sales engineer will reply you within 12 hours
2. Do you have a minimum order quantity?
Answer: Some types have a minimum order quantity, but 1 piece sample is always welcome
3. Do you accept customized products?
Answer: Yes, we can provide OEM or ODM service and design products according to your requirements or customize your logo on the product”
Customized TM1934 LED Strip Solution
LED Type
SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality
30leds 48leds 60leds 72leds 90leds 96leds 120leds 144leds 200leds …
Voltage
3V 5V 9V 12V 24V 36V 48V 72V 110V 220V…
CCT
1800K 2400K 2700K 3000K 4000K 5000K 6000K 8000K 10000K …
Power(w/m)
4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
PCB
3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 20MM 22MM …
Lumen/M
500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
Waterproof(IP Rating)
IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape
3M 3M 9080A 30OMP 9495 VHB …
PCB Print
UL CE ROHS LOGO …
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
