Tunable White CCT LED Strip

Product Feature

(1) Tunable White CCT LED Strip mainly uses SMD2835 package size lamp beads, and use a reinforced thickened bracket of 0.75mm to resist bending;
(2) The CCT range is usually from more than 2700K (warm tone) to about 6500K (cold tone), among which the color temperature between 2700K-3000K is considered to be more comfortable and natural color temperature;
(3) The lamp bead density is 60LEDs/m, 96LEDs/m, 120LEDs/m, 168LEDs/m, 180LEDs/m, 192LEDs/m, 240LEDs/m, etc., and the lamp bead density can also be customized according to customer requirements;
(4) The PCB board has 5mm/8mm/10mm options to adapt to different scenarios;
(5) The power supply voltage is DC12V, DC24V;
(6) Conventional CRI>80, CRI>90 or>95 can also be provided, color tolerance SDCM<5;
(7) The IP levels of the products are: IP20, IP65, IP66, IP67, IP68;
(8) OEM or ODM can be provided;
(9) Product life>50000H.

Tunable White CCT LED Strip Manufacturers & Suppliers

We are a leading LED CCT white light strip manufacturer in China, providing LED light strips and LED lighting services worldwide, providing innovative/low energy/healthy/environmentally friendly/energy-saving/solutions.

Wholesalers, distributors, dealers, traders, agents are welcome to purchase in bulk from us.

What is Tunable White CCT LED Strip?

Tunable white CCT LED strips are LED strips with two or more colors. The color temperature range that can be achieved through controller modulation.

Generally speaking, the color temperature range of LED CCT strips ranges from 2700K to 6500K, where 2700K represents warm white light and 6500K represents cool white light.

We offer various types of tunable white LED strips. For example, 5mm/6mm/8mm/10mm dual white LED strip.

LEDs density: 120LEDs/m, 140LEDs/m, 168LEDs/m, 180leds/m, 192LEDs/m, 240LEDs/m.

Our CCT LED strip is a great choice if you would like to be able to conveniently change the white color / warm white color / natural white color from your LED strips at any time you want.

If you have customized needs, please contact us in time. Our professional engineering team will help you customize a reasonable tunable white LED strip product solution.

dual white led strip

Tunable White CCT LED Strip Advantages

1. Provide personalized lighting experience: Different people may have different preferences for lighting. Some people like warm-toned light because it gives people a warm and comfortable feeling, while others prefer cool-toned light because it gives people a refreshing and bright feeling. CCT adjustable technology allows users to adjust the color temperature of the light according to their preferences and needs, providing a personalized lighting experience.

2. Adapt to different environments and uses: In different environments and uses, the demand for lighting will also be different. For example, in family life, people may prefer to choose warm-toned lights to create a warm atmosphere; while in office places, people may need bright and clear cool-toned lights to improve work efficiency. CCT adjustable technology can adjust the color temperature of the light according to different environments and uses to meet the needs of users;

3. Improve energy utilization: Adjusting the color temperature of the light according to lighting needs can improve energy utilization. When higher brightness is required, the light can be adjusted to a higher color temperature to improve the lighting effect; when lower brightness is required, the light can be adjusted to a lower color temperature to reduce energy consumption. By making rational use of CCT adjustable technology, energy can be effectively saved and energy consumption costs can be reduced.

Why Choose Our Dual White LED Strip?

smd2835

2835 SMD

* 2835 SMD LED has the right size, large luminous area, high luminous efficiency, good heat dissipation, and stable quality, and has always been the most popular in the market.
* At the same time, it is highly customizable and can be made into different colors, power, voltage, etc., which is the best choice.

fpcb

FPCB

* Pure copper circuit board, the best softness, best heat dissipation, and best conductivity.
* The thicker the FPCB, the smaller the voltage drop, even up to 30 meters. It is important to choose a better PCB led light strip.

high CRI

High Color Rendering Index

* CRI is the color rendering index, which is the ability of a light source to produce color on an object.
* CRI 80+ can meet the basic needs of light.
* The higher the CRI, the closer it is to the natural light of the sun.

3m tape

3M Tape

* Original 300LSE 3M tape, strong viscosity, good thermal conductivity
* No odor.

ul cable

UL Cable

* Our standard cables are all 20 AWG, UL certified, 20 cm long.
* Other sizes and lengths are also available.

2835smd production

Production

* The production process is an overlooked part of the process that directly affects whether your LED works properly,
* Environmentally friendly materials are needed that are more stable and longer lasting.

Wholesale Tunable White CCT LED Strip Series

tunable white led strip lighting

Our tunable white CCT LED strips come in many types: 5mm 6mm 8mm 10mm CCT LED Strip By Series.

Chip type: 2835SMD.

Lighting angle: 120°

LEDs density: 120LEDs/m, 140LEDs/m, 168LEDs/m, 180leds/m, 192LEDs/m, 240LEDs/m.

Color: 1800K/2700K/3000K/4000K/5000K/6000K, can be customized.

Waterproof type: IP20/IP65P/IP66/IP67/IP68, suitable for indoor and outdoor applications.

If the parameters of the tunable white led strip above do not have what you need. Then please contact our experienced team of engineers for customization. We have provided customized services to customers from 30+ countries. Come and contact us.

5mm CCT LED Strip By Series

Features: SMD2835;  Voltage: DC12V, DC24V; LED density is 120 LEDs/m, 168 LEDs/m, 192 LEDs/m, 240 LEDs/m;

Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

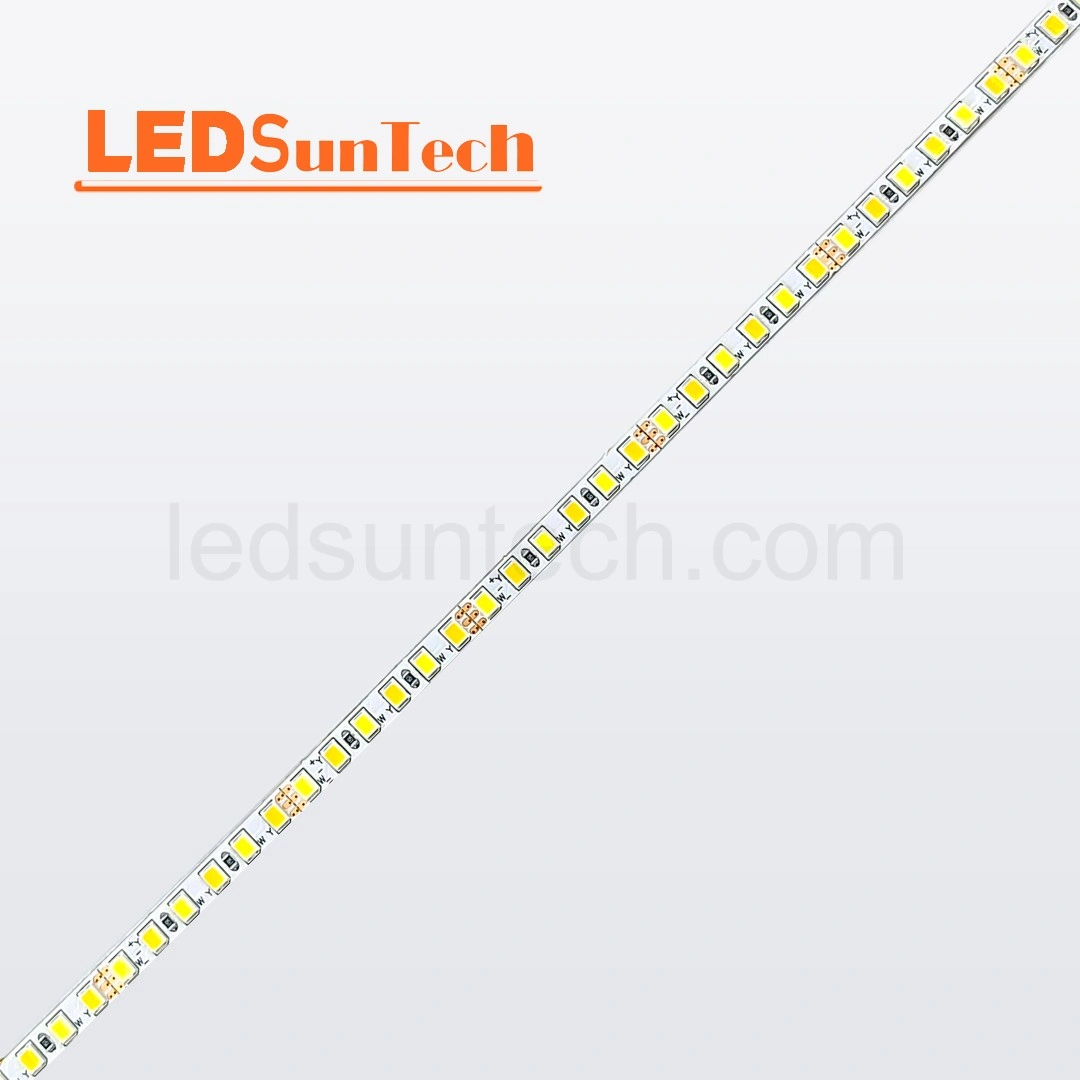

2835 DC12V 168led 5mm 35.7mm CCT
2835-DC12v-168led-5mm-CCT

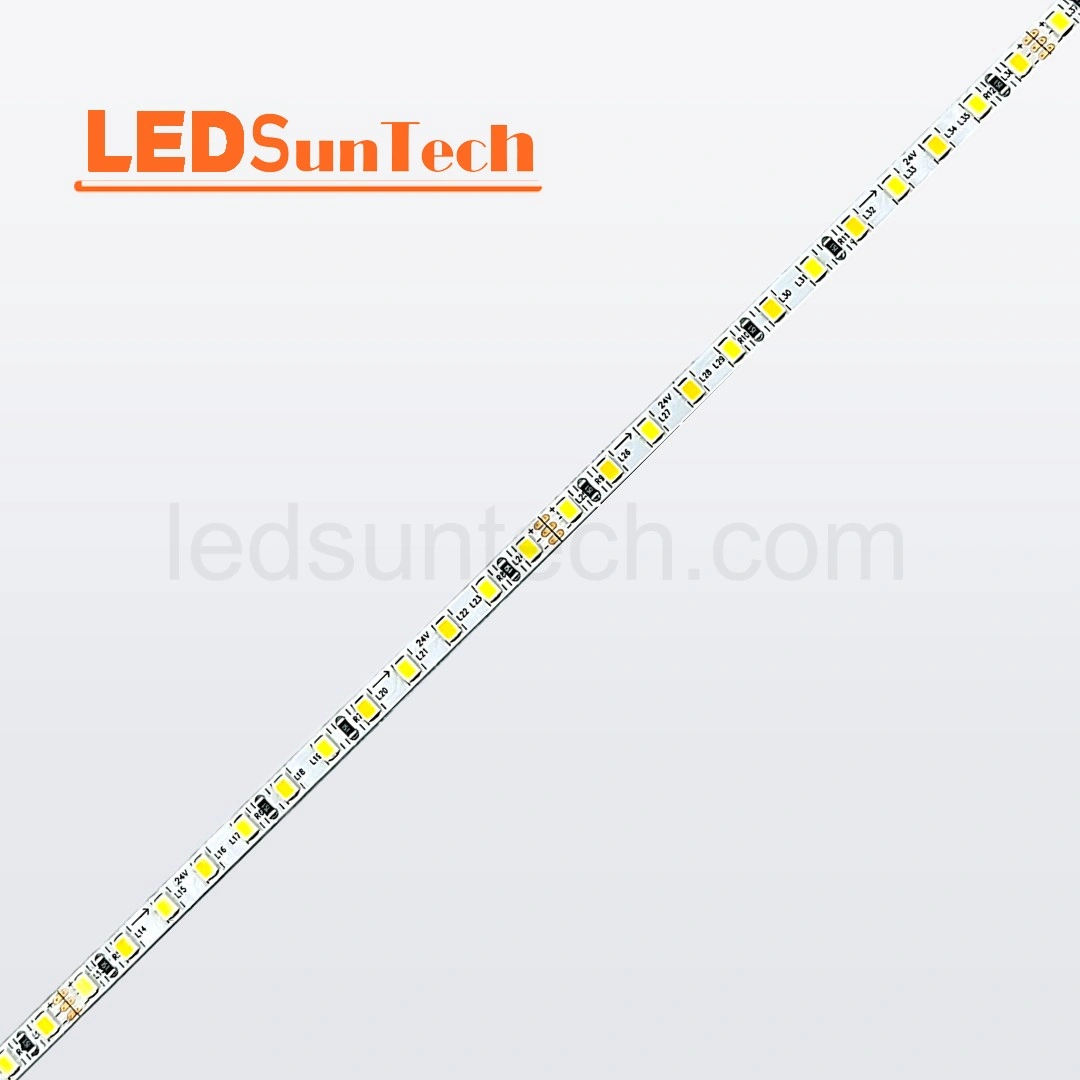

2835 DC24V 120led 5mm 100mm CCT
2835-DC24v-120led-5mm-CCT
2835 DC24V 192led 5mm 62.5mm CCT
2835-DC24v-192led-5mm-CCT

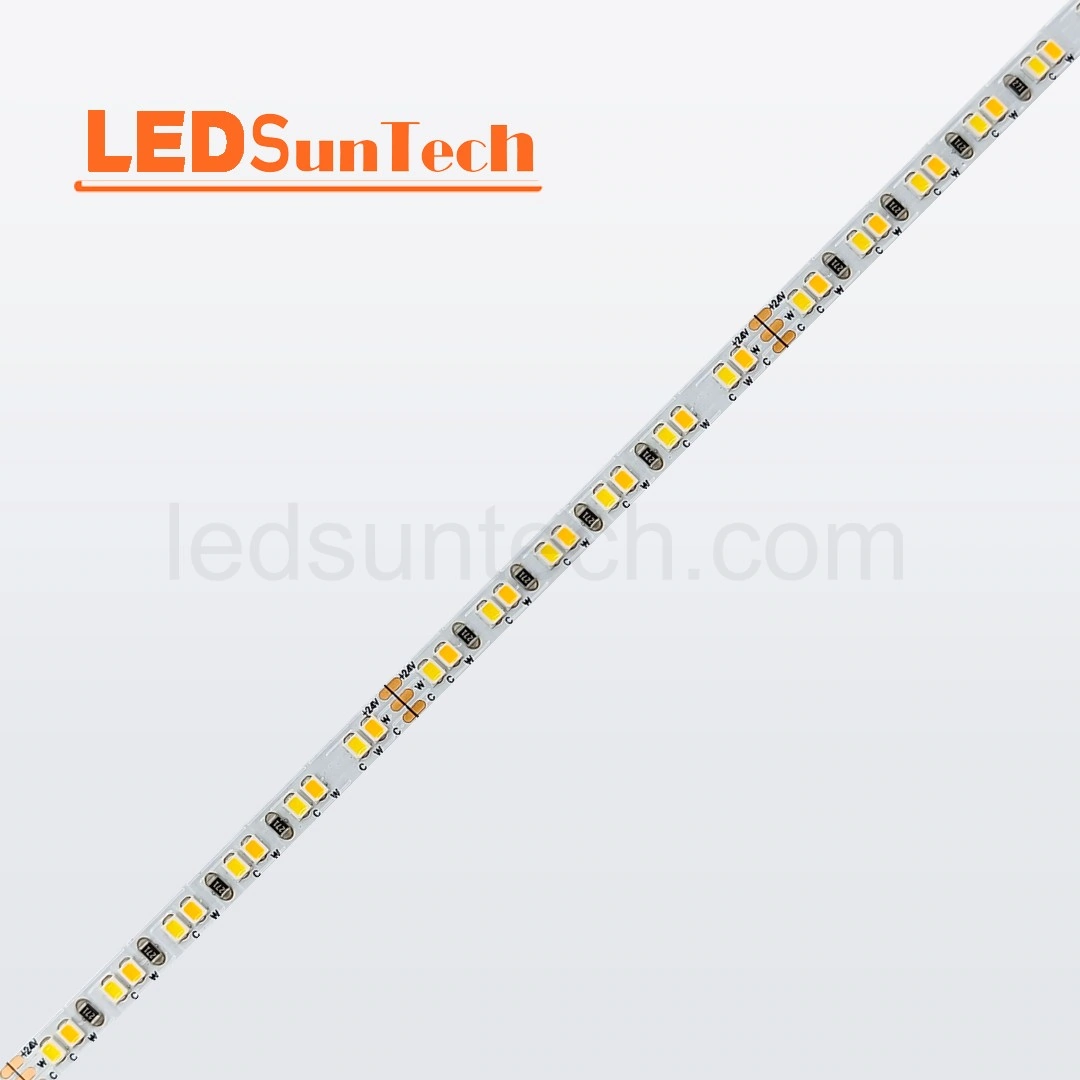

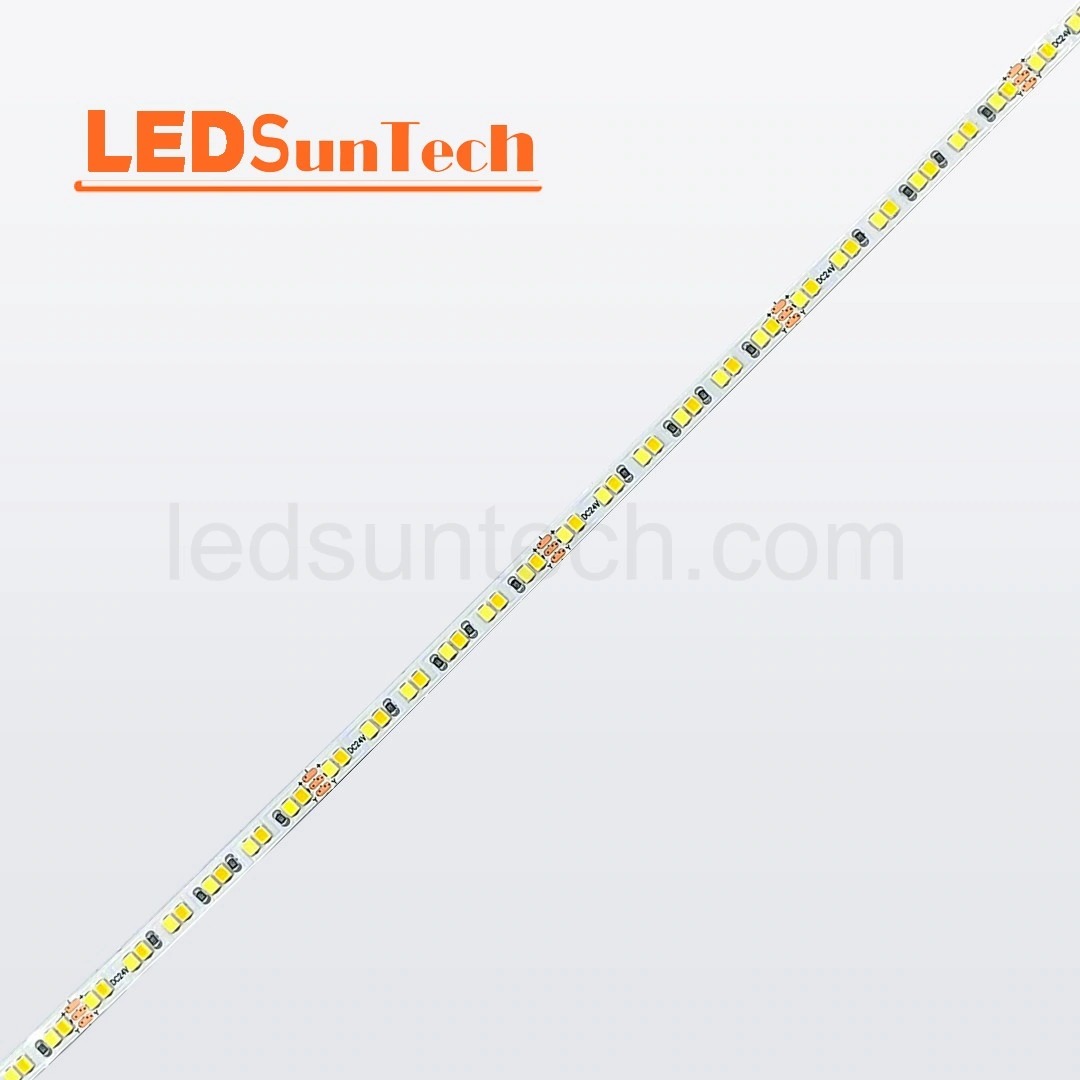

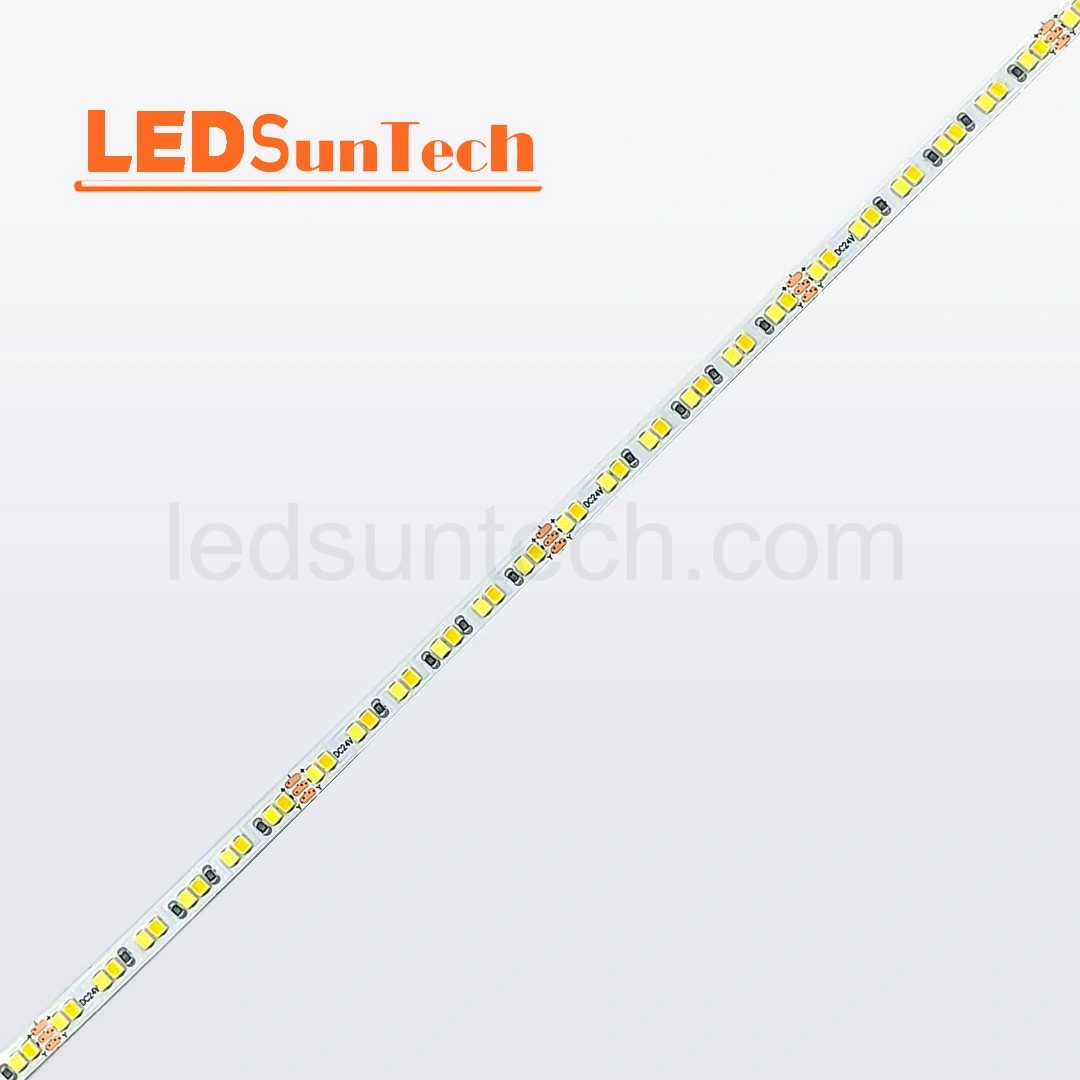

2835 DC24v 240led 5mm CCT
2835-DC24v-240led-5mm-CCT

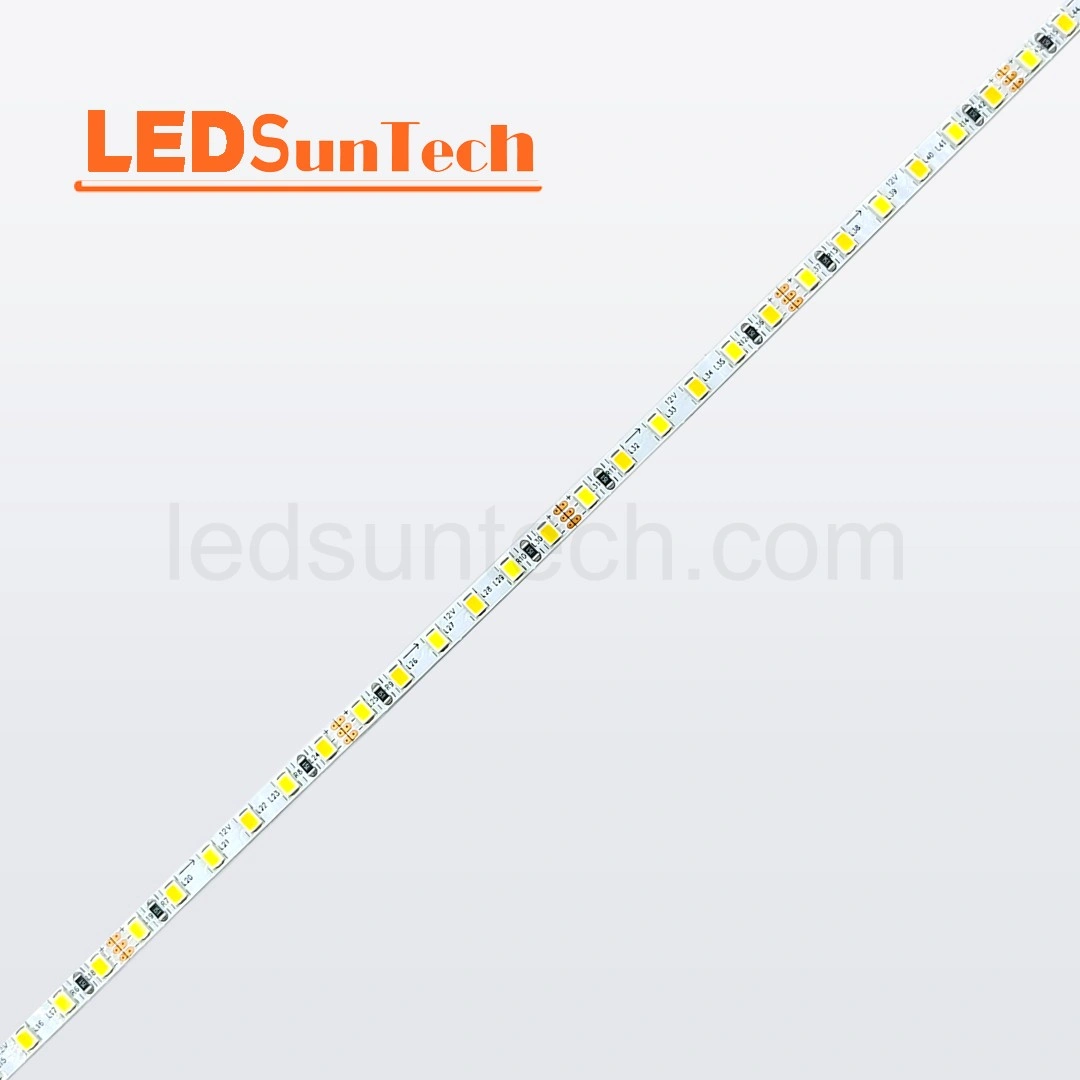

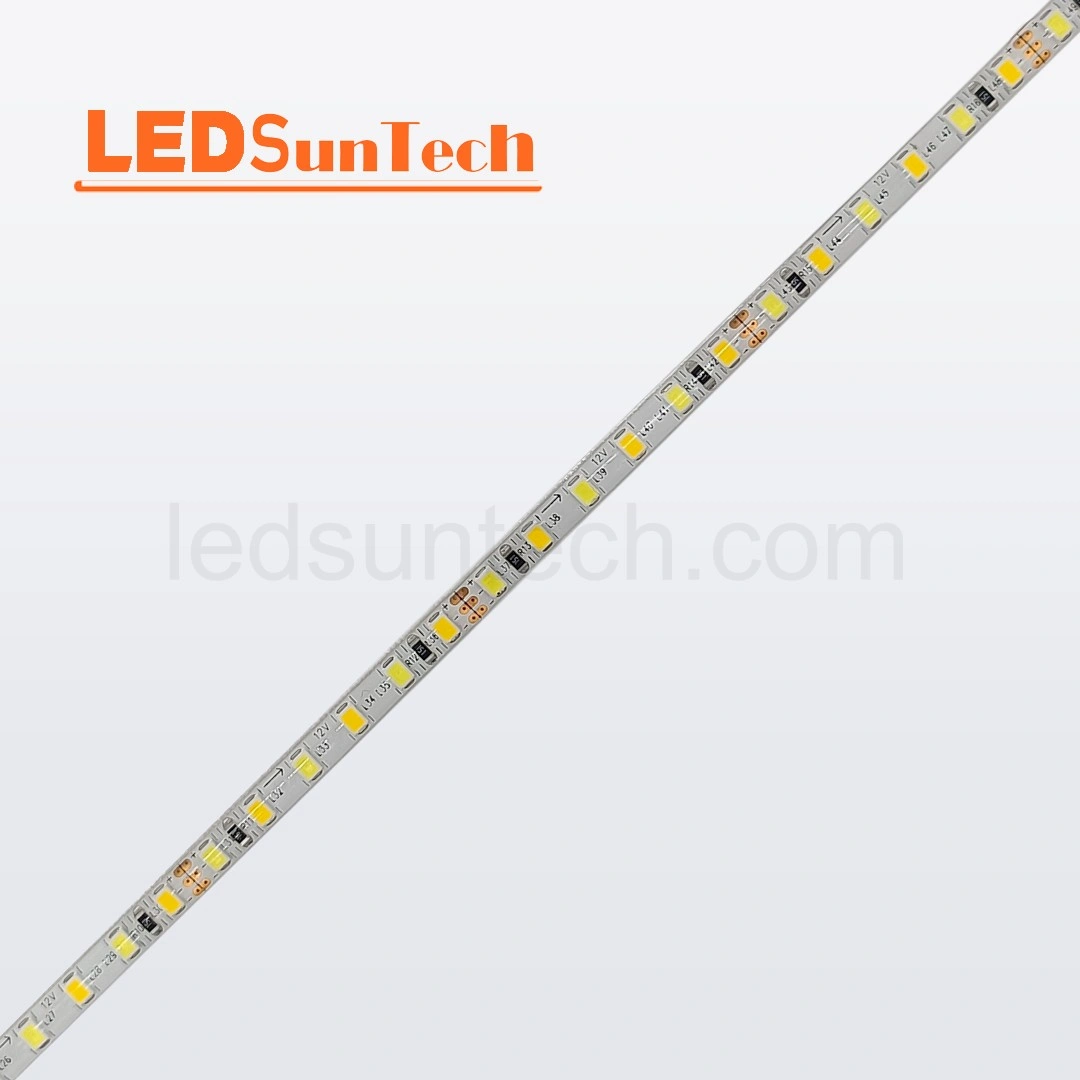

IP65 5mm 120led DC12v 2835 71.5mm CCT
IP65-2835-DC12v-120led-5mm-CCT

Specification Download

Specification NameDownload
2835-DC12V-168leds/m-5mm-CCT LED Strip Specification
Download Icon
2835-DC24V-120leds/m-5mm-CCT LED Strip Specification
Download Icon
2835-DC24V-192leds/m-5mm-CCT LED Strip Specification
Download Icon
2835-DC24v-240led-5mm-CCT LED Strip Specification
Download Icon
IP65-2835-DC12V-120leds/m-5mm-CCT LED Strip Specification
Download Icon

6mm CCT LED Strip By Series

Features: SMD2835;  Voltage: DC5V; LED density is 120 LEDs/m;

Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

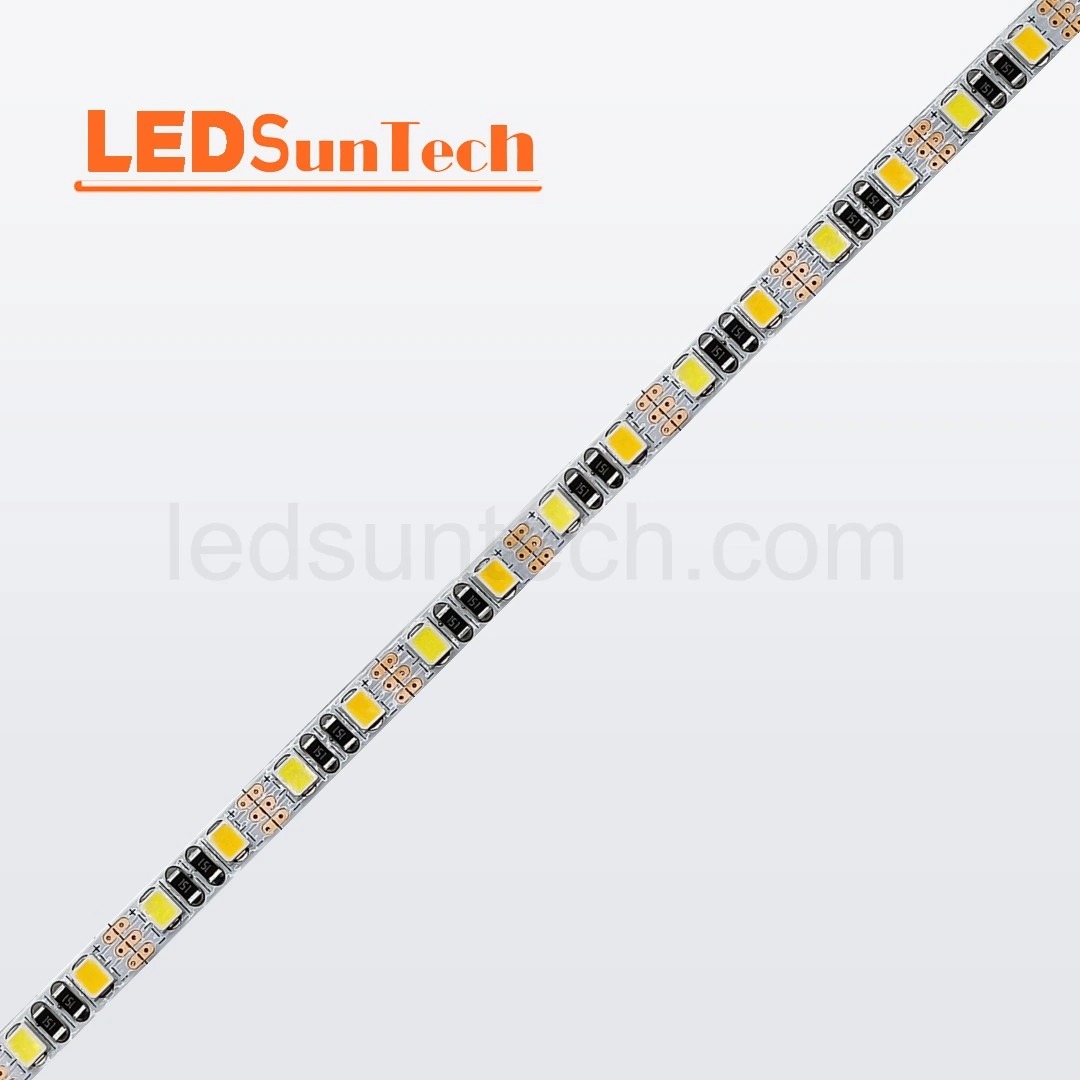

2835 DC5v 120led 6mm 16.66mm CCT free cut
2835-DC5v-120led-6mm-CCT-F

Specification Download

Specification Name Download
2835-DC5V-120leds/m-6mm-CCT Free Cut LED Strip Specification Download Icon

8mm CCT LED Strip By Series

Features: SMD2835;  Voltage: DC5V, DC12V, DC24V;

LED density is 120 LEDs/m, 168 LEDs/m, 192 LEDs/m, 240 LEDs/m;

Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

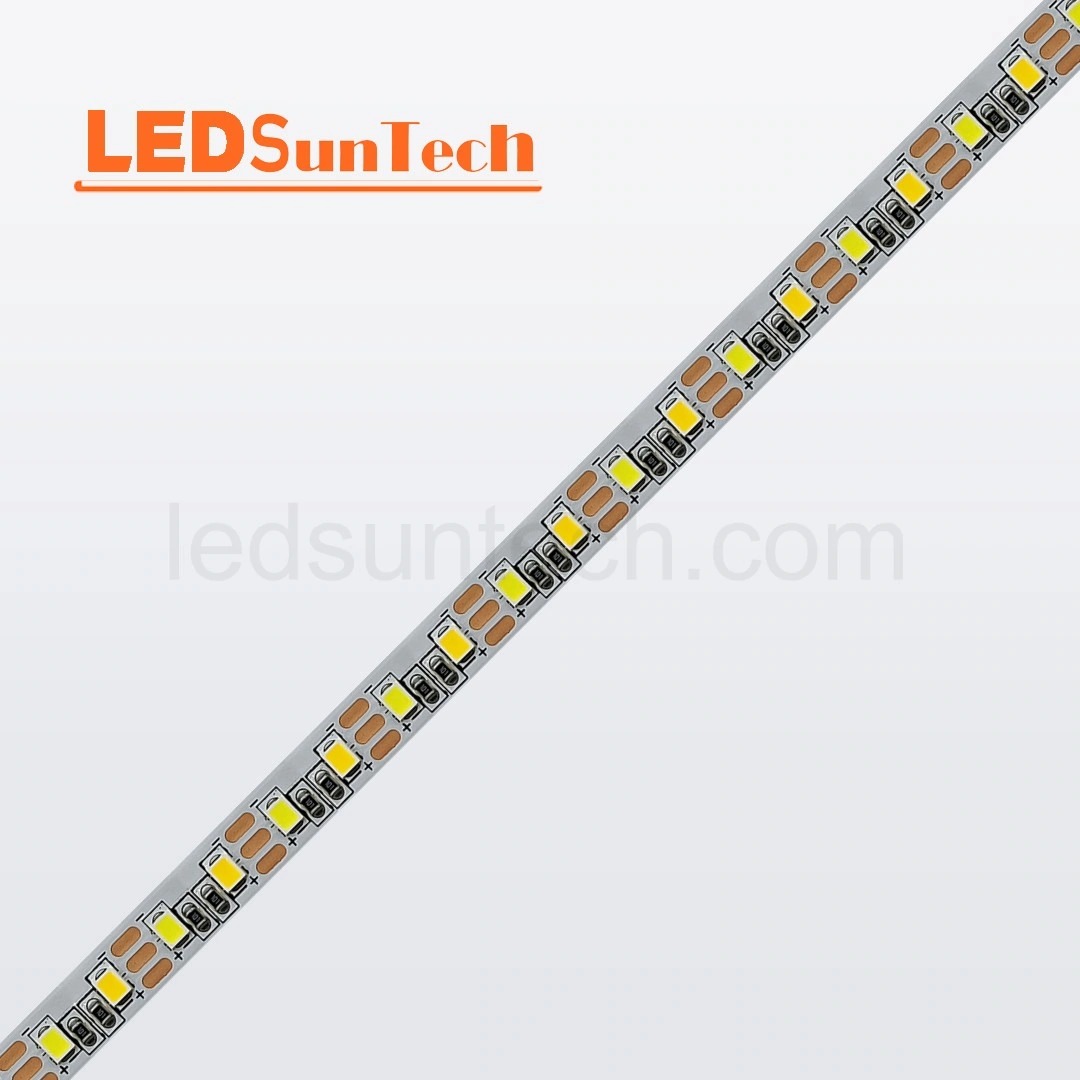

2835 DC5v 120led 8mm 16.66mm CCT uled
2835-DC5v-120led-8mm-CCT

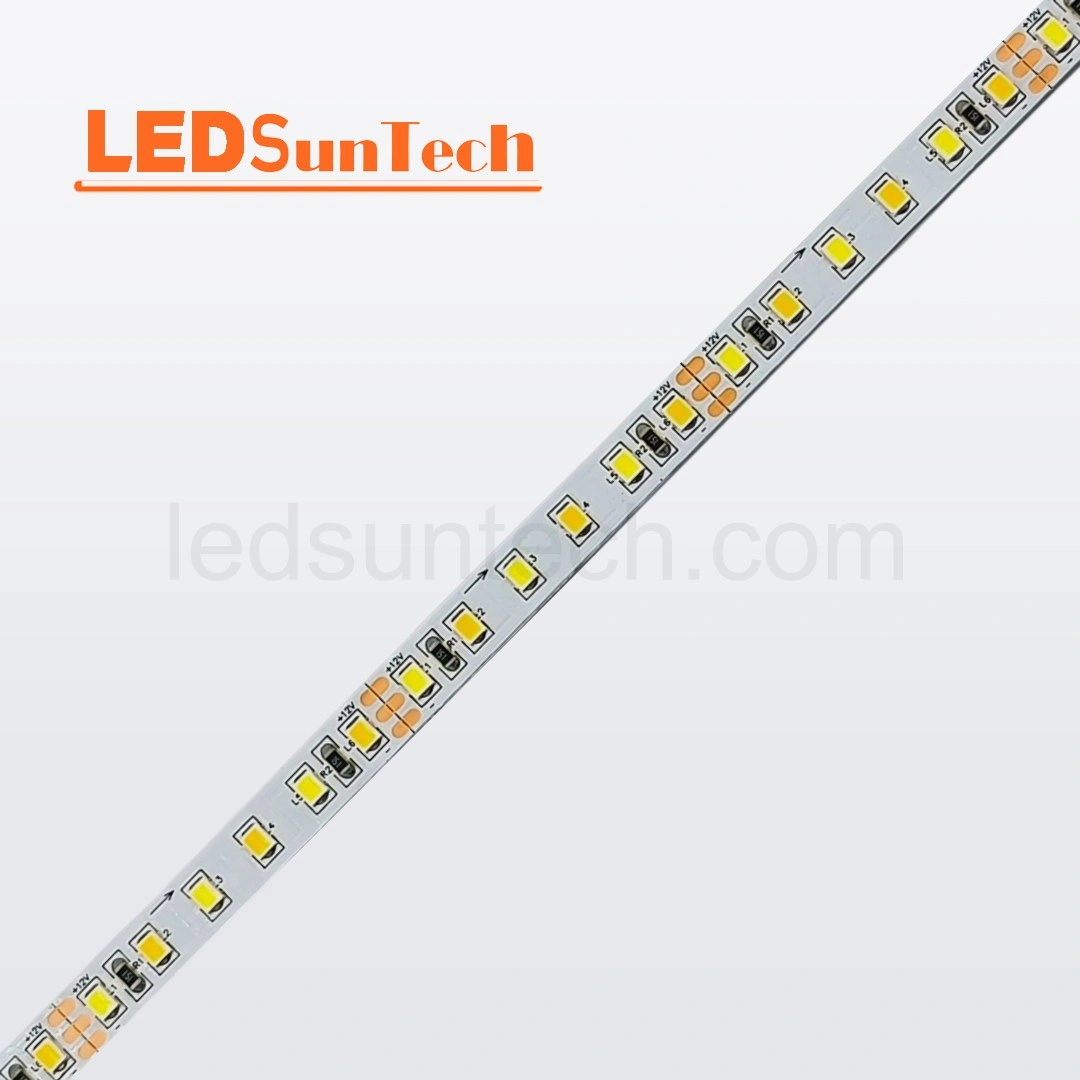

2835 DC12V 120led 8mm 50mm CCT(2700K 6500K) free cut
2835-DC12v-120led-8mm-CCT

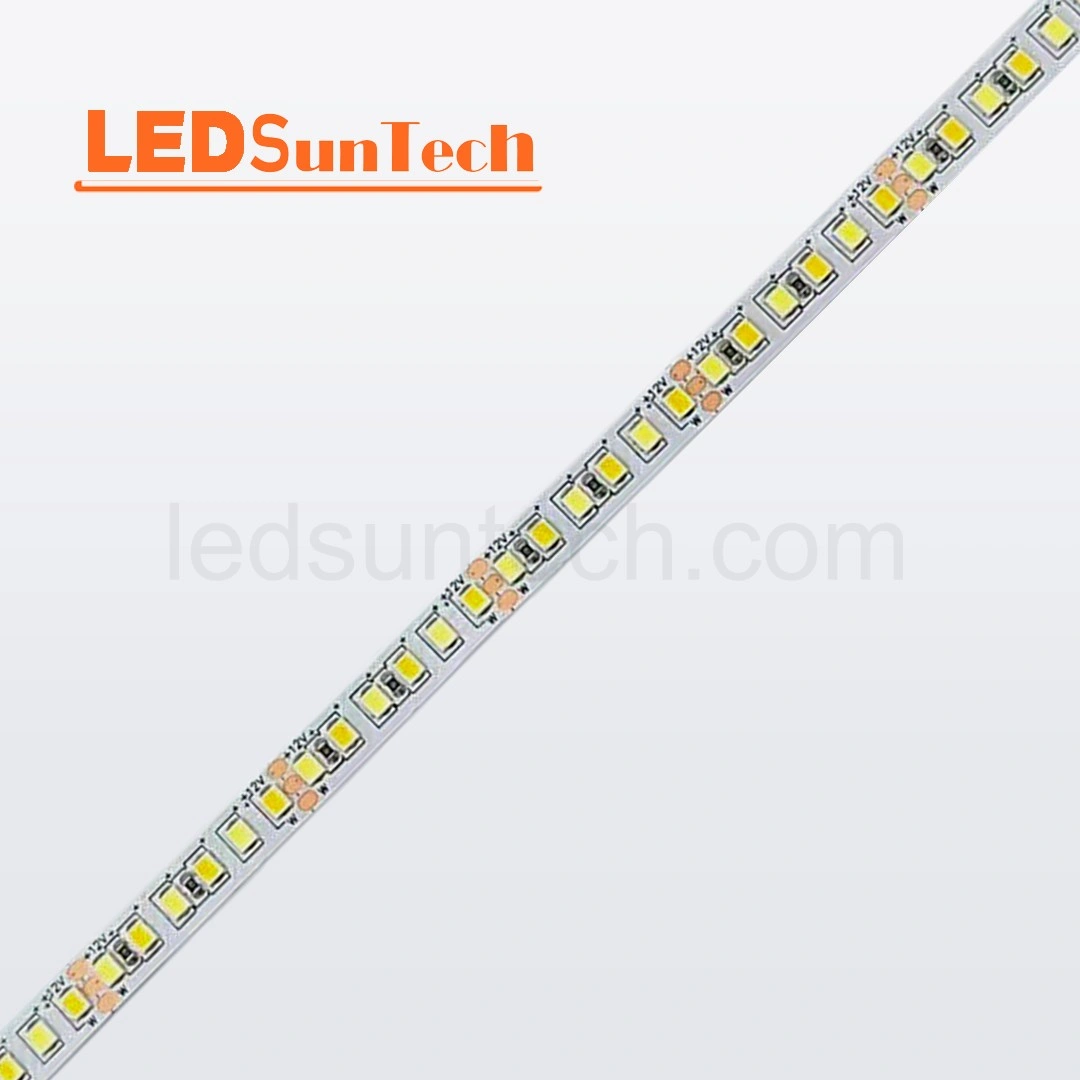

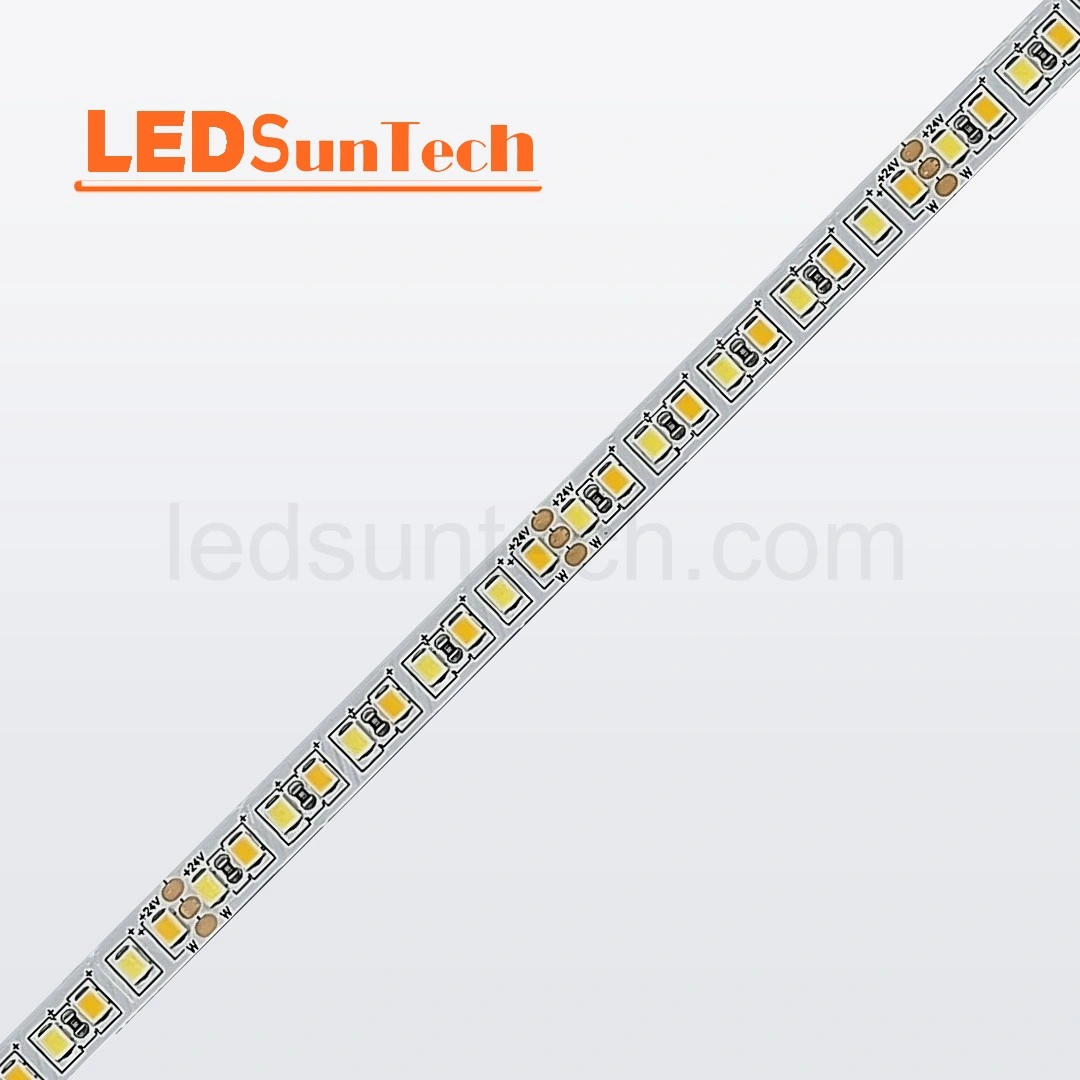

2835 DC12V 168led 8mm 33.5mm CCT
2835-DC12v-168led-8mm-CCT

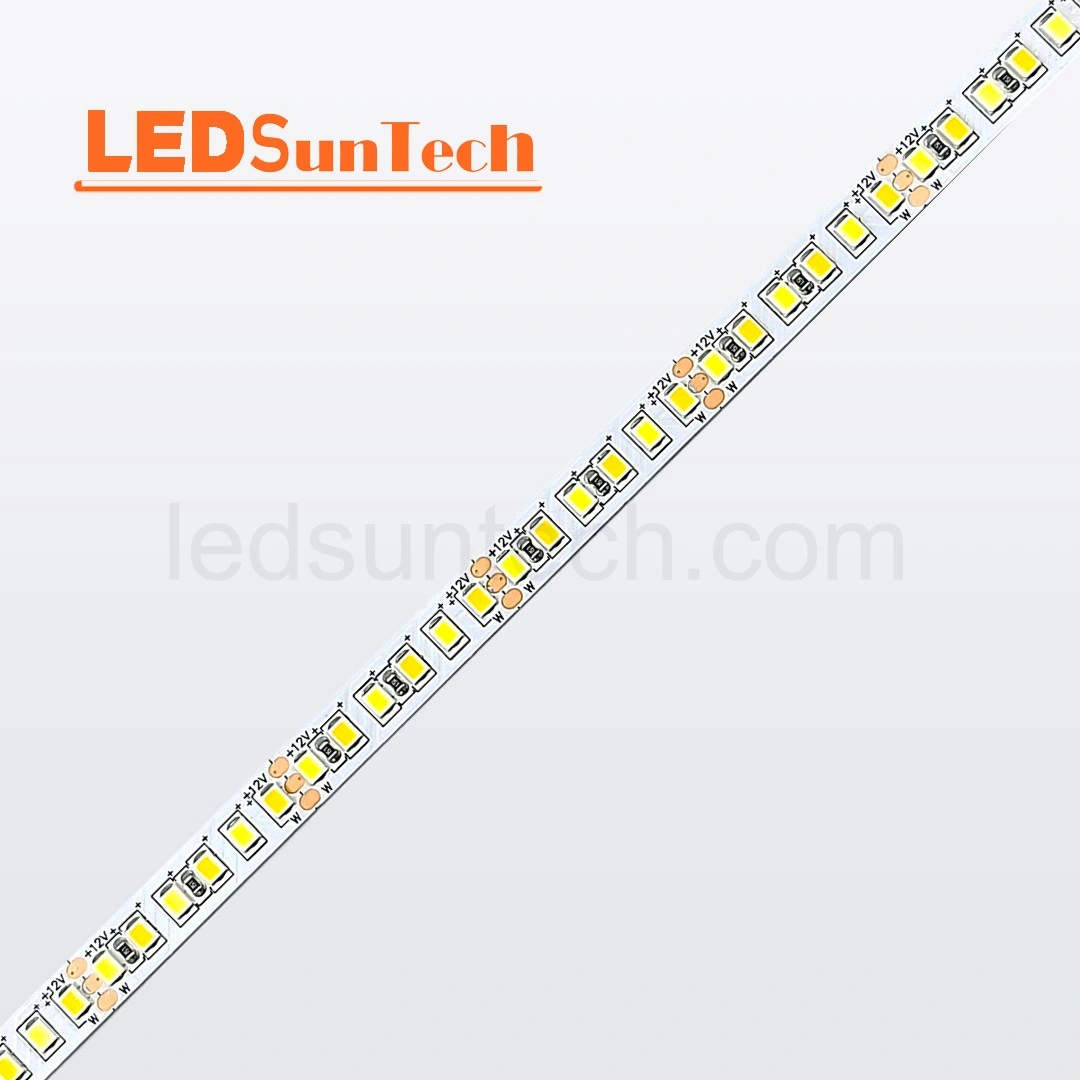

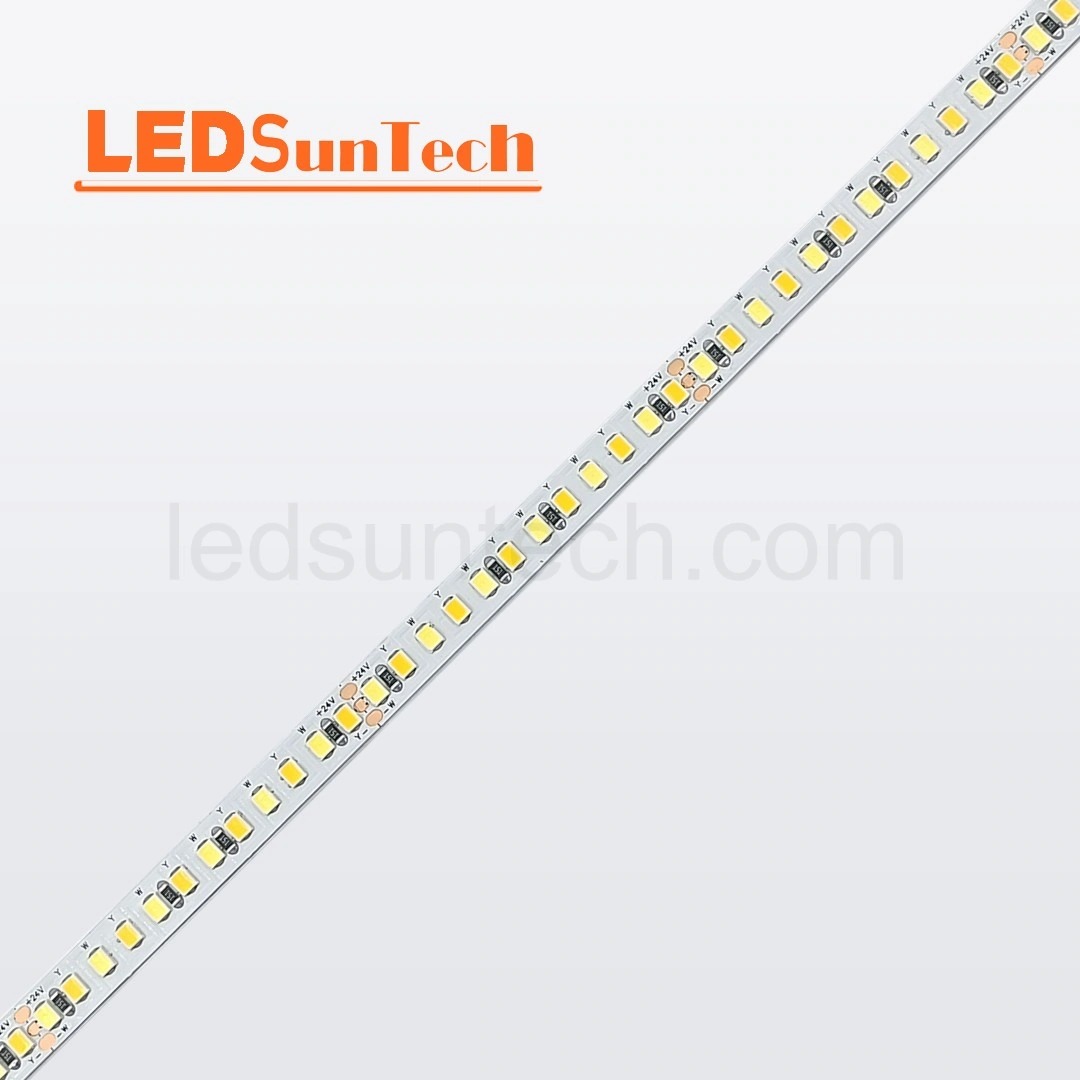

2835 DC12V 192led 8mm 31.25mm CCT
2835-DC12v-192led-8mm-CCT

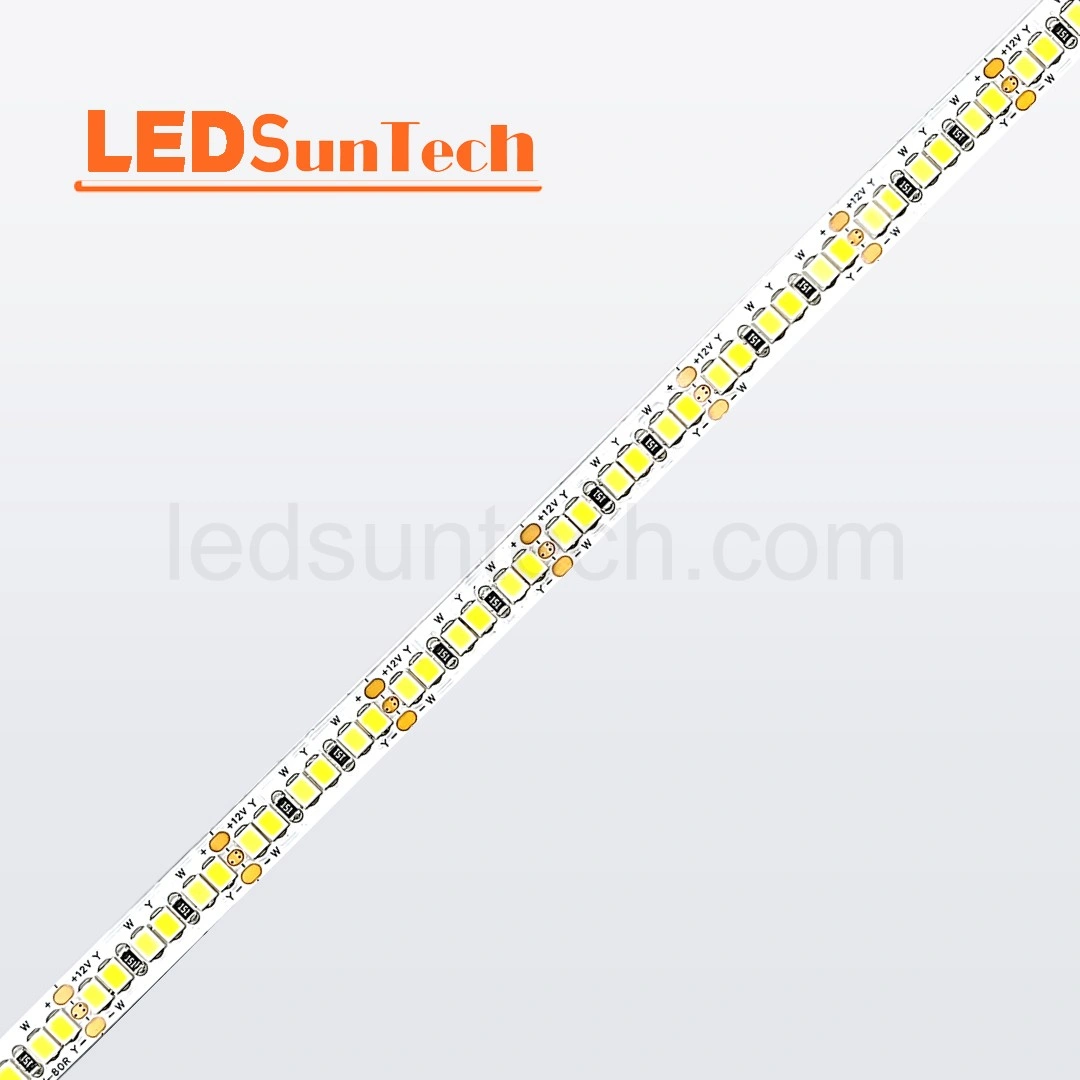

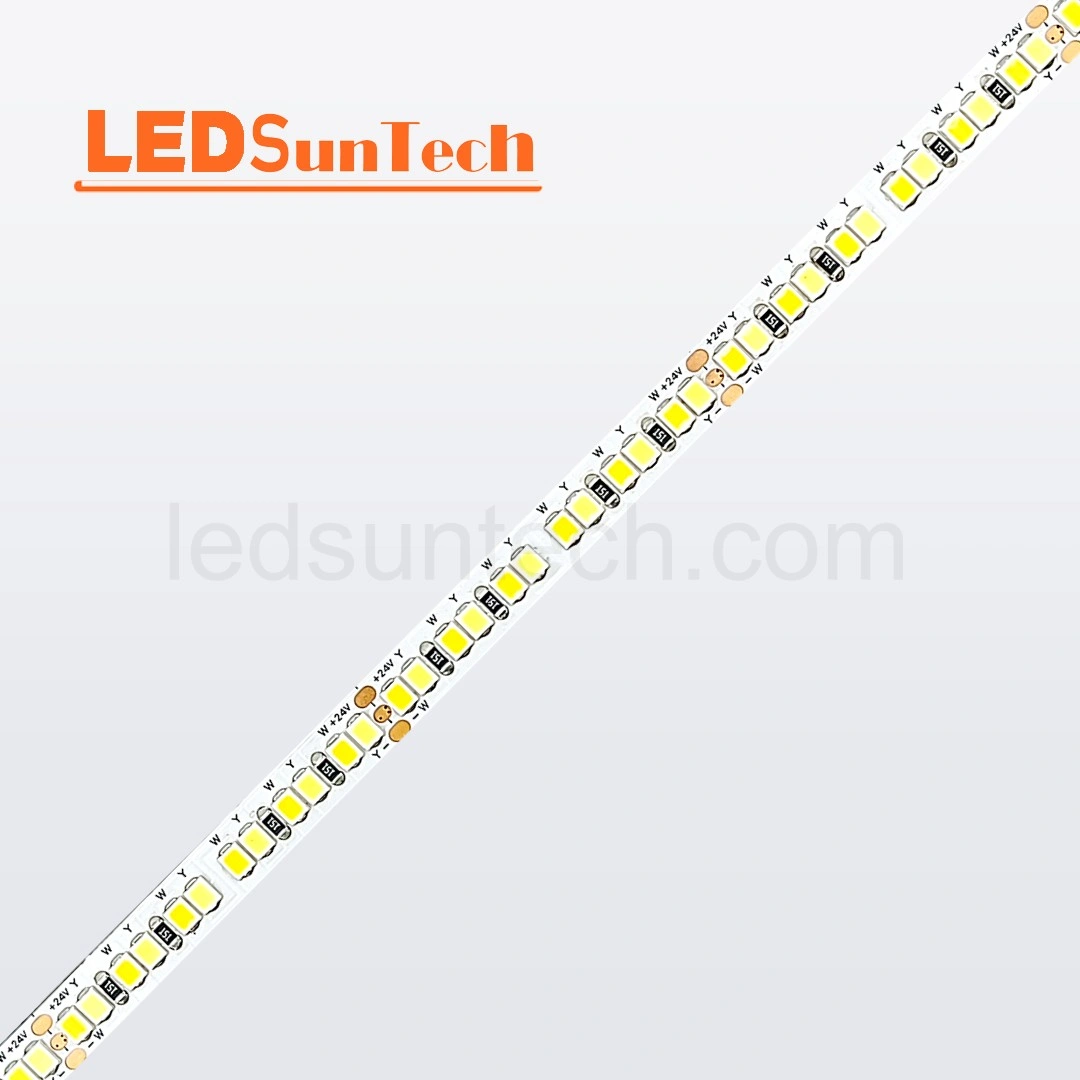

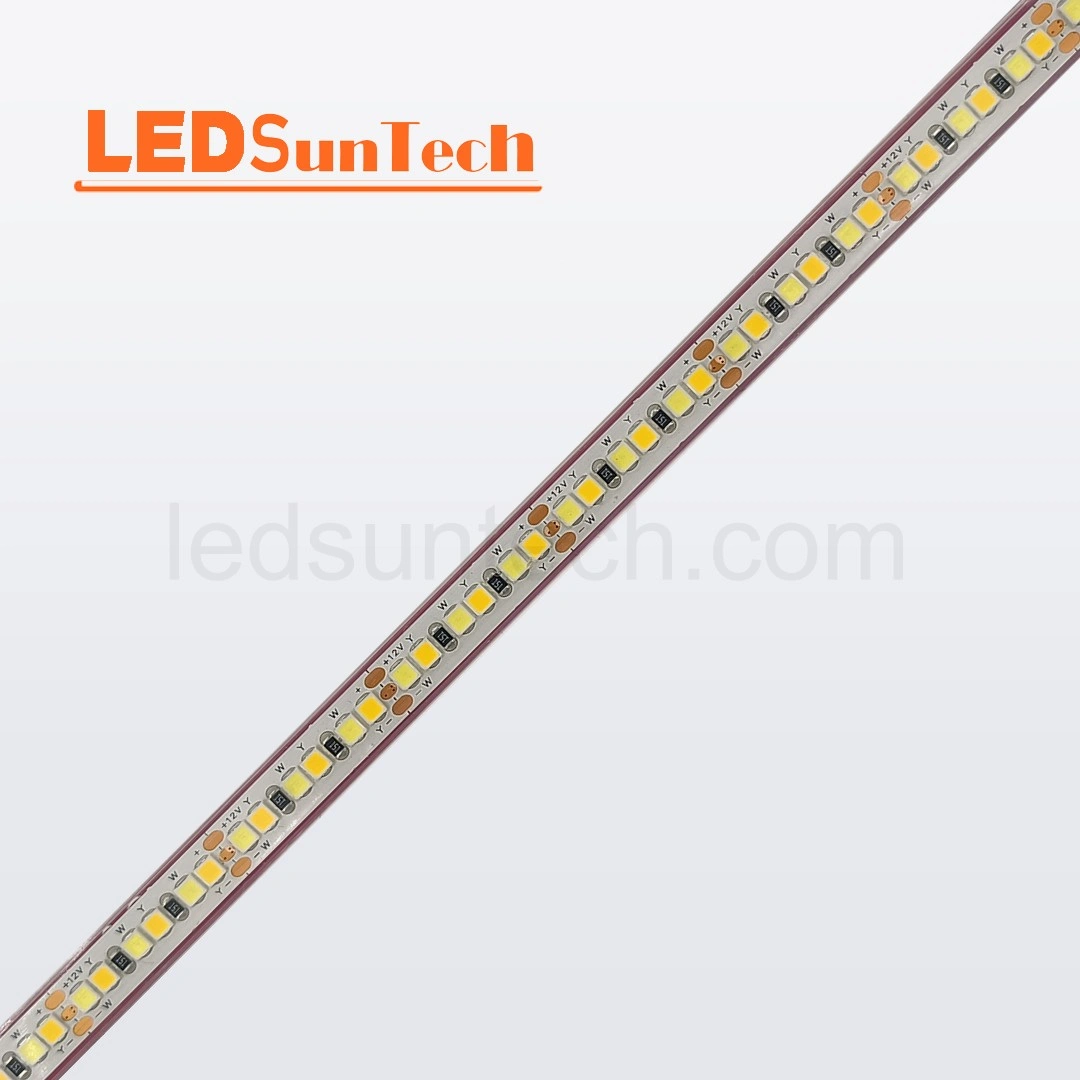

2835 DC12V 24V 240leds 8mm 25mm CCT
2835-DC12v-240leds-8mm-CCT

Specification Download

Specification Name Download
2835-DC5V-120leds/m-8mm-CCT Free Cut LED Strip Specification Download Icon
2835-DC12V-120leds/m-8mm-CCT LED Strip Specification Download Icon
2835-DC12V-168leds/m-8mm-CCT LED Strip Specification Download Icon
2835-DC12V-192leds/m-8mm-CCT LED Strip Specification Download Icon
2835-DC12V-240leds/m-8mm-CCT LED Strip Specification Download Icon

10mm CCT LED Strip By Series

Features: SMD2835;  Voltage: DC24V;

LED density is 120 LEDs/m, 140 LEDs/m, 168 LEDs/m, 192 LEDs/m, 240 LEDs/m;

Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

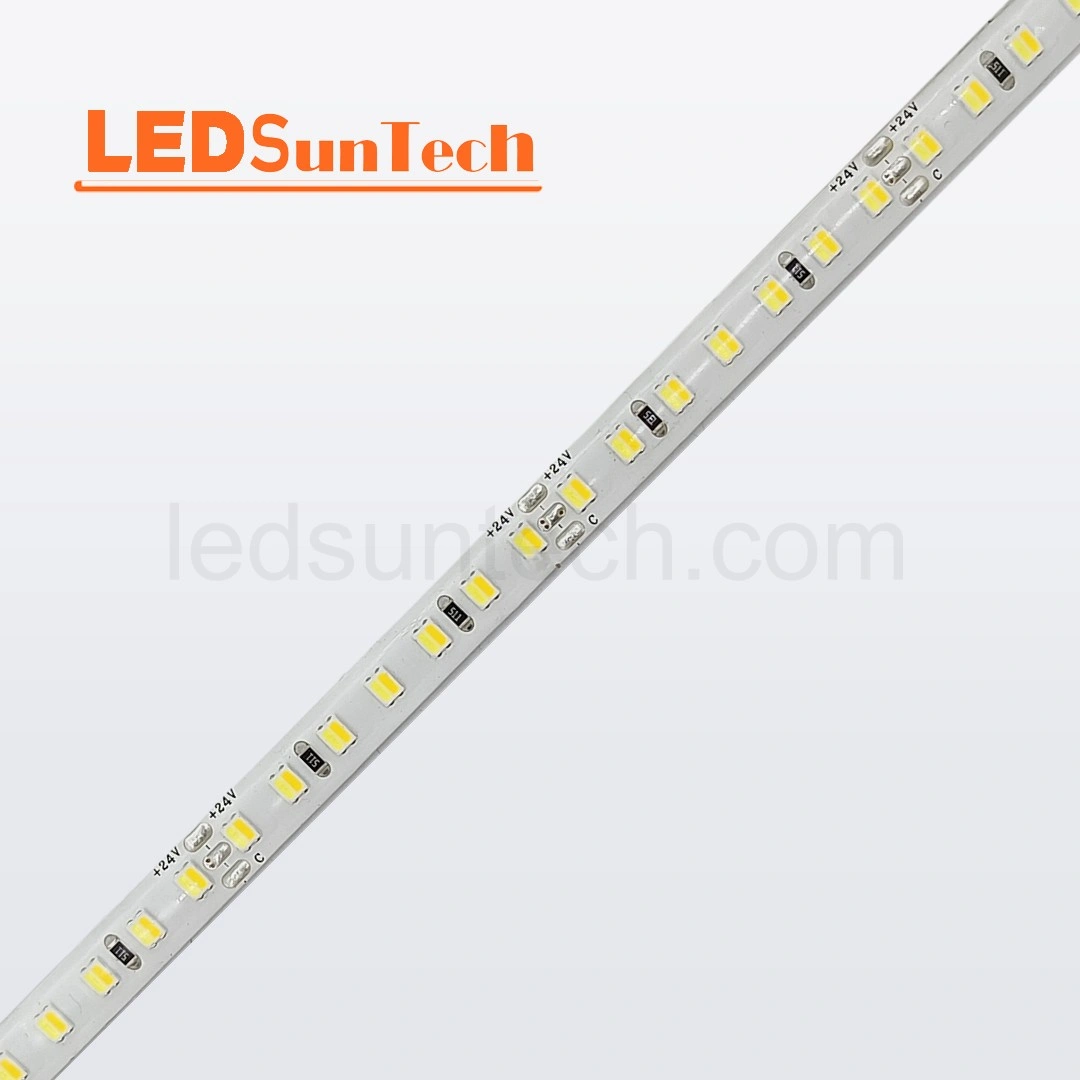

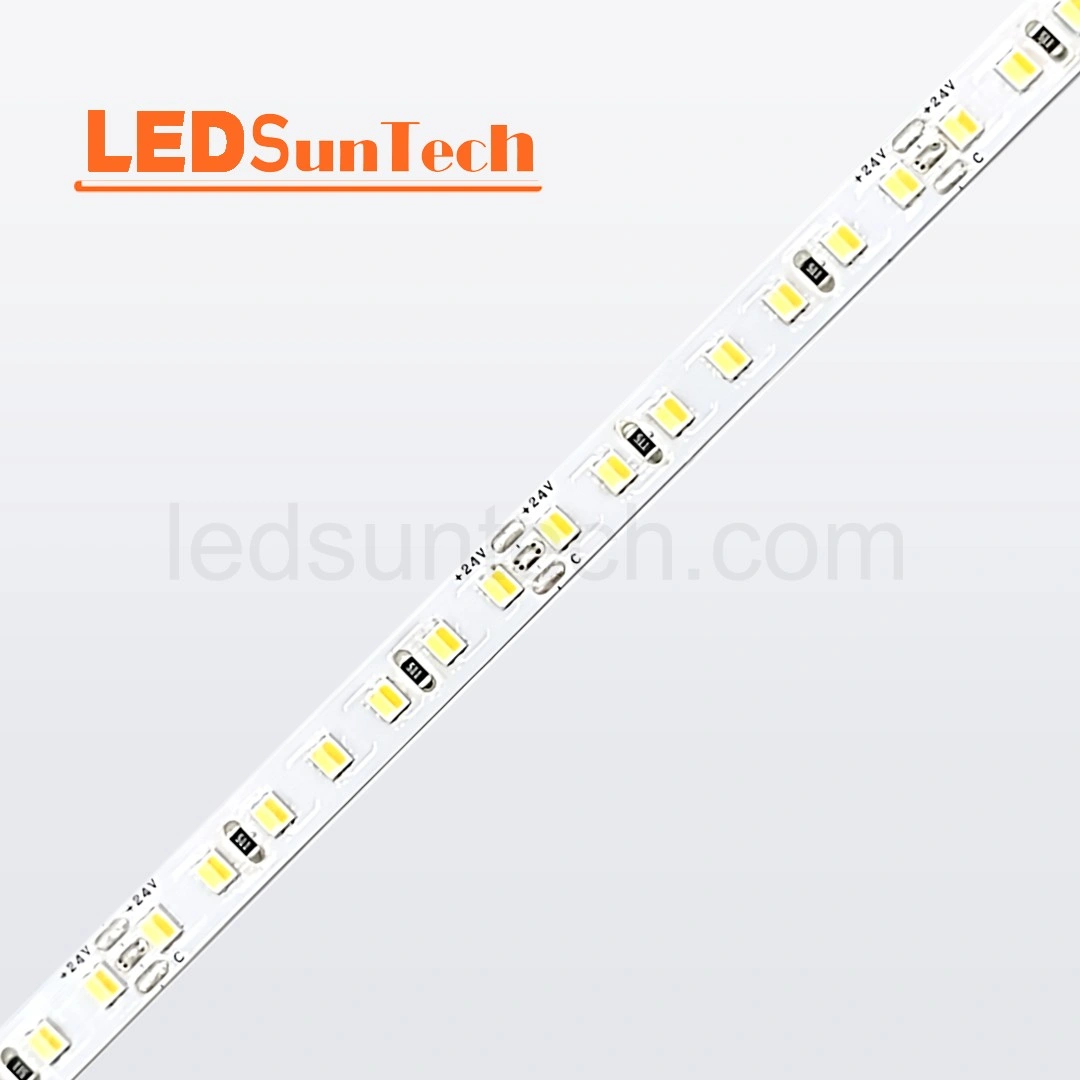

IP65 10mm 140led DC24v 2835 2 in 1 50mm CCT
IP65-2835-DC24v-140led-10mm-CCT

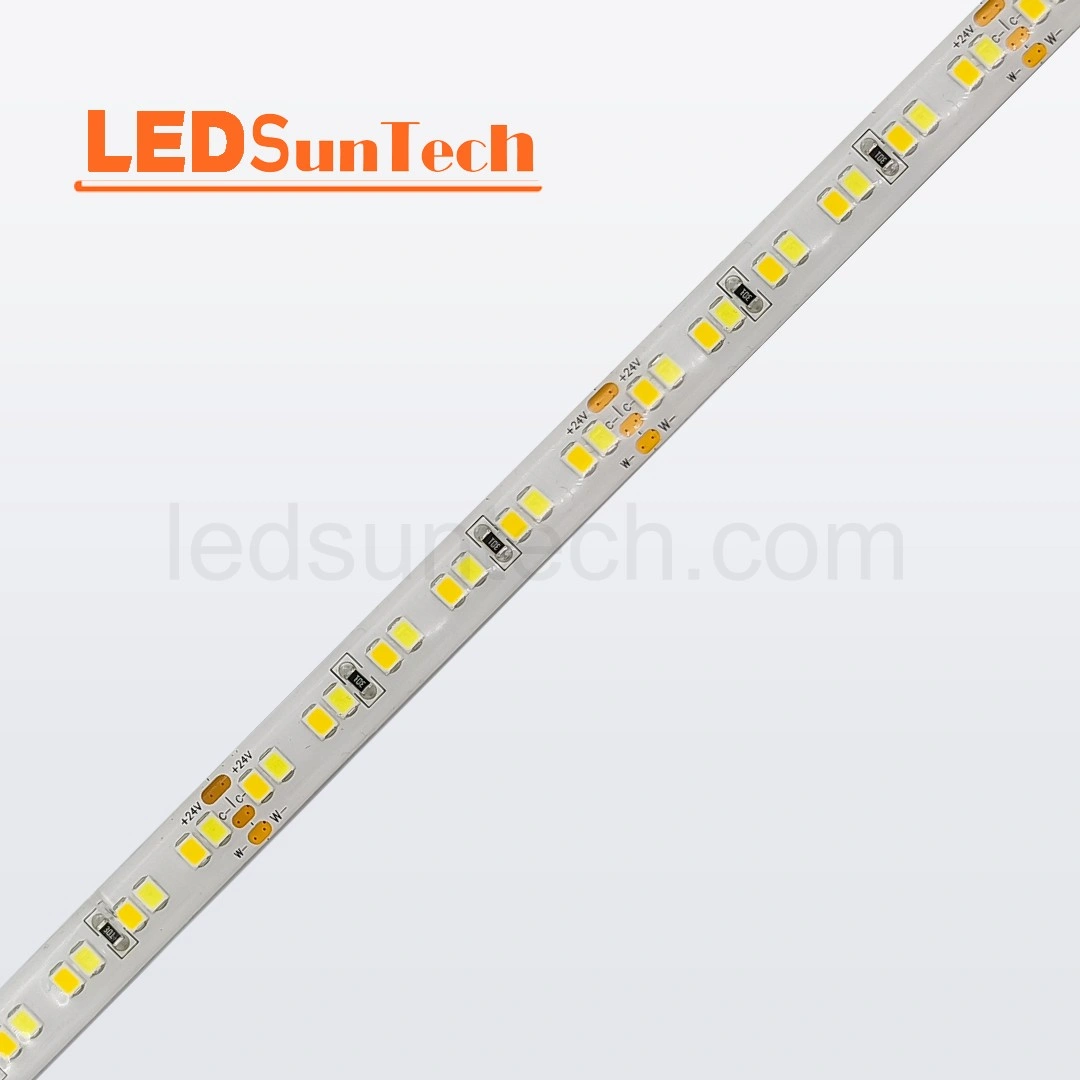

IP65 10mm 192led DC24v 2835 62.5mm CCT
IP65-2835-DC24v-192led-10mm-CCT

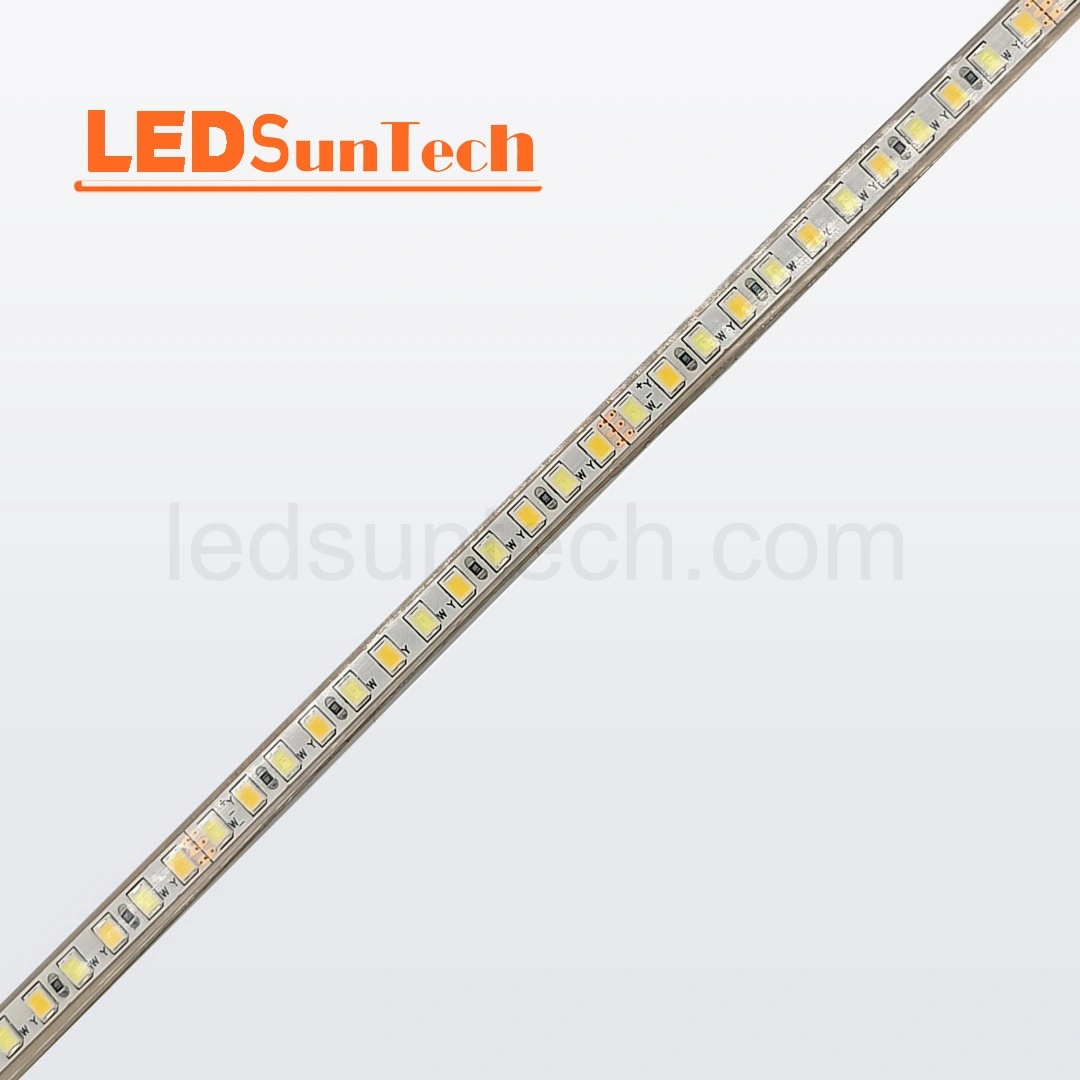

IP67 10mm 168led DC24v 2835 71.5mm CCT
IP67-2835-DC24v-168led-10mm-CCT

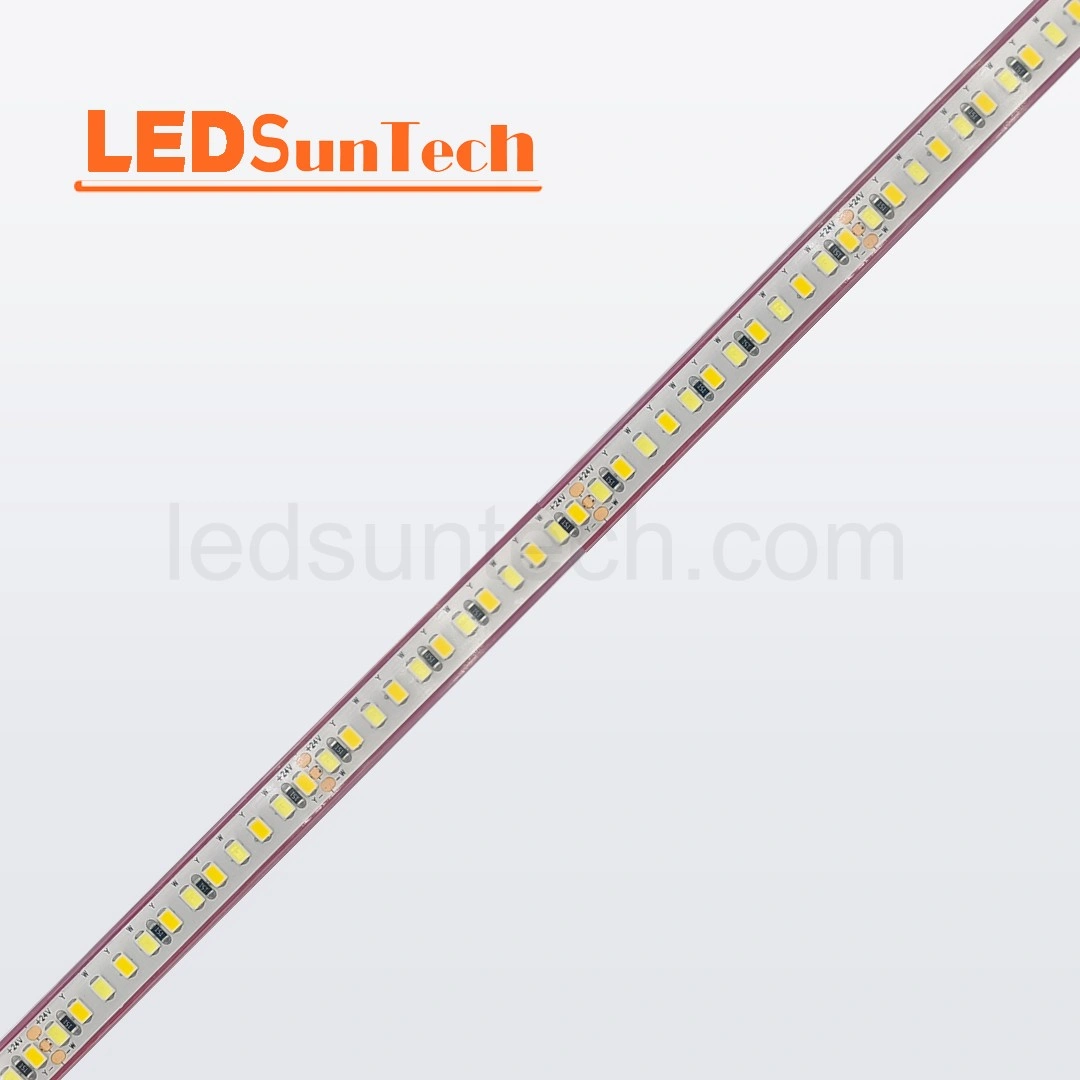

IP67 10mm 192led DC24 2835 62.5mm CCT
IP67-2835-DC24v-192led-10mm-CCT

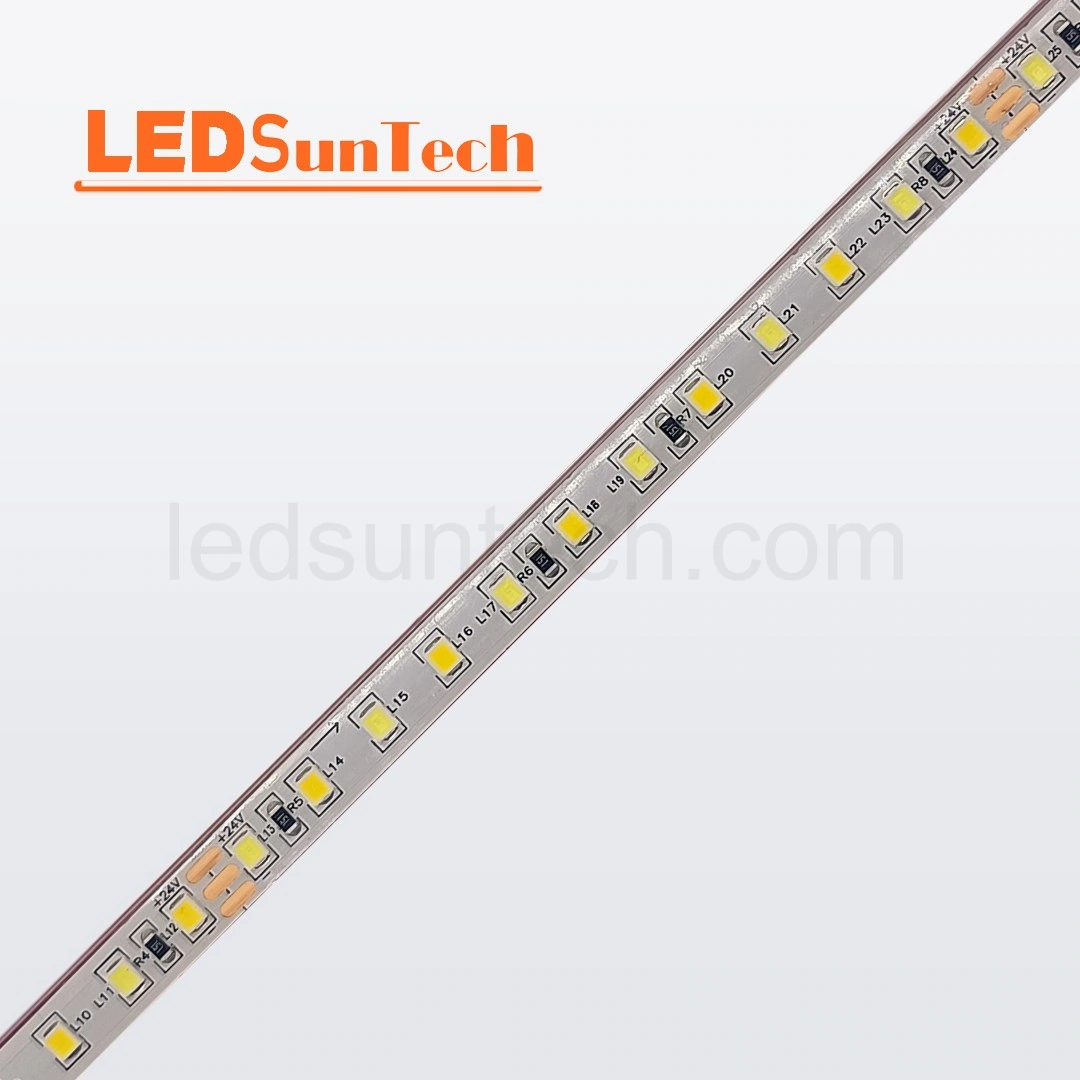

IP68 10mm 120led DC24v 2835 100mm CCT
IP68-2835-DC24v-120led-10mm-CCT
IP68 10mm 168led DC24v 2835 71.5mm CCT
IP68-2835-DC24v-168led-10mm-CCT

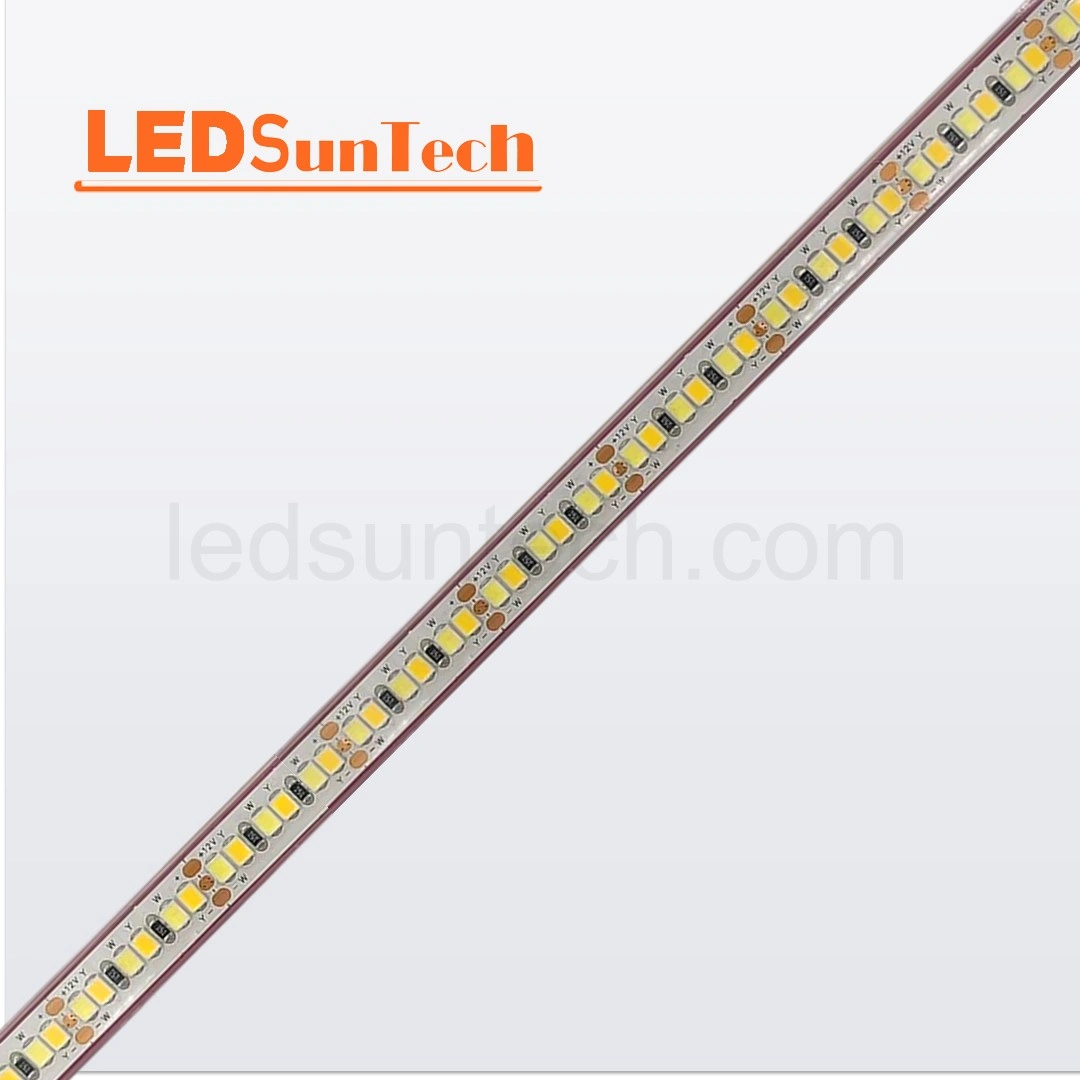

IP68 10mm 240led DC12v 2835 25mm CCT
IP68-2835-DC12v-240led-10mm-CCT

Specification Download

Specification Name Download
2835-DC12V-240leds/m-10mm-CCT LED Strip Specification Download Icon
2835-DC24V-120leds/m-10mm-CCT LED Strip Specification Download Icon
2835-DC24V-140leds/m-10mm-CCT LED Strip Specification Download Icon
2835-DC24V-168leds/m-10mm-CCT LED Strip Specification Download Icon

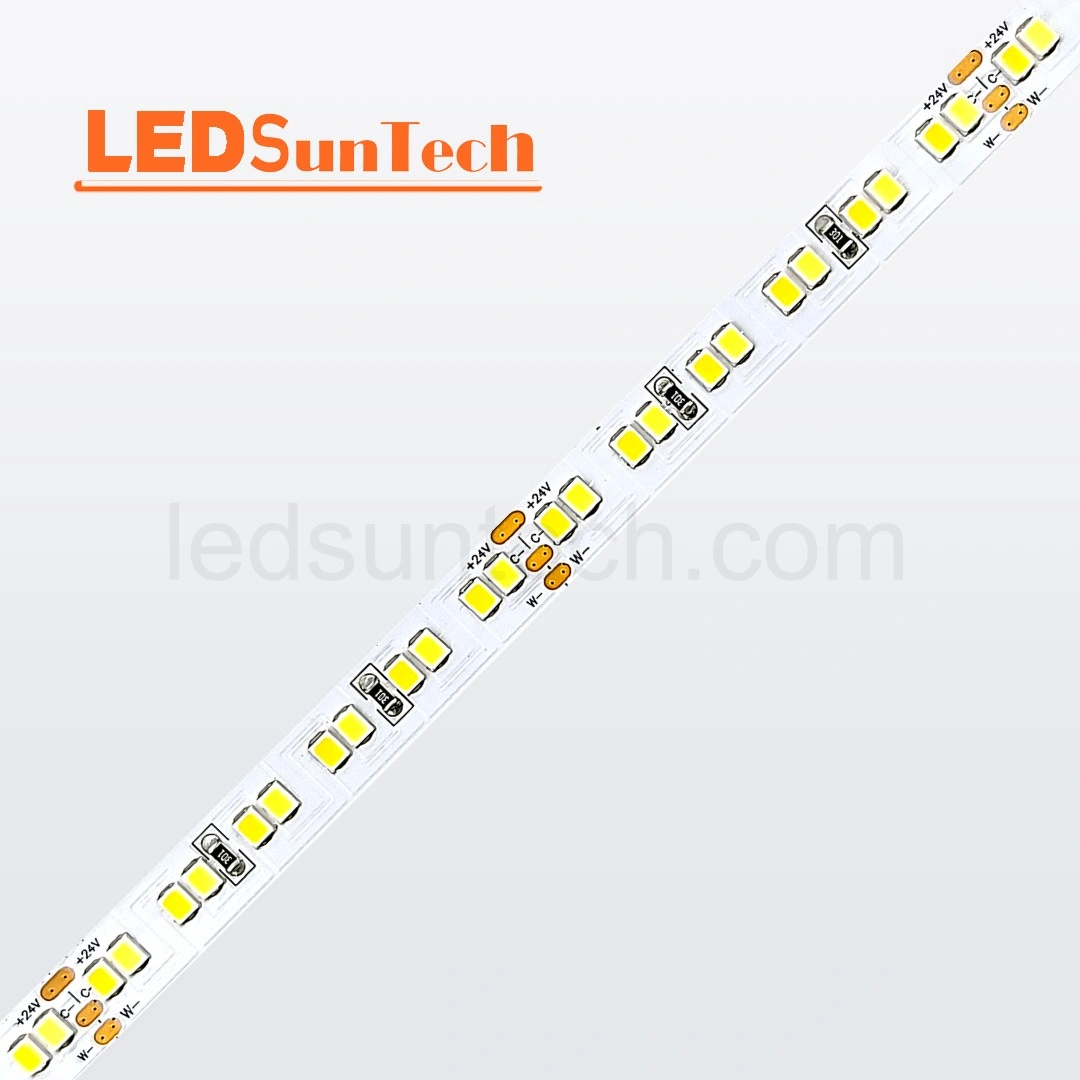

2835-DC24V-192leds/m-10mm-CCT LED Strip Specification Download Icon

Tunable White LED Strip Customization

LED Density: 60LEDs/m, 96LEDs/m, 120LEDs/m, 168LEDs/m, 180LEDs/m, 240LEDs/m 3M Tape Type: 9080A, 9948, 9495
LED Brands: EPISTAR chip, Osram, Philips Length: 5m/reel, 10m/reel, 20m/reel
Voltage: 5V, 12V, 24V, 36V, 48V PCB Width 5mm, 6mm, 8mm, 10mm,12mm,15mm,20mm
Color: White(1800K/2700K/3000K/4000K/5000K/6000K), CCT, RGB, RGBW,RGBWW,RGBCCT Wire: AWG18, AWG22
Power: 6W/m, 7.2W/m, 8W/m, 12W/m, 14W/m, 15W/m, 16W/m, 18W/m, 20W/m Label: ODM OEM customization

Tunable White CCT(2 channel) Control System

Tunable White CCT LED Controller

SP632E LED controller
SP632E
SP642E 2CH PWM LED Controller
SP642E
T1 R1 010V
T1 R1-0-10V
BC TY2
BC-TY2

Tunable White CCT LED Cable

3 pin led cable for led strip
3 Pin JST Cable
3 pin waterproof led wire for strips
Waterproof 3 Pin Wire

Tunable White CCT LED Connector

FAQ

1. What is the conventional color temperature?
Answer: The conventional color temperature is 2700K-6500K;

2. Can other color temperatures be customized? For example, 1800K golden color temperature?
Answer: Unconventional color temperatures can be customized according to customer requirements. If the customer has samples with unconventional color temperatures, we can achieve a similarity of more than 95% with the samples by matching the color of the phosphor;

3. How does CCT dimming work?
Answer: CCT light strips need to be used with a controller to achieve the functions of dimming and color temperature adjustment.
