UCS1903 LED Strip
The UCS1903 IC powers this strip, which delivers better stability than WS2811/SM16703—great for outdoor building facade lighting. Its price is relatively high, being two to three times that of WS2811 or SM16703 LED strips. The UCS1903 LED Strip can achieve multi-color control through pixel controllers such as K1000C and K8000C. Suitable for home, commercial, architectural and stage lighting, plus art installations.
For more details about UCS1903, you can click here.
Product Feature
1. UCS1903 LED strip is an external IC.
2. UCS1903 LED strip is usually 12V or 24V voltage.
3. UCS1903 LED strip has no breakpoint resume function.
4. The 12V LED strip has one IC controlling 3 LEDs; the 24V LED strip has one IC controlling 6 LEDs.
5. We uniquely designed a 5PIN UCS1903 LED strip, two GND, two VCC and one data. Ensure no voltage drop over 20 meters.
6. High efficiency and energy saving
With high-brightness LEDs, the UCS1903 strip delivers high luminous efficiency and low energy use—outperforming traditional lighting in energy efficiency.
7. Stable and reliable
With its unique packaging technology, the UCS1903 strip enhances product reliability/stability, lowers failure rates, and prolongs lifespan.
8. Intelligent control
A built-in wireless communication module lets the UCS1903 strip link to mobile devices like phones and tablets, which support remote control, scene setup and brightness tweaks for more intelligent, humanized lighting.
9. Rich colors
The UCS1903 light strip supports multiple color adjustments, letting you freely tweak light color and brightness to match personal preferences or scene needs.
10. Easy installation
The UCS1903 LED strip has a flexible PCB board, which can be bent and cut easily to fit different installation areas—no professional tools or skills required for DIY setup.
11. Different protection levels
Non-waterproof (IP20), waterproof with drip glue (IP65), waterproof with silicone sleeve/neon tube (IP67), and glue filling/solid extrusion in the sleeve (IP68), so you can use our light strips with confidence in various environments.
12. 5-year after-sales guarantee
Your purchased product has a comprehensive warranty and a 5-year after-sales guarantee, and our customer service is always available—feel free to ask questions, and we’ll offer professional help.
13. Customized LED light strips
We can provide standard LED light strips, and we can also create customizable options like packaging, specs, and length for you.
14. Customized aluminum profiles
Aluminum profiles and groove options can be cut to specified lengths according to requirements
15. Customized assembly solutions
We can help you assemble the LED light strips with aluminum profiles, which saves you a lot of trouble when installing them yourself. Besides, you can choose the length and color temperature you want according to your needs.
UCS1903 LED Strip Manufacturers & Suppliers
As a top UCS1903 LED strip manufacturer in China, LEDSuntech provides LED strips and lighting services worldwide, along with innovative, low-energy, healthy, environmentally friendly and energy-saving solutions.
Committed to ongoing innovation and UCS1903 LED strip quality improvement, we own independent intellectual property rights and a range of patented technologies. Our products have passed CE, RoHS, and other international certifications, with reliable quality and excellent performance. Support OEM & ODM. Our team has 14 years of experience in the production of UCS1903 LED light strips. With full production equipment and a solid quality control system, we can supply strips in various types and specs to meet your diverse needs.
If you’re looking for a trustworthy LED light strip supplier? Reach out to us, and we’ll dedicatedly offer you high-quality products and services.
What is UCS1903 LED Strip?
UCS1903 LED strip is an addressable LED strip that uses an external UCS1903 IC (integrated circuit) as a driver. This IC is more stable than WS2811 or SM16703.
One IC of 12V UCS1903 LED strip controls 3 LEDs, and one IC of 24V UCS1903 LED strip controls 6 LEDs.
UCS1903 LED strip is similar to the WS2811 LED strip, it also has a single data transmission line and cannot resume transmission from a breakpoint.
UCS1903 is usually used for outdoor facade lighting. The price is also two or three times that of WS2811 or SM16703.
UCS1903 RGB LED strip can usually be controlled by a pixel controller (such as K1000C, K8000C) to produce a variety of colors.
UCS1903 LED strip can also be cut into specific lengths and reconnected as needed (12v 3 LEDs per cut, 24v 6 LEDs per cut), making it versatile and customizable.
We offer LED densities has 30D/meter, 60D/meter, 120D/meter, etc. Our 5-pin UCS1903 LED strip has a unique design. Compared with the 3-pin conventional design on the market, our unique 5-pin design enables every 20 meters side connection to the LED driver to ensure no voltage drop.
UCS1903 LED Strip Advantage
• UCS1903 IC is more stable; • 5 PIN design; •20 meters without voltage drop; • Easy to program; • Low power consumption; • Dynamic lighting effects; • Customizable lengths; • Waterproof options; • Long service life.
UCS1903 LED Strip Application
• Stage lighting • Signage • Nightclubs • Architectural lighting • Art installations • Christmas and holiday lighting
Wholesale UCS1903 LED Strip Series
Voltage: 12V / 24V.
PCB Width: 10mm.
LEDs density: 30 LEDs/m, 60 LEDs/m, 96 LEDs/m, 120 LEDs/m.
Color: White, CCT, RGB.
Waterproof type: IP20/IP67, suitable for indoor and outdoor applications.
If the parameters of the ucs1903 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.

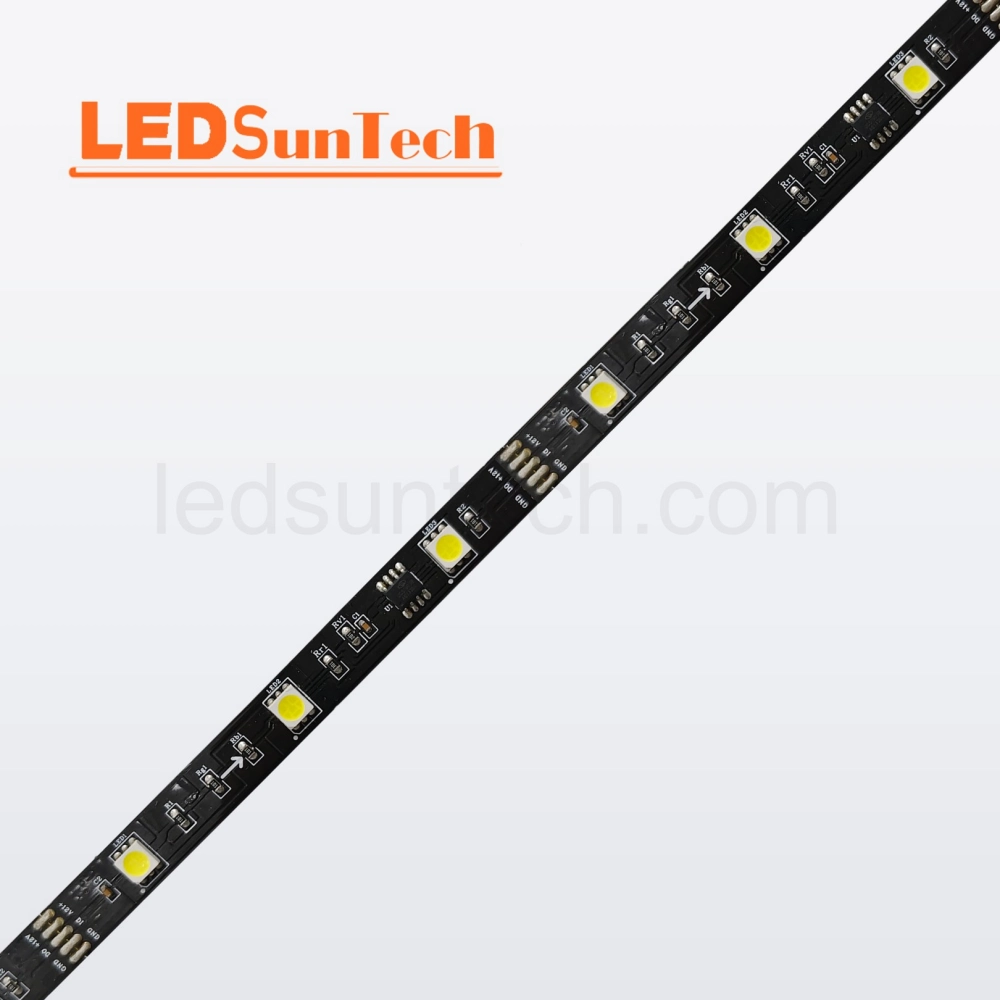

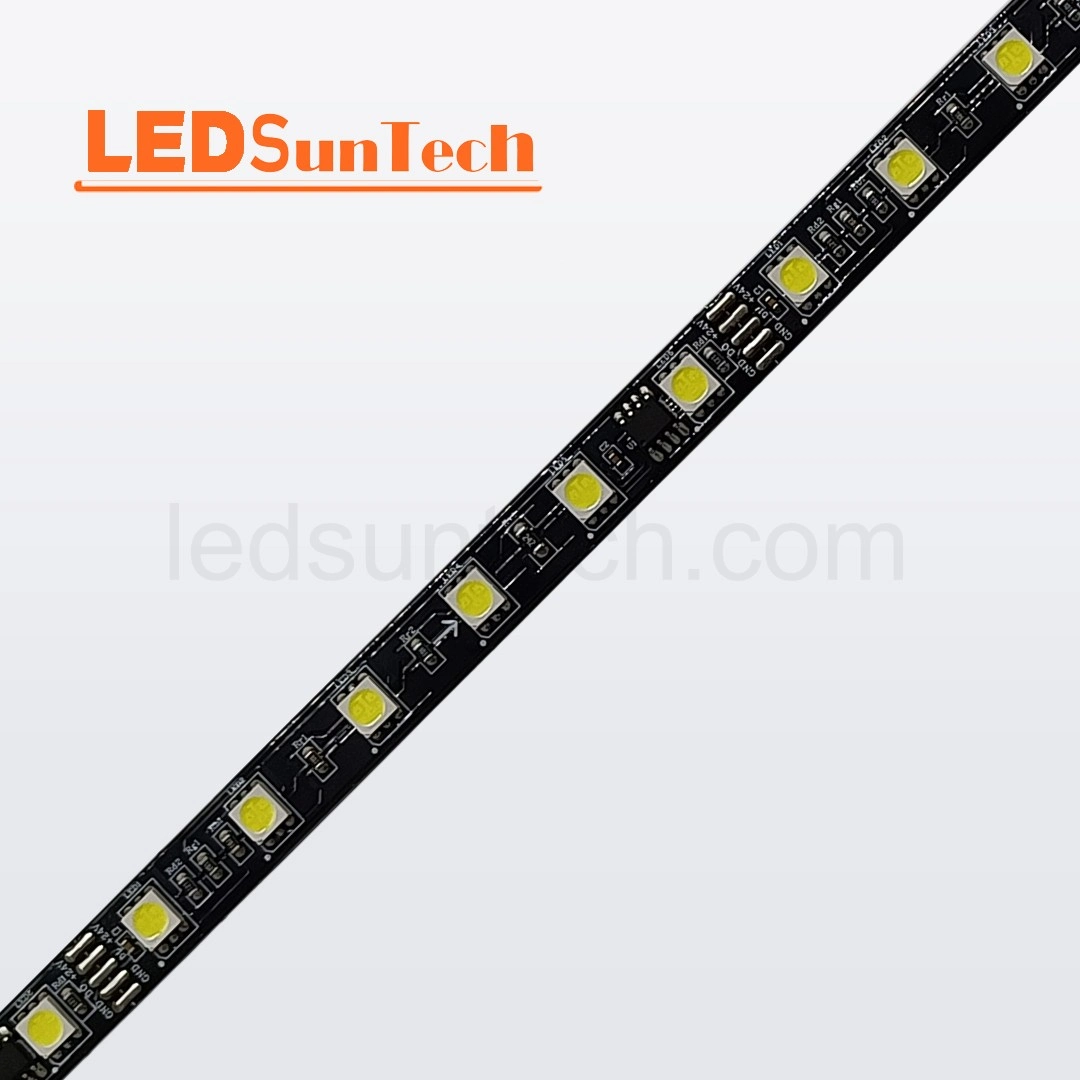

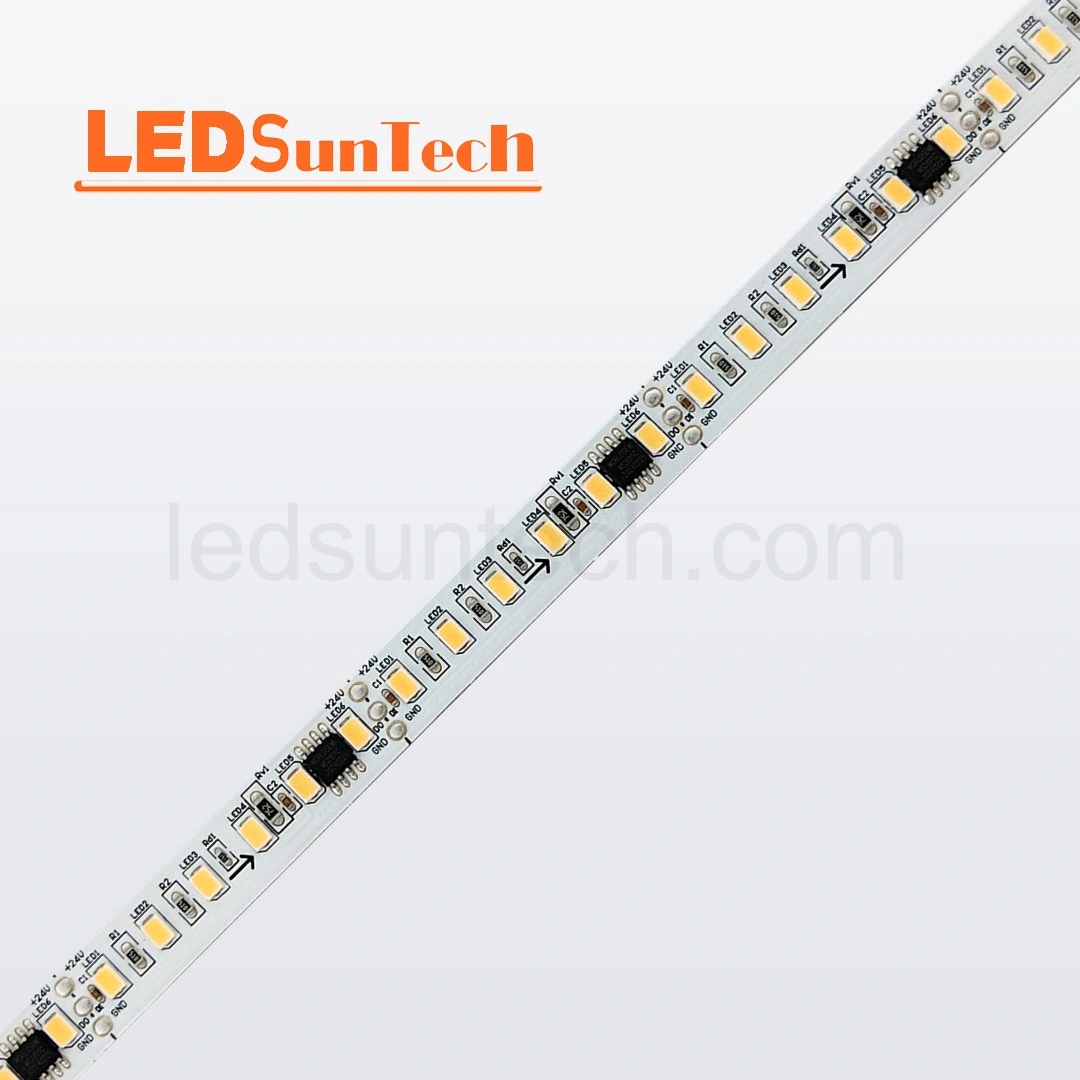

White UCS1903 LED Strip By Series
Voltage: DC12V/24V; LED density: 30/60/120 LEDs/m;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

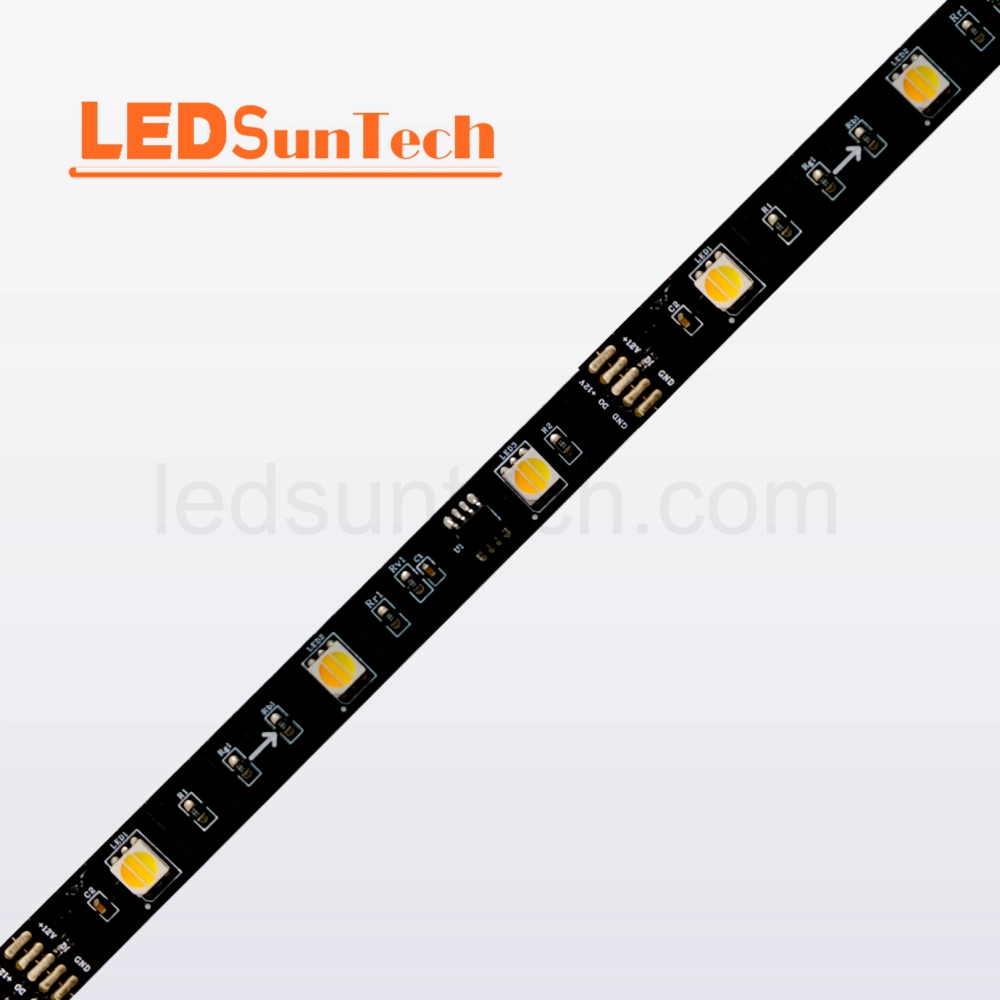

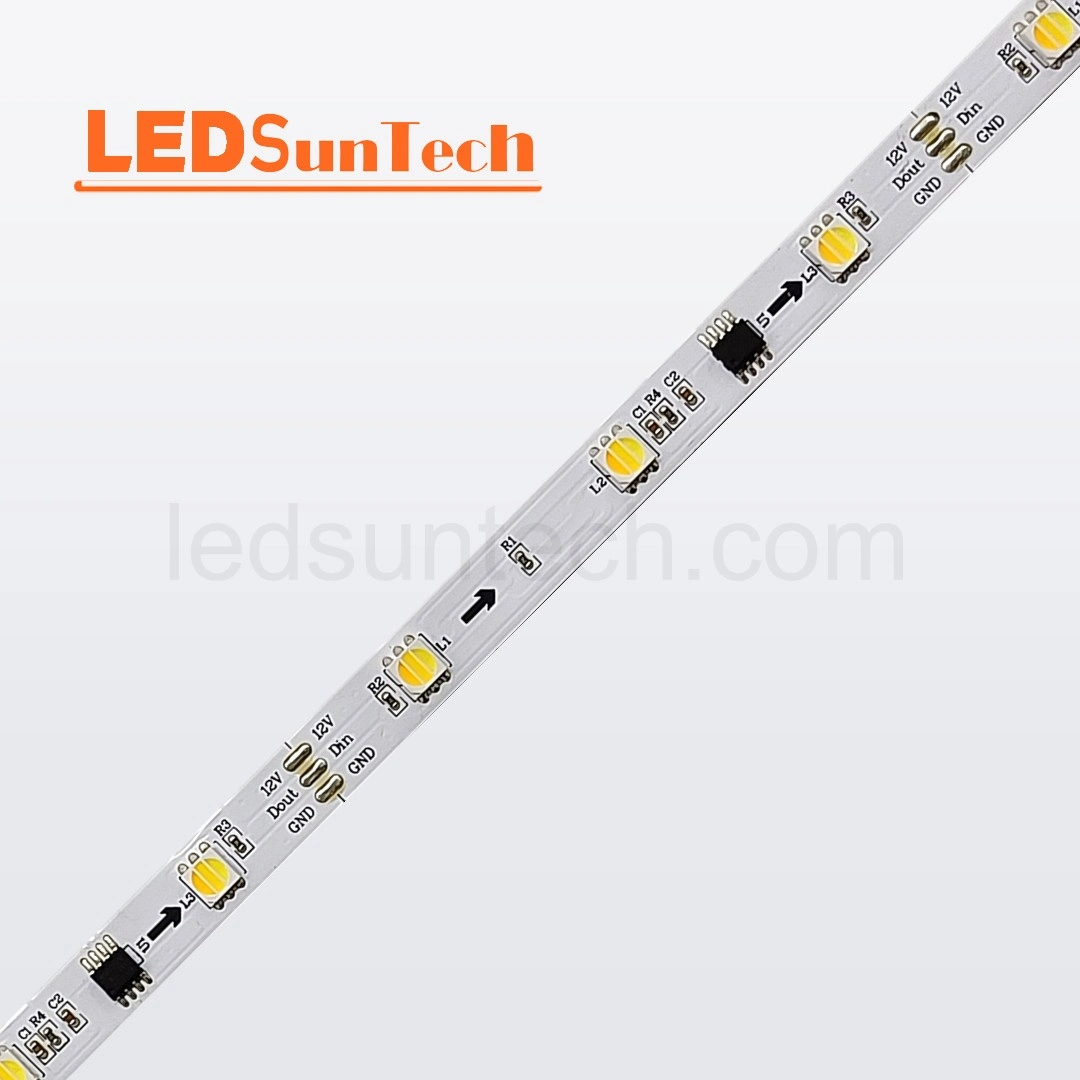

CCT UCS1903 LED Strip By Series

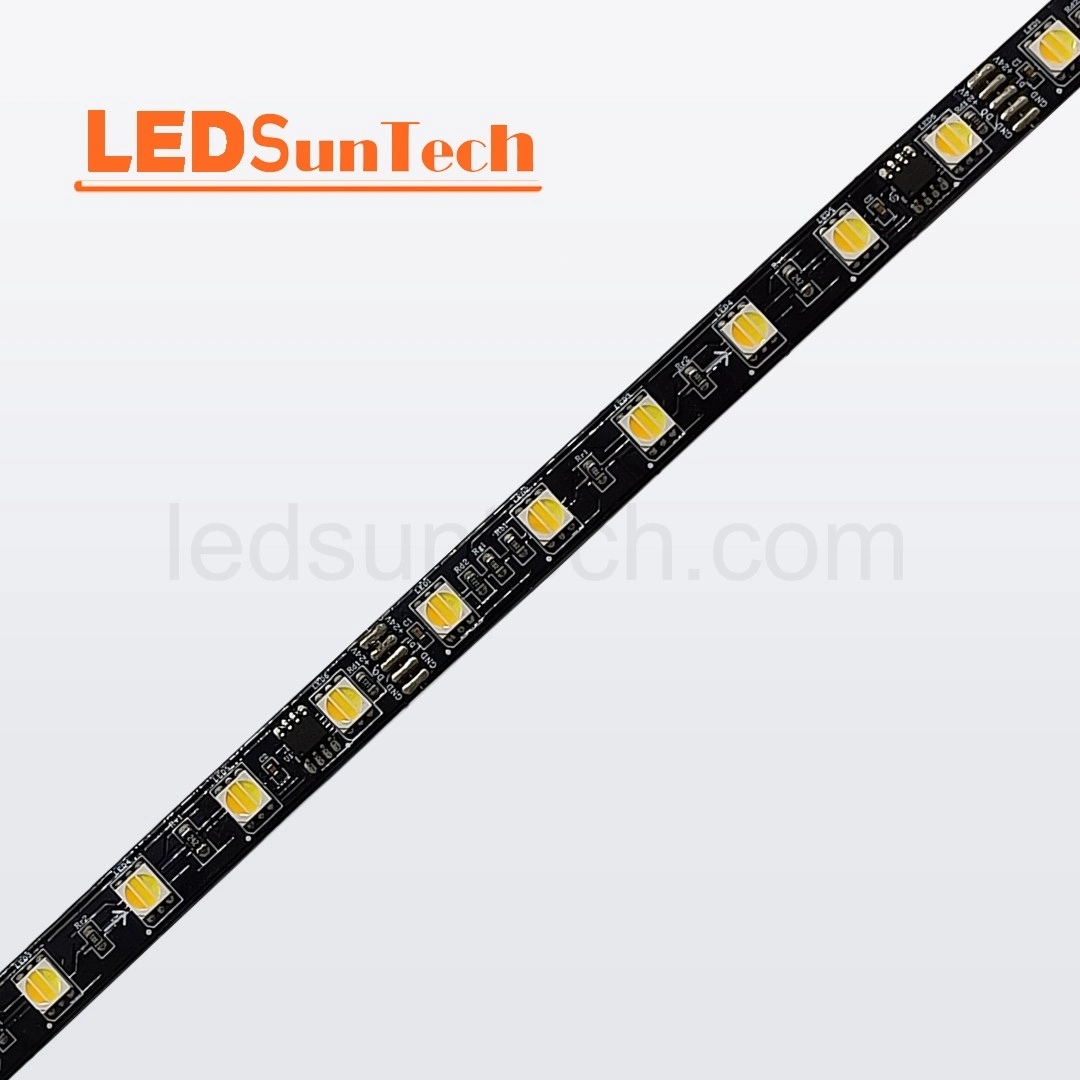

Voltage: DC12V/24V; LED density: 30/60 LEDs/m;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.

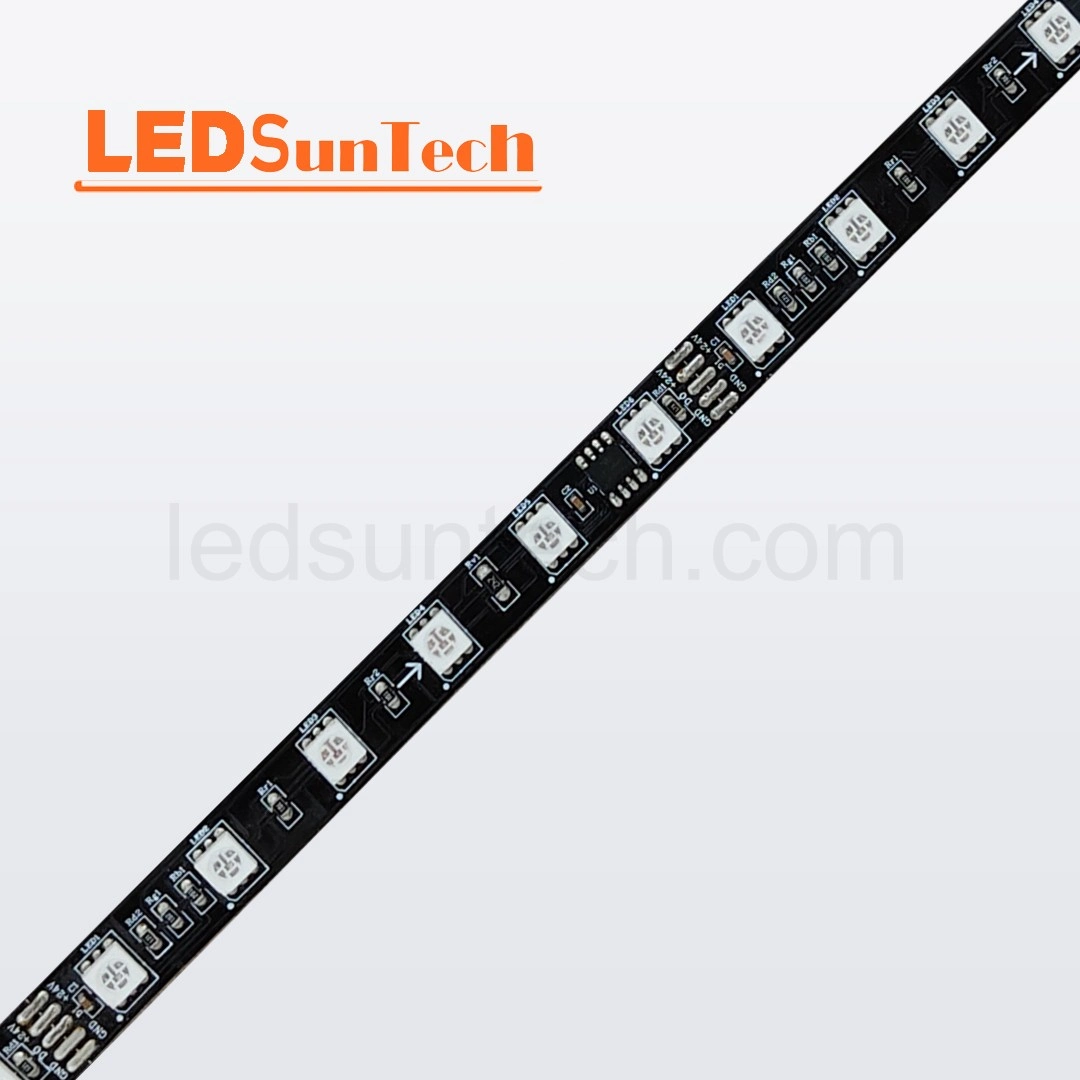

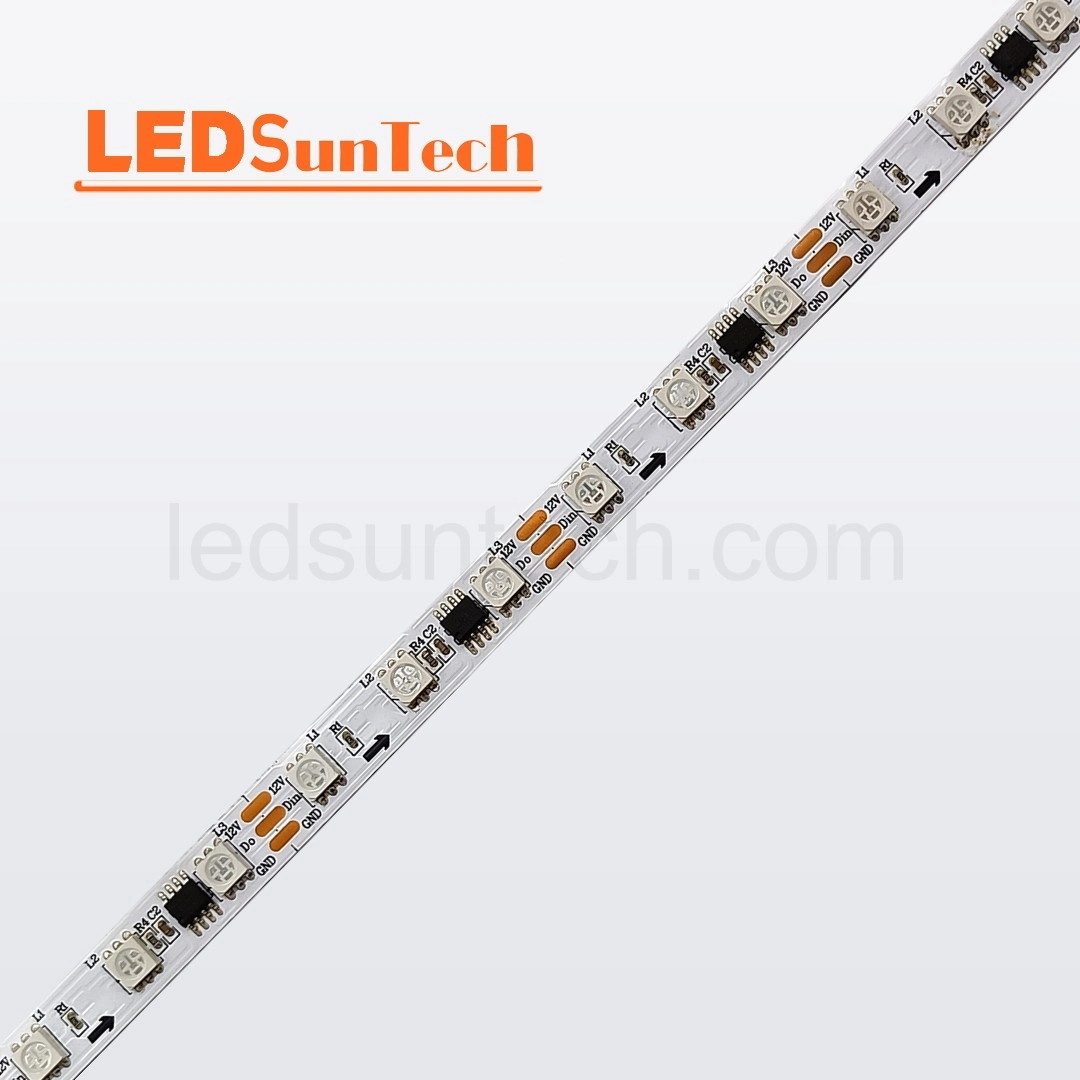

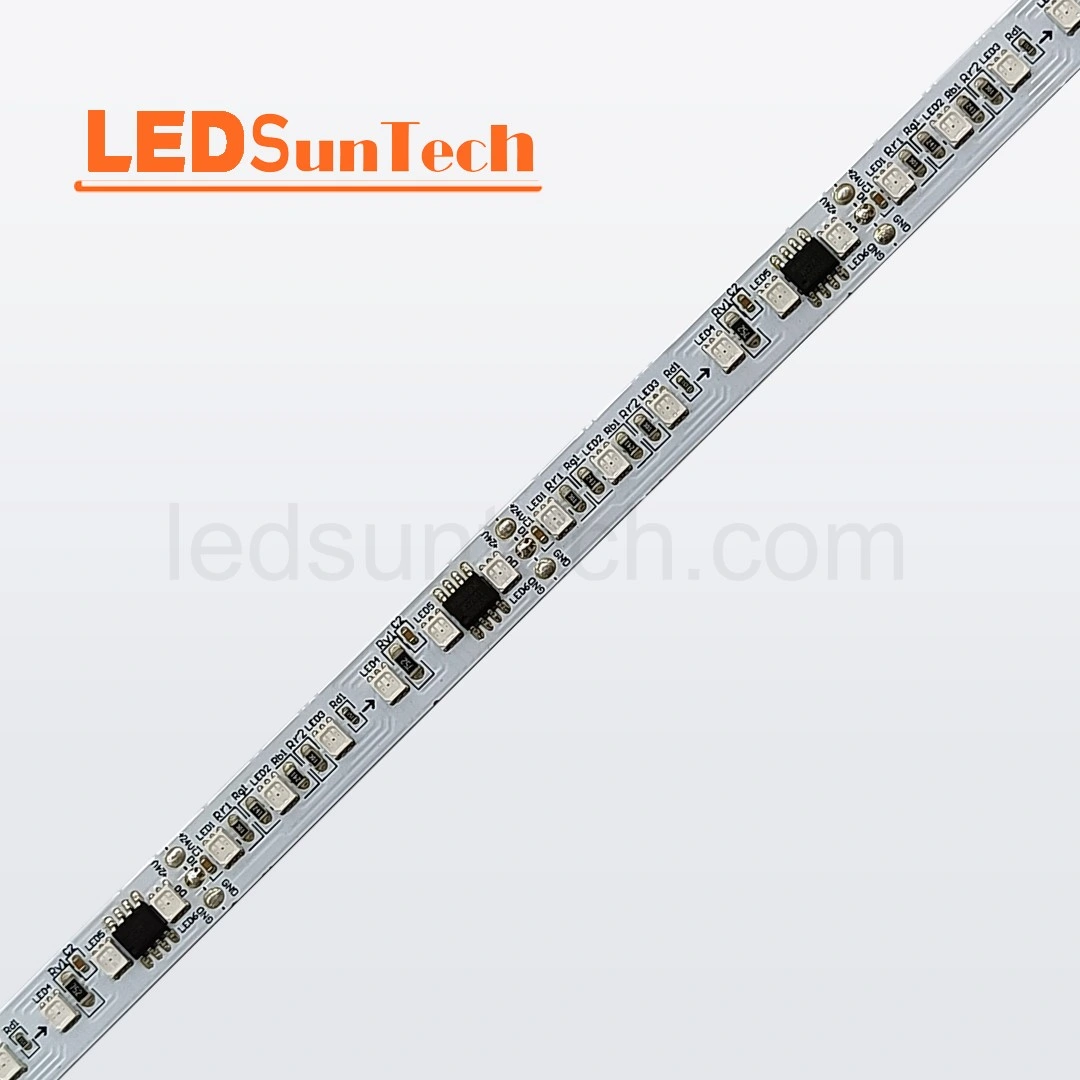

RGB UCS1903 LED Strip By Series
Voltage: DC12V/24V; LED density: 30/60/96 LEDs/m;
FAQ
1. Does the UCS1903 LED strip require a special power supply?
Answer: The UCS1903 LED strip typically requires a 12V/24V DC power supply. However, the power supply requirements may vary depending on the length of the strip and the number of LEDs on the strip.
2. How can the color of the UCS1903 LED strip be controlled?
Answer: The color of the UCS1903 LED strip can be controlled by programming a microcontroller or other device to send specific color data to each LED on the strip.
3. Can the UCS1903 LED strip be synchronized with music or sound?
Answer: Yes. The UCS1903 LED strip can be synchronized with music or sound by programming a microcontroller or other device to respond to a specific audio signal. For example, Madrix software.
4. Can the UCS1903 LED strip be dimmed?
Answer: Yes, the UCS1903 LED strip can be dimmed by programming a microcontroller or other device to send a lower voltage to the LEDs.
Why Choose Our Addressable LED Strip?
High Quality LED Chips
- LEDs are all encapsulated with double-layer high-thickness 99.99% gold wire, with a lifespan of >50000 hours.
- Famous brand chips SANAN / EPISTAR / SAMSUNG, etc.
- High color temperature consistency, high lumen output, good heat dissipation, high light transmittance, no leakage.
Thick Copper FPCB
- 3oz thick copper layer PCB design is stable, lower voltage drop, better heat dissipation.
- Pure copper circuit board, high softness, best conductivity.
- The thicker the FPCB, the smaller the voltage drop.
Safe Wire
- Safe and high quality wire, good conductivity, fast heat dissipation, stable and safe.
- Our standard cables are all 20 AWG, UL certified, and 20 cm long.
- Other sizes and lengths are also available.
3M Adhesive Tape
- Thermal conductive tape, 3M 300LSE (Standard), 3M VHB, Original 3M double-sided adhesive tape.
- Good thermal conductivity, no odor.
- Strong adhesion, not easy to fall off.
Anti-interference Capacitance
- Low high-frequency loss, can carry a large current.
- High insulation resistance and good self-healing.
- Long service life, stable temperature characteristics.
Mass Production
- The production process is an overlooked part of the process that directly affects whether your LED works properly.
- Environmentally friendly materials are needed that are more stable and longer lasting.
Certification System
LEDSuntech has more than 1000 kinds of LED light strips. We want our customers to feel confident that their LED strips are safe and manufactured to the highest quality. In order to ensure the best performance of our LED light strip products, all products have been tested by third-party authoritative laboratories and have obtained multiple quality certifications including ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
