UCS5603 LED Strip
Product Feature
1. UCS5603 LED strip is an external UCS5603 IC
2. Dual signal transmission breakpoint resume.
3. One IC of 12V UCS5603 LED strip controls 3 LEDs, and one IC of 24V UCS5603 LED strip controls 6 LEDs.
4. Each IC is addressable.
5. Match 4PIN JST connector.
6. Real-time response function during channel testing
The test program can dynamically detect any channel fault in real time. The main channel lights up red normally, and the auxiliary channel lights up green normally. If any channel fails, the corresponding light will not light up. If the fault is restored, the light will light up. Real-time monitoring and real-time response are helpful to find soft faults that occur more frequently.
7. Dual-channel short-circuit test function
When the two channels of the IC are short-circuited, although the pattern program is normal in the production test, it is easy to cause instability in various interference environments in the project. Through the UCS5603 special test program, this kind of fault UCS5603 will effectively identify the light state of the light off.
8. High refresh rate
The RGB output port can achieve 4096 levels of grayscale, and the port refresh rate is 2K.
9. High constant current accuracy
±3% high constant current accuracy design.
10. Different protection levels
Non-waterproof (IP20), dripping waterproof (IP65), silicone sleeve/neon tube waterproof (IP67) and glue filling/solid extrusion in the sleeve (IP68), so that you can use our light strips with confidence in various environments.
11. 5-year warranty
We provide warranty service, providing 5 years of after-sales protection for your purchase, and our customer service team is always ready to answer your questions and provide support.
12. Customized LED light strips
We not only provide standard products, but also can exclusively supply special products for you, and support customized packaging, specifications, lengths, etc.
13. Customized aluminum profiles
Aluminum profiles and groove options can be cut to specified lengths according to requirements.
14. Customized assembly solutions
Provide LED light strips and aluminum profile assembly services to simplify the user’s installation process and provide personalized length and color temperature options.
UCS5603 LED Strip Manufacturers & Suppliers
We are a professional UCS5603 LED strip manufacturer. Factory direct sales. We are committed to custom individually controlled addressable LED strip lighting solutions. Our high-quality UCS5603 LED strip products are certified by ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
OEM or ODM available. For products, we pay attention to details. Not only are the technology reliable, but the design is also exquisite. For customers, excellent quality is our principle.
What is UCS5603 LED Strip?

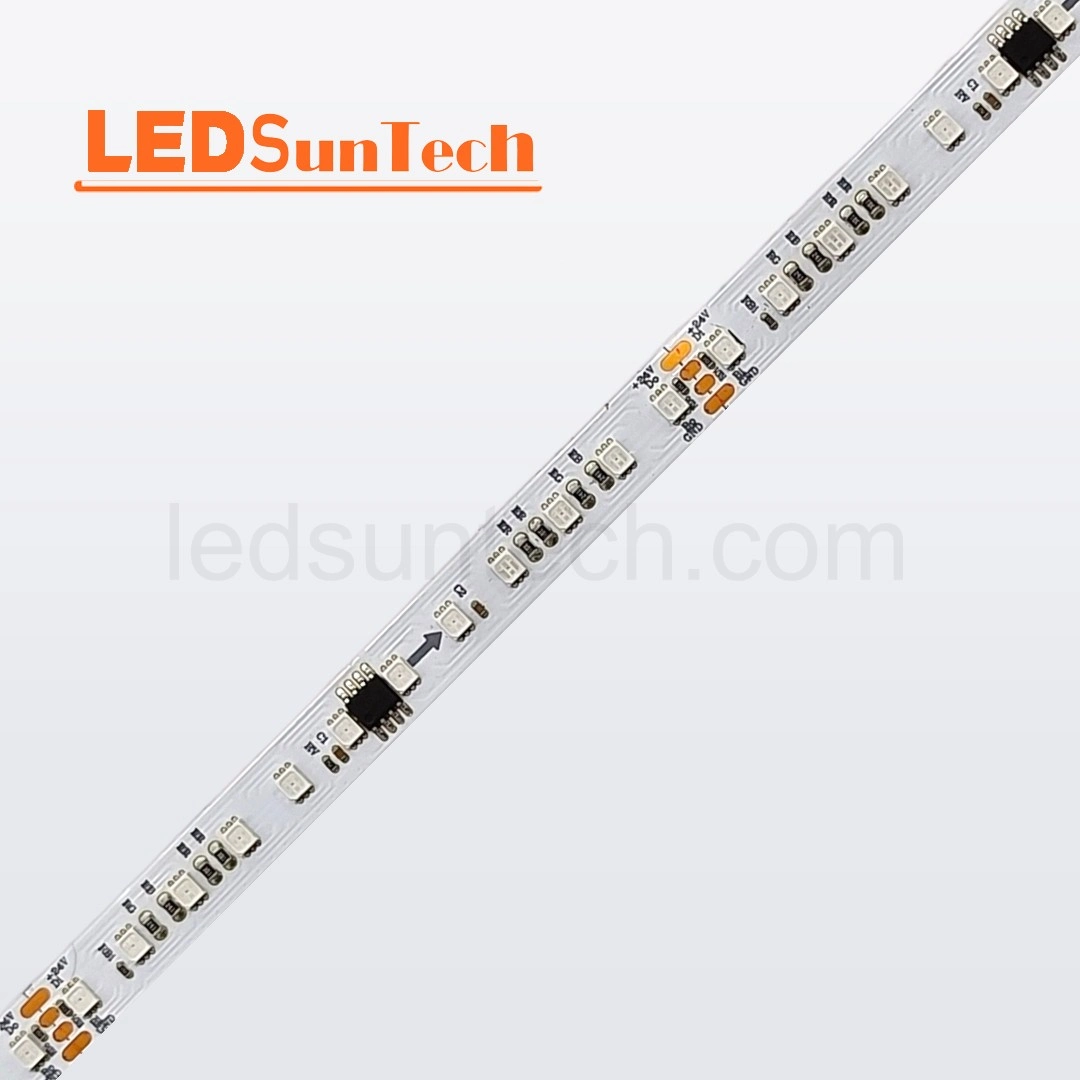

The UCS5603 LED strip is an addressable strip with an external UCS5603 IC and dual signal transmission breakpoint resume.
RGB UCS5603 LED strip is a 3-channel LED strip that can control red, green, and blue. UCS5603 LED strip can accurately control each group of LEDs (3 LEDs 12v or 6 LEDs 24v).
UCS5603 LED strip has breakpoint resume function, with an overall failure resume rate of more than 95% and no picture misalignment, thus achieving dynamic and customizable lighting effects.
UCS5603 LED Strip Advantage
1. Dual-channel breakpoint resume function
Dual-channel bad point resume function, the fault point signal can continue to be transmitted, the overall fault resume rate is over 95%, and the picture is not misaligned.
2. Error signal recognition technology
Leading HPD error signal recognition technology, channel fault recognition rate reaches over 99%.
3. Dual decoding engine
The patented dual decoding engine monitors and decodes 2 channels at the same time. If any channel in use has a problem, it will be switched to the normal channel in real time. Because it is a real-time switch, it is difficult for the human eye to detect the abnormal process of the picture when a fault occurs.
UCS5603 LED Strip Application
Decorative landscape: villas, advertisements, wall signs, Christmas.
Irregular design of human body decoration: shopping malls, hotels, nightclubs, polygonal wall KTV
Venue ceiling cavity design.
Public lighting fixtures: schools, libraries, hospitals, airports, subway stations, railway stations.
Furniture groove decoration: doors, bars, wine cabinets, wardrobes, TV cabinets, etc.
Car beauty: body, bottom of the car, trolley balance car, etc.
Wholesale UCS5603 LED Strip Series
Voltage: 12V.
PCB Width: 8mm, 10mm.
LEDs density: 60 LEDs/m, 72 LEDs/m.
Color: RGB.
Waterproof type: IP20.
If the parameters of the ucs5603 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.
UCS5603 LED Strip By Series
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN RGB WS2818 / TM1934 / UCS5603 60LEDs/m 12V Addressable RGB LED Strip Specification |  |
| 4PIN RGB WS2818 / TM1934 / UCS5603 72LEDs/m 12V Addressable RGB LED Strip Specification | |
FAQ
Question. Briefly describe what is UCS5603?
Answer: UCS5603 is a 4096-level grayscale three-channel bad pixel retransmission function LED driver control dedicated circuit, which integrates MCU digital interface, data latch, LED high-voltage driver and other circuits.
Through the peripheral MCU control, the chip’s individual brightness and cascade control realize the color dot matrix lighting control of the outdoor large screen. The bad pixel retransmission function adopts advanced HPD error signal recognition technology, which can achieve a channel error signal recognition rate of more than 99%, and also adopts a patented dual decoding engine to monitor 2 channels at the same time. If there is a problem with any channel signal, it will switch to the normal channel in real time. It is not easy for the human eye to find the abnormal picture during the switching process.
The RGB channel output of UCS5603 adopts 4096-level grayscale output, and adds the independent current adjustment function of each channel, plus the ±3 high-precision constant current design, so that the picture effect can restore the true color more, rich and gorgeous.
LED Type
SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality
30leds 48leds 60leds 72leds 90leds 96leds 120leds 144leds 200leds …
Voltage
3V 5V 9V 12V 24V 36V 48V 72V 110V 220V…
CCT
1800K 2400K 2700K 3000K 4000K 5000K 6000K 8000K 10000K …
Power(w/m)
4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
PCB
3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 20MM 22MM …
Lumen/M
500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
Waterproof(IP Rating)
IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape
3M 3M 9080A 30OMP 9495 VHB …
PCB Print
UL CE ROHS LOGO …
Product Testing
In order to provide customers with the best product quality, we are equipped with complete quality testing equipment. Distributed according to safety area, EMC area, photoelectric area, IP waterproof area, aging area and product reliability area. The inspection covers products such as LED light strips, neon light strips, linear lamps, power supplies and related accessories. Providing customers with the highest quality products is our consistent aim.
