UCS8904 LED Strip
Product Feature
- Four-channel independent control: This system supports the independent adjustment of RGBW four colors, can accurately mix colors, and realizes independent white light control (such as 2700 K- 6500 K color temperature optional).
- High grayscale level: This product has a 16-bit (65536 levels) grayscale adjustment capability, which provides a smooth dimming curve, significantly better than traditional 8-bit grayscale products.
- High compatibility and flexibility: supports multiple control protocols (such as SPI, DMX512, ArtNet, etc.), and has a wide voltage range (5- 24V), suitable for long-distance wiring.
- High refresh rate and anti-stroboscopic: PWM frequency reaches 4kHz, and the refresh rate is up to 60fps, which is suitable for film and television shooting and high-speed photography scenes to avoid screen flickering.
UCS8904 LED Strip Manufacturers & Suppliers
Our programmable UCS8904 LED strip products, from design to material selection to production quality inspection, are always higher than the industry standards. We are committed to providing you with the highest quality LED lighting, assembled in our own production facilities, and designed for commercial lighting projects.
LEDSuntech is more than just an LED lighting company. One of the greatest values we bring to our customers is our exceptional service and guidance. Ensure that our customers’ requirements are met.
What is UCS8904 LED Strip?

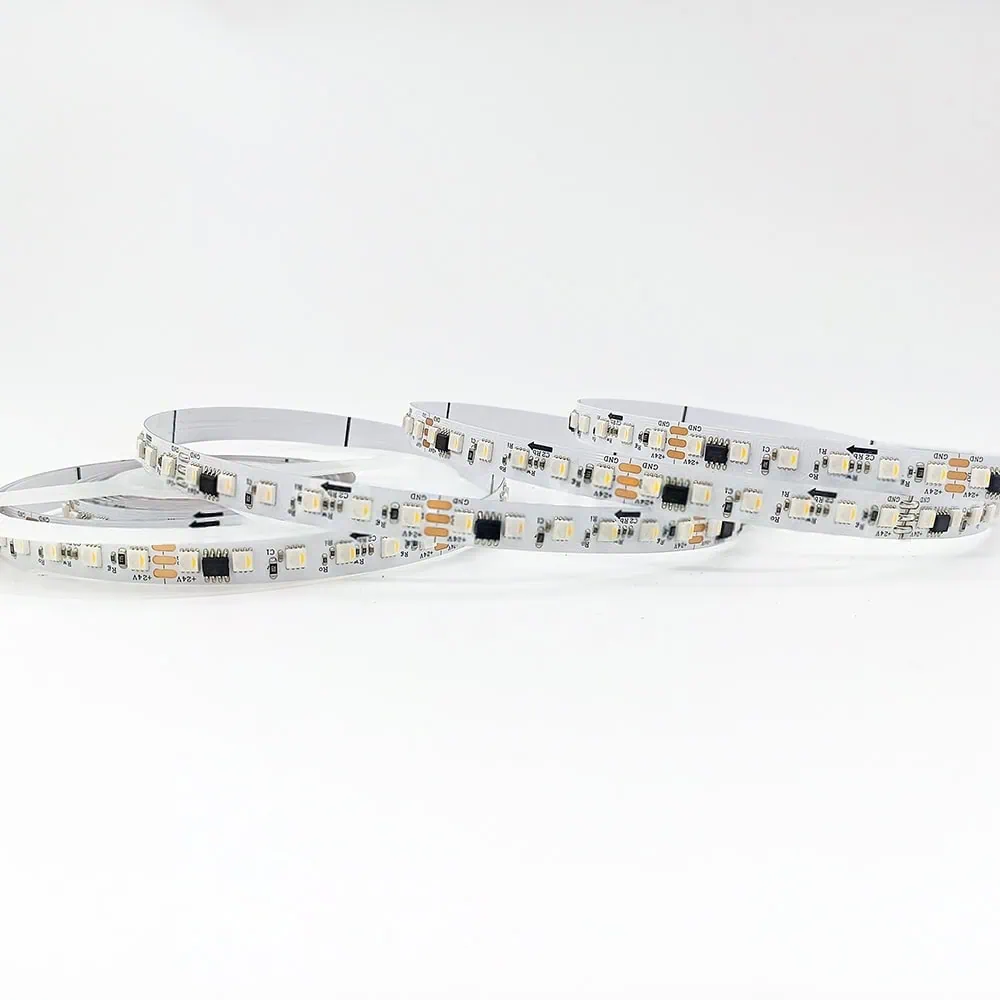

UCS8904 LED strip is an addressable pixel strip. Each LED unit (pixel) has a built-in UCS8904B driver chip to achieve single-point independent control.
It uses a flexible PCB board (width 10-12mm), with 60-96 LEDs per meter (such as 60LED/m corresponds to 10 pixels/m), and supports cutting according to fixed lengths (such as 62.5mm or 83.3mm).
Each pixel contains red, green, blue and white LEDs (optional color temperature), which expands the color expression and brightness range.
It provides multiple protection levels, such as IP20 (bare board), IP65 (silicone casing), IP67/IP68 (fully waterproof), etc., to adapt to different indoor and outdoor environments.
UCS8904 LED Strip Advantage
Through the superposition of RGBW four colors, warm white, cold white and other tones that are difficult to achieve with traditional RGB can be generated, and the overall brightness can be improved.
24V voltage support reduces voltage drop problems and is suitable for ultra-long light strip installation (such as a single 5-meter strip without additional power supply).
If a section is damaged, the faulty pixel can be directly cut and re-welded, with low maintenance costs.
With a low power consumption design, a wide operating temperature range (-35°C to 50°C), the life span can reach 50,000 hours.
UCS8904 LED Strip Application
Used for dynamic lighting effects such as building outlines and bridge decorations, supporting remote control and complex programming.
Through high refresh rate and delicate color transition, it creates immersive visual effects for scenes such as concerts and theaters.
Suitable for places such as windows and exhibition halls that require high brightness and high resolution display.
The high-frequency PWM characteristics make it flicker-free when shot by the camera, and it is often used in film and television sets and virtual production.
Wholesale UCS8904 LED Strip Series
Voltage: 24V
PCB Width: 10mm
LEDs density: 96 LEDs/m
Color: RGBW
Waterproof type: IP20/IP65/IP67
If the parameters of the UCS8904B LED strip above do not have what you need. Then, please contact our experienced team of engineers for customization.
Specification Download
| Specification Name | Download |
|---|---|
| 3PIN UCS8904 96leds/m 24V Addressable RGBW LED Strip Specification |
|
Product Testing
In order to provide customers with the best product quality, we are equipped with complete quality testing equipment. Distributed according to safety area, EMC area, photoelectric area, IP waterproof area, aging area and product reliability area. The inspection covers products such as LED light strips, neon light strips, linear lamps, power supplies and related accessories. Providing customers with the highest quality products is our consistent aim.
