Ultra Wide COB LED Strip
Product Feature
1. Uses 15mm, 20mm, or 30mm wide PCB with 3 to 6 rows of LEDs. This design creates a larger light surface and is ideal for large area lighting.
2. The 15mm version has 960 LEDs per meter, which equals 4,800 LEDs over 5 meters. The 30mm version reaches up to 1,600 LEDs per meter at 24V and delivers very high brightness. It also features a wide 180° beam angle that ensures even light with no dark spots.
3. CRI is above 90, which provides natural and accurate color. Available in 3000K, 4000K, and 6500K white light options.
4. Works with safe low voltage 12V or 24V power supply.
5. Cuttable design allows flexible installation. The 15mm version can be cut every 50mm. The 20mm version can be cut every 100mm. The 30mm version can be cut every 25mm. This allows precise length adjustment.
6. Supports smooth dimming and works with standard dimmers or PWM control for full brightness adjustment. Note: these strips are not individually addressable and use overall control.
7. Easy to install with self adhesive backing. Available in IP20 for indoor use and IP67 for waterproof applications. The 30mm version also has a protective silicone coating that improves light diffusion.
Wholesale Ultra Wide COB LED Strip By Series
We provide a variety of ultra wide COB LED strip series products.
Voltage: 12V and 24V.
LED density: 700 leds/m, 960 leds/m, 1600 leds/m.
Color: White, CCT, RGBCCT.
If the product parameters you need are not available here, please contact us for customization. Let us light up your lighting project together.
Specification Download
| Specification Name | Download |
|---|---|
| DC24V-1600led-30mm-White-COB LED Strip Specification |
|
| DC24V-960led-15mm-White-COB LED Strip Specification |
|
Ultra Wide COB LED Strip Manufacturers & Suppliers
We are a leading LED COB LED Strip manufacturer in China. Our high-quality COB LED strip products have passed a series of certifications such as ISO:9001, CE, RoHS, FCC, UL, ETL, etc.
We specialize in COB LED strips. For products, we pay attention to details. Not only is the technology reliable, it’s also beautifully designed. For customers, excellent quality is our principle.

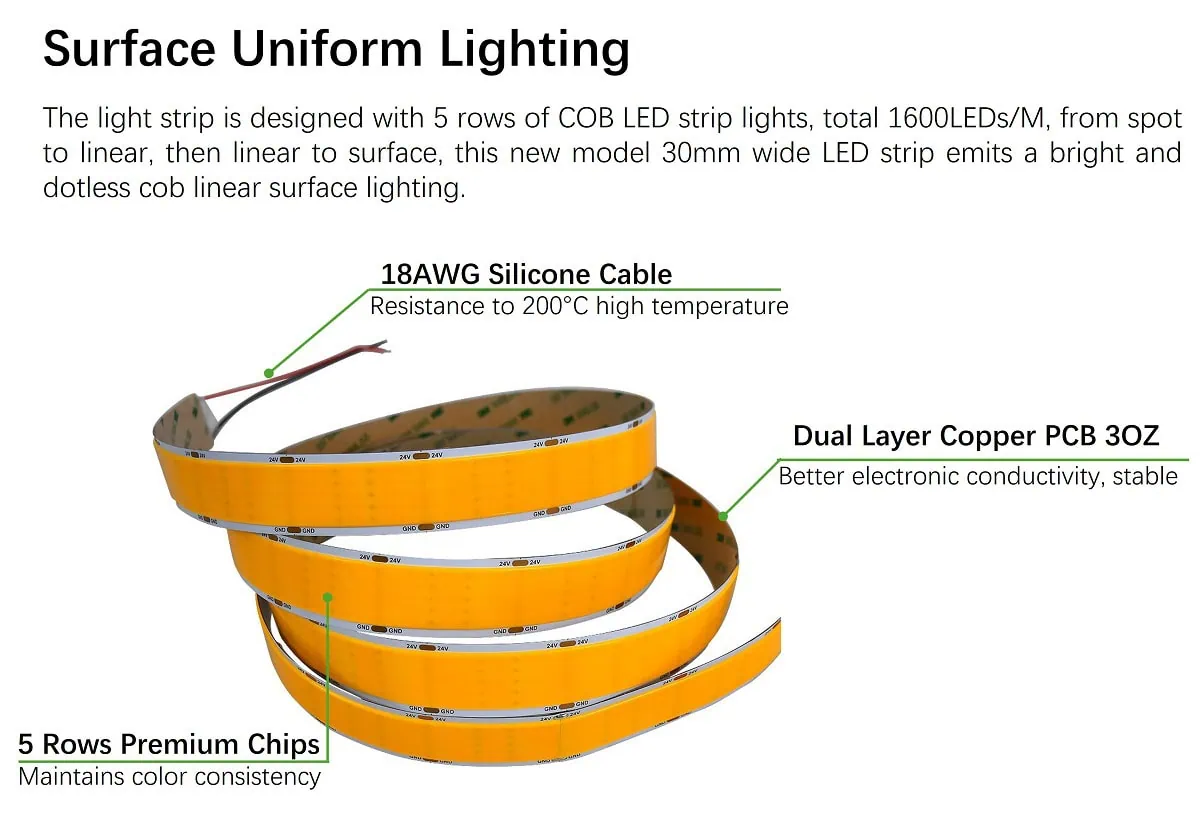

What is Ultra Wide COB LED Strip?
The Ultra Wide COB LED Strip is a flexible LED lighting strip featuring a wide-format PCB substrate and highly integrated Chip-on-Board (COB) packaging.
Typically, it is designed with a configuration of 3 to 6 rows of COB LEDs. The PCB width generally exceeds 15mm; common variations include ultra flexible COB LED strips with widths of 15mm, 20mm, and 30mm.
Its primary focus is on delivering large-area, highly uniform, and high-brightness planar illumination.
LEDSuntech offers ultra wide COB LED strips in both 12V and 24V options, with an ultra high density of up to 1600 LEDs per meter. Available in white, CCT, RGB, RGBW, and RGBCCT.
They deliver bright, smooth, and uniform lighting for a wide range of applications.
Ultra Wide COB LED Strip Advantages
Standard LED strips often produce narrow light and a noticeable dotted effect. When installed on a feature wall, individual LED points become visible. Light looks uneven. Dark spots and banding appear. The result feels cheap and unfinished.
EL strips offer smooth and uniform light. But brightness is too low for display use. They also age quickly, which affects long term performance.
This ultra wide COB LED strip changes everything.
What is the advantage of ultra wide COB LED strip?
It uses a large light emitting surface and ultra high density LED chips. The result is wide, soft, and perfectly even illumination. No visible dots. No dark lines. Just a clean and continuous glow that looks like a solid light panel.
You get the smooth and premium look of EL lighting. At the same time, you gain the brightness and color accuracy needed for real projects.
Ultra Wide COB LED Strip Application
The ultra wide COB LED strip delivers a smooth, dot free and evenly illuminated surface. It can perfectly replace EL cold light strips and traditional LED strips.
It is widely used in commercial counters, home feature walls, and outdoor light boxes. It creates a soft, premium, and large area lighting effect that enhances any space with a high end visual experience.
Product Testing
In order to provide customers with the best product quality, we are equipped with complete quality testing equipment. Distributed according to safety area, EMC area, photoelectric area, IP waterproof area, aging area and product reliability area. The inspection covers products such as LED light strips, neon light strips, linear lamps, power supplies and related accessories. Providing customers with the highest quality products is our consistent aim.
