WS2811 LED Strip
Product Feature
1. Good flexibility of FPC
WS2811 LED Strip uses flexible FPC as the substrate of the light strip, which makes it have good conductivity, fast heat dissipation, and bend resistance. It can be bent into various shapes at will.
2. Single point single control
WS2811 is a single point single control light strip with highly consistent luminous color. It is a very cost-effective light strip.
3. Multiple lighting effects
Various lighting effects can be achieved through controller programming, which can be applied to different scenes.
4. Different protection levels
No waterproof (IP20), drip glue waterproof (IP65), silicone sleeve/neon tube waterproof (IP67) and sleeve glue filling/solid extrusion (IP68), so that you can use our light strip with confidence in various environments.
5. Warranty 5 years
Provide warranty service and provide 5 years of after-sales guarantee for your purchase. At the same time, our customer service team is always ready to answer your questions and provide support.
6. Customized LED light strips
We not only provide standard products, but also supply special products exclusively for you, and support customized packaging, specifications, length, etc.
7. Customized aluminum profiles
Aluminum profiles and groove options can be cut to specified lengths as needed.
8. Customized assembly solutions
Provide LED light strip and aluminum profile assembly services to simplify the user’s installation process and provide personalized length and color temperature options.
WS2811 LED Strip Manufacturers & Suppliers
We are a WS2811 LED strip factory in Shenzhen, focusing on the research and development, production, and sales of high-quality LED strip products. Our team has 14 years of experience in LED strip production, with complete production equipment and quality control systems. We can provide various types and specifications of LED strips to meet your different needs.
We are committed to continuous innovation and improvement of product quality, with independent intellectual property rights and several patented technologies. Our products have passed CE, RoHS, and other international certifications, with reliable quality and excellent performance. At the same time, we also provide personalized customization services to meet your DIY needs.
What is WS2811 LED Strip?
WS2811 LED Strip is a colorful LED strip with external IC. DC12V or DC24V power supply voltage. Usually 3 lamp beads or 6 lamp beads (1 IC) form a pixel.
WS2811 is a three-channel LED drive control dedicated circuit. The chip contains an intelligent digital interface data latch signal shaping and amplification drive circuit, a high-precision internal oscillator and a 15V high-voltage programmable constant current output driver. At the same time, in order to reduce power supply ripple, the three channels have a certain delay conduction function, so that the circuit ripple can be reduced when the frame is refreshed.
WS2811 LED Strip is a colorful LED strip with three-channel LED drive control. Common specifications include 30 LEDs/meter, 60 LEDs/meter, 84 LEDs/meter, 96 LEDs/meter, 120 LEDs/meter and other specifications. The commonly used lamp bead package size is 5050 or 2835.
WS2811 LED Strip Advantages
【1】The regular length is 5 meters/roll, which can be cut by each group;
【2】The luminous color is pure, soft and gorgeous, with full color, seven colors, pure white, warm white, cold white and other special colors;
【3】Waterproof grade IP68, low voltage (5V/12V/24V) DC power supply is safe and reliable;
【4】Single point single control, 256 grayscale, small pixel spacing, low power consumption, low heat, wide viewing angle and other features;
【5】Can display video animation, images, text and other characters, with various effects that can be freely edited;
【6】The lamp beads are driven by constant current IC and have high stability;
【7】FPCB (flexible circuit) boards are made of rolled copper, which is more resistant to folding and can be bent at will.
WS2811 LED Strip Application
Hotel decoration, KTV project, Internet celebrity door, smart wear, sports bike, gym, balance bike,
City outline lighting: decoration of buildings, villas, bridges, signs, advertising light boxes, luminous fonts, Christmas landscapes, etc.
Public lighting: hospitals, villas, bridges, parks, gymnasiums, swimming pools, airports, subway stations, stations, etc.
Home furnishing dark groove inlay: door frames, bars, wine cabinets, wardrobes, TV cabinets, ceiling dark grids, etc., polygonal walls, ceiling grooves, steps and booths in shopping malls, hotels, nightclubs, KTVs, etc., car bodies, car bottoms, unicycles, balance bikes, etc., shoes, toys, and entertainment product decoration.
Wholesale WS2811 LED Strip Series
Voltage: 12V, 24V.
PCB Width: 5mm, 10mm, 12mm.
LEDs density: 30LEDs/m, 60LEDs/m, 96LEDs/m, 120LEDs/m.
Color: White, CCT, RGB, UV.
Waterproof type: IP20.
If the parameters of the ws2811 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.
WS2811 LED Strip Classification

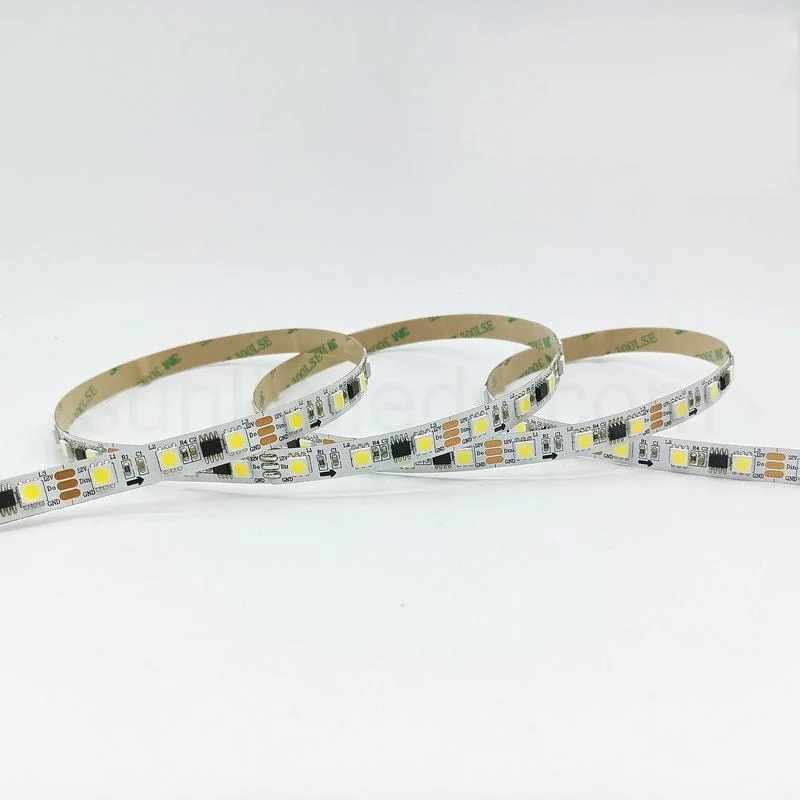

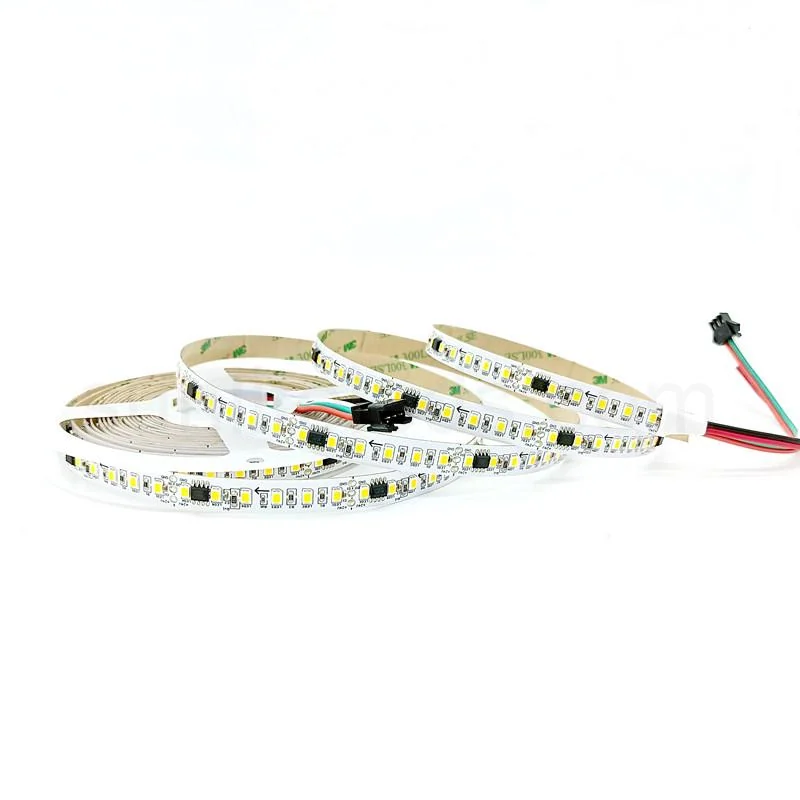

White WS2811 LED Strip By Series
Voltage: DC12V; LED density is 60 LEDs/m;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
CCT WS2811 LED Strip By Series
Voltage: DC12V; LED density is 30 LEDs/m, 60 LEDs/m;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
Specification Download
| Specification Name | Download |
|---|---|
| 3PIN SM16703 / WS2811 / UCS1903 30LEDs/m 12V CCT LED Strip Specification |
|
| 3PIN SM16703 / WS2811 / UCS1903 60LEDs/m 12V CCT LED Strip Specification |
|

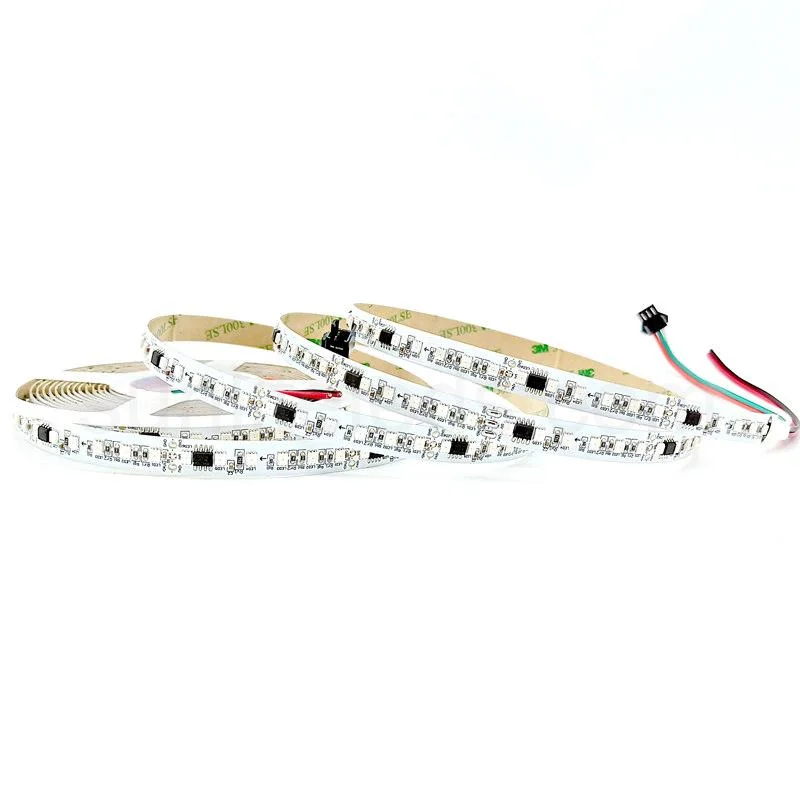

RGB WS2811 LED Strip By Series
Voltage: DC12V, 24V; LED density is 30 LEDs/m, 60 LEDs/m, 96 LEDs/m, 120 LEDs/m.
Specification Download
| Specification Name | Download |
|---|---|
| 3PIN WS2811F / FW1903 120LEDs/m 24V Addressable RGB LED Strip Specification |
|
UV WS2811 LED Strip By Series
Voltage: DC12V; LED density is 60 LEDs/m.
FAQ
Question 1. How to connect the WS2811 LED Strip?
Answer: The general power supply voltage of the light strip is DC12V~24V, and it needs to be powered by a switching power supply. The power of the power supply is determined by the power of the light strip and the connection length (do not overload the power supply, please leave a 20% margin for the power supply);
The light strip has positive and negative points. The products provided by our company have independent power lines (red and black lines), which are directly connected to the DC output of the switching power supply.
Question 2. How to connect the WS2811 LED Strip to the controller?
Answer: The Addressable WS2811 LED Strip needs to use a controller to achieve the changing effect. The effect can be edited by computer software. Copy the edited effect to the SD card (please format the SD card before use), and then insert it into the controller;
The signal mode is SPI (clock/data) mode. The number of points (distance) controlled by different controllers is different. The general controller can control 2048 points, and some can reach 8192 points.
Question 3. How long is the connection distance of the WS2811 LED Strip?
Answer: If the cascade number of the light strip is greater than 15 meters, there will be a voltage drop, resulting in inconsistent color and brightness of the front and rear lamp beads. It is recommended to reconnect the power supply in parallel.
Customized Addressable WS2811 LED Strip Solution
LED Type
SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality
30leds 48leds 60leds 72leds 90leds 96leds 120leds 144leds 200leds …
Voltage
3V 5V 9V 12V 24V 36V 48V 72V 110V 220V…
CCT
1800K 2400K 2700K 3000K 4000K 5000K 6000K 8000K 10000K …
Power(w/m)
4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
PCB
3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 20MM 22MM …
Lumen/M
500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
Waterproof(IP Rating)
IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape
3M 3M 9080A 30OMP 9495 VHB …
PCB Print
UL CE ROHS LOGO …
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
The following are the main products:
SPI LED strips: WS2811, WS2812, WS2813, WS2815, SK6812, SK6813, SK9822, UCS1903, UCS5603, UCS2903, UCS2904, APA102…
DMX LED strips: DMX RGB LED strips, DMX RGBW LED strips, DMX CCT LED strips…
LED neon lights: side-lit LED neon lights, direct-lit LED neon lights, round LED neon lights, black LED neon lights…
LED controller: K-1000C, K-8000C, XB-Z2, T–790K, SP106E, SP107E…
