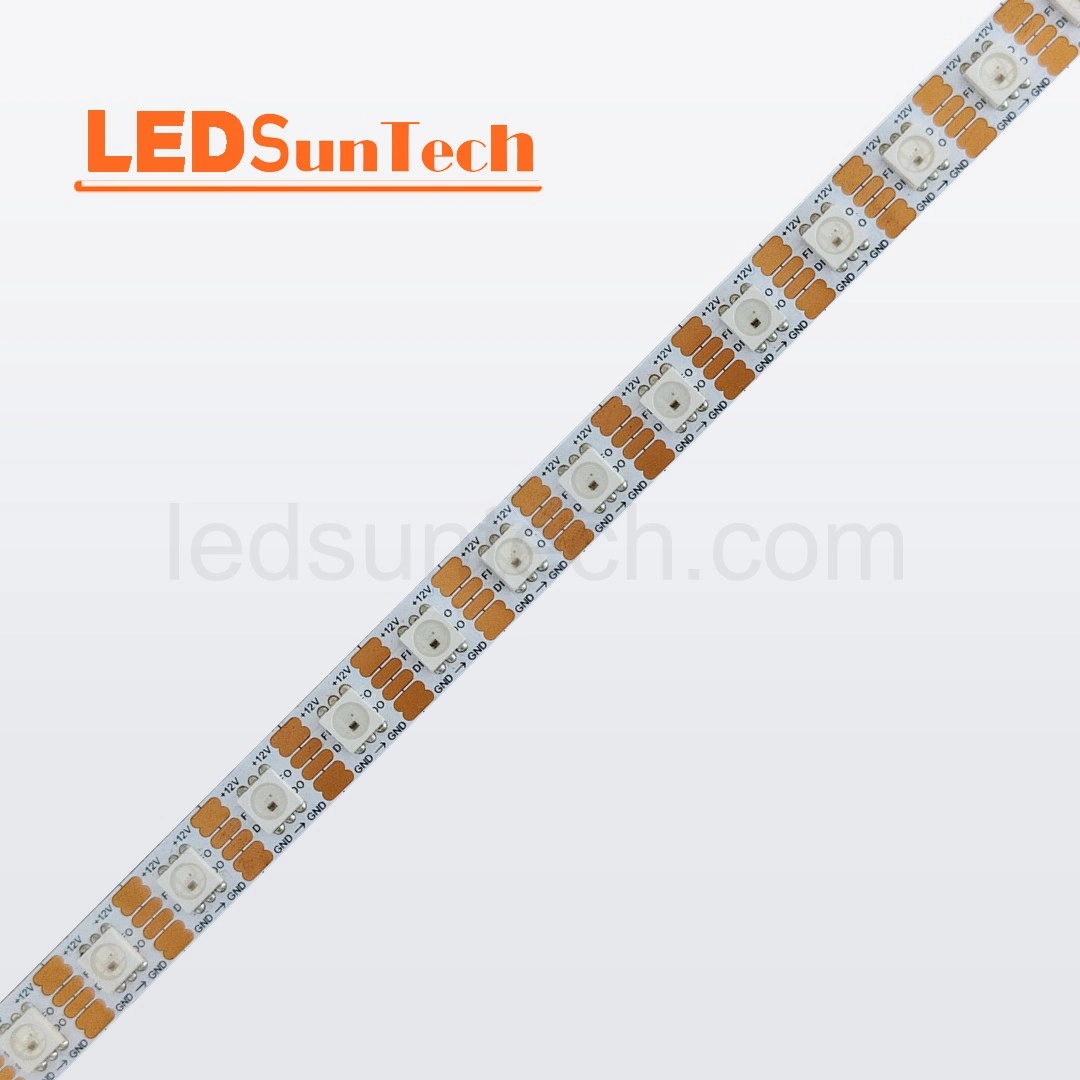

WS2815 LED Strip
Product Feature
1. The WS2815 LED strip works with multiple light sources. It can create both static and dynamic effects. It is suitable for both home use and commercial use, as well as various other scenarios.
2. The product line includes 12V WS2815 RGBW LED strips that deliver different colors, and this color performance makes them ideal for programmable projects as well as well-suited for applications requiring precise color control.
3. The WS2815 series has a complete range of models and provides extensive coverage of LED densities.
4. Besides the standard 12V WS2815 LED strip, we also offer a 24V version of the WS2815 LED strip. A key advantage of this 24V light strip is its ability to operate over long distances while eliminating the issue of voltage drop.
5. Built-in WS2815 LED IC, single-point single control can be achieved.
6. Dual signal transmission, breakpoint resume.
7. Each LED bead is an independent pixel for individual lighting control, and the light strip can be freely cut to installation needs without affecting the remaining part.
8. The control circuit and RGB chip are integrated into a 5050 package component to form a complete external control pixel.
9. The color of light is highly consistent and cost-effective.
10. All raw materials comply with RoHS standards.
11. Non-waterproof (IP20), waterproof with drip glue (IP65), waterproof with silicone sleeve/neon tube (IP67), and glue filling/solid extrusion in the sleeve (IP68), so you can use our light strips with confidence in various environments.
12. Your purchased product has a comprehensive warranty and a 5-year after-sales guarantee，and our customer service is always available—feel free to ask questions, and we’ll offer professional help.
13. Customizable options available: We can provide standard LED light strips, and we can also create customizable options like packaging, specs, and length for you.
14. Customized aluminum profiles: Aluminum profiles and groove options can be cut to specified lengths according to requirements
15. Customized assembly solutions: Provide LED strip and aluminum profile assembly services to simplify installation, with length and color temperature customizable as needed.
Our company recently launched the Individually Addressable RGBW 12V WS2815 With Backup Data Line Digital LED Strip Light. This bendable WS2815 RGBW LED strip features 72 LEDs/m on a 10mm PCB width. It’s a dual-signal version with signal continuity. Each LED is individually programmable and capable of displaying any desired color.
For more WS2815 pixel LED strips, please click here.
How to Control Addressable WS2815 LED Strips with ESP8266
WS2815 Programmable LED Strips Arduino Setup
WS2815 LED Strip Manufacturers & Suppliers
LEDSuntech is China’s leading WS2815 LED Strip light-making enterprise, exporting WS2815 LED Strip lights and LED lighting services all over the world, offering innovative/low-energy/healthy/environmentally friendly/energy-saving/solutions.
We’re in favor of persistent innovation and WS2815 LED strip light product upgrading, original intellectual property rights, and multiple patented technologies. The products have acquired CE, RoHS, and other foreign certifications, stable quality, and superior performance. OEM & ODM welcome.
If you want to purchase an excellent LED light strip, please feel free to contact us. We will sincerely offer you excellent products and services.
What is WS2815 LED Strip?
WS2815 LED strip is a colorful addressable LED strip with DC12V power supply voltage, built-in WS2815 IC single point single control, and breakpoint resume.
Common specifications include 30 LEDs/meter, 60 LEDs/meter, 66 LEDs/meter, 84 LEDs/meter, 96 LEDs/meter, 120 LEDs/meter, 144 LEDs/meter, etc.
WS2815 LED strip is almost the same as WS2813 LED strip, which is an upgraded version of WS2813. The main difference is that the 12V WS2815 LED strip has a smaller voltage drop than the 5V WS2813 LED strip, which supports longer distances without reducing brightness.
In addition to the regular 12V WS2815 LED strip, we also provide 24V WS2815 LED strip. This light strip supports long-distance operation without voltage drop. Welcome to consult.
WS2815 LED Strip Break Continue Function
Breakpoint resume in LED strip application means: that when the strip is powered on after a point in the output signal transmission process is interrupted (i.e. IC or this group of lamp beads fails), another spare signal line can bypass the fault point and transmit the signal to the next pixel point, so as not to affect the continued operation of other strips on the same line.
So if you have high requirements for the continuity of LED strip data transmission, please choose WS2815 LED strip with breakpoint resume function.
WS2815 LED Strip Advantage
1. All electronic components of the WS2815 LED strip are integrated into a 5050 lamp bead, and no other peripheral electronic components are required to assist, forming a complete externally controlled pixel point. At the same time, the WS2815 light strip reduces the defects caused by inverted drag soldering during product installation.
2. The WS2815 LED strip adopts a serial cascade interface and dual signal line transmission. The WS2815 realizes the function of breakpoint continuation. In the case of damage to a single pixel, it will not cause the normal lighting of the pixel below it, and the overall effect of the LED full-color light strip will not be affected.
3. The WS2815 LED strip has intelligent reverse connection protection. If the product is installed and connected to a 12V power supply, the lamp bead will not be damaged if it is connected.
4. The WS2815 LED strip has a built-in signal shaping circuit. After any pixel receives the signal, it is waveform-shaped and then output to ensure that the line waveform distortion will not accumulate.
6. When the transmission distance between any two points of the WS2815 LED strip does not exceed 5 meters, there is no need to add any signal amplification circuit.
7. When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points.
8. The data transmission speed can reach 800Kbps. The color consistency of the light is strong, and the cost performance is high.
WS2815 LED Strip Application
WS2815 LED strip light has rich and bright colors, high visibility and more visual appeal. It is widely used in wall corridors, indoor environment decoration, product model lighting decoration, game console lighting decoration, speaker lighting decoration, entertainment venues, wine cabinet bar backlight, ceiling backlight, LED light box light source, LED light sign, aquarium supplies, car decoration, etc. It is a new generation of lighting source to replace traditional neon lights, fluorescent lights and lamps.
Wholesale WS2815 LED Strip Series
Voltage: 12V, 24V.
PCB Width: 5mm, 8mm, 10mm, 12mm.
LEDs density: 30LEDs/m, 60LEDs/m, 66LEDs/m, 84LEDs/m, 96LEDs/m, 120LEDs/m, 144LEDs/m.
Color: White, RGB.
If the parameters of the ws2815 led strip above do not have what you need. Then don’t hesitate to contact our experienced team of engineers for customization.
WS2815 LED Strip Classification
WS2815 White LED Strip By Series
Voltage: DC12V; LED density is 60 LEDs/m, 84 LEDs/m, 96 LEDs/m, 120 LEDs/m;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN WS2815 120LEDs/m 12V Addressable White LED Strip Specification |
|
WS2815 RGB LED Strip By Series
Voltage: DC12V, 24V; LED density is 60 LEDs/m, 66 LEDs/m, 84 LEDs/m, 96 LEDs/m, 120 LEDs/m, 144 LEDs/m.
Specification Download
WS2815 RGBW LED Strip By Series
Voltage: DC12V; LED density is 72 LEDs/m;
White Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
WS2815 LED Strip Connector
WS2815 LED strip uses 4 pin connector because it has 4 wires: Positive + Negative + Data Wire + Backup Data Wire.
WS2815 LED strip is an upgraded version of WS2813 LED strip, which supports longer distance operation than WS2813. If the operating distance exceeds 5 meters, it needs to be recharged.
Please pay special attention to the correct voltage and data transmission direction, otherwise the light strip will burn out.
WS2815 LED Strip End to End Connect
Need DC12V Voltage-Adding
Note: (1) The voltage is 12V. (2) Data transmission direction.
WS2815 LED Strip Distribution Wiring Diagram
To illuminate the WS2815 LED strip, you need to prepare at least a 12V power supply, an LED controller (K1000C, K8000C, or SP pixel series controller), and the WS2815LED strip. It is worth noting that, first, the working voltage is 12V, which is very important, otherwise it will not turn on or burn out the light strip; second, use a 4-pin LED connector. You can refer to the simple connection diagram below for the connection.
WS2815 Vs. WS2813 Key Difference: Voltage Drop
WS2815 LED strip is almost the same as WS2813. But the operating voltage is different: 12V for the WS2815 LED strip (of course, we also provide 24V WS2815 LED strip), and 5V for the WS2813 LED strip. Therefore, the WS2815 LED strip can run a longer distance than the WS2813.
The voltage drop of the WS2815 LED strip is much lower than that of WS2813. WS2813 LED strip needs to be recharged every 2 meters, while WS2815 LED strip needs to be recharged every 5 meters. Otherwise, the brightness will be dimmed at the far end of the light strip.
FAQ
Q1: What do I do if WS2815 lamp beads do not illuminate or flash at all?
A: It might be due to inadequate wiring or malfunctioning light strips; therefore, you can try ensuring the wiring is firmly secured or replacing the faulty light strips.
Q2: What do I do if I can’t control the WS2815 LED strip synchronously in colors?
A:The issue could be incorrect controller settings or excessive signal transmission distance. Try resetting the controller or installing a signal amplifier to boost transmission strength.
Q3: What do I do if WS2815 LED strip brightness is not adequate?
A: Luminescence attenuation may stem from an inefficient power supply or excessive use of light strips. You can replace it with a higher-capacity power supply or change out the light strips.
Q4: What can I do if the WS2815 LED strip color becomes unstable?
A: The output signal of the controller may be unstable, or the defective light strip could be the cause. See if the output signal of the controller is okay, or swap out the defective light strip.
Customized Addressable WS2815 LED Strip Solution
LED Type
SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality
30leds 48leds 60leds 72leds 90leds 96leds 120leds 144leds 200leds …
Voltage
3V 5V 9V 12V 24V 36V 48V 72V 110V 220V…
CCT
1800K 2400K 2700K 3000K 4000K 5000K 6000K 8000K 10000K …
Power(w/m)
4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
PCB
3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 20MM 22MM …
Lumen/M
500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
Waterproof(IP Rating)
IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape
3M 3M 9080A 30OMP 9495 VHB …
PCB Print
UL CE ROHS LOGO …
Why Choose Our WS2815 LED Strip?
High Quality LED Chips
- LEDs are all encapsulated with double-layer high-thickness 99.99% gold wire, with a lifespan of >50000 hours.
- Famous brand chips SANAN / EPISTAR / SAMSUNG, etc.
- High color temperature consistency, high lumen output, good heat dissipation, high light transmittance, no leakage.
Thick Copper FPCB
- 3oz thick copper layer PCB design is stable, lower voltage drop, better heat dissipation.
- Pure copper circuit board, high softness, best conductivity.
- The thicker the FPCB, the smaller the voltage drop.
Safe Wire
- Safe and high quality wire, good conductivity, fast heat dissipation, stable and safe.
- Our standard cables are all 20 AWG, UL certified, and 20 cm long.
- Other sizes and lengths are also available.
3M Adhesive Tape
- Thermal conductive tape, 3M 300LSE (Standard), 3M VHB, Original 3M double-sided adhesive tape.
- Good thermal conductivity, no odor.
- Strong adhesion, not easy to fall off.
Anti-interference Capacitance
- Low high-frequency loss, can carry a large current.
- High insulation resistance and good self-healing.
- Long service life, stable temperature characteristics.
Mass Production
- The production process is an overlooked part of the process that directly affects whether your LED works properly.
- Environmentally friendly materials are needed that are more stable and longer lasting.
Manufacturing
LEDSuntech has been focusing on the production of LED light strip products since 2008. It has high-speed automated packaging lines, automated SMD and bonding lines, automated extrusion lines, and automated lighting production lines. Every production step such as LED packaging, high-speed SMT, automatic welding, and full range of waterproofing is subject to strict quality control. Provide customization and ODM&OEM. Guaranteeing customers high-quality, cost-effective products and fast delivery.
The following are the main products:
SPI LED strips: WS2811, WS2812, WS2813, WS2815, SK6812, SK6813, SK9822, UCS1903, UCS5603, UCS2903, UCS2904, APA102…
DMX LED strips: DMX RGB LED strips, DMX RGBW LED strips, DMX CCT LED strips…
LED neon lights: side-lit LED neon lights, direct-lit LED neon lights, round LED neon lights, black LED neon lights…
LED controller: K-1000C, K-8000C, XB-Z2, T–790K, SP106E, SP107E…
