WS2818 LED Strip
Product Feature
1. As an upgraded version of the WS2811, WS2818 features redundant signaling, which significantly enhances the stability of IC-controlled LED strip lighting systems.
2. With a data transmission rate of 800Kbps and a refresh frequency of up to 2KHz/s, WS2818 can respond quickly and smoothly to the controller’s SPI signals, so it can enable the synchronized display of complex dynamic patterns.
3. Compared with the 5V WS2813 and WS2812B, under the same specifications, the 12V voltage support of WS2818 allows for LED strip lengths of up to 5 meters.
4. Although WS2818 does not have the individual addressability function of the 12V WS2815, it offers greater cost advantages than the WS2815 RGB in most animated effect lighting scenarios.
5.The WS2818 LED strip is 12V or 24V
6. External WS2818 LED IC.
7. The WS2818 LED strip has a breakpoint resume function, which can continue the original lighting state after a power failure or signal interruption is restored.
8. The WS2818 LED strip has highly consistent light colors and excellent cost-effectiveness.
9. All raw materials utilized in the WS2818 LED strip adhere to RoHS standards.
10. Different protection levels: No waterproof (IP20), drip glue waterproof (IP65), silicone sleeve/neon tube waterproof (IP67), and sleeve glue filling/solid extrusion (IP68), so that you can use our light strip with confidence in various environments.
11. Warranty 5 years: Our company offers warranty services and 5 years of after-sales protection for your purchase, and at any time, our customer service team is waiting and standing by to answer your questions and provide help.
12. Customizable options available: We can provide standard LED light strips, and we can also create customizable options like packaging, specs, and length for you.
13. Customized aluminum profiles: Both aluminum profiles and groove selections can be tailored to designated lengths according to requirements.
14. Customized assembly solutions: Provide LED strip and aluminum profile assembly services to simplify the user’s installation process and provide personalized length and color temperature options.
We recently launched 24V, 120 LEDs/m high-density WS2818 RGB addressable LED strips. PCB widths are available in 5mm, 8mm, and 10mm. These 120 LEDs/m high-density WS2818 RGB LED strips have a longer lifespan than traditional 120 LEDs/m WS2812 addressable LED strips, which generate a lot of heat and are easily damaged when installed in neon tube lights.
To learn more about WS2818 pixel LED strips and how to control, please click here.
WS2815 vs. WS2812 vs. WS2818 LED Strips
WS2818B vs FW1935/TM1934 vs FW1834
WS2818B VS UCS5603A VS UCS5603B LED Strips
WS2818 LED Strip Manufacturers & Suppliers
LEDSuntech, being one of China’s foremost WS2818 LED Strip Light factories, provides LED Light Strip and LED Lighting to overseas markets, and provides innovative/low powered/healthy/environmentally friendly/energy saving/solutions.
We have passed CE, RoHS, and other foreign certifications, and our products have good quality and excellent performance. OEM & ODM support. We have 14-year WS2818 LED strip production experience. We have complete production line and quality control, and can provide you different specs and different types of LED light strip to satisfy different needs of you.
If you want reliable LED light strip materials, please feel free to contact us, and we will sincerely provide you with high-quality products and services.
What is WS2818 LED Strip?
WS2818 LED Strip is a programming LED strip with external WS2818 IC, DC12V or DC24V power supply voltage, usually 3 lamp beads or 6 lamp beads (1 IC) form a pixel, with breakpoint continuous transmission.
WS2818 LED strip is a three-channel LED drive control dedicated circuit, using a high-precision internal oscillator and 12V high-voltage programmable constant current output driver and high-precision constant current control module, the chip has a built-in voltage regulator, 12V and below power supply only need to string resistor to ICVDD pin, no external voltage regulator is required.
LED density has 30 LEDs/meter, 60 LEDs/meter, 84 LEDs/meter, 96 LEDs/meter, 120 LEDs/meter and other specifications. The commonly used lamp bead package size is 5050 or 2835.
WS2818 LED Strip Breakpoint Resume
WS2818 LED strip is dual signal transmission, breakpoint continuous transmission. Breakpoint resume means that when the light strip is powered on, after a point in the output signal transmission process is interrupted (i.e. IC or this group of lamp beads fails), another spare signal line can bypass the fault point and transmit the signal to the next pixel point, so as not to affect the continued operation of other light strips on the same line.
WS2818 LED strip is an upgraded version of WS2811 LED strip. However, WS2818 LED strip is dual signal transmission, with a breakpoint resume function. WS2811 LED strip is a single signal transmission, and can not breakpoint resume. Other than that, the two are almost the same. As shown in the figure below.
To learn more, please click WS2818 vs. WS2811.
WS2818 LED Strip Advantage
The light source of this series of products adopts high-quality ultra-high brightness LED, which has high brightness, low power consumption, good consistency, large angle, no radiation, strong environmental adaptability and long service life. Three LED lights (DC12V) or six LED lights (DC24V) can form a circuit (pixel point), which is light in size, rich in patterns and colors, can be fixed arbitrarily, and is easy to install.
WS2818 LED Strip Application
- Decorative landscape: city skyline lighting villa advertising wall sign Christmas.
- Irregular design of human body decoration: shopping malls, hotels, nightclubs, polygonal wall KTV， Venue ceiling cavity design.
- Public lighting fixtures: schools, libraries, hospitals, airports, subway stations, railway stations.
- Furniture dark groove decoration: doors, bars, wine cabinets, wardrobes, TV cabinets, etc.
- Car beauty: body, bottom of the car, trolley balance car, etc.
Wholesale WS2818 LED Strip Series
Voltage: 5V / 12V / 24V.
PCB Width: 5mm, 8mm, 10mm, 12mm.
LEDs density: 50 LEDs/m, 60 LEDs/m, 72 LEDs/m, 120 LEDs/m.
Color: White, CCT, RGB,UV.
Waterproof type: IP20.
If the parameters of the ws2818 led strip above do not have what you need. Then please contact our experienced team of engineers for customization.
WS2818 LED Strip Classification
WS2818 White LED Strip By Series
Voltage: DC12V; LED density is 60 LEDs/m, 70 LEDs/m, 120 LEDs/m; PCB width: 8mm, 10mm;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN WS2818 60LEDs/m 12V Addressable White Specification |  |
| 4PIN WS2818 72LEDs/m 12V Addressable White Specification | |
| 4PIN WS2818 120LEDs/m 24V Addressable White Specification | |
WS2818 CCT LED Strip By Series
Voltage: DC12V; LED density is 60 LEDs/m, 72 LEDs/m; PCB width: 8mm, 10mm;
Color temperatures are 1800K, 2700K, 3000K, 4000K, 5000K, and 6500K, but the color temperature can also be customized.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN WS2818 60LEDs/m 12V Addressable CCT Specification | |
| 4PIN WS2818 72LEDs/m 12V Addressable CCT Specification | |
WS2818 RGB LED Strip By Series
Voltage: DC 5V / 12V / 24V; LED density is 50 LEDs/m, 60 LEDs/m, 72 LEDs/m, 120 LEDs/m; PCB width: 5mm, 8mm, 10mm, 12mm.
Specification Download
| Specification Name | Download |
|---|---|
| 4PIN WS2818 60LEDs/m 12V Addressable RGB Specification | |
| 4PIN WS2818 72LEDs/m 12V Addressable RGB Specification | |
| 4PIN WS2818 120LEDs/m 24V Addressable RGB Specification | |
WS2818 UV LED Strip By Series
Voltage: DC 12V / 24V; LED density is 60 LEDs/m; PCB width: 10mm.
WS2818 LED Strip Unique PCB Design
Our WS2818 LED strips use a unique PCB design. If you have custom requirements, please feel free to consult our professional team of engineers.

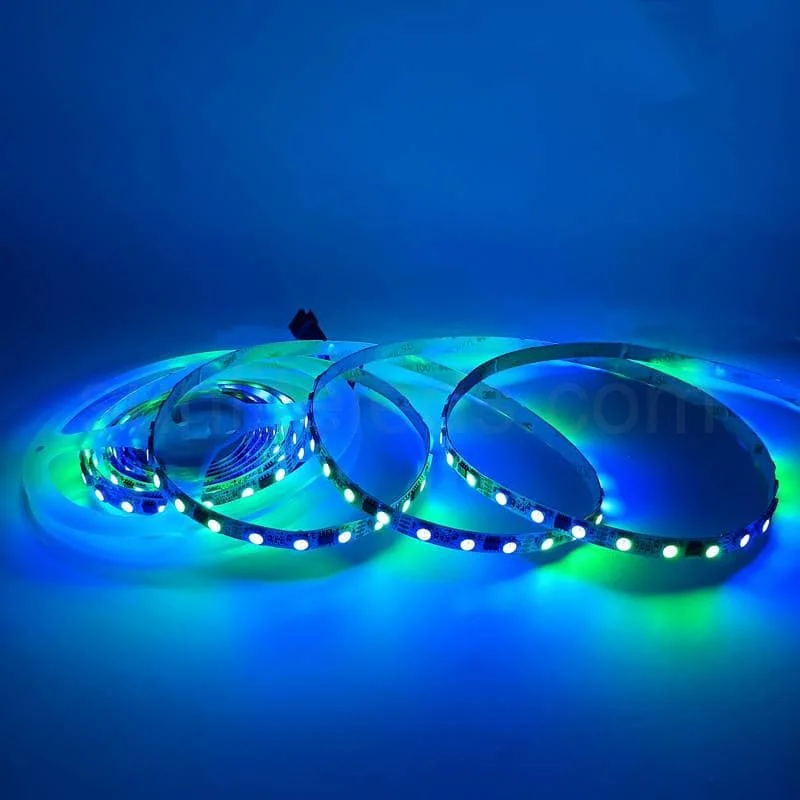

12V WS2818 Addressable RGB LED Strip
24V WS2818 Addressable RGB LED Strip
FAQ
Question 1: What is a WS2818 LED?
Answer: The WS2818 is a 3-channel LED driver control circuit that includes an intelligent digital port data latch and a signal reshaping amplifier driver circuit.
The reshaping amplifier driver chain also includes a precision internal oscillator and a programmable 12V voltage. The constant current control element helps to achieve highly consistent color effects.
Question 2: How does the WS2818 LED achieve breakpoint continuation?
Answer: The WS2818 has good characteristics in signal breakpoint continuous transmission and adopts dual signal transmission. These signals are able to run together without interference. The first DIN/BIN chip can be selected by the user as the controller. The signal input pin and subsequent cascade chips will automatically recognize the output signal generated by the first chip.
Customized WS2818 LED Strip
LED Type
SMD2835 SMD5050 SMD3528 SMD3014 SMD2216 SMD2110 SMD3838 SMD3535 SMD4040
LED Quality
30leds 48leds 60leds 72leds 90leds 96leds 120leds 144leds 200leds …
Voltage
3V 5V 9V 12V 24V 36V 48V 72V 110V 220V…
CCT
1800K 2400K 2700K 3000K 4000K 5000K 6000K 8000K 10000K …
Power(w/m)
4.8W/M 6W/M 7.6W/M 10W/M 14W/M 18W/M20W/M 24W/M 36W/M …
PCB
3MM 4MM 5MM 6MM 8MM 10MM 12MM 15MM 20MM 22MM …
Lumen/M
500lm/M 600lm/M 700lm/M 800lm/M 900lm/M 1000lm/M1200lm/M1500lm/M 2000lm/M …
Waterproof(IP Rating)
IP20 IP54 Silicone spray, IP65 Silicone Dropping, IP67 Silicone Tube, IP68 Silicone gel pouring …
Adhesive Tape
3M 3M 9080A 30OMP 9495 VHB …
PCB Print
UL CE ROHS LOGO …
